OPTIONS
Chrome Graphics w/silver stripe
SHORE (TAN) EXTERIOR UPHOLSTERY PACKAGE
Steel Blue
Steel Blue underside of hardtop
Black Canvas
White Frame
Q-300 V8 4S DTS WHITE
STANDARD INTERIOR
Bow Tow Eye
Aft cockpit tables fiberglass (2)
Bow Table Synthetic teak w/ Filler Cushion
Bow Sun Shade
Sun Shade - Retractable electric - cockpit
Scuba Tank Rack (4)
Spotlight
Underwater Blue LED Lighting-Quad Engines
Receptacles 12V at Transom for Reels/Downriggers (2)
Summer Kitchen (Gyro)
Freezer Plates in Stbd Fishbox
Cockpit foldout bench seat - stbd
Radial Outriggers (black)
Theft Deterence System
Thermal Night Vision M324S w/Pan, Tilt & Zoom
Premium Audio
Satellite Radio
Engine Flush System Quad engines
Gyroscopic Stabilizer
Diesel generator upgrade
Yacht Tender Package
Autopilot EV-400
16" Raymarine Axiom XL Electronics/Nav
16" Raymarine Axiom XL Addt'l Display
Open Array Radar w/Satellite Weather
Upgrade camera, FLIR thermal M364C 30hz, replace slam latches w/ lockable slam latches on draws
Canvas Cover Package
STANDARD EQUIPMENT
• All rails welded 316-L stainless steel
• All hardware 316-L stainless steel
DECK/COCKPIT
• 10" stainless steel pull-up cleats: bow (2), spring line (2), crosstie cleats at transom (2)
• 10" stainless steel cleats: stern cockpit with gunnel board hawse pipe (2), anchor locker (1)
• 29" interior freeboard
• Acrylic transom door with stainless steel latch
• Anchor – galvanized
• Anchor roller davit – stainless steel thru hull
• Bow eye – heavy duty polished stainless steel
• Chrome Boston Whaler logo
• Dive door – molded fiberglass boarding door on port side with removable stainless steel dive ladder with dedicated storage in transom seat
• Drink holders – stainless steel; (2) in bow, (2) in hawse pipes, (2) at helm, (2) at console lounge, (2) in cockpit couch armrests and (4) in couch flip table
• Full coaming bolsters from bow to stern
• Lighting – LED courtesy lighting throughout cockpit, blue rope lighting
• Lighting – LED courtesy lights in mechanical bilge (4-white), bow seating storage compartments (3-blue), anchor working area (white) and console storage (3-white)
• Livewell – pressurized (60 gallon) located at the transom on centerline with acrylic lid, blue interior with removable divider and dual red LED lighting (2000 GPH pump)
• Motorwell drains
• Rails – low profile interior bow rail – welded stainless steel
• Rails – cockpit toe rails – stainless steel
• Rails – grab rails – stainless steel; forward lounge (2), couch leaning post, cabin companionway
• Rod holders – stainless steel gunnel mounted; at bow (4), STBD cockpit (3), port cockpit (2), integrated into hardtop frame(6)
• Rod holders – stainless steel transom mounted (2)
• Rod holders – under starboard gunnel (3) for 6' rods (deleted with cockpit seating option)
• Rub-rail – heavy duty white rub-rail with stainless steel insert
• Self-bailing cockpit sole
• Swim platform with recessed telescoping boarding ladder and grab rail
• Under gunnel storage shelf with downrigger weight holders (2 per side)
CONSOLE
• Center helm layout
• Compass with back lighting
• Dash visor with custom stitched cover and recessed storage tray with USB and 12v charging receptacles
• Drink holders (2)
• Electrical switch panel with illuminated text
• Electronics mounting surface with space for dual 16" displays
• Footrest molded into console with fold-down standing platform with maintenance free, anti-fatigue synthetic surface, provides improved visibility for captain and starboard passenger
• Ignition switches – remote key switches in main DC panel cabinet with pushbutton start/stop at helm
• Lockable acrylic sliding entry door
• Mercury® DTS dual binnacle controls with integrated engine trim controls
• Steering wheel – cast stainless steel with knob and tilt helm
• Stereo (FUSION® Apollo MS-RA770 with 4.3" color tough screen controls) (integration into Raymarine® with Navigation Package) – includes premium multi- source, multi-zone system, AM/FM, MP3, WiFi, USB and AUX input, iPod/iPhone/ Android compatible via integrated Bluetooth®, Sirius XM option ready, stereo remote controls with LCD display and full audio control from cabin, helm and bow, JL Audio waterproof speakers – exterior, 6.5" aft cockpit (2), 7.7" at helm deck (2), 7.7"
component at bow (2), 10" sub-woofer at helm deck (1), 6.5" in cabin (2) with JL Audio amplifiers
SEATING
• Foldaway stern bench seat
• Forward console lounge with fold-down armrests, drink holders (2) center armrest with (2) cup holders and 2 outboard arm rests (when center is folded down it provides access to dual USB charging ports)
• Forward deck wrap-around seating with flip-up backrests, drink holders (2), stereo remote and fish box pump out switch
• Helm and companion bolster style seats (3) with fold-down armrests (center seat is electrically actuated, side seats have manual fore and aft adjustment)
• Aft facing seating with stainless steel cup holders integrated into the arm rest (2)
STORAGE EXTERIOR
• Bow anchor locker with drains
• Insulated in-floor fishboxes with pump-out; aft (2) forward (1)
• Lifejacket or optional canvas enclosure storage in the hardtop
• Lockable console front storage – holds (2) 5-gallon buckets and one 36 qt cooler (included)
• Storage under bow seating with LED blue lighting
• Under gunnel cockpit storage shelves
• Helm Deck side coaming pockets with storage nets and blue LED Lighting
• Bow side coaming pockets with storage pockets and blue LED lighting
• Insulated storage compartment under aft facing seat with drain and insulated sealed lid (upgradable to livewell option)
STORAGE INTERIOR
• Storage cabinet on port side
• Storage under galley
• Storage in head
HARDTOP/WINDSHIELD SYSTEM
• Flood lights (2) recessed into hardtop lighting cockpit area
• Flood light (1) recessed into hardtop lighting bow area
• Hardtop support frame – custom powder coated aluminum frame integrated into the deck providing unobstructed walkways – White – (Standard) Hardtop frame, Hardtop ladder bars (Upper Station Frame, Hardtop Storage Rack and Canvas Enclosure Options if applicable)
• Black – Hardtop frame, Hardtop ladder bars (Upper Station Frame, Hardtop Storage Rack and Canvas Enclosure Options if applicable)
• Hardtop access; portside ladder to hatch in hardtop
• Lighting; recessed LED courtesy lighting (blue) (6)
• Lighting; recessed 2 color LED courtesy chart light (red and white) (1)
• Lifejacket/Canvas Enclosure storage
• Lockable electronics box in hardtop
• Outrigger ready
• Rod holders (6)
• Tempered curved glass windshield with electric actuated vent
• Tempered full height side glass
• Windshield defogger integrated into hardtop
COUCH LEANING POST
• Aft facing couch with insulated cooler storage under hinged seat, stainless steel cup holders recessed into seating arms (2) (optional 40-gallon livewell under seat)
• Prep station work surface – easy stow-and-go work surface with teak counter, stainless steel drink holders (4) and poly cutting board
• Grab rails (3)
• Refrigerator/freezer – stainless steel pullout drawer (1.75 cubic feet)
• Storage drawers (3) starboard side drawer system
• Helm and companion bolster style seats (3) with fold-down armrests (center seat is electrically actuated) (side seats have manual fore and aft slides)
• Port side fold-down footrest
• 120 V electrical outlet
CABIN INTERIOR
• Dual USB receptacle, (2) 120 V outlet
• Air conditioner with exterior dash outlets (12K BTU)
• Convertible settee / double berth with easy to clean fabric upholstery
• Fold down seat backs with durable material providing storage conversion surface
• Flooring – solid teak
• Lighting – LED diffused courtesy lights (blue)
• Lighting – LED switchable overhead lights (4) (white)
• Microwave
• Opening portholes (2)
• Skylight and side lights (3)
• Storage cabinets
• Rod storage, (4) 6.5' and (2) 7.5' rods
• Vanity with custom vessel sink
• Trash receptacle
ENCLOSED HEAD
• Fiberglass enclosure with frosted acrylic locking door
• Hinged solid teak toilet cover
• Shower with dedicated wand/sprayer
• Toilet paper holder
• VacuFlush toilet, holding tank with tank vent filter, overboard discharge, and dockside pump-out
• Storage drawers (not compatible with freezer plate option)
MECHANICAL

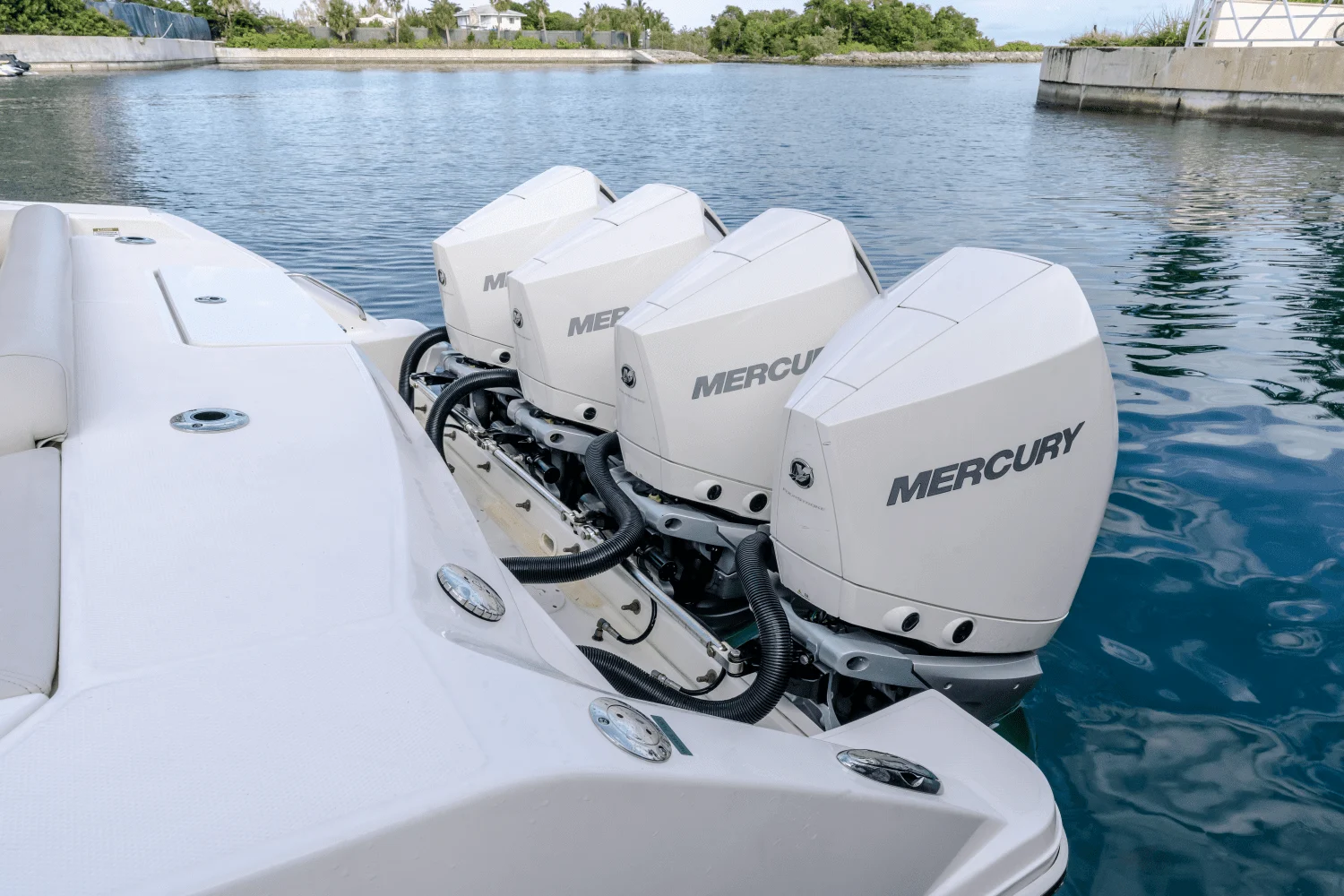

• 300 V8 DTS Black Triple Mercury Verado® engines with Joystick Piloting; outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality (Raymarine or other standalone optional autopilot not permitted with Joystick Piloting)
• Active Engine Trim (Mercury option that automatically adjusts drive trim based on speed)
• Active Engine Trim upper station (Mercury option that automatically adjusts drive trim based on speed) (must select an upper station option)
• 445-gallon aluminum fuel tank
• Bilge pumps – automatic (1100 GPH berth, 2000 GPH bilge)
• Bilge pump – high water bilge pump with visual and audible alarm (2000GPH)
• Battery charger – 40 AMP and 50 AMP @ 12 V multistage smart charging
• Battery trays (5) with remote switches and automatic charging/paralleling relays
• Bonding system for underwater through hull fittings
• Cast bronze thru hull and seacocks (below waterline)
• Cast stainless steel thru hulls (above waterline)
• Cockpit and machinery space lighting
• Electric trim tabs with indicator (dual ram)
• Electric drive trim
• Electric trumpet horn
• Engine fuel/water separators
• Freshwater – pressurized hot and cold-water system with dockside hookup, with tank level indicator integrated into VesselView® with a 60-gallon tank
• Freshwater manifold system with individual valve per circuit
• Freshwater – hot and cold, sink and shower in console, pull-out shower at transom and dive door
• Freshwater washdown – stainless steel spigot in aft cockpit and anchor compartment
• Generator – low CO gas (7.5 kW) 120 V 60 Hz with fire suppression system, automatic with manual override
• LED navigation lights recessed in hardtop
• Propellers – stainless steel
• Raw-water washdown – stainless steel spigot in aft cockpit
• Self-leveling tab system – Dynamic Running Surface
• Shore power inlets – dual 30-amp with isolation transformers and 50 ft shore power cords included
• Transducer pocket in hull bottom for flush mounting B260/B275 transducer
• Water heater (6 gallon)
• Windlass with handheld remote control, 400' rode with anchor swivel, 35 lb anchor integrated into bow with a polished stainless steel bow roller
• Windshield wiper with wash system
