Options
- 2 cabins, 2 heads and shower

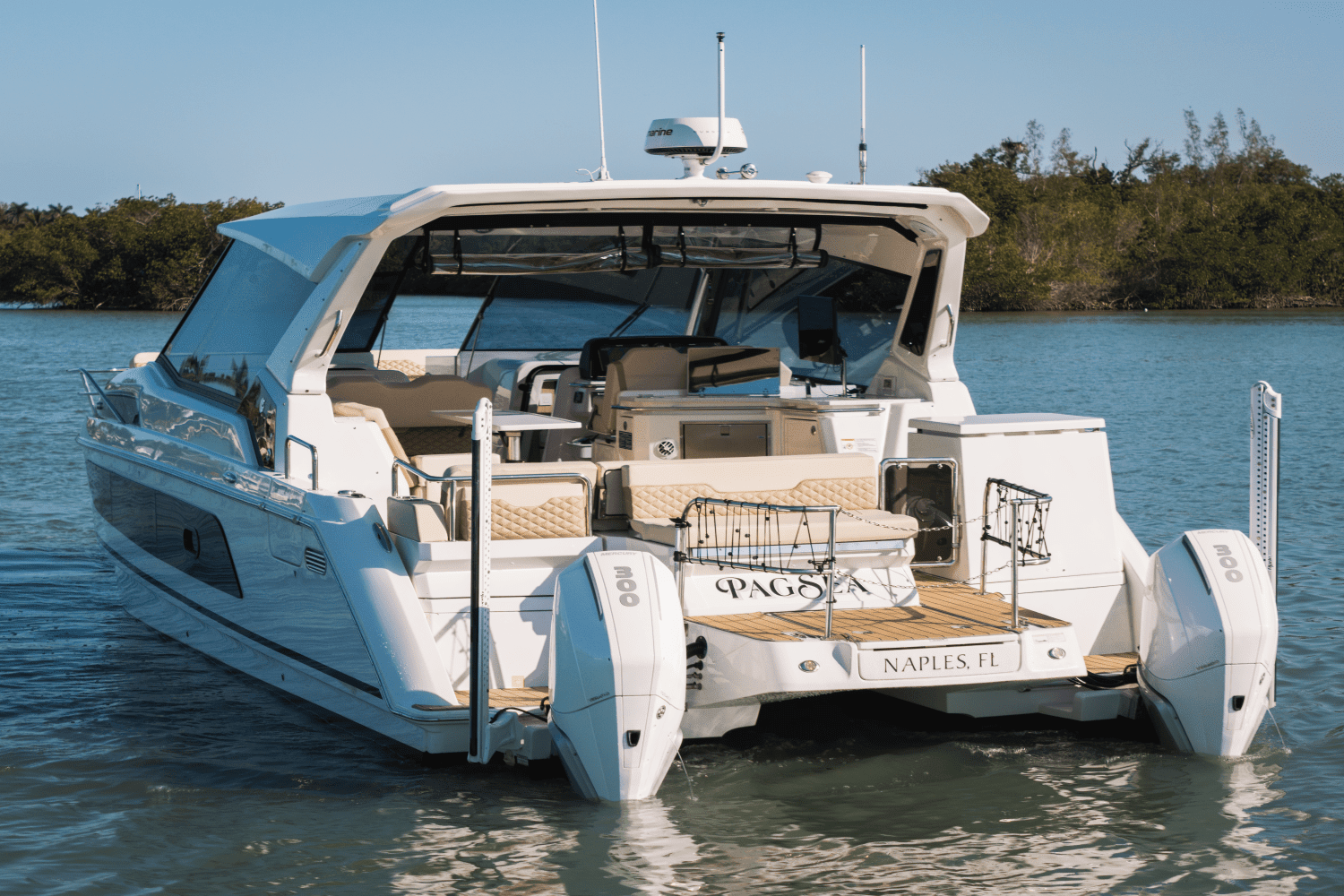

- 2 x 300 hp Mercury VDO w/ active trim control
- Std hard top roof w/ 2x open hatches
- Full height windscreen and side windows
- Joystick 2x 300hp Mercury VDO V8 - white
- Main deck floor in non skid - standard
- Mocha - upgraded to ultra leather seating

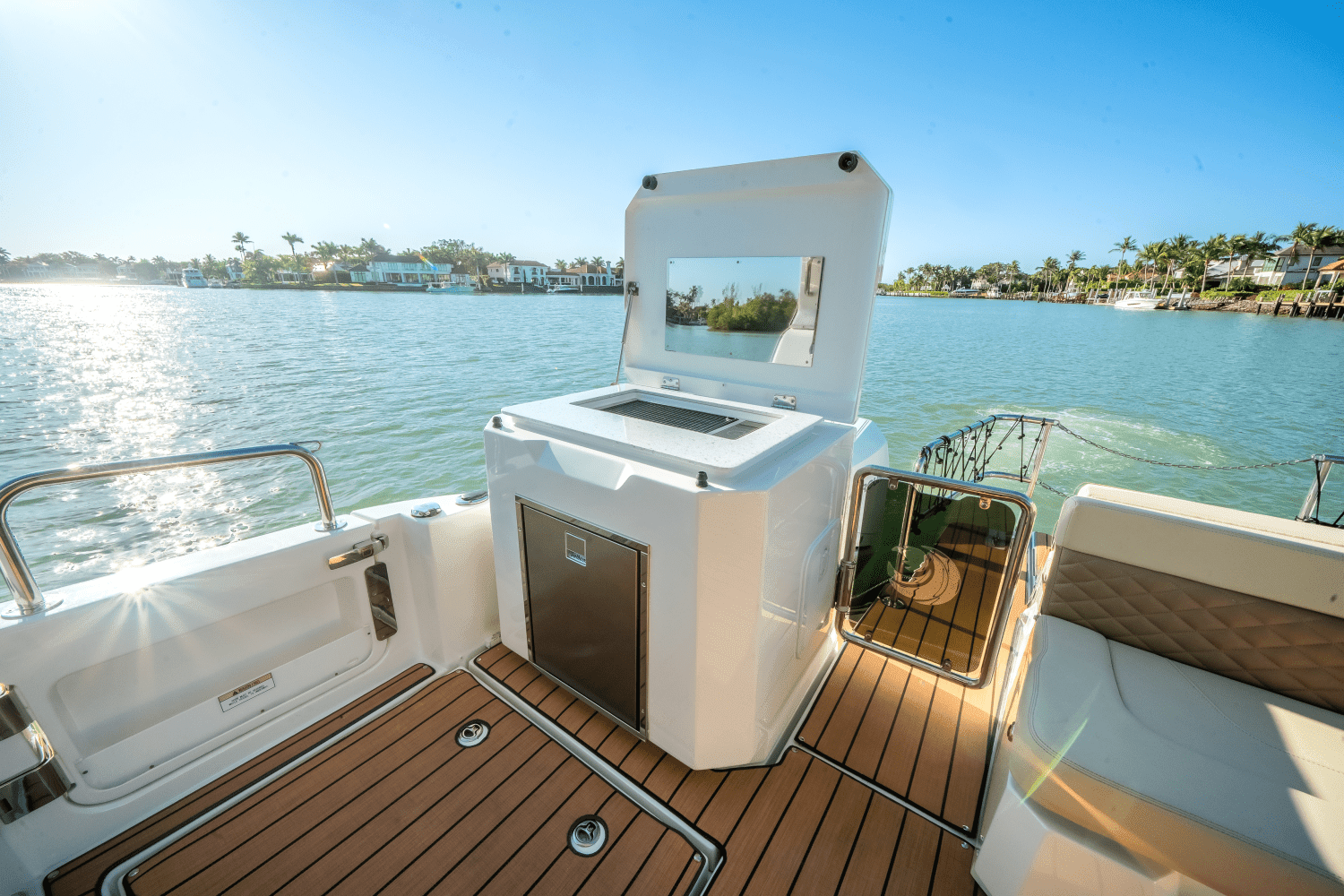

- Mod-bbq top w/ 42L ss fridge / freezer
- Std port aft seating
- Drop down salon table w/ removable cushion
- Galley cook top induct (1) burn ele (gen req)
- Black canvas cover-bow seat strg
- Black aft drop canvas door encl.
- Forward deck seating removable sunshade system
- A/C both cabins (2x 6000 BTU)
- A/C main deck 16000 BTU
- 1 fan in each cabin (total 2)
- Manual retract swim ladder
- Windlass - hand cntrl all chain / 165 ft, w/ upgraded ss anchor and bridle
- Wireless remote for windlass
- Generator - diesel Fischer panda 5kw
- Additional 200Ah house battery
- Spot light with remote
- Underwater lighting led 4x blue
- Premium blue led lighting package
- Deck wash down - fresh water
- Raymarine 12" axiom pro s chart plotter w/ cpt-s thru-hull
- Transducer
- Mercury vessel view 403 display
- Raymarine ray9-vhf with speaker and antenna
- Change order fee
Standard Features
Interior Layout
- Two (2) cabins with private en-suite showers and fresh water electric toilets
- Private lockable companionway hatch to each cabin
Deck Layout

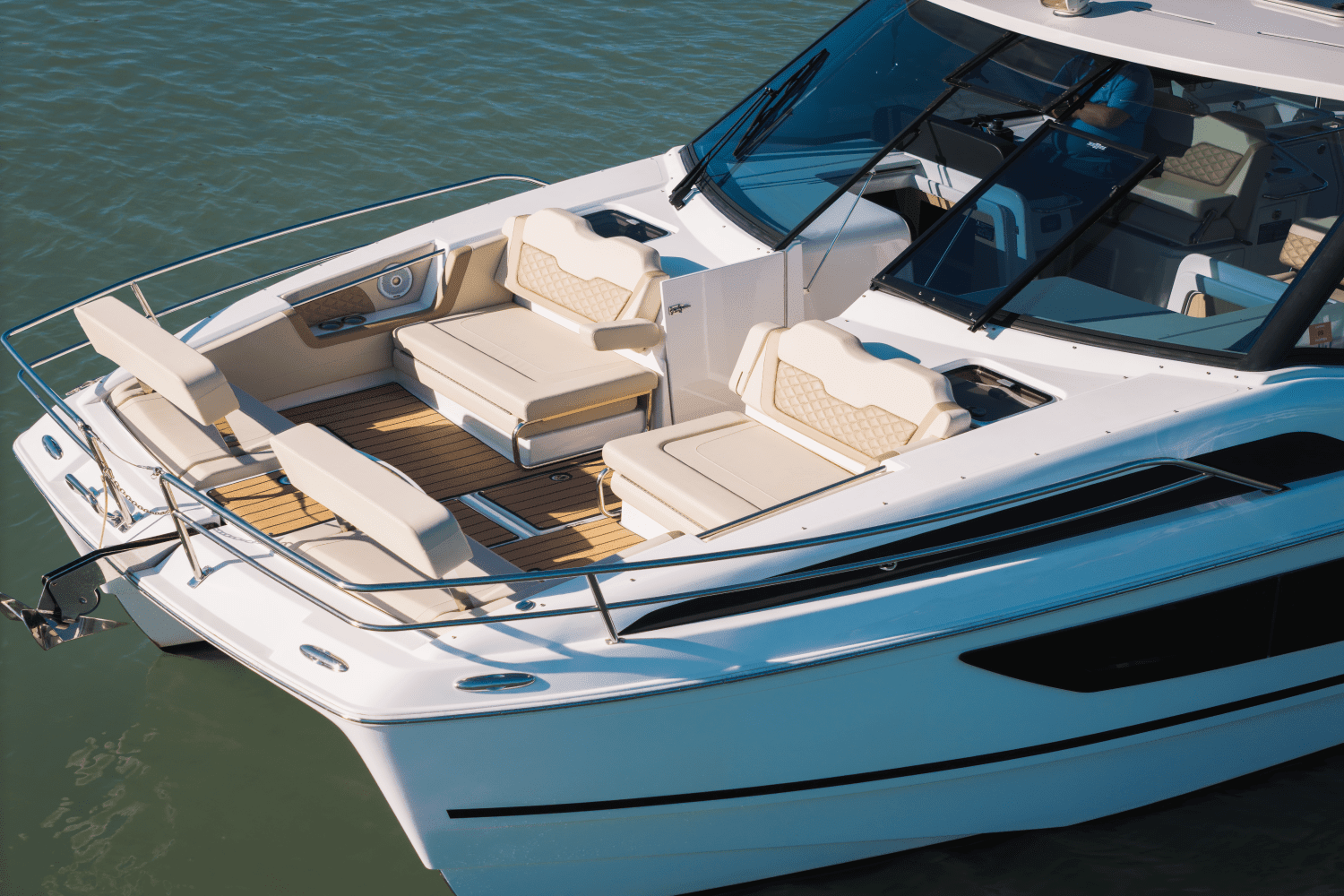

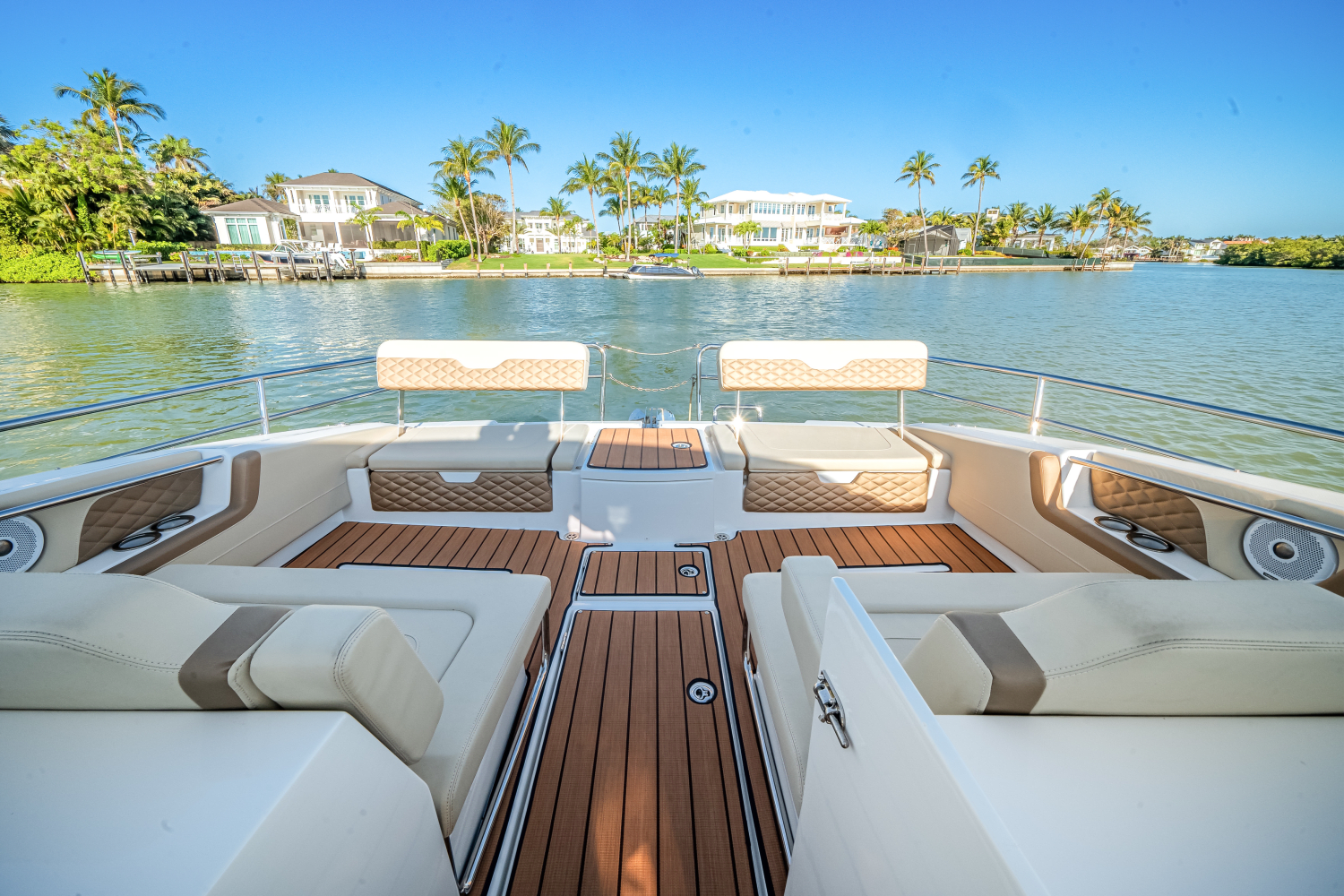

- Forward cockpit seating that comfortably seats eight (8), converts to two (2) large sunbeds
- Helm station to starboard with comfortable seating for two (2) passenger seating to port in line with comfortable helm station seating for two (2)

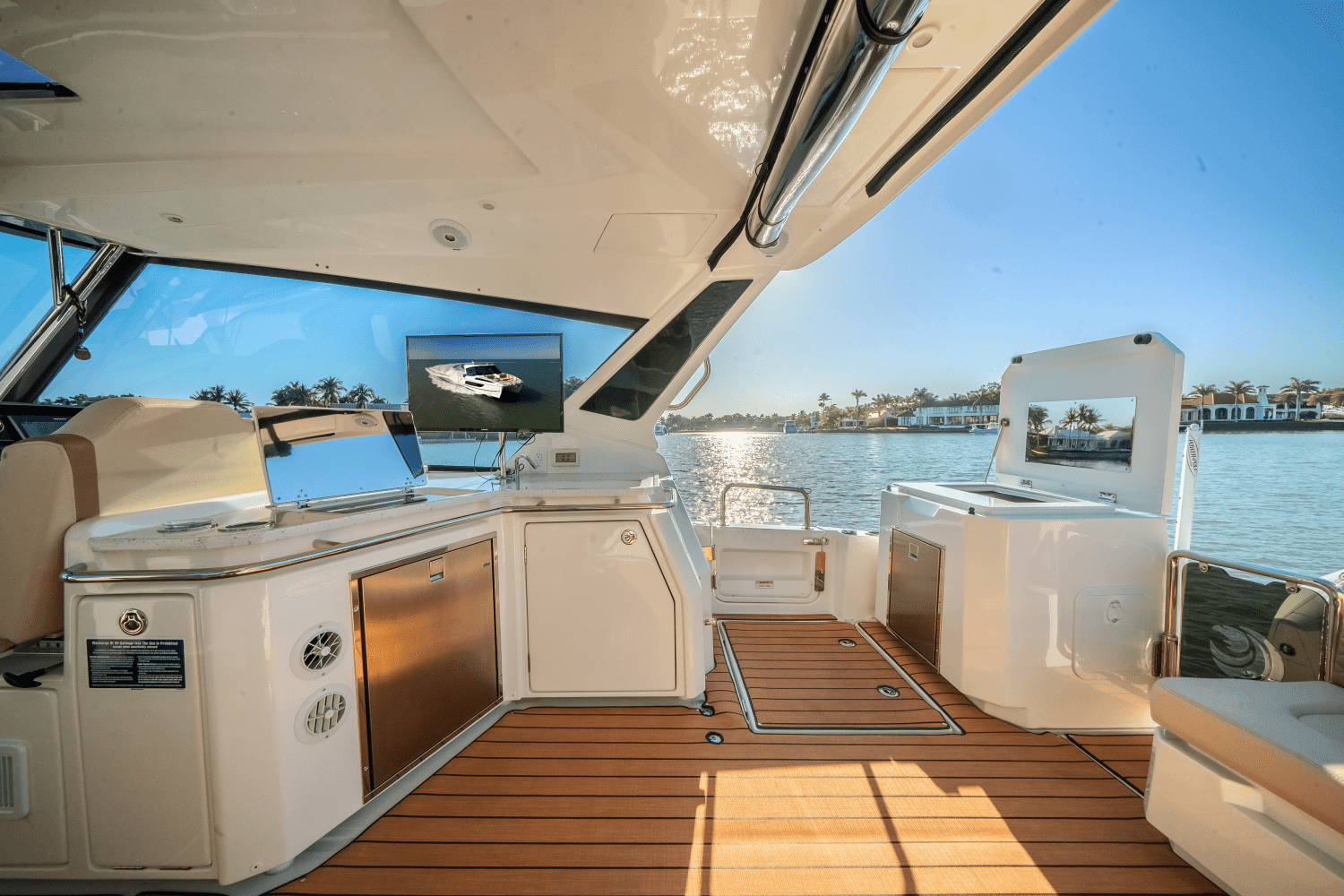

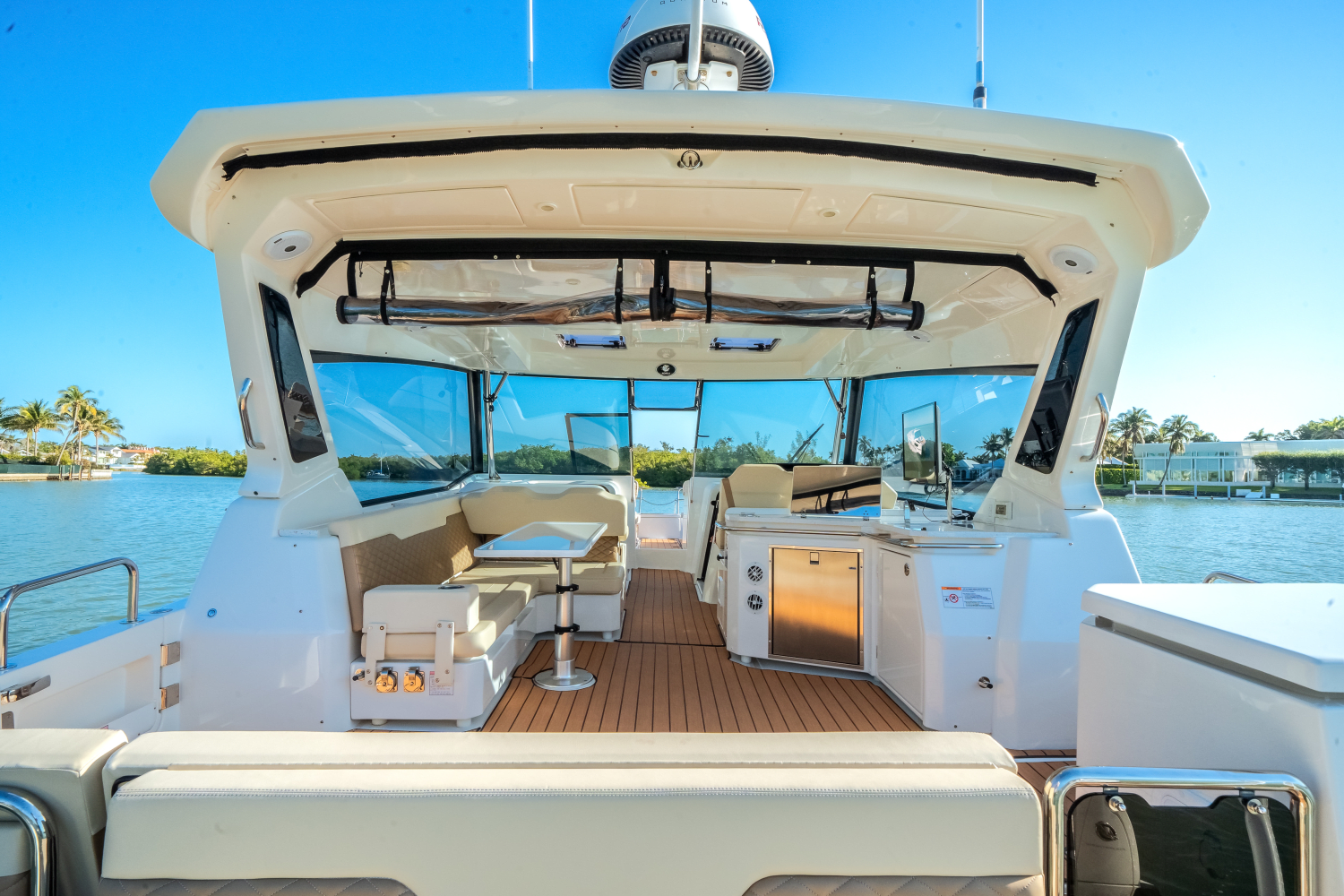

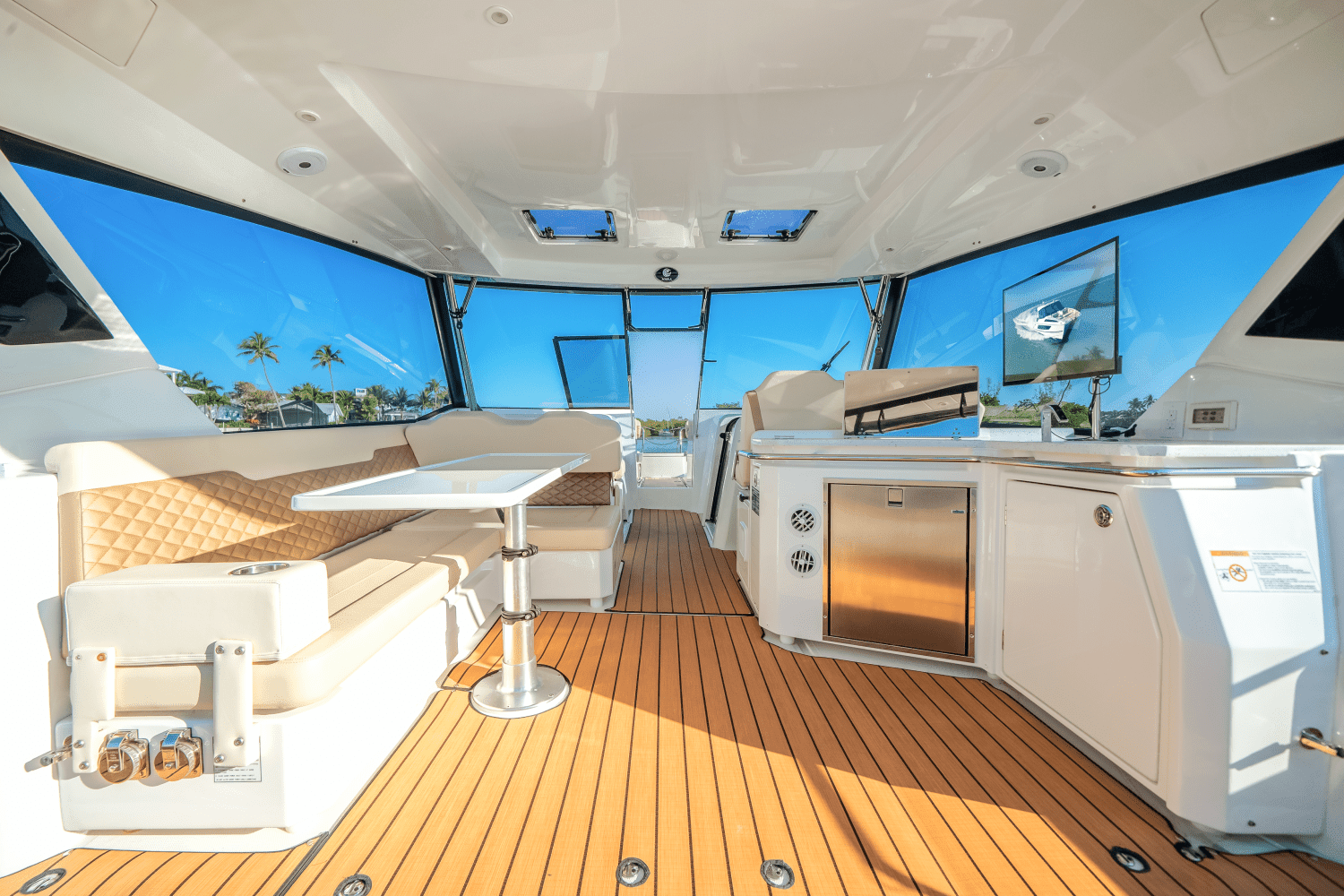

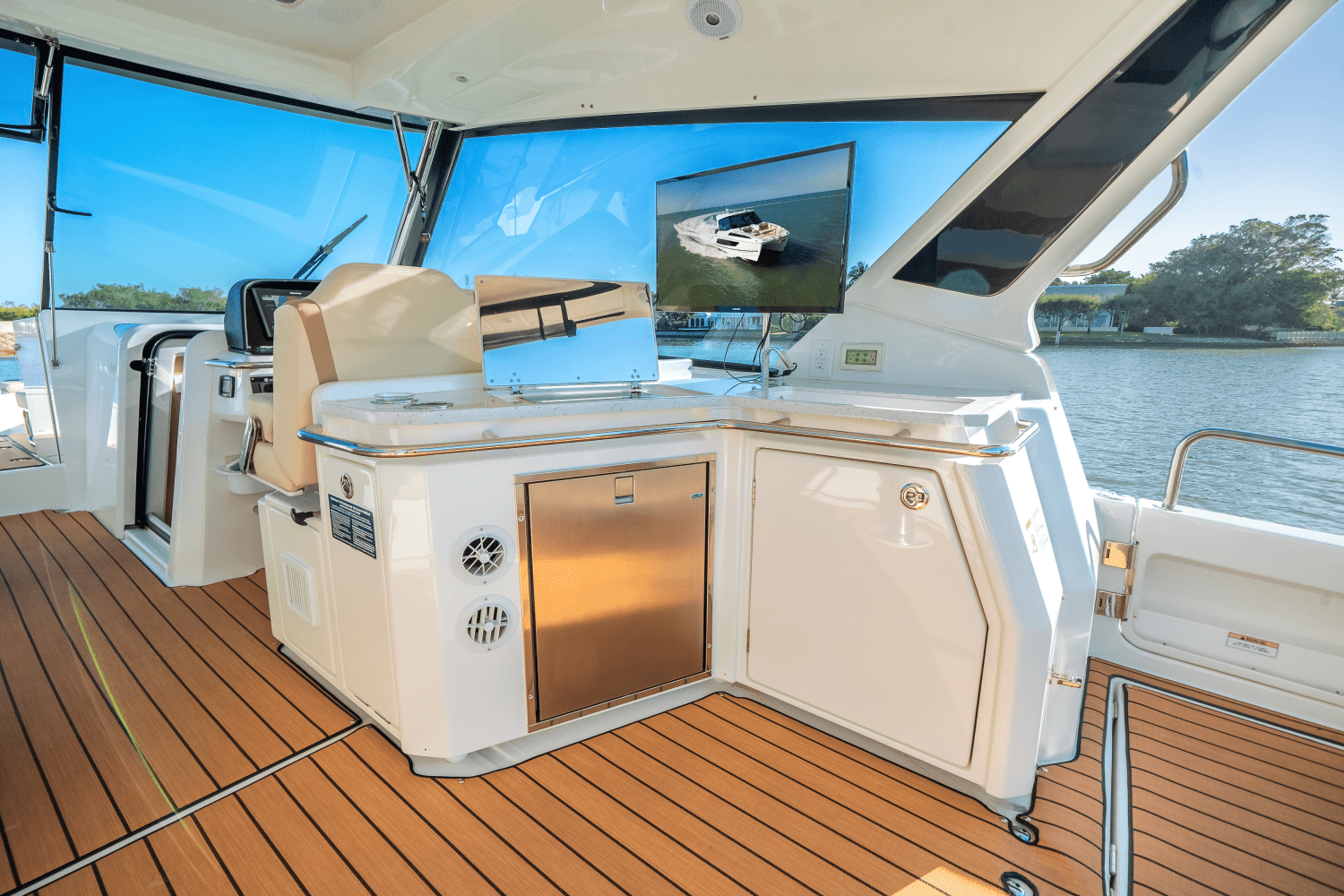

- Galley to starboard with Corian surface, 85 L/3.0 c ft fridge/freezer, storage, wash basin and AC power sockets

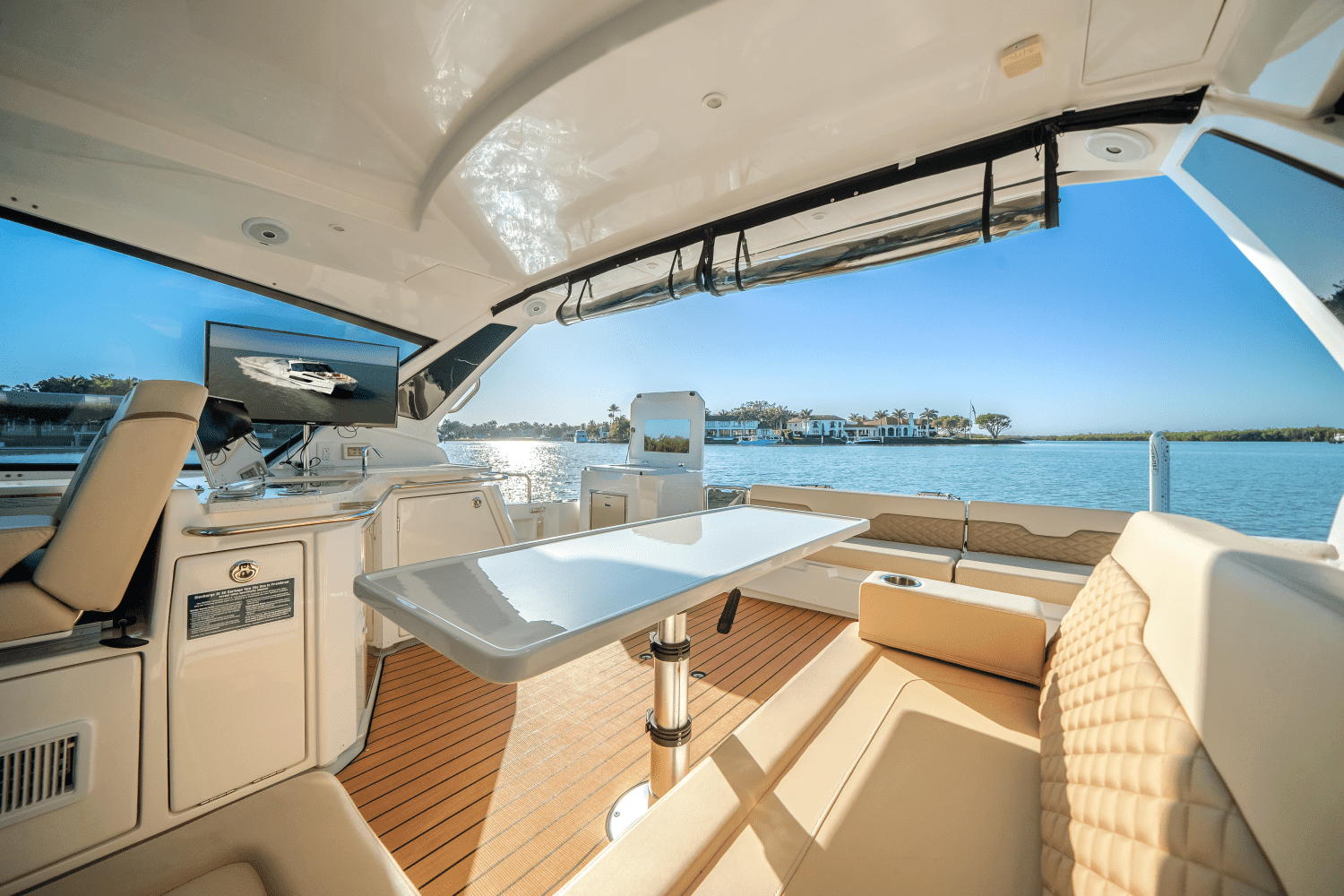

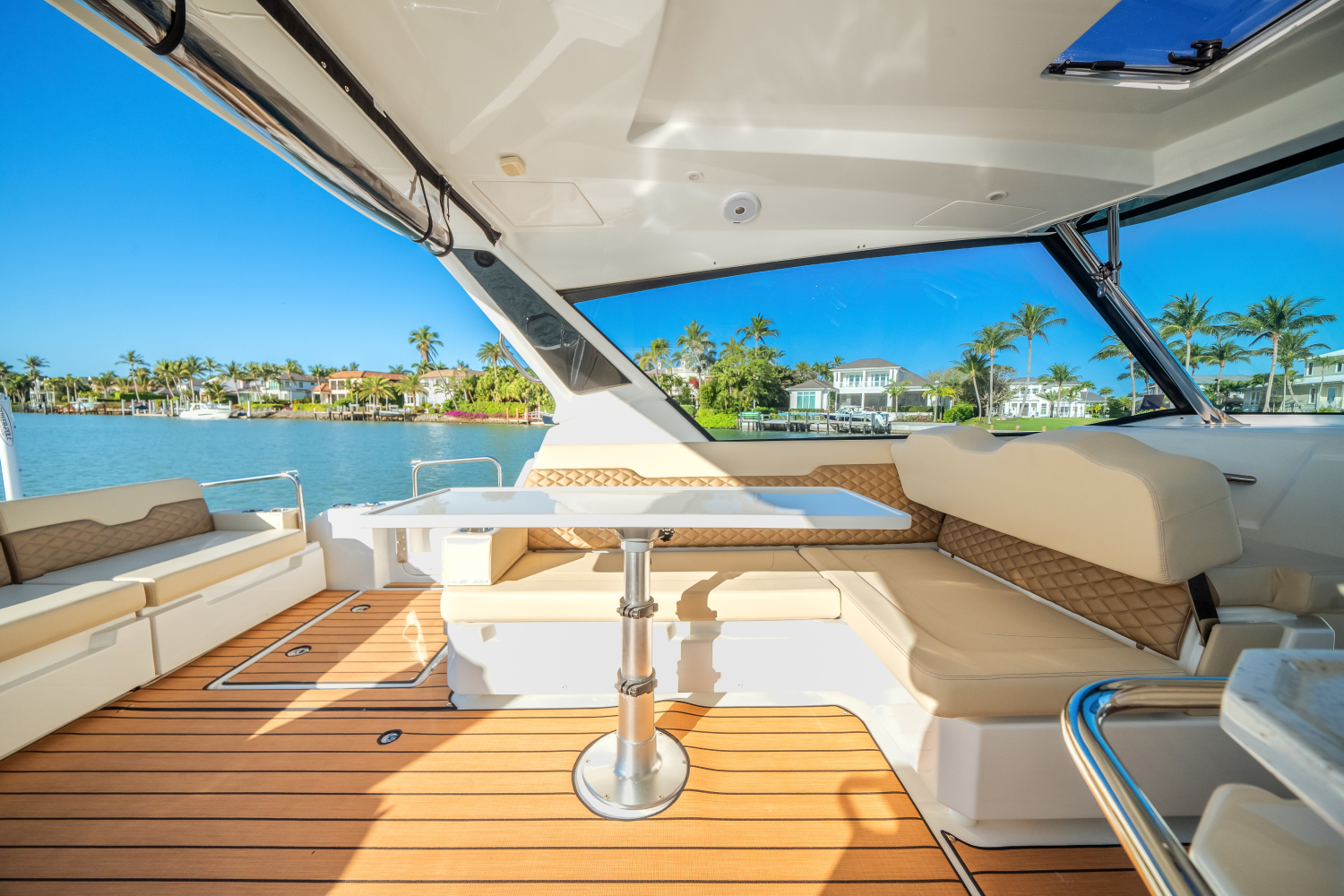

- Settee seating with folding table to port
- Insulated cooler and drain built into seating port

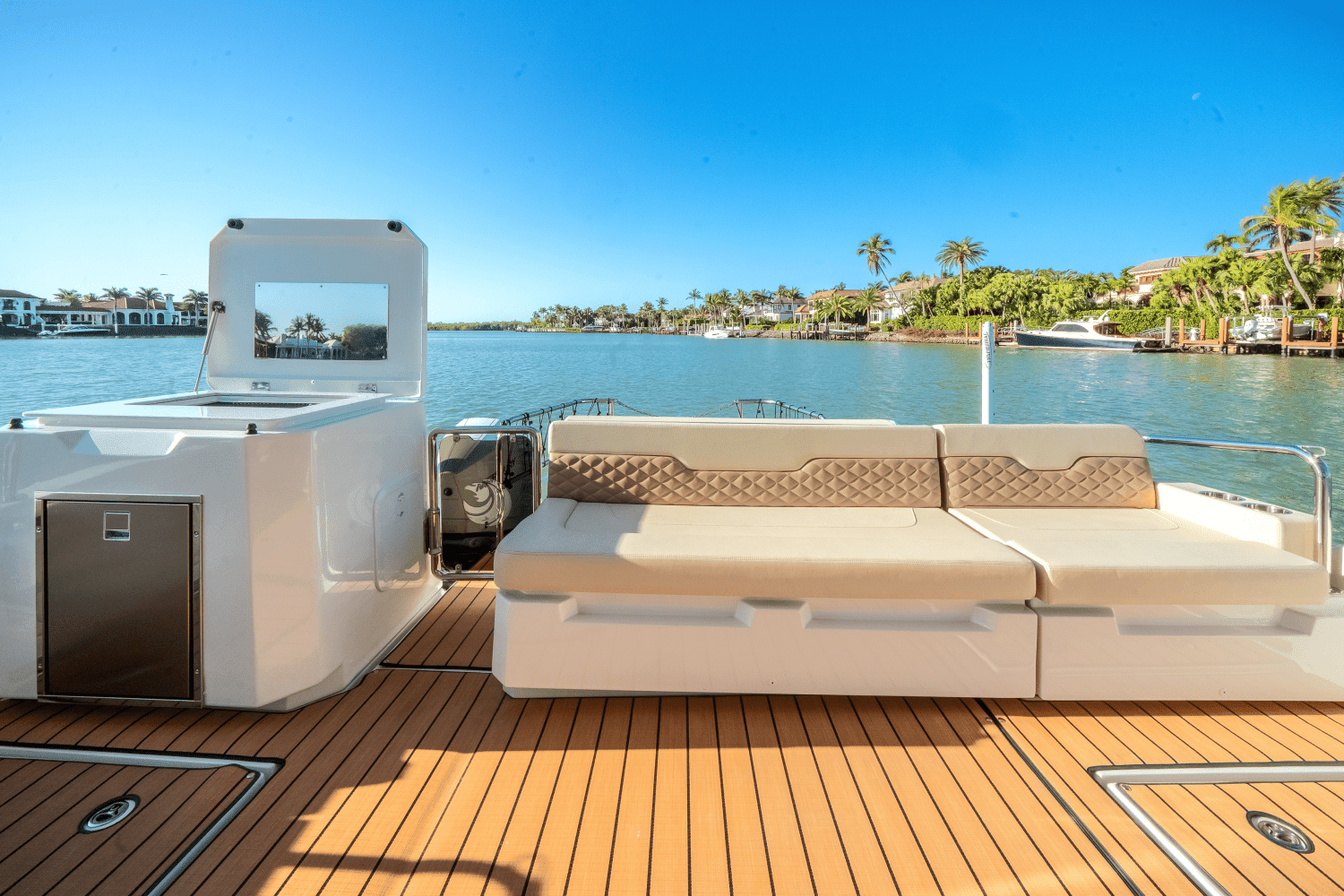

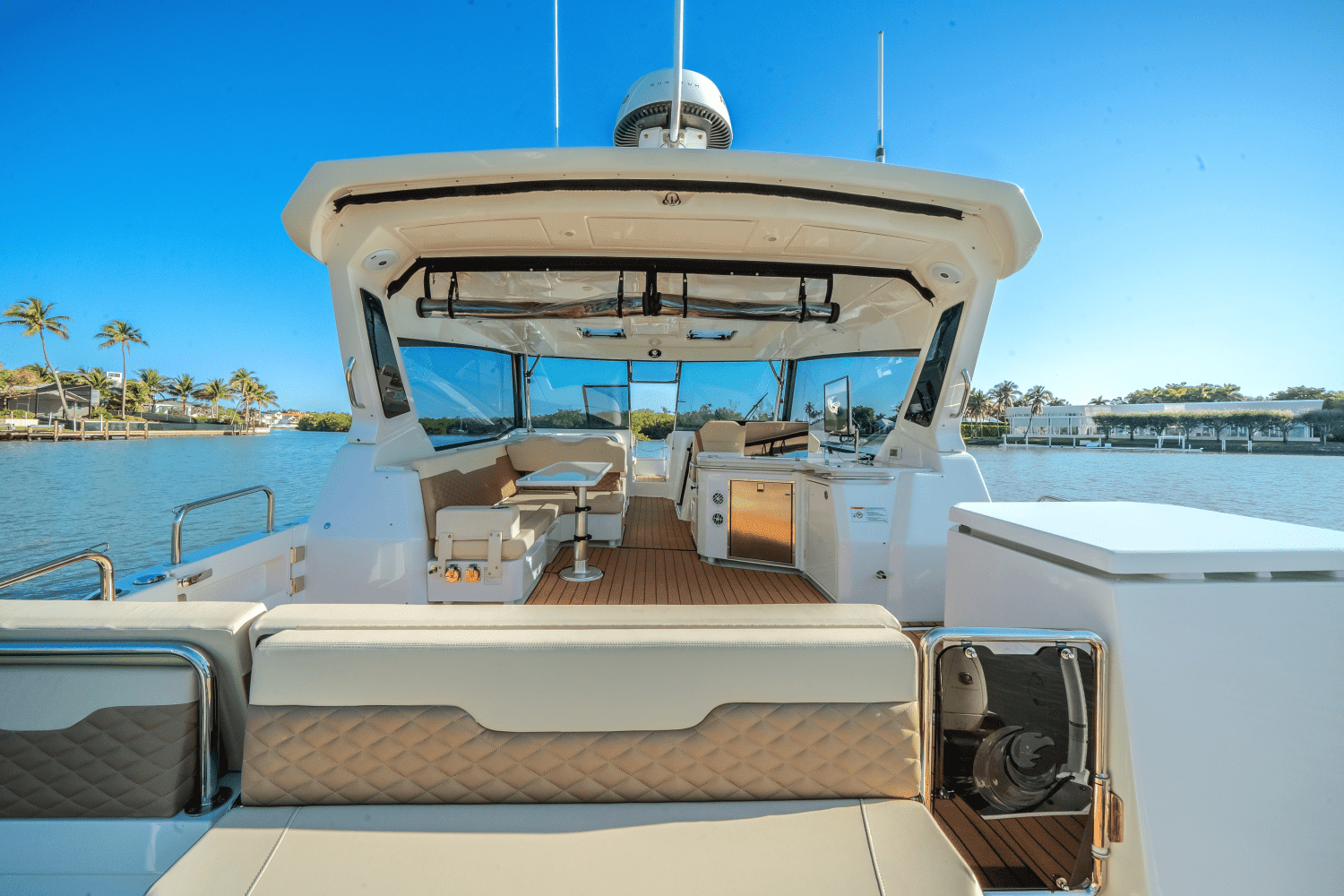

- Convertible seating aft that converts to sunbed, facing forwards or aft
- Seating at aft deck on port and starboard sides which face forward
- Entire deck area self draining aft with additional scuppers forward
- Side boarding doors port and starboard with heavy duty hardware

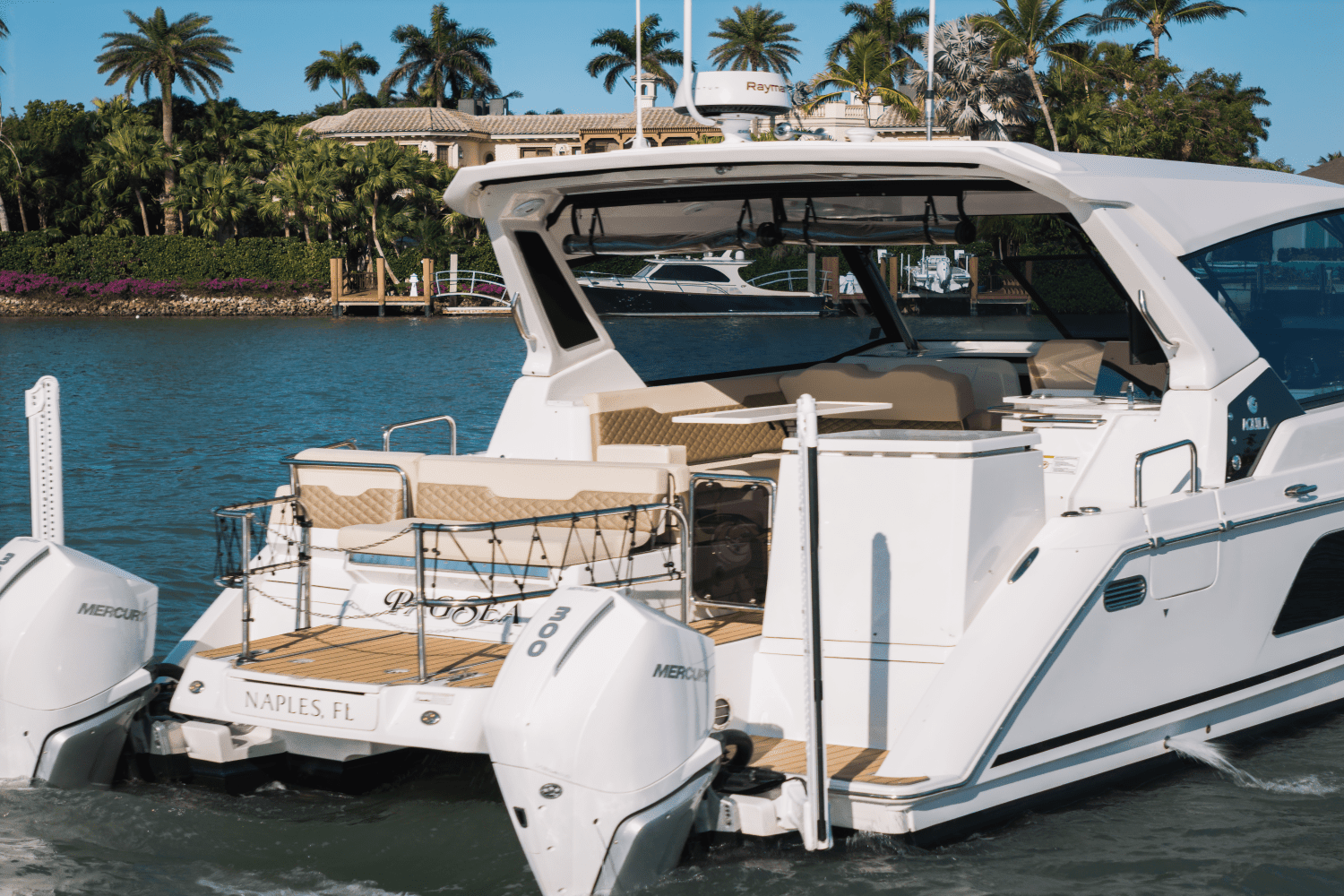

- Stainless steel gate to large aft swim platform
- Opening in windscreen and lower door for easy access to forward seating
- Anchor locker hatch with separate chain locker hatch
- Storage lockers forward in each hull with access from under forward seats
- Storage locker under floor in forward seating area
- Storage lockers under all aft seating
- Large aft hatches for access to equipment lockers
- Large aft hatch in swim platform with custom stainless steel retractable swim ladder with teak steps
- Easy lift gas shocks for all large hatches
- Integrated targa arch
- Hard top with stainless steel supports and two (2) opening deck hatches
- All exterior upholstery designed by leading international company
- All upper deck furniture in FRP elevated off the floor for ease of cleaning and drainage
Hull and Deck Equiptment
- Stainless steel railings and handholds in AIS 316L
- Custom built PVC rub rail with 316L stainless steel insert offering all round protection
- Windscreen in tempered glass with custom aluminum frame
- Variable speed windscreen wiper with control mounted at helm
- Anchor platform and roller in 316L stainless steel
- Electric windlass (12v-1000W) with handheld control
- Polished stainless steel 35 lb anchor with rope (200 ft), chain (15 ft), and bridle attachment rigging 10x pop up mooring cleats in solid 316L polished stainless steel and thru bolted
- Deck fill plates in 316L stainless steel; water; fuel (2); waste (2)
- Emergency ladder
- LED navigation lights—port, starboard, anchor and running light
- Port and starboard Integrated side boarding gate with robust
- SS hardware
- Four (4) LED drink holders for forward cockpit
- Ten (10) drink holders between helm and aft deck area
- Two (2) 30 amp shore power inlet supply plugs
- LED overhead lights in hardtop for settee and galley
- Multi zone sound system with Fusion head unit (Bluetooth) with six (6) Fusion 6” speakers
- Two (2) fishing rod holders on port and starboard side aft quarter

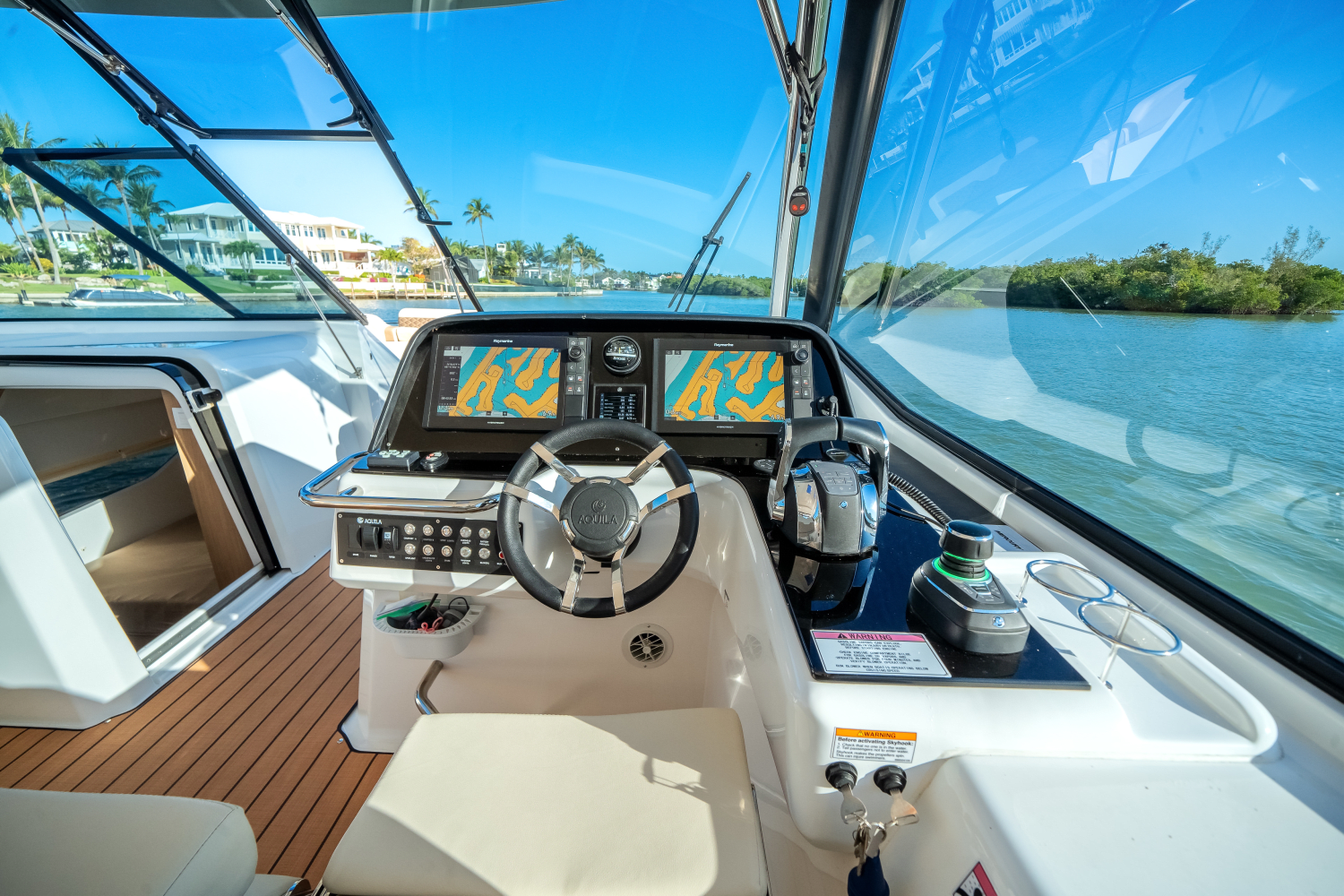

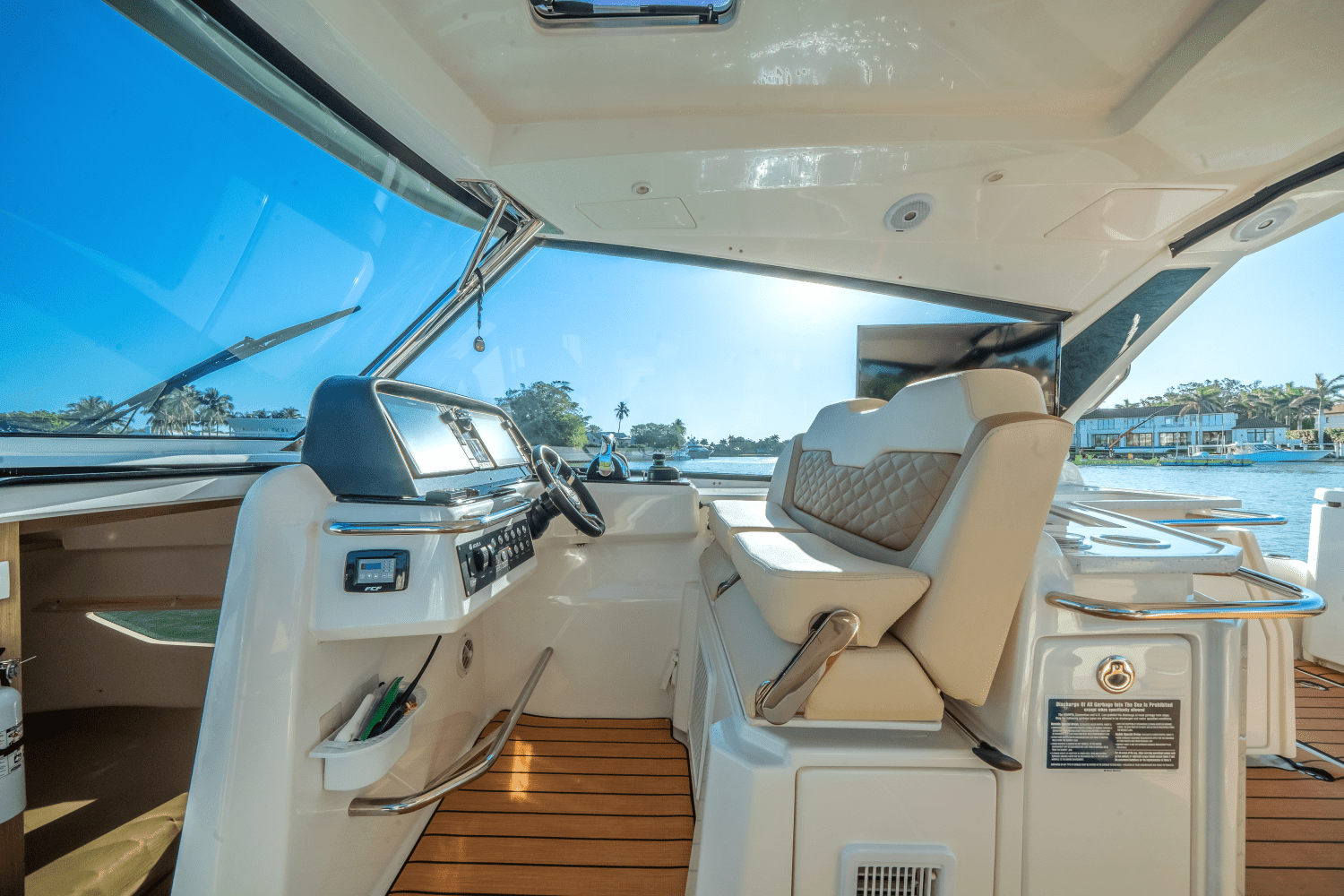

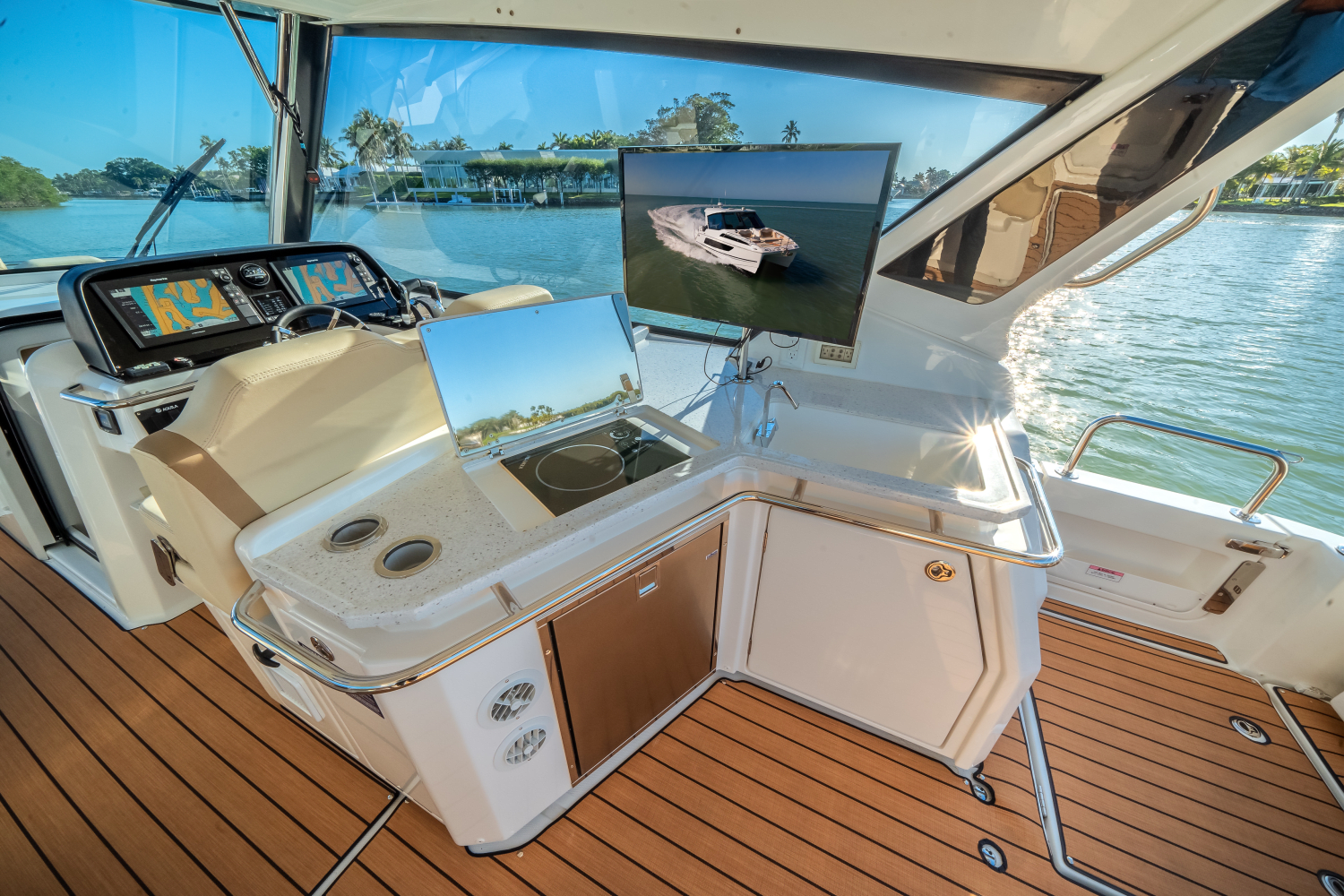

Helmsman Station
- Adjustable seat comfortably sitting two passengers with individual flip-up bolsters
- Electronic engine double lever throttle and gearshift control
- Mercury Joystick Piloting control
- Mercury VesselView 4” display with Active Trim Control
- Variable position steering wheel with Aquila stainless steel steering wheel
- Magnetic compass
- Automatic Halon fire alarm for each fuel tank area
- Mercury Verado power assist steering
- Two (2) cup holders
- Switch panel for common items for ease of use
- Horn control
- USB and 12v outlet at helm and port side pilot seat
- AC power sockets under seating
- Stainless steel foot rest

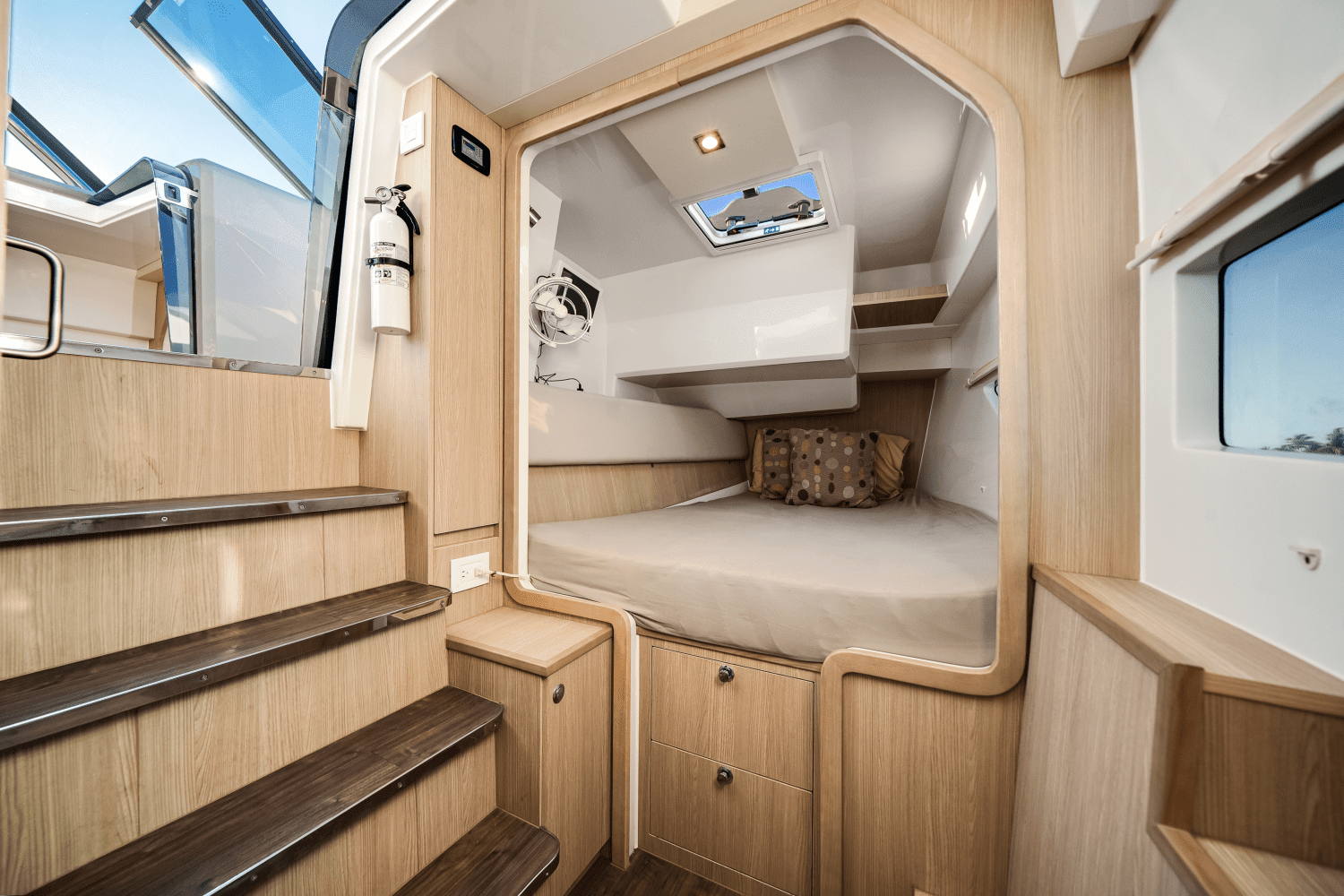

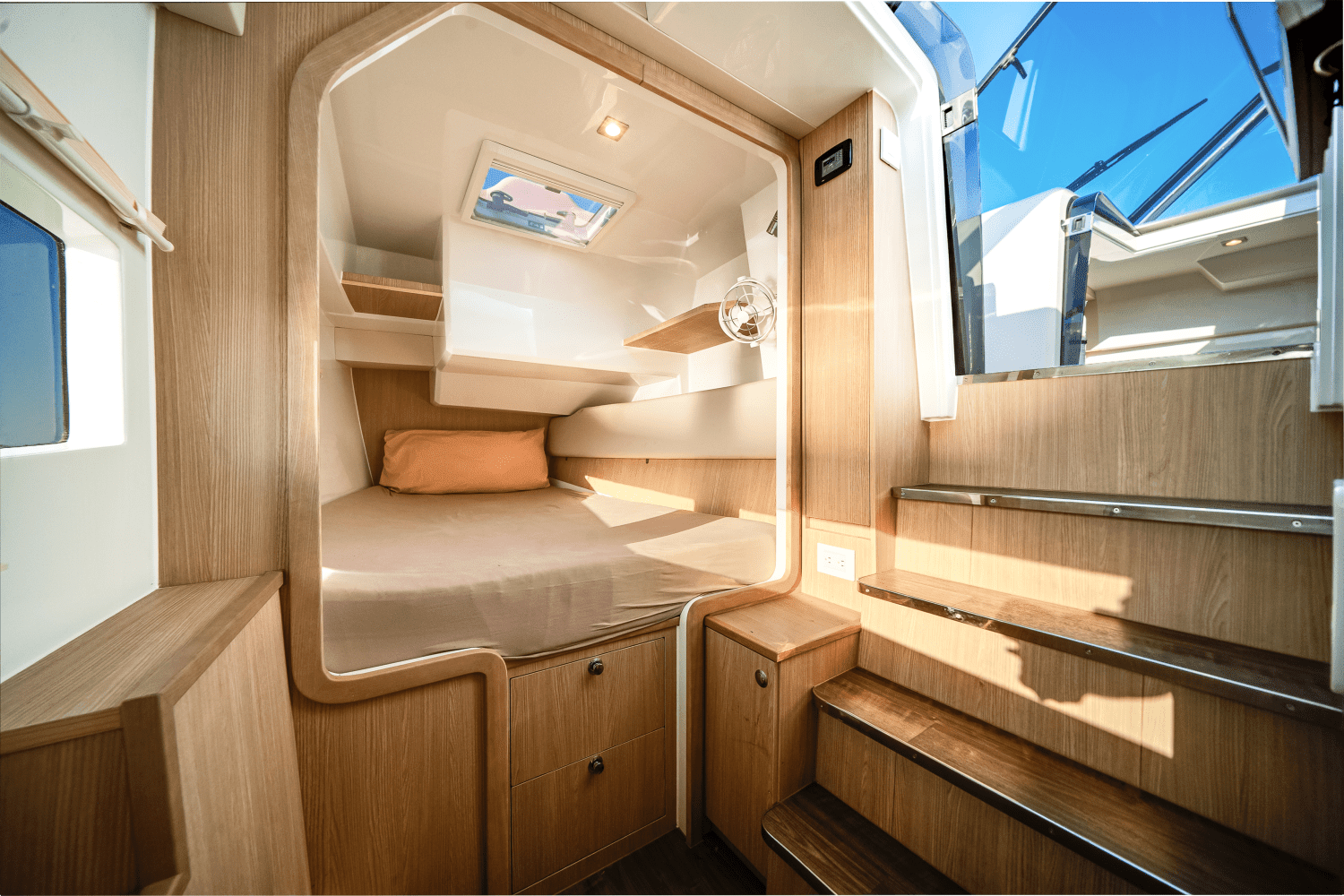

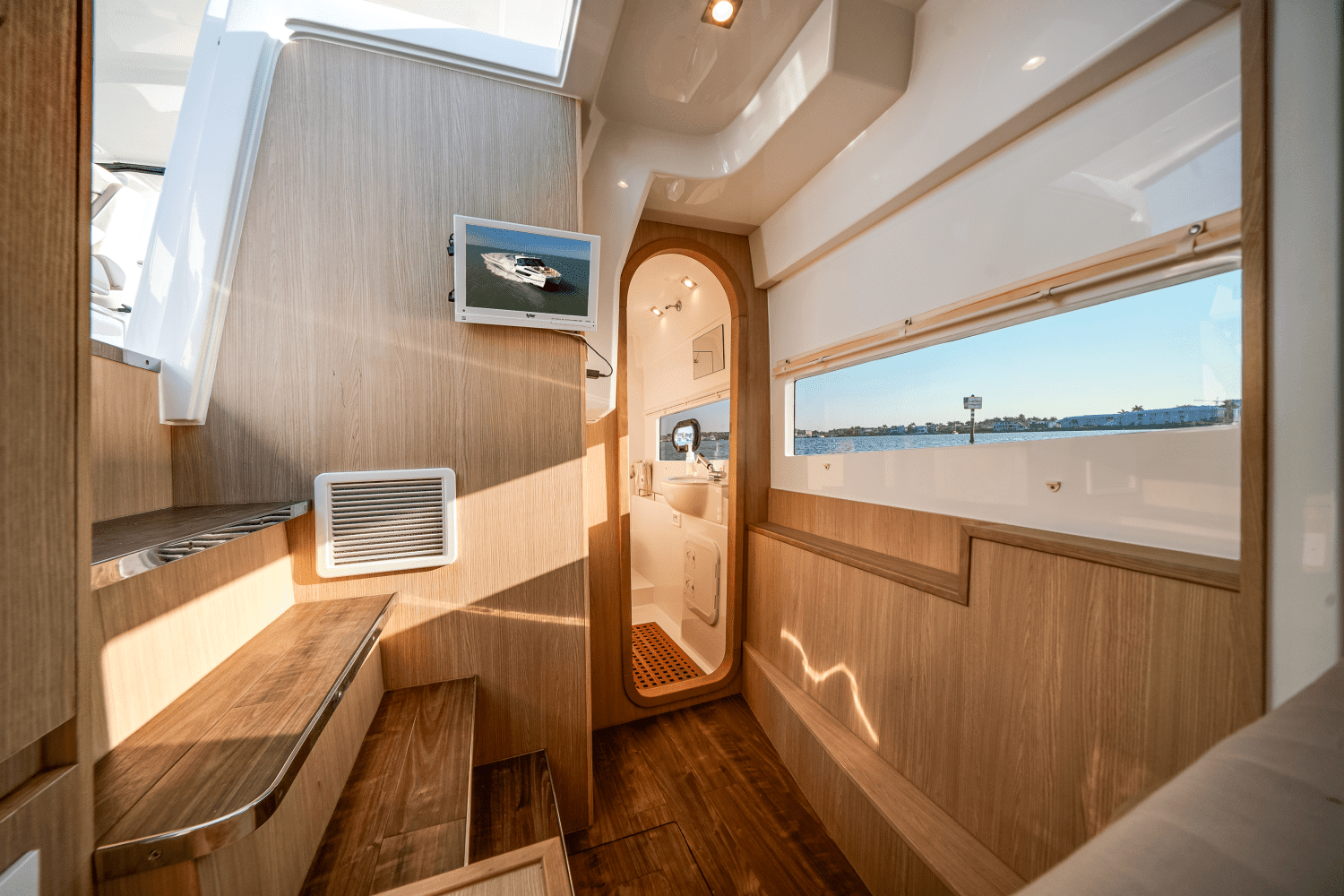

Cabins

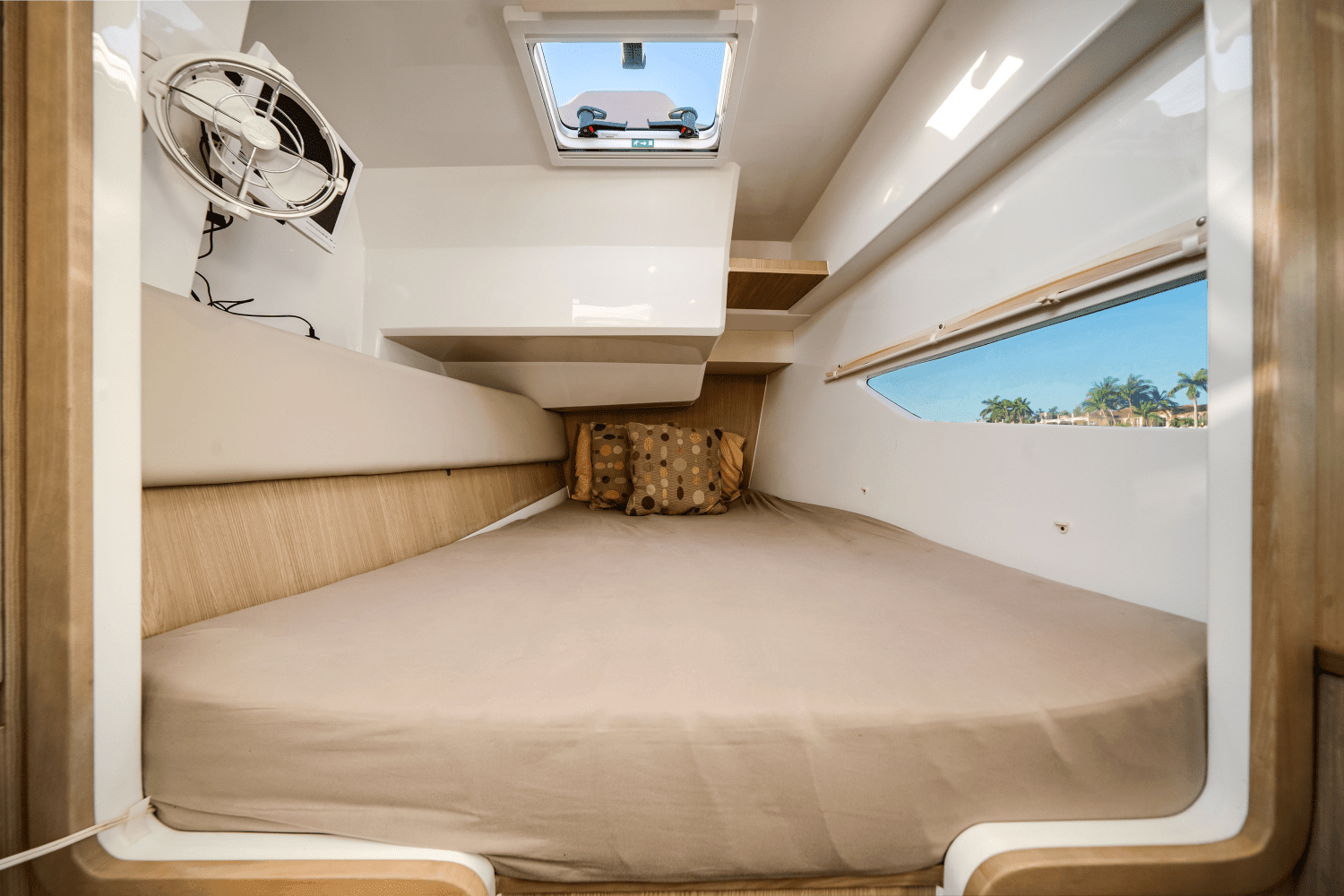

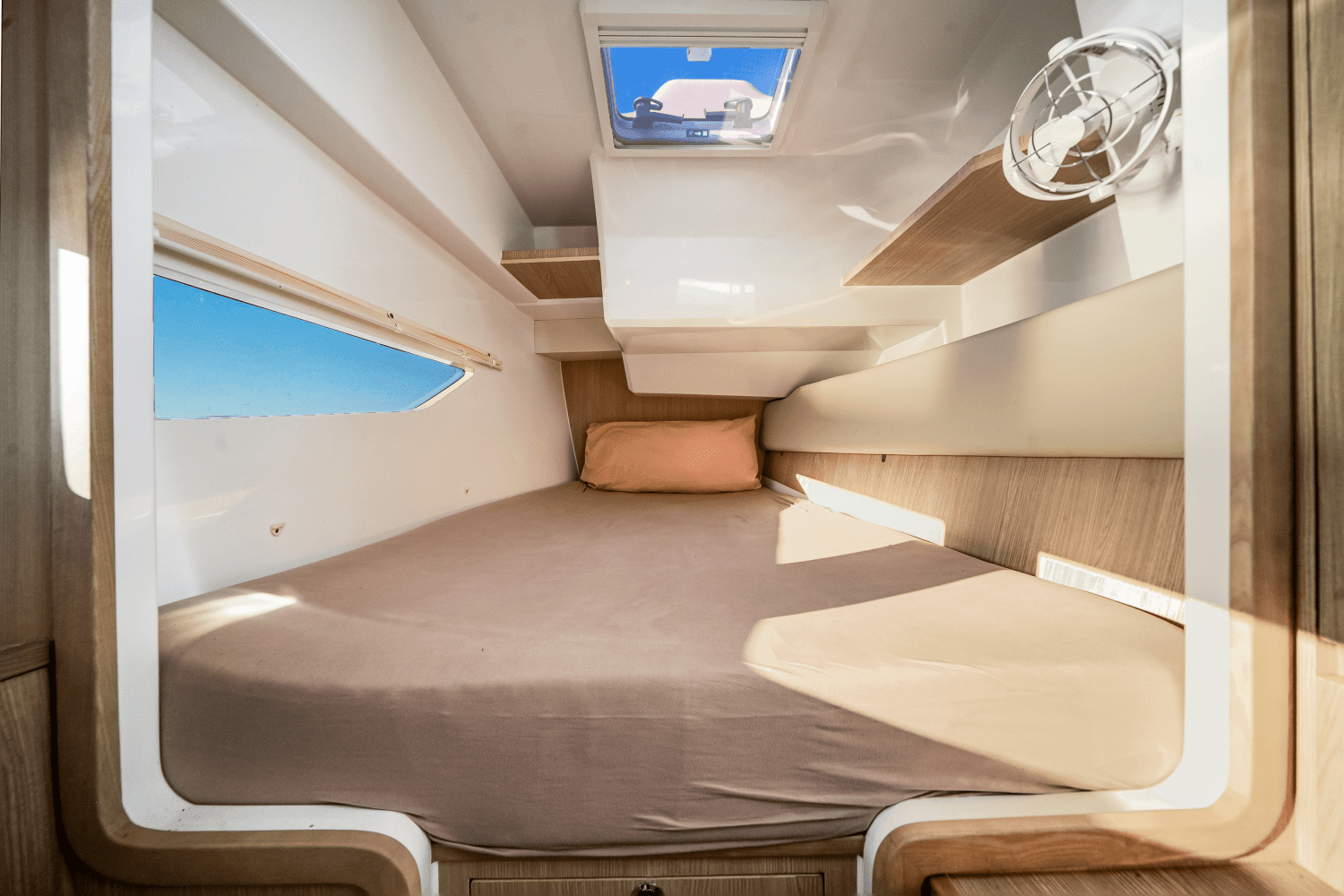

- V double berth in each cabin
- Memory foam mattresses
- Wood furniture in plywood with light wood composite laminate and matching hard wood trim
- Synthetic wear resistant flooring offering maintenance free natural look
- Side and ceiling panels upholstered
- Storage shelves, lockers and drawers
- Electric variable speed fan in each cabin
- Designated microwave area with AC outlet
- Blinds for all windows and hatches
- LED overhead lights
- LED reading lights
- AC power sockets
- Carbon monoxide alarm in each cabin
- Deck hatch above each bed for ventilation
- Large hull windows bringing in a lot of light

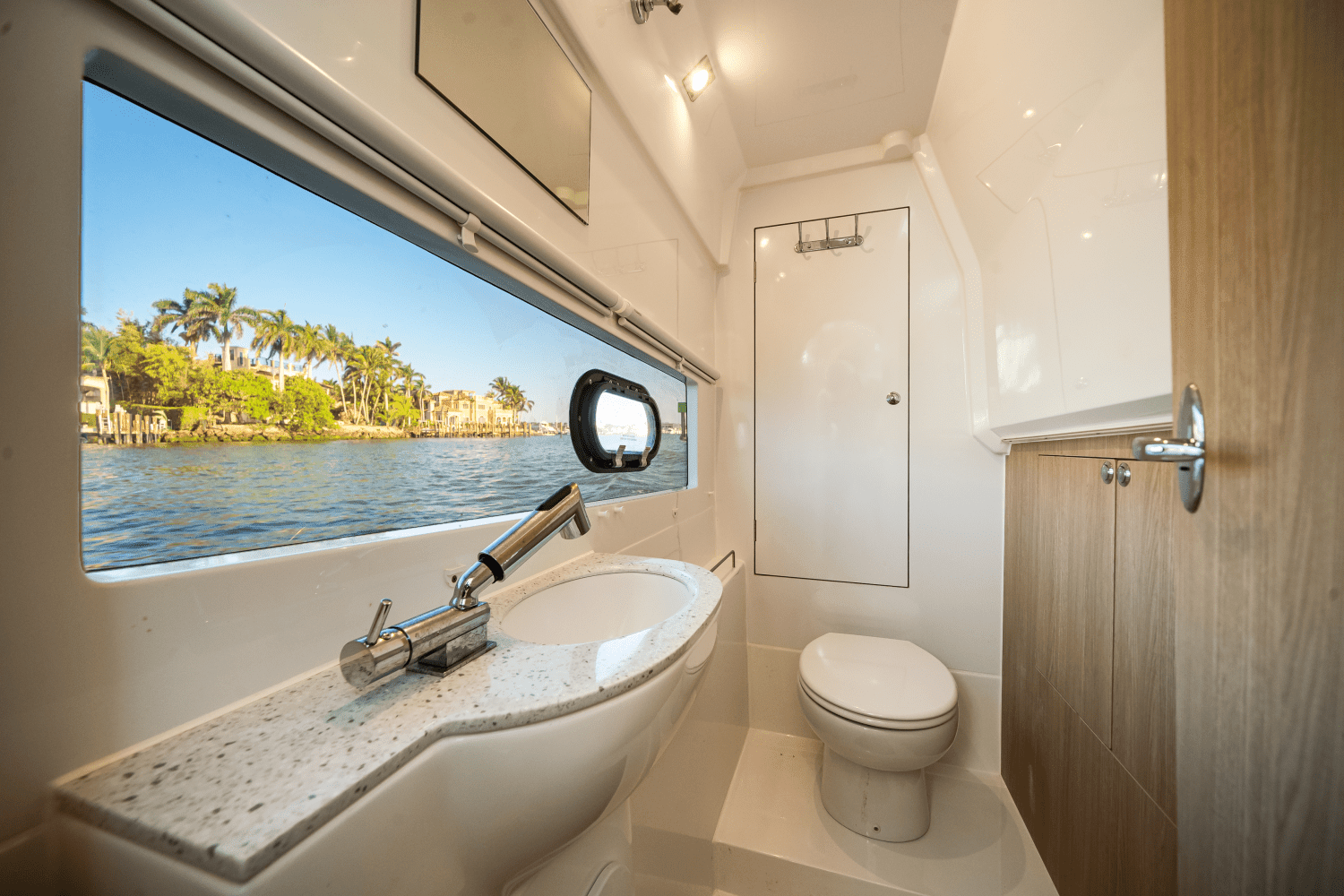

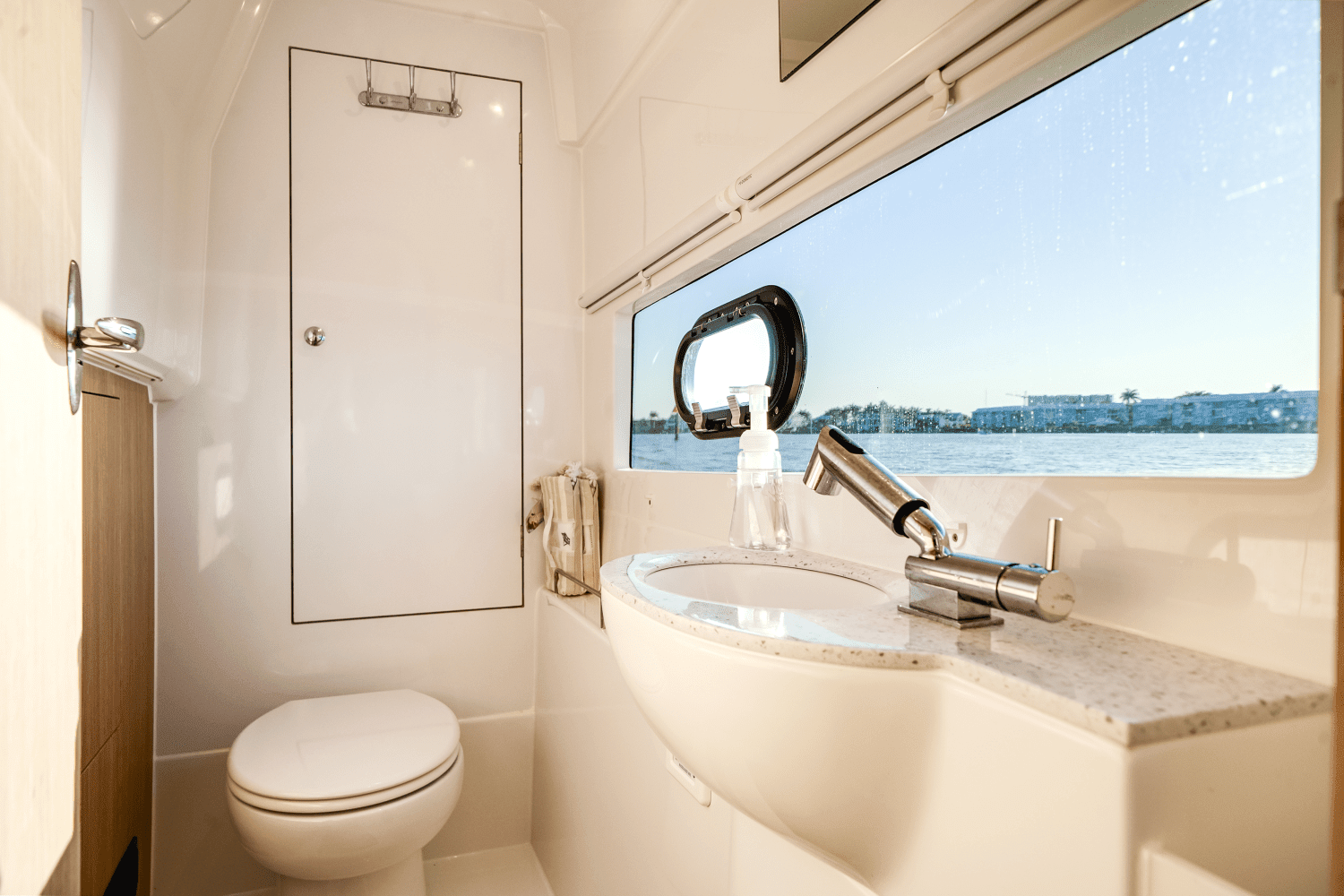

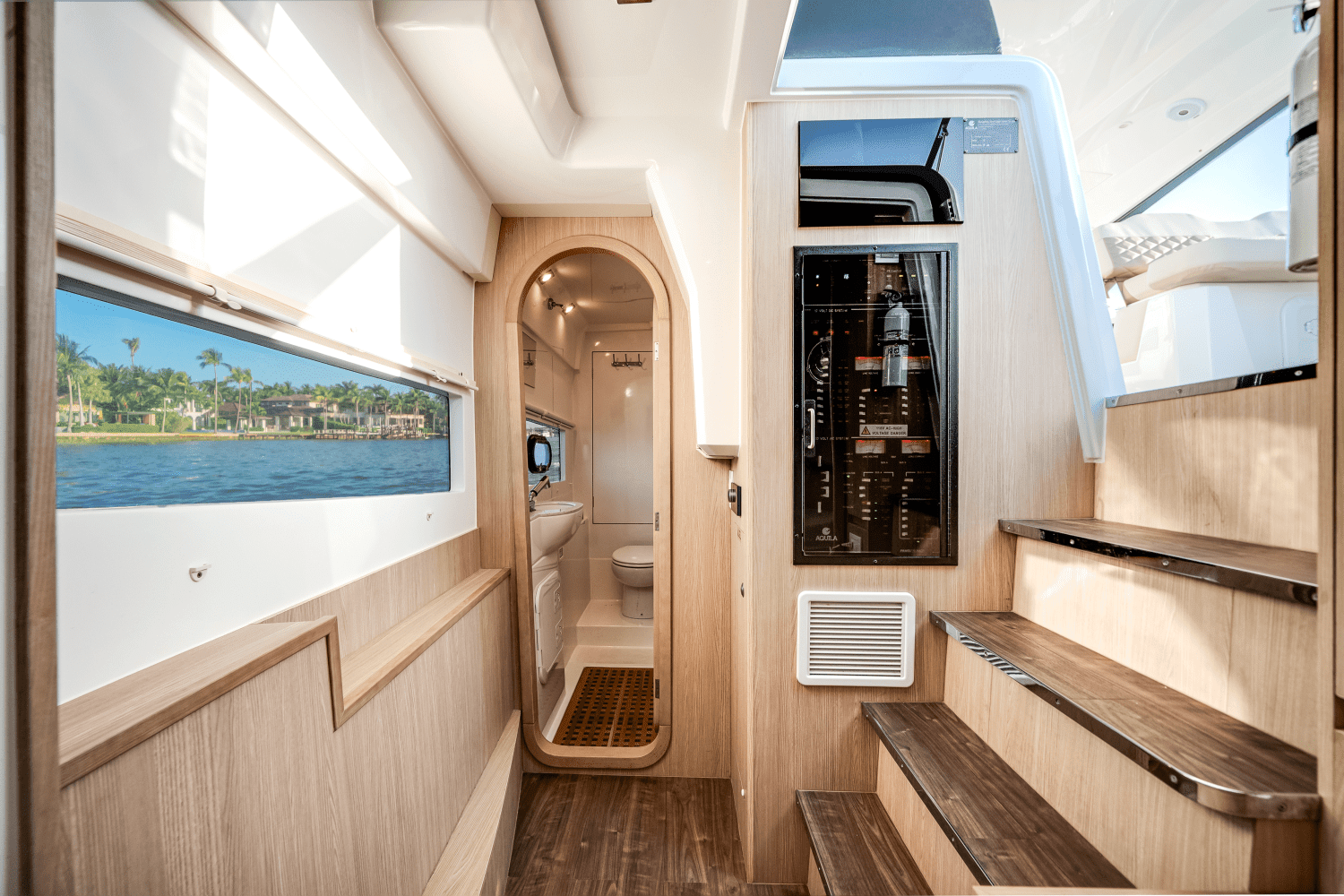

Heads
- FRP module with upholstered sides and storage lockers in composite laminate surface
- Basin surface in Corian
- Ceiling and inboard sides in low maintenance FRP finish
- Teak grate in shower area
- Fresh water mixer faucet with pull out shower head
- Mirror
- Large window with pull down blinds
- Shower curtain mounted on track
- Electric fresh water flush toilet with macerator, holding tank located behind air tight bulkhead
- Stainless steel towel hanger above toilet
- Large aft storage locker combined with hanging locker
- Storage lockers on inboard side
- LED overhead lights
- Opening hull port light
Electrical System
- Master control panel for 12v and shore power service at starboard companion way hatch
- Helm station LED push button electrical panel
- Remote battery master switches at panel
- Engine parallel control remote switch
- Two (2) dedicated engine start batteries each located in aft locker
- Two (2) AGM 200 Ah house batteries
- Battery trays with mounts
- Inverter/battery charger 120a/3000VA
- Volt meter and amp meter
- Galvanic isolator system
- Reverse polarity indicator
- Multi zone entertainment system master unit at helm station
- Two (2) 30 amp shore power supply plugs
Fuel System
- Fully independent heavy gauge aluminum tanks totaling 1250 L/ 330 gal with gauge at helm station
- Manual fuel shut off valves
- Fuel tank vents
- Natural ventilation of locker plus forced air ventilation controlled from dash board
- Water and air tight bulkhead separating cabin area
- Mercury fuel filters
- Automatic fire suppression heat activated system with alarm monitors at helm station for fuel tank area
Water and Bilge System
- 200 L/52 gal fresh water tank
- Automatic 12v fresh water pump
- 40 L/10.5 gal water heater (only operable from shore power and/or optional generator)
- Transom pull out shower mixer
- Faucet – wet bar
- Pullout sprayer in each head
- Four (4) automatic 12v bilge pumps
Grey Water System
- Automatic grey water pump connected to each shower drain for direct overboard discharge
Black Water System
- Two independent 80 L/21 gal tanks located aft of air tight bulkhead
- Deck evacuation or electric direct overboard pump separately controlled
|
