included options
|
GENERAL:
-Ocean Alexander employs various techniques to reduce sound and vibration. Focusing on providing a quiet and comfortable yachting environment through various proprietary techniques of controlling sound and noise transmission. Some of these techniques include, multiple insulation barriers including reflective materials, absorptive materials,dampening materials, air pockets and flexible and isolation mounts. Ultimately resulting invibration/ sounds levels that are industry leading and at times 1/2 to 1/10 of ISO-6954 requirements (Unique OA feature)
-Longitudinal and lateral fiberglass stringers filled with high
density foam
-All exterior hardware to be S/S 316 or to manufacturer requirements
-Fiberglass with infusion lamination manufacturing technology
-Frameless window
-Vinylester resin with high-density structural foam. High density allows for high temperature resistivity and particular advantage in thermal and acoustic insulation. (Usually only found in vessels 100’+)
-Reinforced collision bulkhead
-Weather-tight bulkheads with further sound and temperature insulation
-Painted exterior surface with professional grade Alexseal polyurethane paint and epoxy based primers. Highest gloss and color retention compared with gelcoat or other paint brands. Guarantee color match by Alexseal. No fading, yellowing and minimum maintenance with no annual compounded necessary on exterior paint. For first 3 years just use soap and water (Unique OA standard feature, not an optional upcharge like competitors).
-Marine grade aluminum beams for floors, walls and ceiling. Provides greater rigidity and monolithic structure. Reduces movements and “abrasive” sounds while underway. Also allows for one of the largest uninterrupted glass/window spans in the industry. (Unique OA feature)
-Use of cross-knit directional carbon fiber in high stress area for added structural integrity and torsional strength
-Fiberglass staircase from cockpit to FB w/teak steps
HULL / BOTTOM:
-Black boot top stripe
-Interior structural components all bonded to hull
-Three coats of Seahawk primer, hi-build epoxy barrier coat and covered with three coats of Seahawk self-polishing bottom paint (Unique OA feature, optional on competitors)
-Bronze through-hull fittings

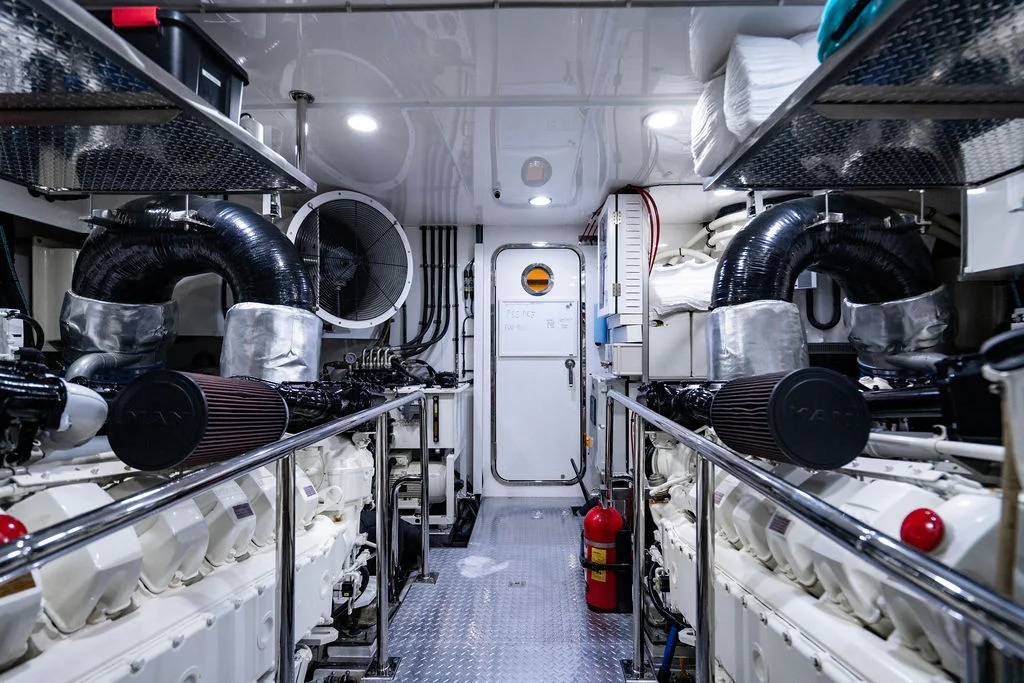

MECHANICAL MAIN ENGINES:
-MAN® V12 1900HP
-One control station: S/L, with complete engine instrumentation with lighted, modern switches
-Custom STATIONKEEPER™ position and heading hold system
-Add plug-in engine wired remote at aft deck and Flybridge
-Delta-T Intake/ exhaust fans with demister to eliminate moister from the intake air flow to keep machinery spaces dry.
Manually controlled adjustable/reversible Delta-T fans for engine exhaust located on superstructure instead of
hull side. Maximizes water protection and salt spray, resulting in safer and lower maintenance ownership
(Unique OA feature)
-Engine hour meter
-Electric engine control
-Engine alarm system (oil and temperature)
-Complete engine instrumentation, two stations
-S/S rail on side of engine
-Wet exhaust and including water temperature, oil pressure, hour meter and start/stop controls in engine room and remote start/stop controls in the pilot house
-Dripless engine shaft seal logs
-Dripless seal for rudder post
-Ocean Alexander employs aerospace grade “autoclave” to make “hard coat” exhaust with AL-6XN alloys (used in Saturn V rocket nozzle). Ocean Alexander is unique in utilizing Military standards that ensures optimum and sustained performance in its exhaust system
GENERATOR:
- Kohler® 32 KW genset
- Generator exhausts to be water-drop type per “Centek”, “Marine Exhaust Co.” or equal. Reduces noise & vibration
- Generator set resiliently mounted and installed with sound shield & vibration dampener (Unique OA feature)
- Generators with gas/ water separator
- WINDLASS / MOORING:

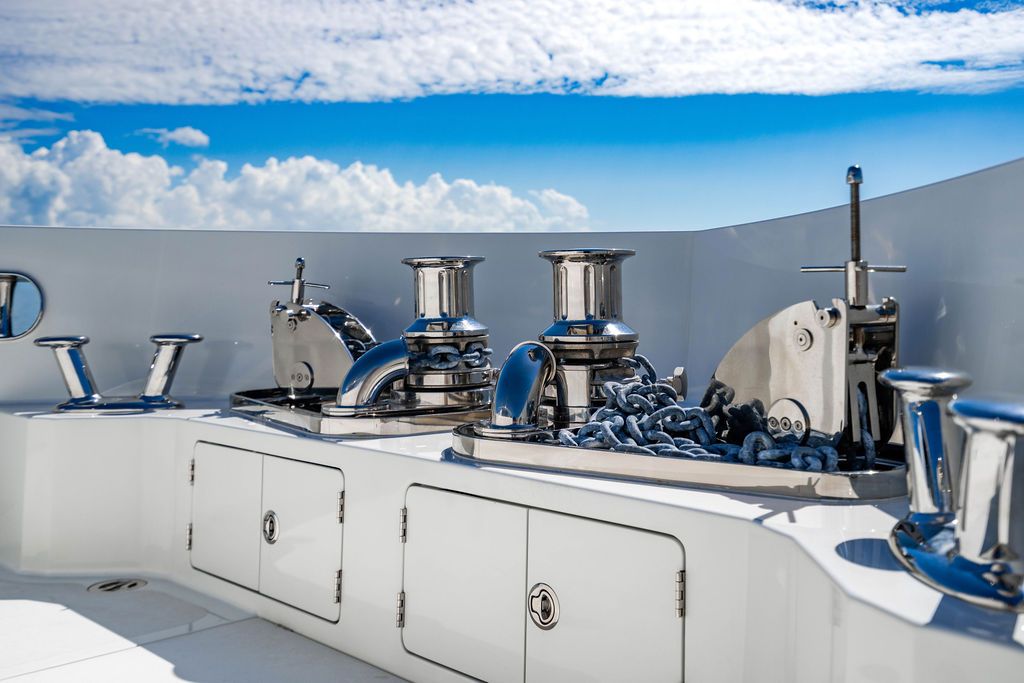

- Dual hydraulic windlass
- Dual stainless steel plow type anchors 75 kg w/200’ anchor chain (1/2" HT) & chain stoppers
- Chain counters
- Two vertical electric rope winches for Aft Deck (Standard versus competitors’ optional)
- Hands-free anchor chain wash system – allows for cleaning of chain during anchor operation (Unique OA feature)
- STEERING / CONTROL:
- Hydraulic steering system
- S/S rudders
- Bronze struts w/ cutlass bearing
- High performance, computer-designed and machined propellers
- Zincs on rudders, shafts
- Interior steering wheel w/Ultraleather® inserted
- Three Stidd® Electric helm seats in S/L
- Propeller shaft Aqua 22HS. 22HS is a high-grade austenitic alloy stainless steel that provides superior corrosion resistance (comparable to Aqua 22) along with excellent toughness and high strength (comparable with Aqua 17)
THRUSTER / STABILIZERS:
- Siderpower® hydraulic stabilizer w/ zero speed system and power take-off from both engines to provide redundancy (Unique OA feature)
- Sidepower® 30.8HP Bow/30.8HP Stern Thruster
- OTHER:
- Stainless steel rails on side of engine and stainless steel engine mounting plates (Unique Ocean Alexander engineering affords industry leading torsional rigidity and engine alignment assurance. Further reducing vibration and high torque pressures)
- Fire extinguisher system with engine-shutdown feature
- Oil change system for both engines and genset
- All engine room and bilge spaces shall be primed and top coated with polyurethane paint system
- Heavy-duty commercial grade pantograph windshield wipers & washers w/ intermittent function
- Color-coded piping for fuel, water and hydraulic system
- Heavy-duty Buell® air horn

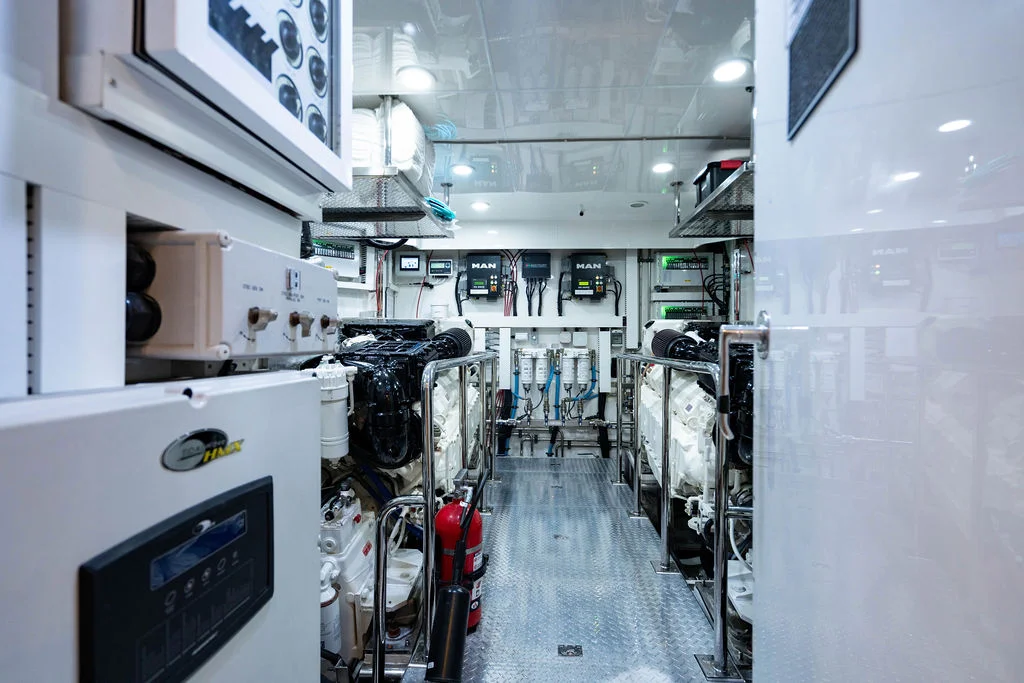

- Aluminum diamond plate flooring in engine room
- Detailed stringers in engine room and lazarette
- Ocean Alexander proprietary “dry bilge ventilation system” with dedicated bilge exhaust to outside. This provides constant airflow to keep the bilges dry and mildew free. Any moisture from condensation is evacuated outside the yacht to keep a clean and healthy cruising environment.
- Ocean Alexander design in oversized shafts, rudder and other drive train systems typically one-class larger than competition. Superior handling, longevity is ensured with Ocean Alexander drive-train systems.
C. PLUMBING
FRESH WATER SYSTEM:
- Headhunter pressure fresh-water system
- 2mm thickness 316 S/S water tanks w/ sight gauge
- Fresh water wash down, at bow & stern & boat deck
- Dockside water connection
- Two 40-gallon water heater with high density fiberglass insulation w/ dual high efficiency heating element that speeds heating by 50%
- Sea Recovery 900G/Day water maker
- FUEL SYSTEM:
- 4.5mm thickness 5052 Aluminum fuel tanks with sight gauges and tested to International Standards 33CFR 510(a) w/ high and low fuel level alarm system
- Dual Racor® fuel/water separator with Y-valves for generator
- Fuel system with venting and “catchment system” designed for burps or overflow accidents (Unique OA feature. Often ignored by competitors which can lead to high fines and insurance cancellation)
- Gulfcoast™fuel polishing system based on US Military Abrahams-M1 tank design
BILGE / DISCHARGE:
- Common drainage system for bar sink, shower, bilge & exterior deck
- Bilge pump in forward and aft of engine room
- Automatic bilge pump - The vessel shall be outfitted with automatic bilge pump with manual and automatic switches in each space as divided by weather-tight bulkheads. High water alarms will be mounted in each of these bilge zones
- 24V shower sump pumps
- Dry bilge area arrangement in center of engine room
- Lighted bilge with built-in (when necessary) S/S ladder (Unique OA Feature)
- Headhunter waste treatment system (600Gal/day)
D. ELECTRICAL
BATTERY:
- Heavy-duty AGM Batteries with 40F to 140F operating temp and industry leading low self-discharge rates 1 to 3%
- 100 AMP Charger
- Battery paralleling system with control switch
- Service battery switch
- Engine battery isolation switches
AC / DC SYSTEM:
- AC outlets throughout
- All primary AC & DC electrical wiring is appropriately labeled throughout the yacht
- GFI (110V) AC outlet in potential “wet” areas. In addition, entire boat is dual protected via ELCI Octoplex breakers. (OA is unique in the industry to provide dual protection GFCI & ELCI)
- 24 Volt system
- Engine battery isolation switches
- Octoplex NMEA 2000 Network electrical control system. Based on aerospace technology for remote activation, control and status reporting of AC and DC breakers. Monitors power sources (AC and DC) for voltage, frequency and amperage abnormalities and provide visual and audio alerts. Includes enhanced circuit breaker functionality with no-load indication, dimming and usage information with touch screen monitor that is user reconfigurable. Brown-out configurable control through auto load shedding is included where operator designated equipment (e.g. navigation and other essential systems) remains powered-on while automatically switching other systems off. Octoplex NMEA 2000 Vessel system monitor system. Provides main access doors, tank level, bilge level and battery monitoring of current, voltage and temp. (Unique OA standard feature, not an optional upcharge like competitors)
- Shore power receptacle with Iso-Boost (2x) 100 AMP in transom with cable master (OA is unique in making this a standard vs. optional. Cleans & boosts questionable shore power to better protect sensitive equipment onboard.)
AIR CONDITIONING:

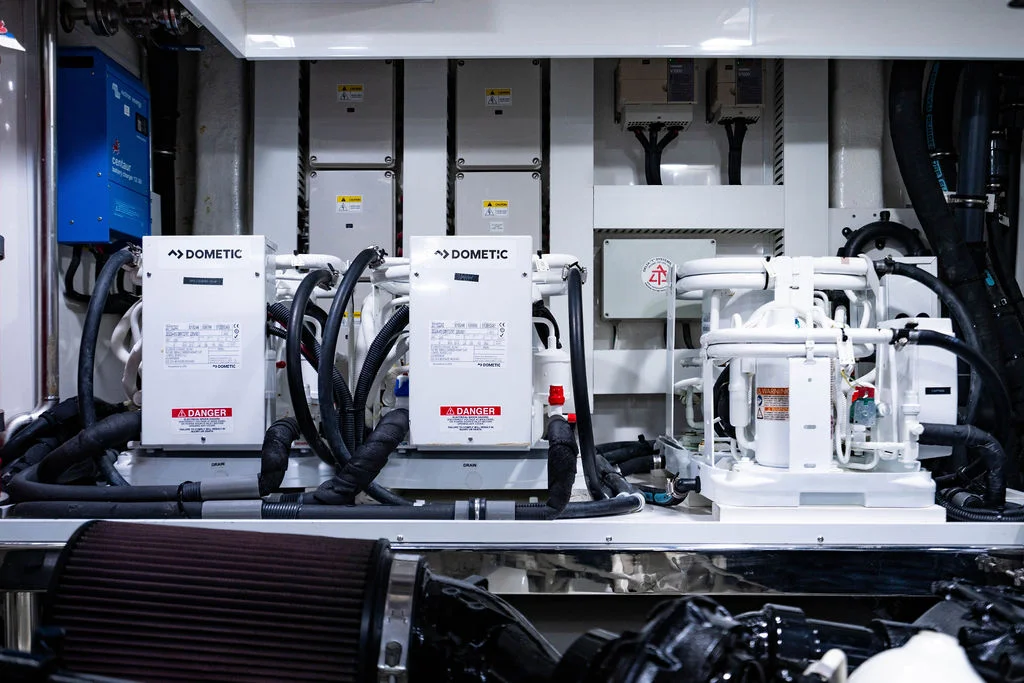

- Dometic® systems throughout, rated for “Extreme Tropical Climates” (with reverse cycle for operation down to 40°F water temp)
- Refrigerant type is accepted worldwide under the Montreal Protocols
- Where possible A/C exits from custom made ceiling panels hidden from view. Shortens A/C ducting thus improving efficiency and speed of cooling by over 20%. Also reduces dB reading by over 7 dB (Design cues from 135)
- Air-conditioning rated for Extreme Tropical climates (OA standard equipment, not an optional upcharge like competitors)

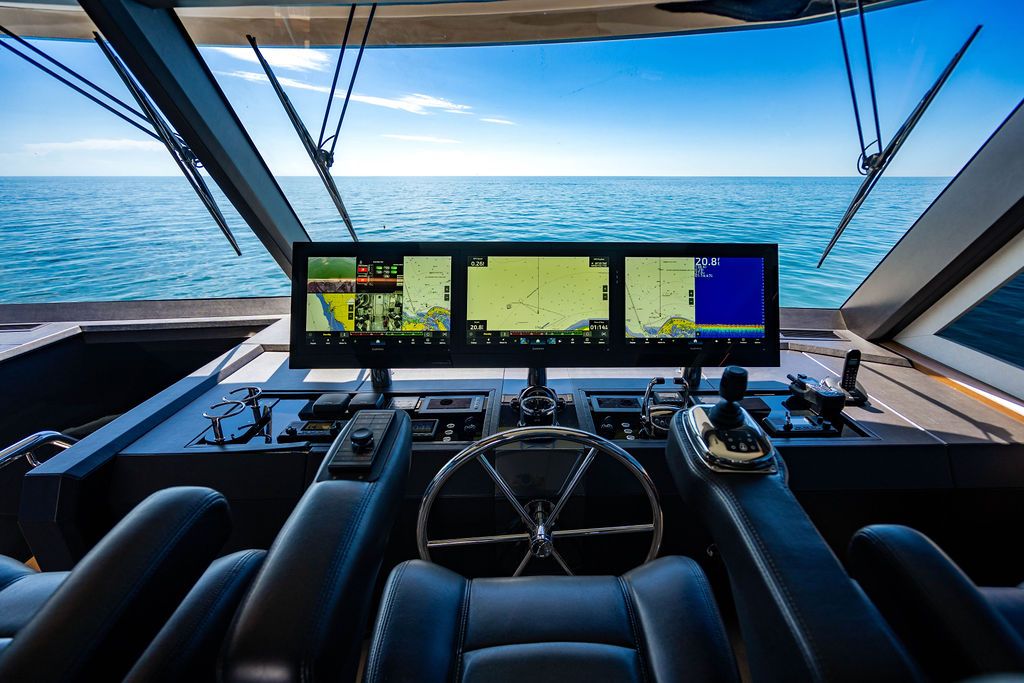

NAVIGATION PACKAGE (Standard versus competitors’ optional, savings valued at $100,000+):
- Garmin 8600 Series Black Box with 24” Touch screen
- Garmin GRID remote input device installed on helm chair
- Garmin 25KW Open Array Radar
- Garmin Autopilot GHC20
- Garmin VHF and Card Reader
- Garmin Blackbox sounder
- Garmin AIS with NMEA GPS
- Garmin Marine Camera (2 in engine room and 1 aft deck)
- Triband HD7 with DIRECTTV® receivers
- Ritchie Compass 5"
- iPad with built-in Garmin App for navigational control/viewing via iPad
- Navigational electronics standard versus optional with competitors
N2KVIEW SAFETY & SECURITY MONITORING PKG:
- These security/safety automatic monitoring and alert abilities include using Apple iPad or Android for wireless access to operate, view, and alarm Octoplex data and navigation system with a fully customizable screen layout, and remote notification (cell phone) capability.
- These monitoring abilities include: Main Engines and Generators, AC Monitoring, DC House Bank Battery
- Monitoring, Engine Room Weather-tight Bulkhead Doors, Tank Levels, Fire System, Bilge Level (High-water), Exterior Door Sensors (Unique OA standard feature, not an optional upcharge like competitors)
LIGHTING:
- 24V LED lights (Aerospace quality, specially tuned color temperature for Ocean Alexander)
- International navigation lights
- Bow stainless " pop up " lights ( four )
- Francis searchlight with 2,800,000 peak candlepower and spreader lights for swim step and FB deck
- High output LED underwater lights (7)
BONDING SYSTEM:
- Bonding system throughout The vessel's bonding and grounding systems shall include copper straps secured to the hull and running the full length of the vessel parallel to centerline. Engines, generators, metallic through hulls, strainers, and pump bodies shall be connected to the bonding strap using 8 AWG wire minimum or equivalent
OTHER:
- Iso-Boost Package for both shorepowers. ISO boosting isolates and boosts the boat’s AC electrical system against potentially dangerous shore power fluctuations. Eliminates needs for polarity alarm and galvanic isolators (Standard versus optional with competitors
- Entertainment system
- Panasonic intercom system– includes Panasonic phone system and Digital Panasonic Phones
- Onboard intranet, driven by commercial-grade 4G SIM card capable Wi-Fi router
INTERIOR DÉCOR:
- With a unique bow and “cabin forward’ design, the OA 84R provides 10-18% more usable space than competition of similar length. Usable space is comparable to many 90’-95’ competitors’ models.
- Wood paneling and cabinetry
- Interior ceiling panels removable and finished with Diamond faceted edging. Provides a sharper and structured tailored look. (Design cues from 135’)

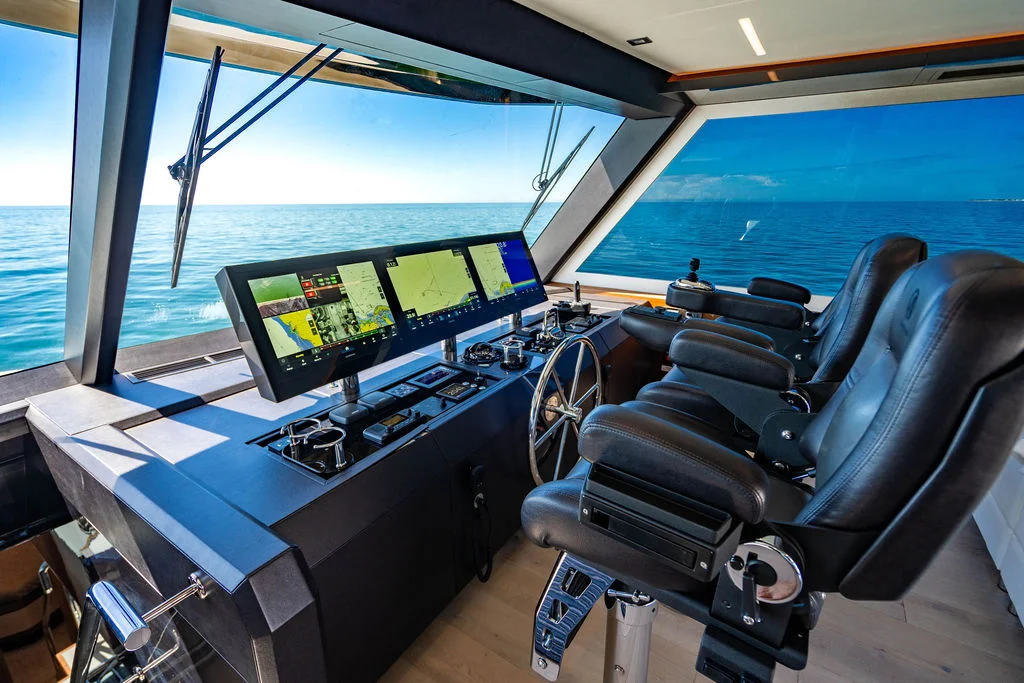

- Evan Marshall designed interior pilot station and display pod. With matching wood/Ultraleather and “floating” display pod. Ergonomically designed and laid out to enhance pilot experience/performance. (Design cues from 135)
- Windshield defrosters

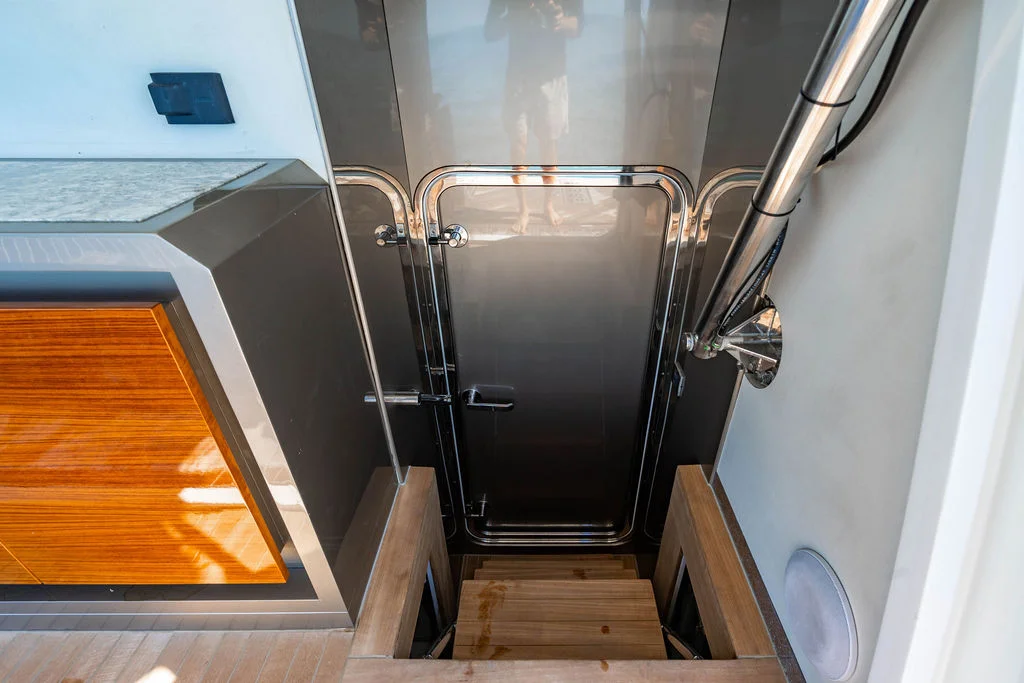

- Weather-tight door to side deck
- Carbon monoxide and smoke detectors
- Designer pull handles for drawers & cupboards
- Fabric covered walls for lower walkway walls
- Concealed hinges throughout interior cabinets
- Hanging lockers with dual-locking mechanism
- Washer/ dryer (Commercial quality, Energy star washer/dryer)
- S/S hardware
- USB power plug at helm station and MSR nightstand
- Interior style selection: Antimony
- Interior wood-Oak and Ebony
- Electrical Shades with remote for salon, dining, and master windows (exclude master head)

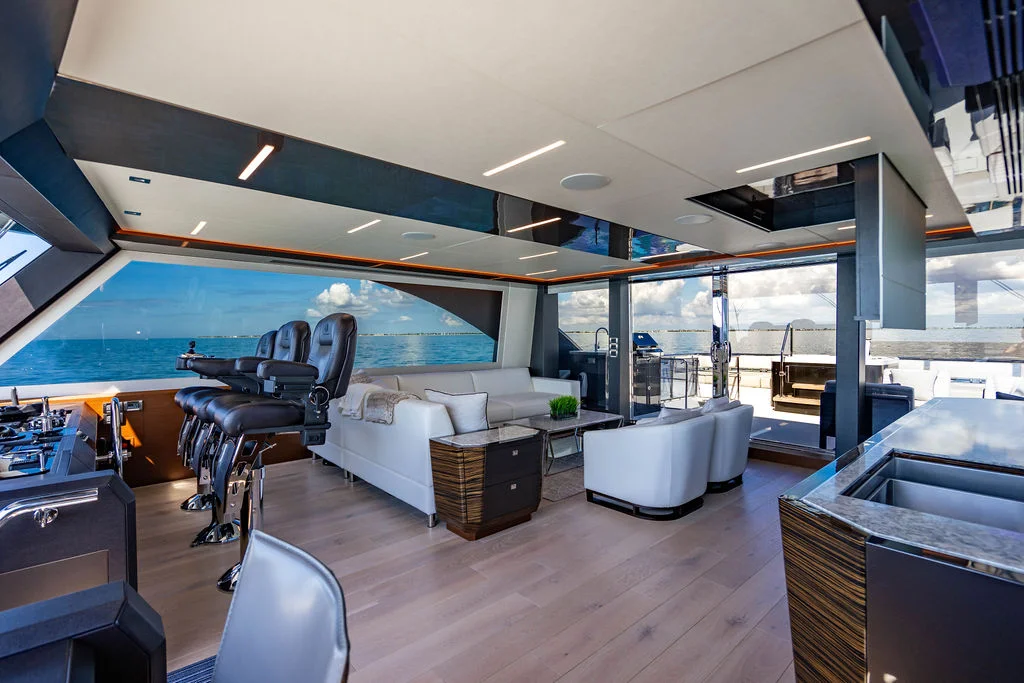

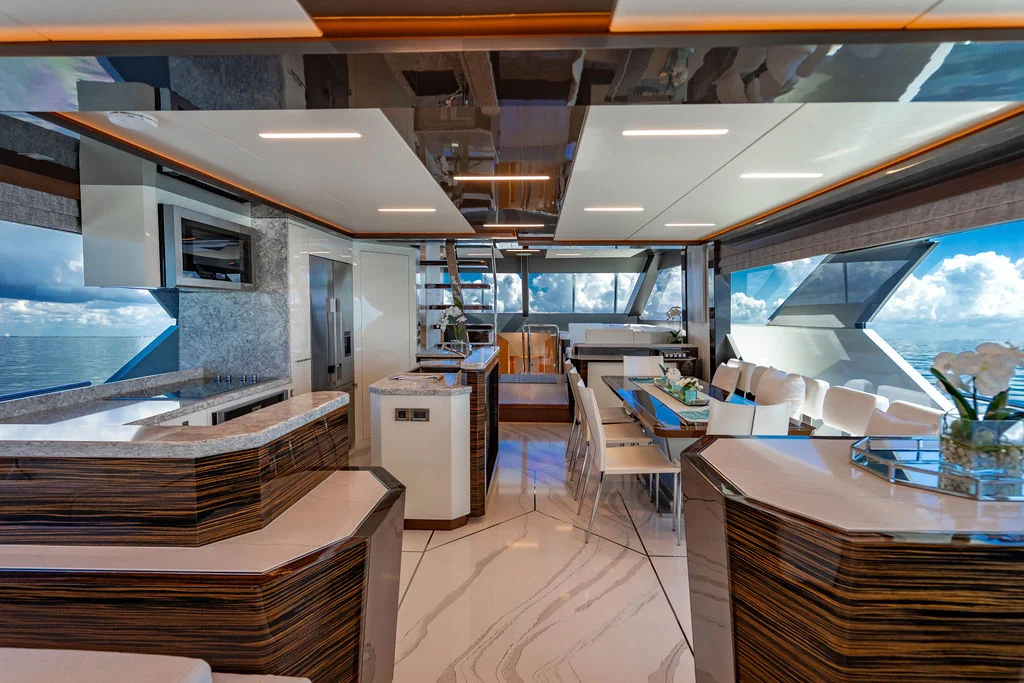

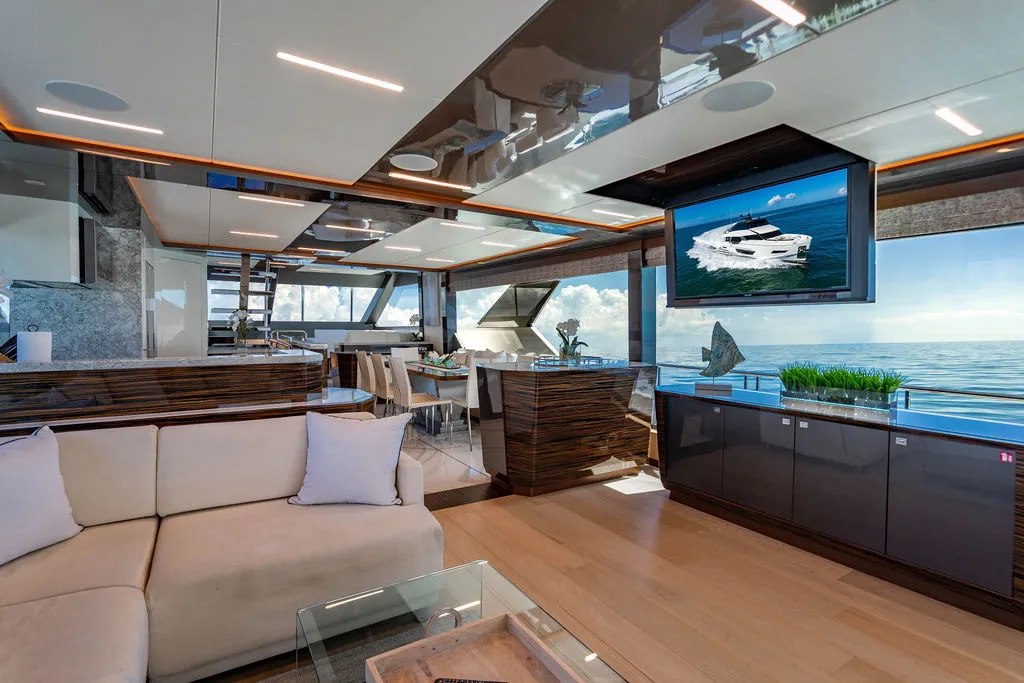

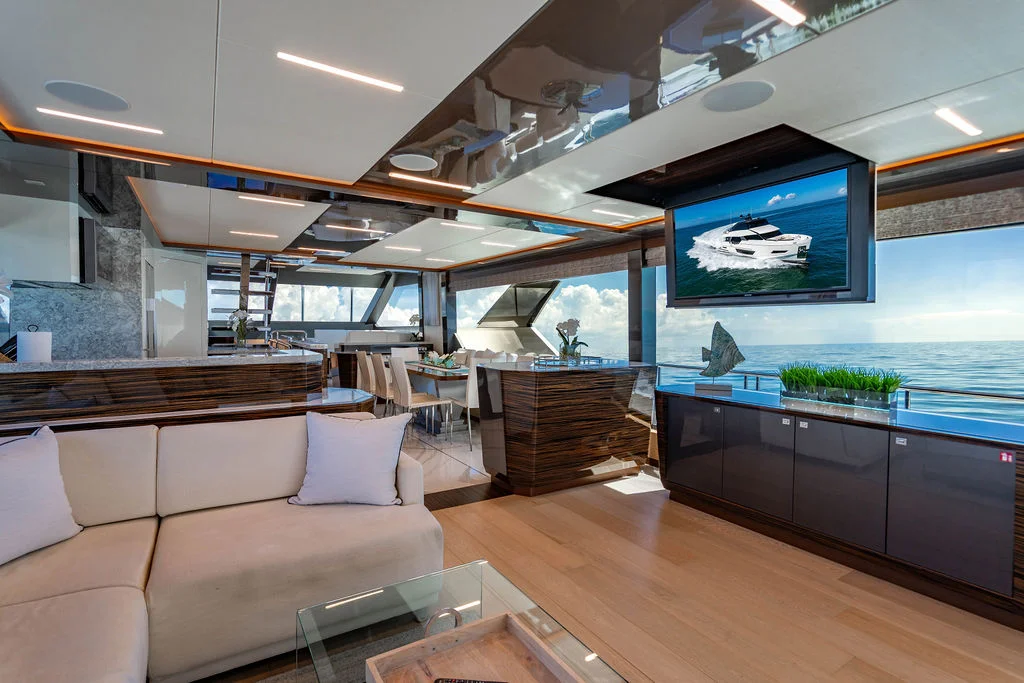

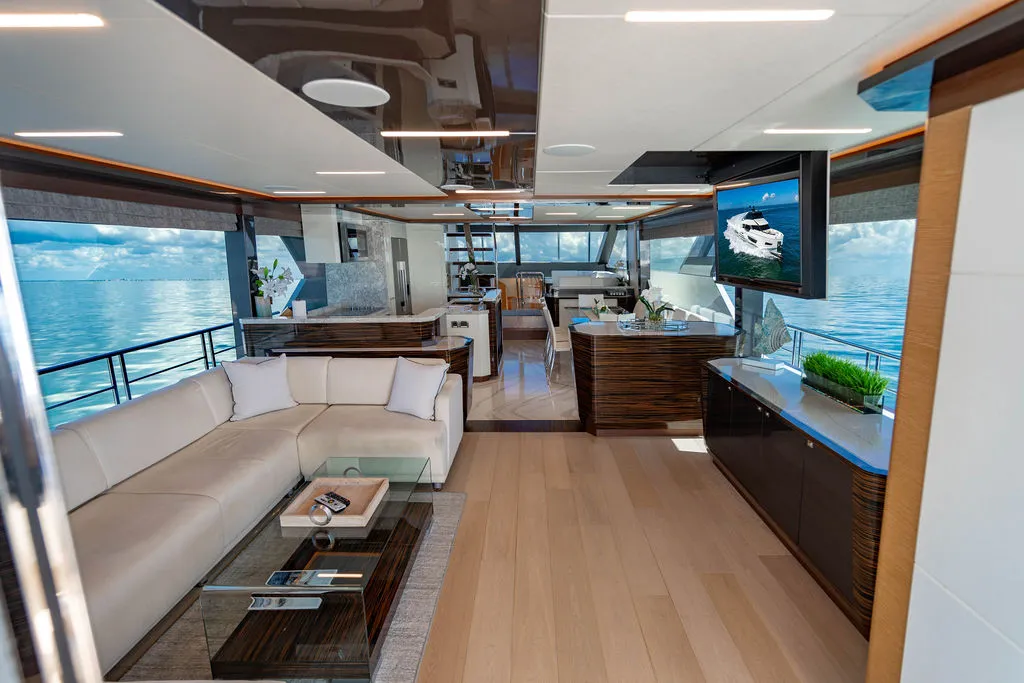

SALON:
- Evan K Marshall custom design salon furniture and sofa. Sofa includes concealed drawers for intelligence use of space and increase storage
- Custom-designed salon table
- Wood paneling and cabinetry in painted (where possible)
- Stone countertop at wet-bar and cabinets
- Enlarged windows in salon with custom engineered solution incorporation marine grade aluminum beams allowing for industry leading window expanse. Incorporate (where possible) A/C outlet from ceiling, provides unobstructed view to outside (Design cues from 135, improved for 2016)
- Custom wood flooring in lieu of carpet - salon/ dinning and fwd salon/ skylounge

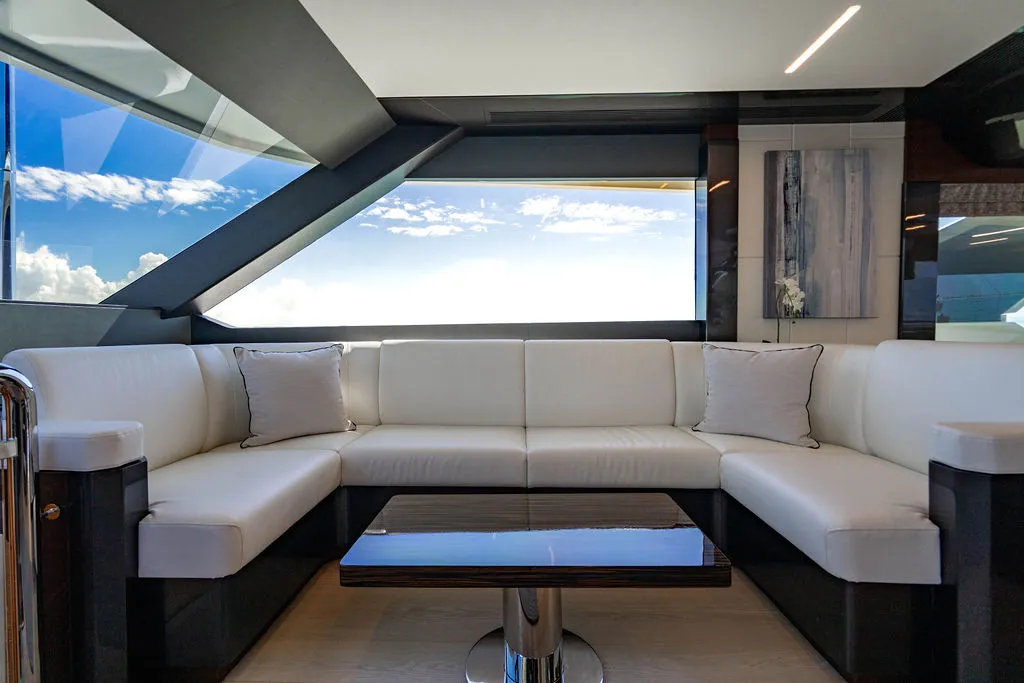

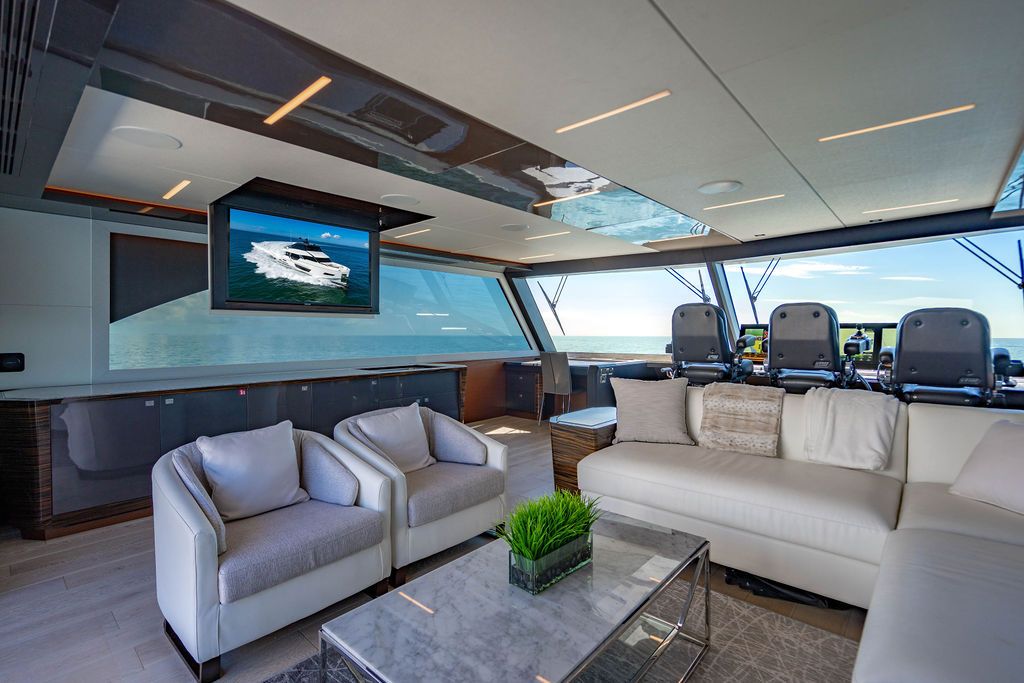

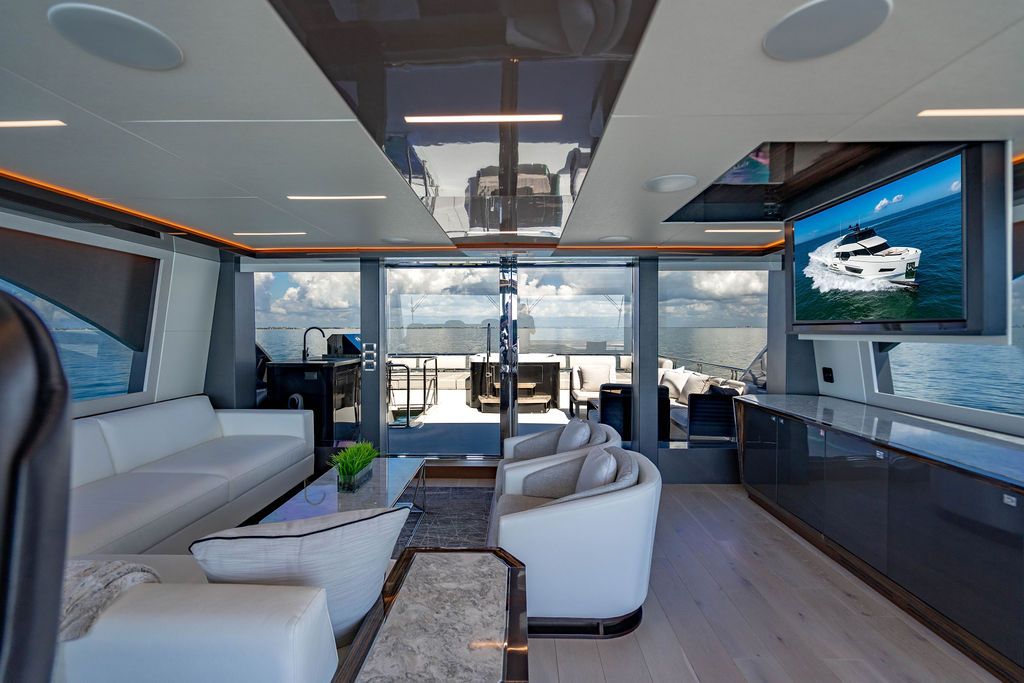

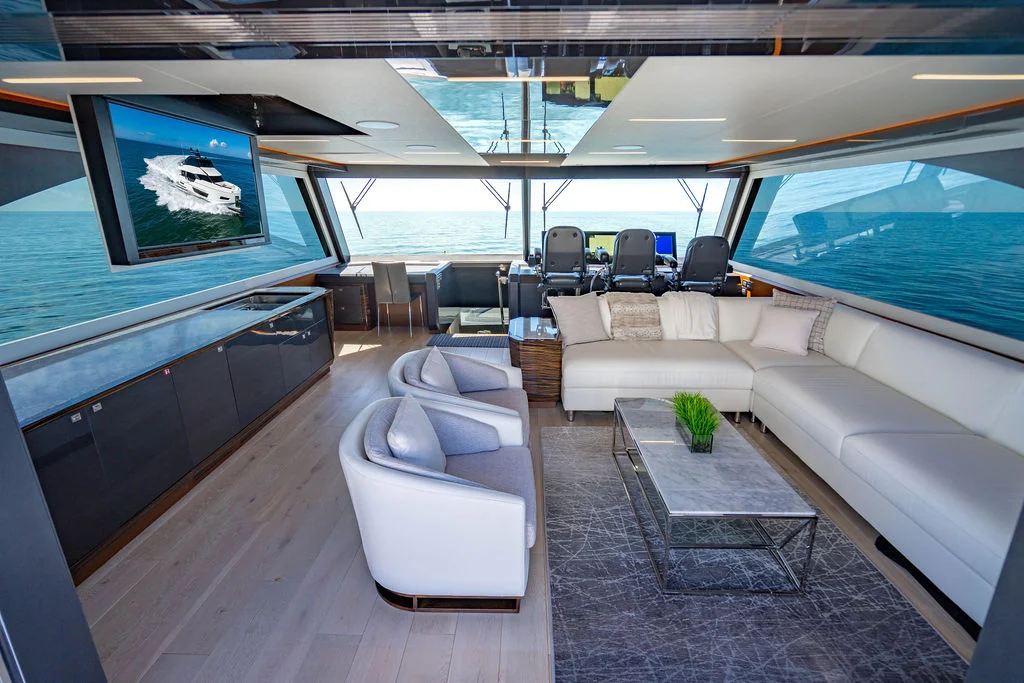

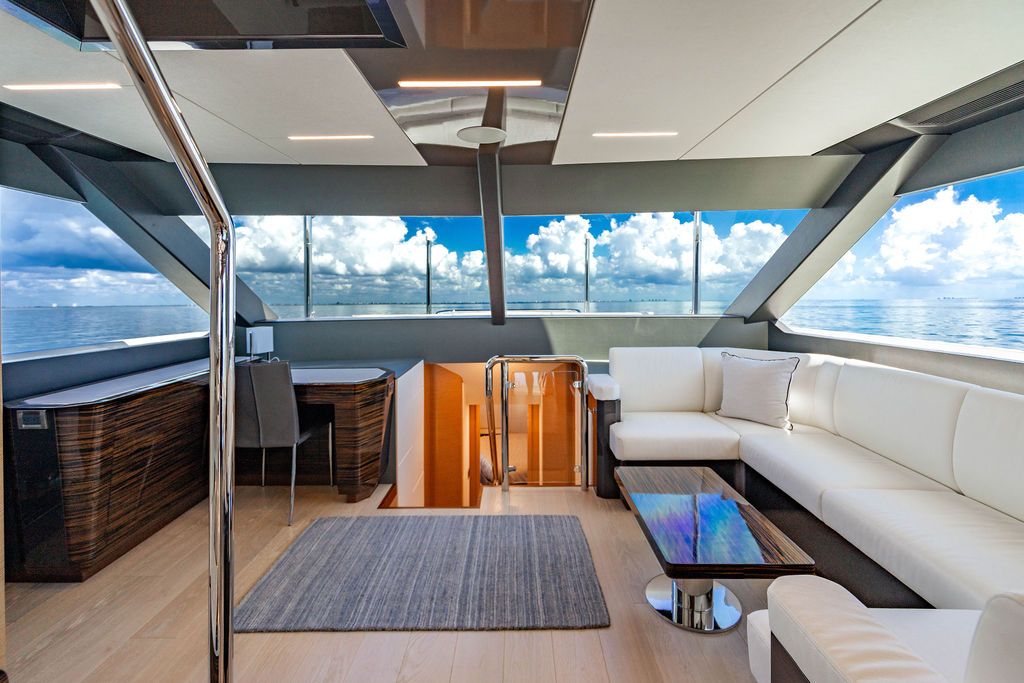

Skylounge:
- Stone countertop at cabinet including wet bar, fridge ,ice maker w/lacquerd panel door and storage
- Filp-down TV
- Wood valance board
- Sofa with table

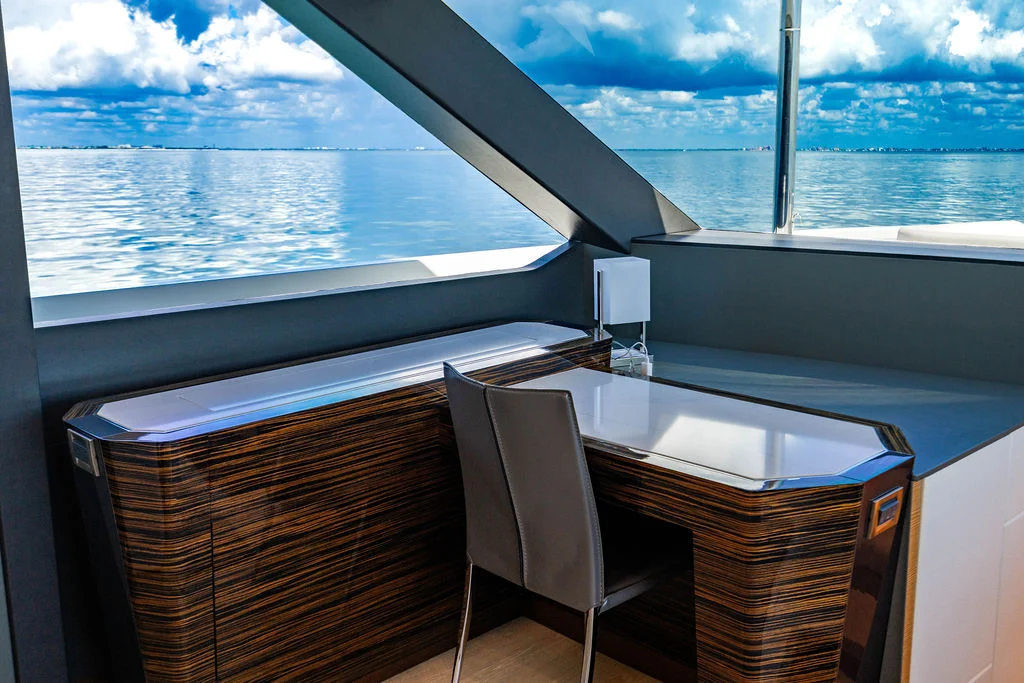

- Chart desk w/chair
- Wood flooring

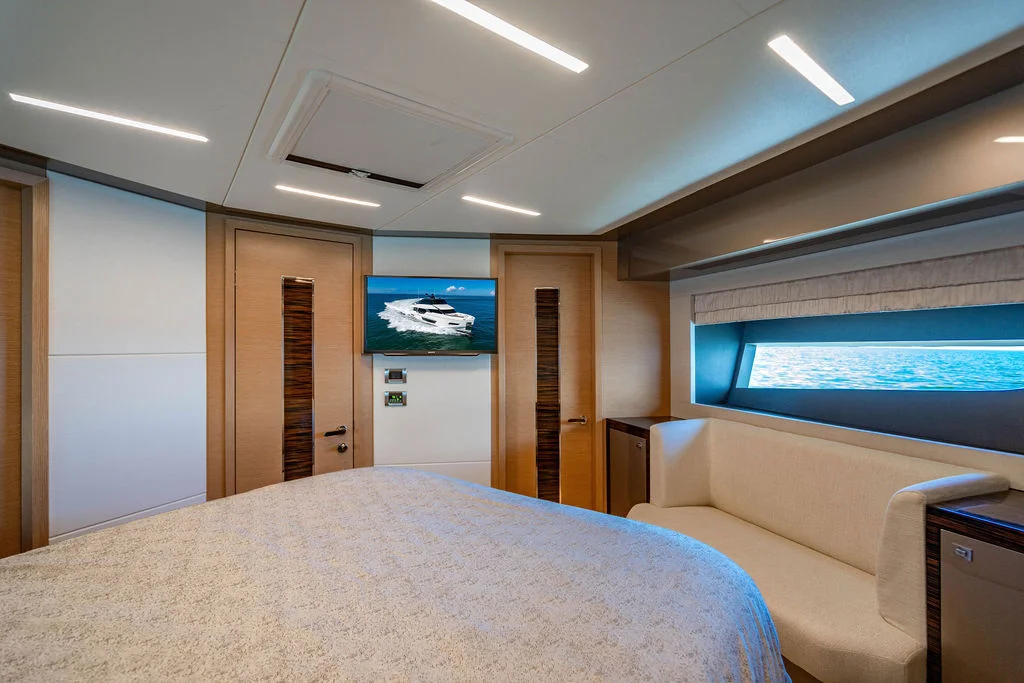

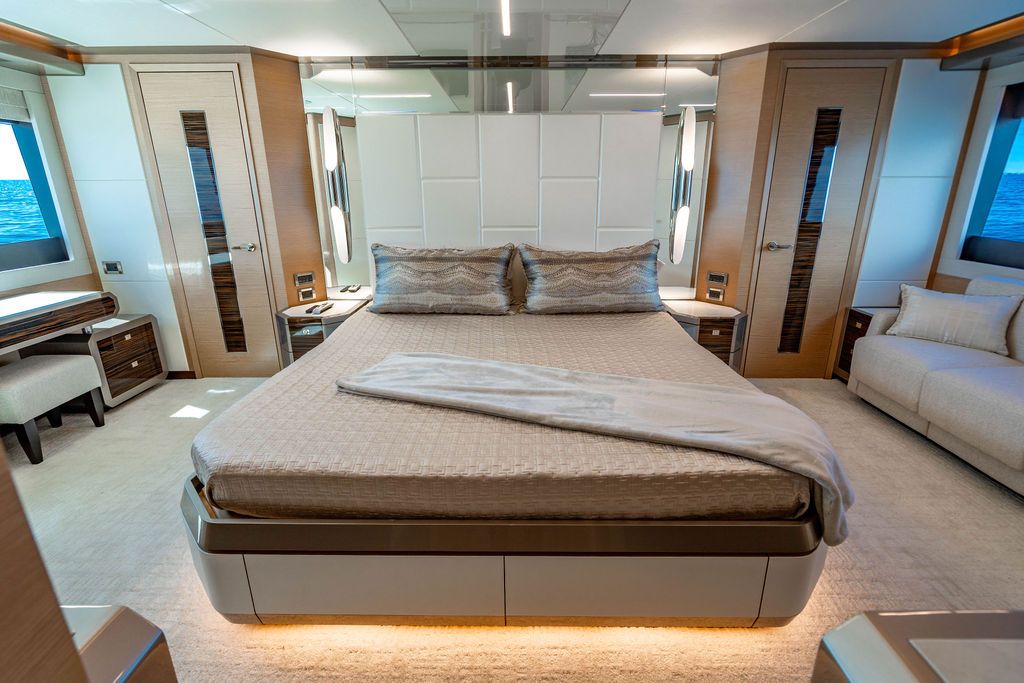

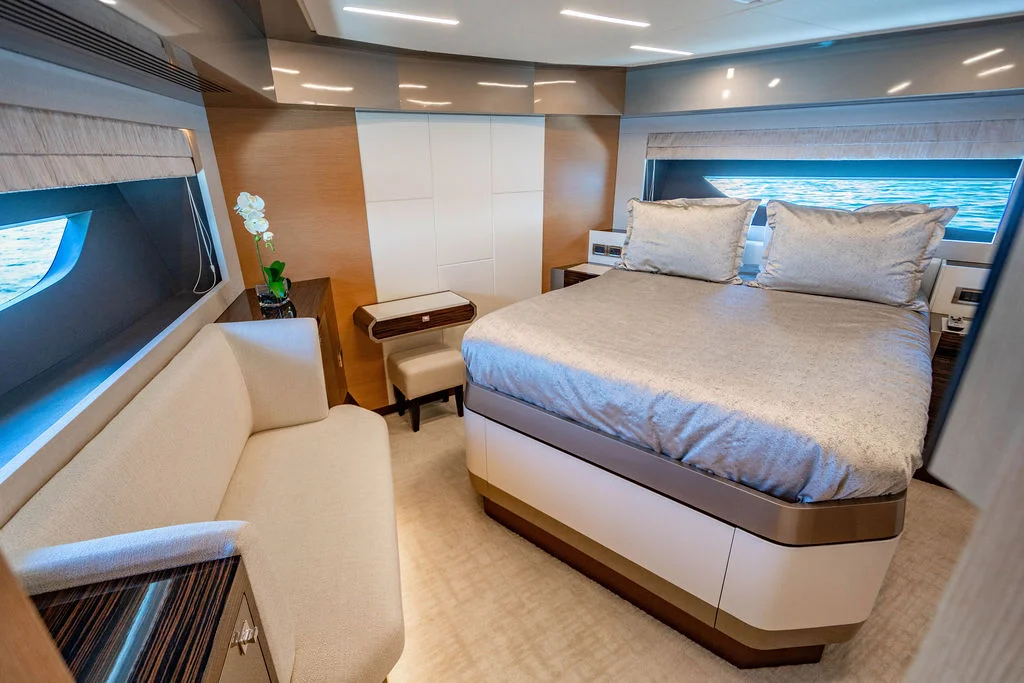

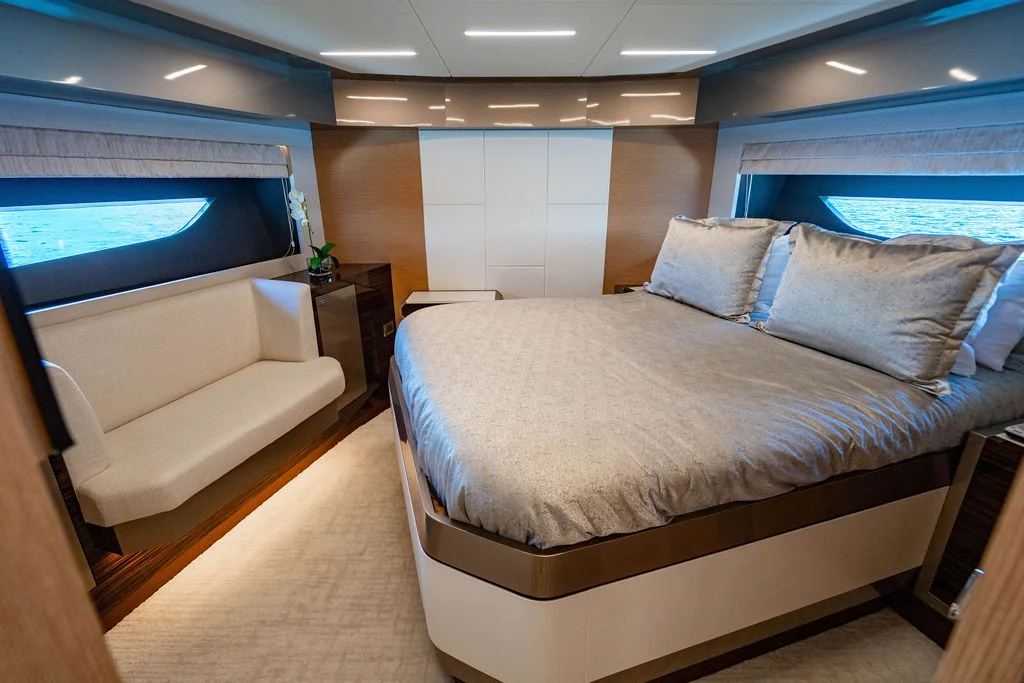

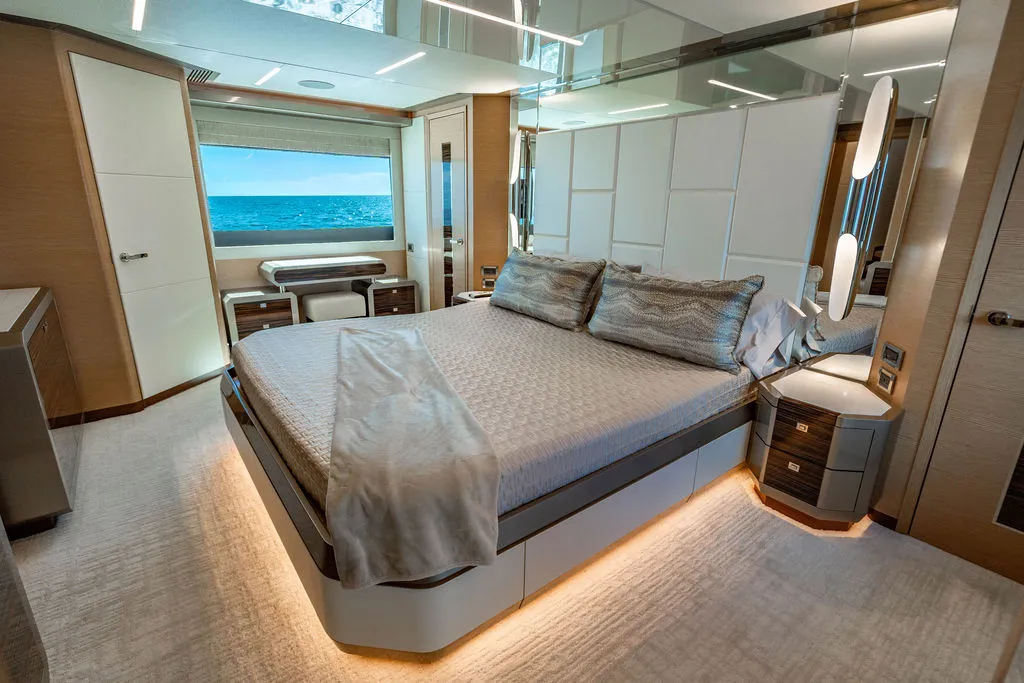

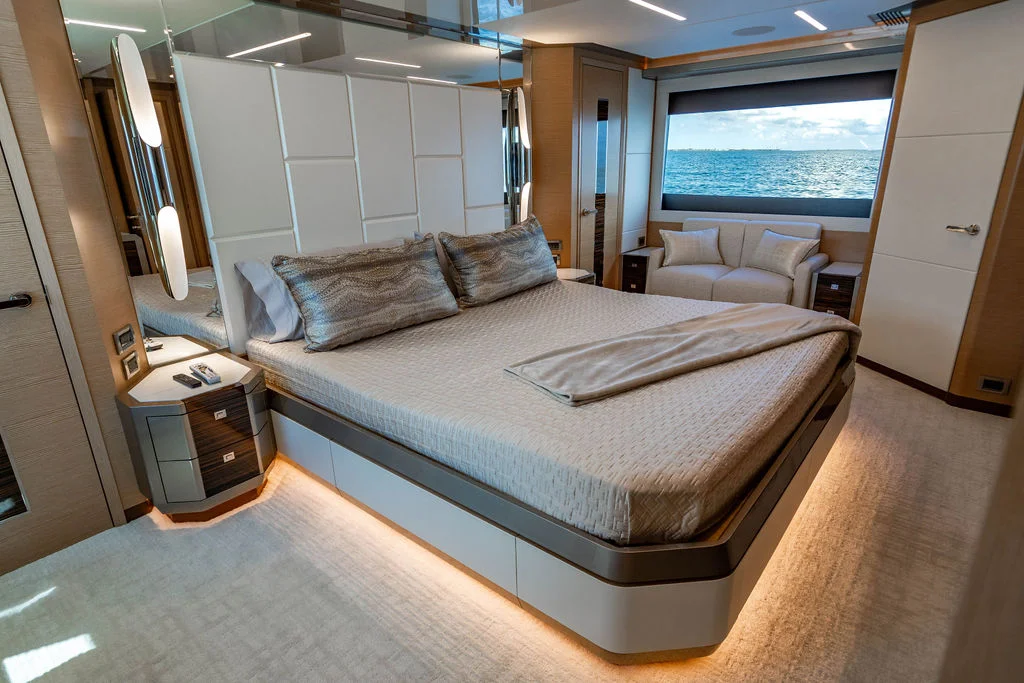

MASTER STATEROOM:
- King-sized berth (with independently coiled his & her sections to ensure minimal transfer of movement. Unique Ocean Alexander Feature)
- Two nightstands with stone countertop
- Stone countertop at port/STBD cabinets
E. ACCOMMODATIONS/INTERIORS, AUDIO/VIDEO
- Built-in vanity on starboard side and sofa on port side

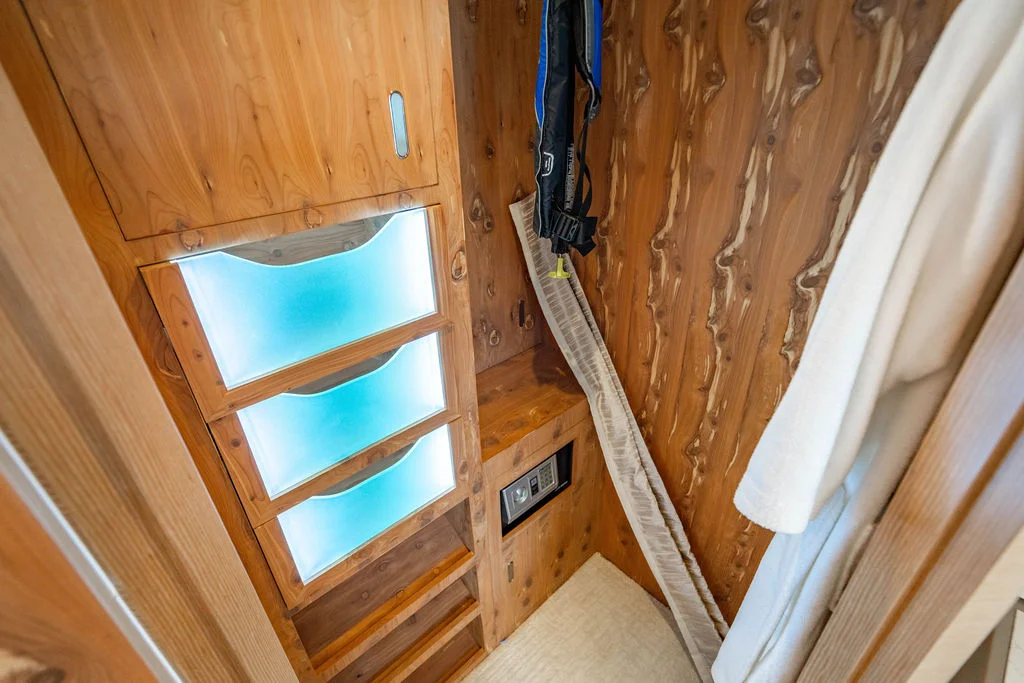

- Safe in hanging locker
- Full-height, cedar-lined hanging lockers with automatic lighting
- Custom designed window

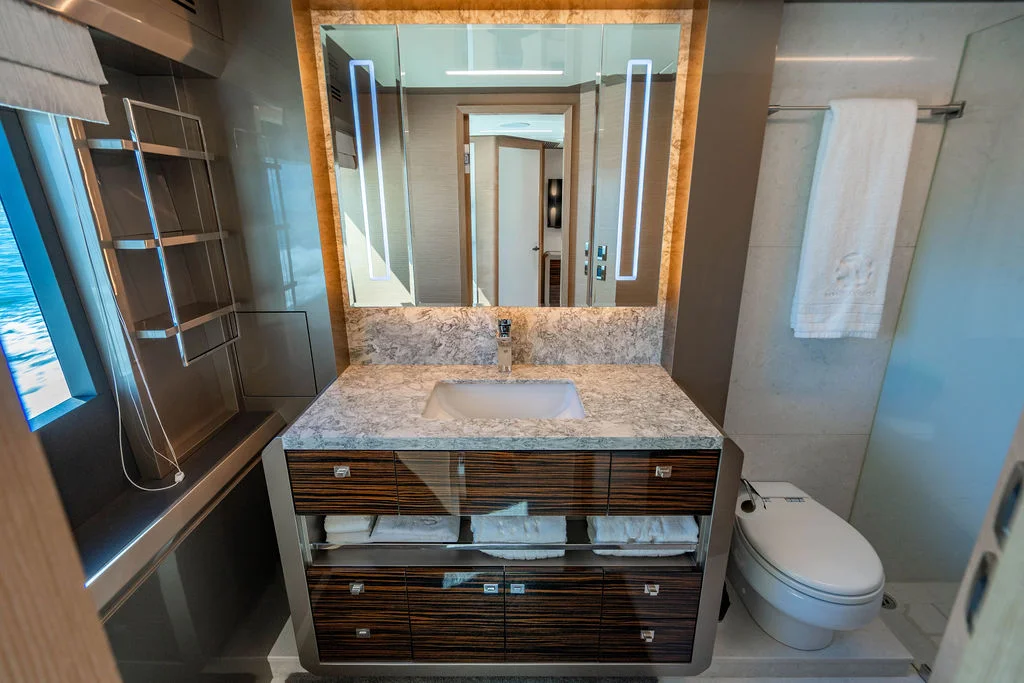

- Dual-sink head with shower and dimmable LED vanity mirror

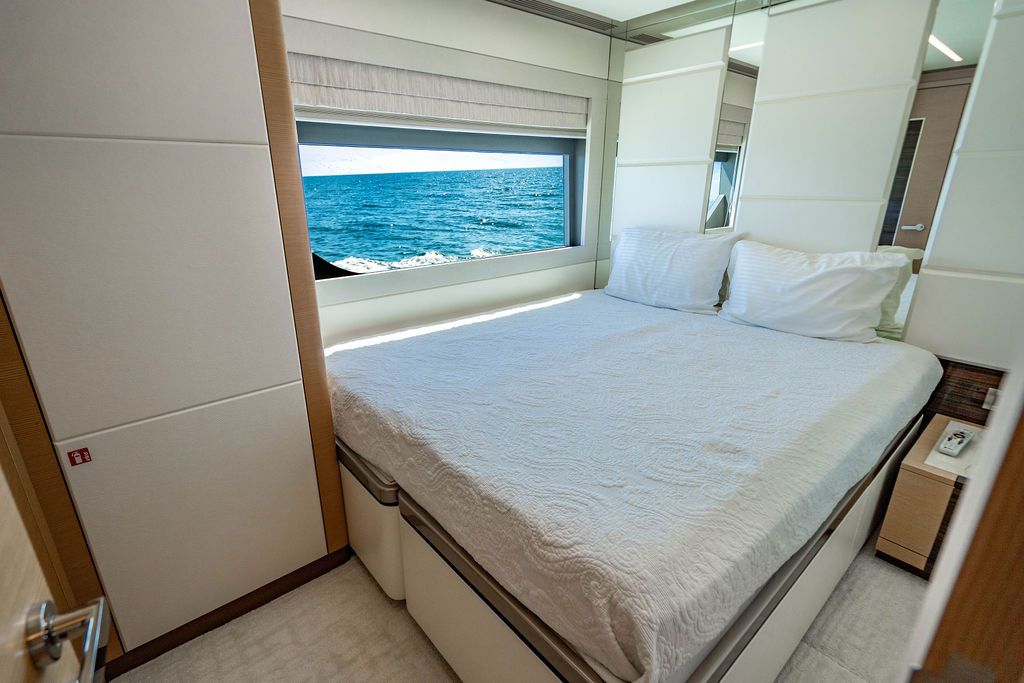

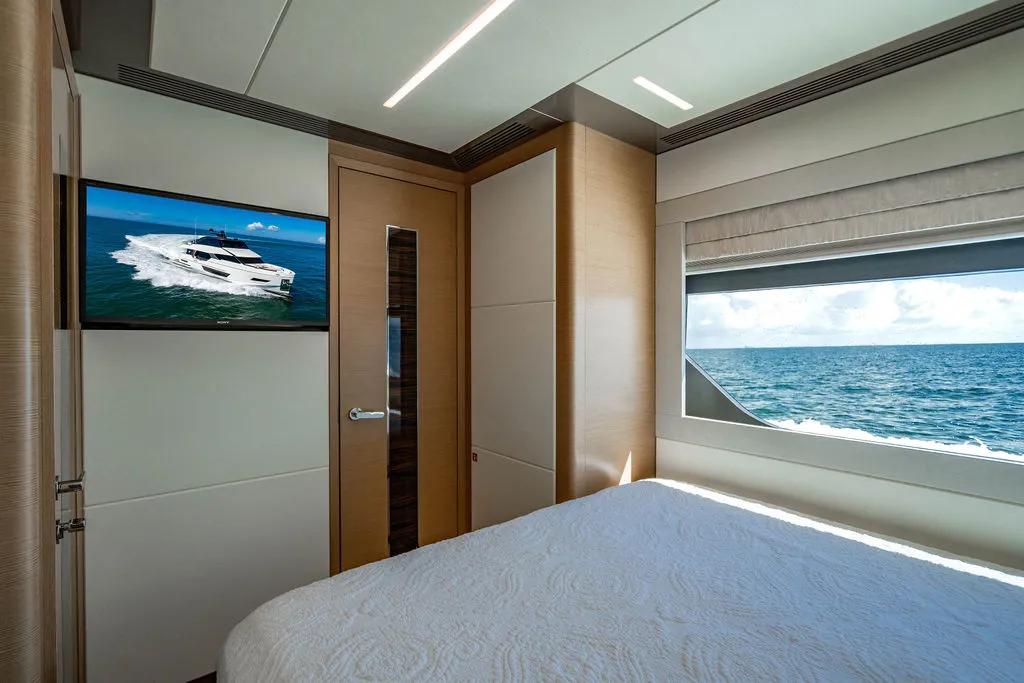

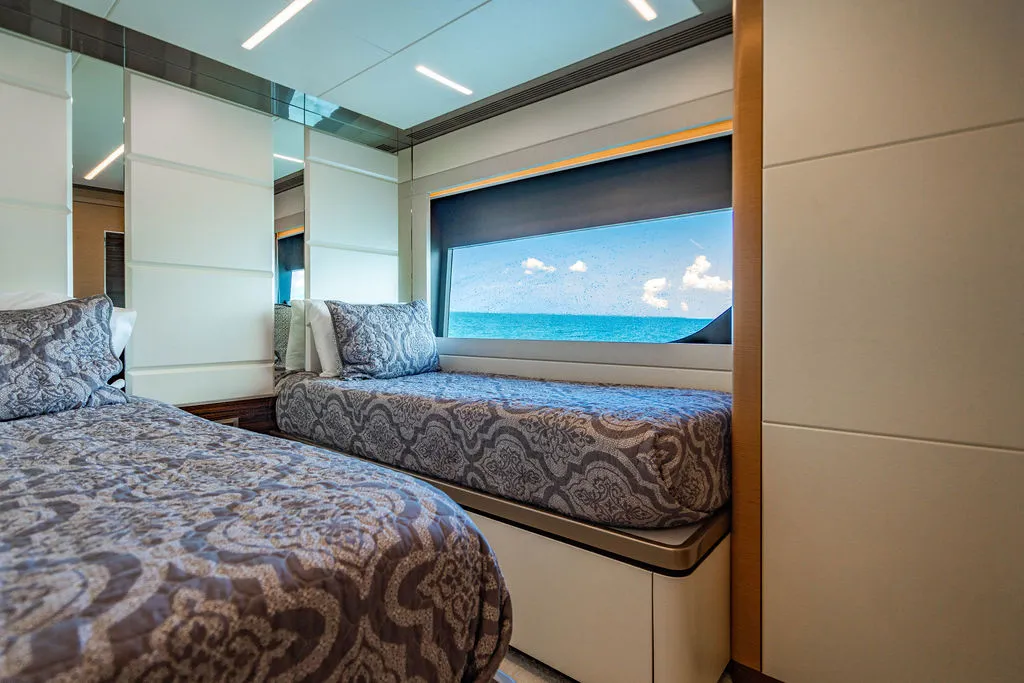

GUEST STATEROOM/ VIP:
- Queen-sized berth (VIP)

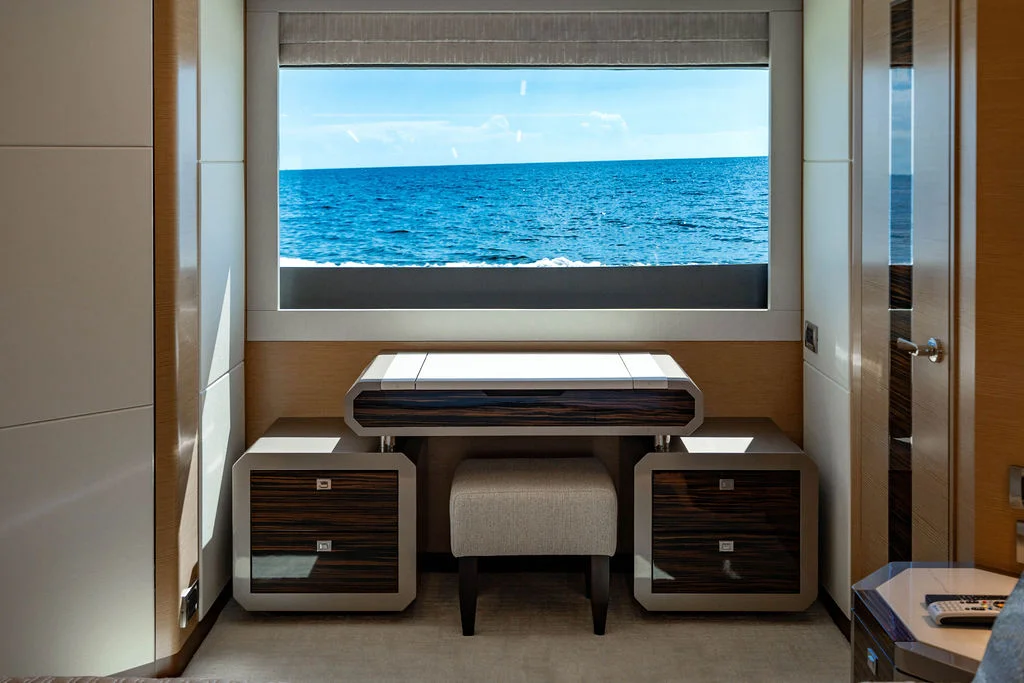

- Vanity table w/mirror (VIP)
- Port guest stateroom side-by-side conversion berths
- Starboard guest stateroom side-by-side conversion berths
- Dressing mirror (Port & STBD guest Stateroom)
- Cedar-lined hanging lockers with automatic lighting

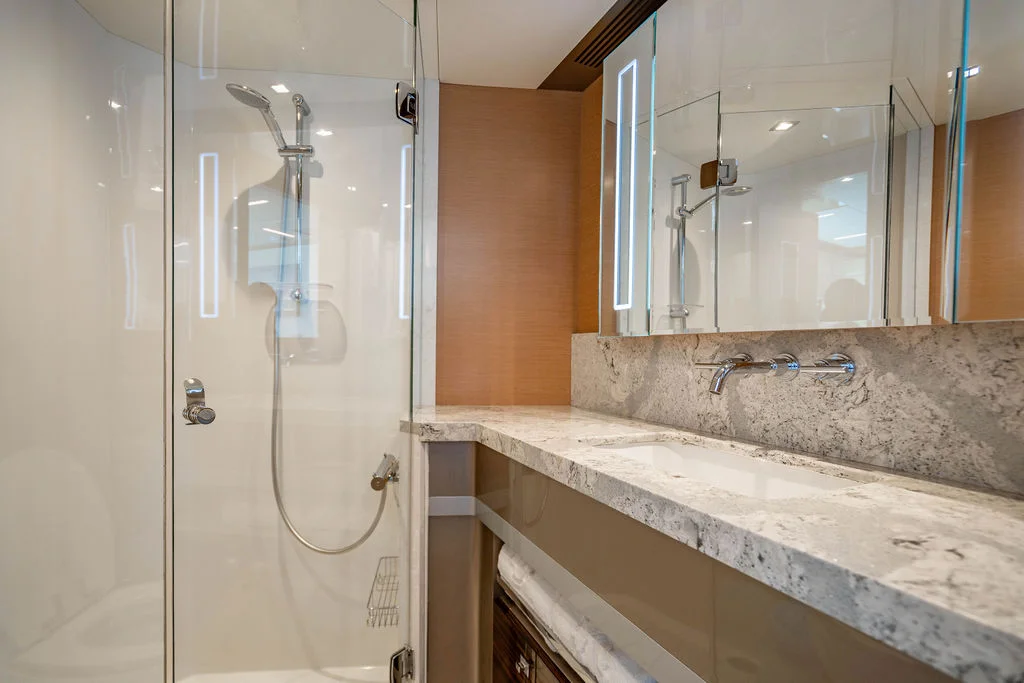

- Head with stall shower

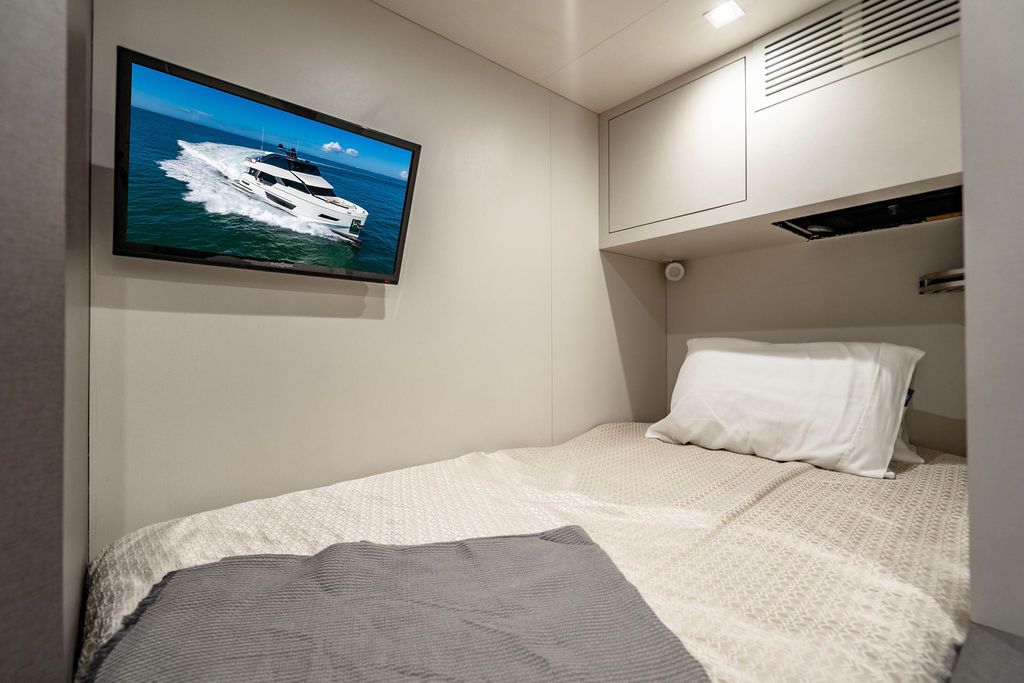

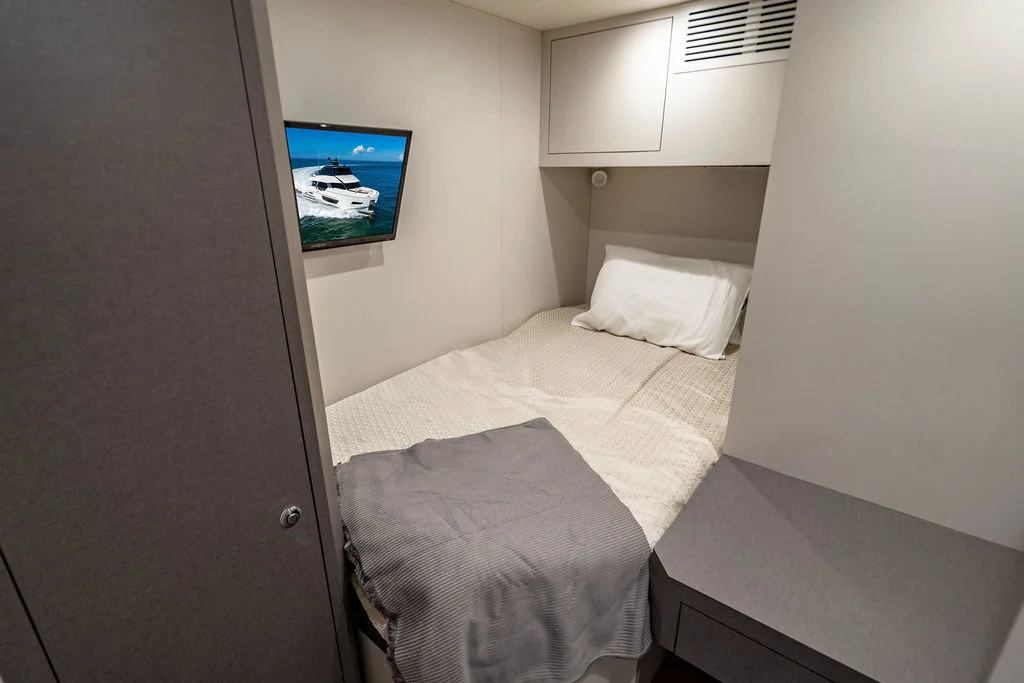

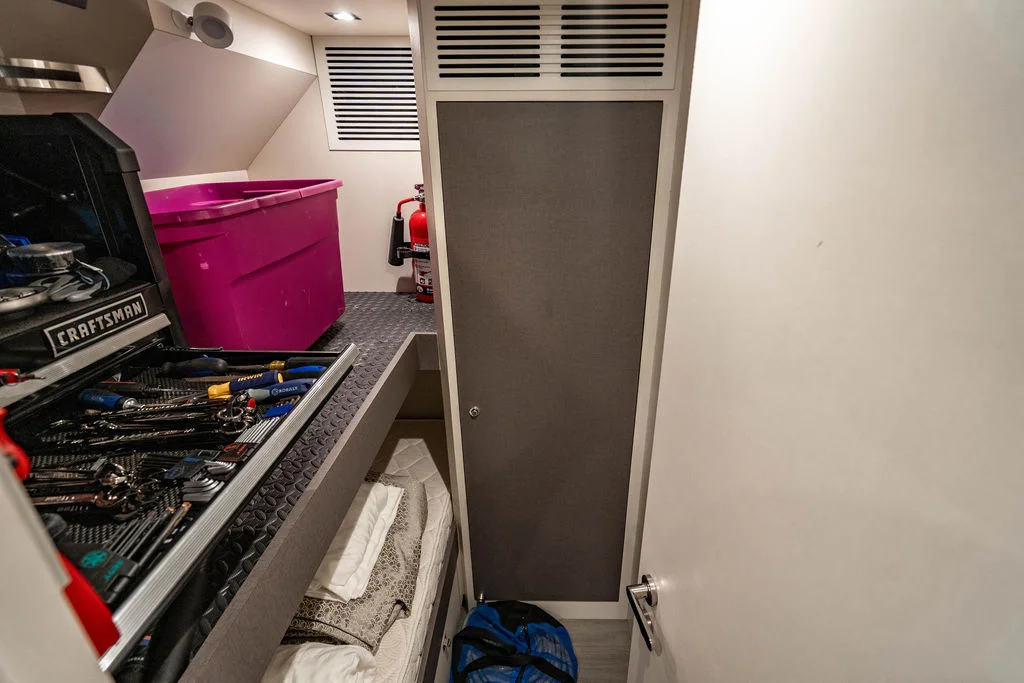

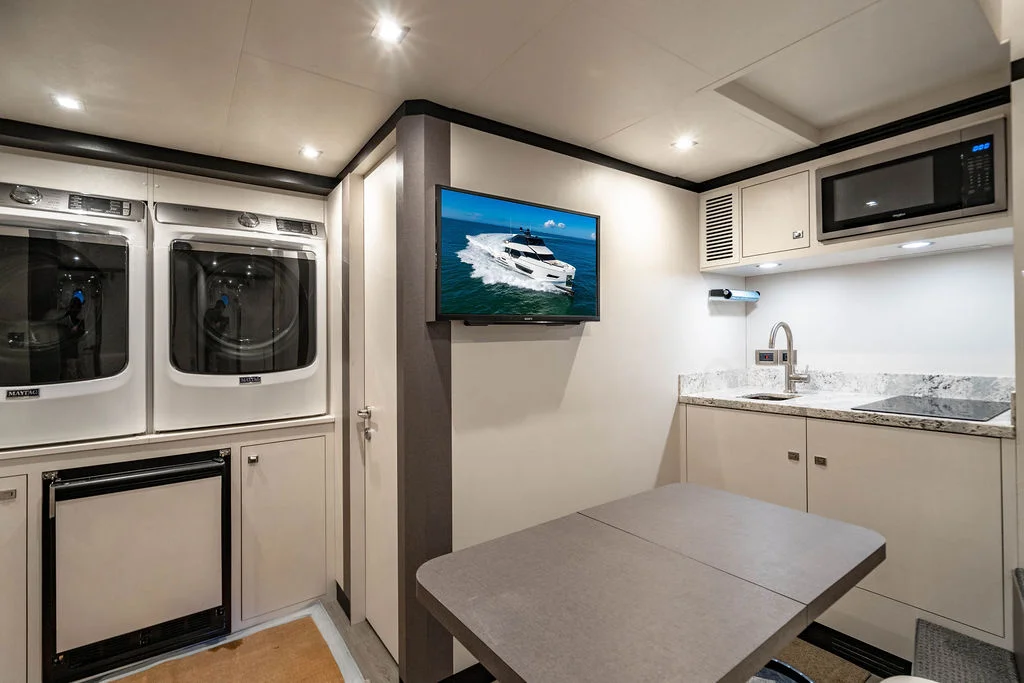

CREW QUARTERS:
- Largest crew quarters in its class with Ocean Alexander’s unique design, the crew quarters doubles as a Cabana. Allows for day head and rest/eat area for swimming/out of water activities without needing to access salon/main deck interiors.
- Cedar-lined hanging locker with automatic lighting

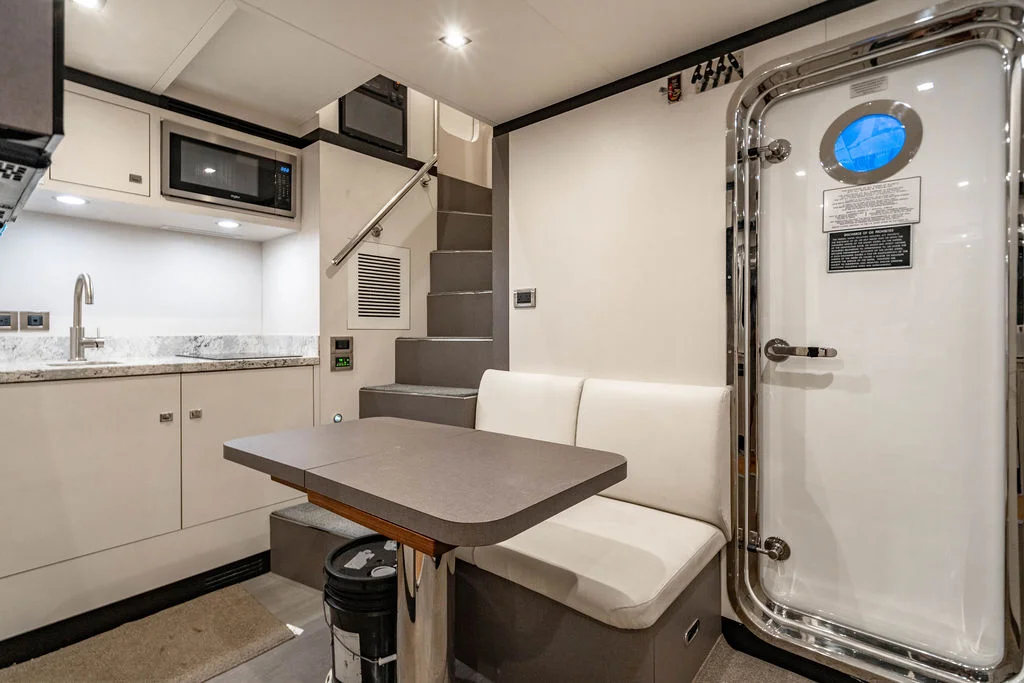

- Kitchenette (sink, cook top, microwave and refrigerator/icemaker)
- Storage locker
- Drawers under bunk
- Additional commercial grade/capacity washer and dryer in crew

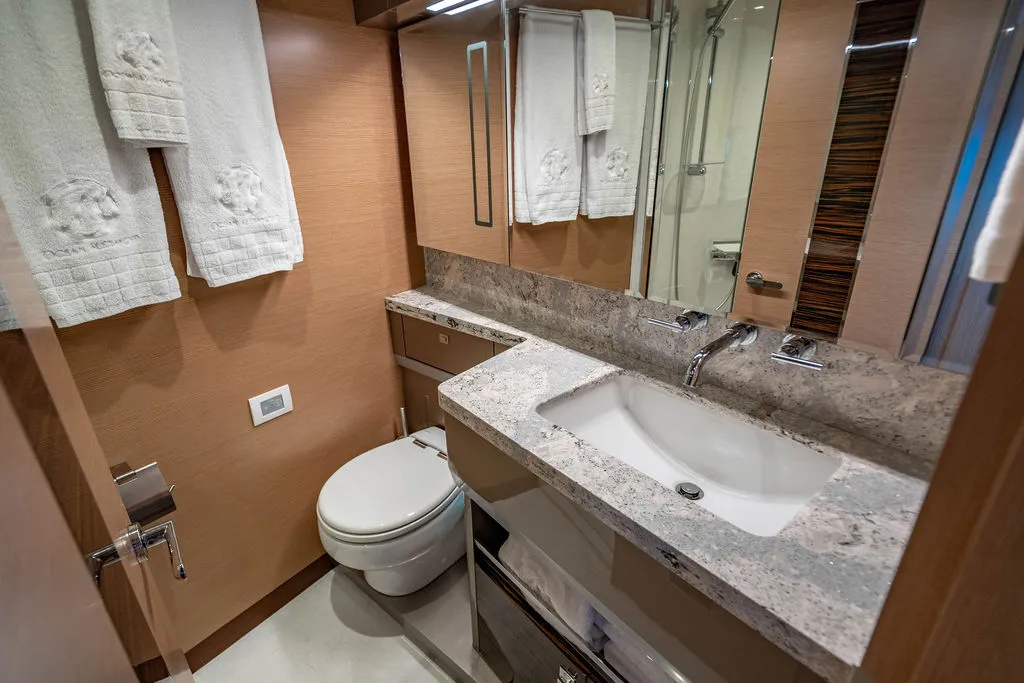

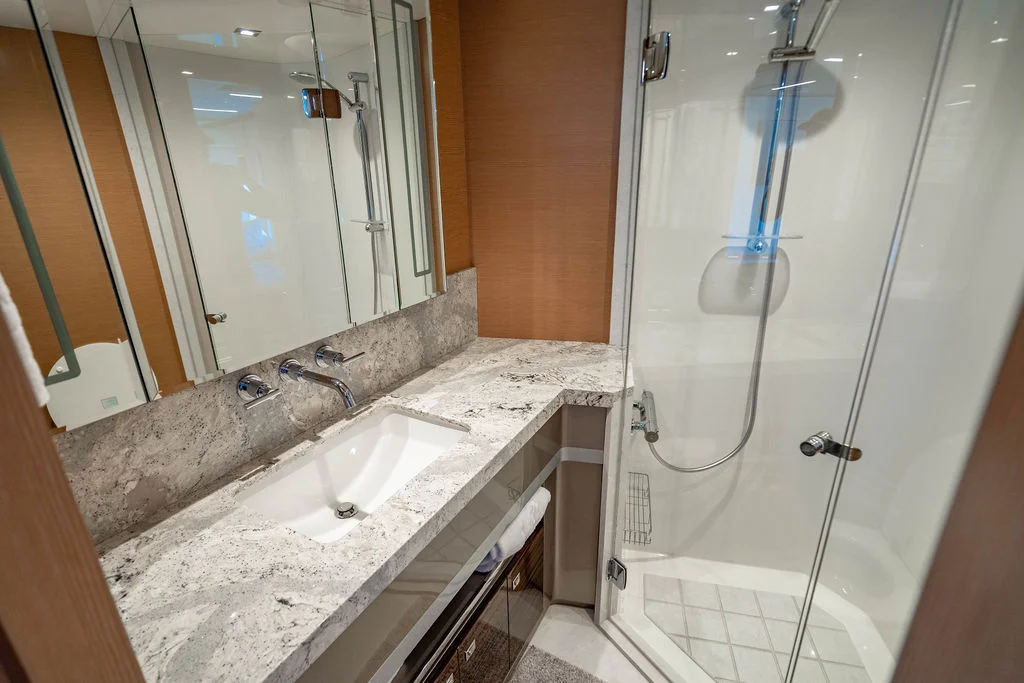

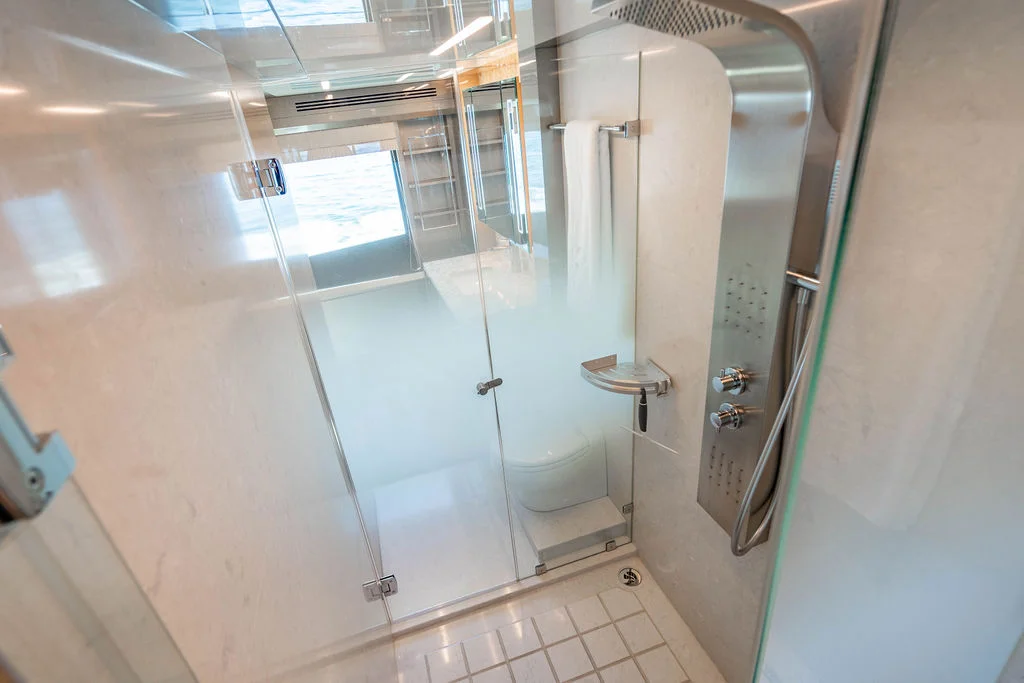

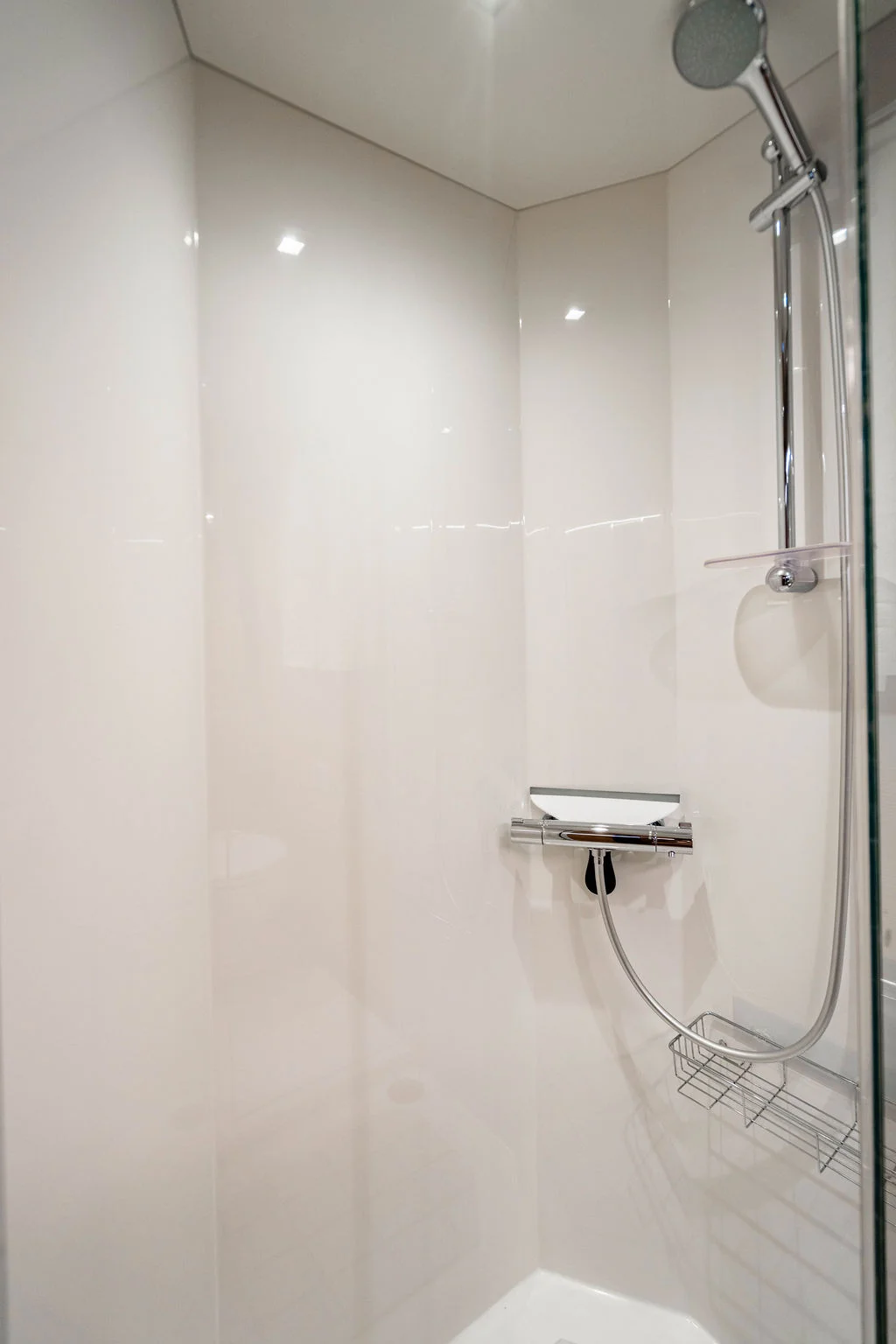

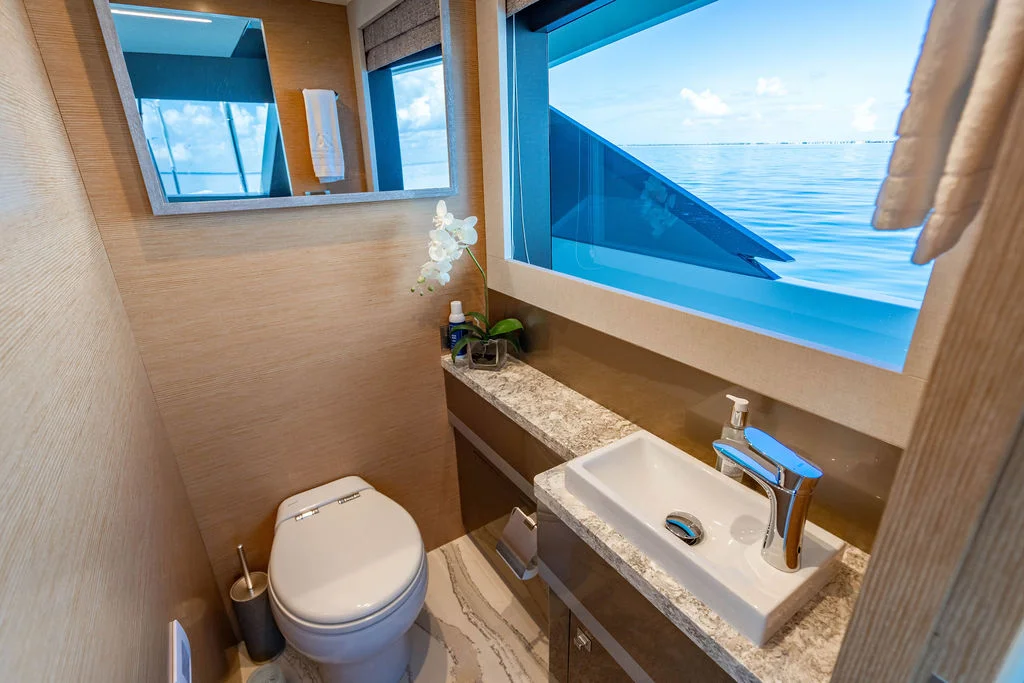

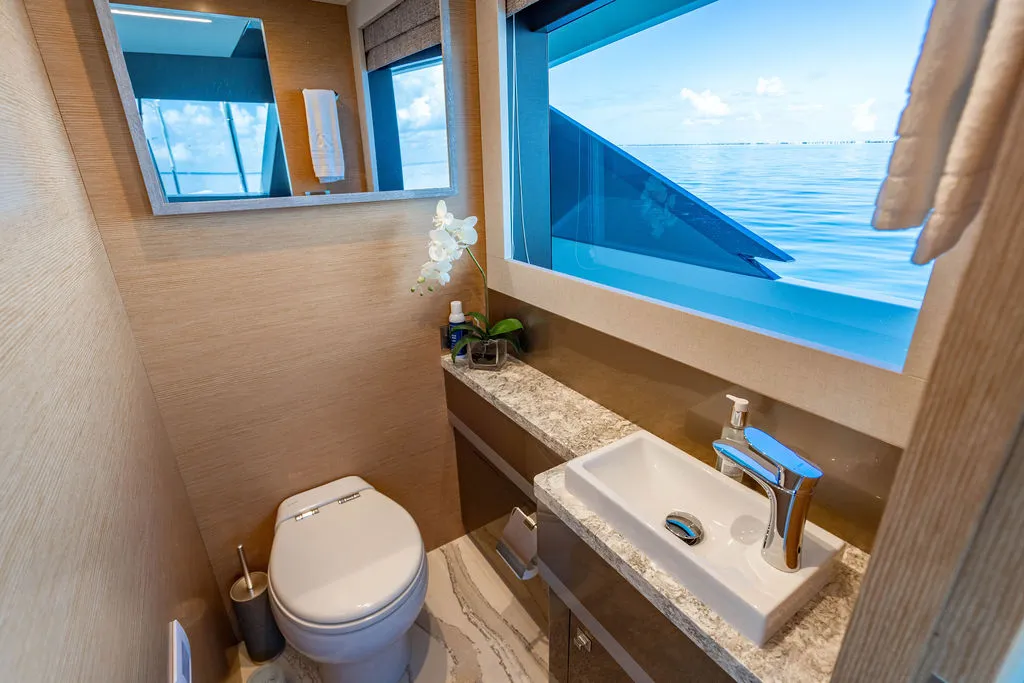

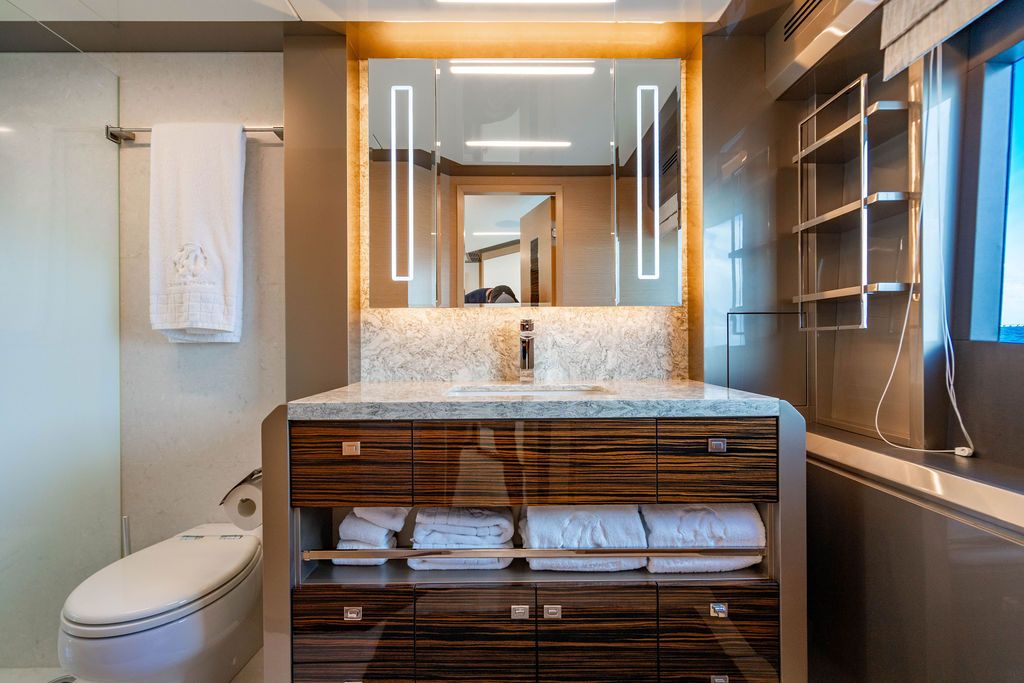

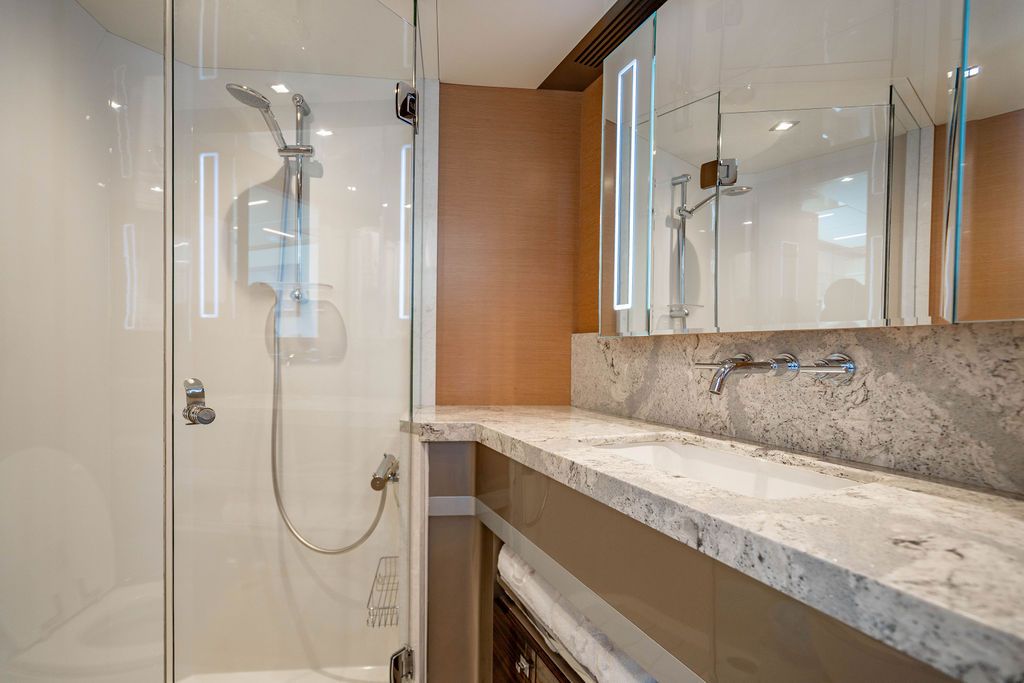

HEADS:
- Wood walls & cabinets with stone countertops
- China sink
- Tecma™toilet system throughout with unique Ocean Alexander proprietary “Toilet lock out” system. Provides “lock out” of flushing when holding tank is full. Prevents accidental spillage or “blow back” often found on competitor yachts. Tankage status and alarm is standard via N2KView monitoring system.

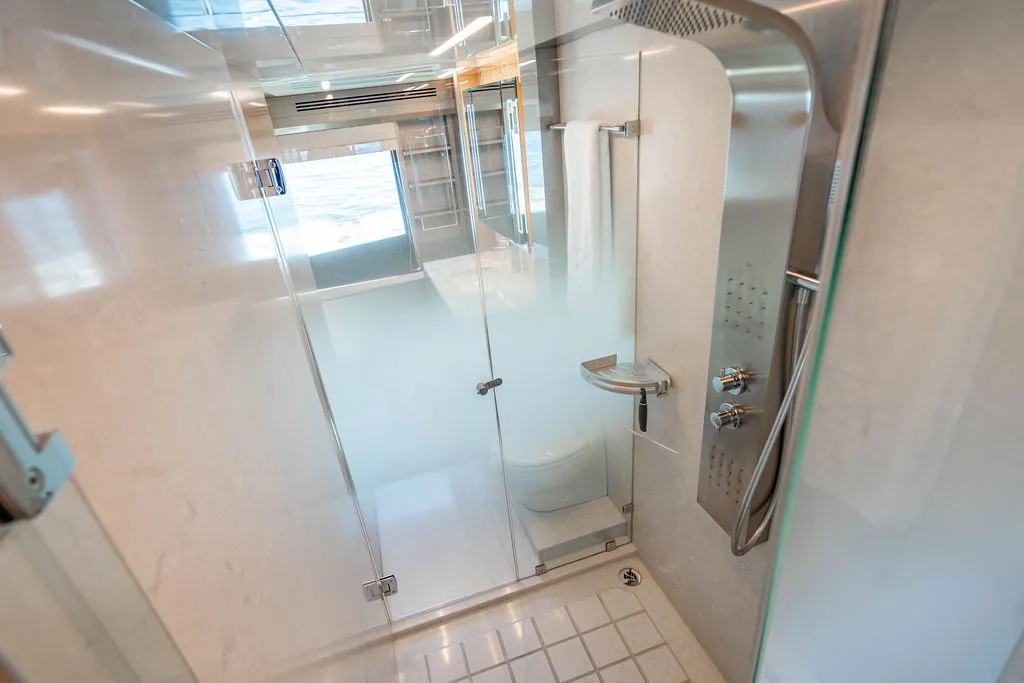

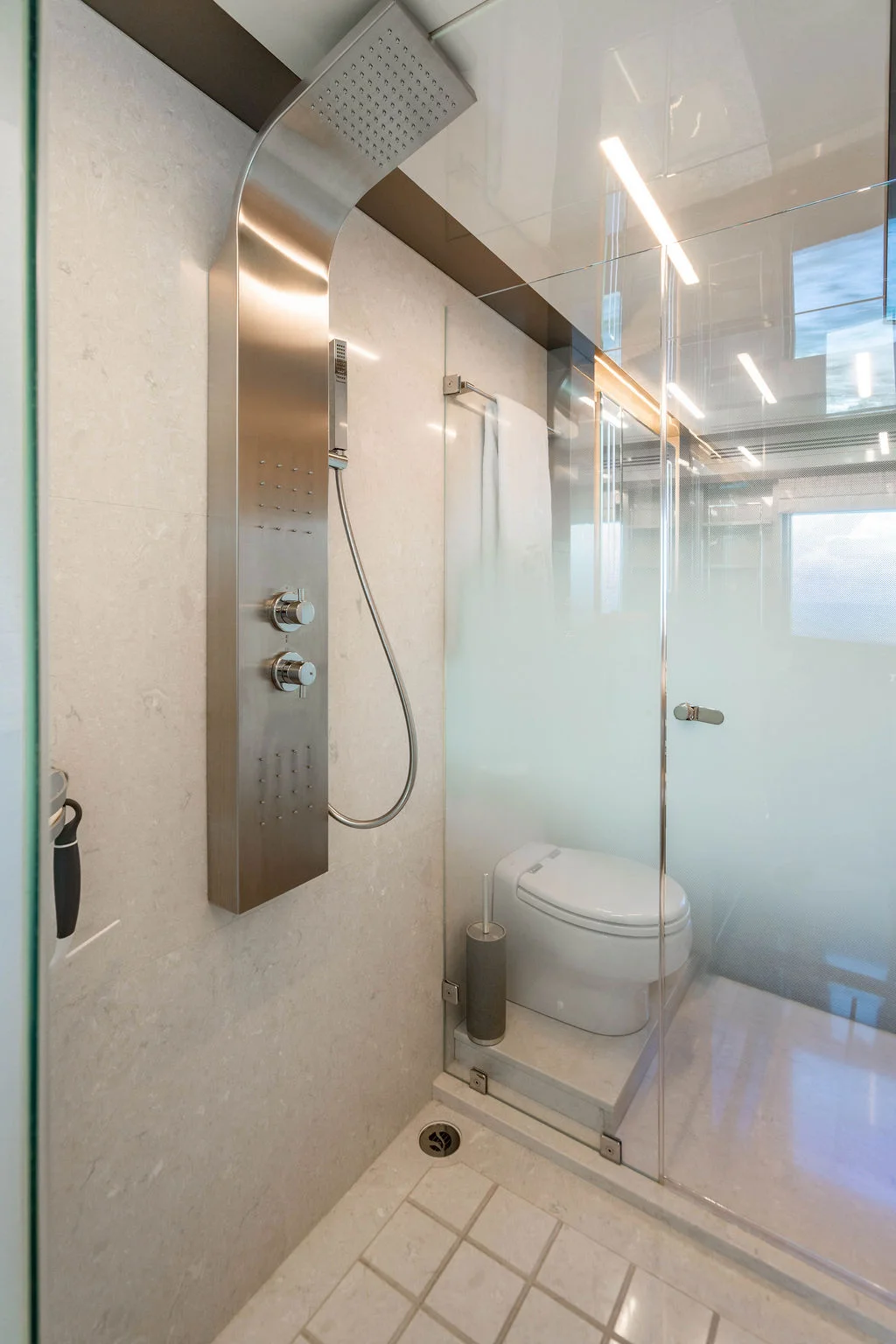

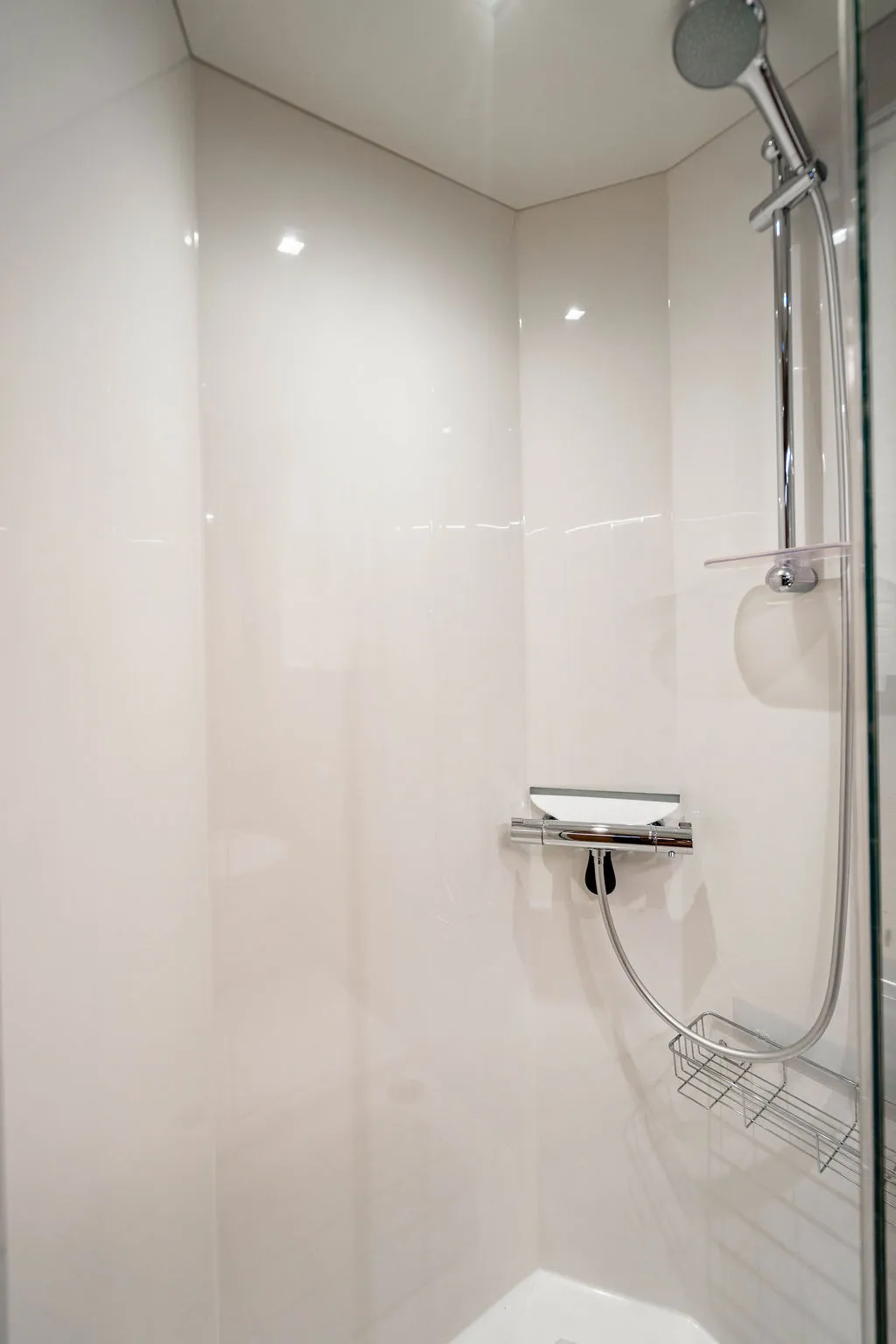

- Seamless fiberglass stall shower w/ one-piece glass door. Industry leading seamless one-piece shower stall design provides long term protection against moisture, water intrusion behind the shower (Unique OA feature)
- Shower door shall use “crystal clear” glass custom made for Ocean Alexander. Providing superior transparency and reflectiveness. Together with custom made for Ocean Alexander “minimalist and transparent water strips” provides a unique Ocean Alexander proprietary “Crystal Shower”
- Custom faucets for sink and shower
- Custom bathroom hardware
- Custom bathroom fixtures
- Air extraction in each head shall be by low noise extraction fans
- Stone flooring

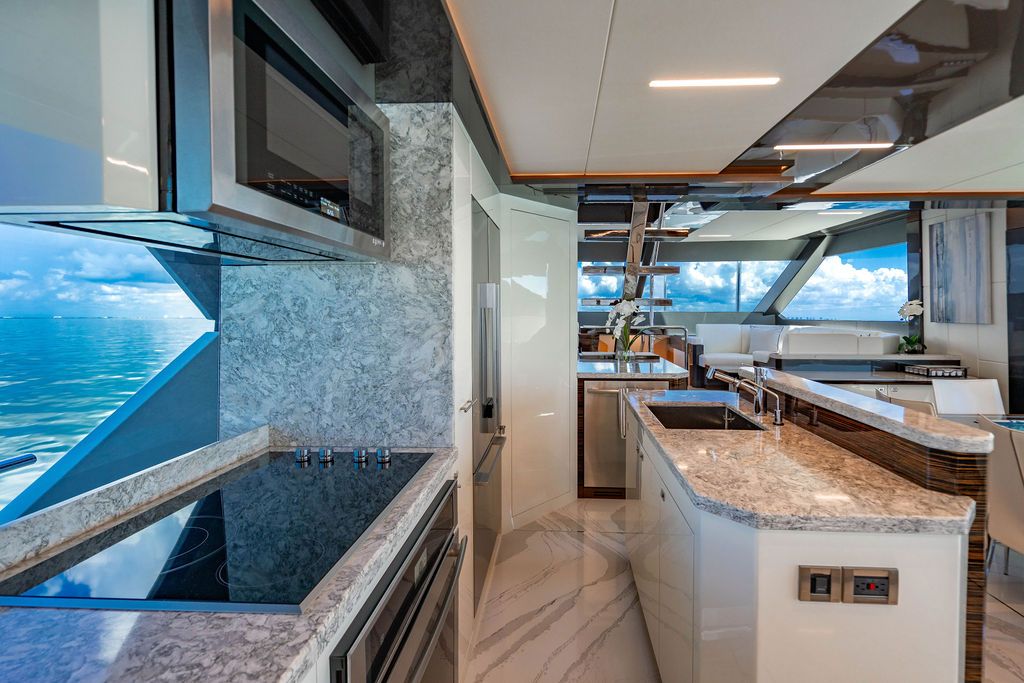

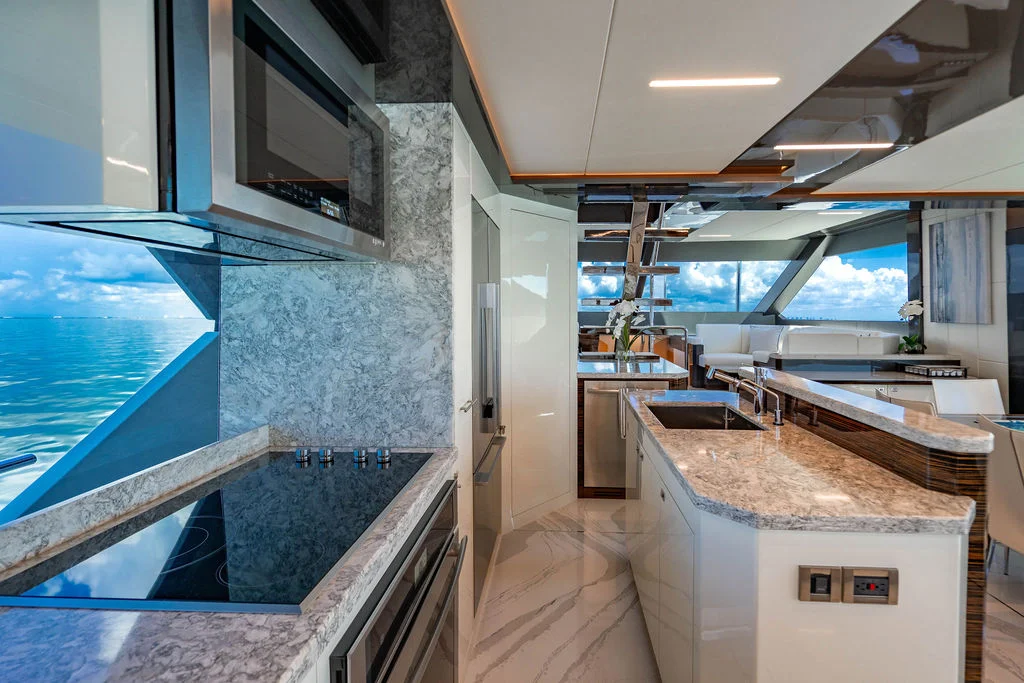

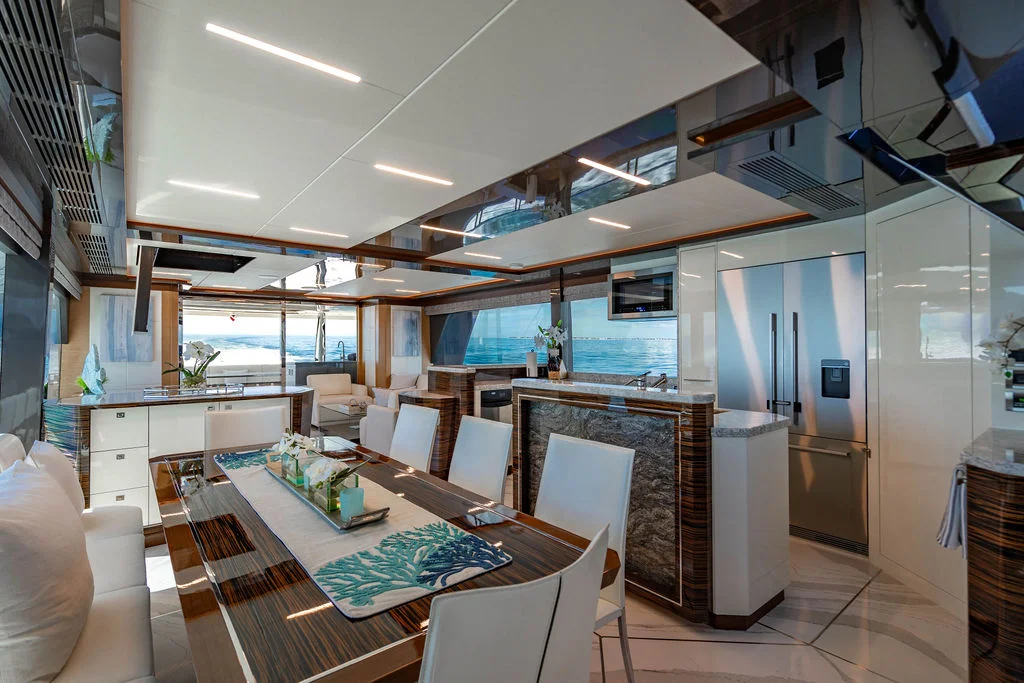

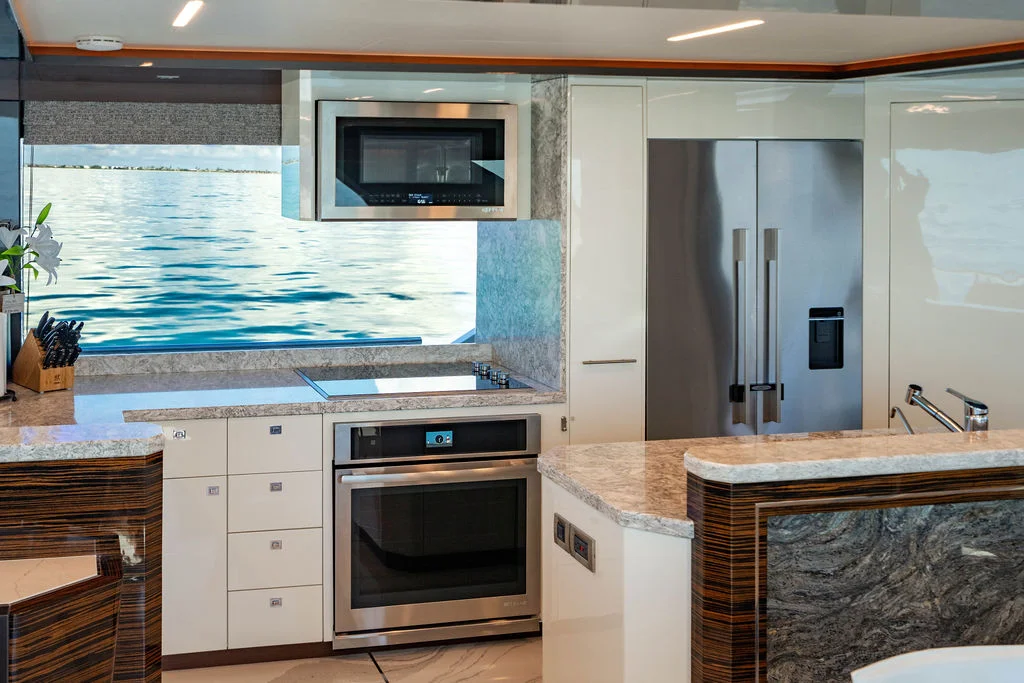

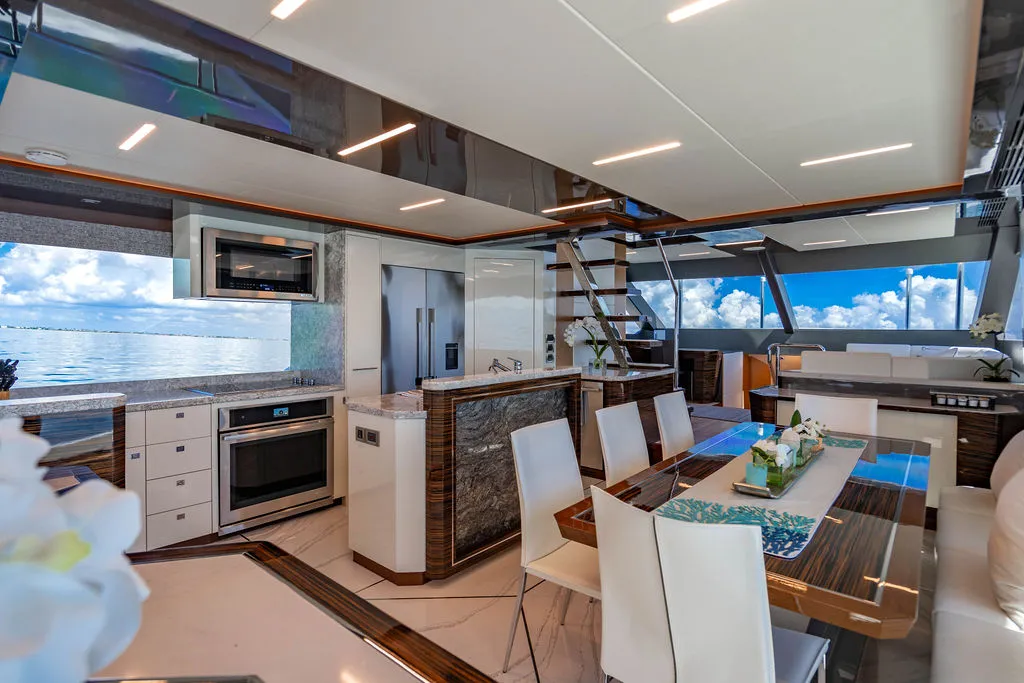

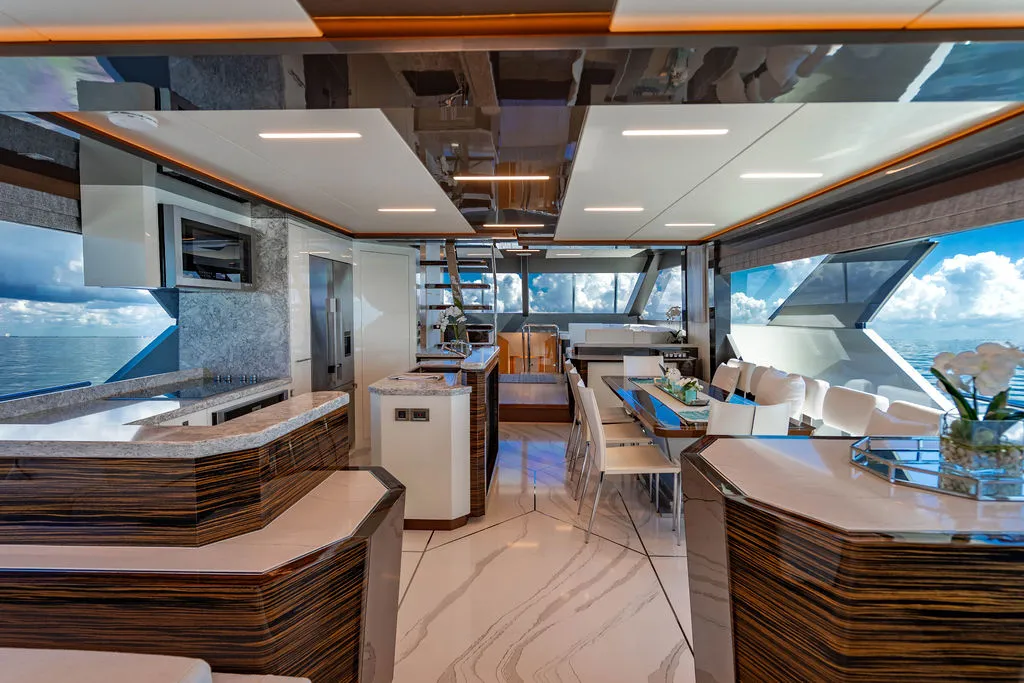

GALLEY:

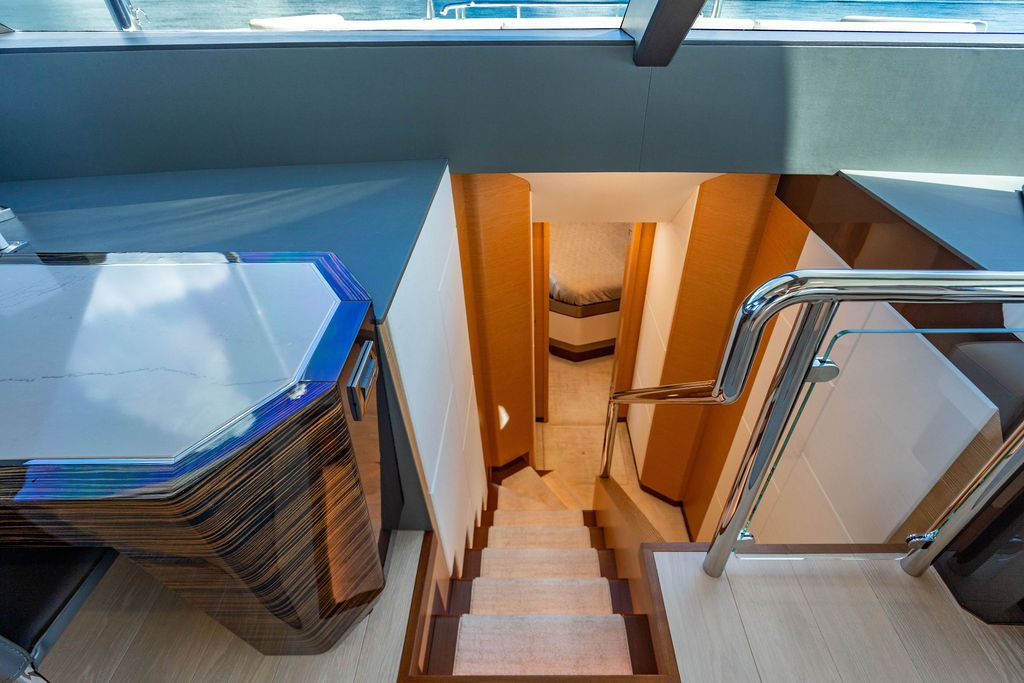

- Layout with cabinetry storage under stairs
- Stone countertops
- Painted panel and cabinetry with positive-latch doors or proprietary drop-lock drawers. Provides containment of stored objects while underway (Std. feature often ignore by competitor)
- Stone flooring
- Storage cabinets
- Large single sink with pull out faucet on island
- Dish locker
- Galley storage cabinetry w/hidden hinges
- Whirlpool™garbage disposal
- 36” Fisher & Pakyel® Refrigerator
- 30" Jenn-Air Over-the Range Microwave
- 30” Jenn-Air™electric cook top
- 30” Jenn-Air™electric oven
- 15” Whirlpool™trash compactor
- Jenn-Air™dishwasher
- 14” Sunpentown wine cooler inside cabinet
- Custom Seagull™water purifier (ADEX design award winner w/ filtration to 0.1 microns & EPA certification for microbiological purification)

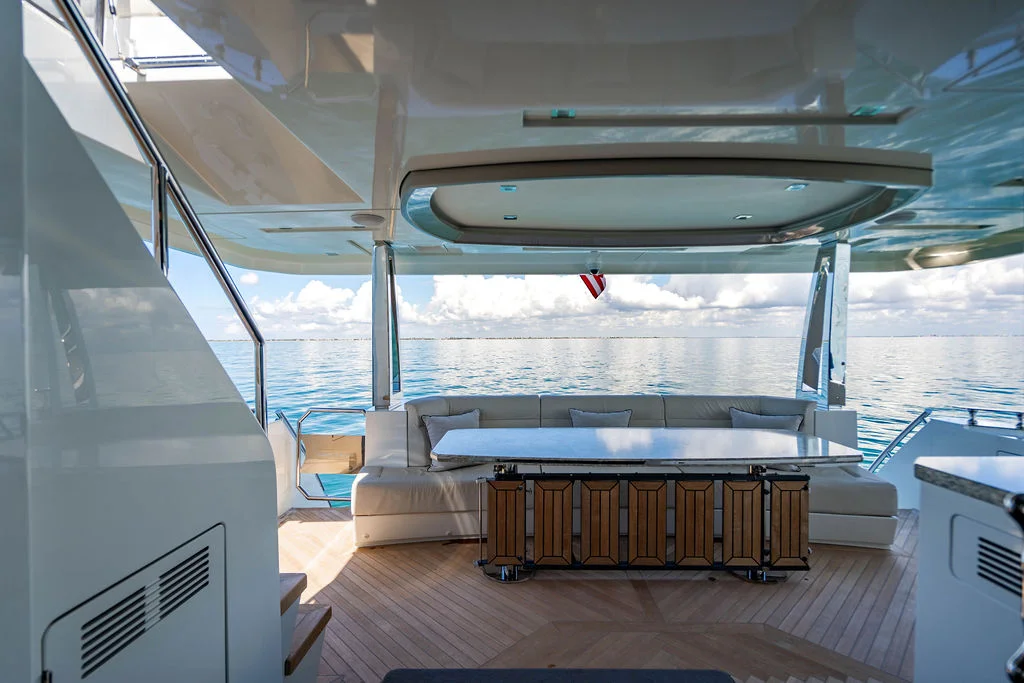

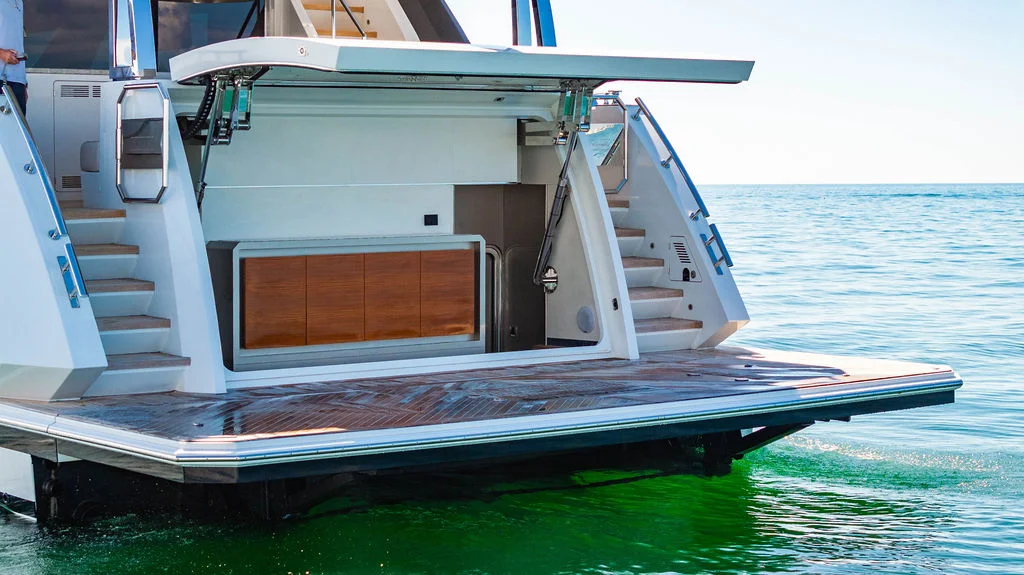

EXTERIOR:
- Hardtop with dedicated custom S/S ladder to navigational electronics (Standard versus optional with competitors)
- Fixed ceiling panels on main deck
- 2” elliptical 316L Stainless steel handrails on main deck, 1-1/2” on FB. Elliptical conforms better to human grip than traditional round rails. Provides greater “grip strength” for safety and comfort (Unique OA feature)
- S/S anchor roller

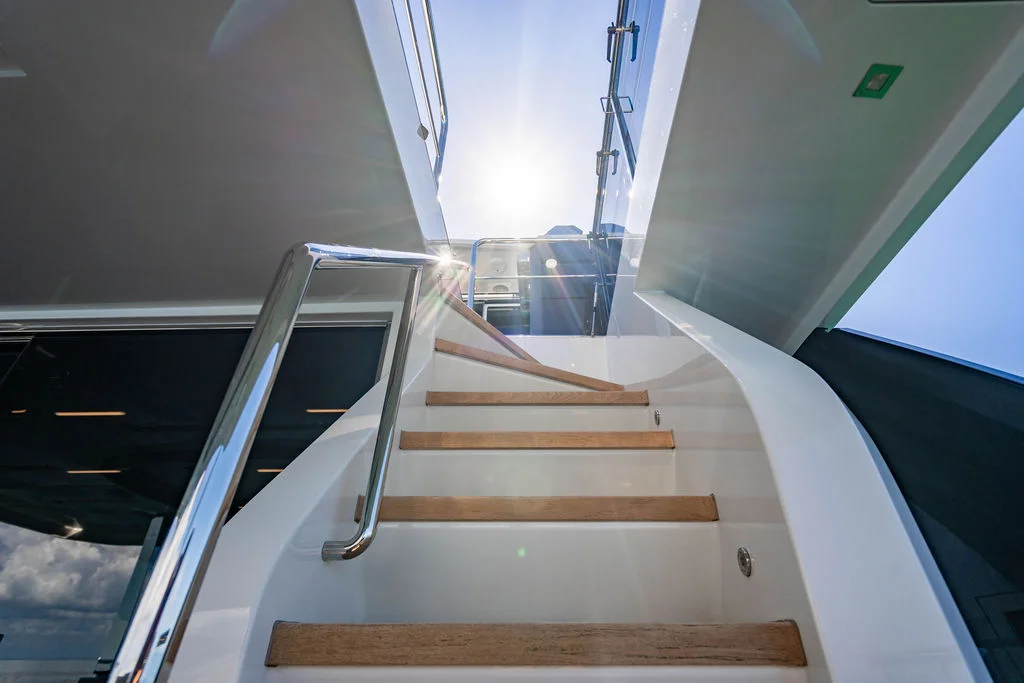

- Fiberglass staircase from cockpit to FB

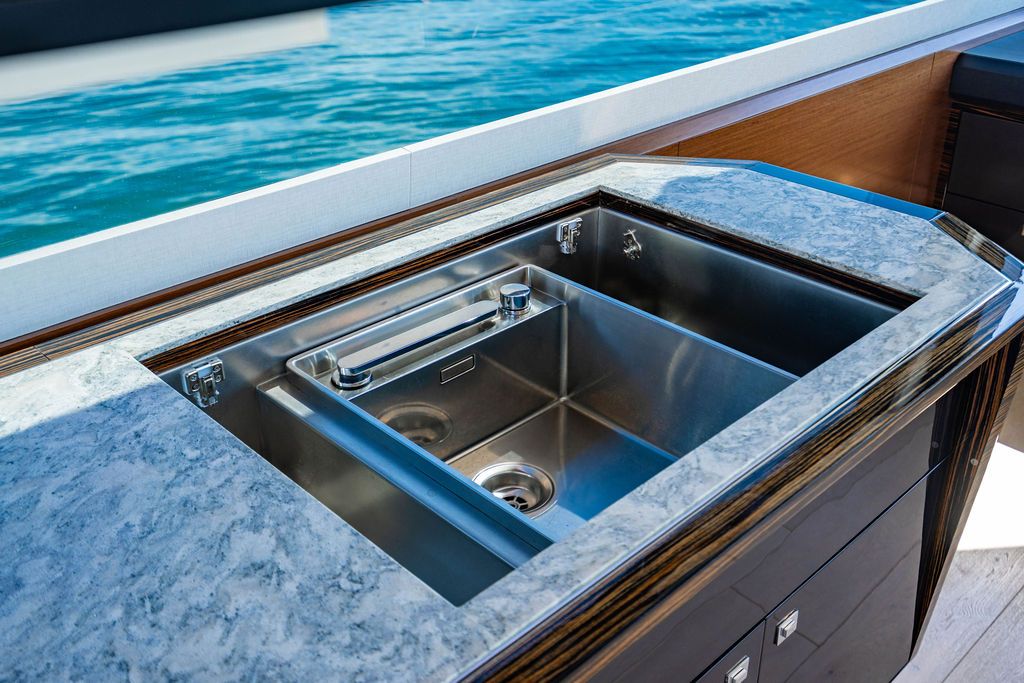

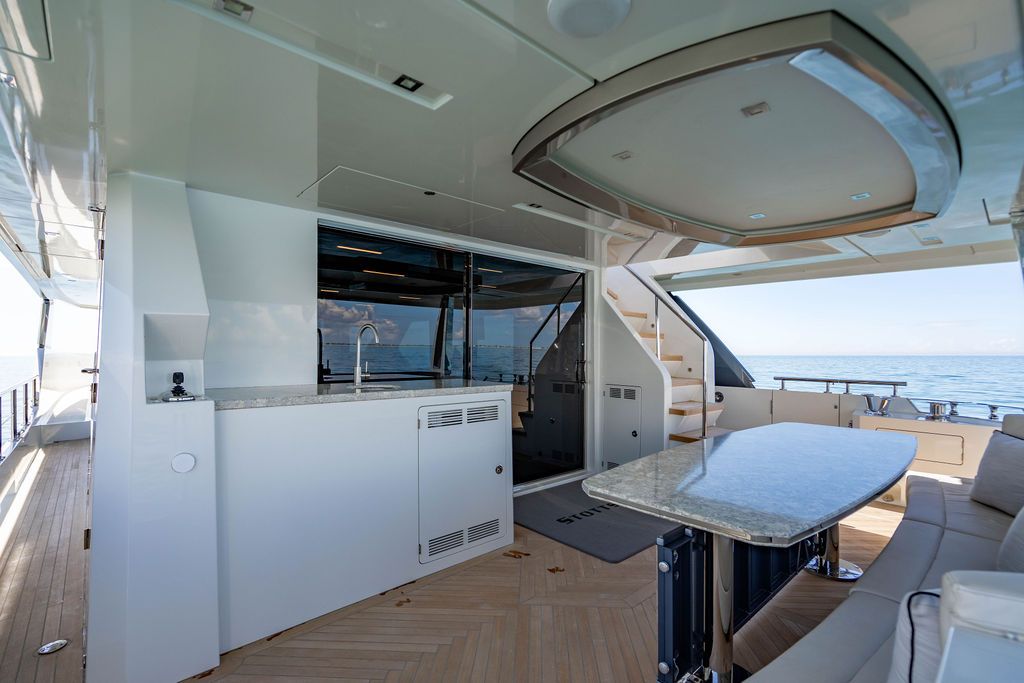

- Wet bar with sink, refrigerator, icemaker on bridge & Aft Deck

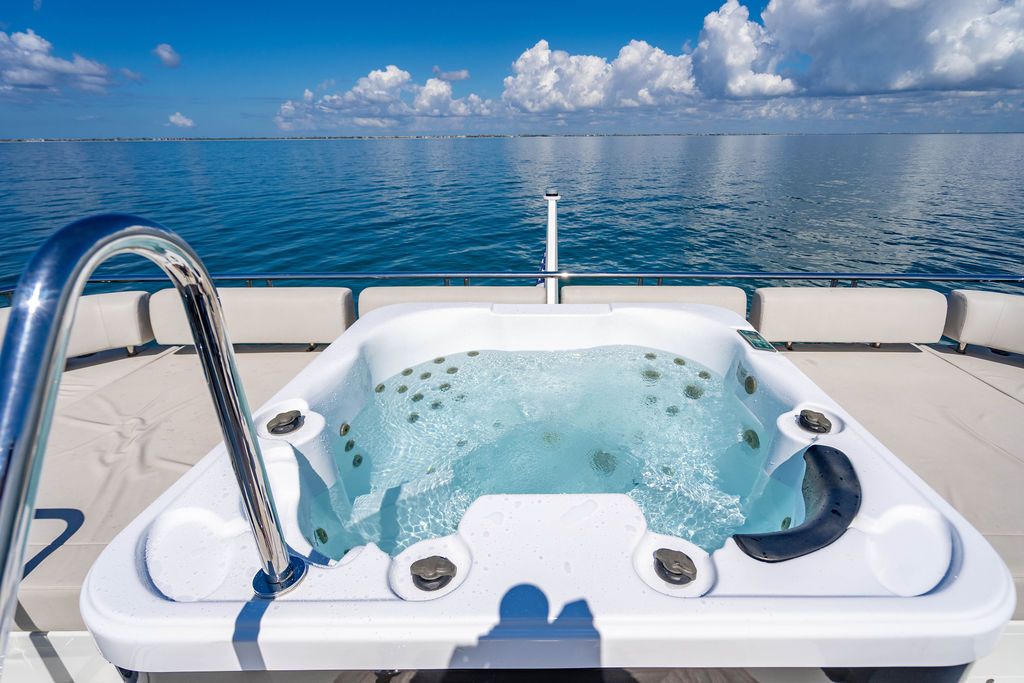

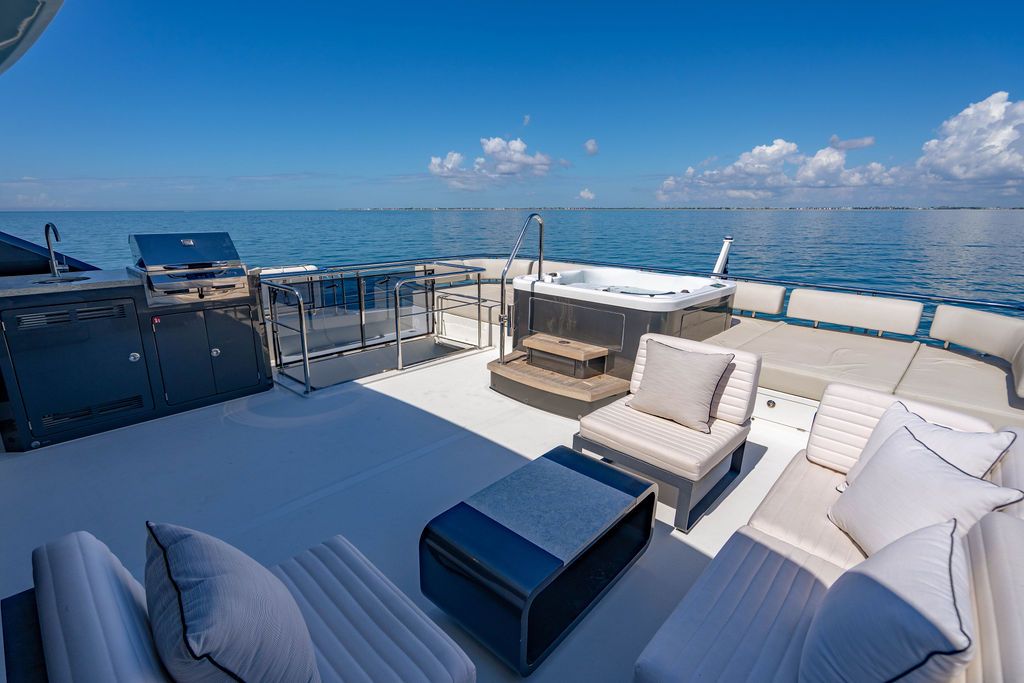

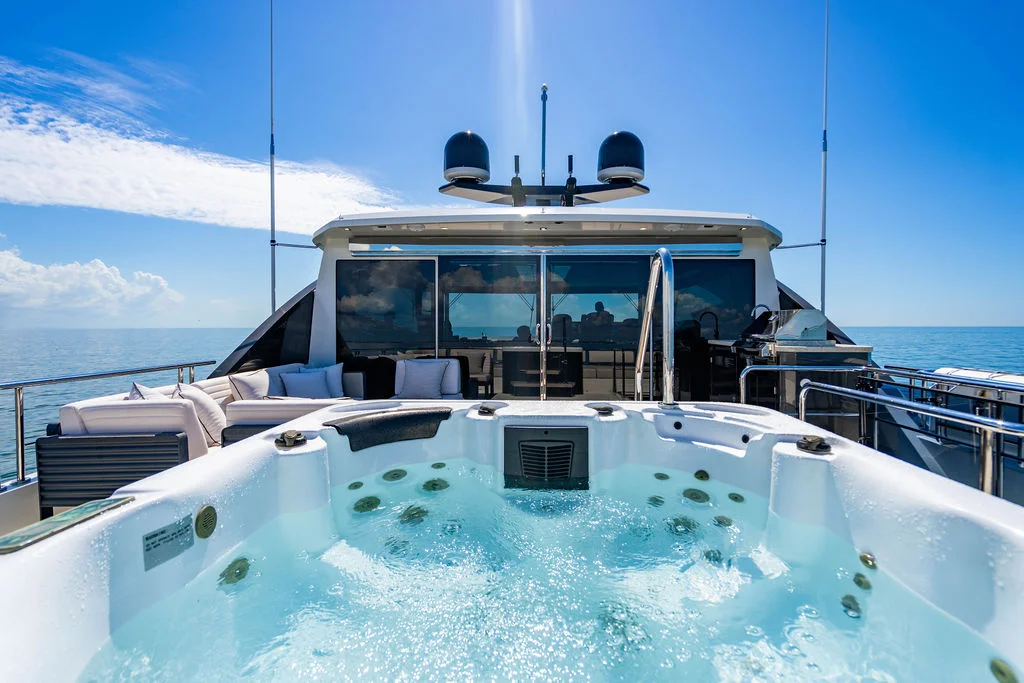

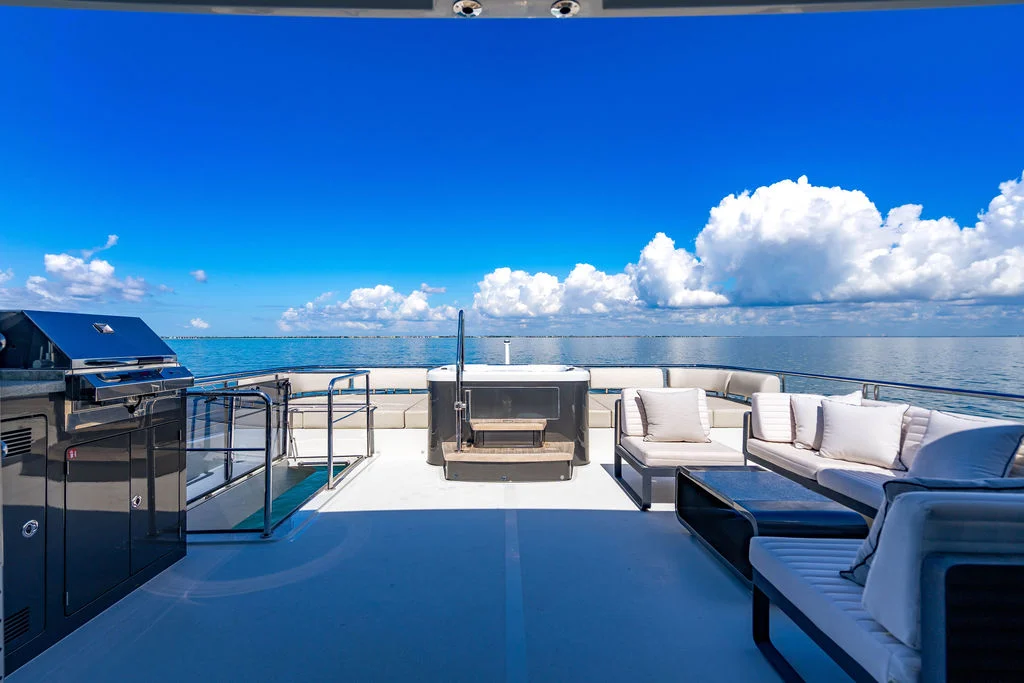

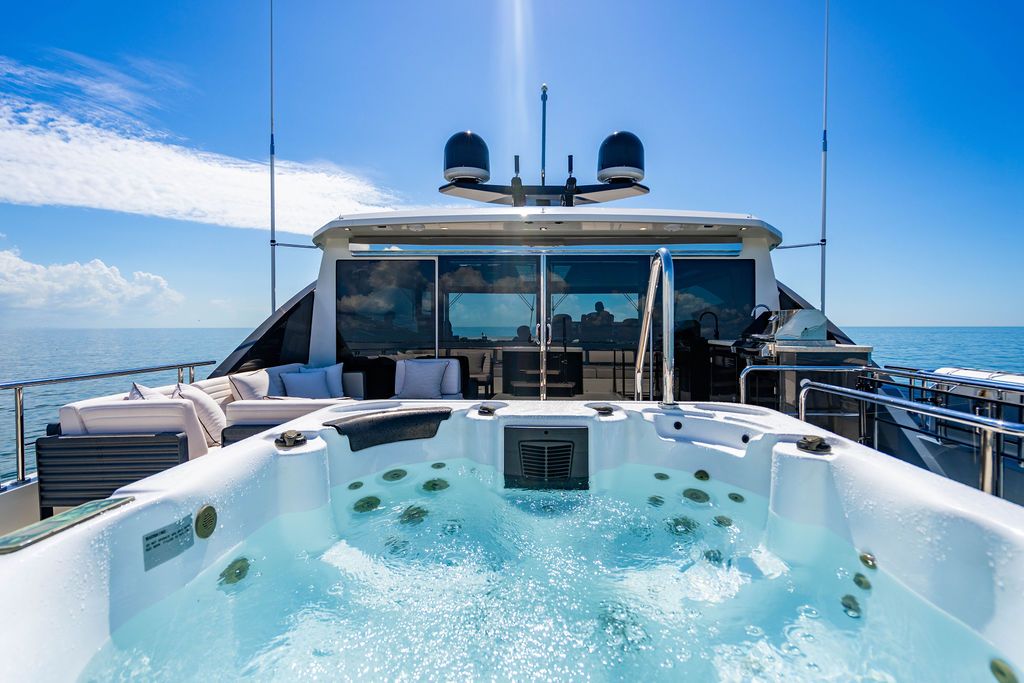

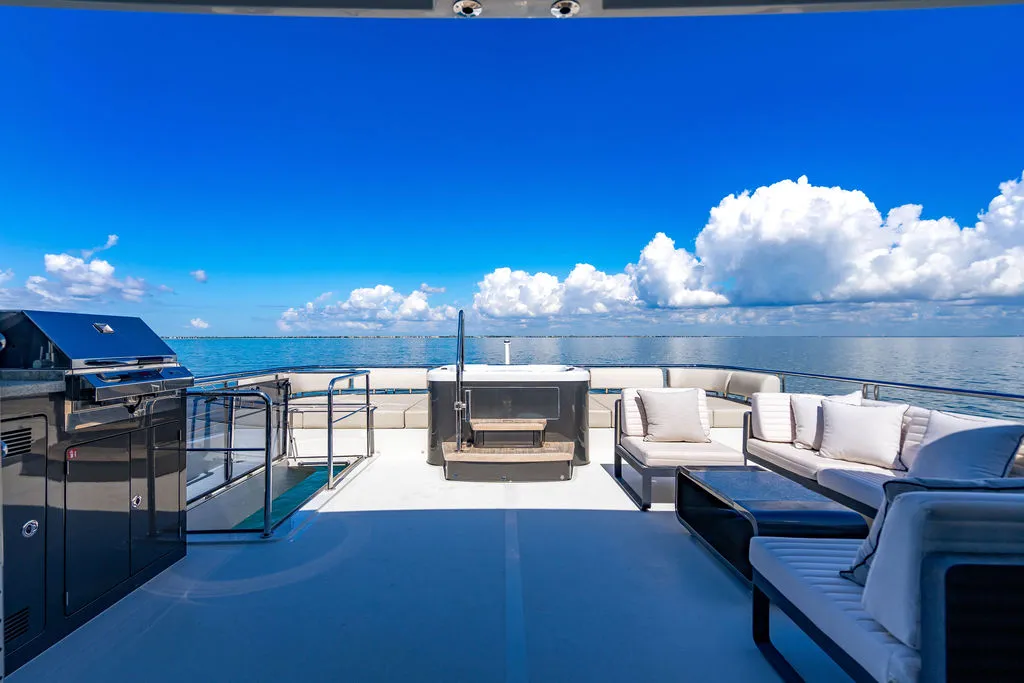

- 4-person Jacuzzi on bridge deck

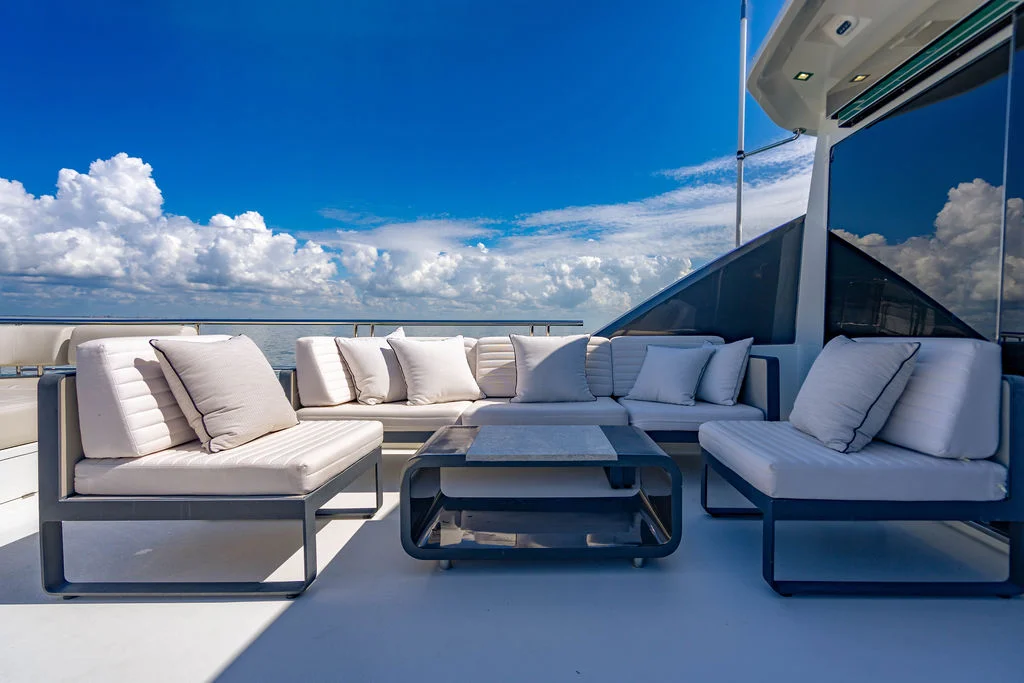

- Custom exterior funiture “Paola Lenti” for FB
- Custom Teak Decking Package
- Elec. S/S salon door to Aft Deck with safety light curtain that senses obstruction and protect for grandkids/pets. Also includes “foot-kick button” control for operation when both hands with full food trays/other items.
- Stainless steel bow and FRP stern staffs

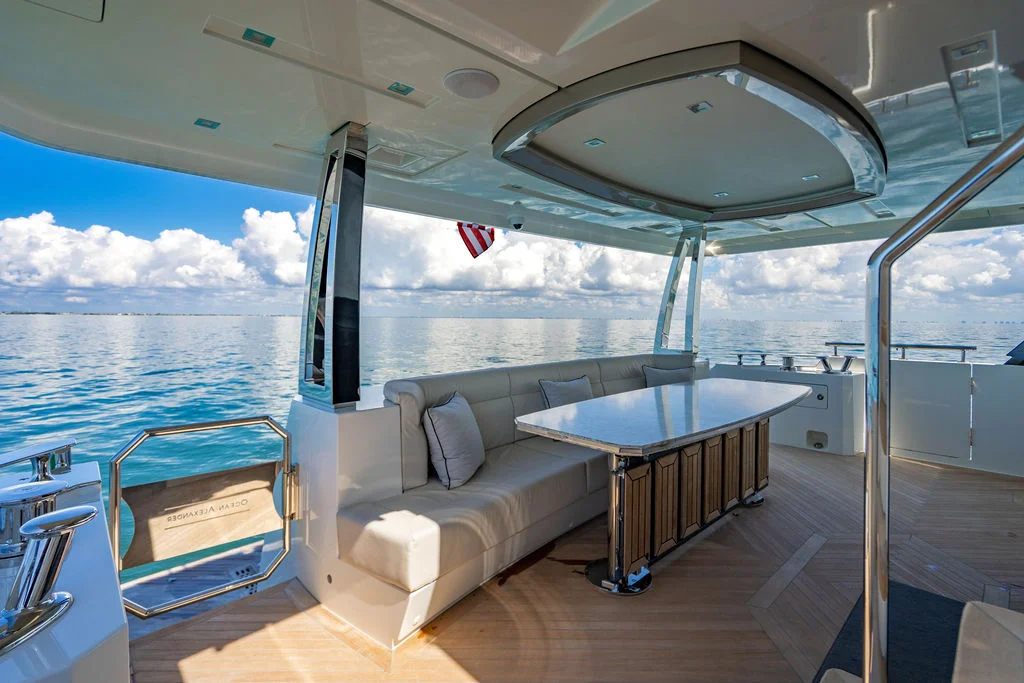

- Largest flybridge area in its class with Ocean Alexander’s “cab-fwd” design, the flybridge steering station is moved fwd to allow for better visibility and lengths the total flybridge area available for entertaining.
- Lighted OA logo
- Aft Deck shower, dockside water inlet
- Side boarding gates at Aft Deck

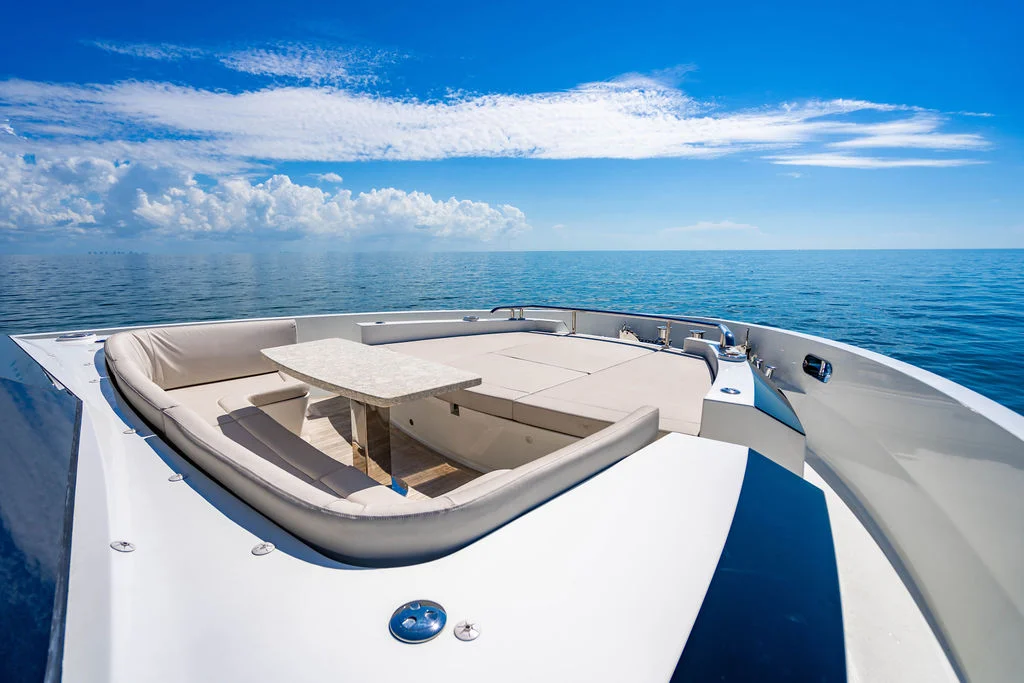

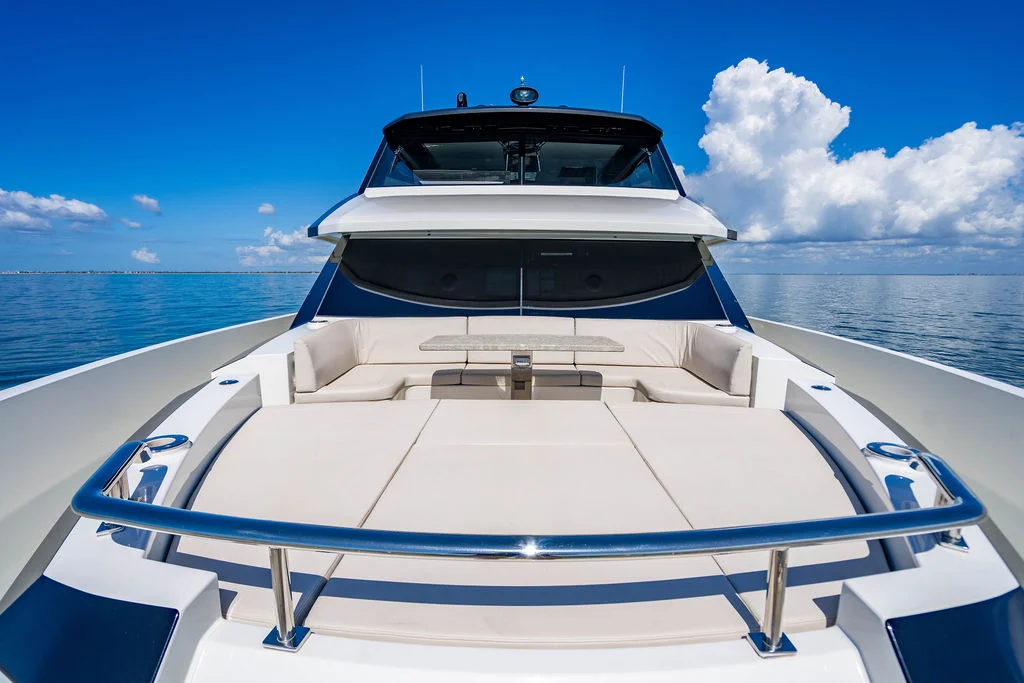

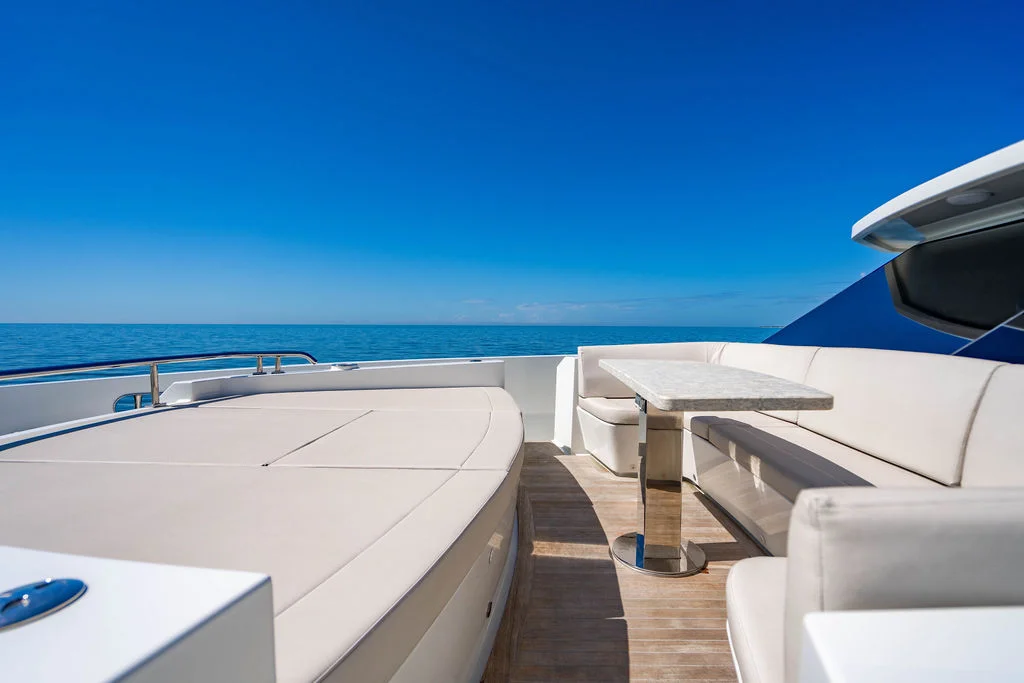

- Sunpad & Sofa w/table on fwd deck
- Manual awning for Flybridge with custom made S/S poles and marine-grade exterior Ferrari mesh fabric . Includes custom designed built-in storage for poles.
- Manual awning for bow with custom made S/S poles and marine-grade exterior Ferrari mesh fabric . Includes custom designed built-in storage for poles.
- Aft-Deck custom ceiling feature
- S/S transom gates for pets/children protection
- Custom exterior protection canvas and windshield mesh cover for exterior seating and BBQ

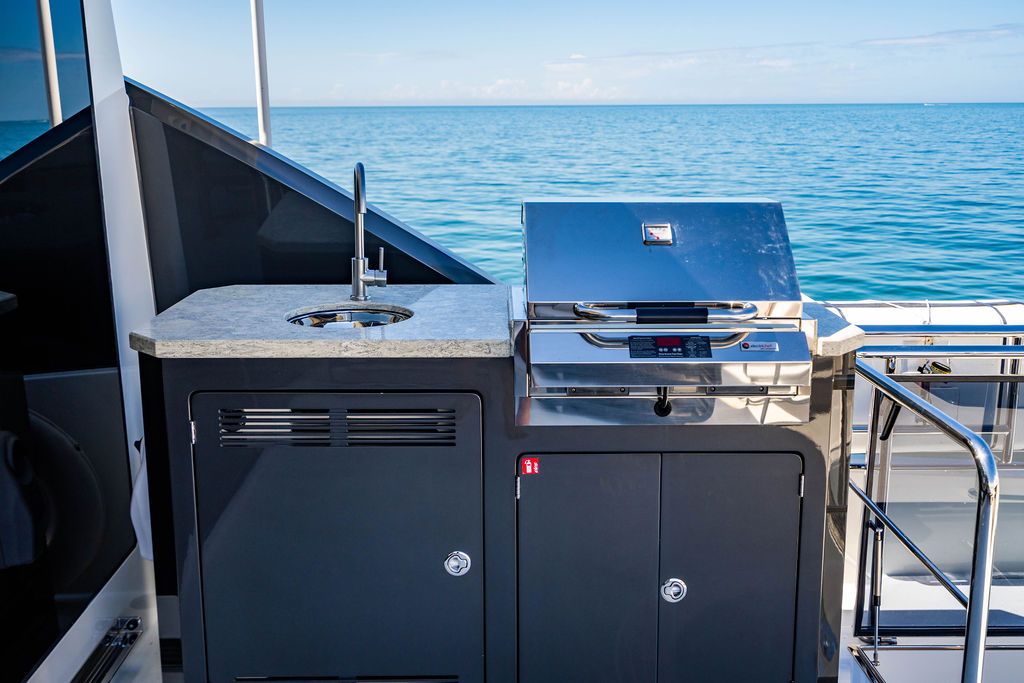

- 24” Electri-Chef™electric barbecue on bridge deck
- Compressed air in engine room and after deck
- Bridge deck hatch

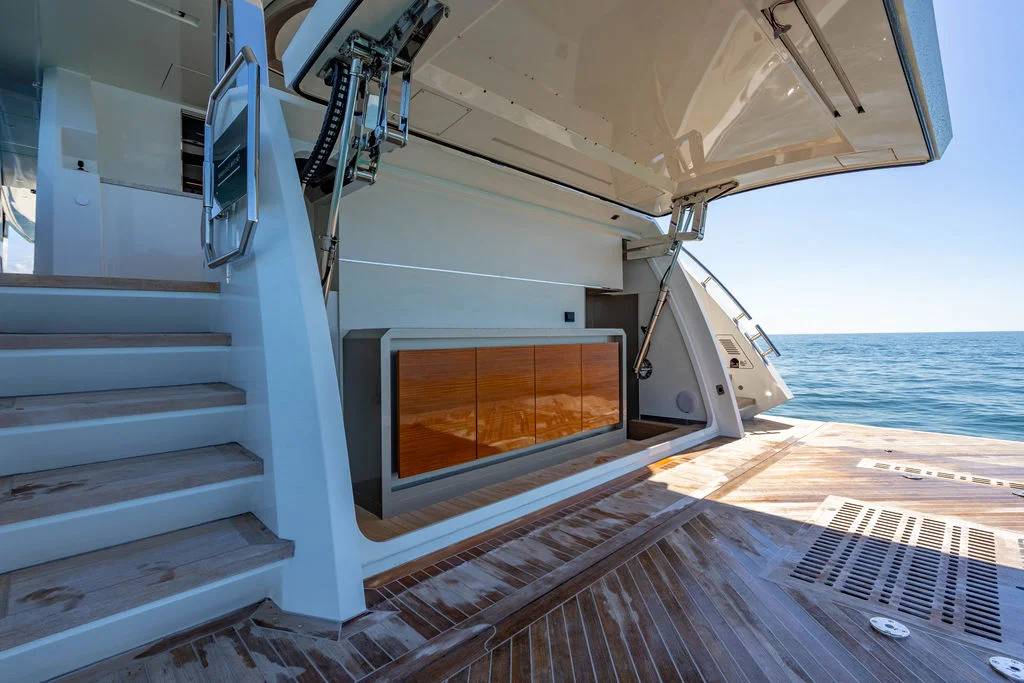

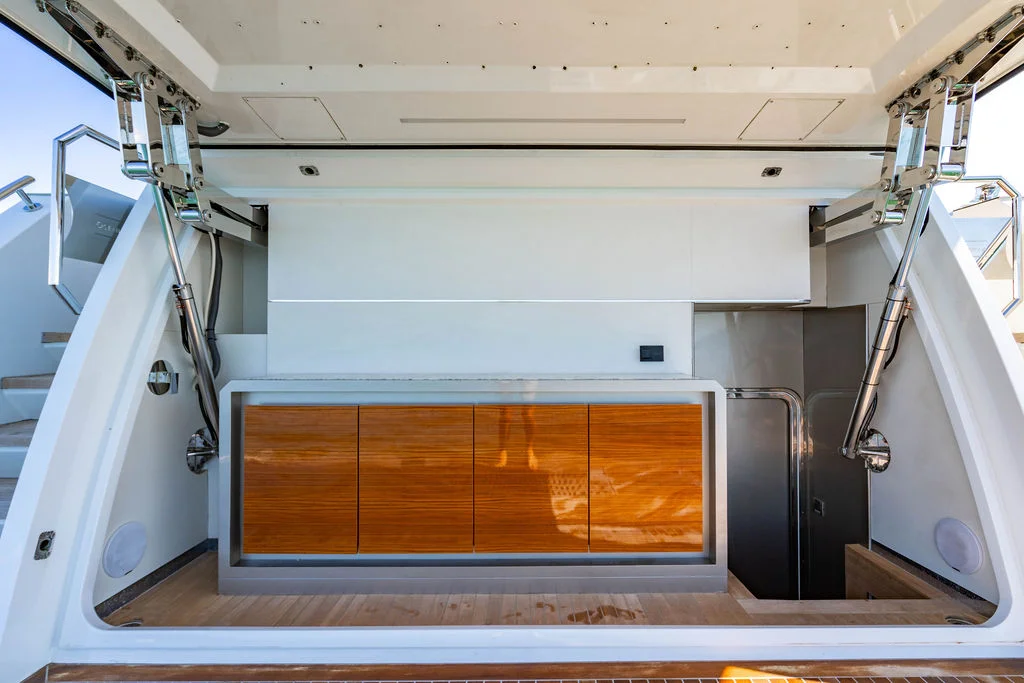

- Outdoor Beach Club with “swing up” transom. Provides cover/shade for Beach Club
- Spare parts package
- Custom projector w/screen in bow (for night time movies)
- Automatic Robot exterior glass cleaner w/spare parts
TURN KEY:
- Safety first aid kit, fenders, lines, flare kit, throw ring, fire extinguishers, bell
- Wheel Puller for ship propellers
- 10-man life raft
- 2sets of bed linens on all berths with pillows and towels
- Dinner china including dinner/salad/dessert plates, soup bowls, tea cup and saucers, casserole dish, salt & pepper shakers
- Flatware including steak knife, dinner knife, fork, spoon and dessert/teaspoon, salad forks, serving spoons & fork
- Table placemats, napkins, water/white/red/champagne wine glasses
- Galley cookware/pans, toaster, electric mixer, measuring cup, rubber/metal/ plastic spatulas, mixing bowls, chef knives, cutting boards, coffee machine, iron
|
