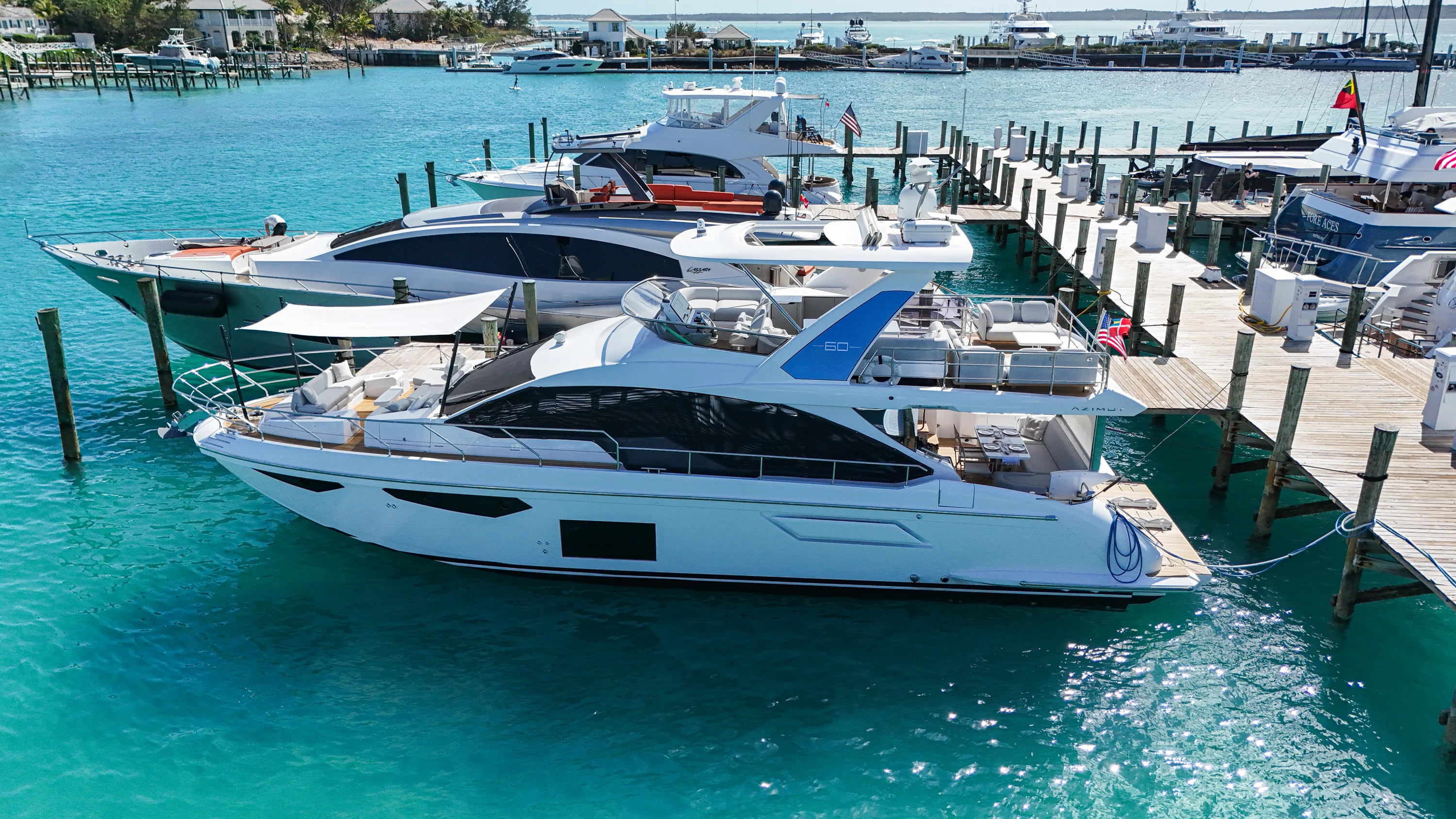

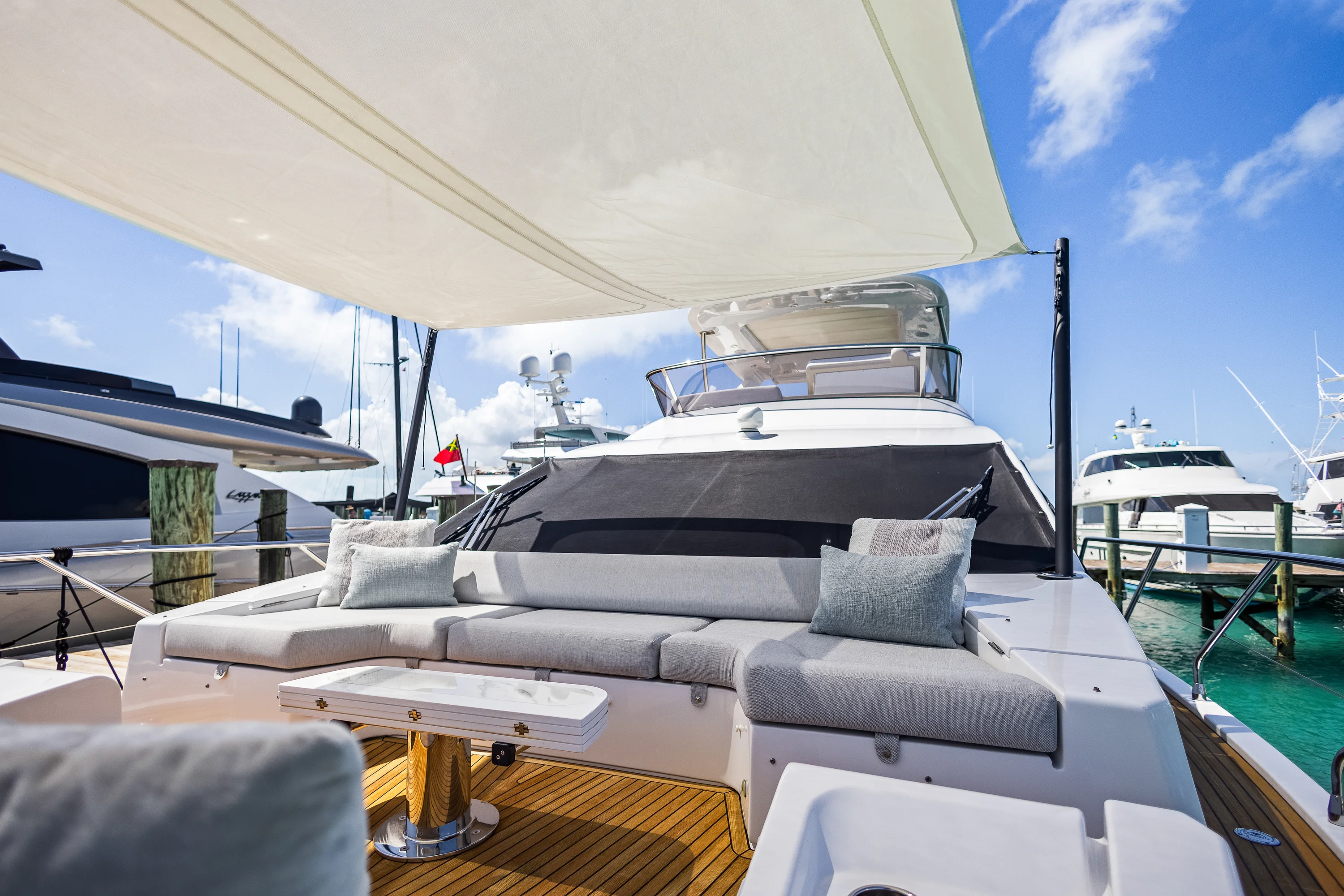

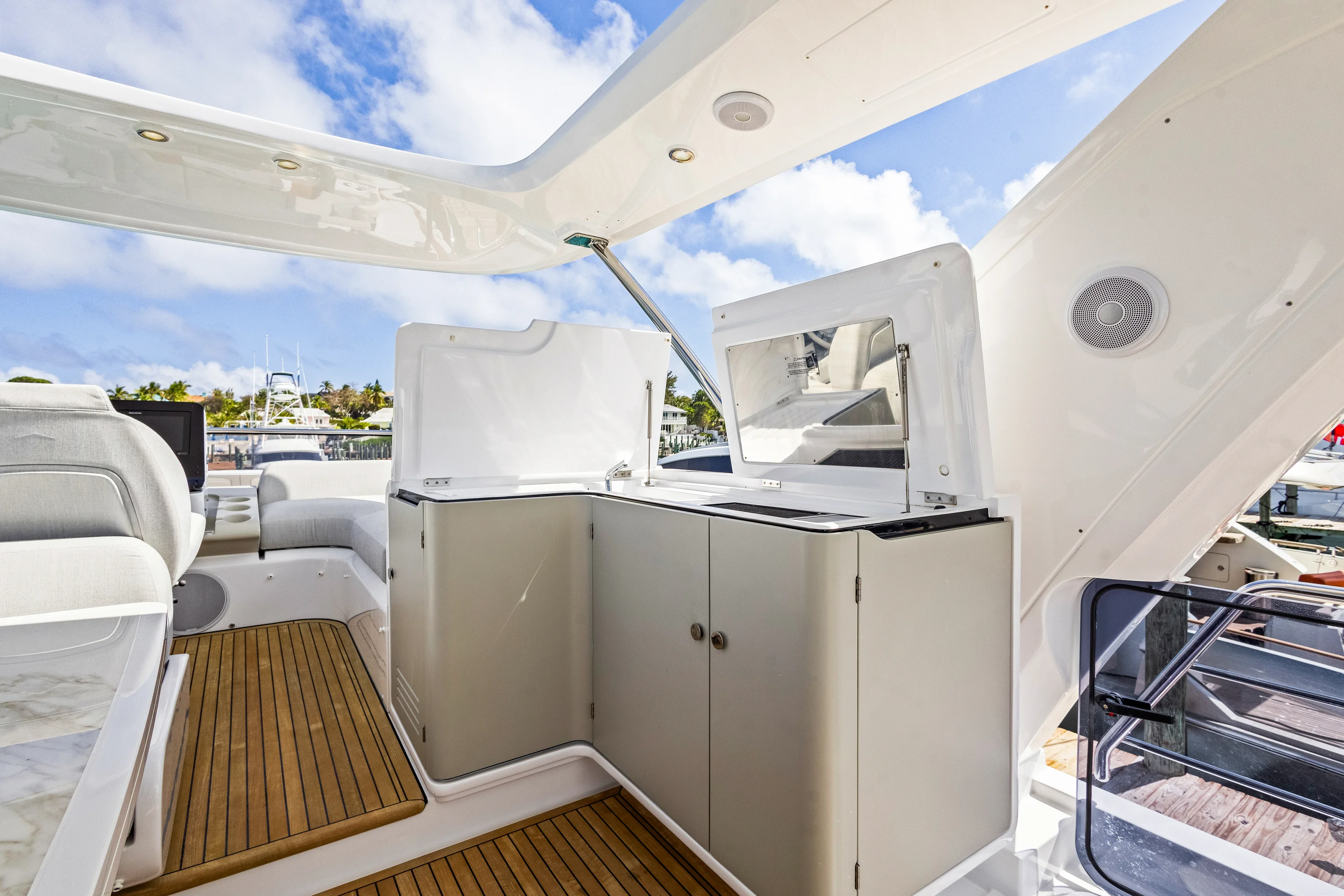

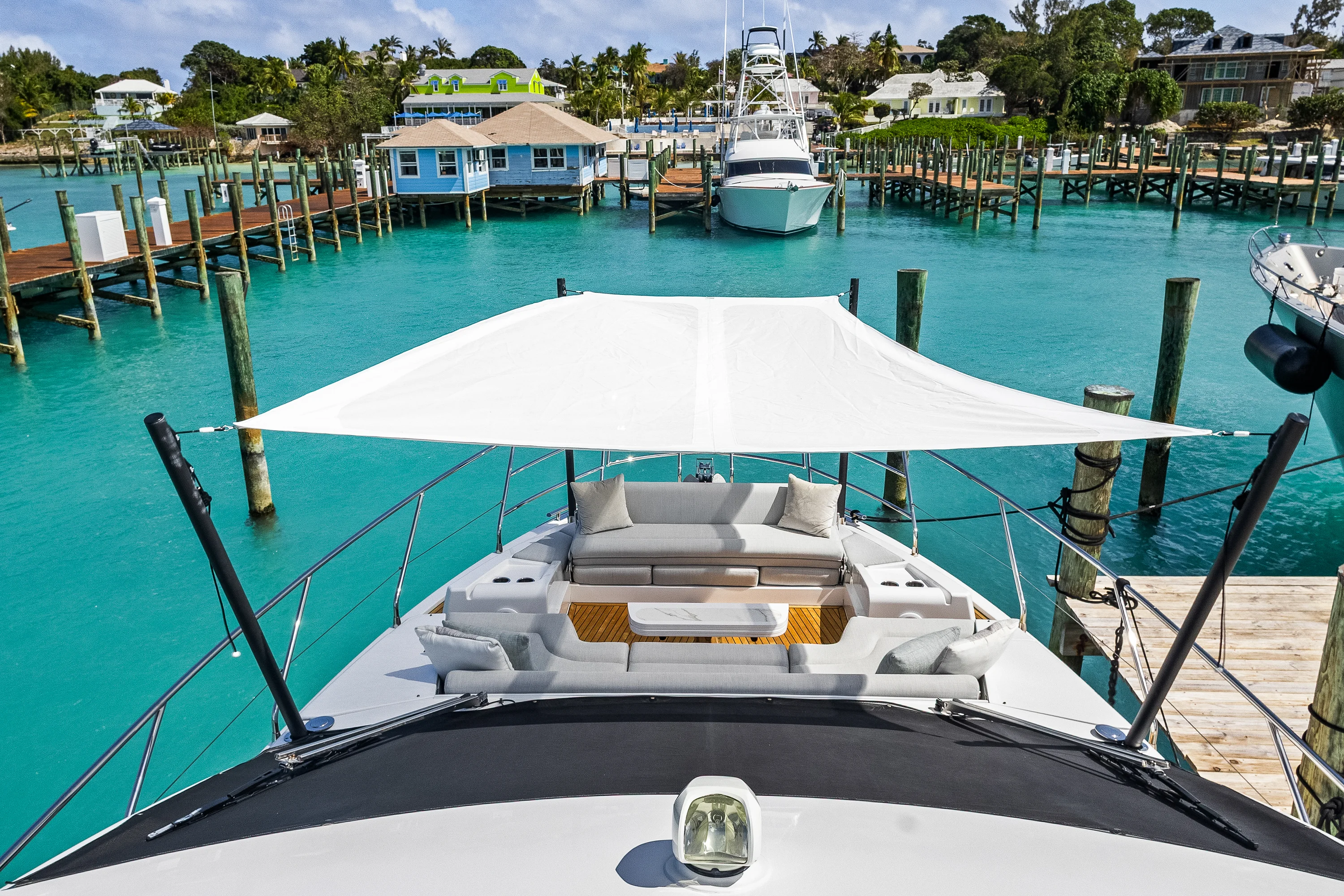

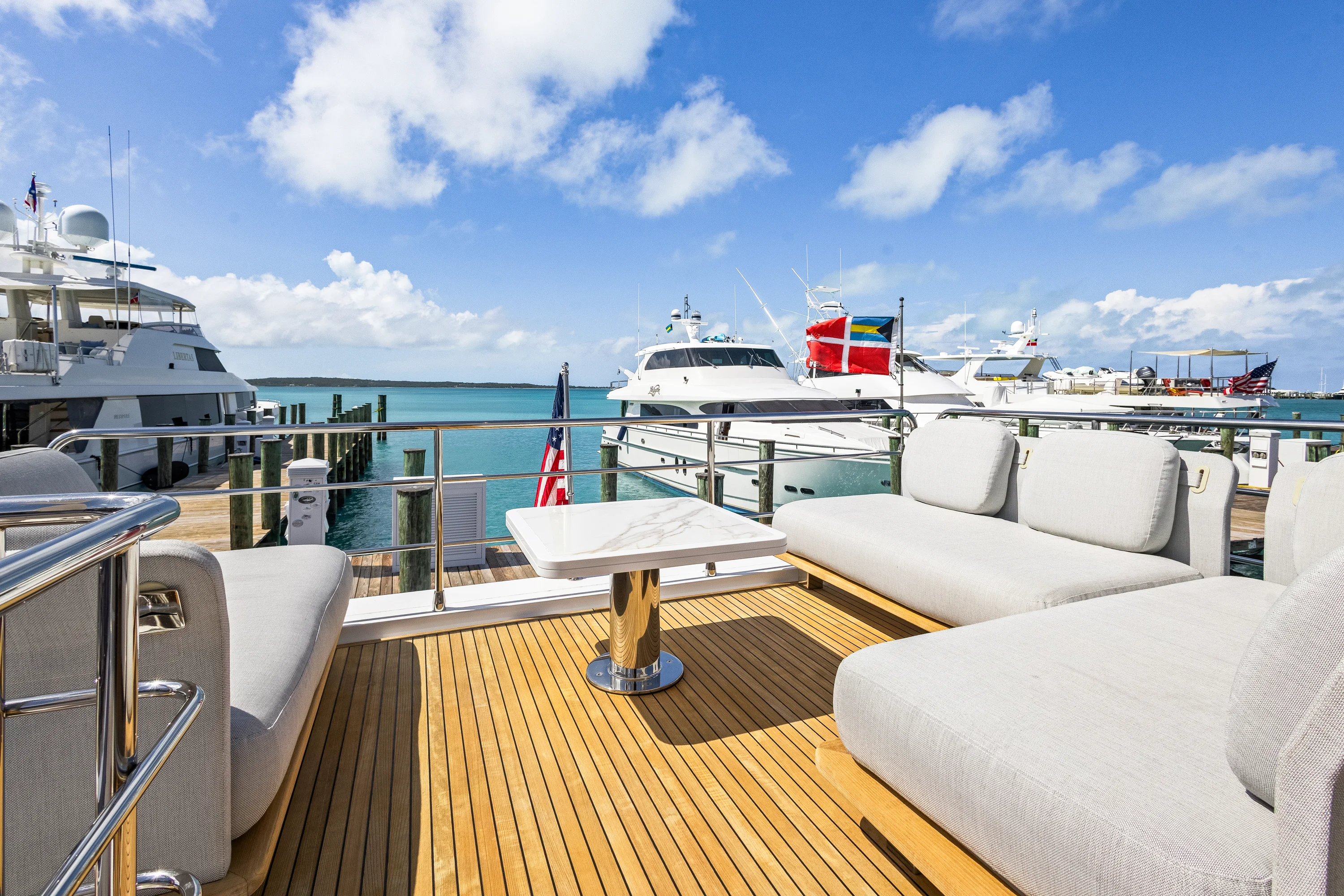

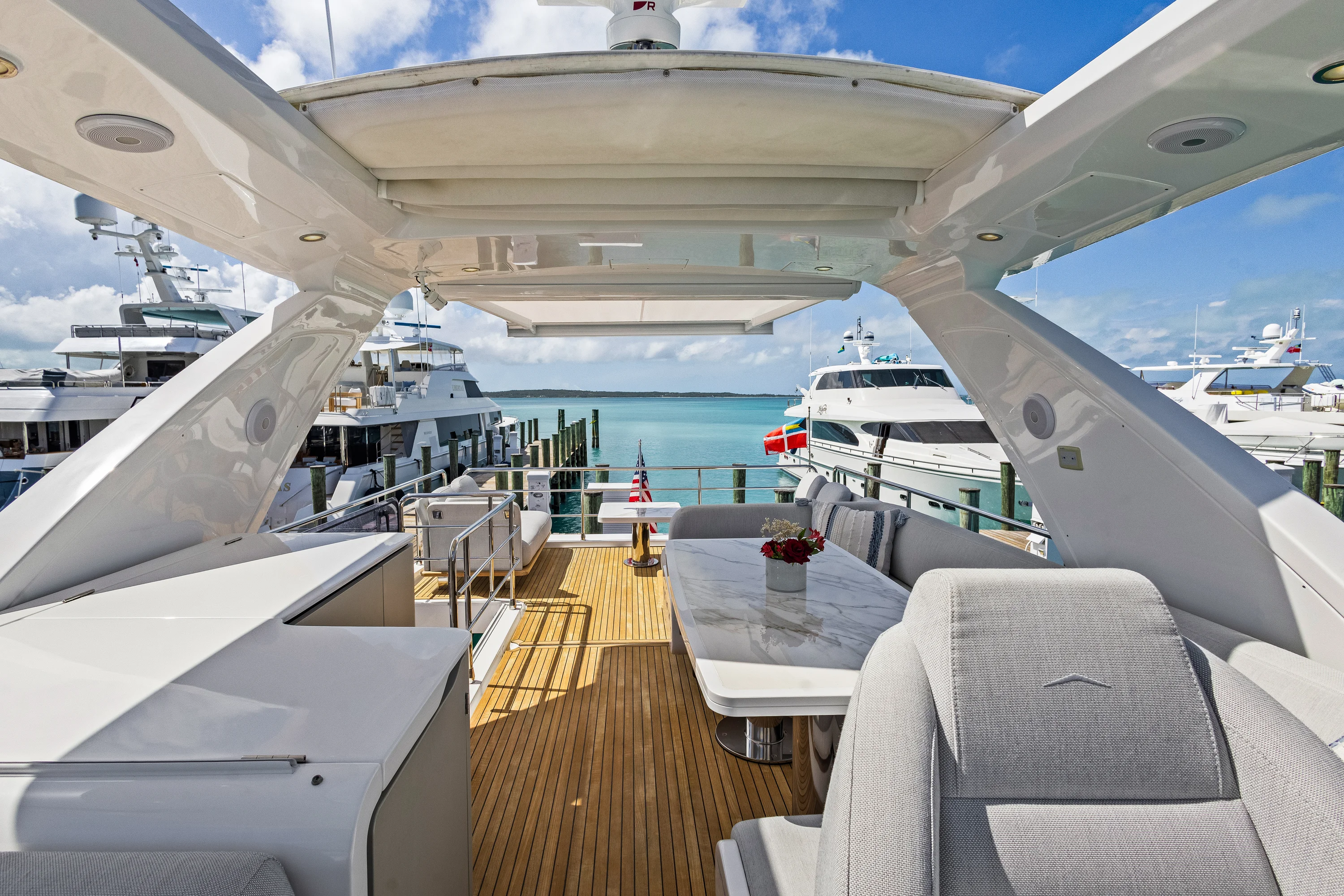

Flybridge
● Access via flybridge ladder in GRP, with teak steps
● Anti-slip treatment on flybridge flooring
● Aluminum hatchway (hinged opening in plex)
● Front flybridge screen in smokey Plexiglas and stainless steel

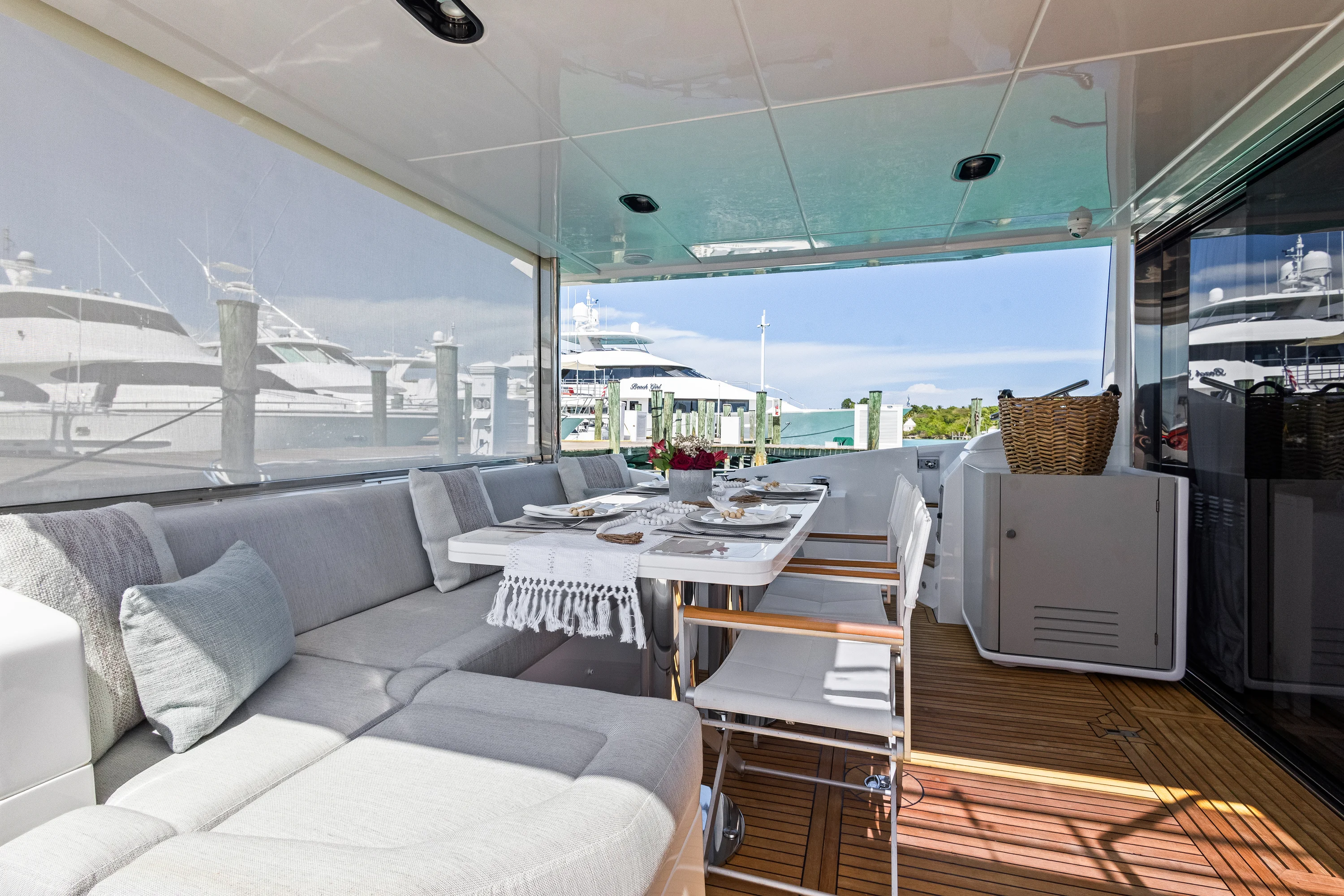

● "C"-shaped sofa for six people on port side, with teak table
● Sunbed area, bow starboard side

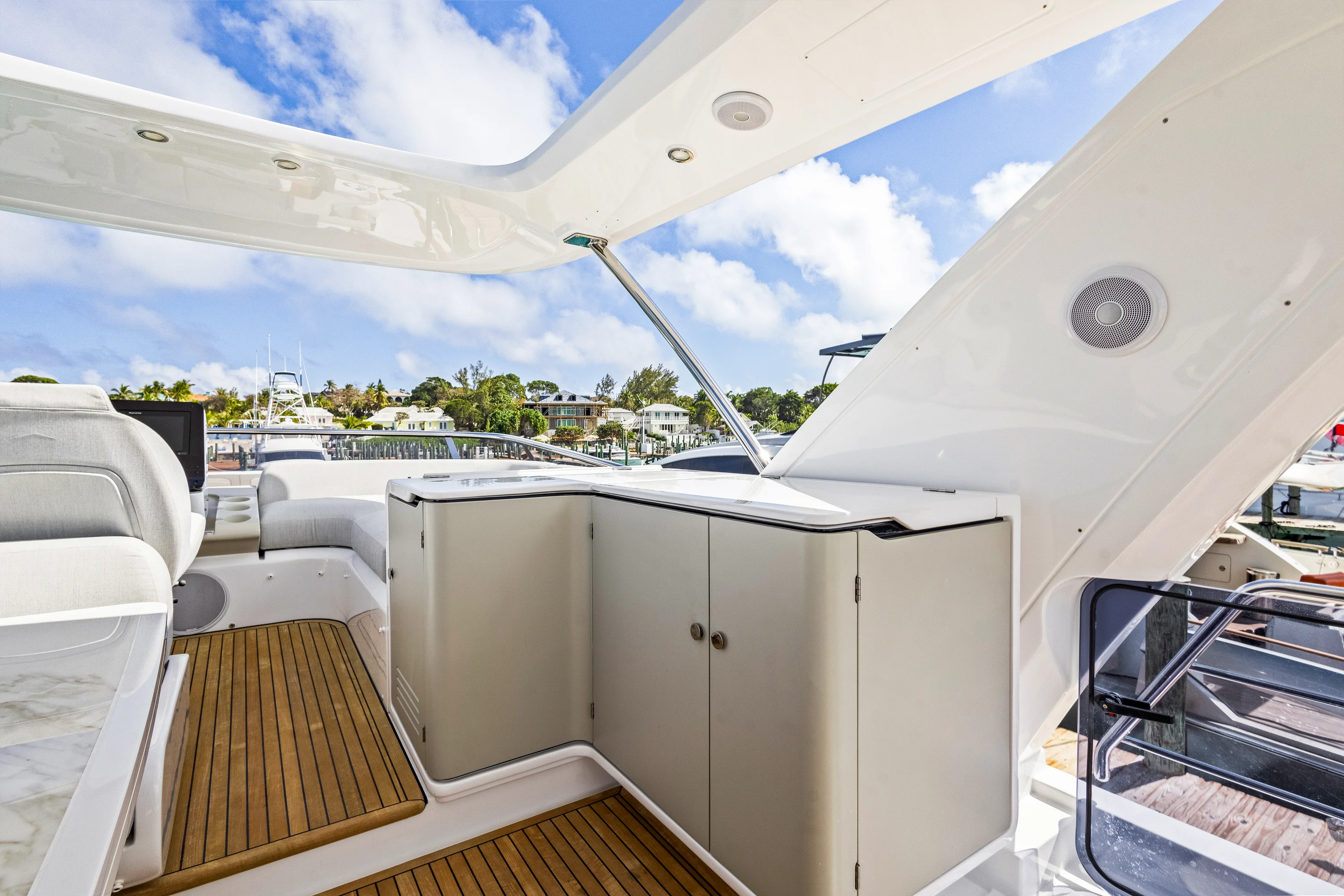

● "L"-shaped cabinet on starboard side with fridge
● GRP roll bar with blind windows on the external sides
● Stainless steel handrails
● Helm seat with pedestal and hight and horizontal adjustment
● Stainless steel steering wheel painted white, and height-adjustable steering system

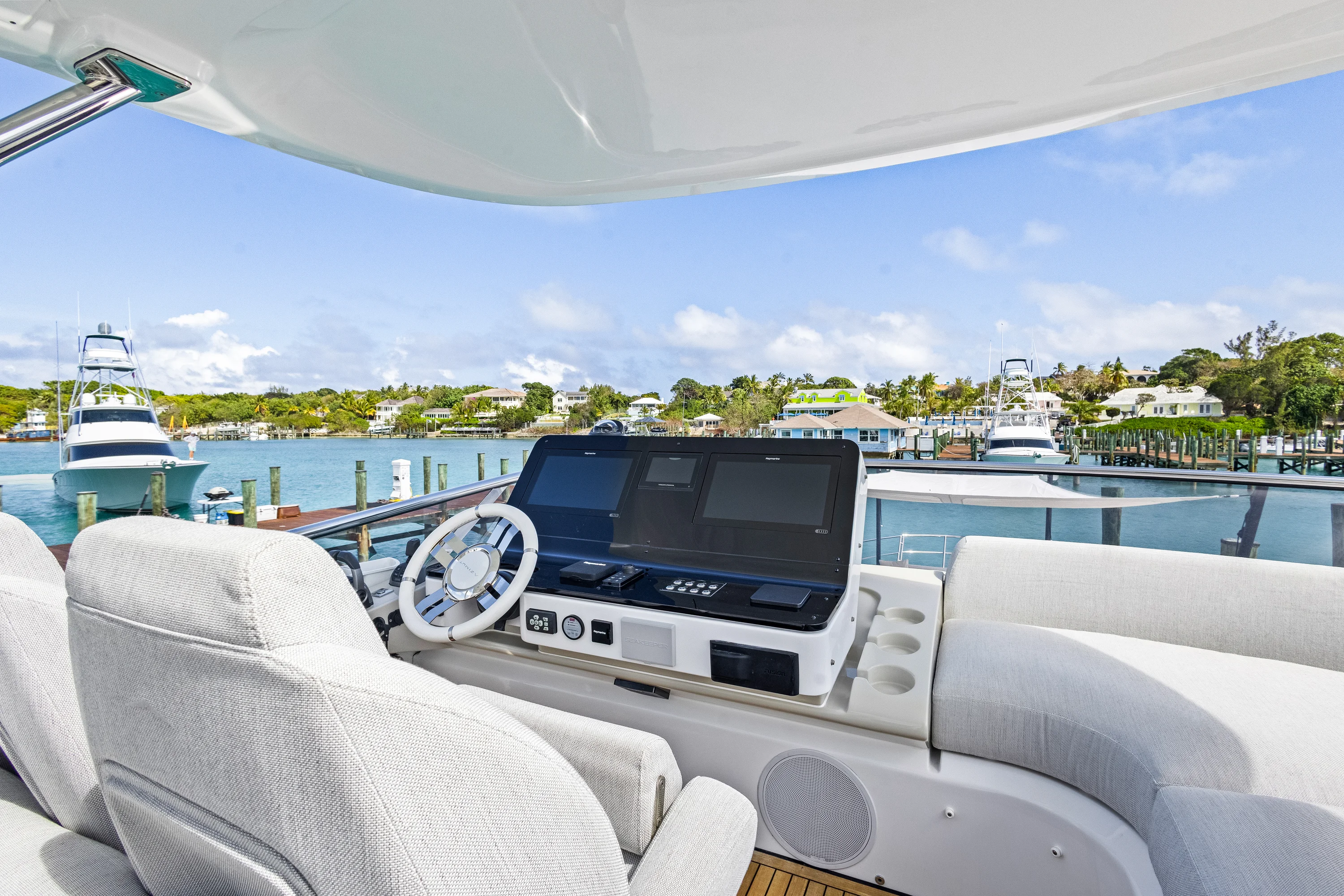

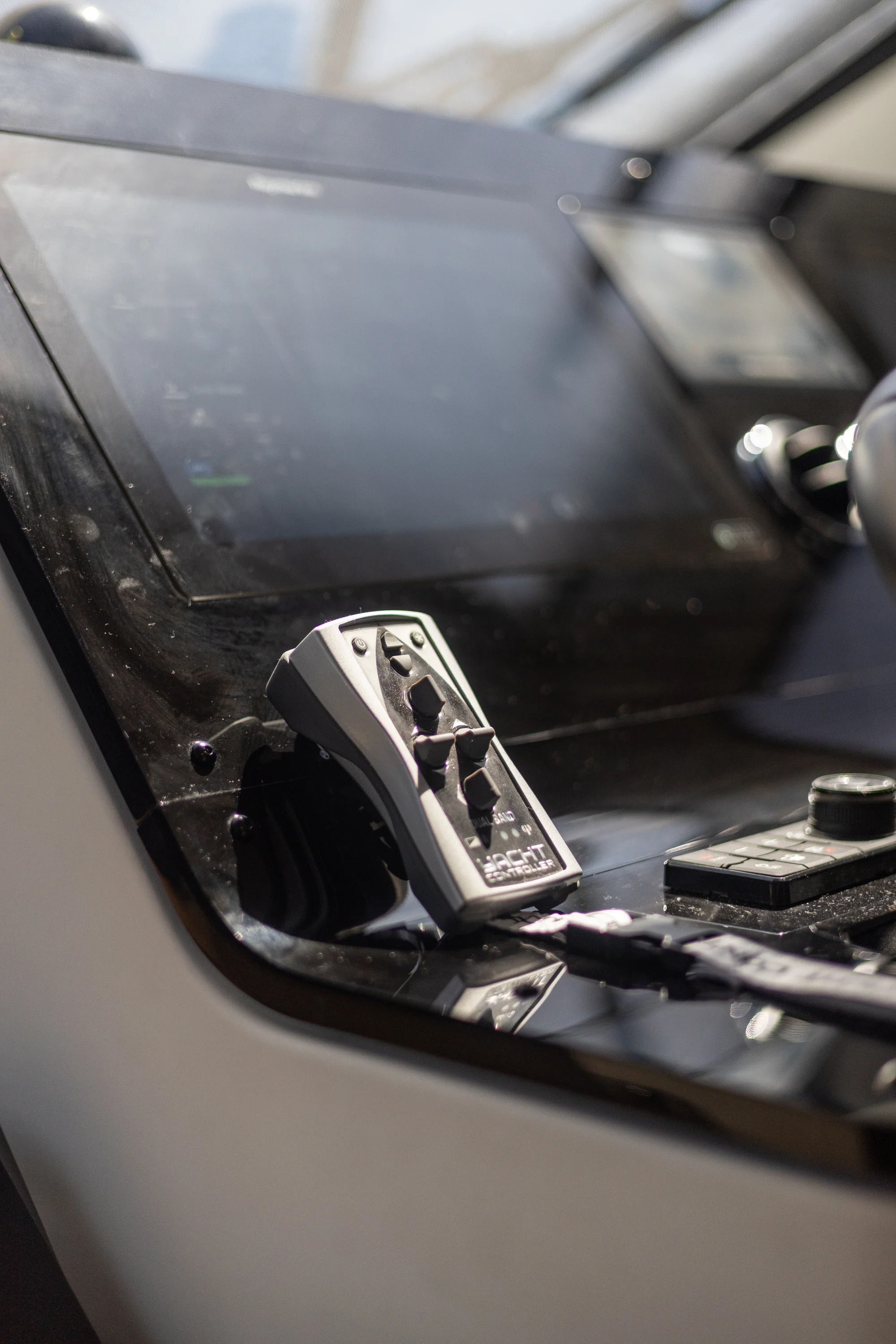

● The wheelhouse equipment includes:
- Raymarine Bronze Package
- Engine display
- Thruster control
- Rudder
- Chain meter counter
- Engine levers
- Panel with main control switches
- VHF

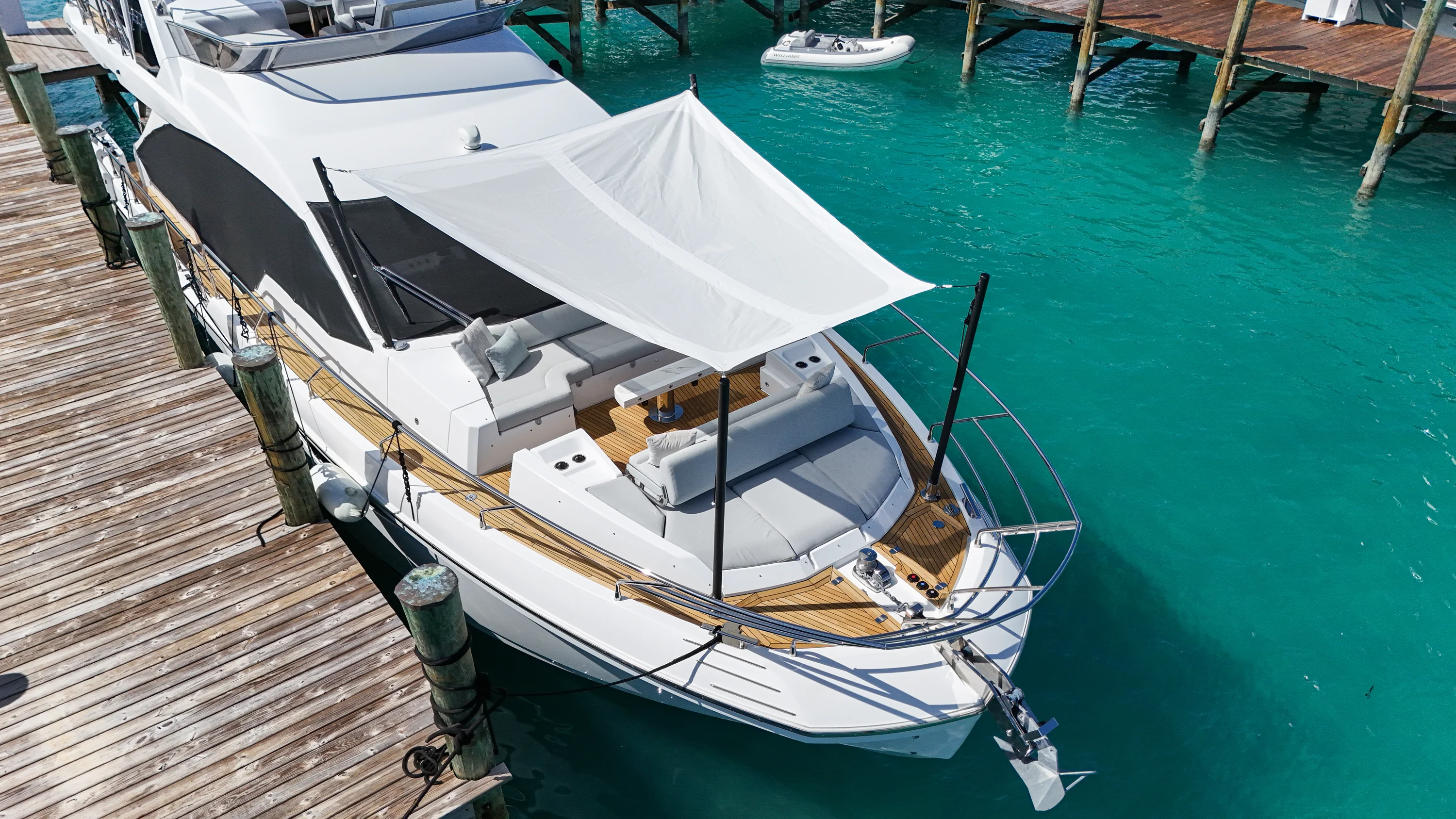

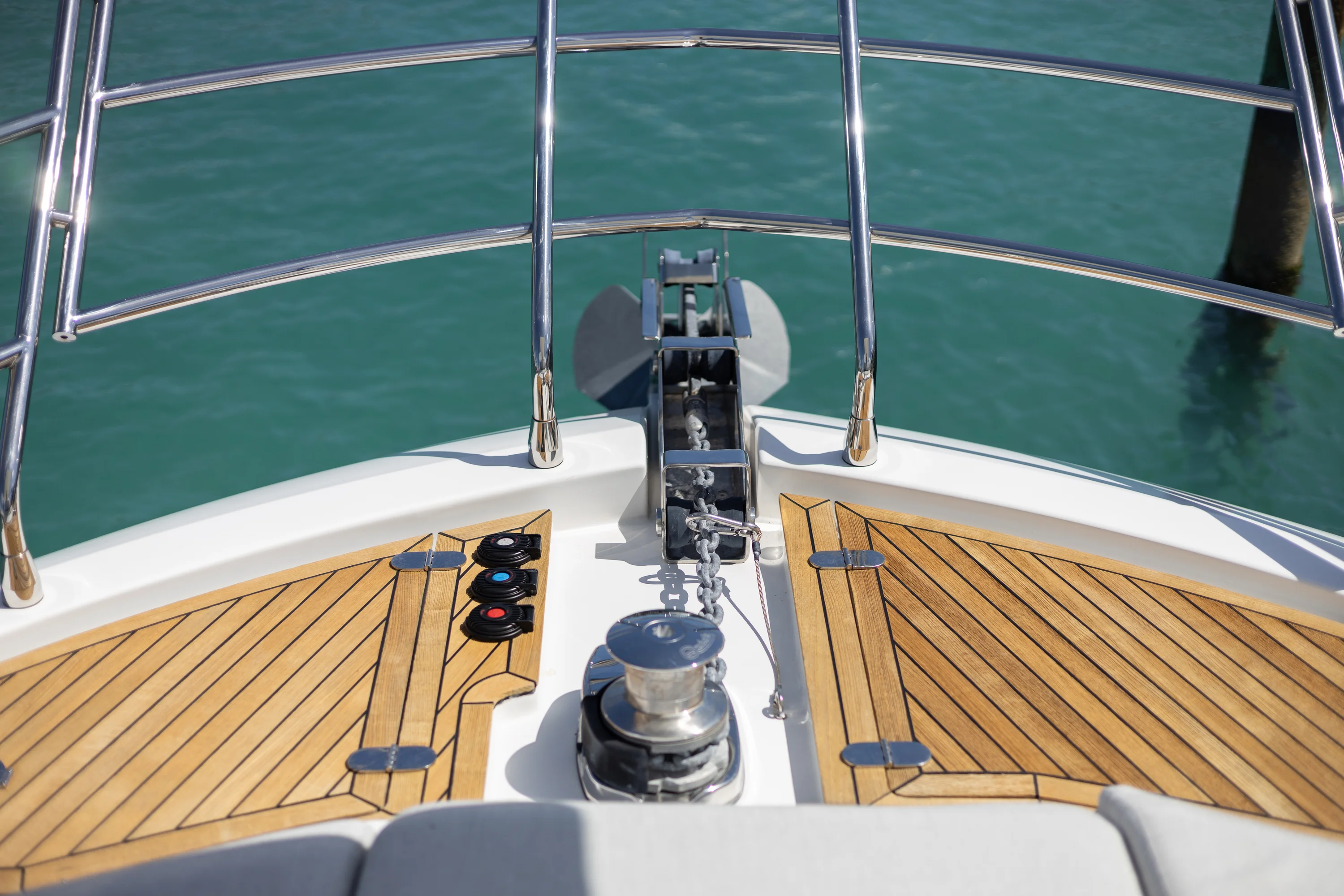

Bow / walk arounds
● Anchor chain housing
● 32 kg (7.5 lb) anchor with chain L 75 m (246' ¾"), Ø 10 mm (0.39 in), on bow roller
● 2000 W, 24 V winch with 10 mm (0.39 in) gipsy
● Pulpit
● Two bow cleats
● Two electric windscreen wipers / windshield washers
● PVC rub-rail with knurled stainless steel section
● GRP walk arounds with non-slip treatment
● Anchor locker
● Flat windows in toughened glass in the GRP (mirror finish)
● Seating area with cushions
● Two midship cleats
● Navigation lights
● Side wording
● Two refueling plugs with protection cover
● One fresh water filling on starboard side (anchor locker area)
● One black water outlet on port side
● Side hatches
● Bow lockers

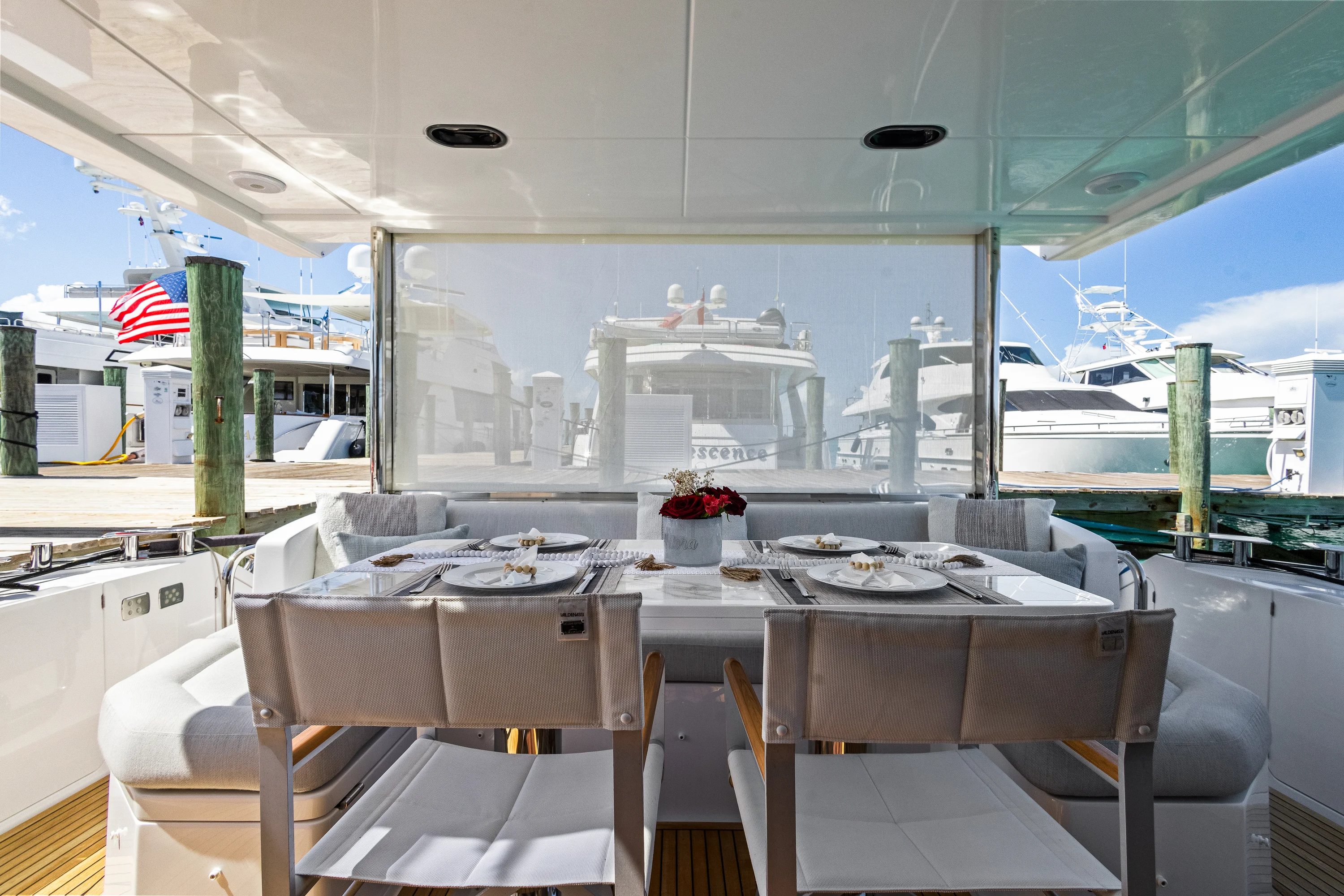

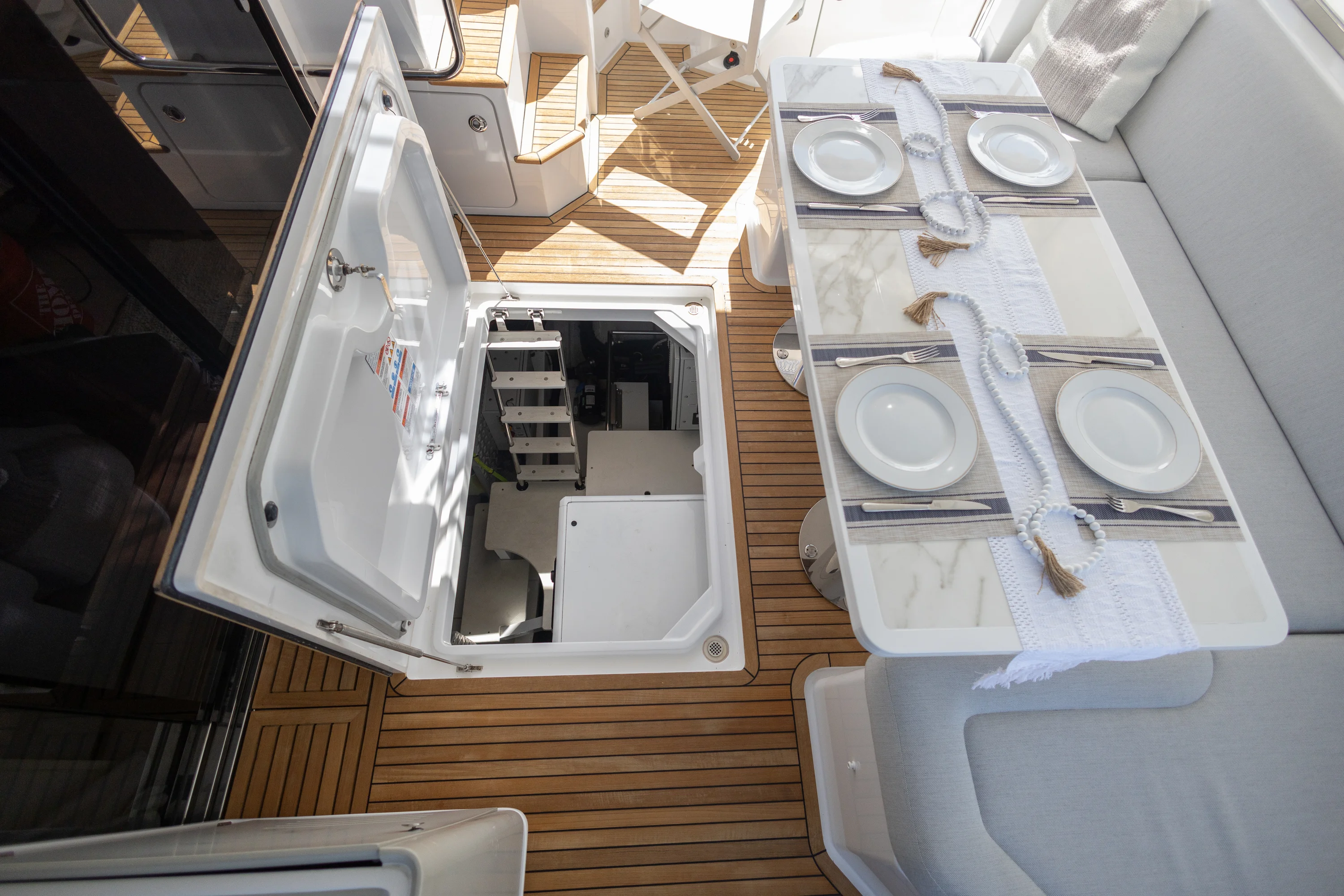

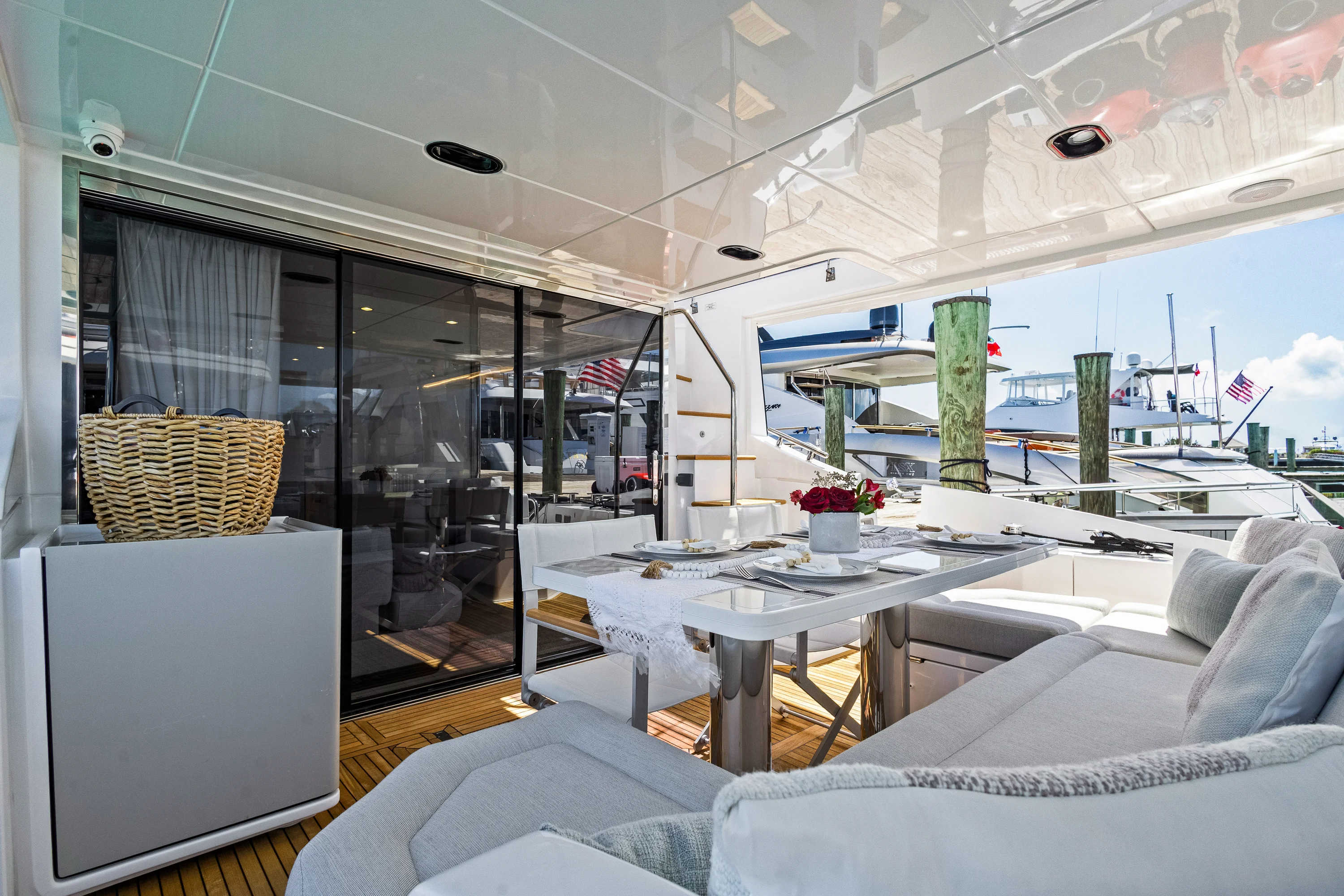

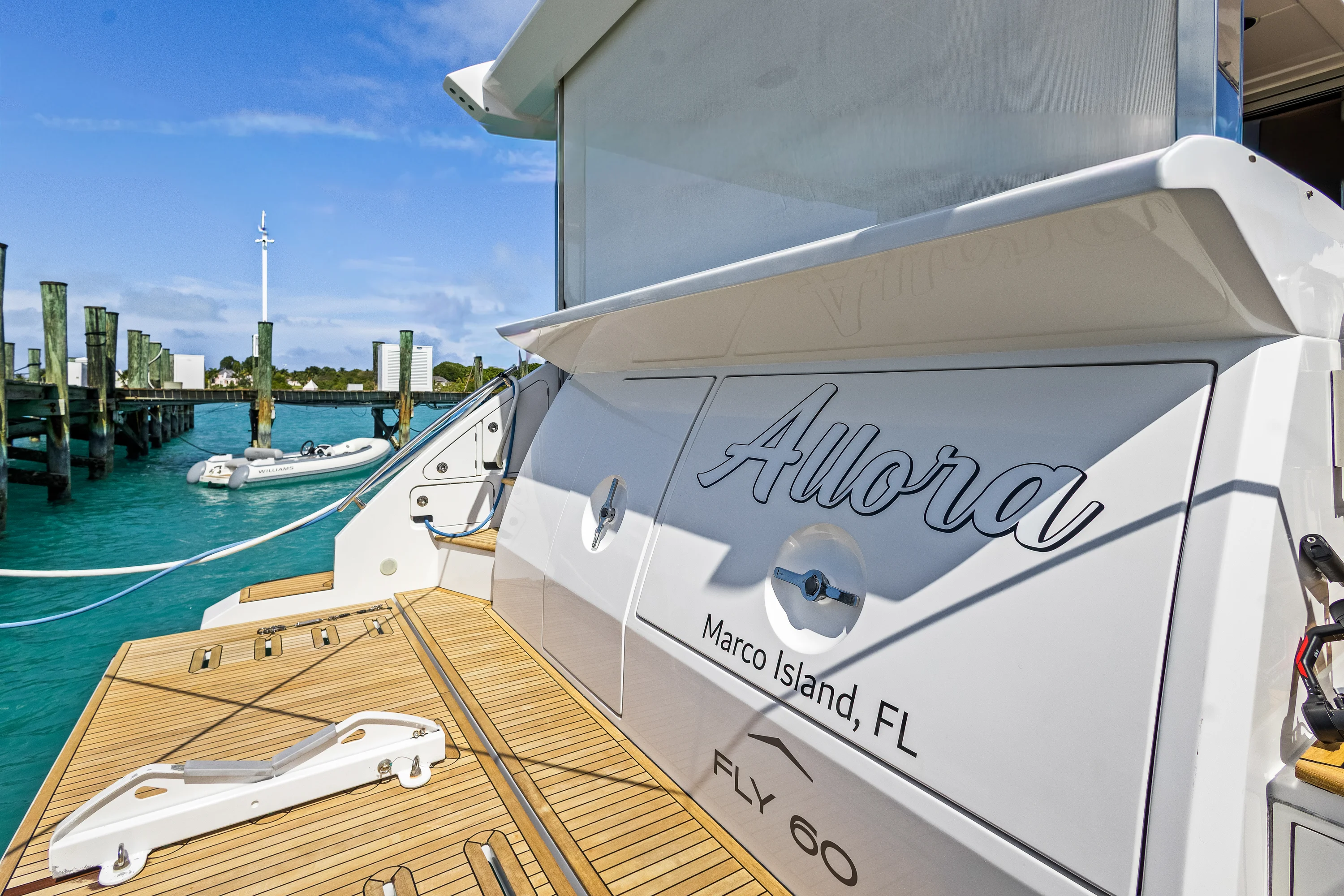

Cockpit / platform
● Integrated stainless steel aft chocks
● Two stern cleats
● Saloon access door in black-painted stainless steel and tempered glass, with three panels
● Crew cabin access door (optional) from the transom
● Swimming ladder in stainless steel and teak that can be opened under the hatch
● Shore power socket(s)
● Shower
● Cockpit in teak
● Teak platform
● Cockpit bench lockers
● Cockpit lights with dimmer
● Locker with access from hatch on platform

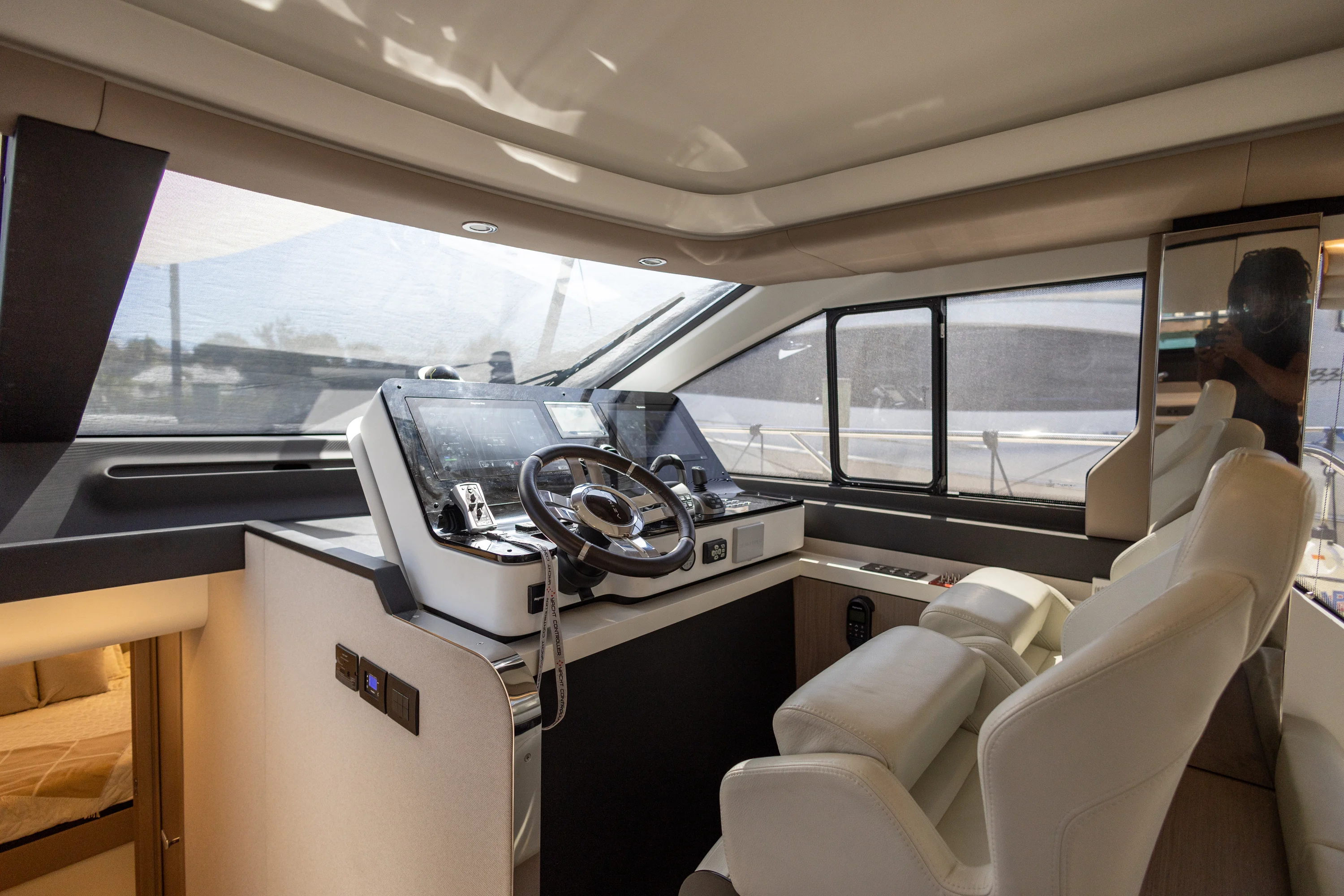

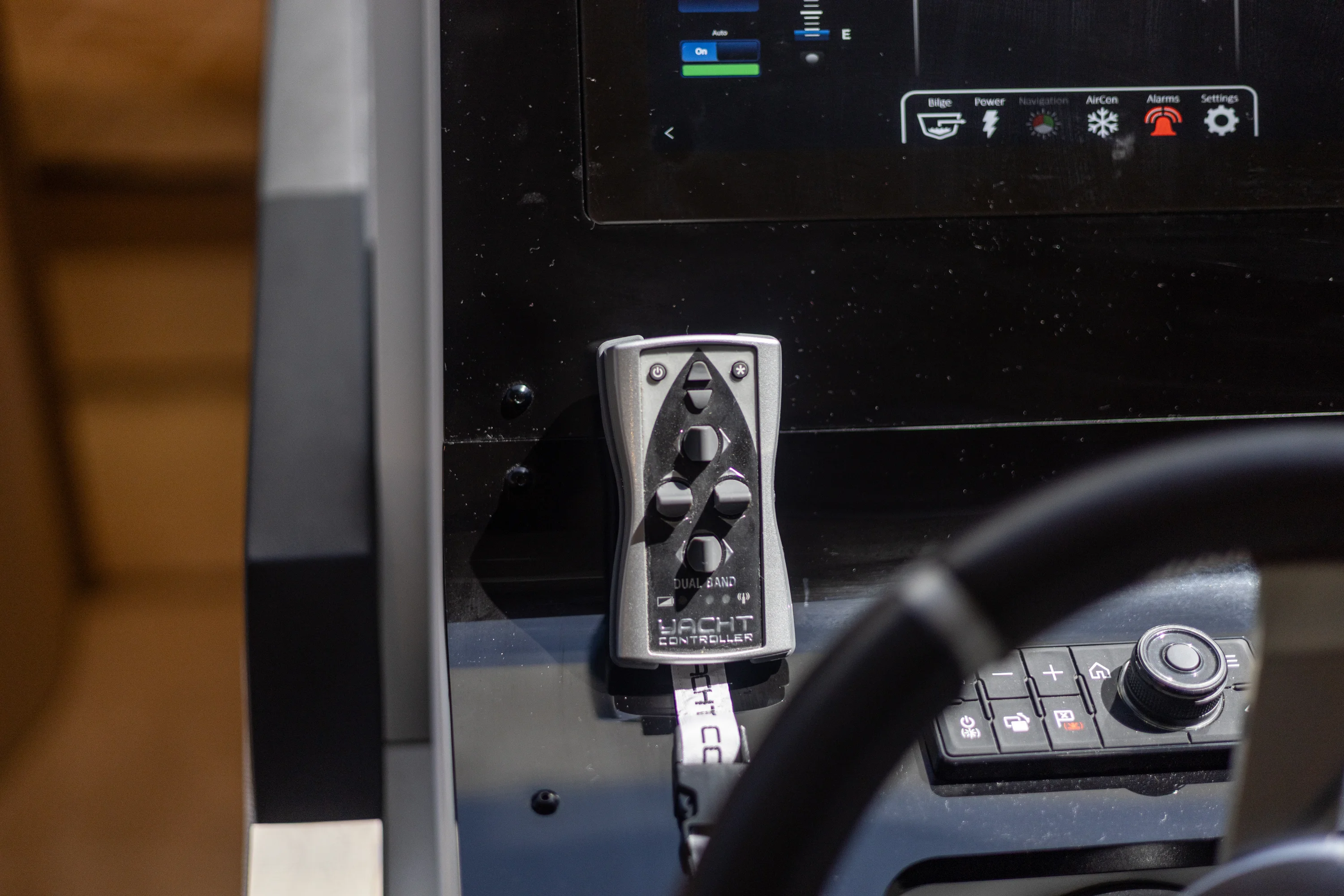

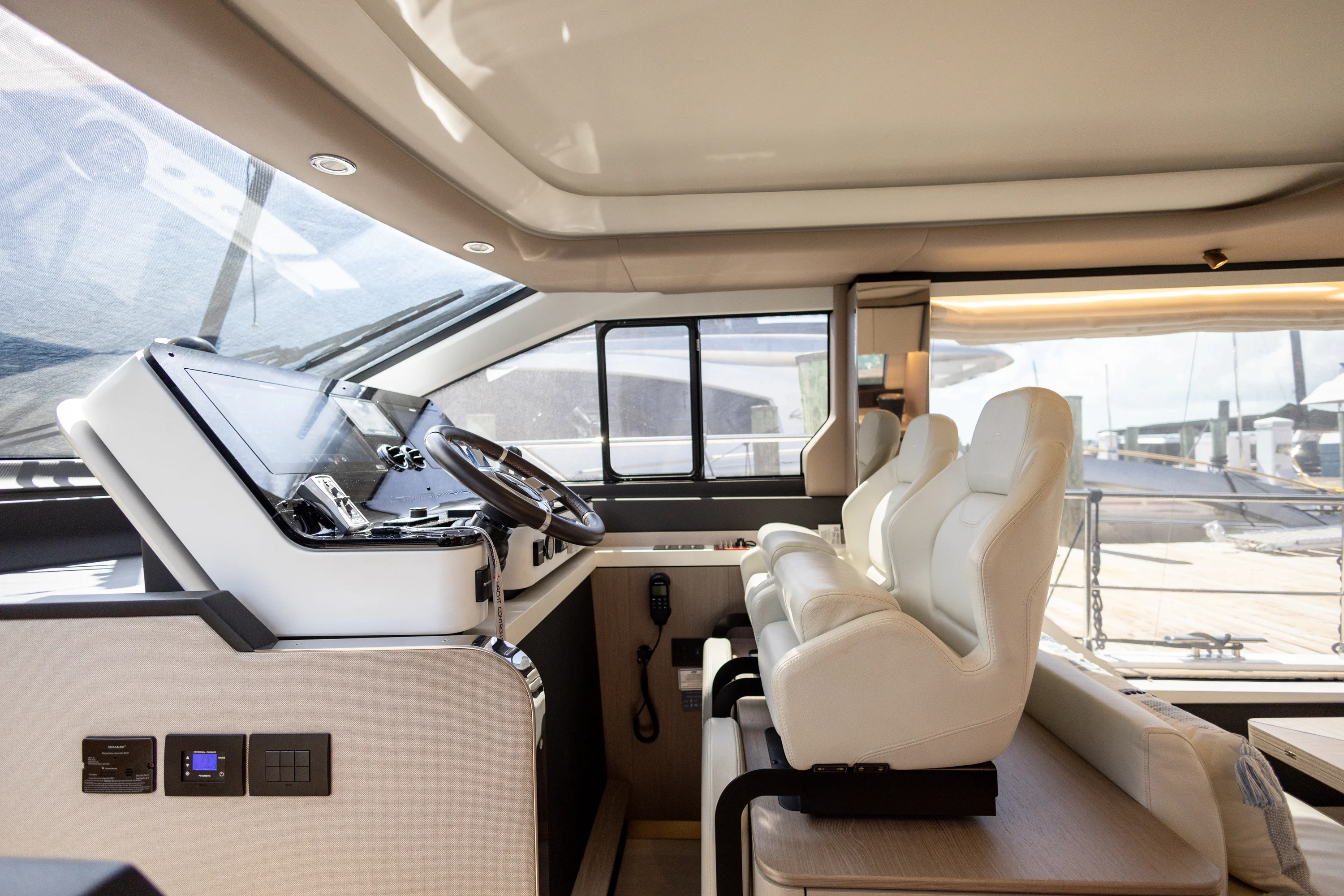

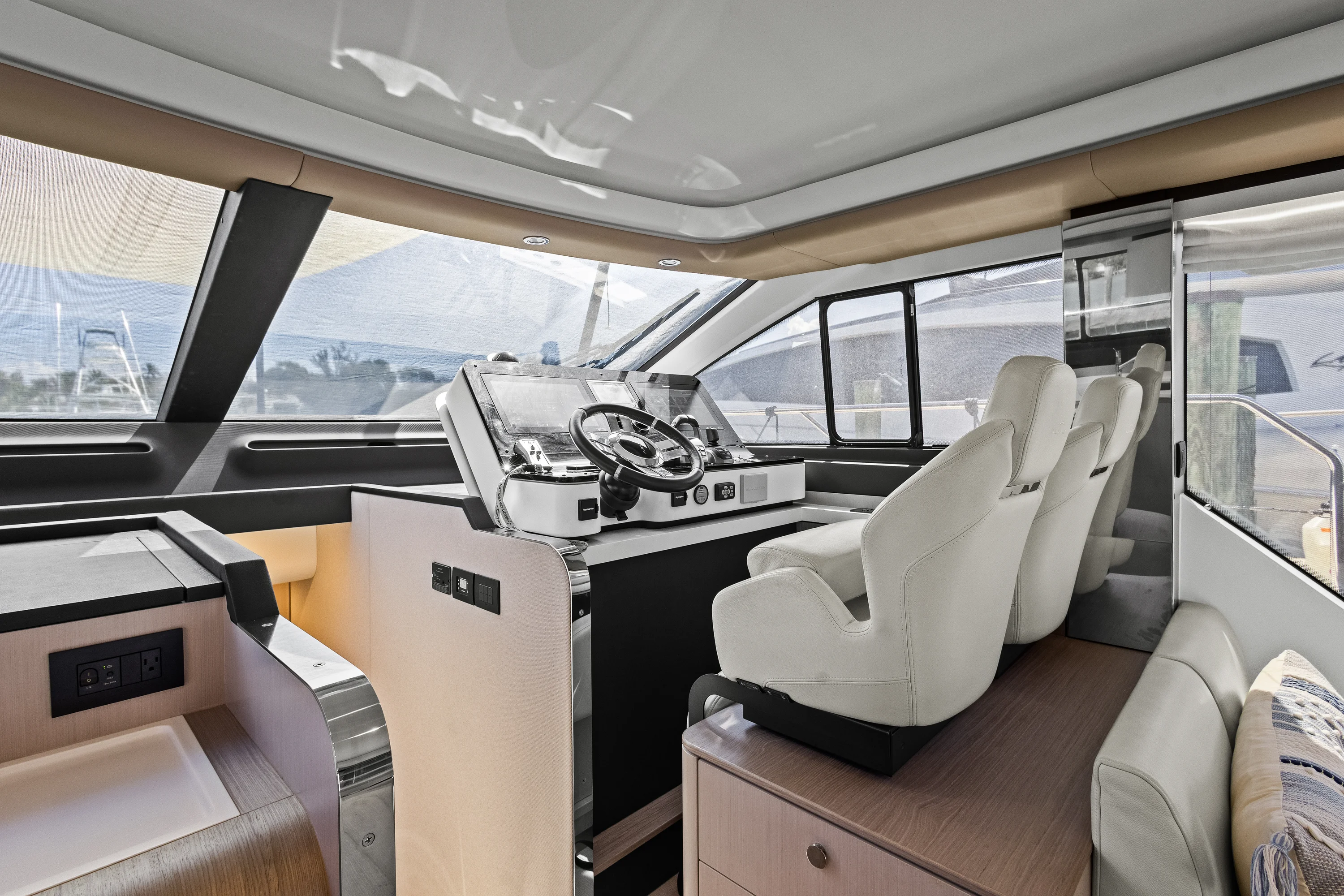

Wheelhouse
● Adjustable helm seat for one person
● Height-adjustable steering system
● Electrically openable wheelhouse window
● The wheelhouse equipment includes:
- Raymarine Bronze Package
- Compass
- Engine display
- Engine starting buttons
- Thruster control
- Rudder
- Engine levers
- Panel with main control switches
- VHF

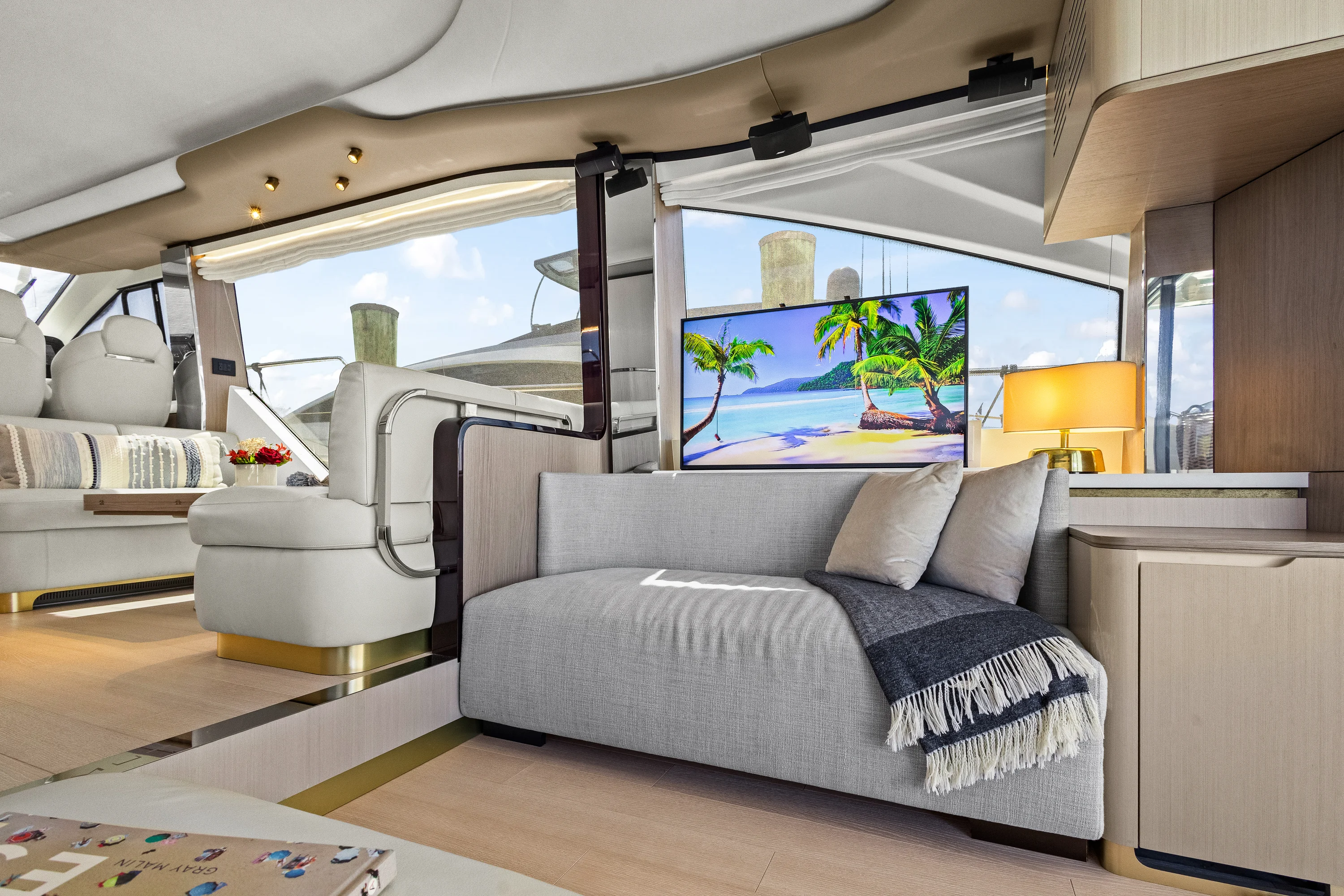

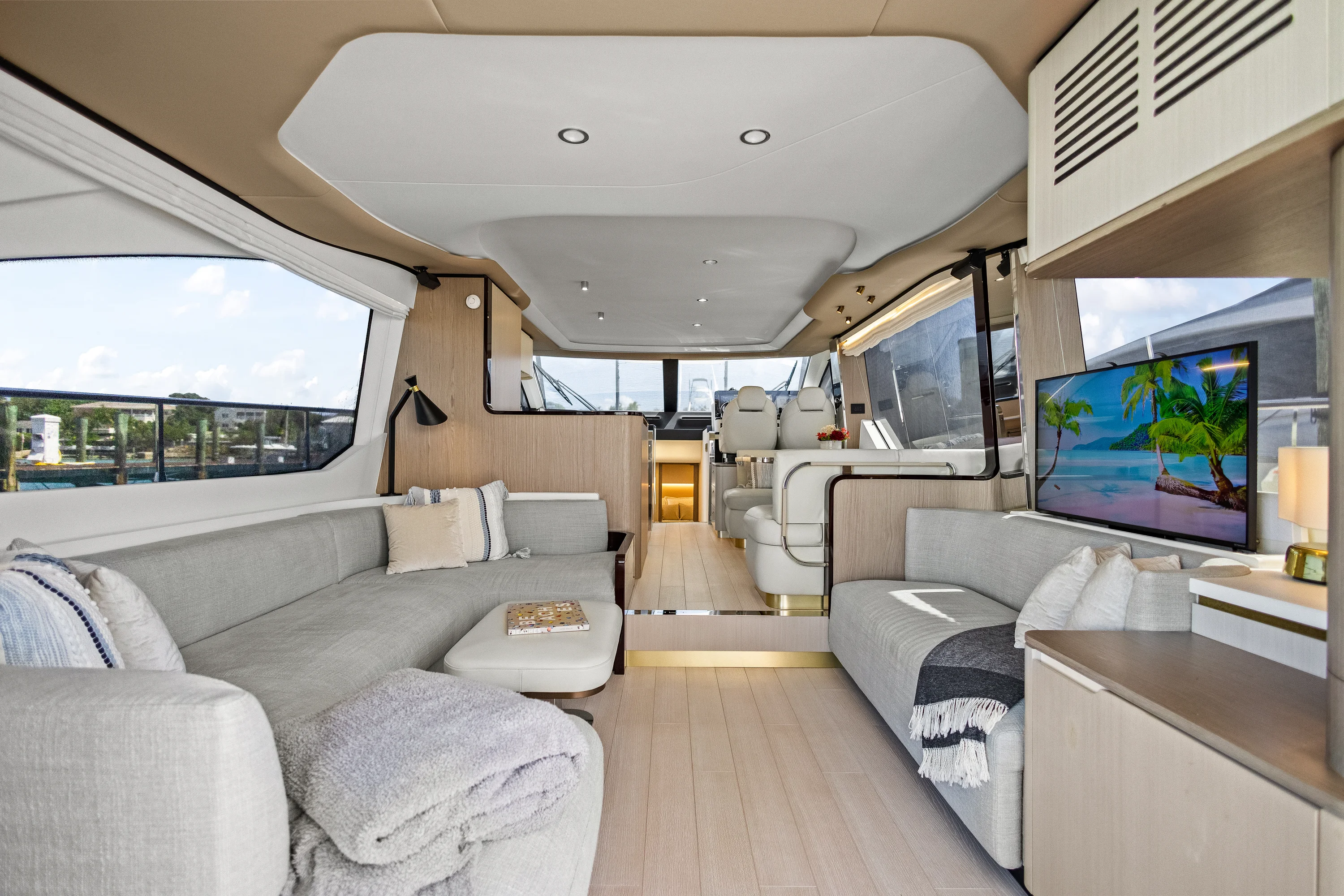

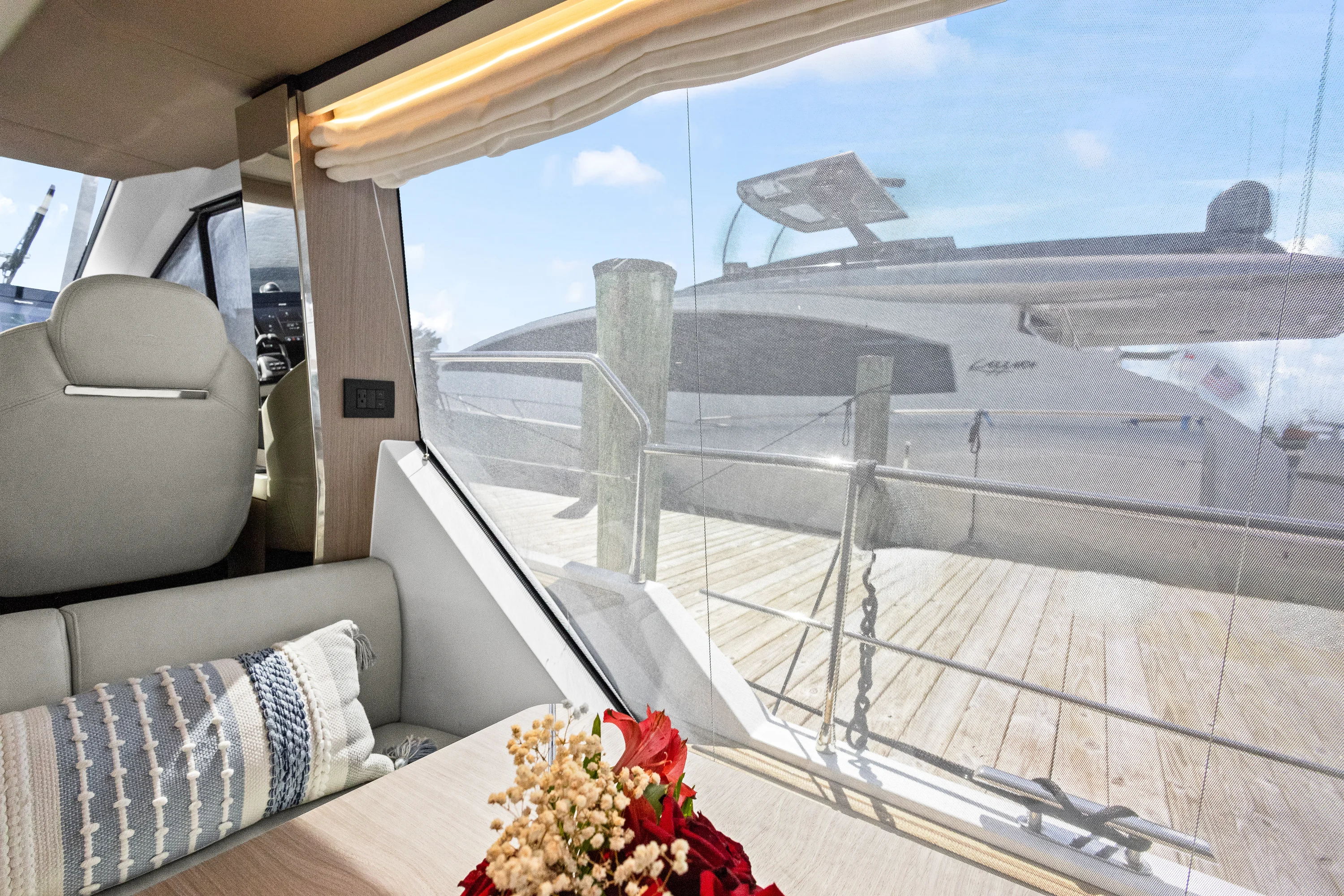

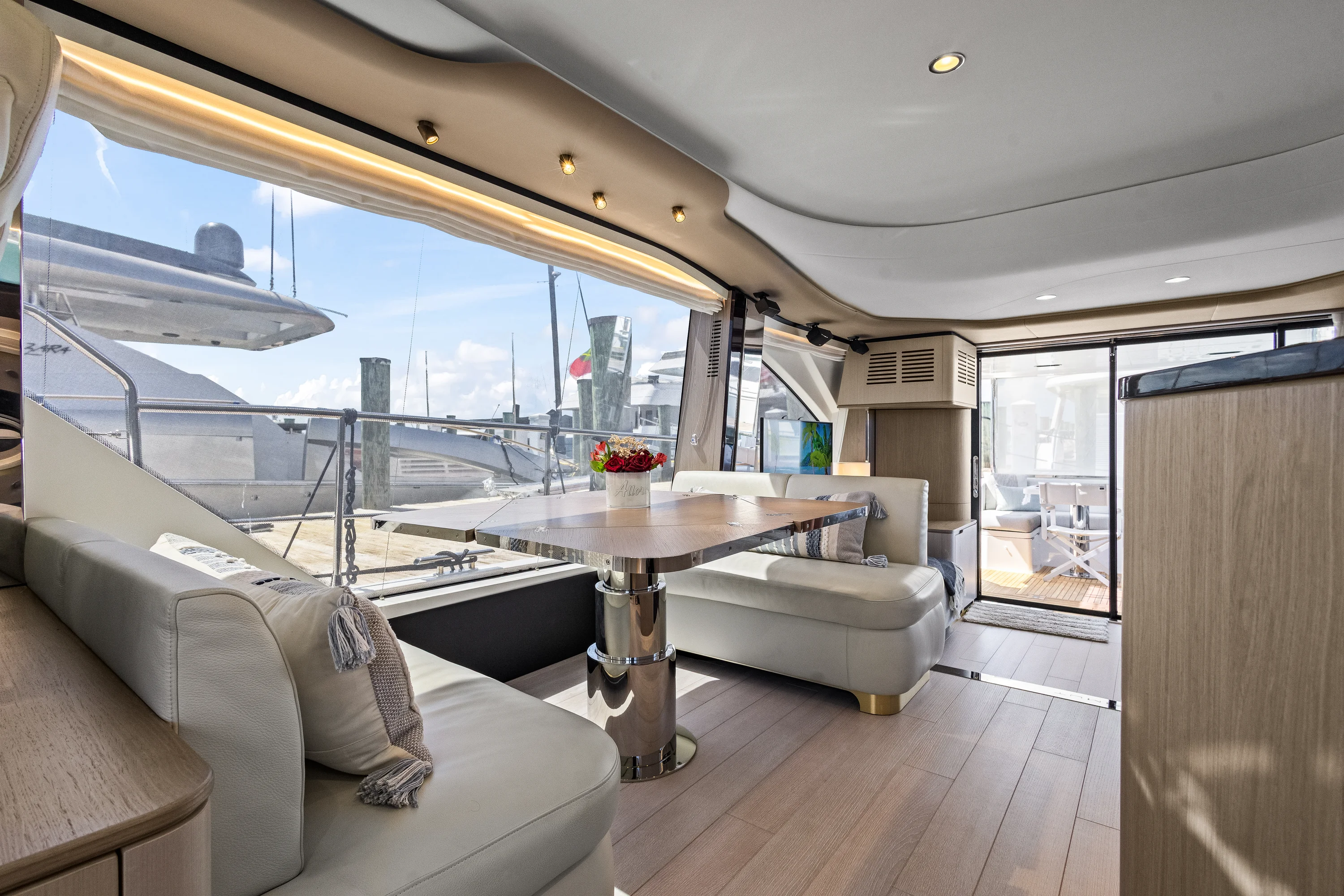

Saloon / Dinette / Galley

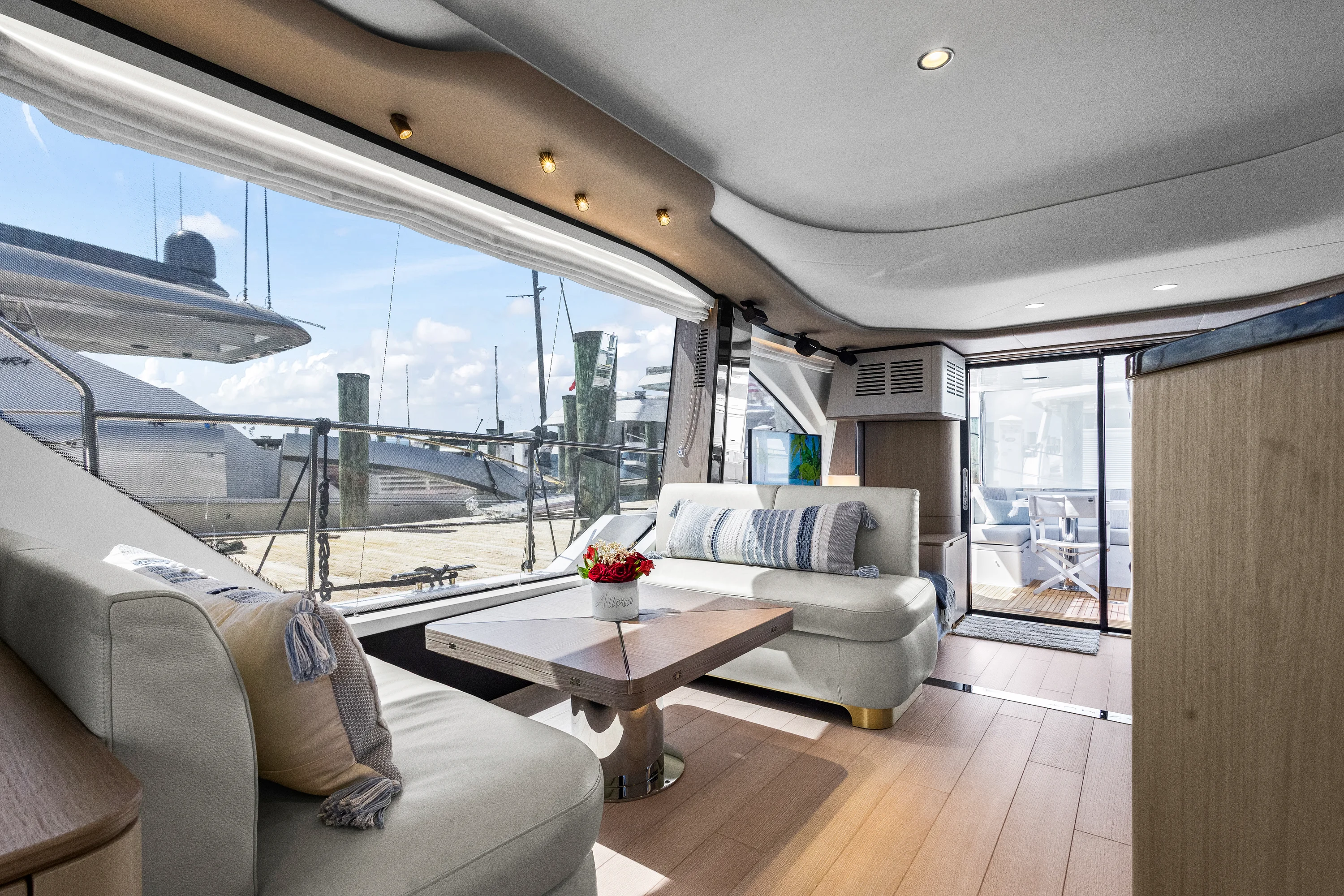

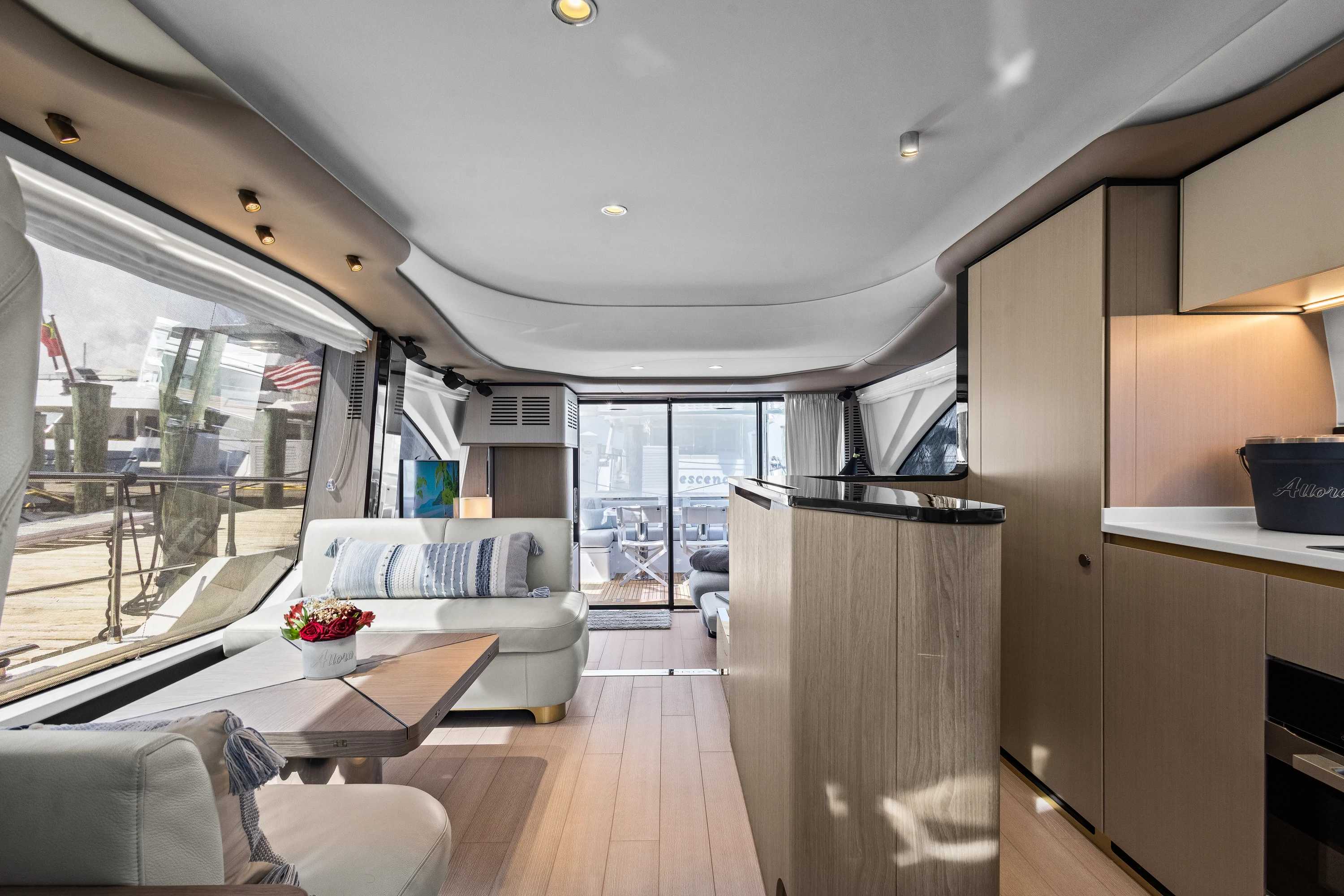

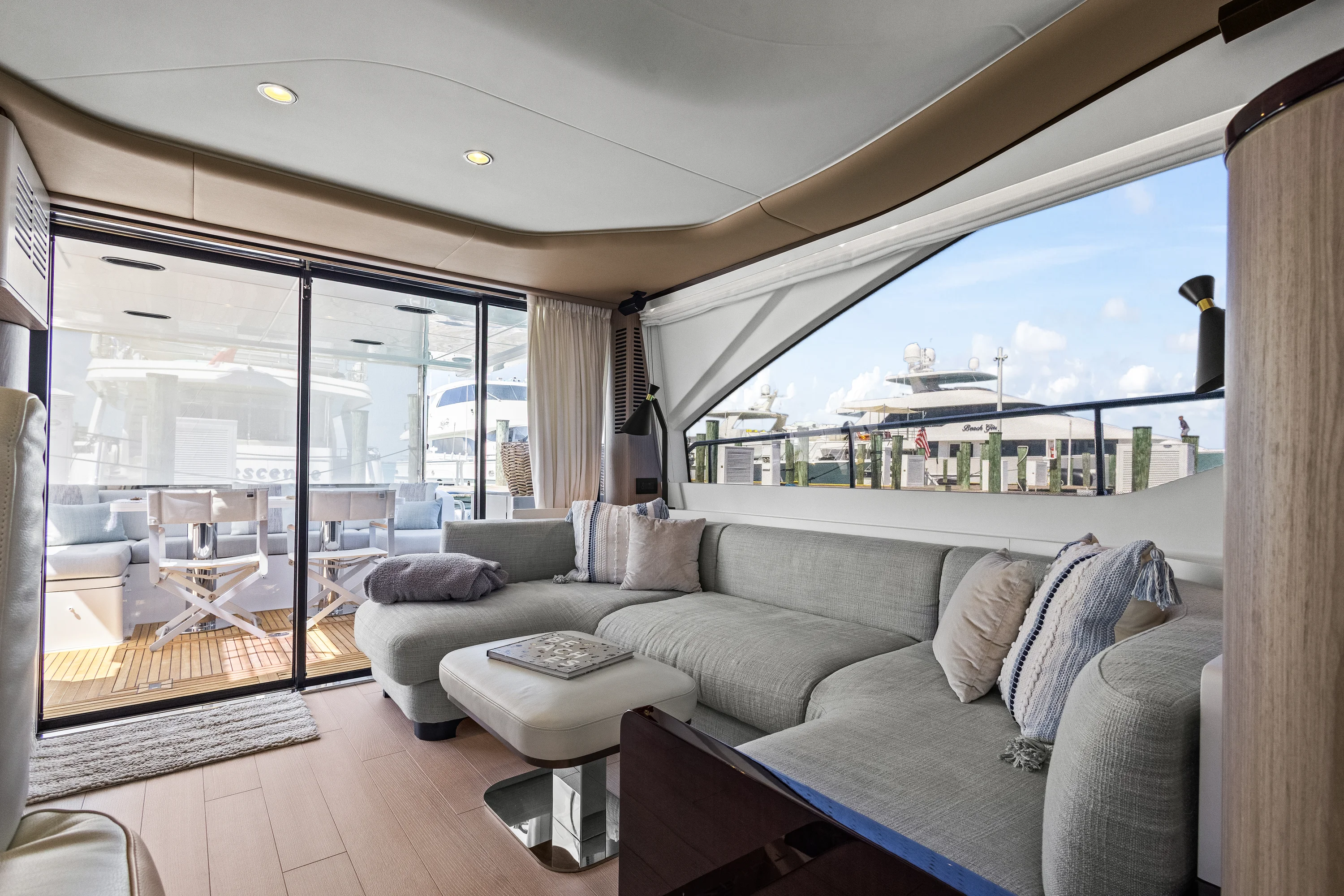

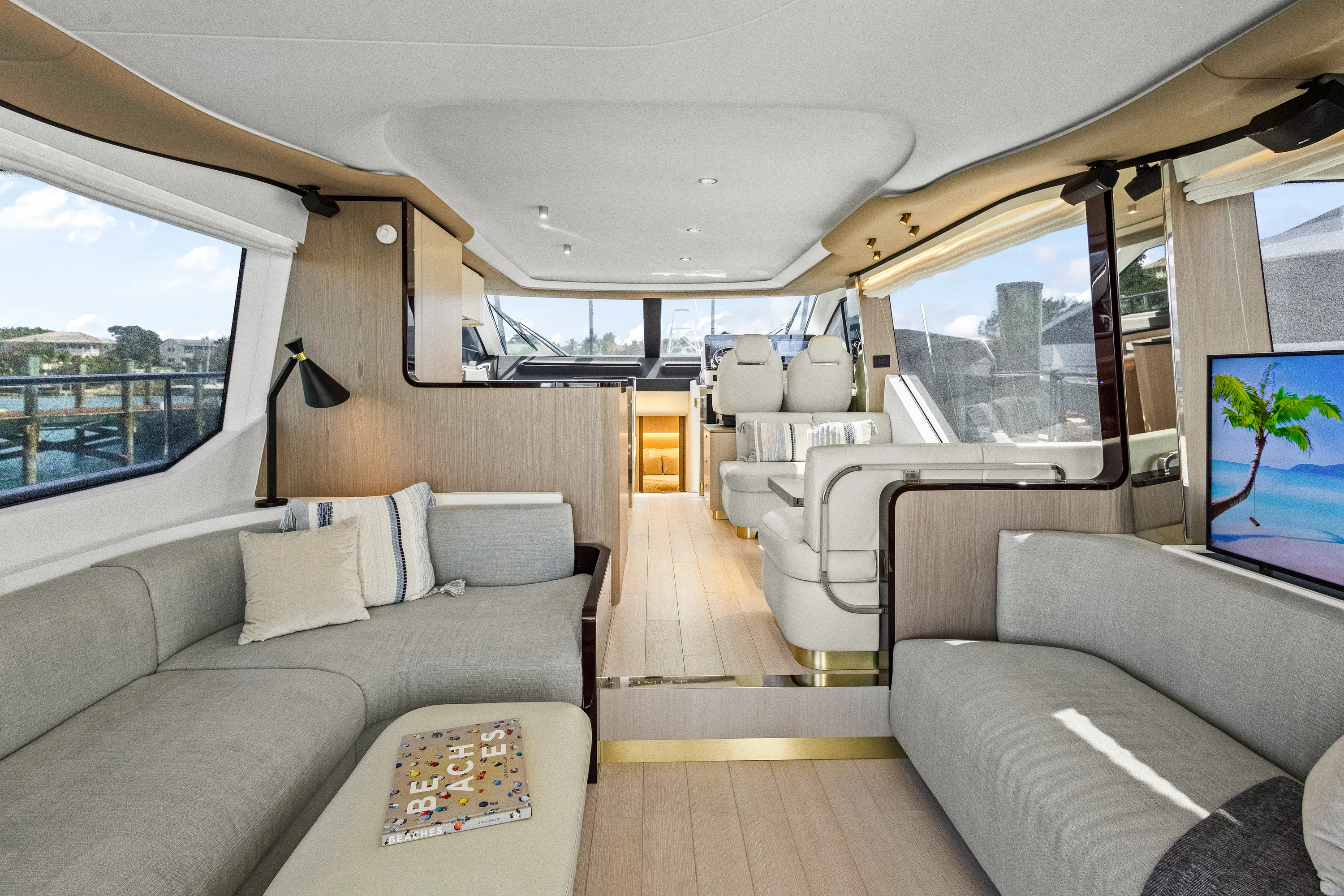

Saloon
● Sofa for six people on port side
● Carpet
● LED lighting
● two seater sofa on starboard side
● Saloon door curtain in fabric
● Roman-type curtains in fabric
● Radio CD with remote control and two loudspeakers
● Provision for TV system
Dinette
● Dining zone with two opposed sofas
● Carpet
● LED lighting
● Table with fixed plane (from Serial No. 426)

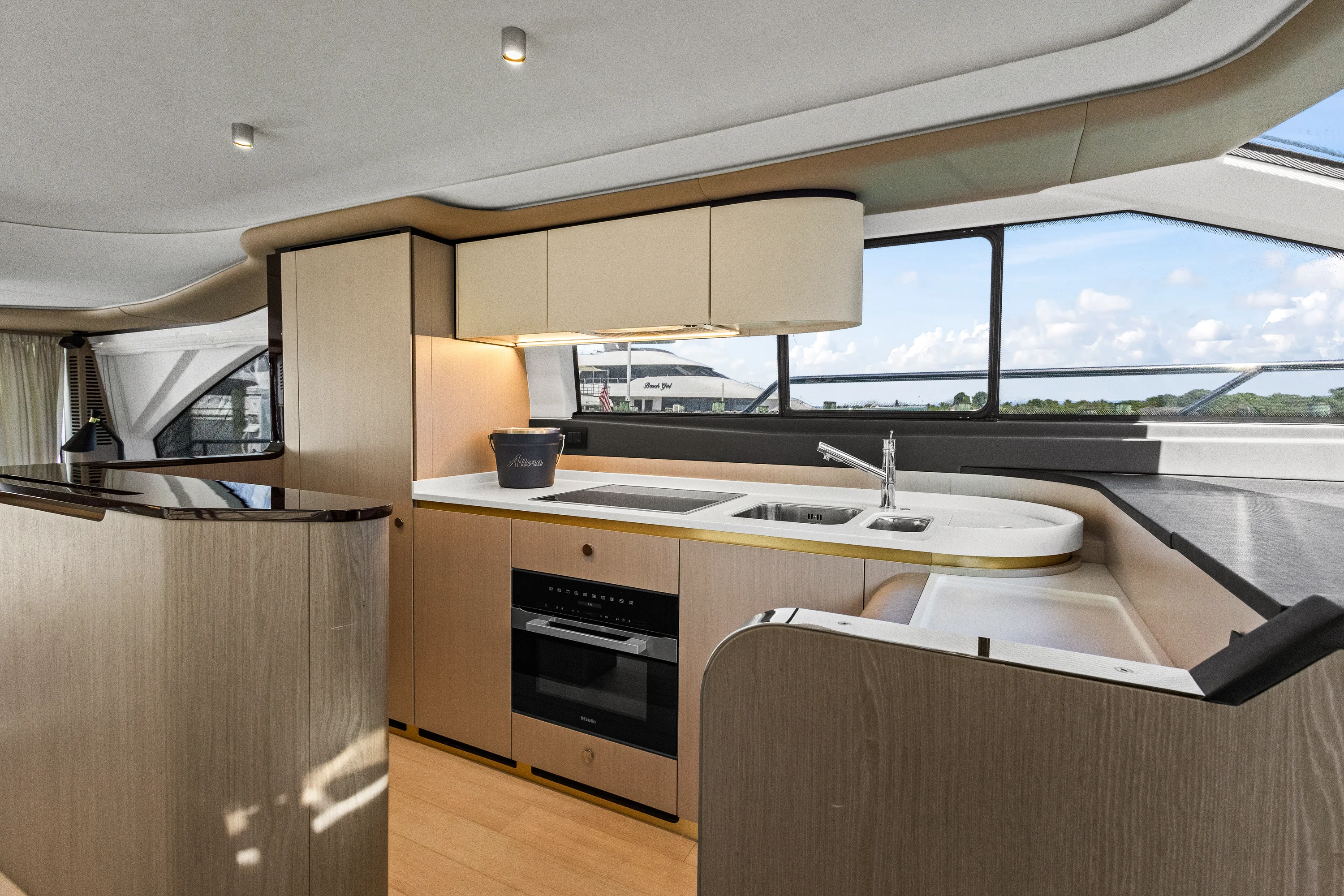

Galley
● Ceramic glass four-hob range, 50/60 Hz
● 20 l (0.71 cu.ft) microwave oven + grill
● Wooden worktop
● Hood above the range
● 185 l (6.53 cu.ft) fridge, 44 l (1.55 cu.ft) freezer
● Wood essence floor

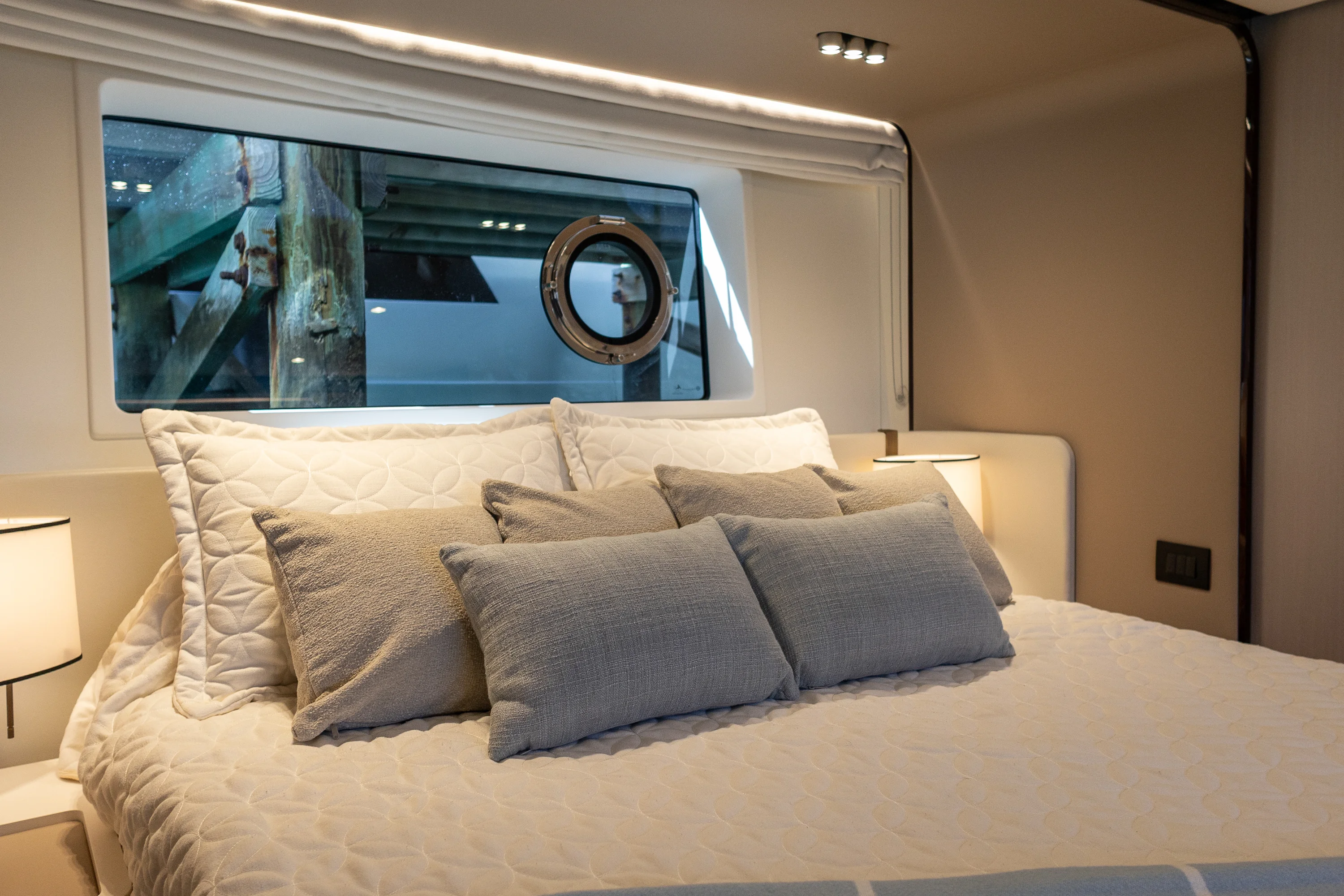

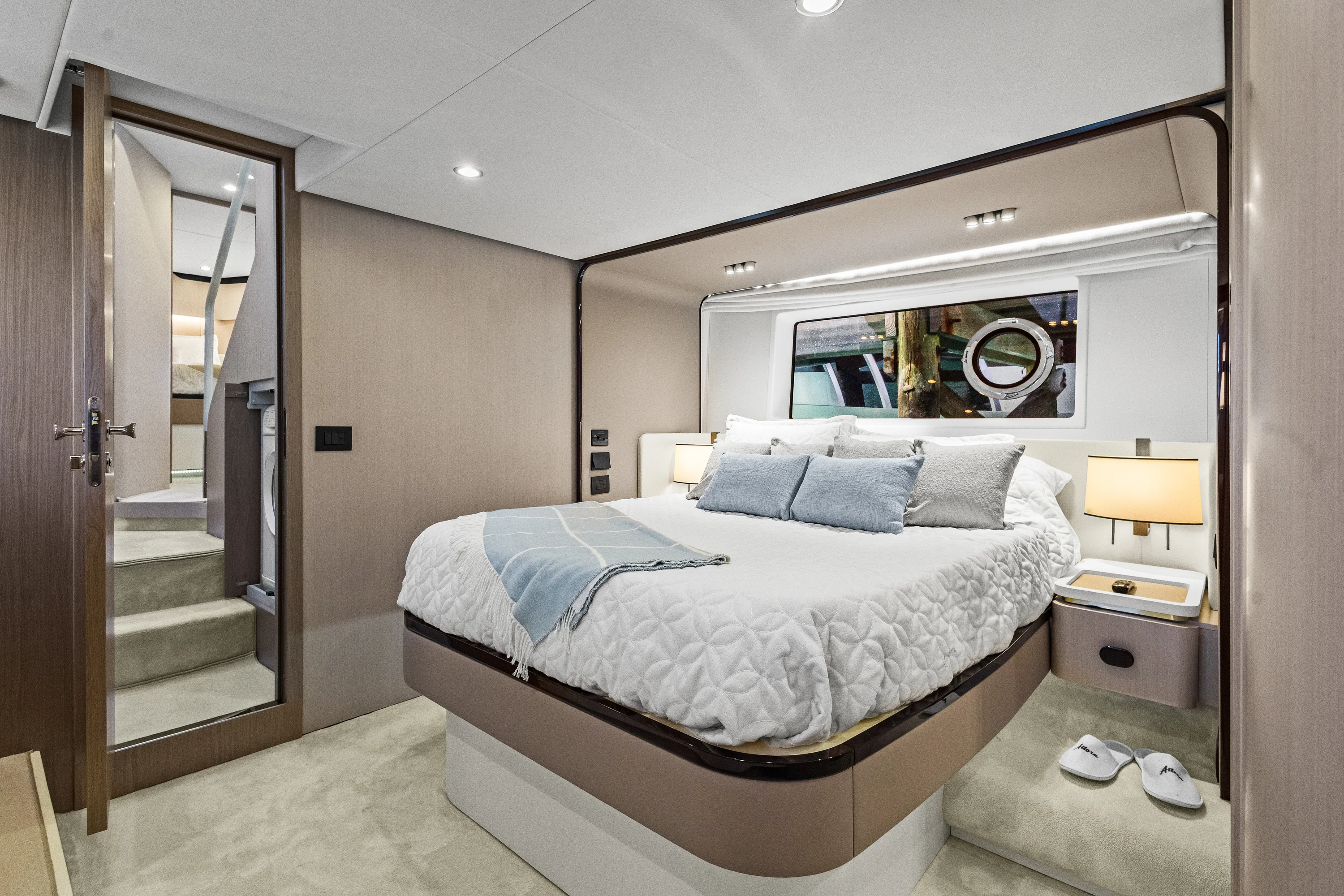

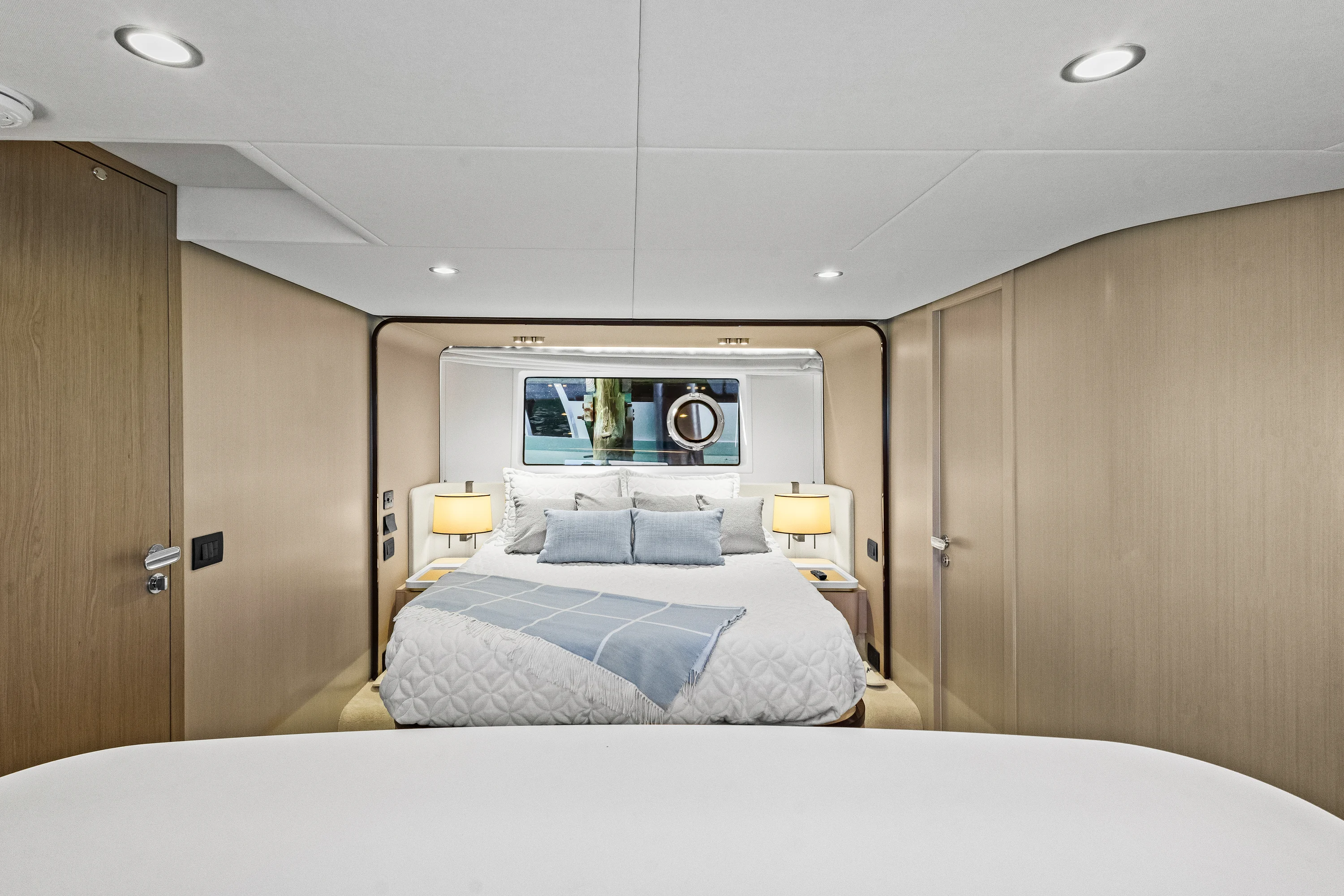

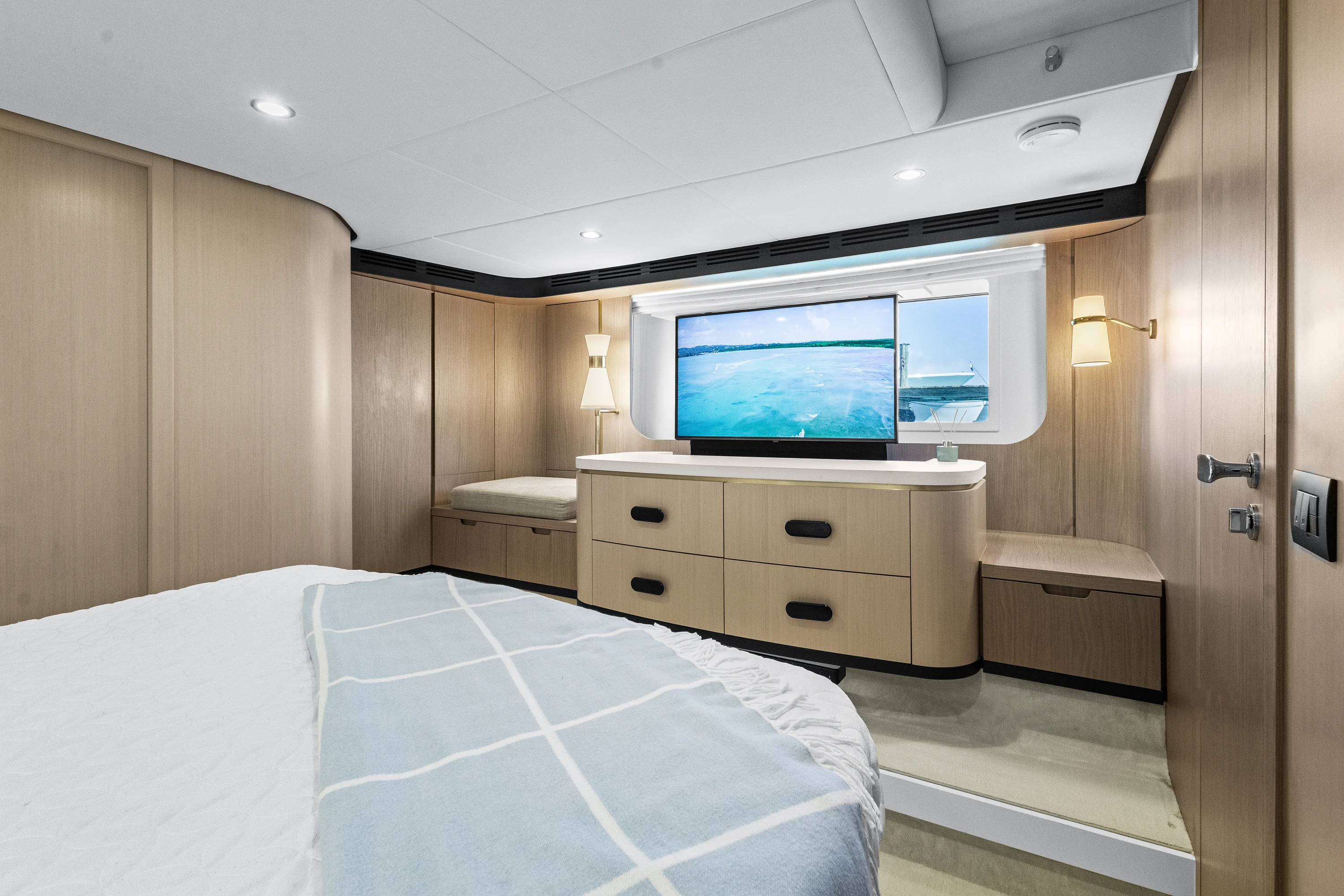

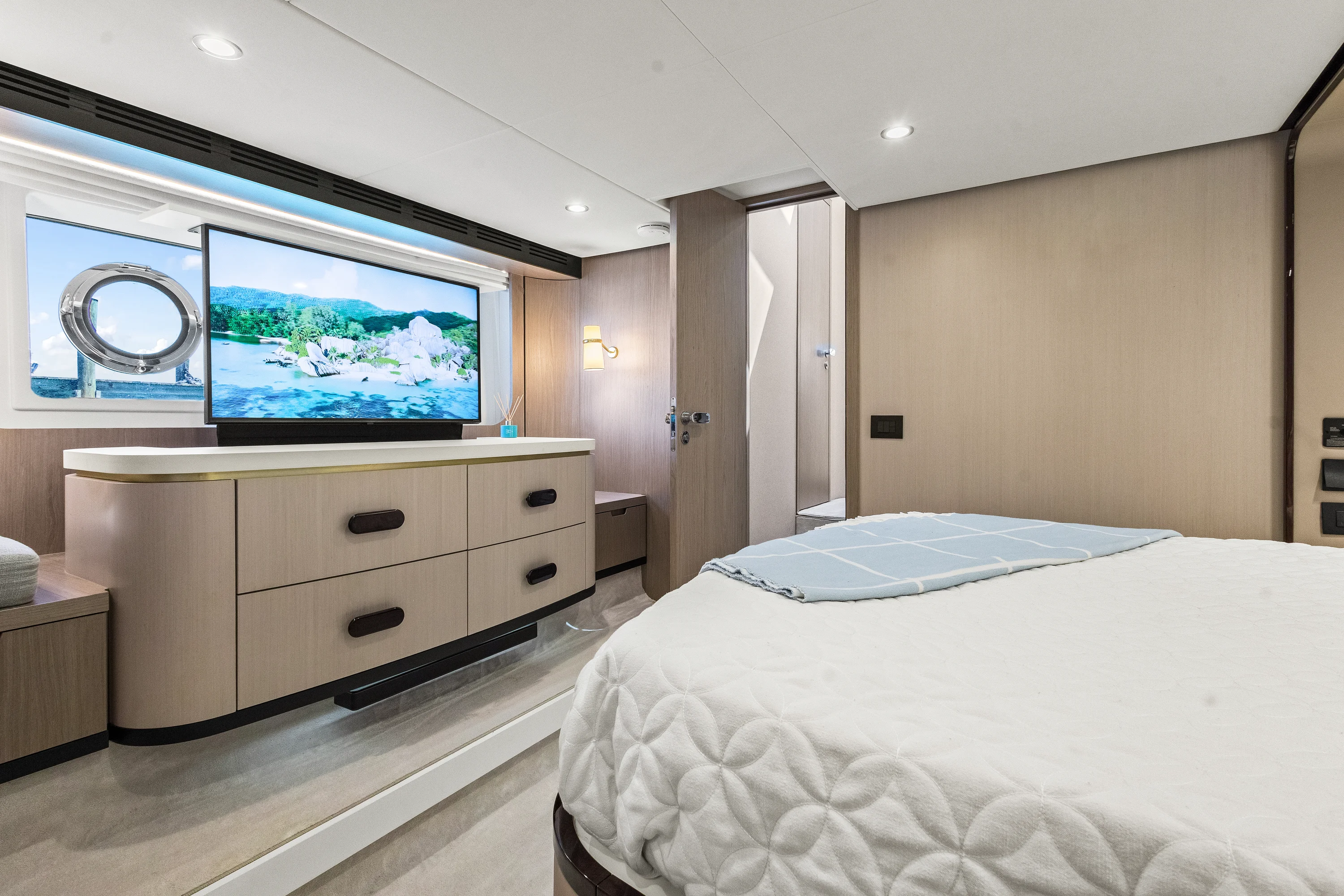

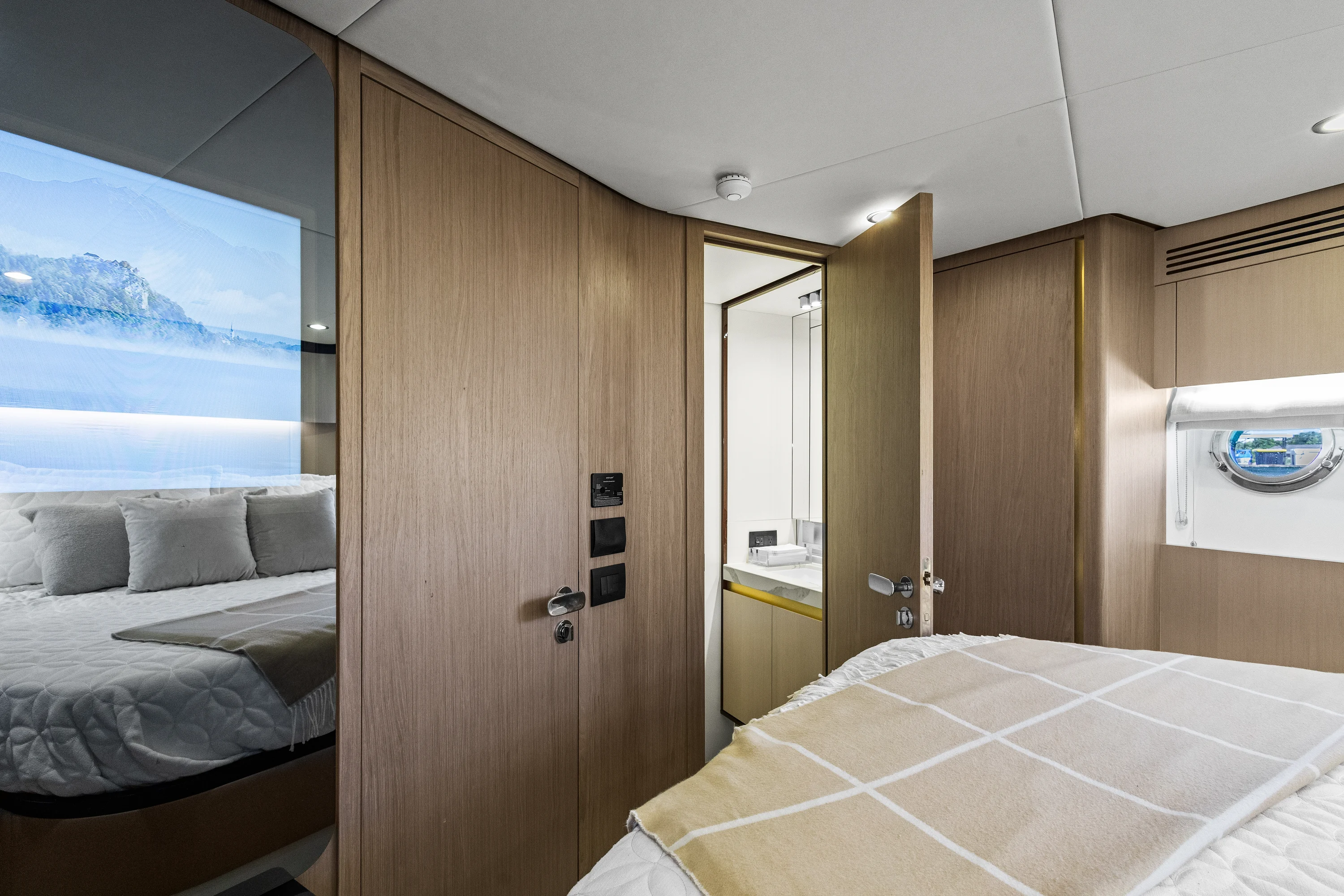

Owner’s cabin
● Located midship
● Double bed with locker accessed from above
● Mattress, pillows and bedspread
● Chest of drawers
● Carpet
● Wooden Venetian blinds
● Doors and frames in wood essence
● Direct access to owner's head
● Reading lights
● Suitable for TV installation
● Large hull windows with built-in portlight

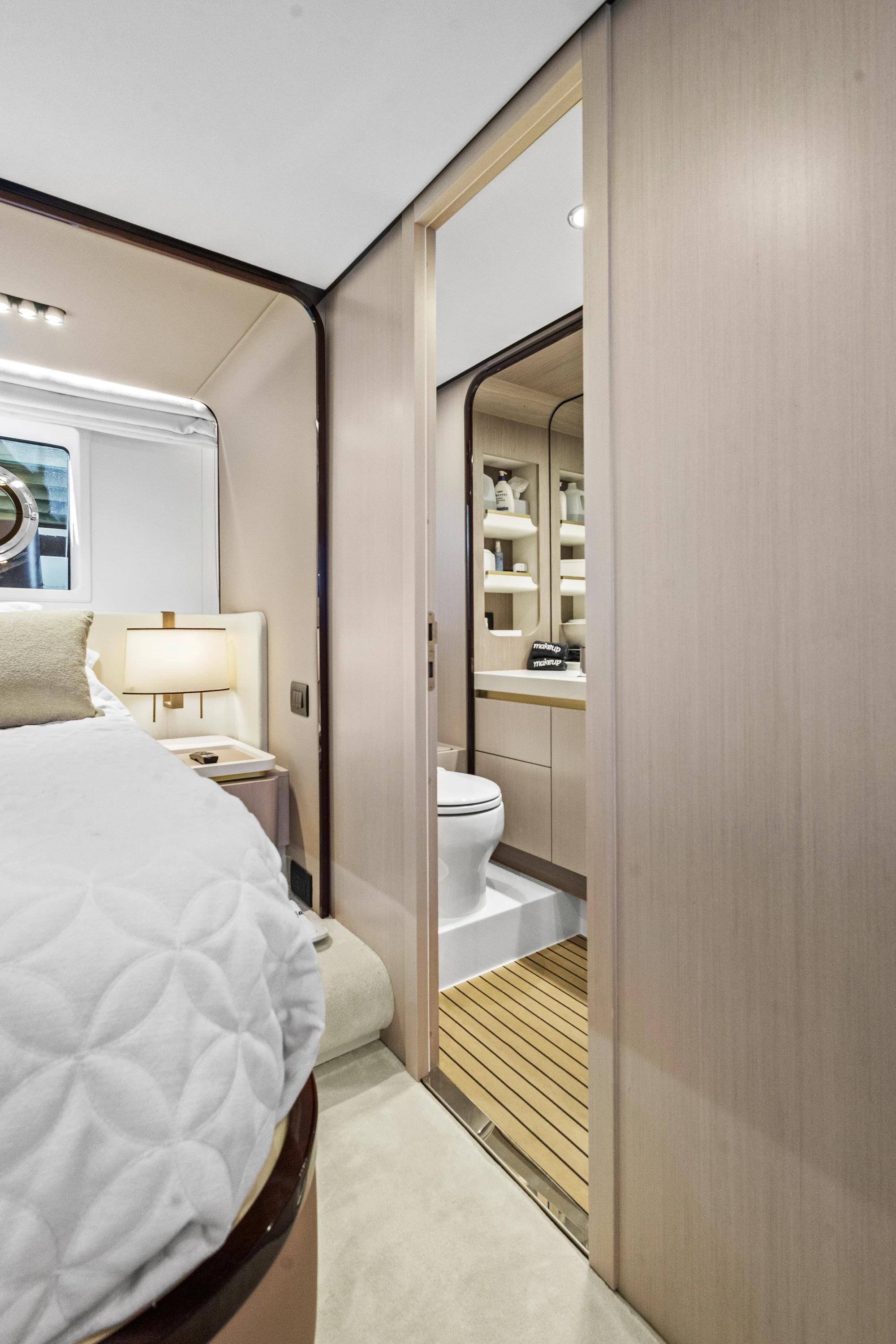

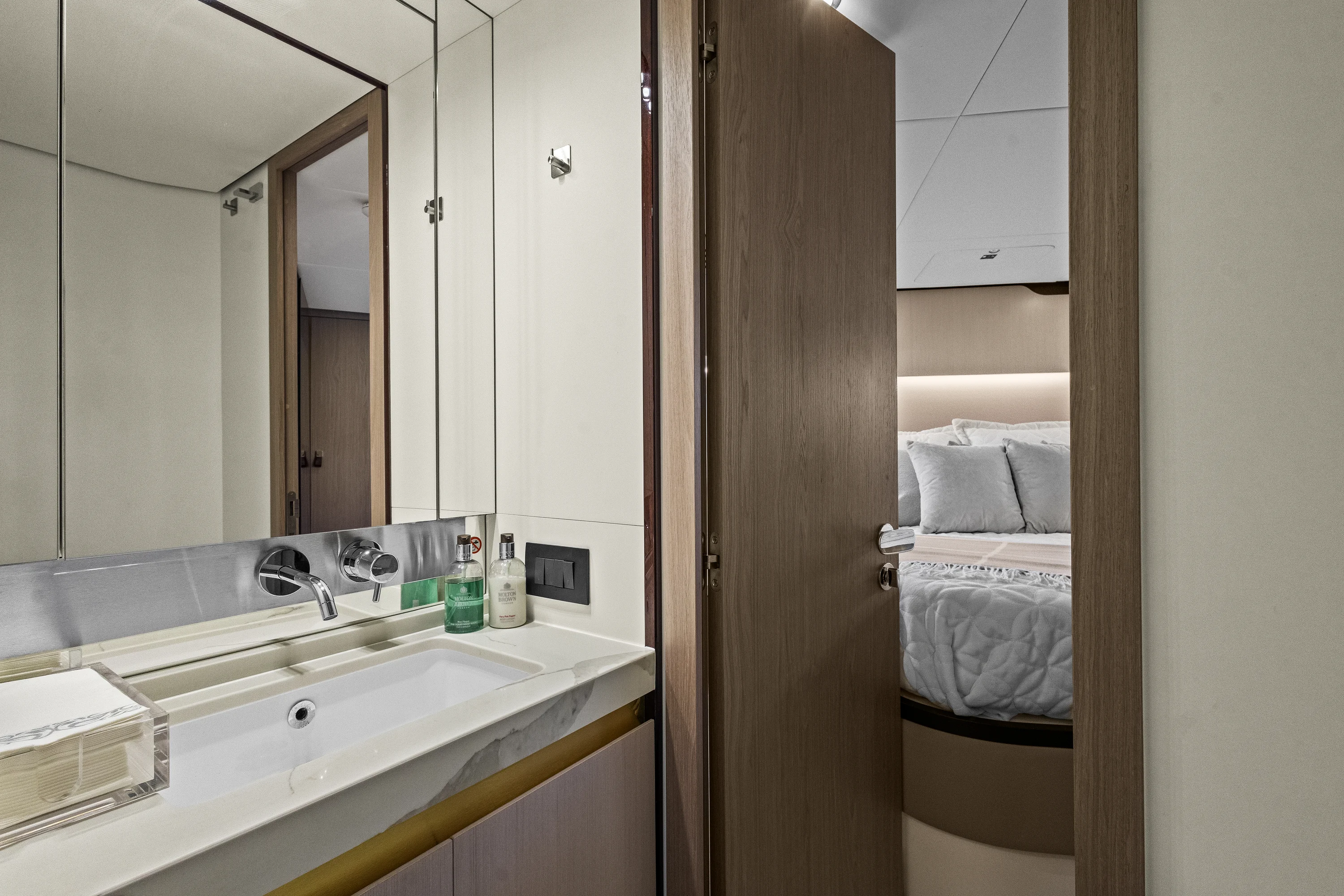

Owner's head
● Access from owner's cabin
● Separate shower
● Shower column with soap dish and mixer taps
● Washbasin with top
● Synthetic teak floor
● TECMA toilet
● Round portlight
● Wooden Venetian blinds
● Head accessories
● Wall unit above washbasin with mirror
● Large storage area behind toilet
● Air extractor

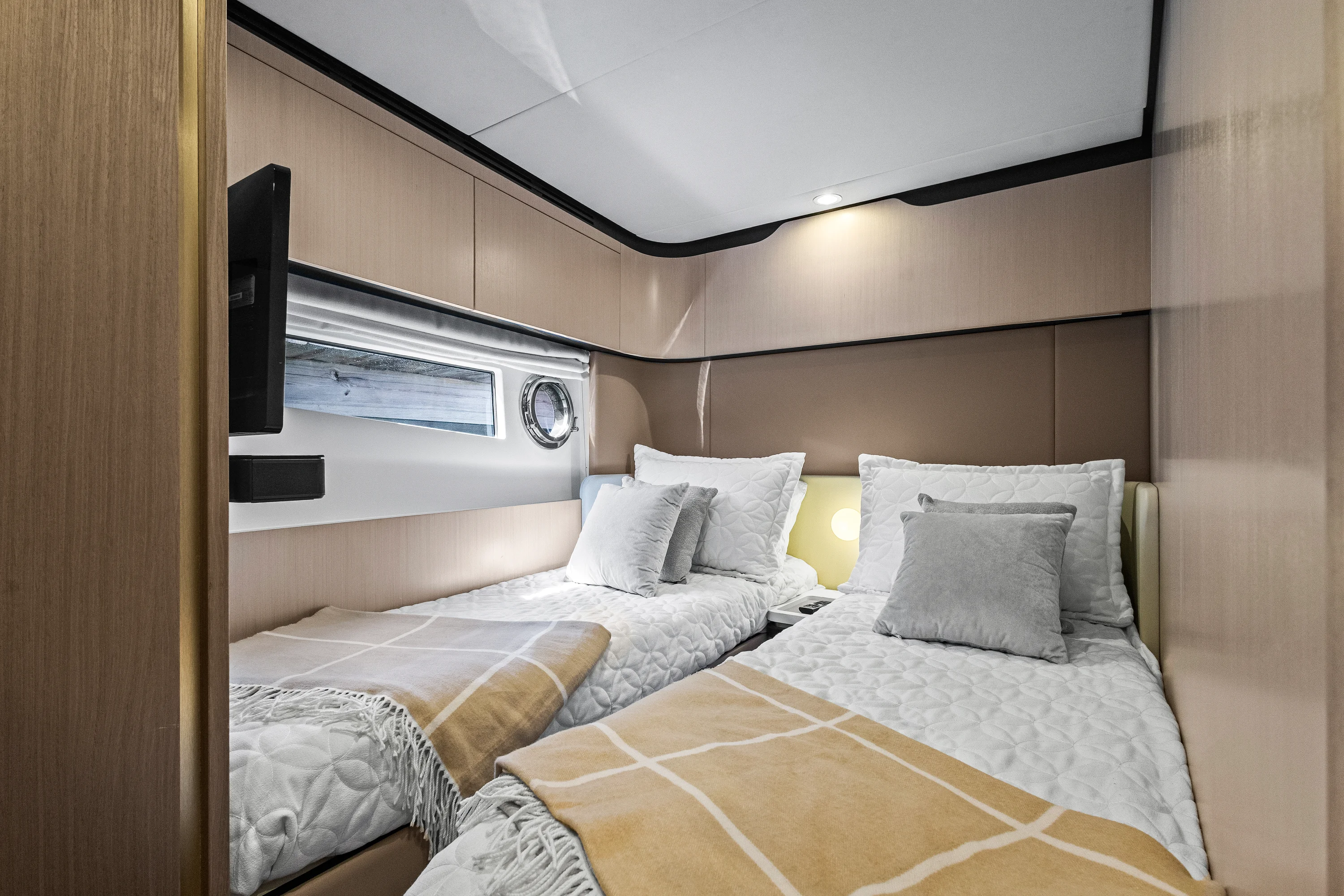

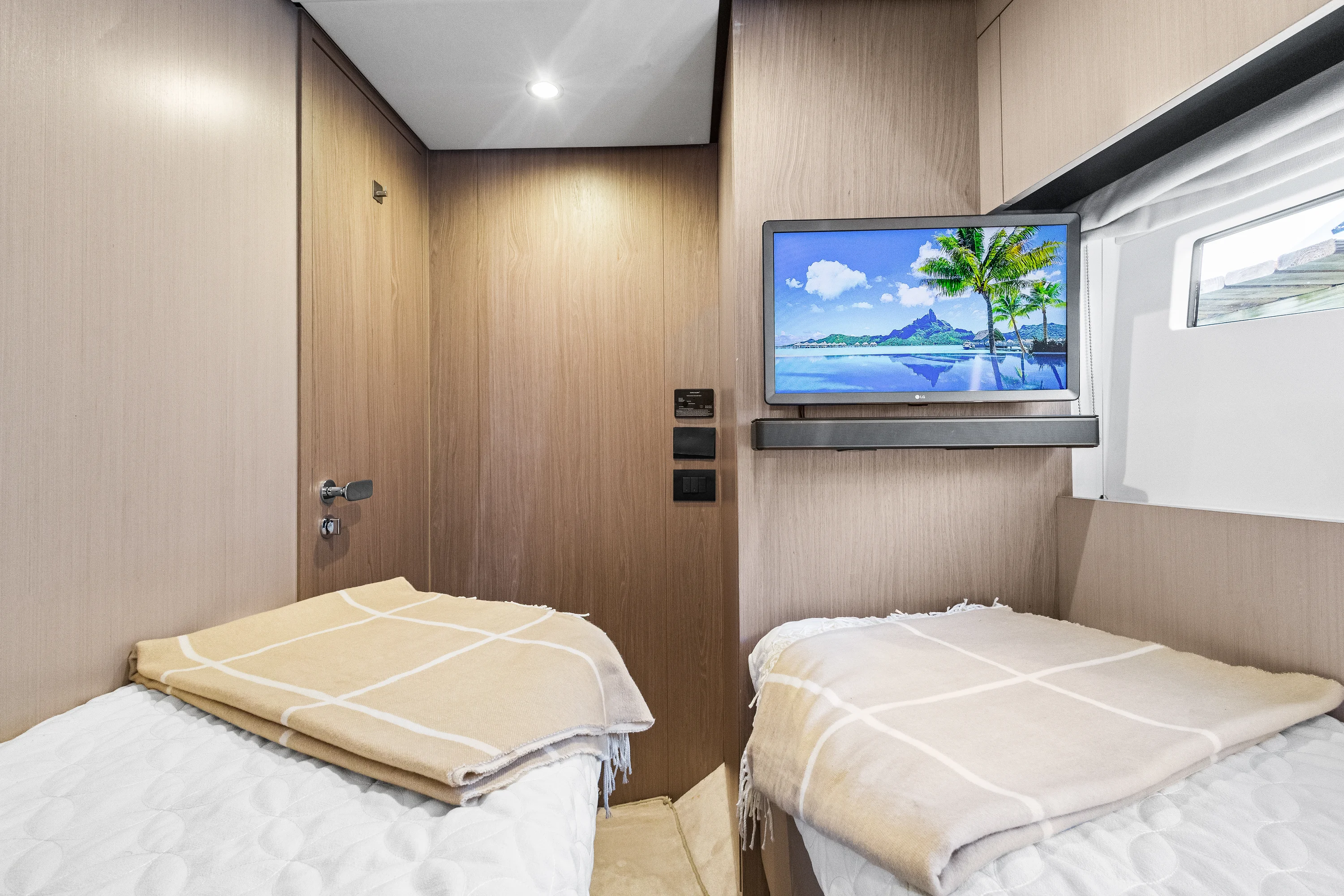

Guest cabin
● Located on starboard side
● Fixed single beds
● Central bedside table
● Wardrobe on bulwark
● Carpet
● Wooden Venetian blinds
● Fix window with openable round portlight
● Reading light
● Doors and frames in wood essence
● Mirror inside the wardrobe

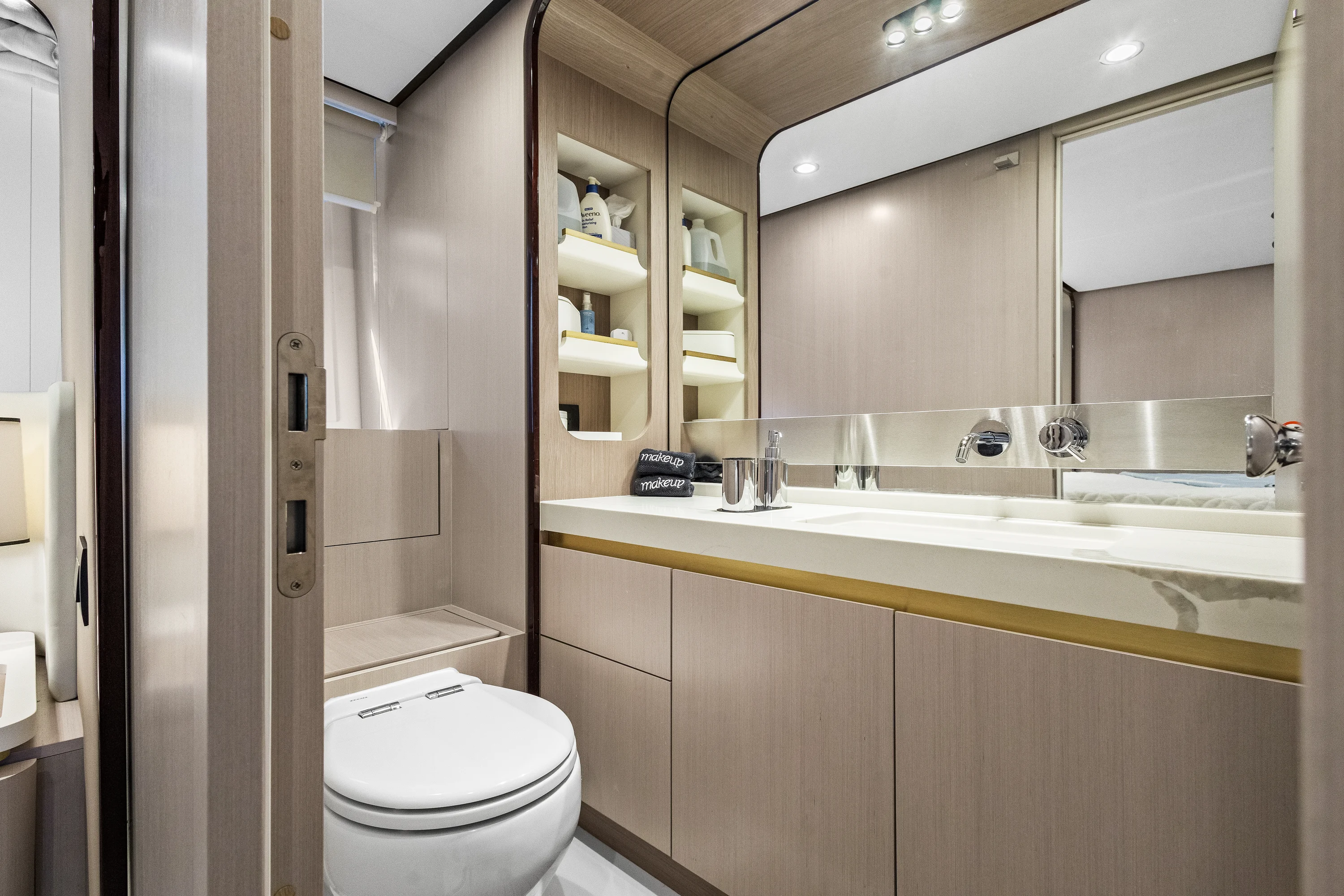

Guest / daily head
● Access from corridor
● Shower with panel
● Shower column and mixer taps
● Washbasin with top
● Round portlight
● Synthetic teak floor
● TECMA toilet
● Roller-type curtains
● Head accessories
● Wall unit above washbasin with mirror

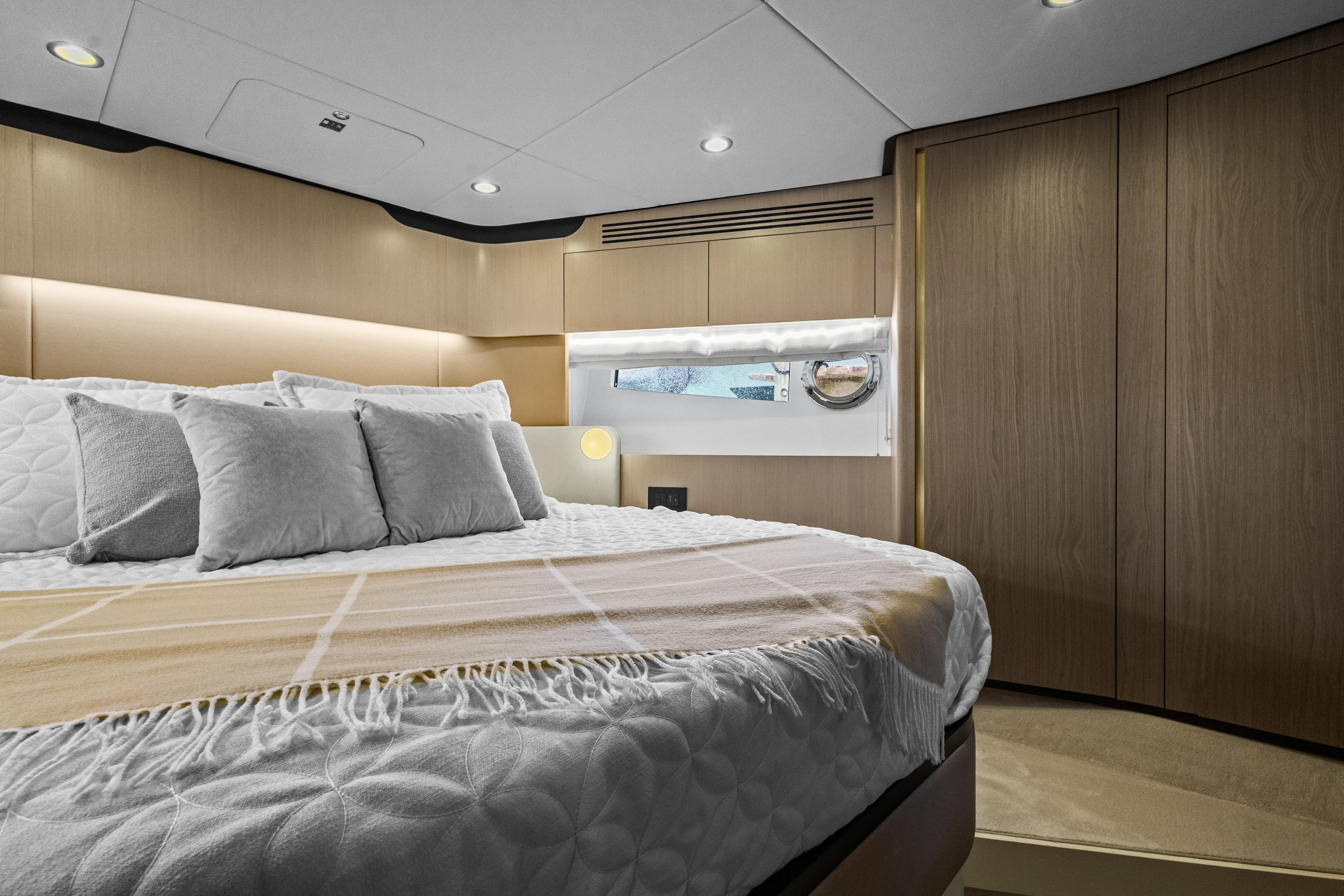

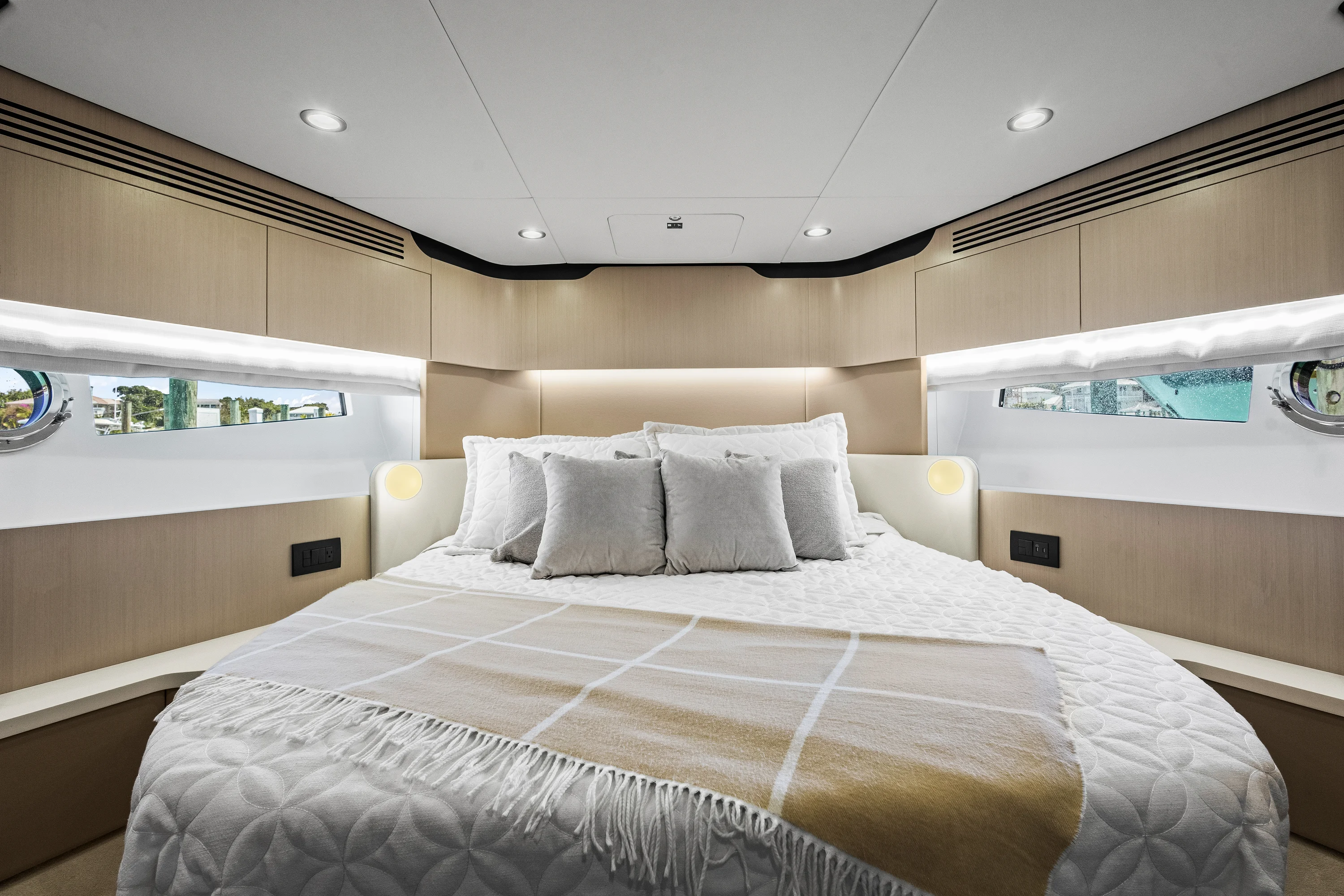

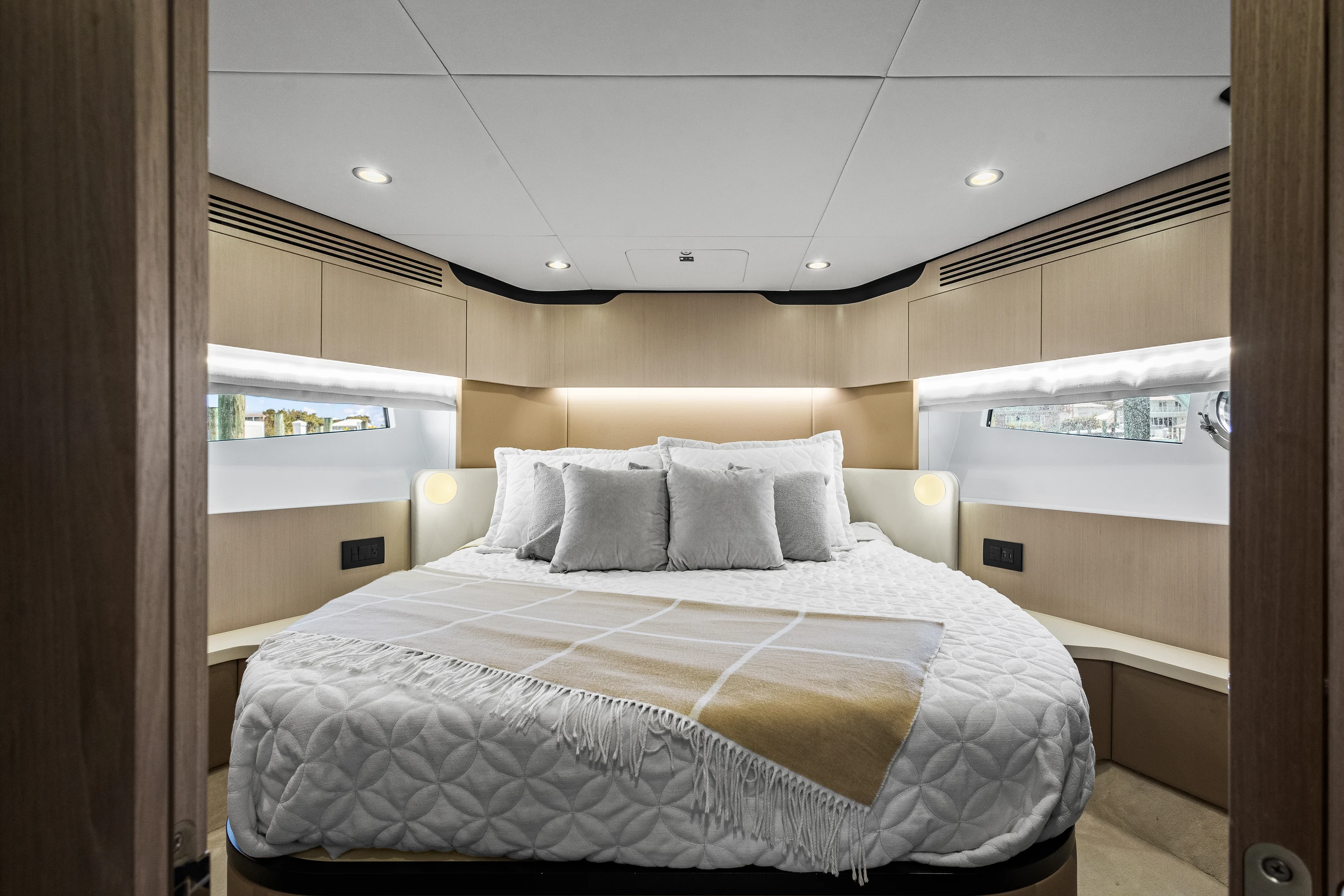

VIP cabin
● Located at the bow, it is accessed via the central corridor
● Openable double bed
● Mattress, pillows and bedspread
● Wall units
● One wardrobe per side
● Suitable for TV installation
● Panoramic windows with openable portlights
● Wooden Venetian blinds
● Hatchway
● Reading lights
● Doors and frames in wood essence
● Direct access to head
VIP head
● Access from VIP cabin
● Shower with panel
● Shower column and mixer taps
● Washbasin with top
● Round portlight
● Synthetic teak floor
● TECMA toilet
● Roller-type curtains
● Head accessories
● Wall unit above washbasin with mirror

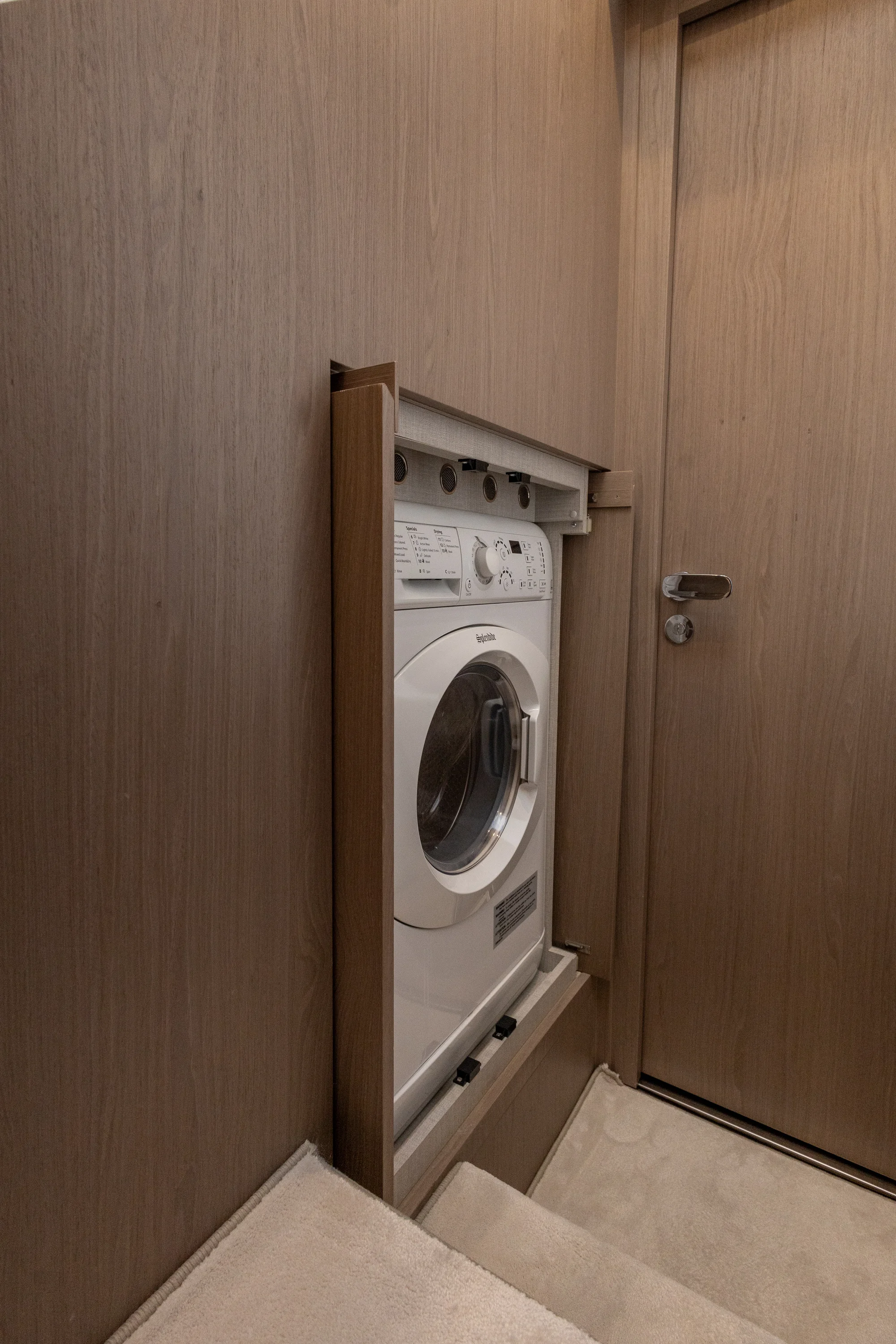

Corridor
● Fabric wall upholstery
● Carpeted floor
● LED lighting

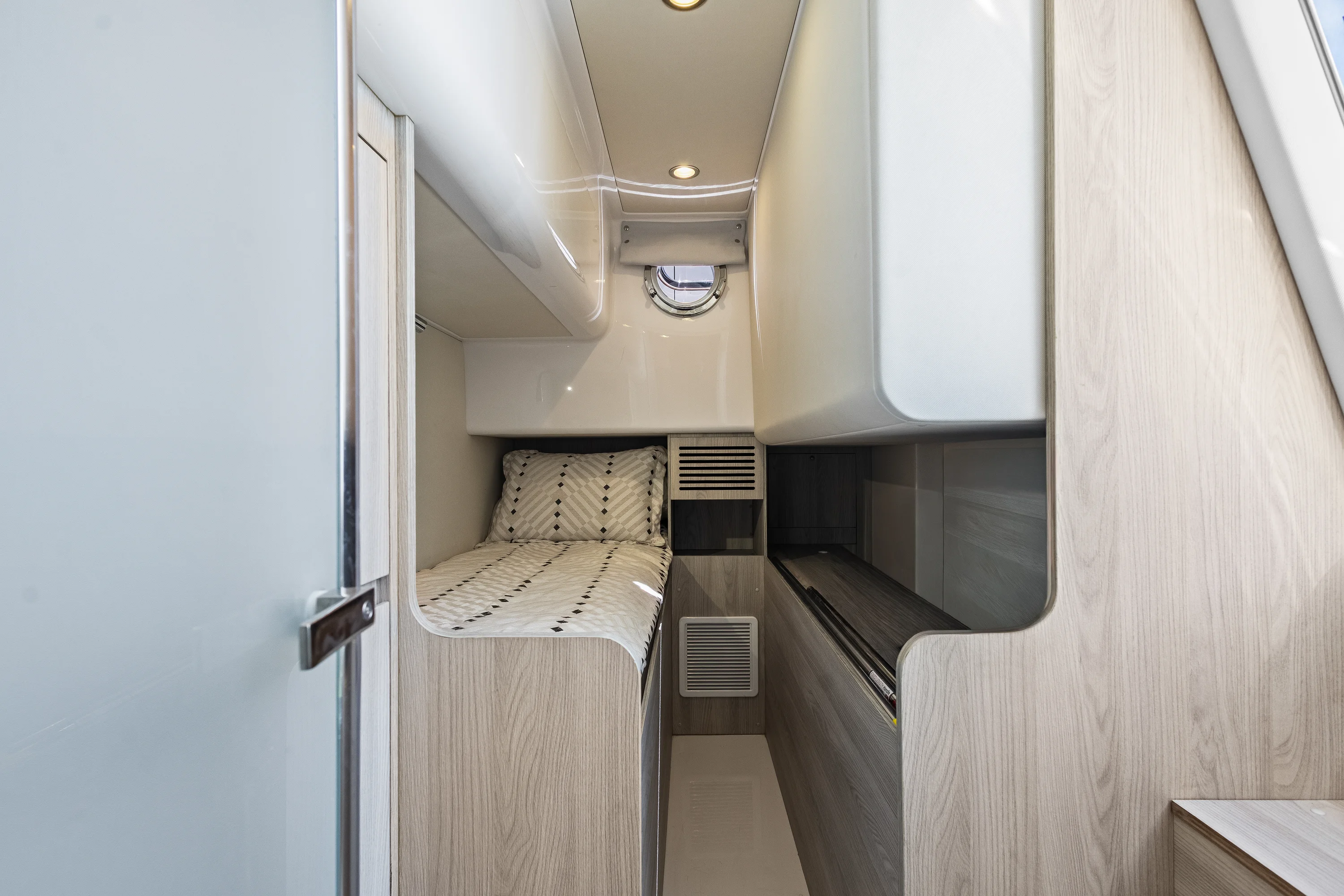

Crew cabin
● Access from transom, via manually moved door
● One single bed (version with two beds instead of aft storage is available
● Mattresses, pillows and bedspreads
● Cabinet with electric panel
● Wooden Venetian blinds
● LED spotlights
● Laminated furniture

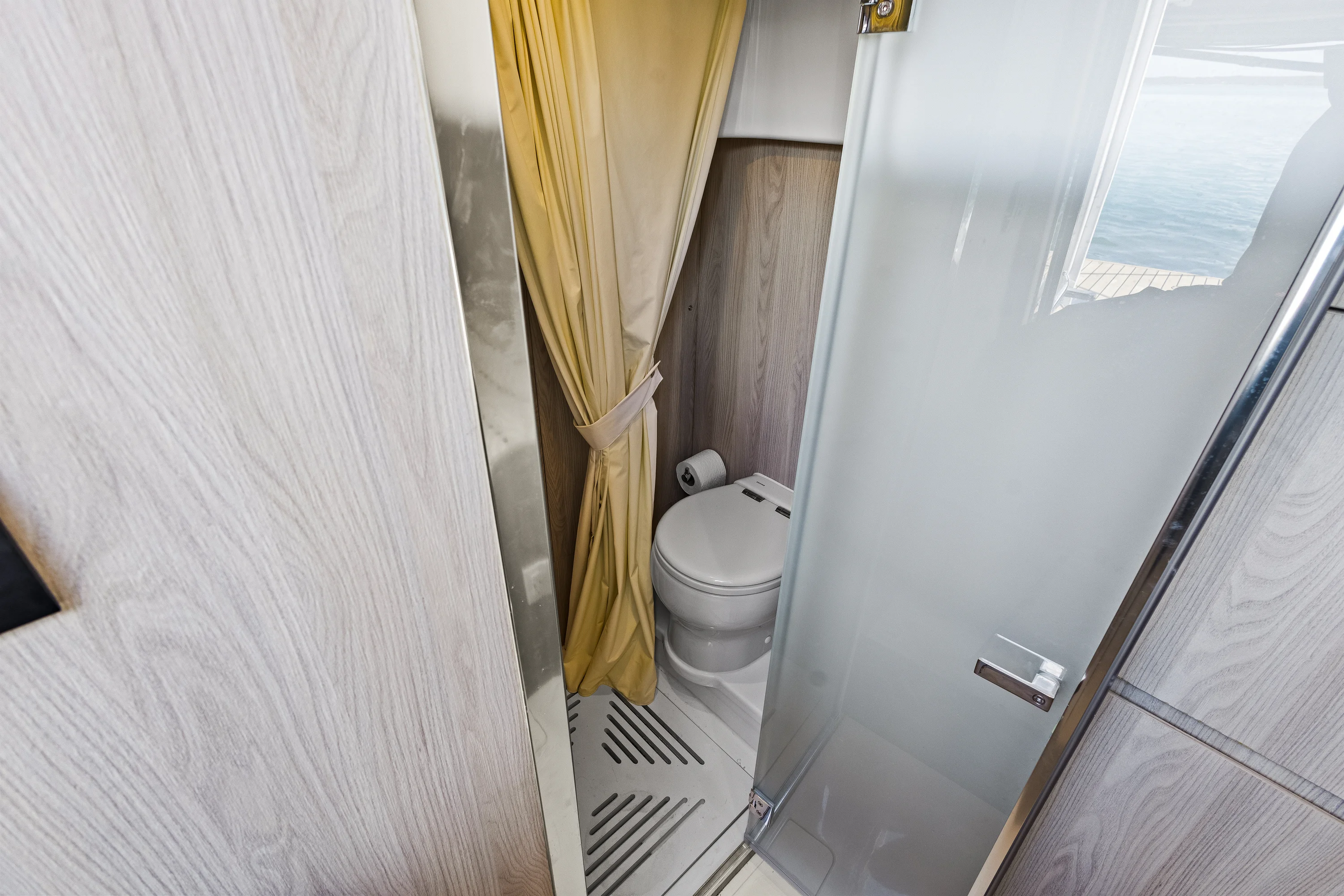

Crew head
● TECMA toilet
● Sink
● Mixer tap with pull-out shower head
● Head accessories
● Shower curtain
● Shower
● Mirror

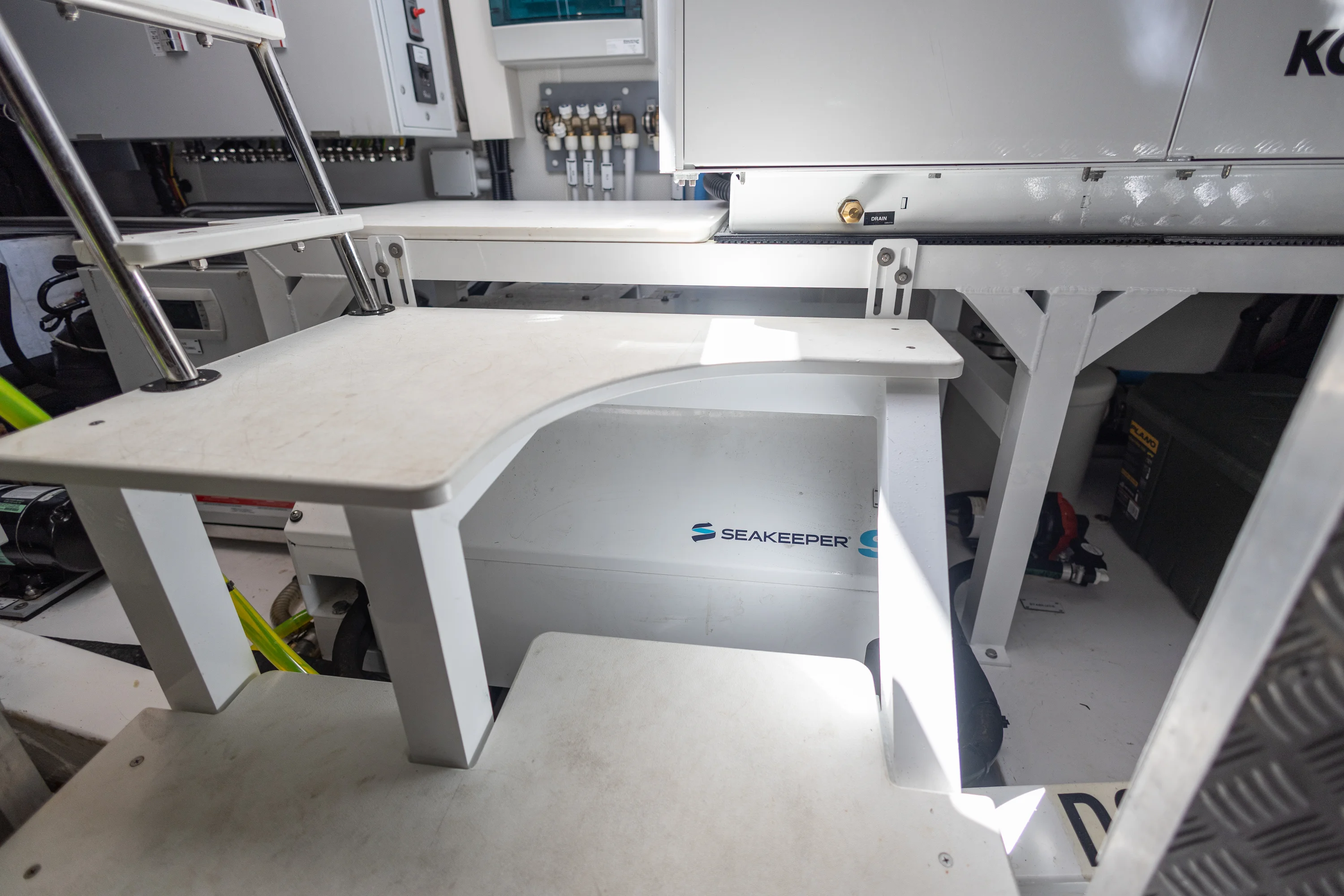

Electric system
Voltage levels on board
● 220 V AC systems, 50 Hz
● 24 V DC systems power supply
● 24 V DC motor systems power supply
● 24 V DC from battery sets
● 12 V DC through voltage reducer
● specific power supply for VHF
Galvanic current insulation
● Zinc anodes

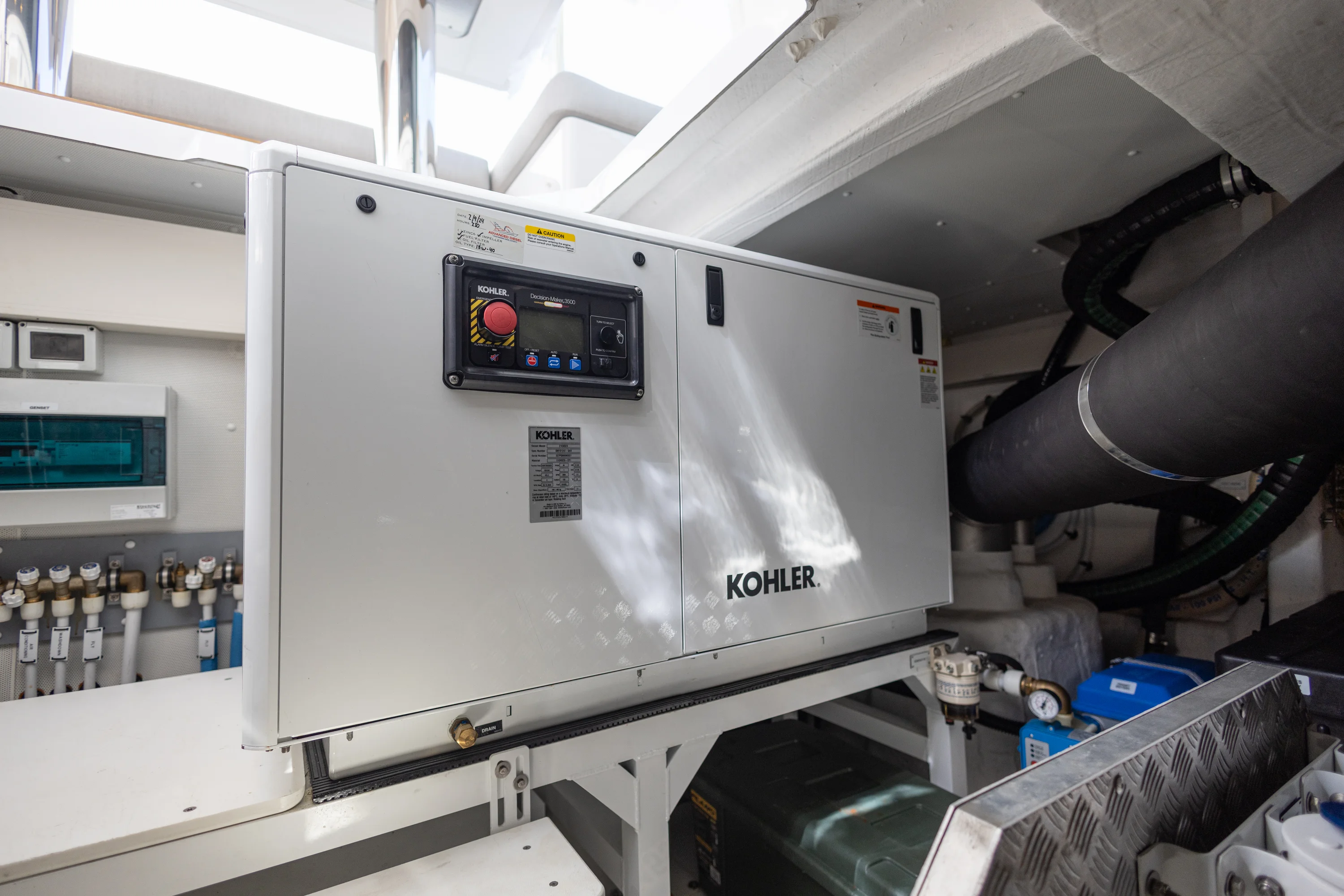

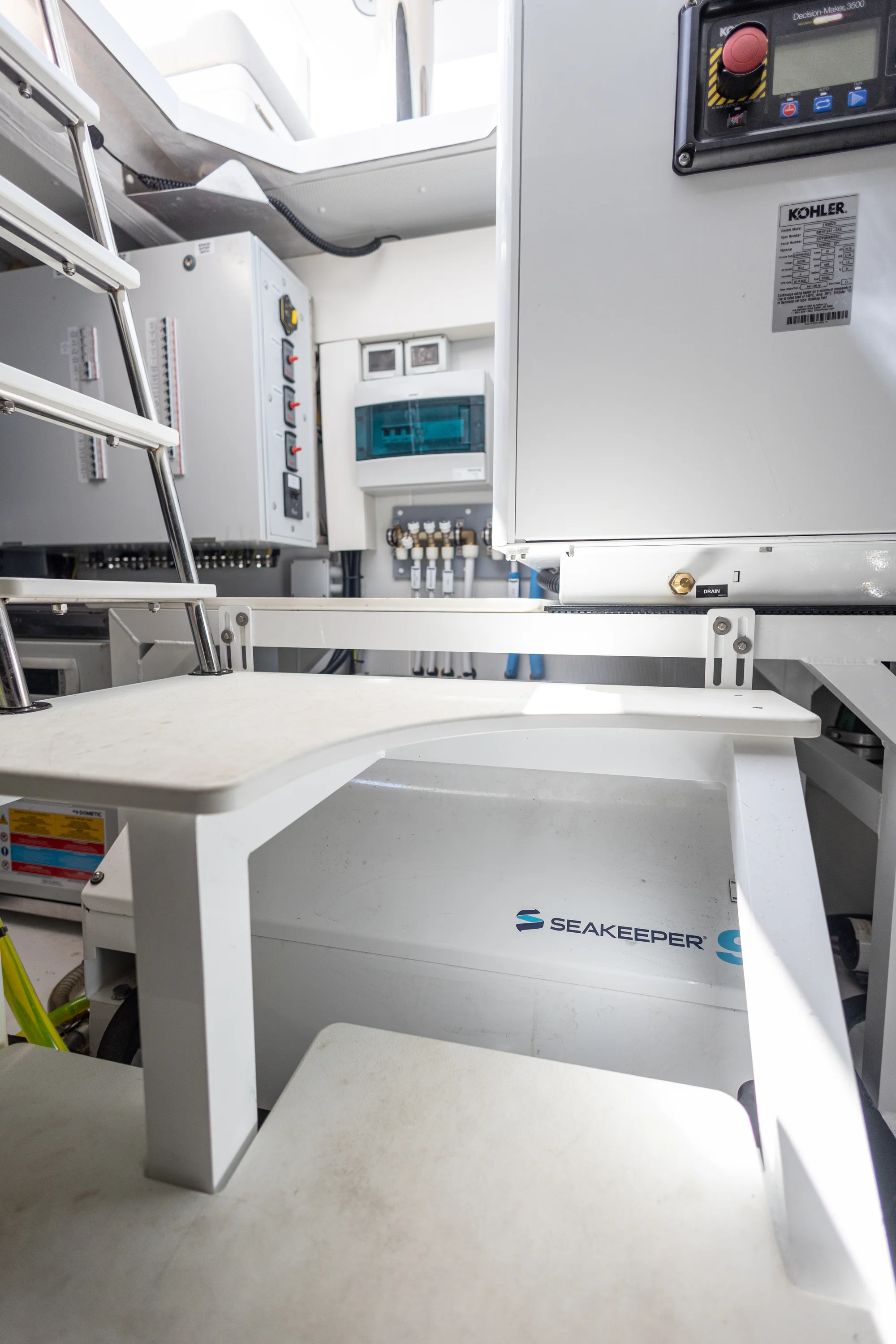

Generator
● 7 kW -50 Hz generator Shore power sockets
● One shore power socket 220 V - 50 A
Batteries
● Six batteries for service utilities 90 Ah - 24 V - 270 Ah
● Six batteries for engine start-up 90 Ah - 24 V - 270 Ah
● One battery for generator 70 Ah - 12 V
● All the sets are controlled via battery cutout switches
Battery charging
● One electronic battery charger 24 V - 80 A for start-up and service sets
● One electronic battery charger 12 V - 10 A for generator
Electric panels
● Two main DC boards, one in the engineroom and the other in the saloon
● Two AC boards, one in the saloon and the other in the crew cabin
● Emergency panel in cockpit (with boat cut-off controls)
● Power circuit breakers with fuses for protecting the utilities
Lighting
● LED spotlights
Bilge system
● Three automatic 24 V electric pumps - flow rate 224 l/min (59.17 US.liq.gal./min) - with possibility of manual control, located in crew cabin, engine room, owner's cabin. Each pump has a double high-level switch connected to an optical/acoustic alarm in the wheelhouse
● Two manual pumps - flow rate 49 l/min (12.94 US.liq.gal./min) - which suck from the three watertight compartments through a flow deviator: one located in the cockpit, it sucks from crew cabin and engine room - one located in the crew cabin
● Emergency system for engine room bilge drainage via derivation from engine cooling pump - capacity 334 l/min (88.23 US.liq.gal./min)

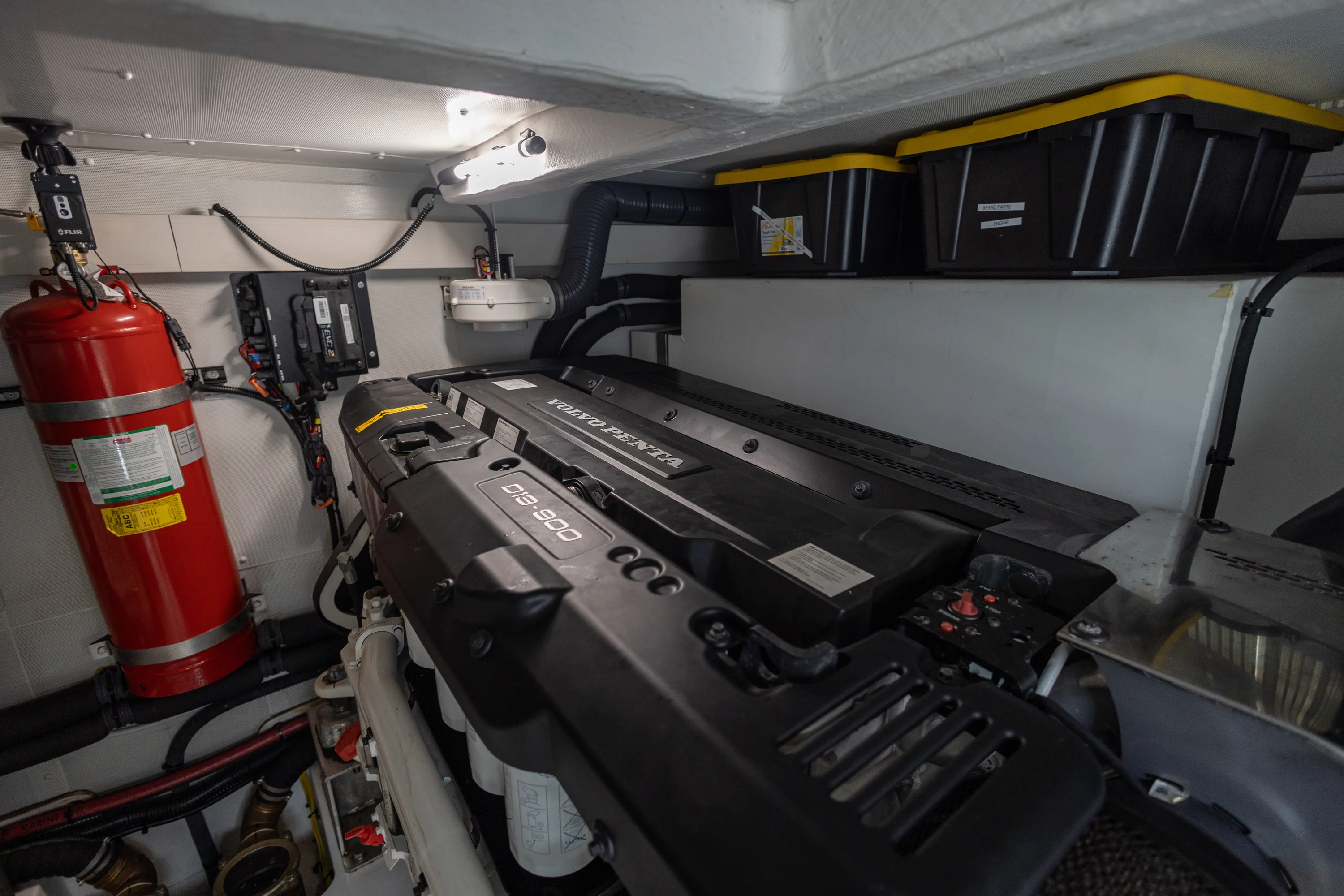

Fire extinguishing system
● Controlled from emergency panel in cockpit
● Engine battery cut-out
● Closure of fuel delivery solenoid valves
● Extractor stop

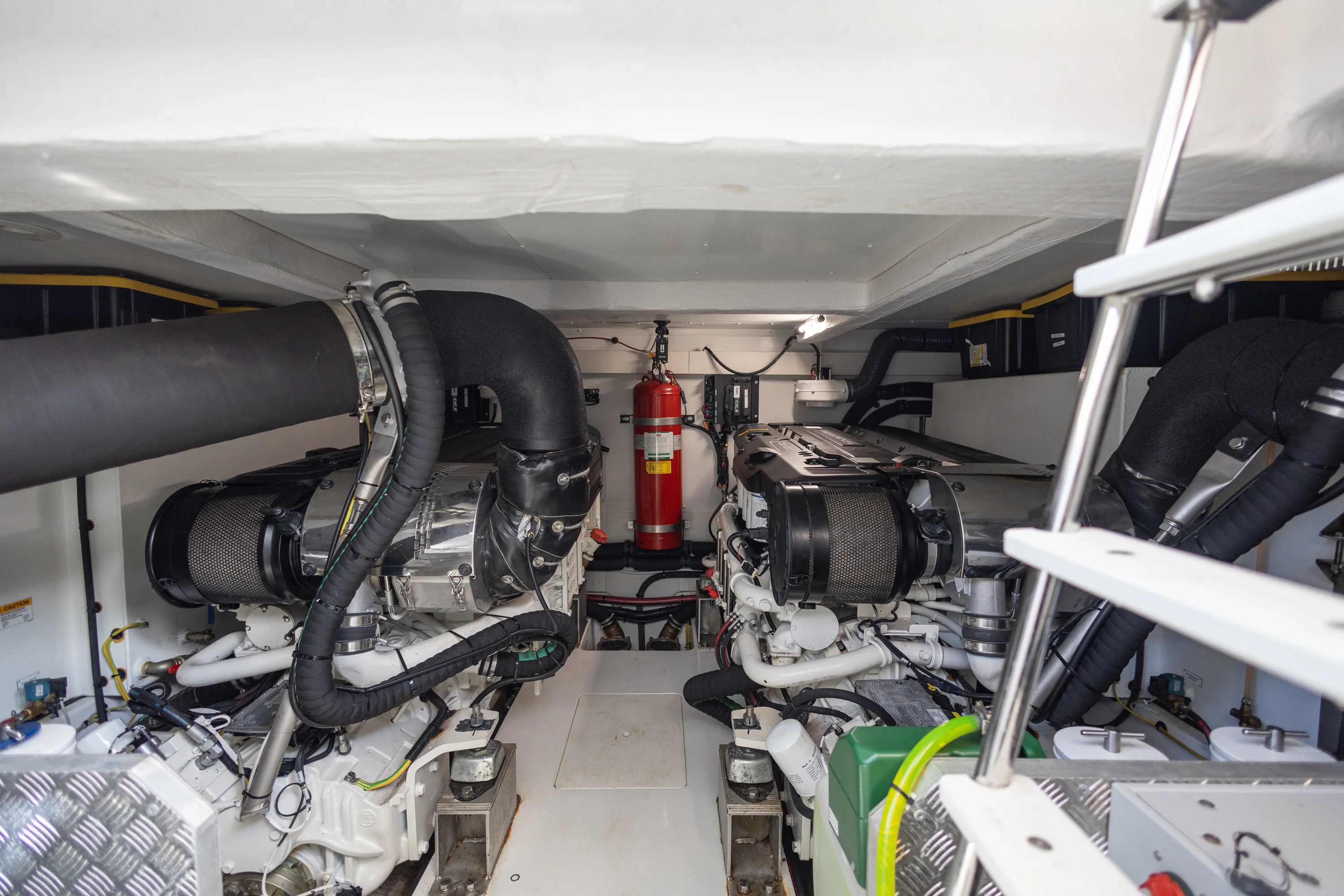

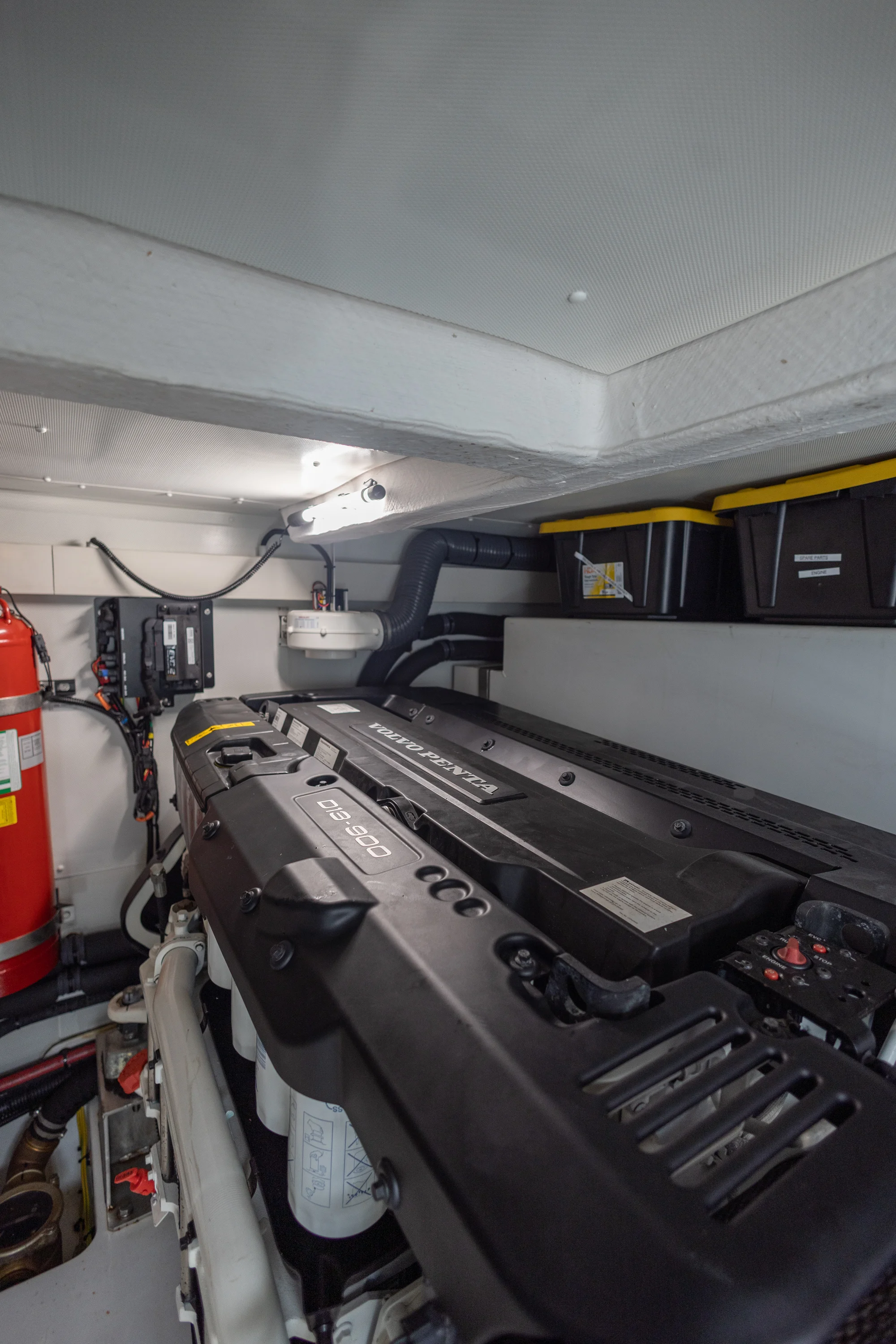

● One dry chemical cylinder in the engine room
Fuel system
● Two tanks, 1400 l (369.84 US.liq.gal.) each, total capacity 2800 l (739.68 US.liq.gal.), in aluminum
● Refueling plugs with cover
● Two refueling plugs on deck walk arounds, and two vents on bulwark
● Tanks linked by a 1” coupling, and manual check valves
● Optical level gage on starboard tank
● Status level gage on port tank
● Fuel delivery shut-off via 1” 24 V solenoid valves with remote control, or local manual valves
● Water/diesel separators for engines (single type)
● Diesel filter for generator (single type)
Fresh water system
● One 750 l (198.1 US.liq.gal.) polypropylene tank
● One water fill cap on starboard walk around and a vent on port side bulwark
● Pressure pump
● One 60-liter (15.84 US. liq.gal.) water heater with 220 V (or 110 V) electric heating
● System that can be isolated by ACORN manifolds
● Hot and cold water line in the galley and all the heads, via single control mixer taps
● Cold water line in engine room, on flybridge, and on stern platform
Black water system
● TECMA toilet
● Toilet flushing system with fresh water
● Black water outlets
● Macerator pump
● Discharge into tank
● One 175 l (46.2 US.liq.gal.) polyethylene tank
● Tank drainage also via suction point on deck walk around
Gray water system
● One 175 l (46.2 US.liq.gal.) polyethylene tank
● Head discharge into tank
● Galley discharge into tank
● 24 V loading pump, of the membrane type with control in the wheelhouse
Engine gas exhaust system
● Two engine underwater exhausts with GRP structural ducts
● Minimum bypass on bulwark
● Stainless steel manifolds (insulated)
Seawater system
● Two 3" engine seawater intakes, with shut-off valve and metal mesh filter
● Two seawater intakes, 1” for auxiliary services (generator and A/C), with shutoff valve and metal mesh filter
Ventilation/extraction
● Two air intakes with separator filters
● Two 24 V extractors
Other systems
● One electric steering system
● Two 24 V automatic trim controllers (intruder)
Air conditioning system (OPT)
● CONDARIA type - 220 V - 50 Hz
● World version 72,000 BTU (+ 6200 BTU for crew cabin, OPT): - One compressor, 72,000 Btu (with inverter)
|
