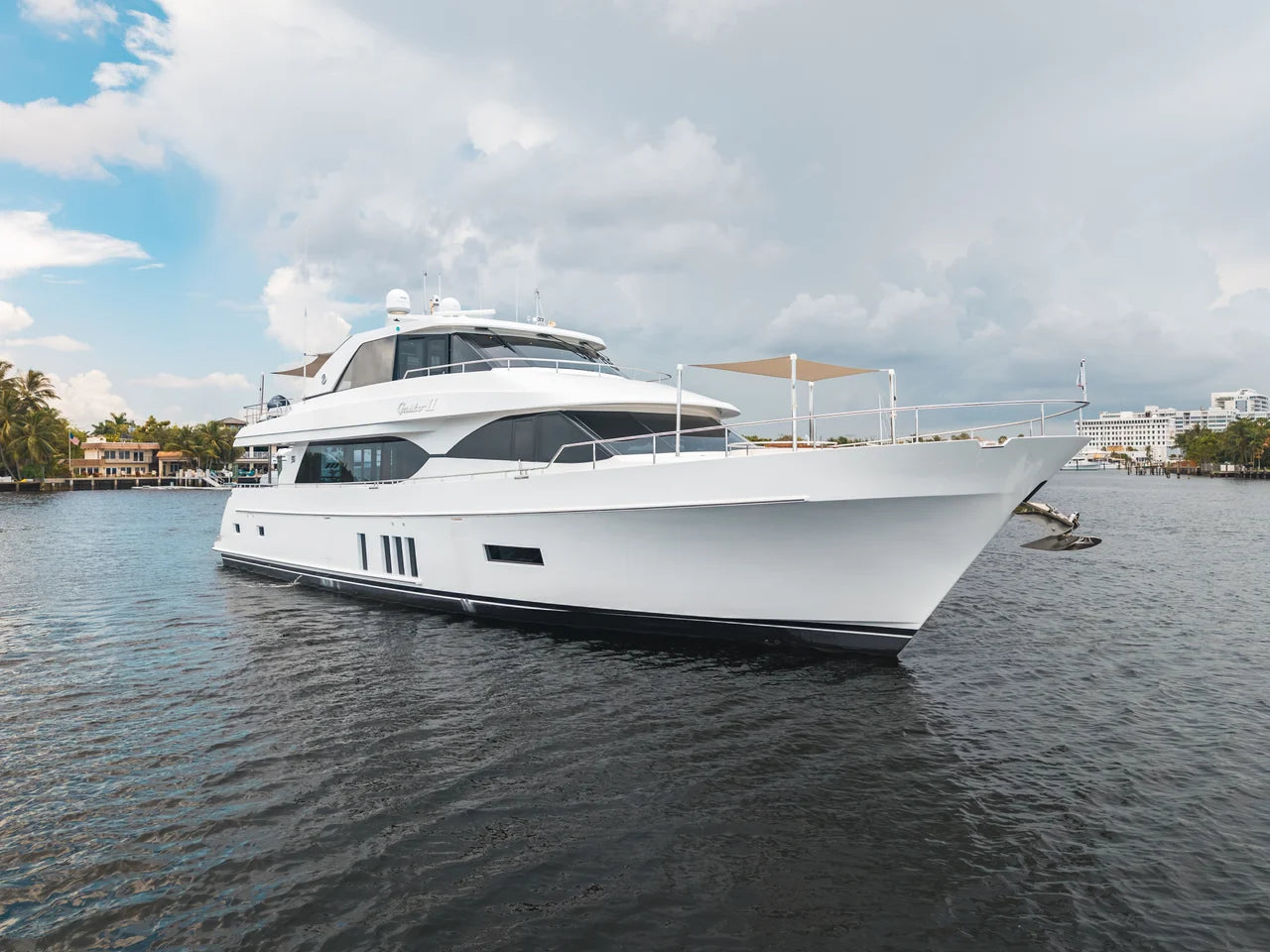

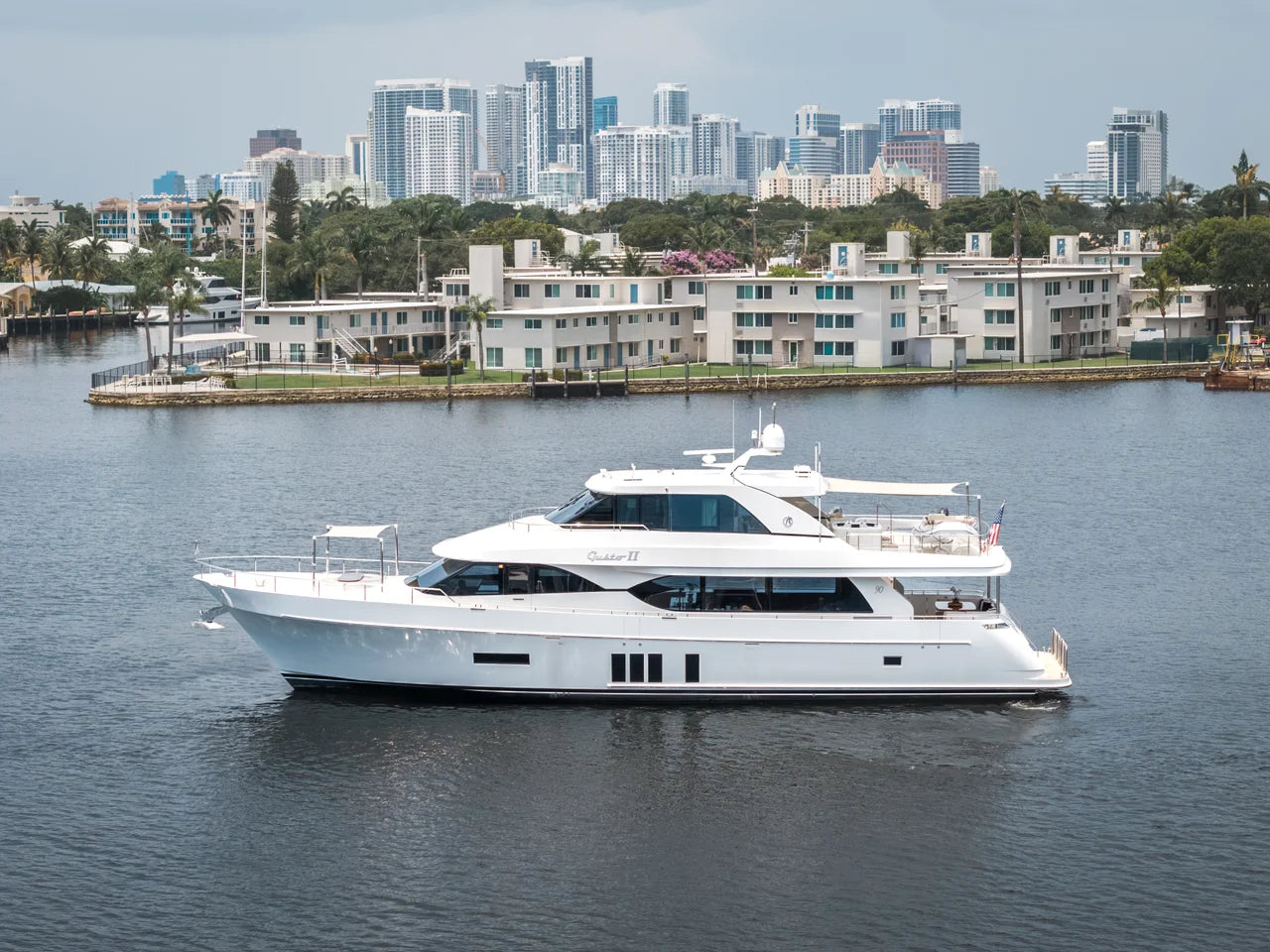

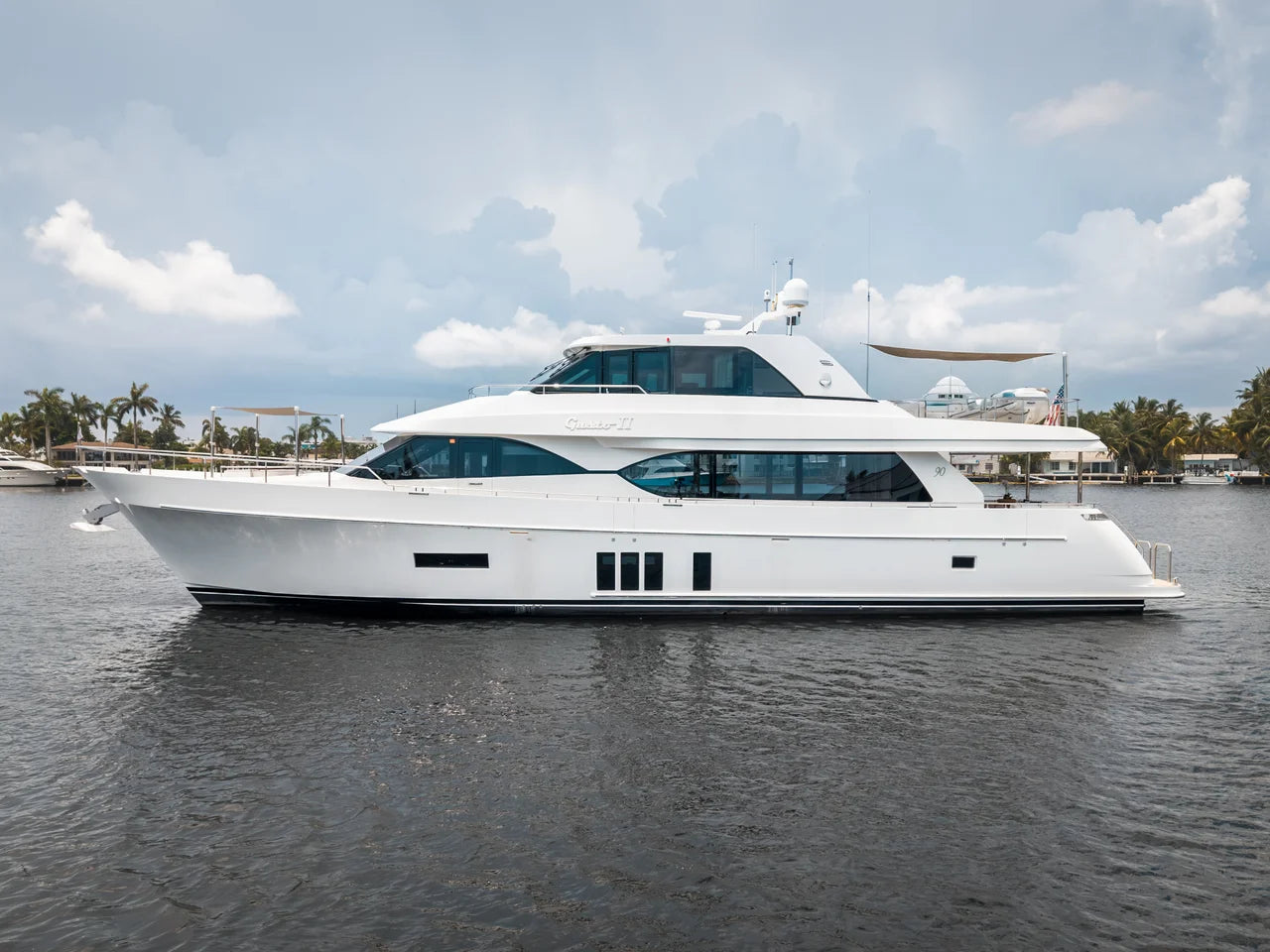

2016 Ocean Alexander 90 SKY LOUNGE
Overview
Combining timeless design with exceptional craftsmanship, this 2016 Ocean Alexander 90 Skylounge delivers an outstanding yachting experience for owners who appreciate both luxury and performance. Powered by twin CAT C-32 engines, she is built for comfortable cruising while offering expansive indoor and outdoor spaces designed for entertaining family and friends. The enclosed skylounge provides a second salon with panoramic views, creating the perfect setting for relaxing underway or hosting guests. Beautifully appointed accommodations, premium finishes, and thoughtfully designed living spaces reflect Ocean Alexander's renowned attention to detail. Whether you're planning extended voyages, weekends in the Bahamas, or elegant dockside entertaining, this 90 Skylounge offers the versatility, comfort, and quality that have made Ocean Alexander one of the most respected names in luxury yachting.
This yacht is in excellent condition and ready for her next owner. Please call for full details and additional information on this exceptional vessel.
- Optional Cat C-32 Acert 1900HP main engines.
- Optional Skylounge.
- Country kitchen open galley with dinette and desk.
- Asea transformer package
- Sidepower Vector fin stabilization w/ zero speed capability.
- Bow & stern hydraulic thrusters.
- Cruise Air purification package.
- Wireless Yacht Controller remote.
- Day head on main deck and day head in the sky lounge.
- Four large staterooms, full beam master stateroom, all with ensuite heads.
- Country Kitchen open galley with dinette and desk.
- Twin Kohler 53KW gensets

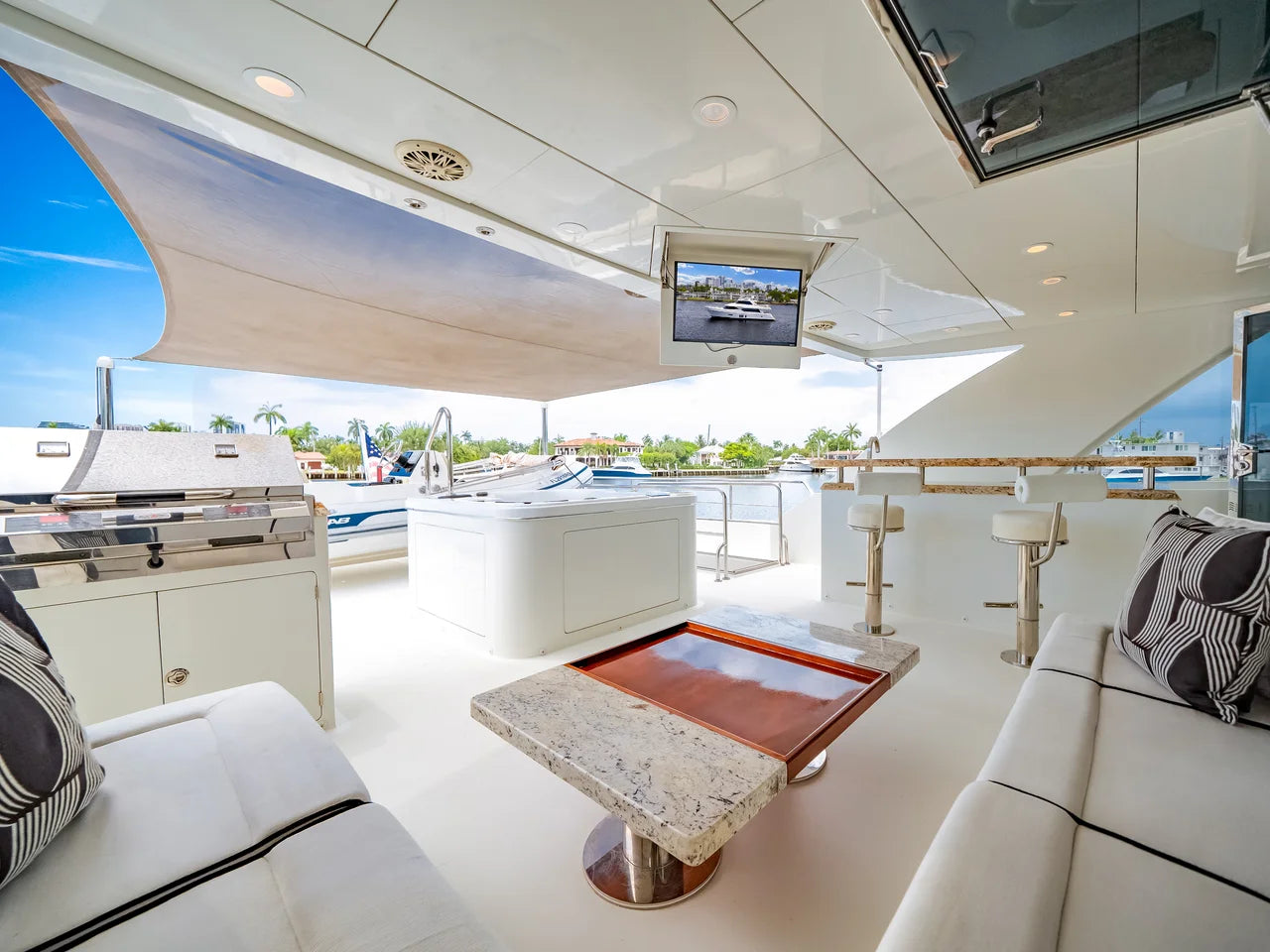

- Walk around "Portuguese bridge" on bridge deck.

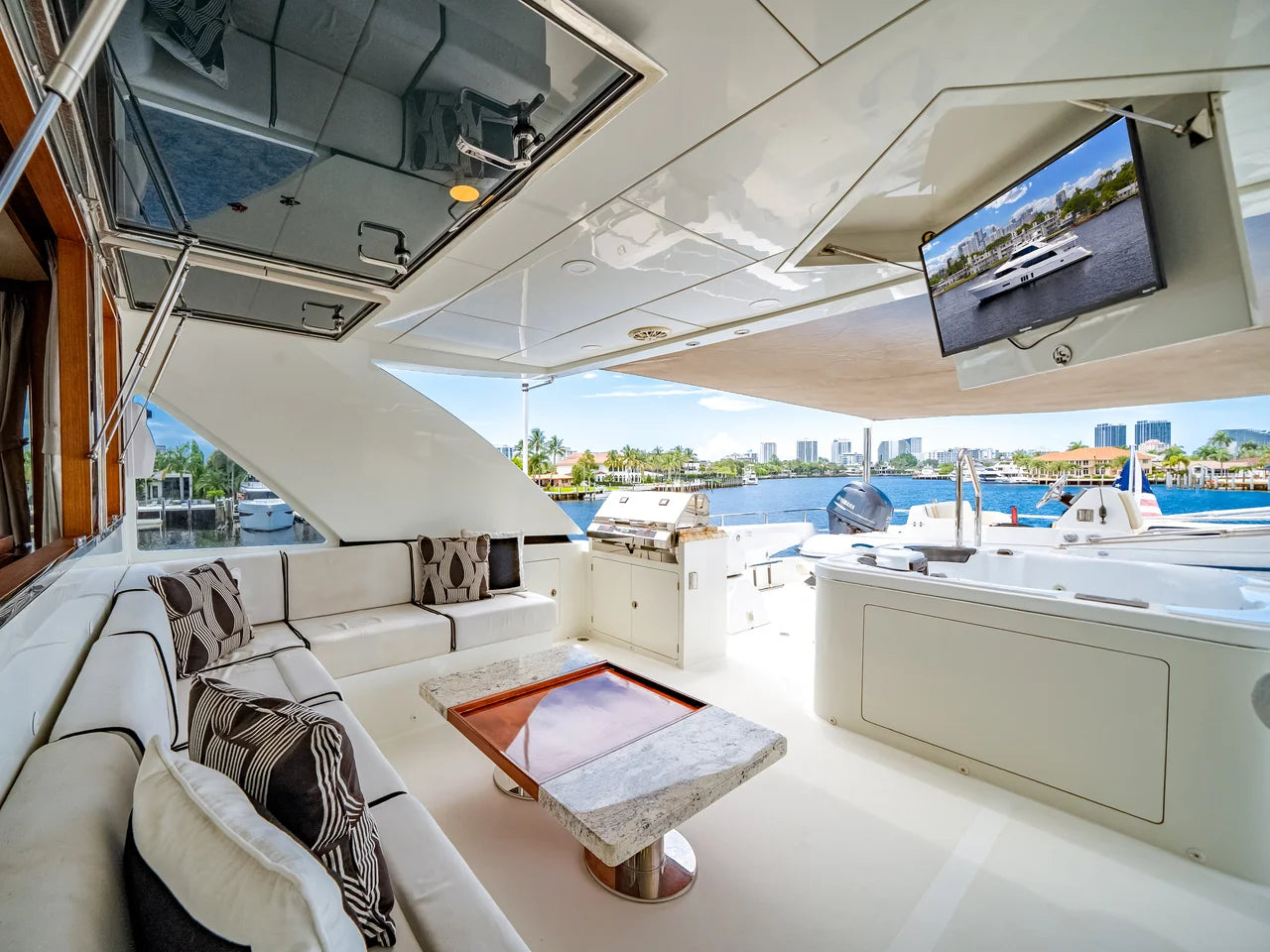

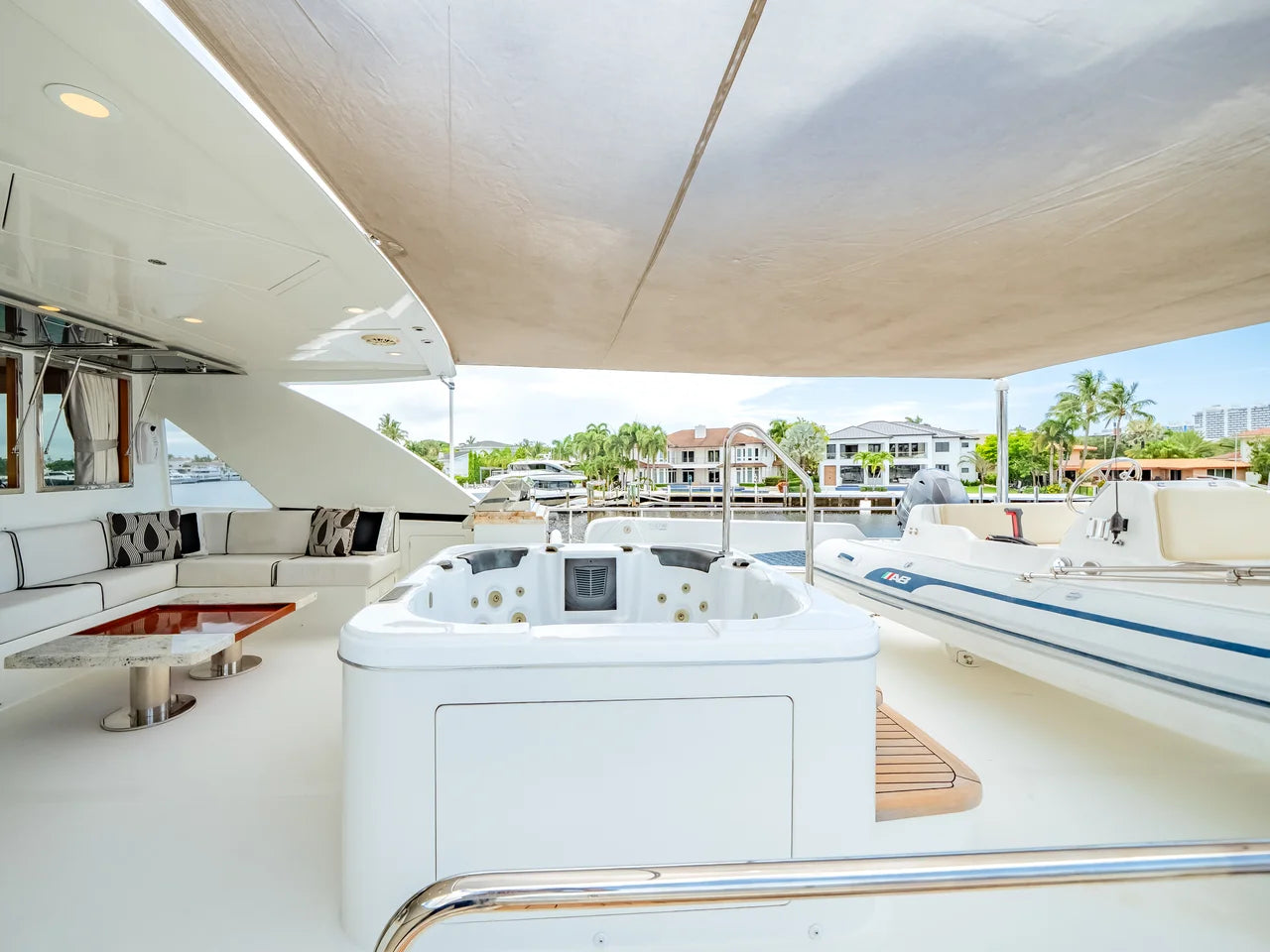

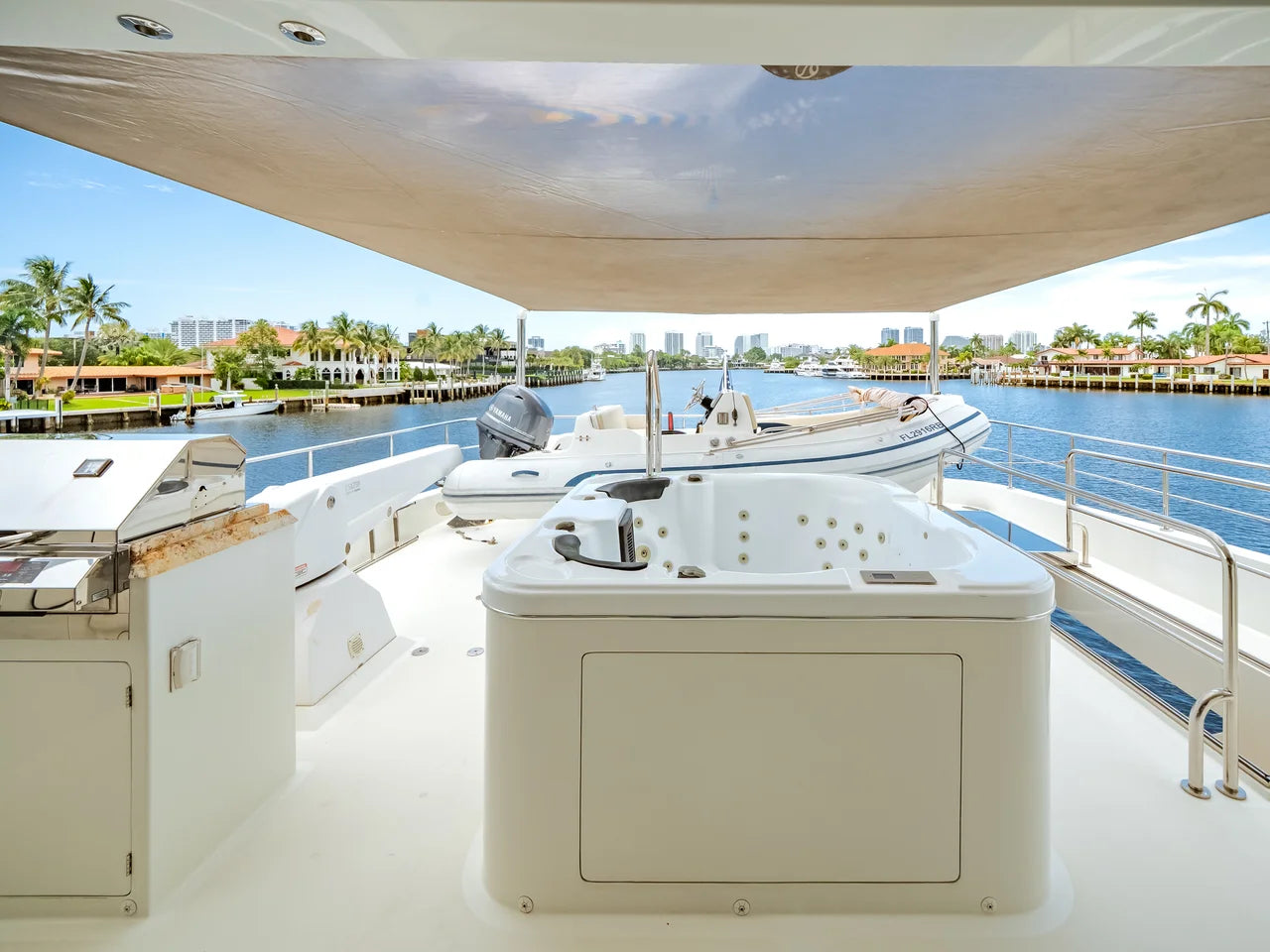

- 4 person jucuzzi on bridge deck
Features

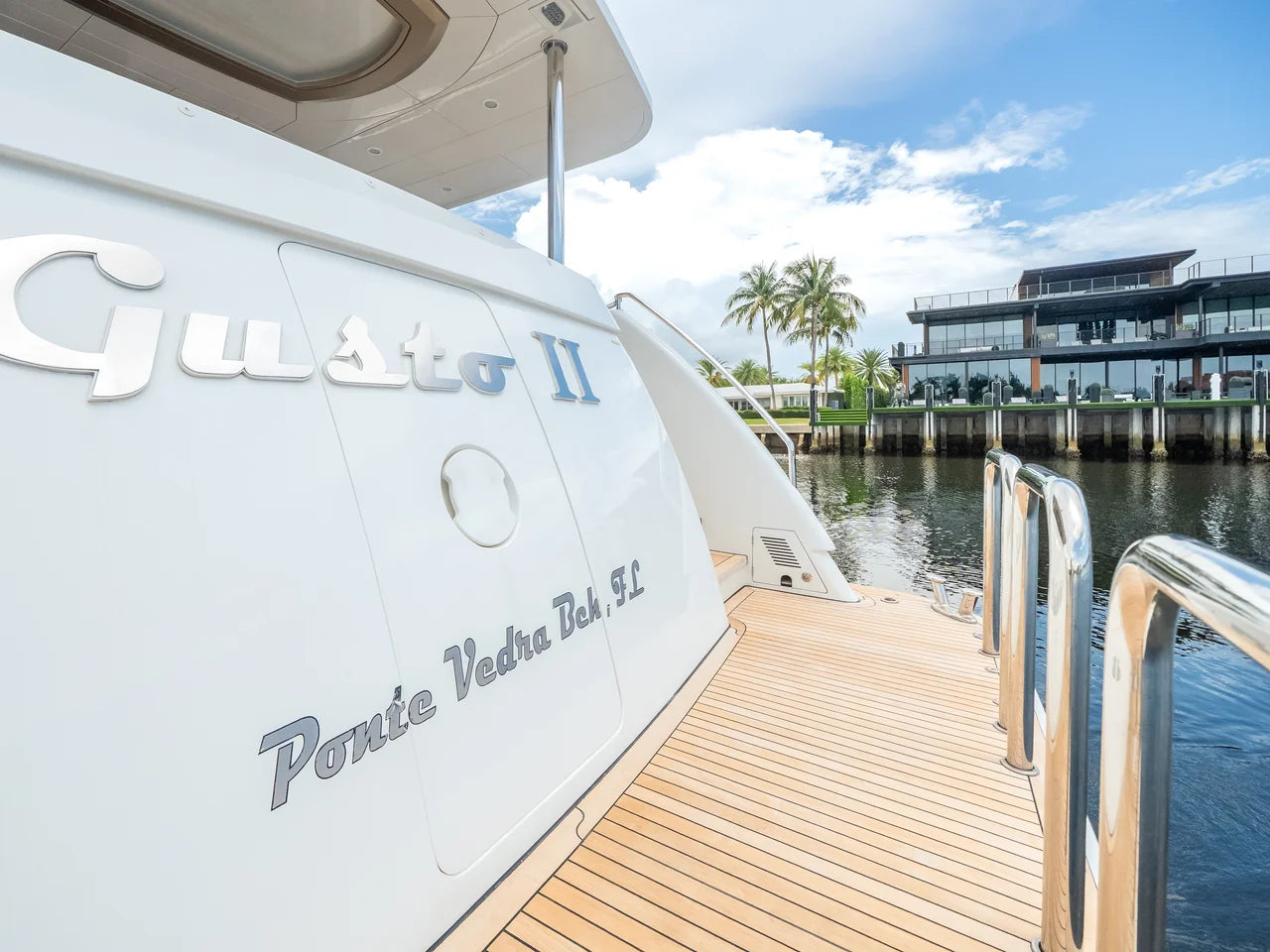

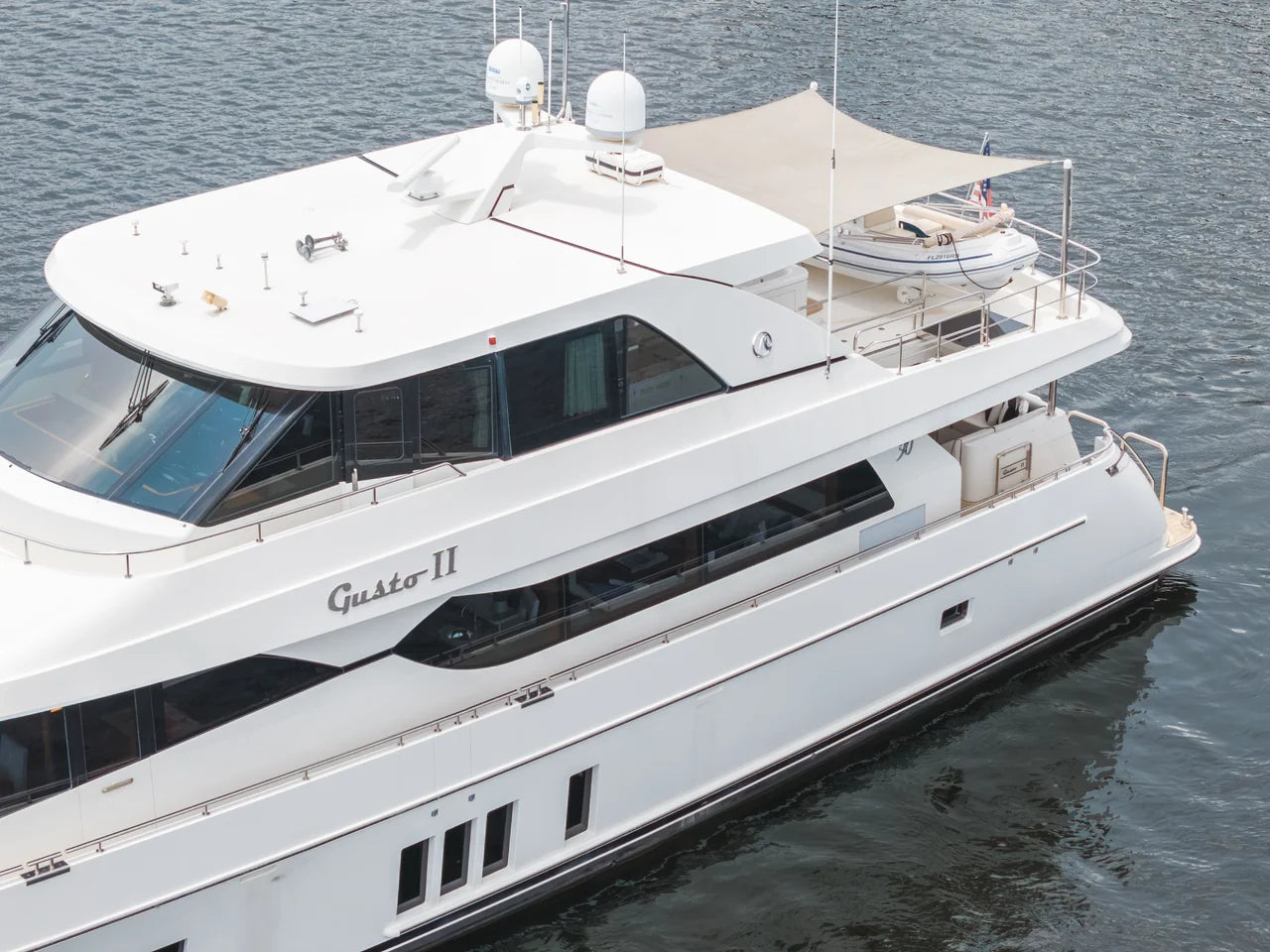

Please note that "Gusto II" is a pre-owned yacht, and as such, the original build specifications, general arrangment and options listed below may have changed.
Vinylester resin with high-density structural foam. High density allows for high temperature resistivity and particular advantage in thermal and acoustic insulation. (Usually only found in vessels 100’+)
• Longitudinal and lateral fiberglass stringers filled with high-density foam
• Ocean Alexander employs various techniques to reduce sound and vibration. Focusing on providing a quiet and comfortable yachting environment through various proprietary techniques of controlling sound and noise transmission. Some of these techniques include, multiple insulation barriers including reflective materials, absorptive materials, dampening materials, air pockets and flexible and isolation mounts. Ultimately resulting in vibration/sounds levels that are industry leading and at times 1/2 to 1/10 of ISO-6954 requirements (Unique OA feature)
• Fiberglass with infusion lamination manufacturing technology
• Reinforced collision bulkhead
• Frameless window
• All exterior hardware to be S/S 316 or to manufacturer requirements
• Weather-tight bulkheads with further sound and temperature insulation
B. MECHANICAL
• Painted Exterior Surface with professional grade Alexseal polyurethane paint and epoxy based primers. Highest gloss and color retention compared with gelcoat or other paint brands (Unique OA standard feature, not an optional upcharge like competitors)
• Weather-tight bulkheads with further sound and temperature insulation
• Marine grade aluminum beams for floors, walls and ceiling. Provides greater rigidity and monolithic structure. Reduces movements and “abrasive” sounds while underway. Also allows for one of the largest uninterrupted glass/window spans in the industry. (Unique OA feature)
• Use of cross-knit directional carbon fiber in high stress area for added structural integrity and torsional strength

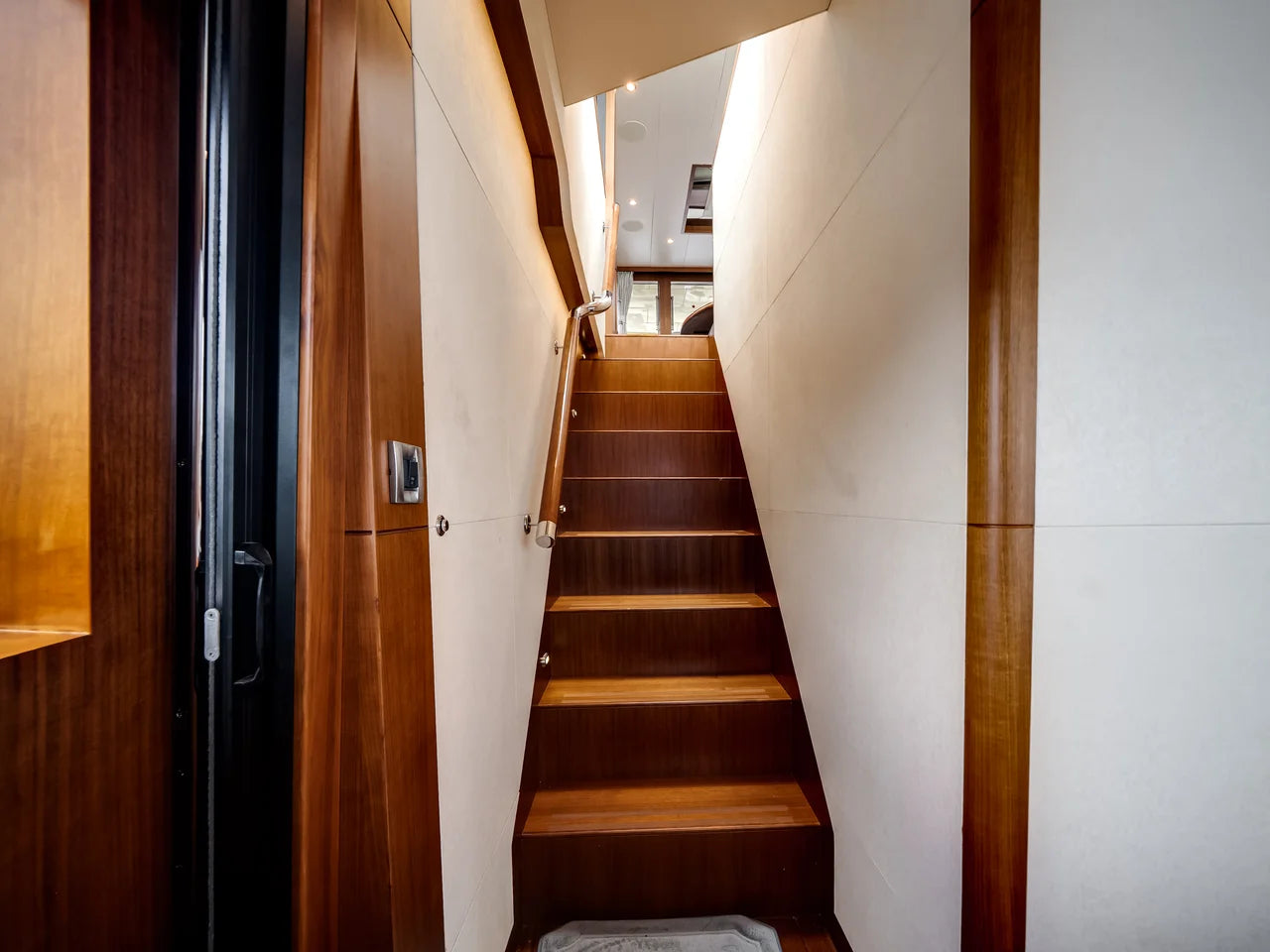

• Fiberglass staircase from cockpit to FB w/teak steps
HULL / BOTTOM:
• Black boot top stripe
• Interior structural components all bonded to hull
• Three coats of Seahawk primer, hi-build epoxy barrier coat and covered with three coats of Seahawk selfpolishing bottom paint (Unique OA feature, optional on competitors)
• Fiberglass rub rail w/ S/S striking plate
• Bronze through-hull fitting

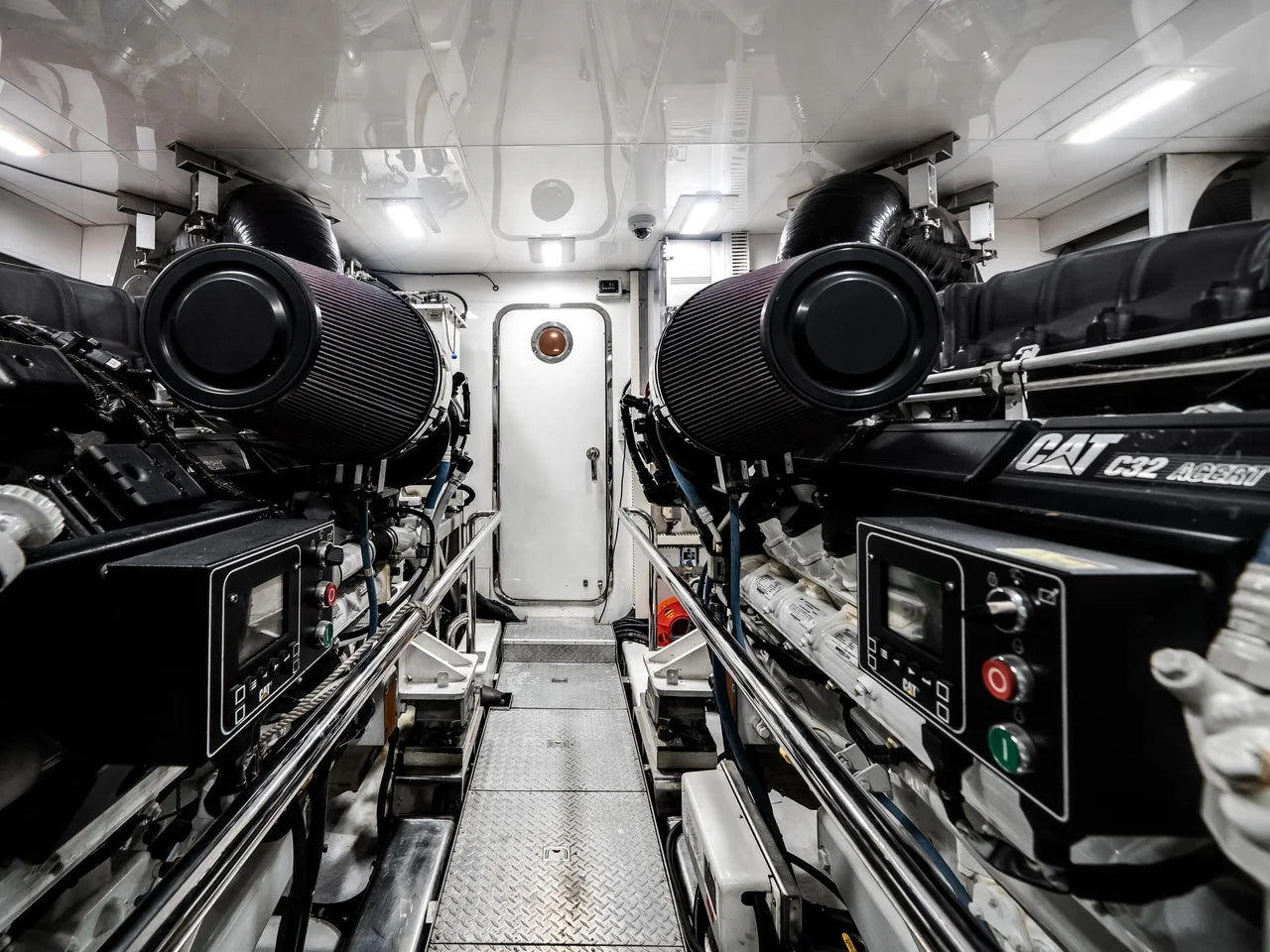

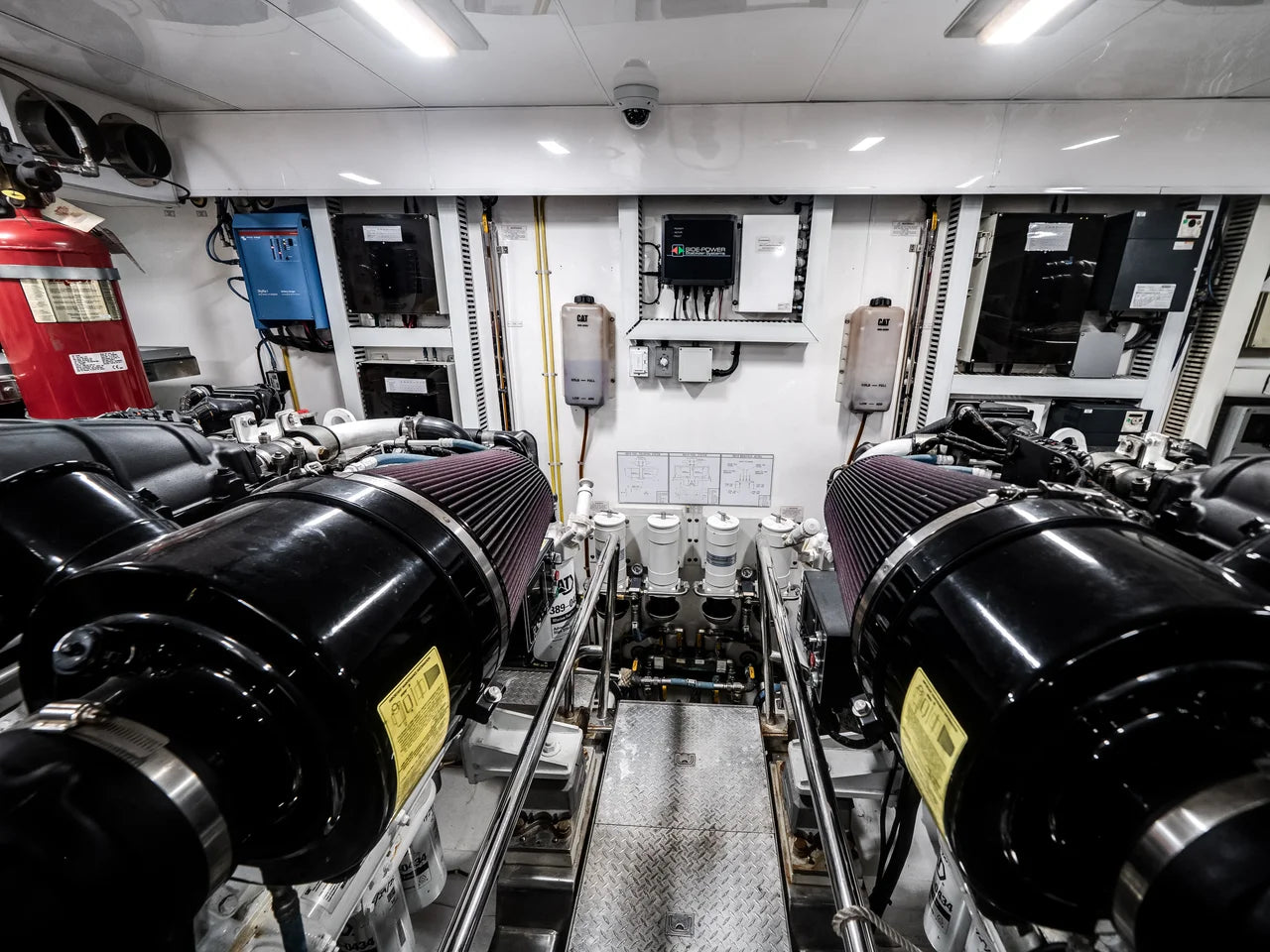

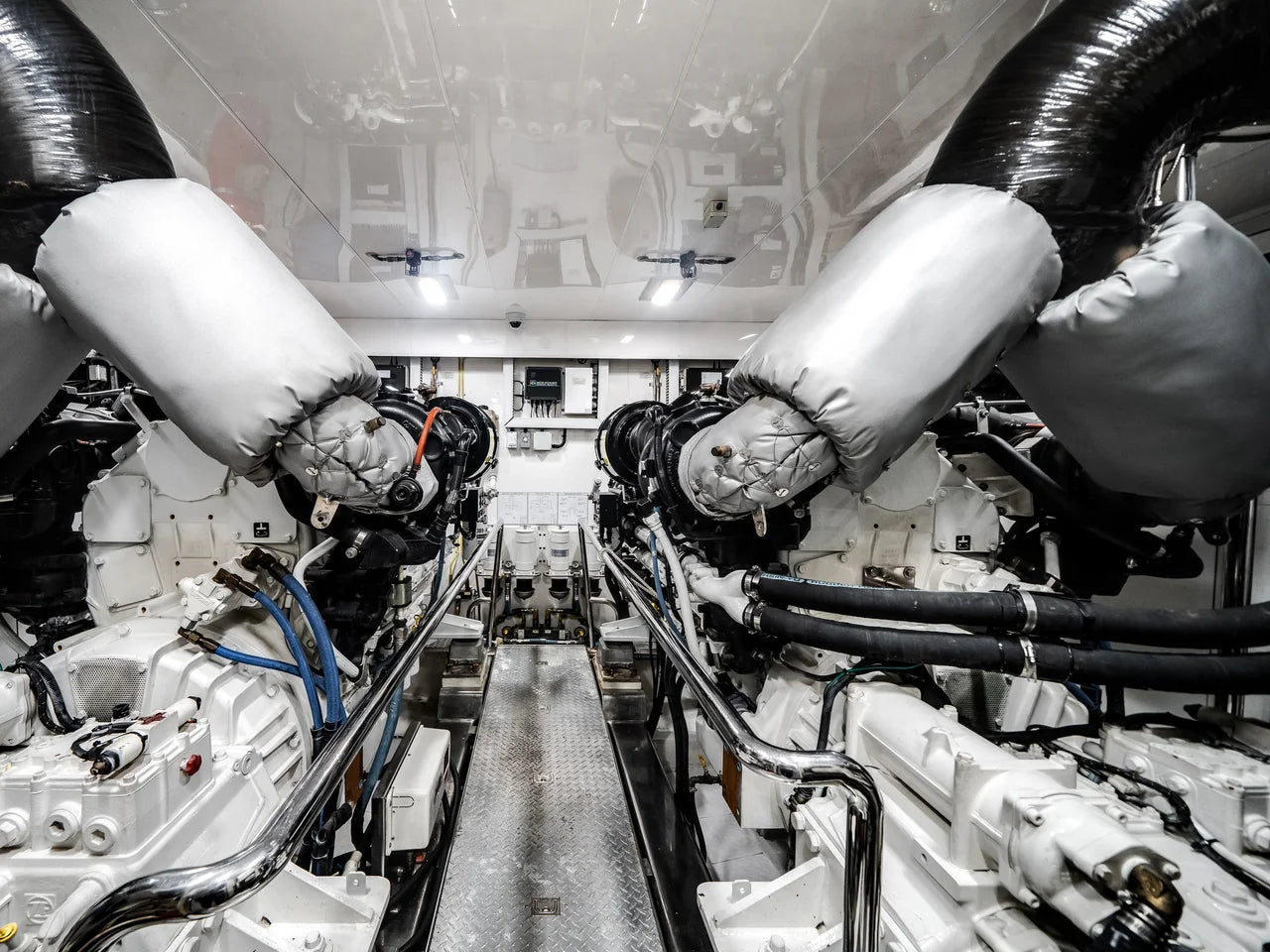

MAIN ENGINES:

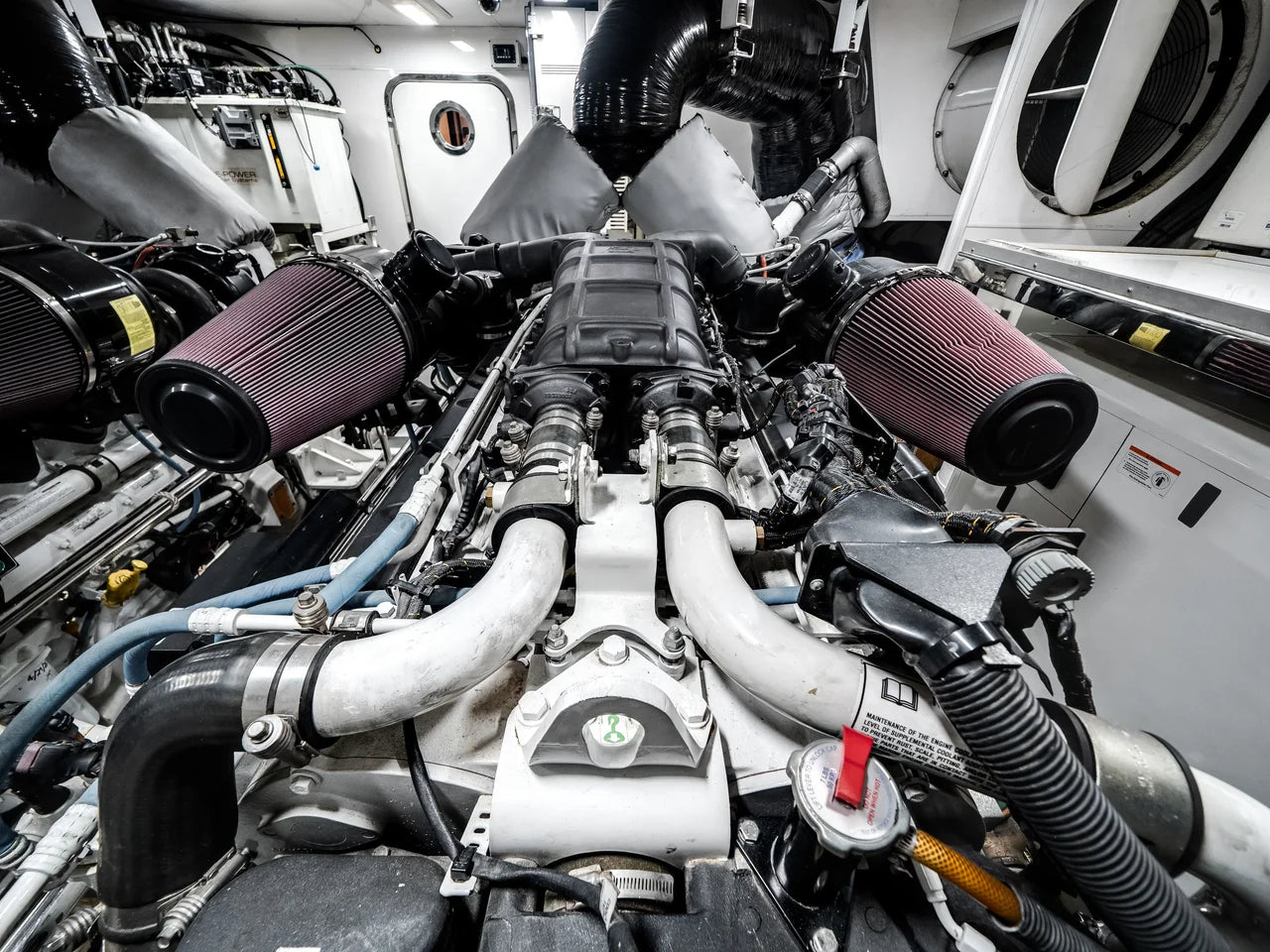

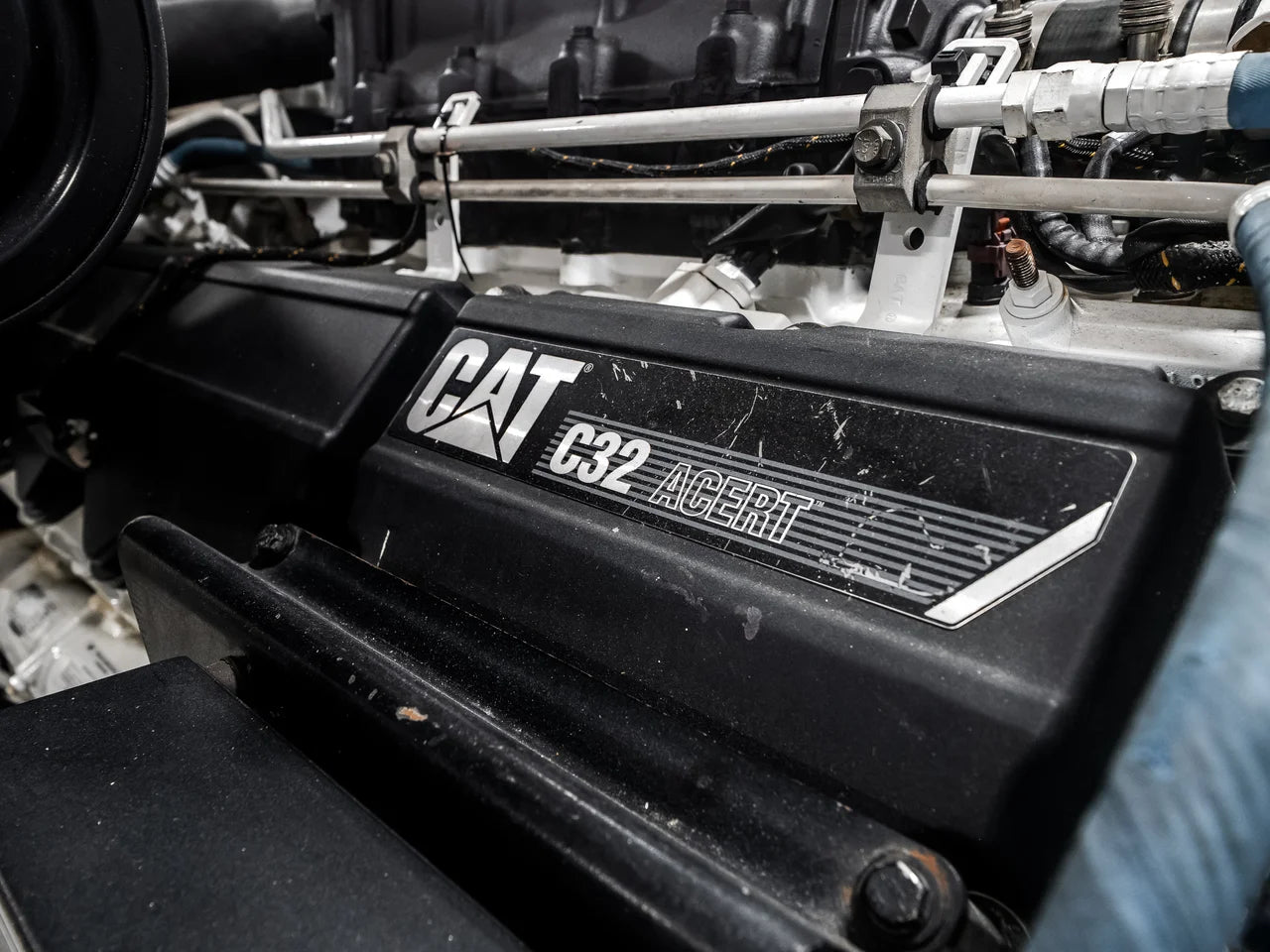

• CAT C32 1900BHP
• Engine alarm system, for low oil pressure and high water temperature
• S/S engine beds
• Lube oil change system for engines/generators with approximately 45-gallon lube tank. Allows for oil change during cruise w/o need to stop & locate oil change service centers. (Normally found on 135’’+ yachts, unique OA feature)
• Automated computerized intake/exhaust fans with variable frequency drives shall be mounted to facilitate the pushing and/or pulling of air through the machinery space and the providing of a high rate of air exchange. Ducts shall have fire dampers installed with manual/ automatic triggering that shall be tied into the machinery shut down circuits. Ducts in way of interior living space shall be insulatedand soundproofed.
• Stainless steel rails on side of engine and stainless steel engine mounting plates
• Stabilizer with power take-off from both engines to provide redundancy (Unique OA feature)

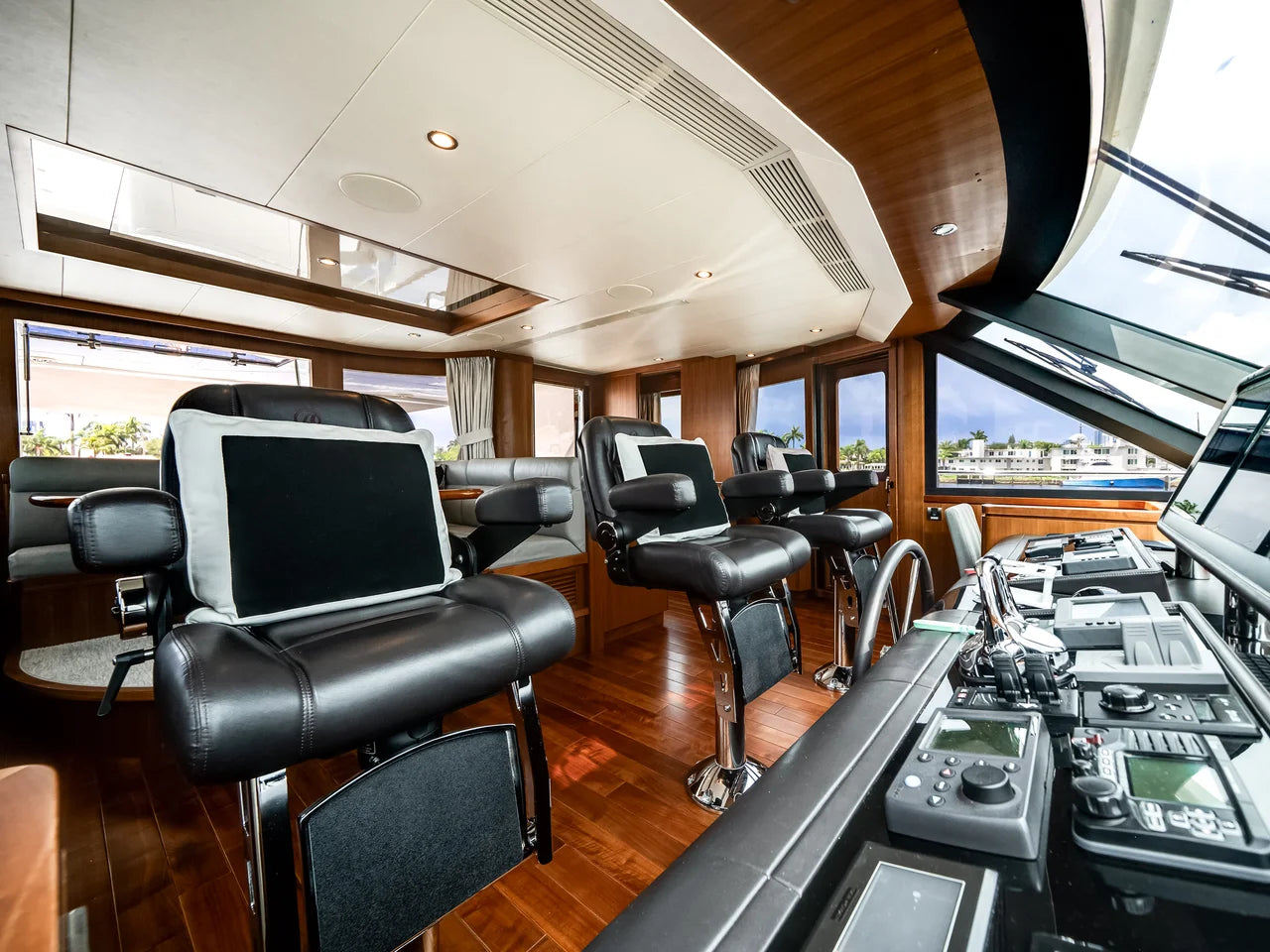

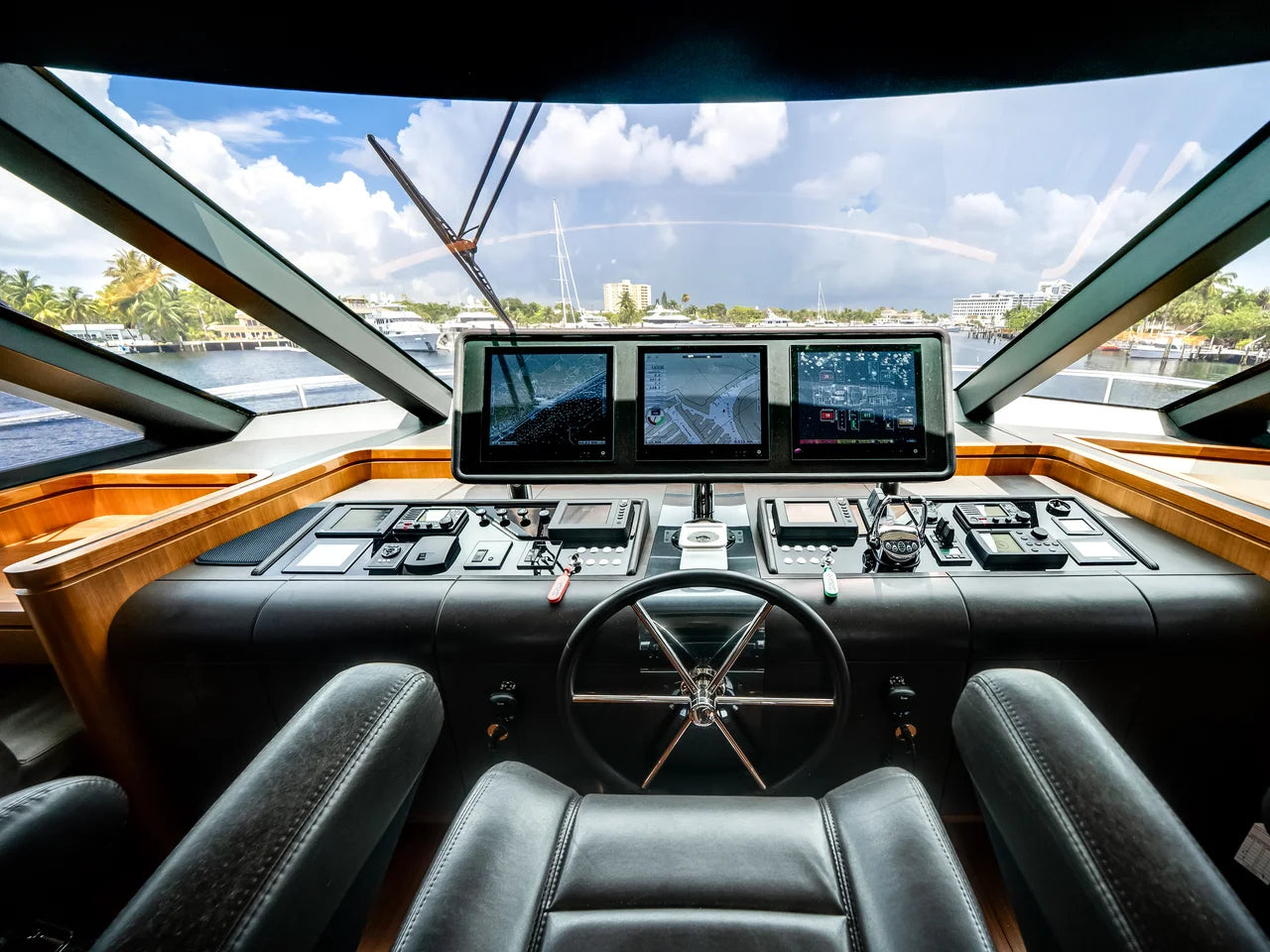

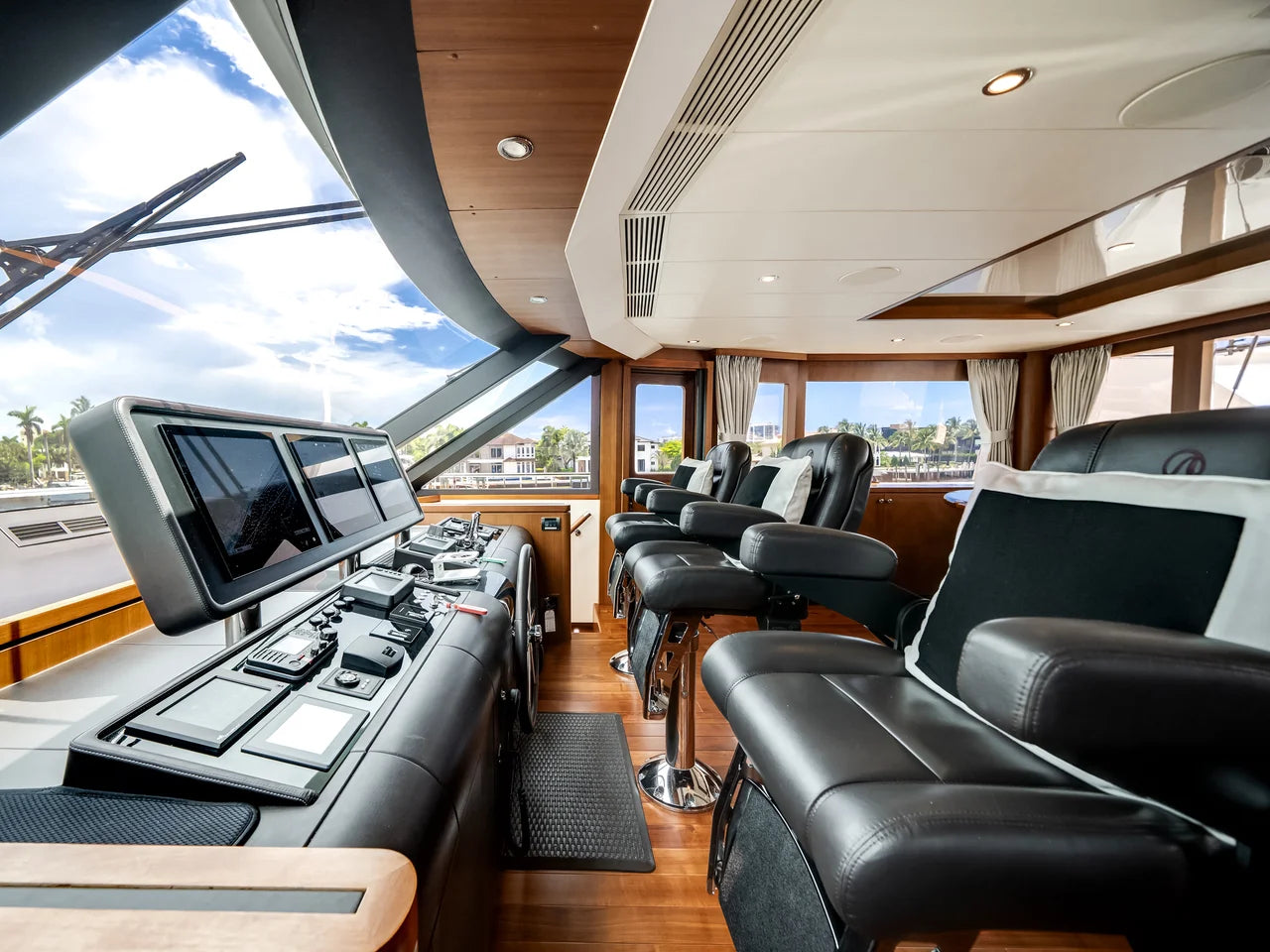

• Skylounge control station with complete engine instrumentation with lighted, modern switches.
STEERING / CONTROL:
• Hydraulic steering system
• Steering control station with complete instrumentation
• S/S rudders w/integrated zinc plates
• Dripless seal for rudder post
• Maintenance free “dripless” seals for engine shaft
packing glands
• Propeller shaft Aqua 22HS. 22HS is a high-grade austenitic alloy stainless steel that provides superior corrosion resistance (comparable to Aqua 22) along with excellent toughness and high strength (comparable with Aqua 17). A no compromised approach adopted by the navies around the world
GENERATOR:

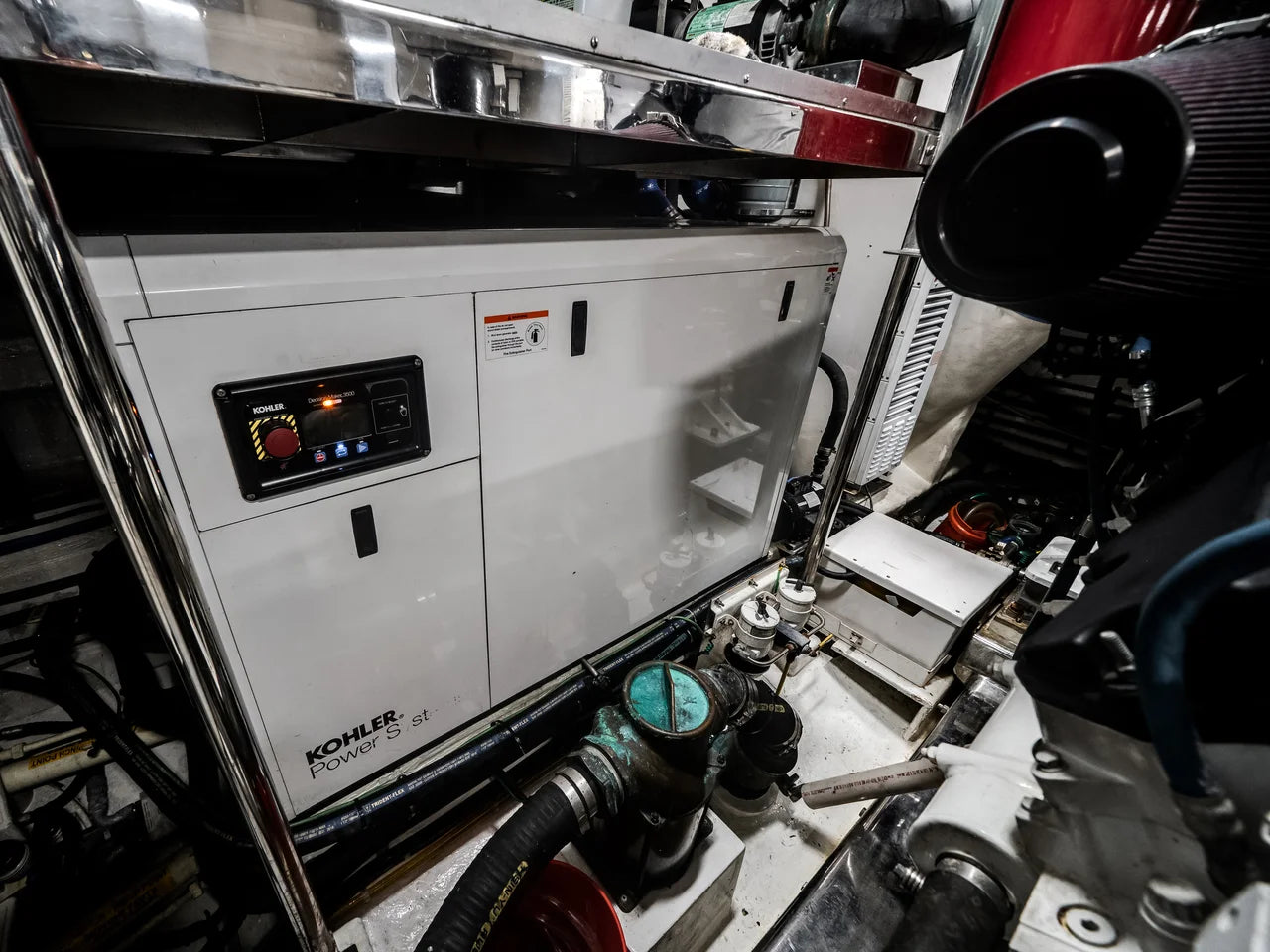

• Kohler® 53KW gensets includes
• Generator exhausts to be water-drop type per “Centek”, “Marine Exhaust Co.” or equal. Reduces noise & vibration Ocean Alexander reserve the right to make modification and improvements which may result differences from published specification.
• Generator set resiliently mounted and installed with sound shield & vibration dampener (Unique OA feature)
WINDLASS / MOORING:
• Hydraulic windlass
• Stainless steel plow type anchor 350 lbs. w/ 300ft anchor chain (1/2" HT) & chain stoppers.
• Integral roller and chain stopper with Maxwell® anchor winch
• Two vertical electric rope winches for
Aft Deck
• Reinforced anchor platform and anchoring system
• Chain counter
• Hands-free anchor chain wash system – allows for cleaning of chain during anchor operation

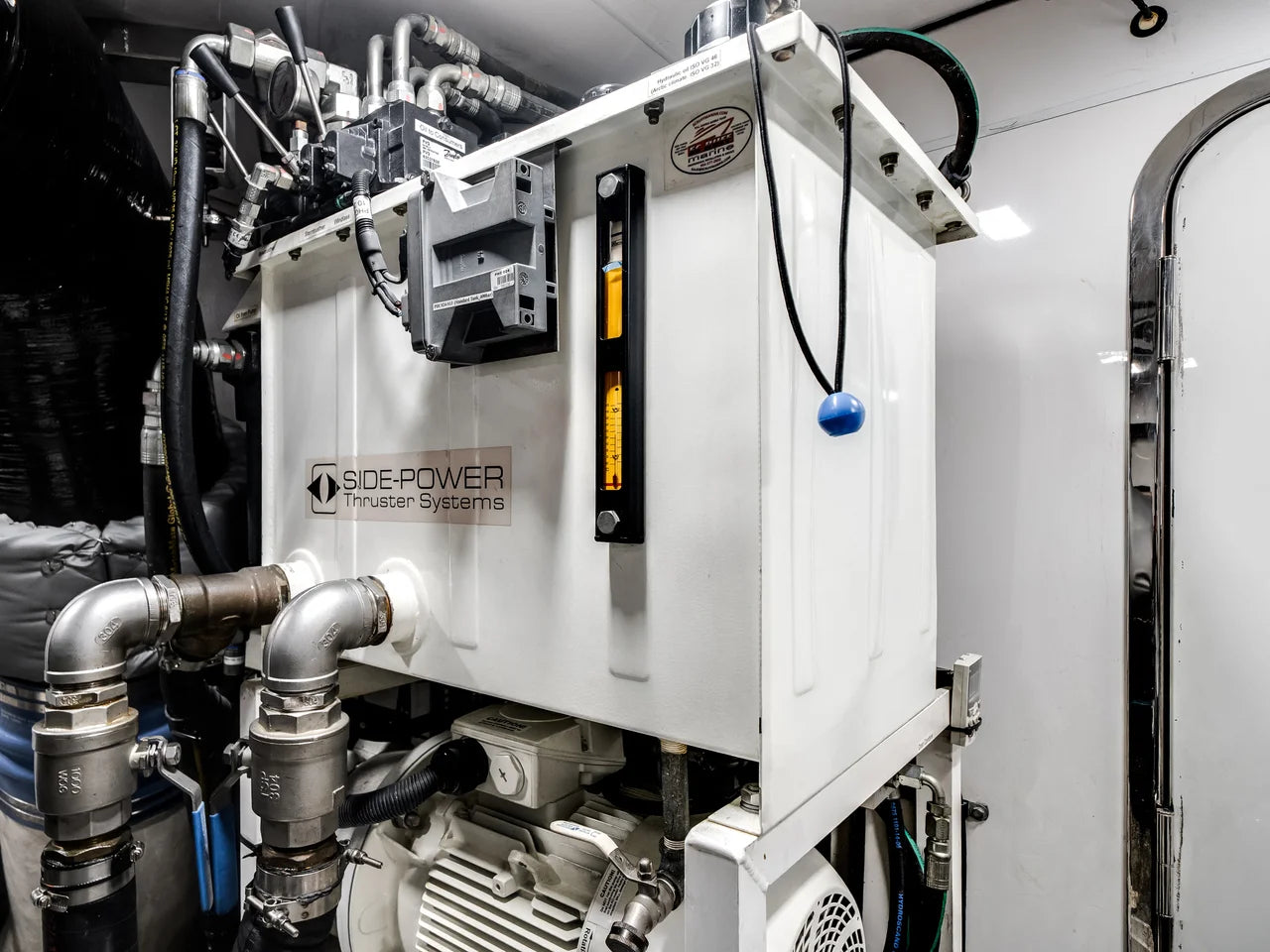

THRUSTER / STABILIZERS:
• Sidepower hydraulic stabilizers w/zero speed system and SidePower thrusters.
C. PLUMBING
OTHER:
• Color-coded piping system for easy identification

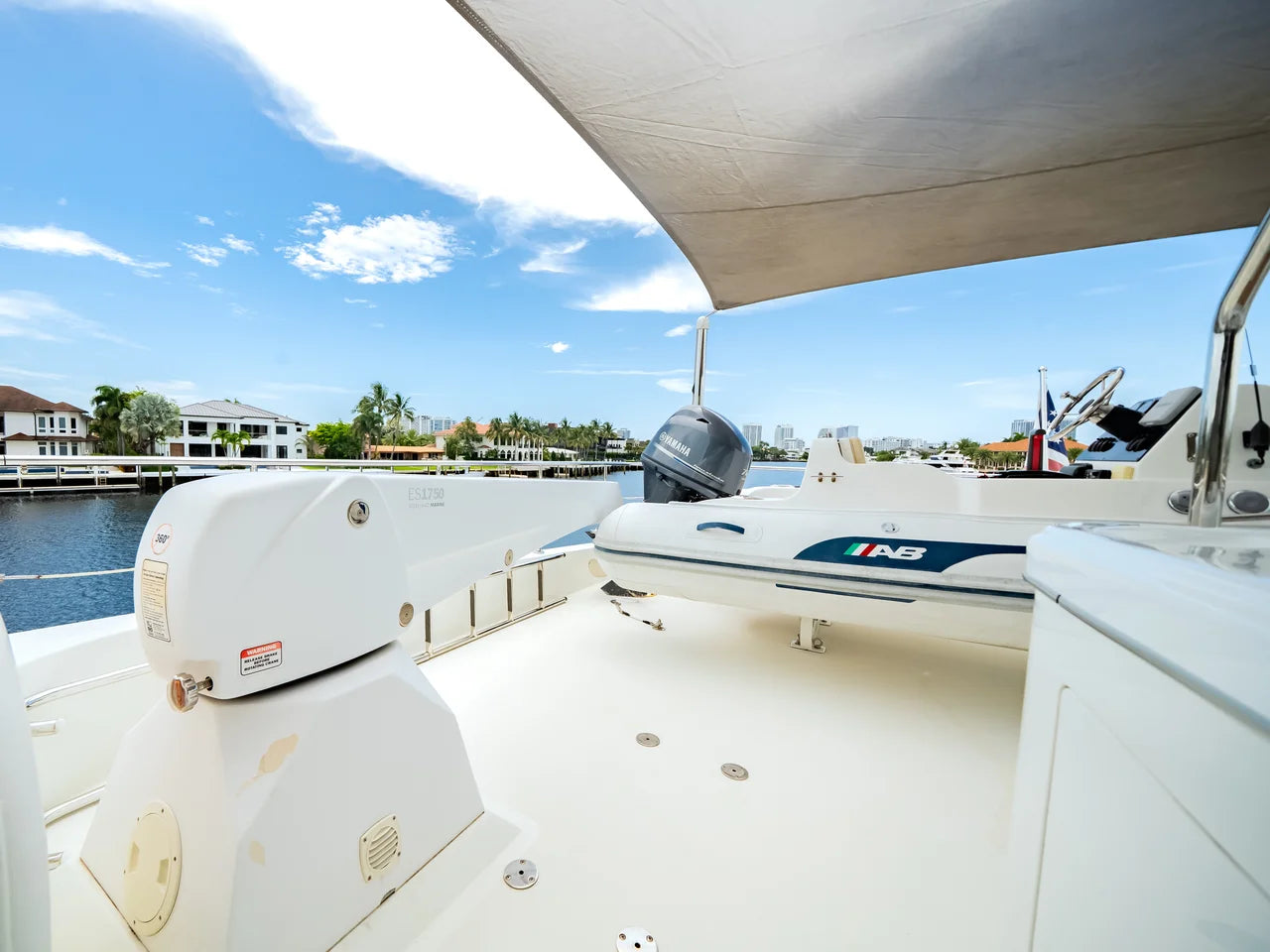

• Hydraulic 1750 lbs. yacht crane
• Fire extinguisher system with engine-shutdown feature
• 1400G/Day water maker w/auto fresh water flush operation, PH Neutralizer, UV sterilizer and Commercial Pre-filter
• Heavy-duty horn
• All engine room and bilge spaces shall be primed and top coated with polyurethane paint system.
• Heavy-duty commercial grade pantograph windshield wipers & washers w/ intermittent function
• Detailed stringers in engine room & lazarette
• Ocean Alexander proprietary “dry bilge ventilation system” with dedicated bilge exhaust to outside. This provides constant airflow to keep the bilges dry and mildew free. Any moisture from condensation is evacuated outside the yacht to keep a clean and healthy cruising environment.
FRESH WATER SYSTEM:
• 2mm thickness 316 S/S water tank w/ sight gauge
• Headhunter™ pressure fresh-water system
• Fresh-water outlet with hose for engines & generator
• Cold fresh-water wash down at bow, stern and boat deck
• Dockside water connection
FUEL SYSTEM:
• 4.5mm thickness 5052 Aluminum fuel tanks with sight gauges and tested to International Standards 33CFR 510(a) w/ high and low fuel level alarm system
• Dual Racor® fuel/water separator with Y-valves for engine & generator
• Gulfcoast™ Fuel polishing system based on US Military Abrahams-M1 Tank design (Standard versus competitors’ optional)
• Sight gauges for all tanks
D. ELECTRICAL
• Filler for fuel tanks on both sides with individual tank vents. (Unlike others where fueling is only possible on 1 side. This unique OA feature allows for concurrent and faster fueling & negates need to move boat to complete fueling)
• Fuel system with venting and “catchment system” designed for burps or overflow accidents (Unique OA feature. Often ignored by competitors which can lead to high fines and insurance cancellation)
HOLDING TANK SYSTEM:
• Waste treatment system (600Gal/day) BILGE / DISCHARGE:
• Oversized drains to overboard
• High water bilge alarm at every Rule® bilge pump station
• Dry bilge area arrangement in center engine room
• Automatic bilge pump - The vessel shall be outfitted with automatic bilge pump with manual and automatic switches in each space as divided by weather-tight bulkheads. High water alarms will be mounted in each of these bilge zones
AC / DC SYSTEM:
• AC outlets throughout
• All primary AC & DC electrical wiring is appropriately labeled throughout the yacht
• GFI (110V) AC outlet
• 24 Volt system
• Engine battery isolation switches
• Octoplex NMEA 2000
• Shore power receptacle 2 x 100 AMP in transom w/cable master (OA is unique in making this a standard vs. optional. Cleans & boosts questionable shore power to better protect sensitive equipment onboard.)
• 80AMP Charger
• Battery paralleling system w/ control switch
• Service battery switch
• Bonding system throughout
• The vessel's bonding and grounding systems shall include copper straps secured to the hull and running the full length of the vessel parallel to centerline. Engines, generators, metallic through hulls, strainers, and pump bodies shall be connected to the bonding strap using 8
• ASEA 220V transformer package – allows for 220V marina connections to shower power
AIR CONDITIONING:
• Dometic® chilled water system air conditioning system, rated for “Extreme Tropical Climates” (with reverse cycle for operation down to 40°F water temp)
• Refrigerant type is accepted worldwide under the
Montreal Protocols
• Dedicated engine room air conditioning
LIGHTING:
• 24V LED lights (Aerospace quality, specially tuned color temperature for Ocean Alexander)
• Convenience lights
• International navigation lights
OTHER:
• Onboard intranet, driven by commercial-grade 4G SIM card capable Wi-Fi router. Allows outside 4G Internet card and/or internal intranet net connection via supplied iPad to Systems monitoring, Garmin and other onboard equipment apps. (Unique OA feature)
• Vimar™ switches and outlets
• Smart Y-adaptor
• Remote access panel for water-maker, treatment systems
• Wireless Yacht Controller remote
• Underwater lights
• Searchlight with remote skylounge
• Spreader lights under wing mast
E. ACCOMMODATIONS/INTERIOR, AUDIO/VIDEO

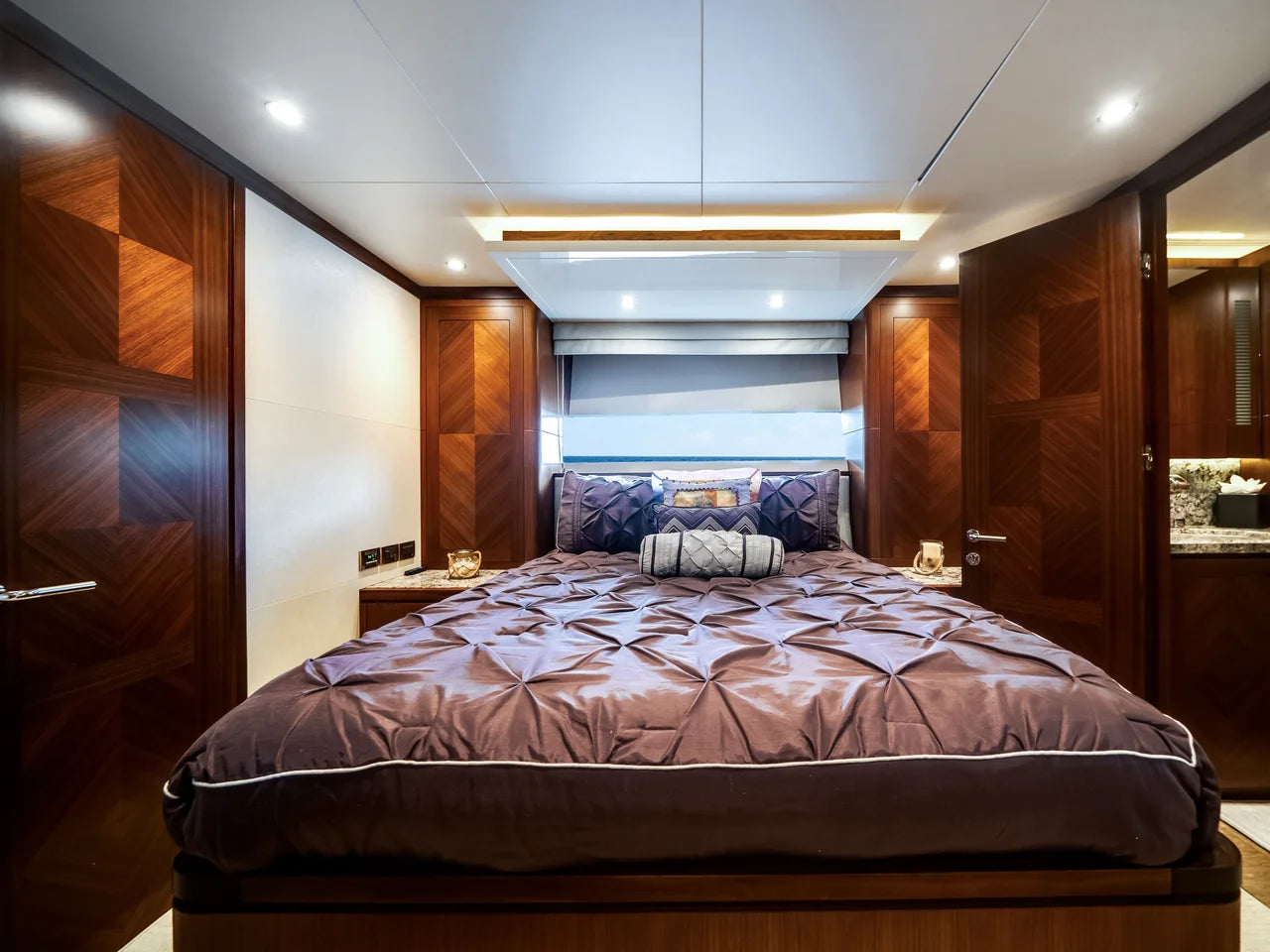

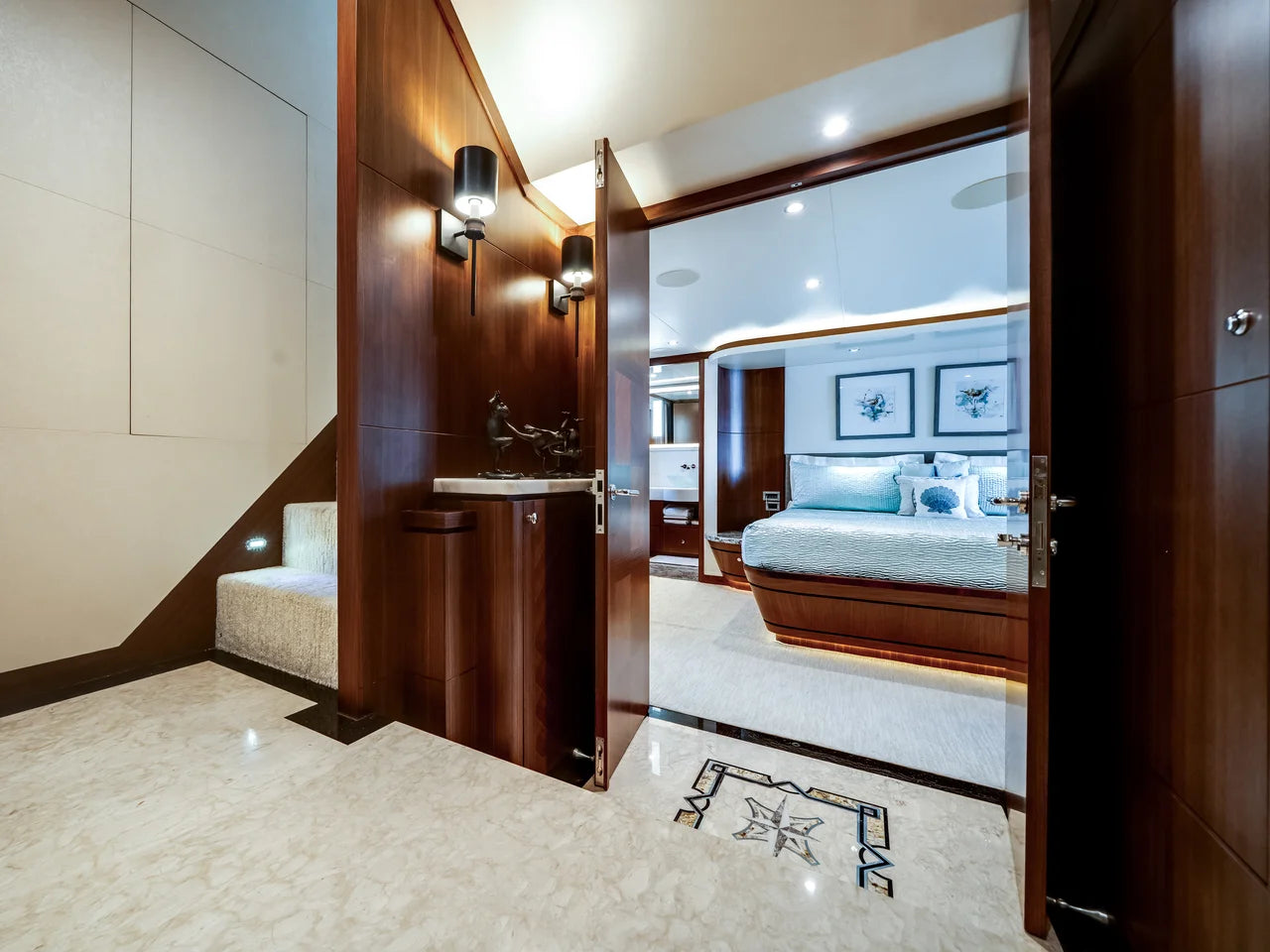

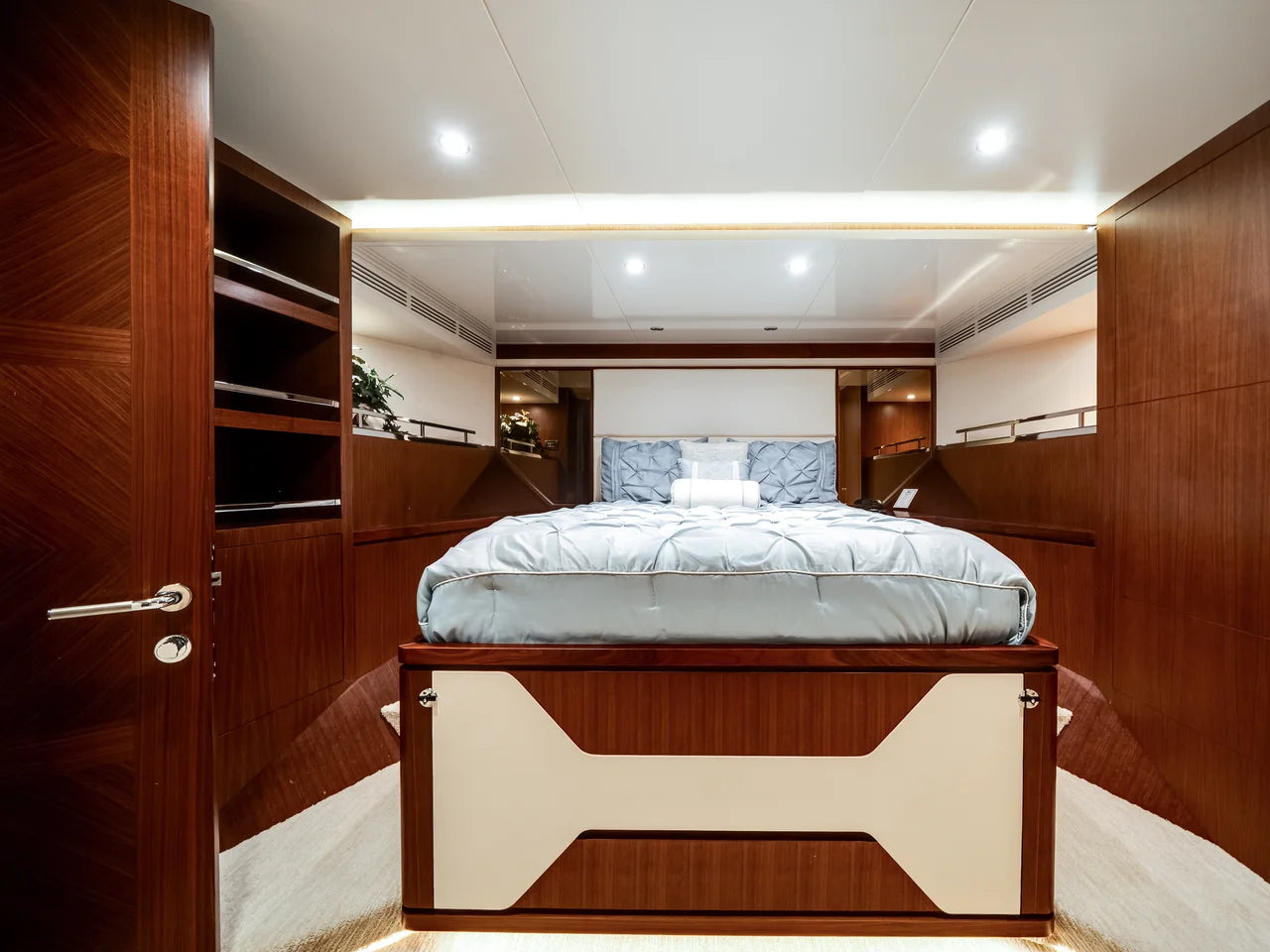

MASTER STATEROOM:
• LED 50” TV with A/V System
• One Subwoofer
• King-sized berth (with independently coiled his & her sections to ensure minimal transfer of movement)
• Two nightstands.
• Marble countertop at TV cabinet and port/STBD cabinets (Design cues from 135’)
• Built-in chest drawers on STBD side and vanity desk on Port side
• Hidden safe in hanging locker
• Walk-in closet on port side. Space enlarged by 85% through utilizing space from fwd. staterooms and under floorboards.
• Hanging closet space on STBD side enlarged by 18% through utilizing space under fwd. staterooms floorboards or under stairs.
• Enlarged windows with custom engineered solution incorporating aluminum beams and “sandwiched glass” construction technique from classed vessels. Allows of 28% greater visibility and incoming light.
• Custom headboard with recessed indirect lighting
• Cedar-lined, twin full-height hanging locker with automatic lighting
Ocean Alexander reserve the right to make modification and improvements which may result differences from published specification.

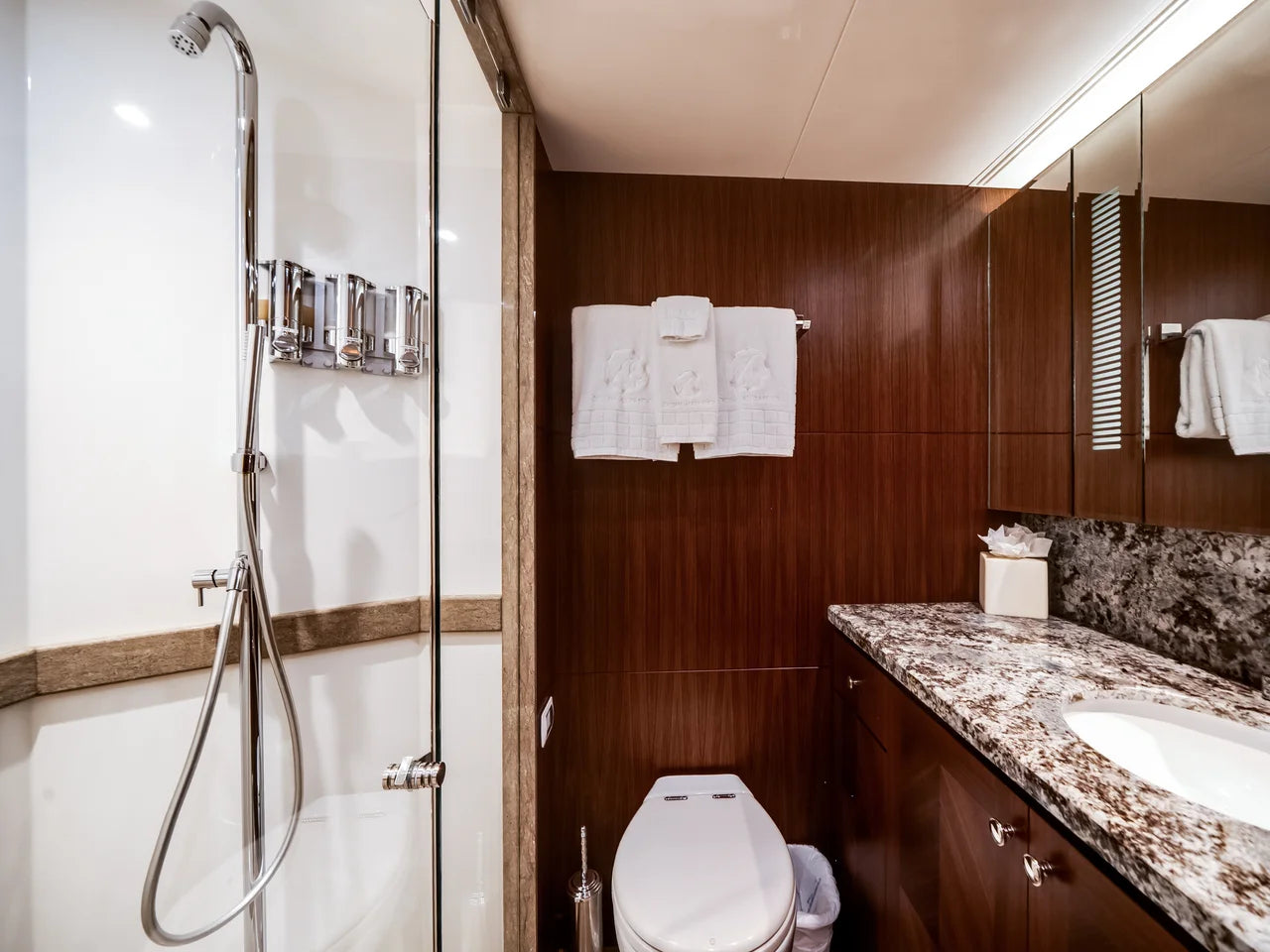

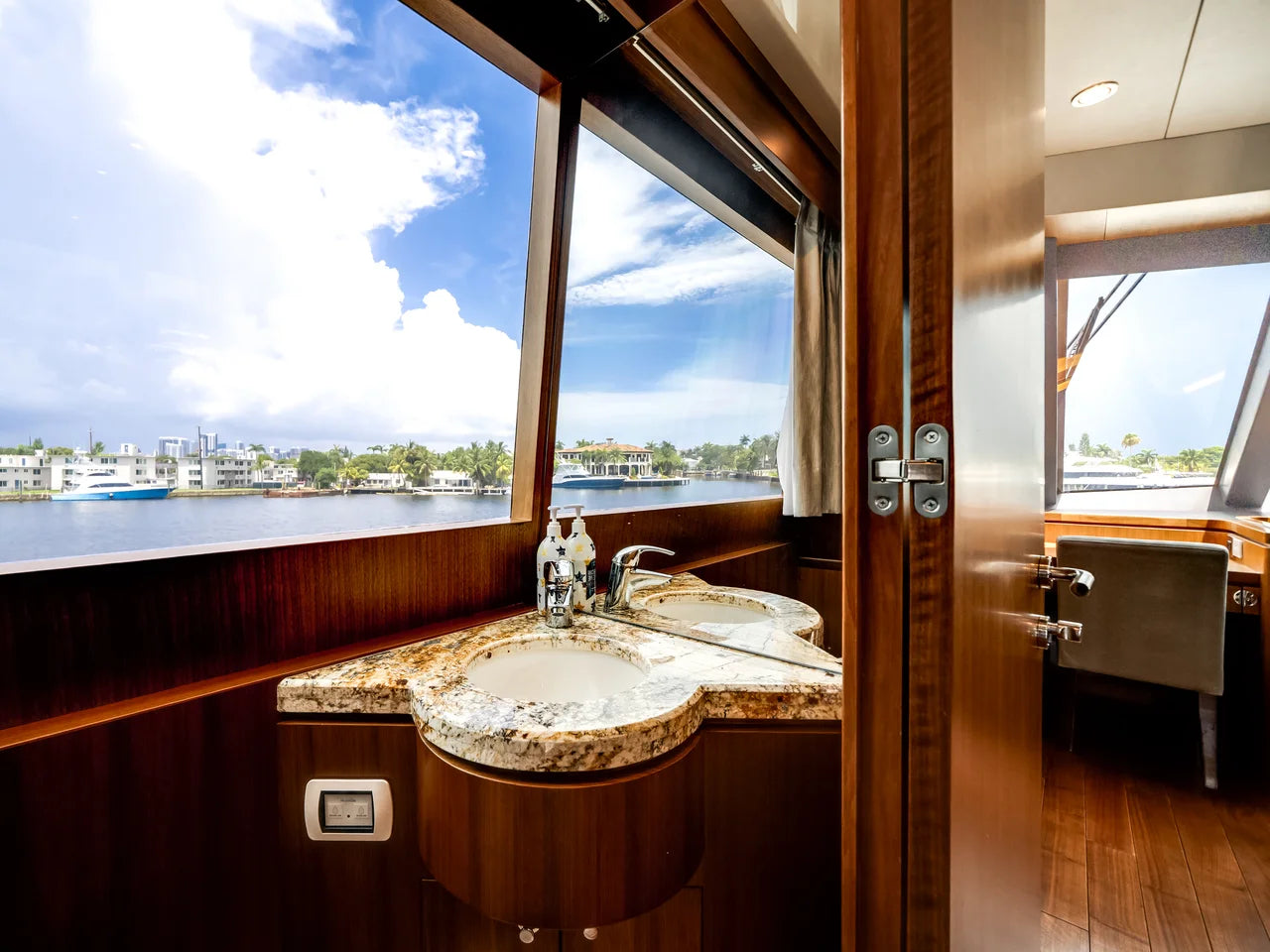

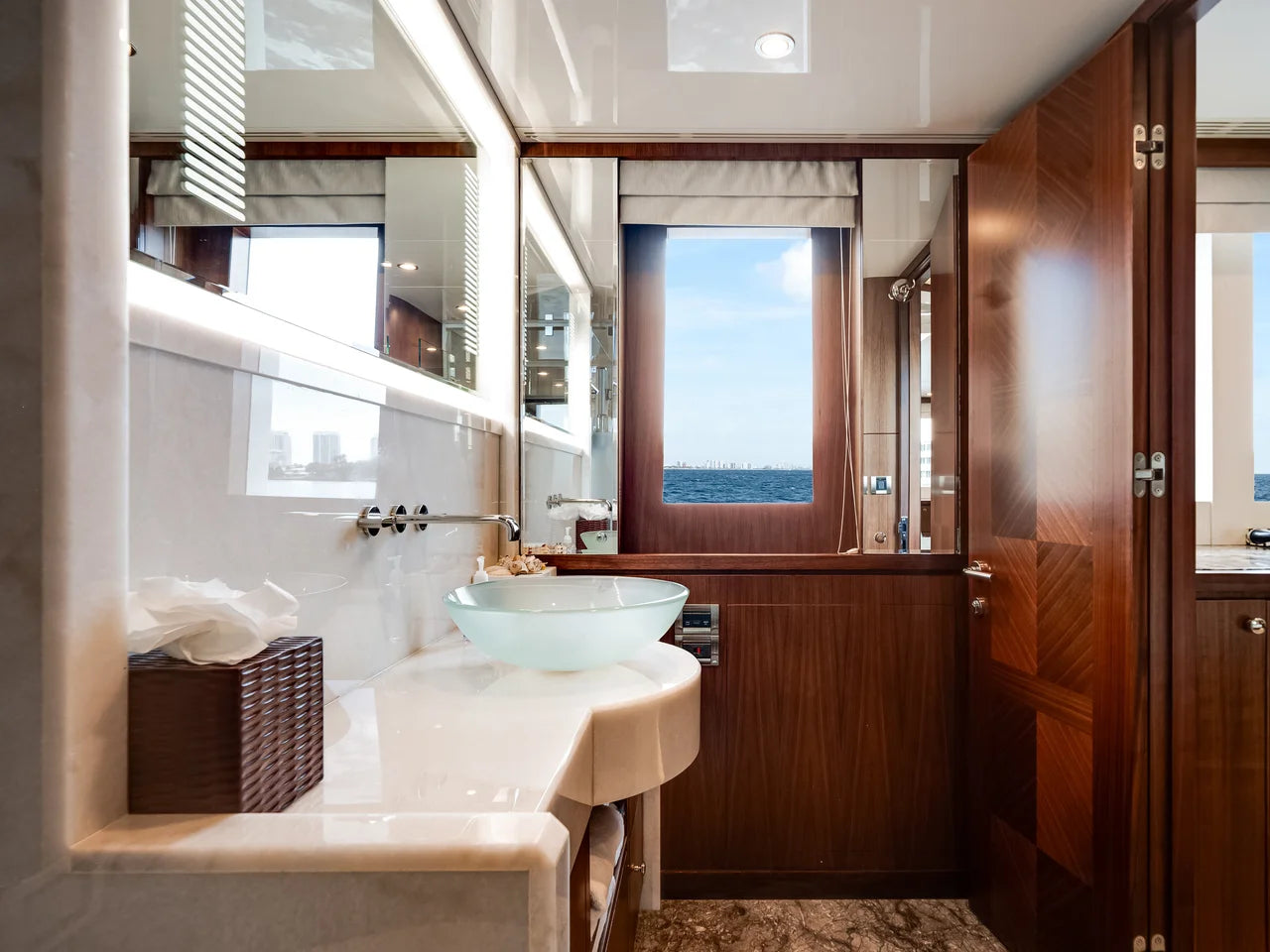

• Enlarged Master bathroom window with updated cabinetry to take advantage of additional 320% additional window visibility vs. previous port light

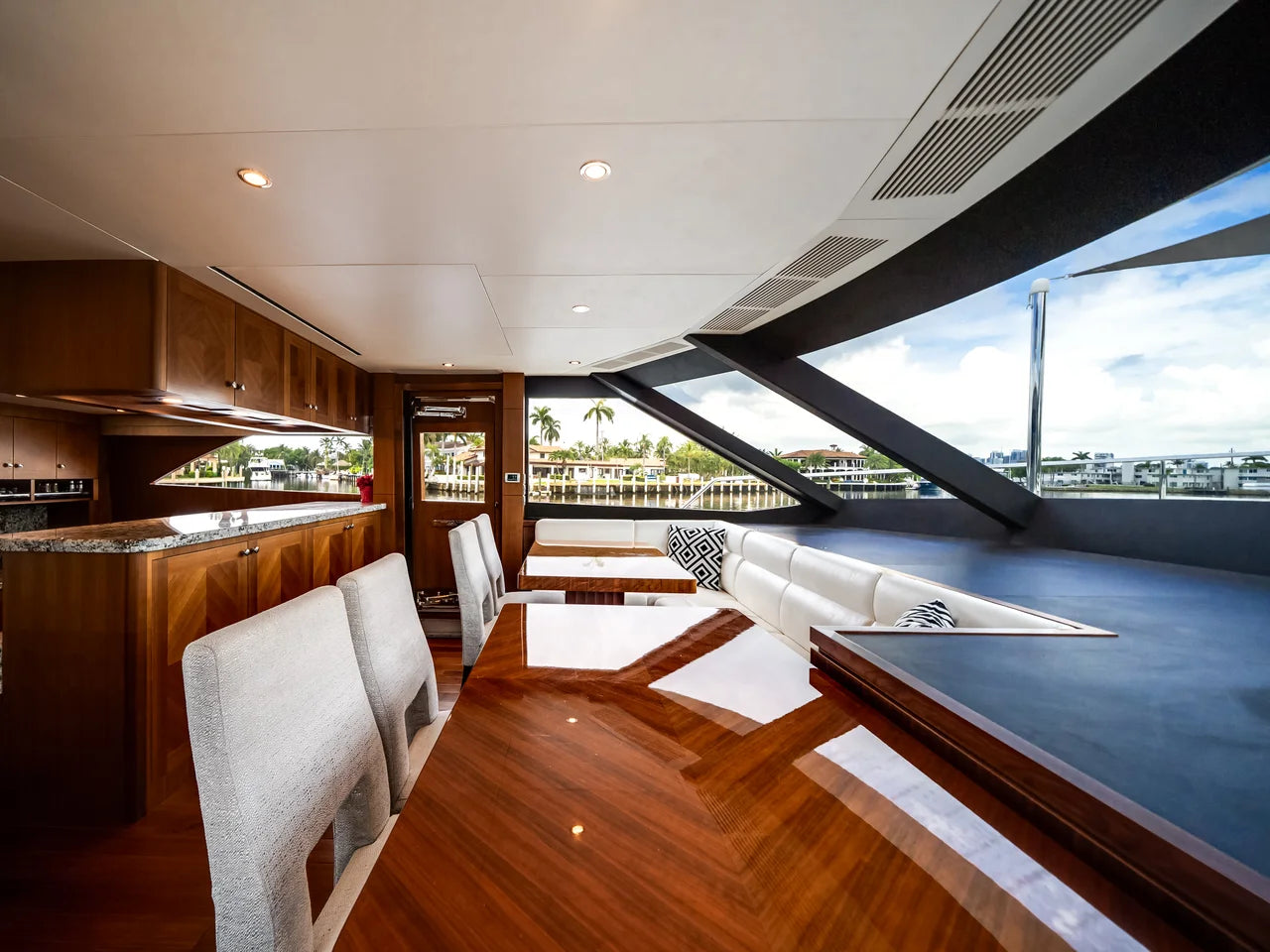

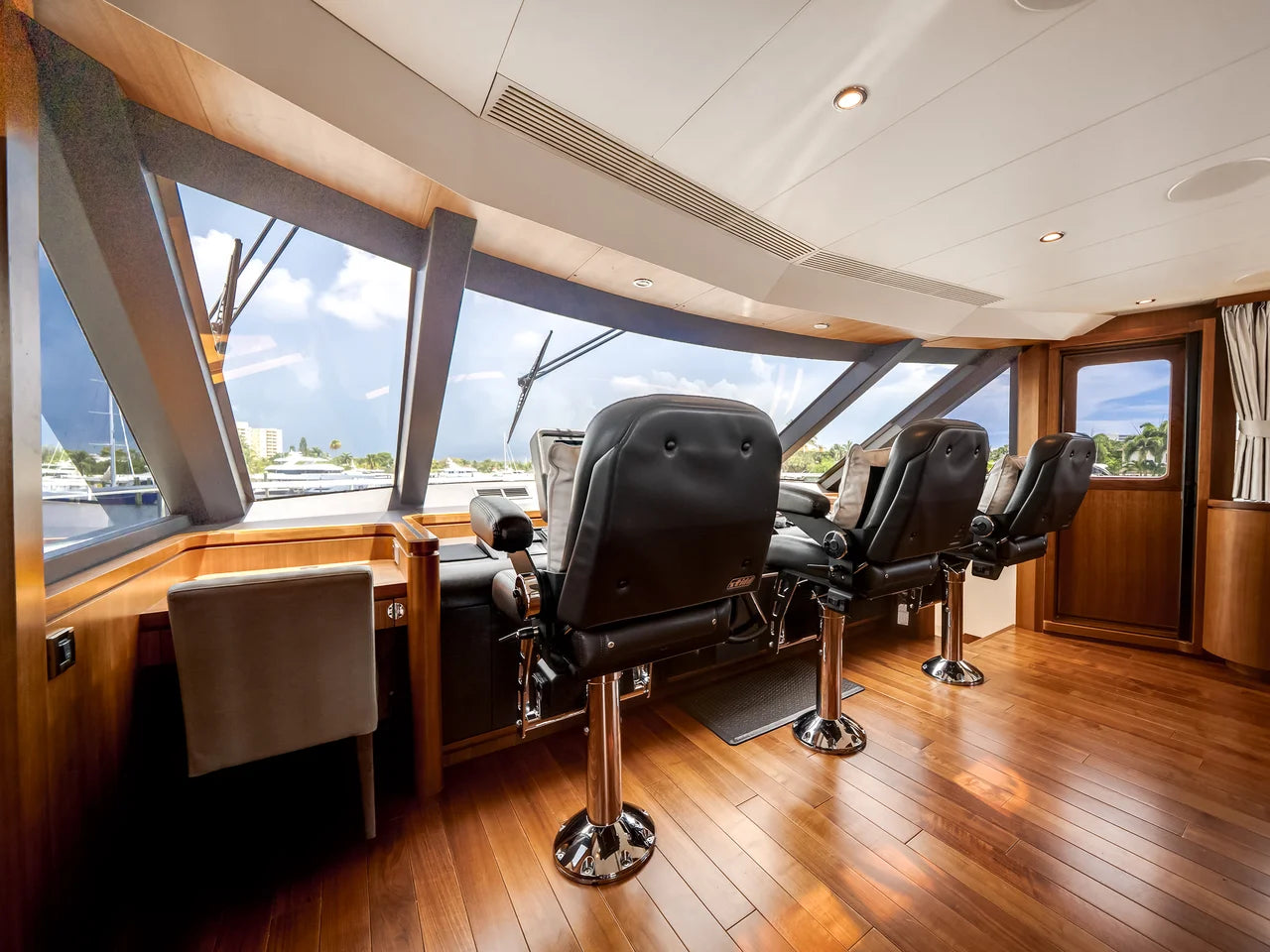

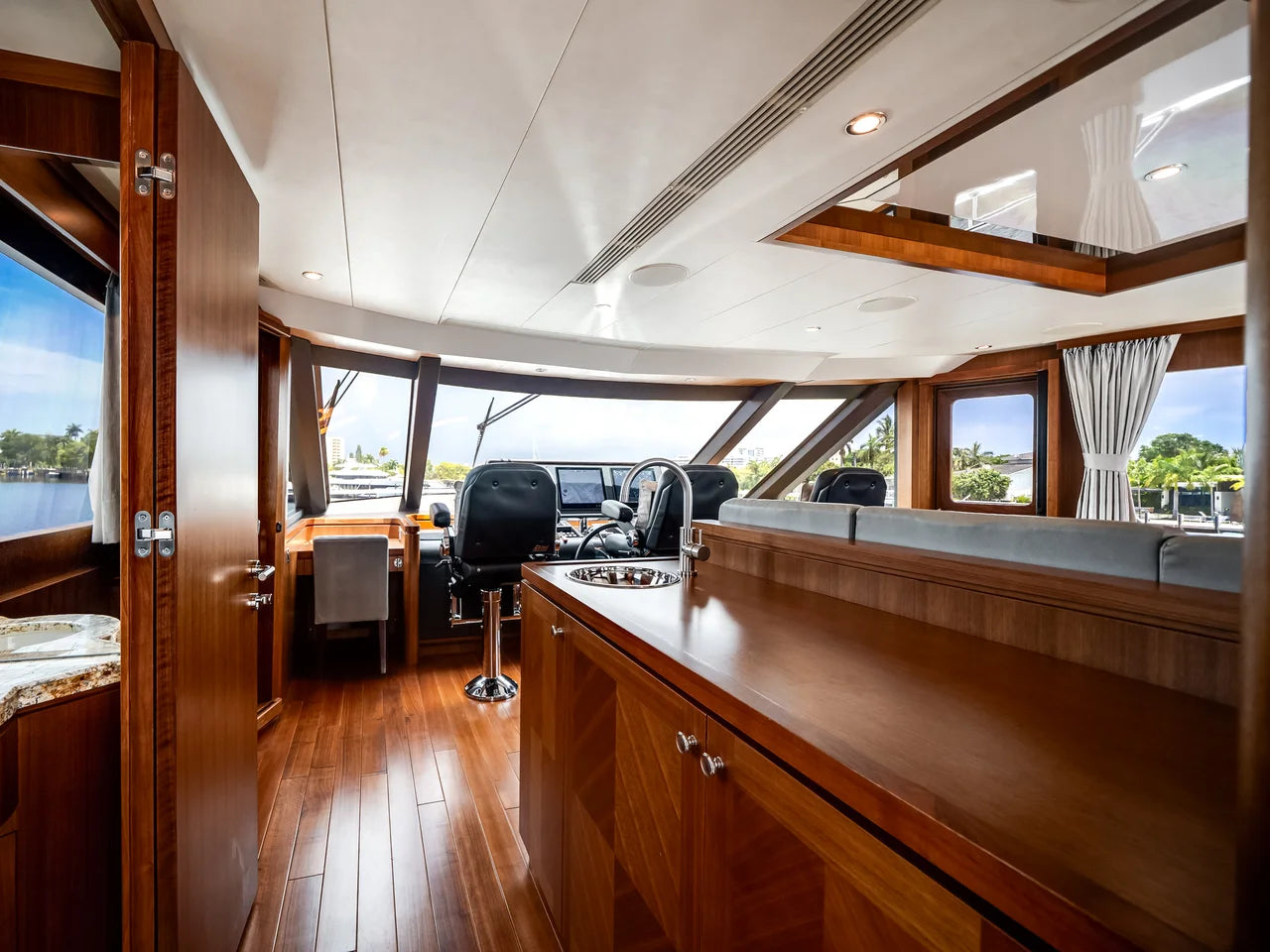

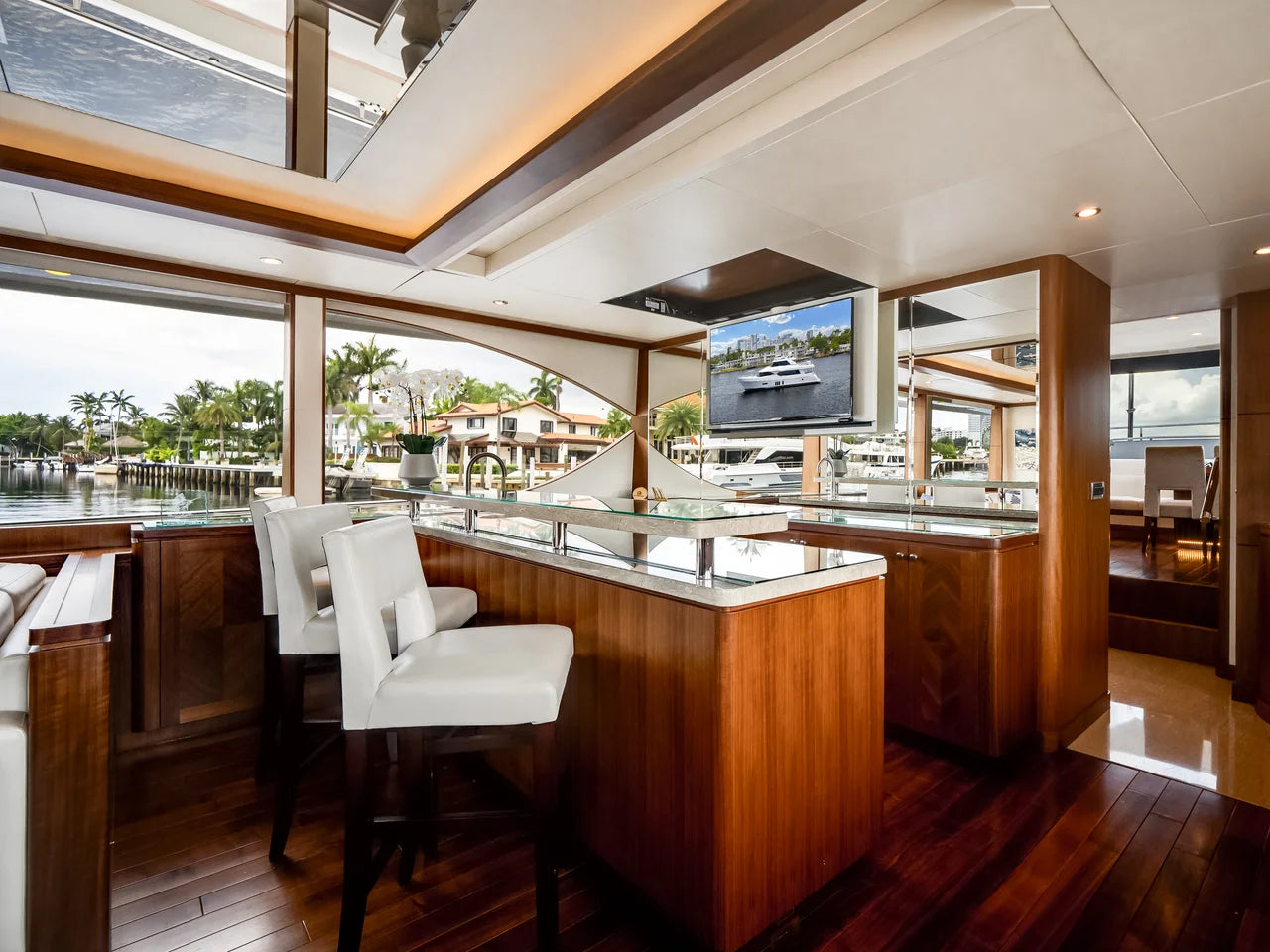

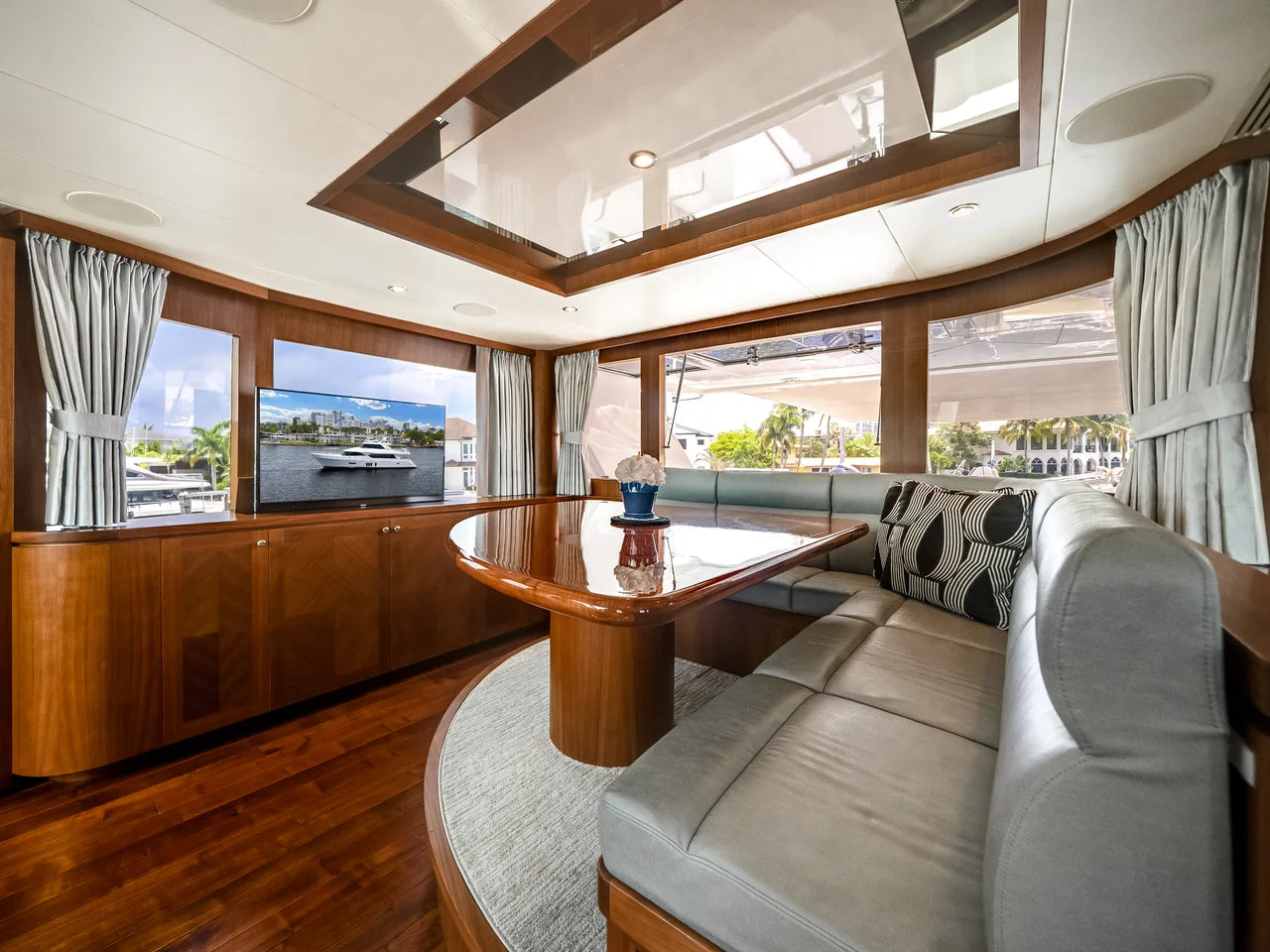

SKYLOUNGE:
• LED 46” TV with A/V System
• Cabinet including wet bar, Sub Zero™ fridge w/ solid
panel door and storage
• Wood valance board
• Windshield defrosters
• One Subwoofer

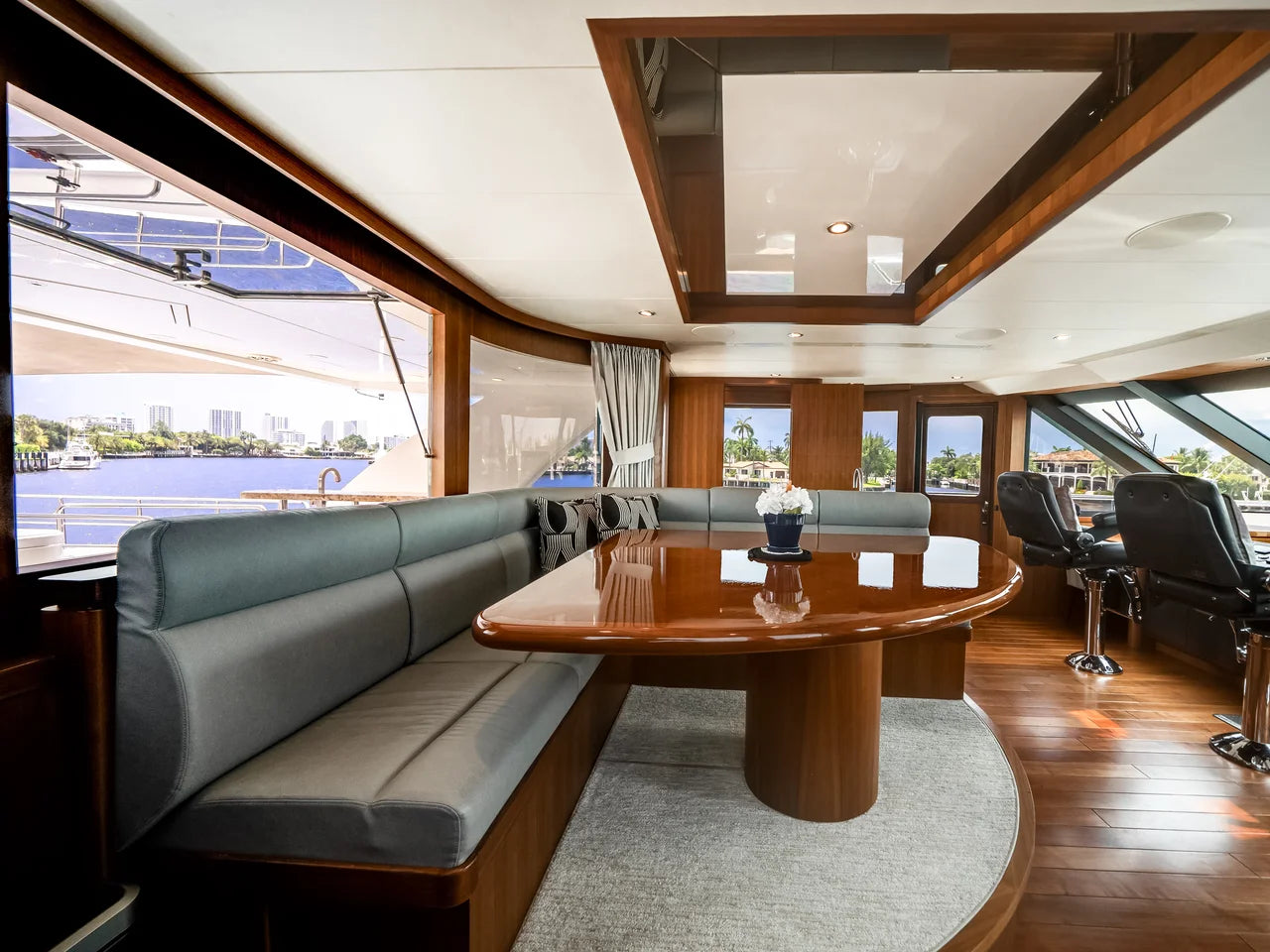

• Raised settee with table

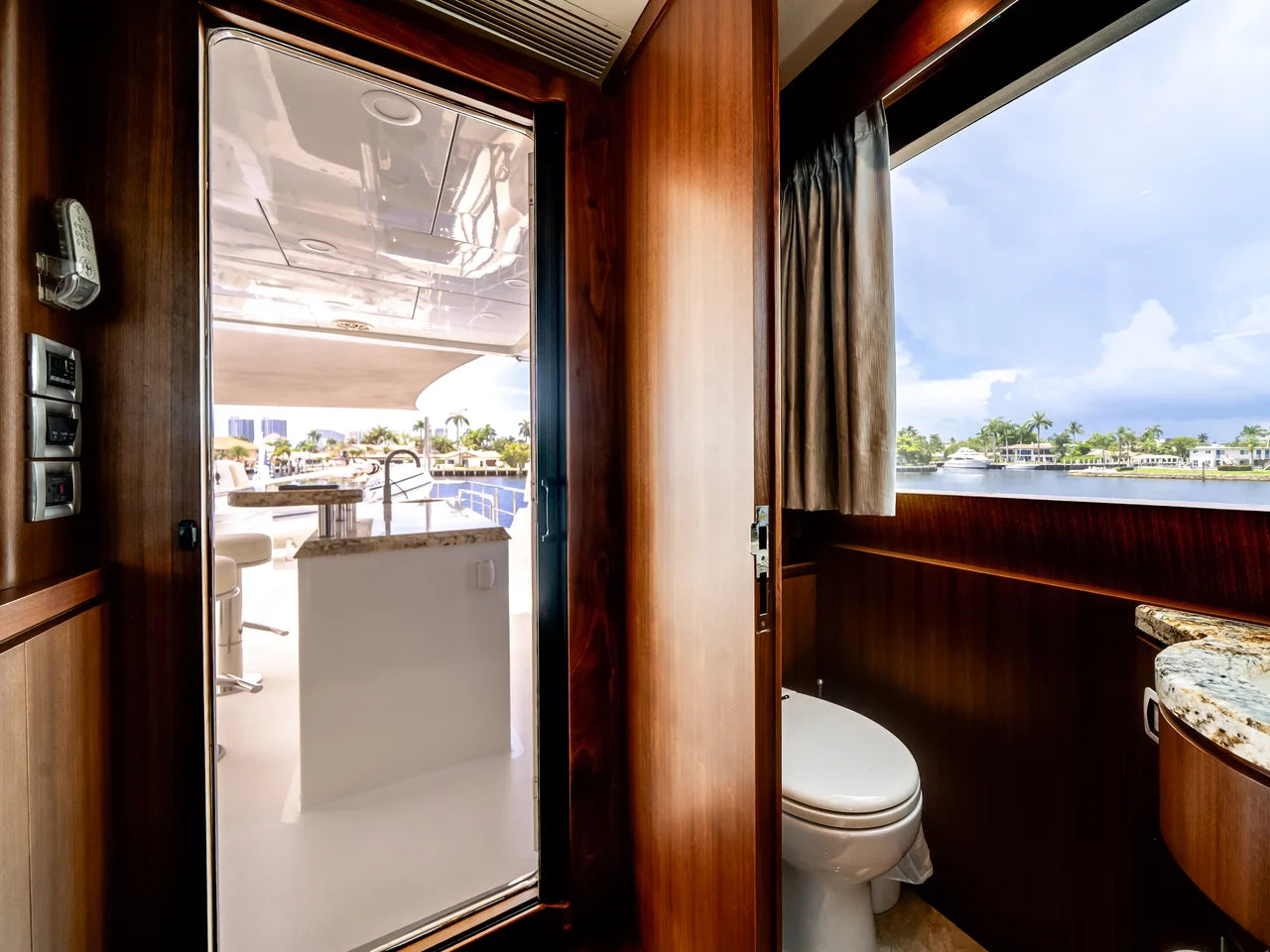

• Day head
• Chart locker

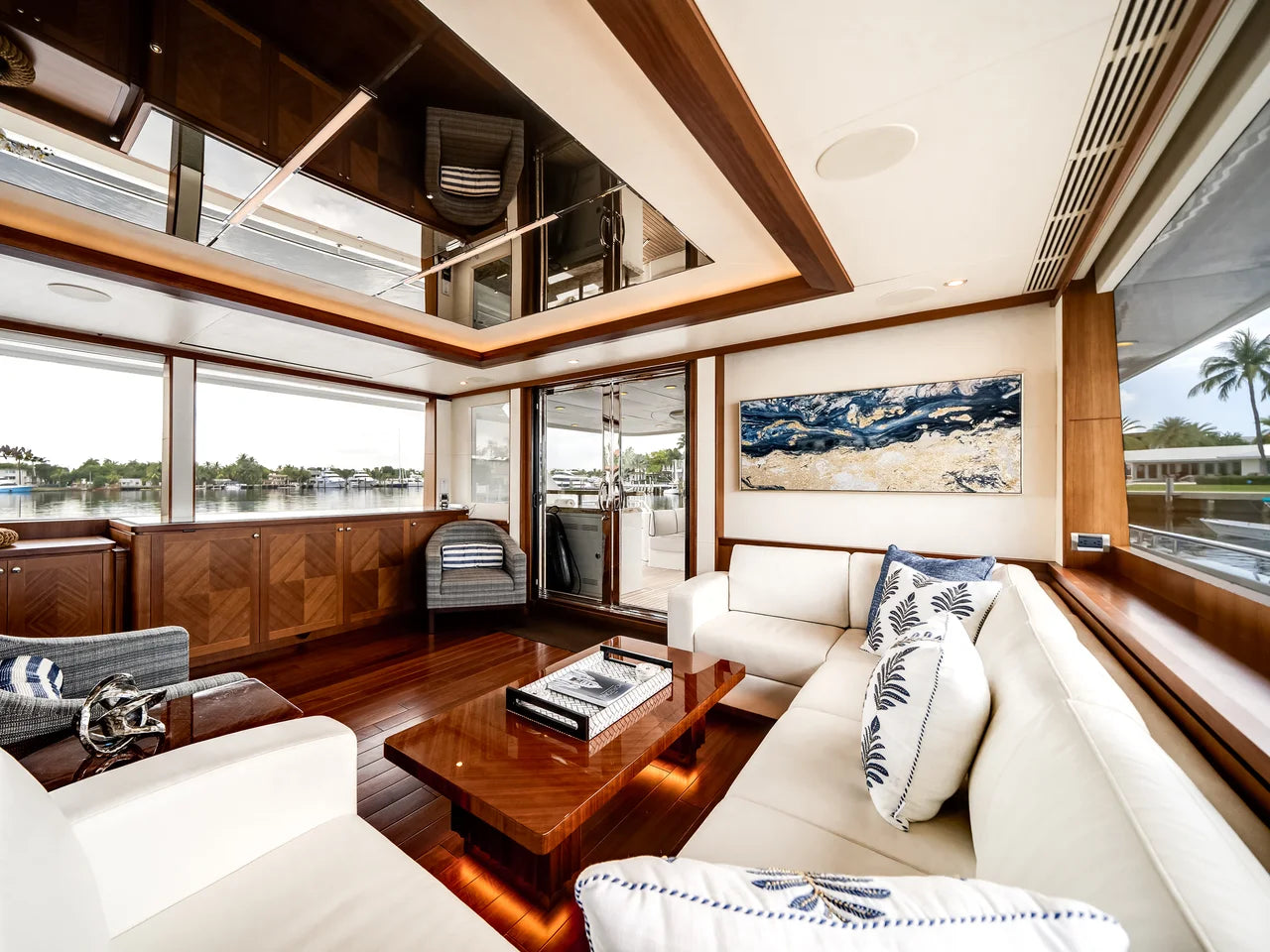

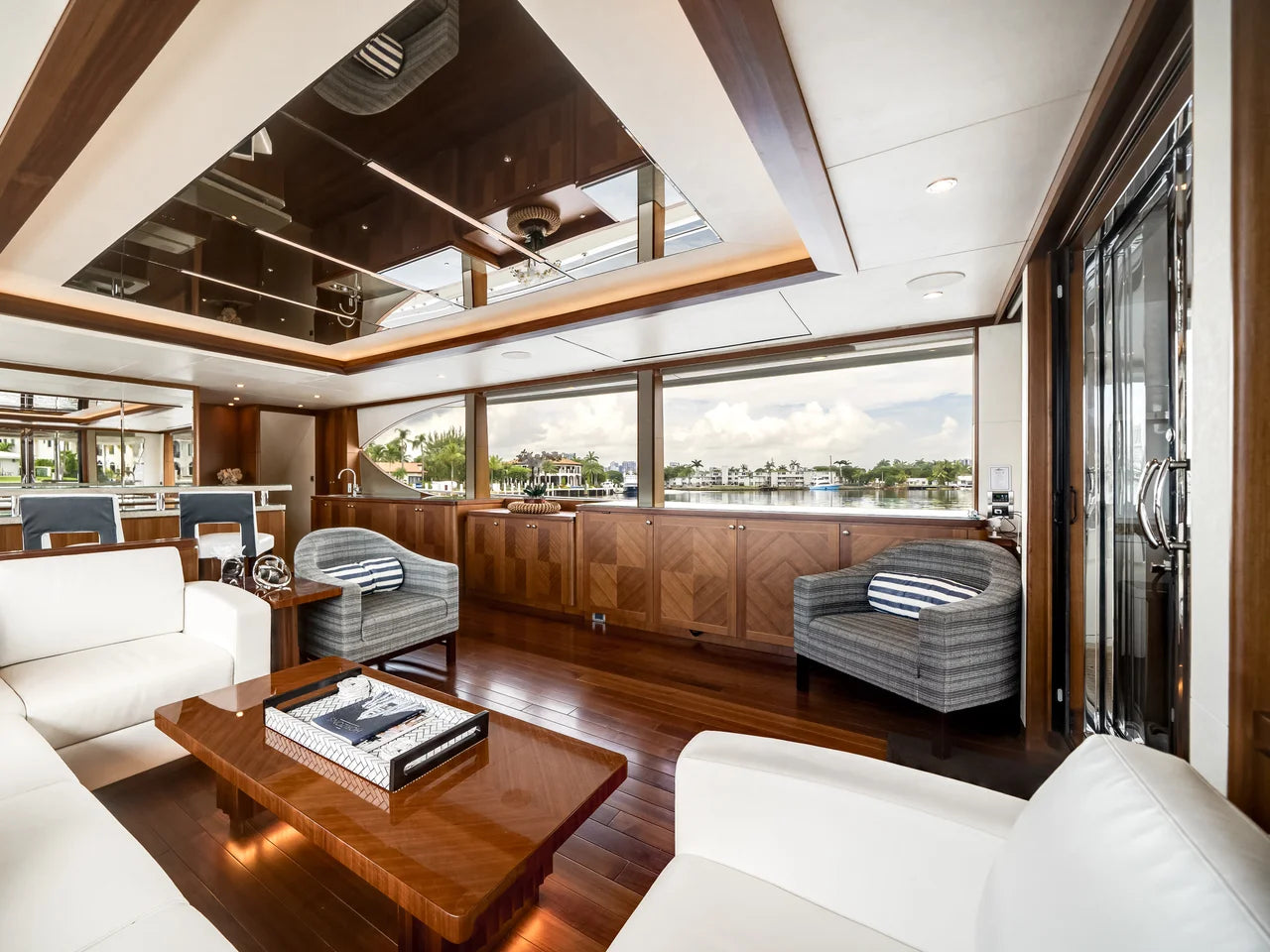

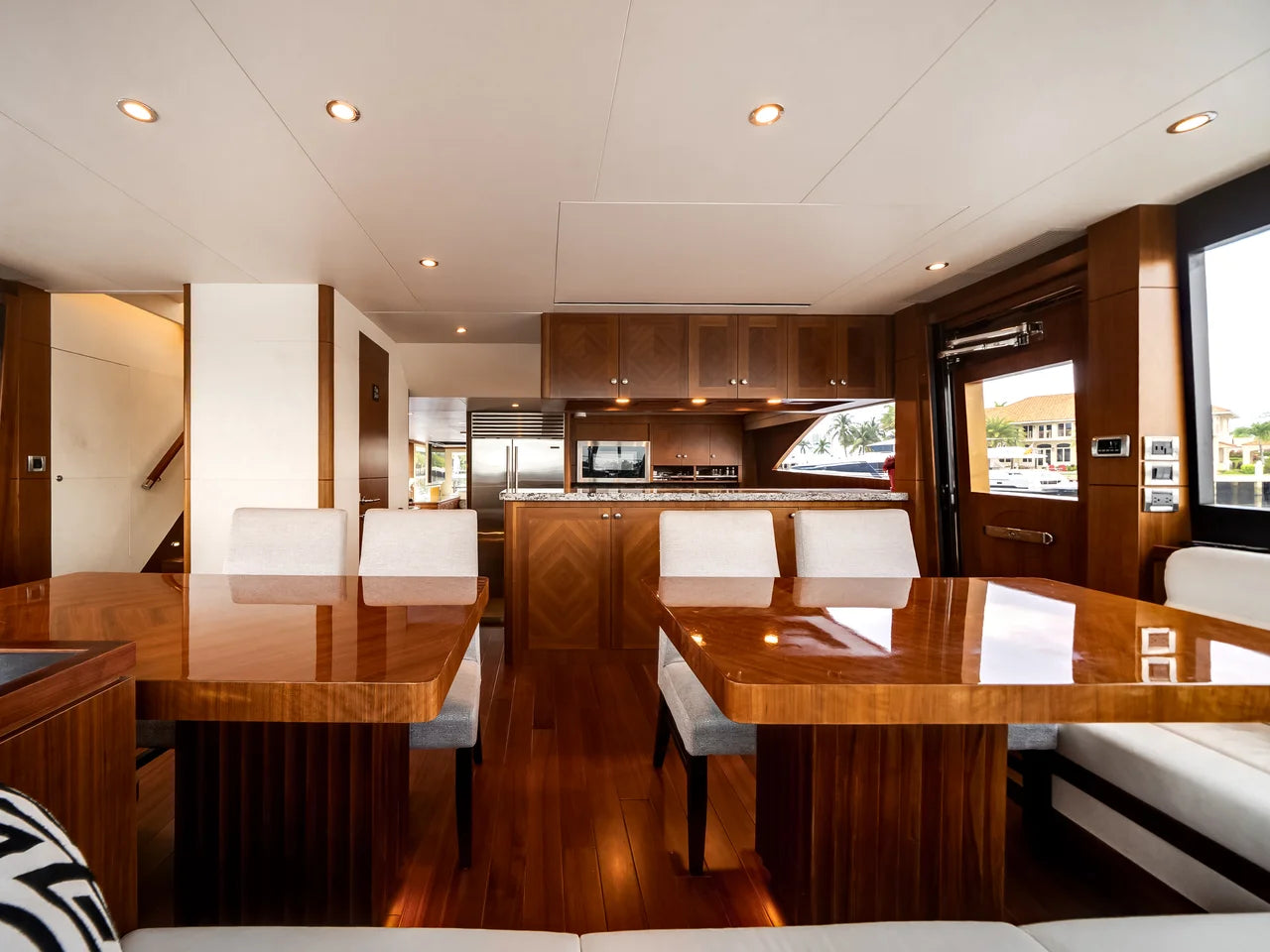

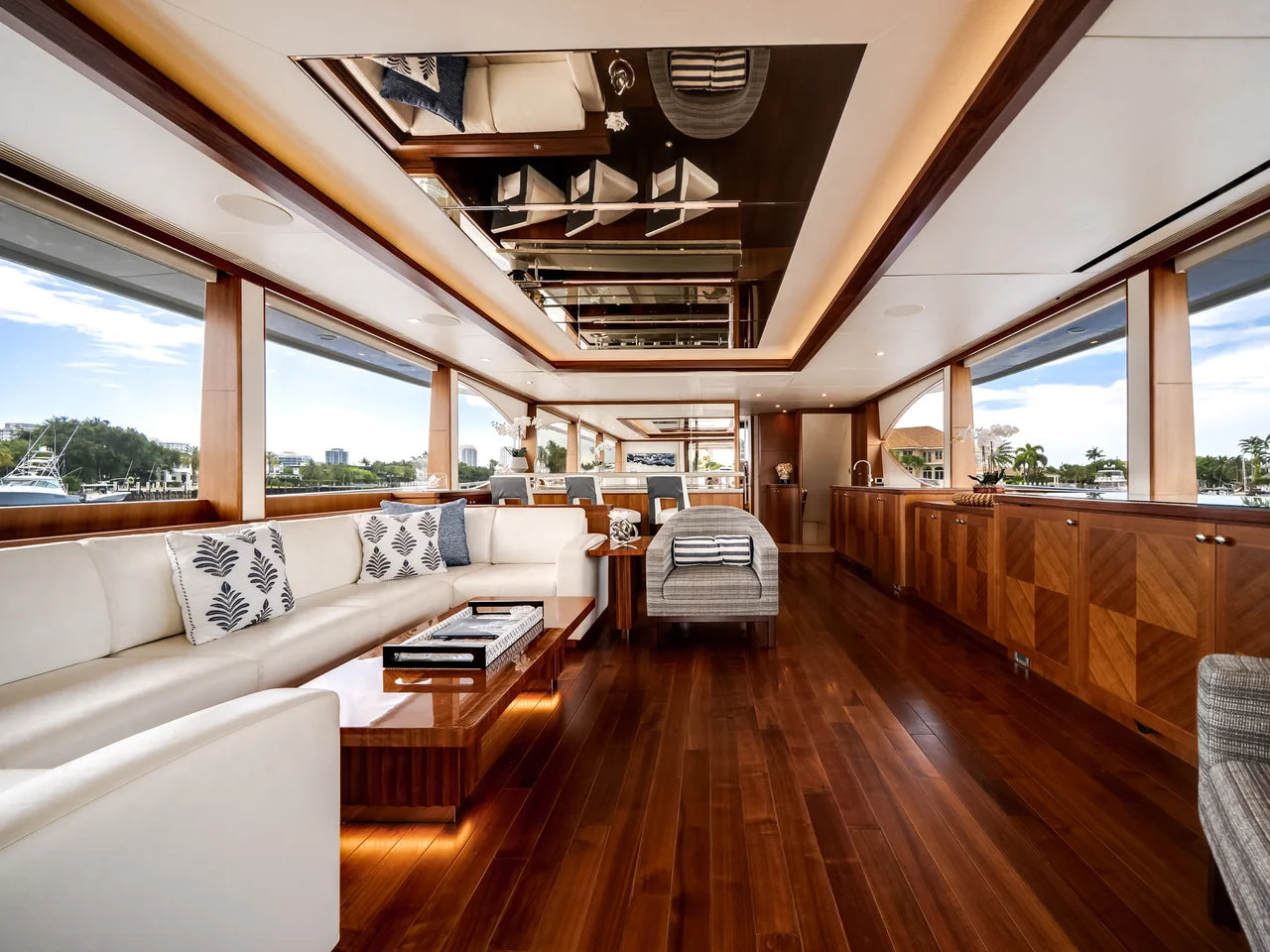

SALON:
• 55” TV with Blu-Ray A/V System
• Wood paneling and cabinetry in diamond wood grain
pattern (where possible)
• Marble countertop at wet bar, TV cabinet, and dining room divider cabinet
• Custom designed window mullion
• Decorative ceiling treatment
• Phantom screen (for insects + pollen protection) with dedicated wood box for door
• Enlarged windows in salon with custom engineered solution incorporation marine grade aluminum beams allowing for industry leading window expanse. Incorporate (where possible) A/C outlet from ceiling, provides unobstructed view to outside (Design cues from
135’, improved for 2016)
• Sub Zero™ fridge
• Uline™ ice maker
INTERIOR DÉCOR:
• Wood paneling and cabinetry in semi-gloss in diamond wood grain pattern (where possible)
• Evan Marshall designed interior pilot station and display pod. With matching wood/Ultraleather and “floating” display pod. Ergonomically designed and laid out to enhance pilot experience/performance. (Design cues from 135’)
• Custom designed and water jet cut granite with stainless steel insert in lower foyer and master bathrooms. (Design cues from 135’)
• Ocean Alexander Fresh Air system: with filtered fresh air drawn from outside and vented to lower staterooms for constant fresh, clean air. Makes for a clean and healthy environment that reduces free radicals and increase oxygen levels. (Unique OA standard feature)
• Air extraction in each head shall be by low noise extraction fans, switched separately from lights
• Opening (in glass port light) for MSR Bath
• High quality European door locks
• Cedar-lined, hanging locker with auto lighting
• Concealed hinges throughout interior cabinets
• Ergonomically designed mattresses and settees

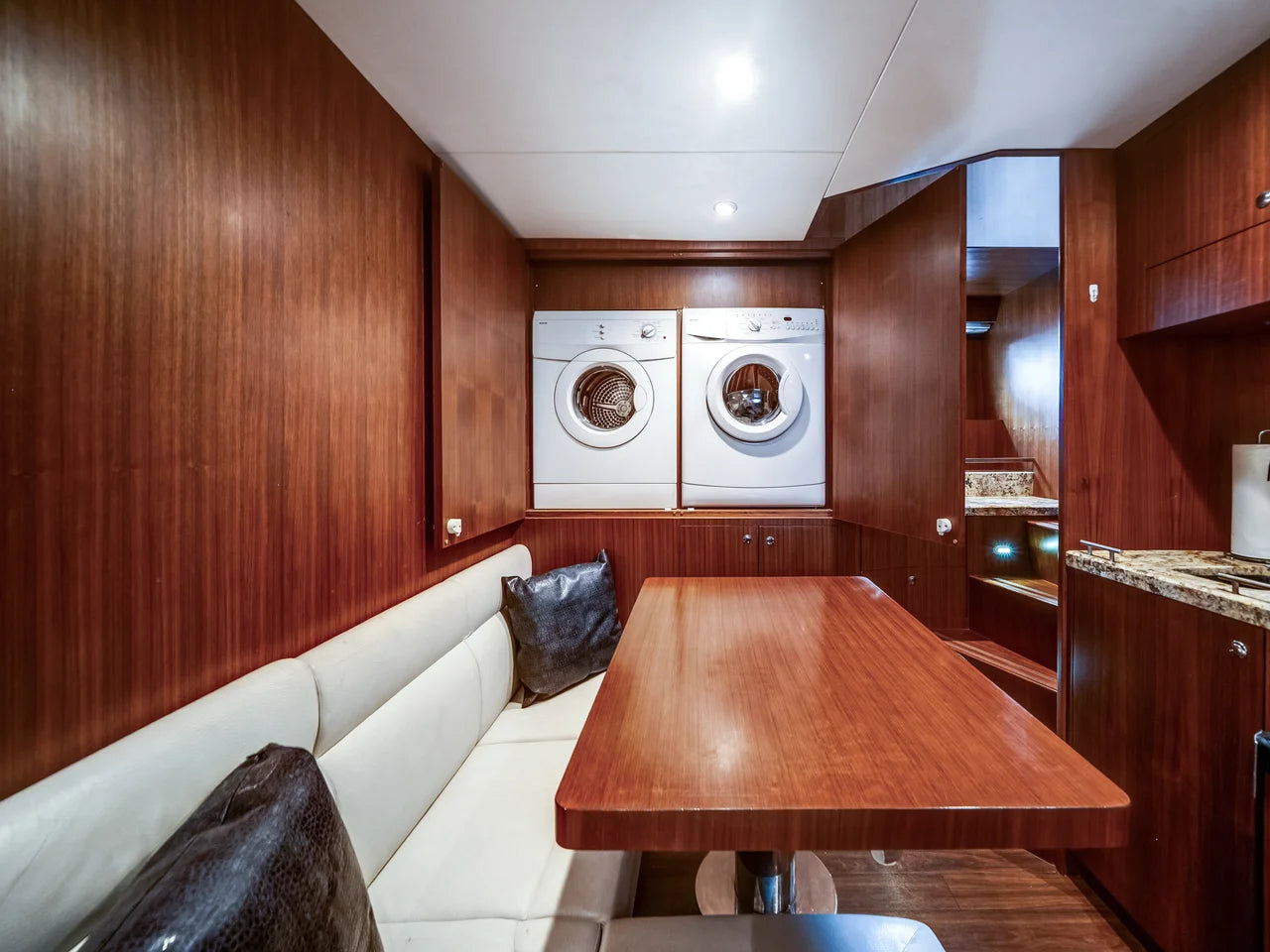

• Washer/ dryer (Commercial quality, Energy star washer/dryer) in lower foyer

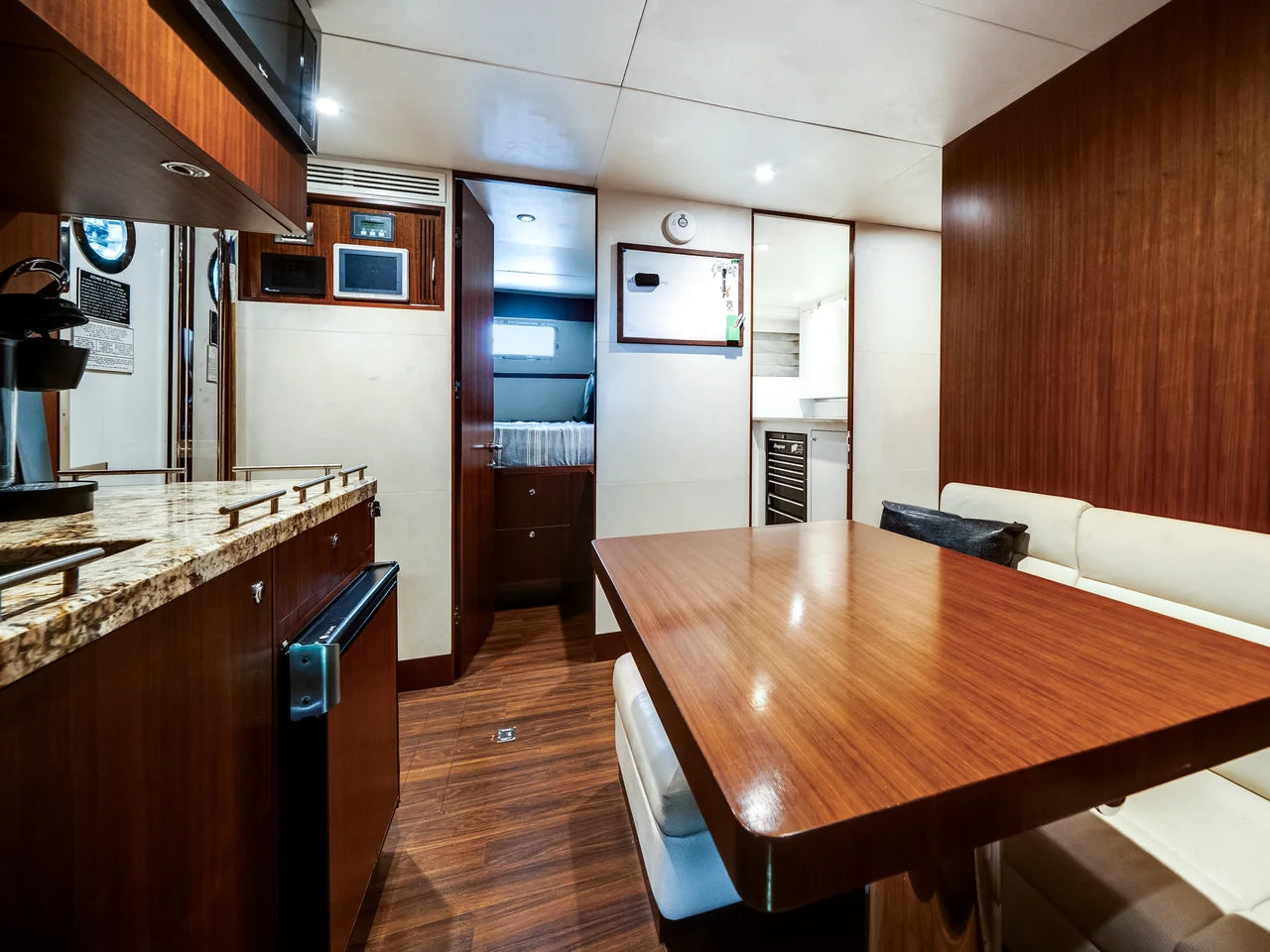

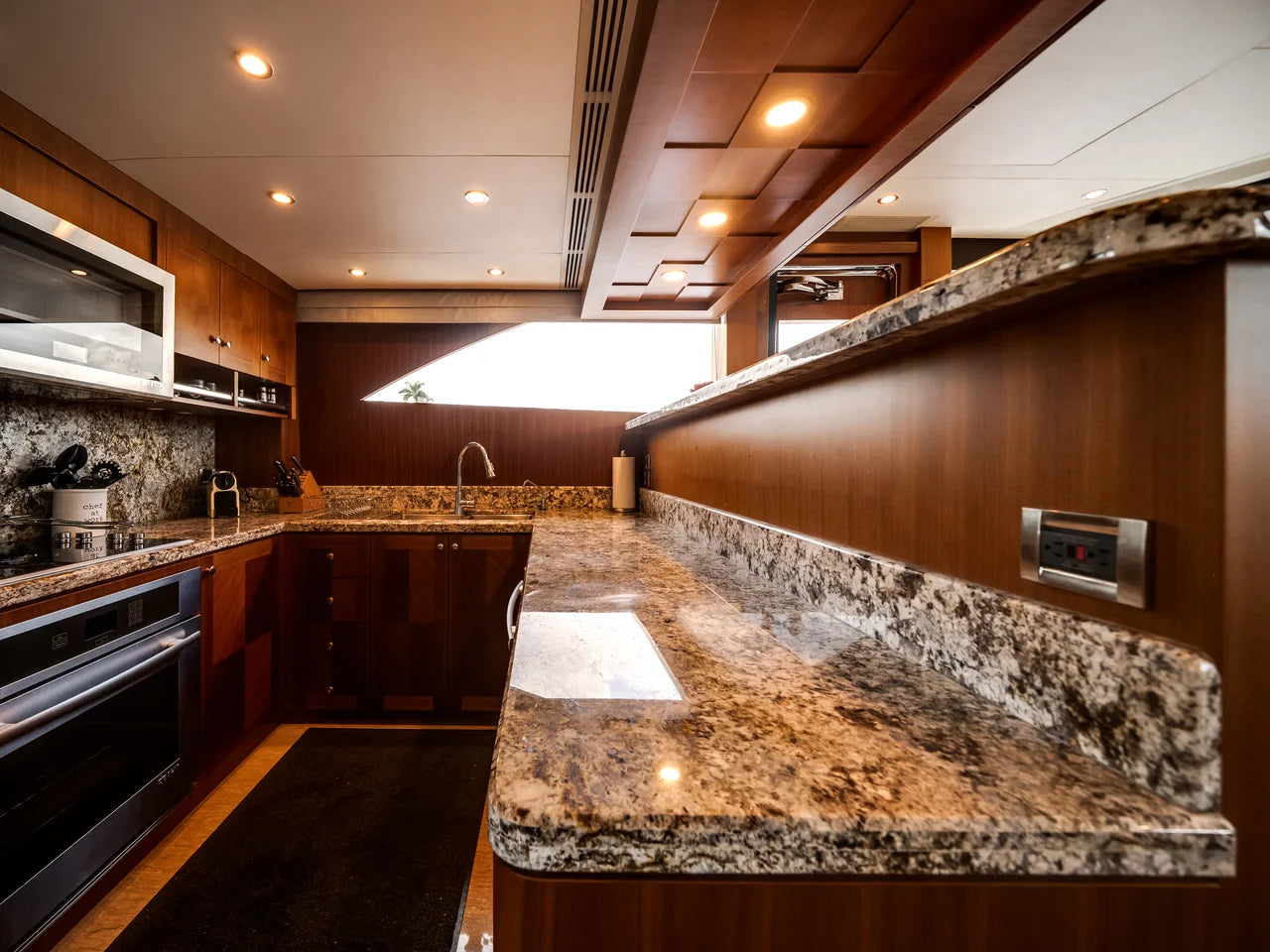

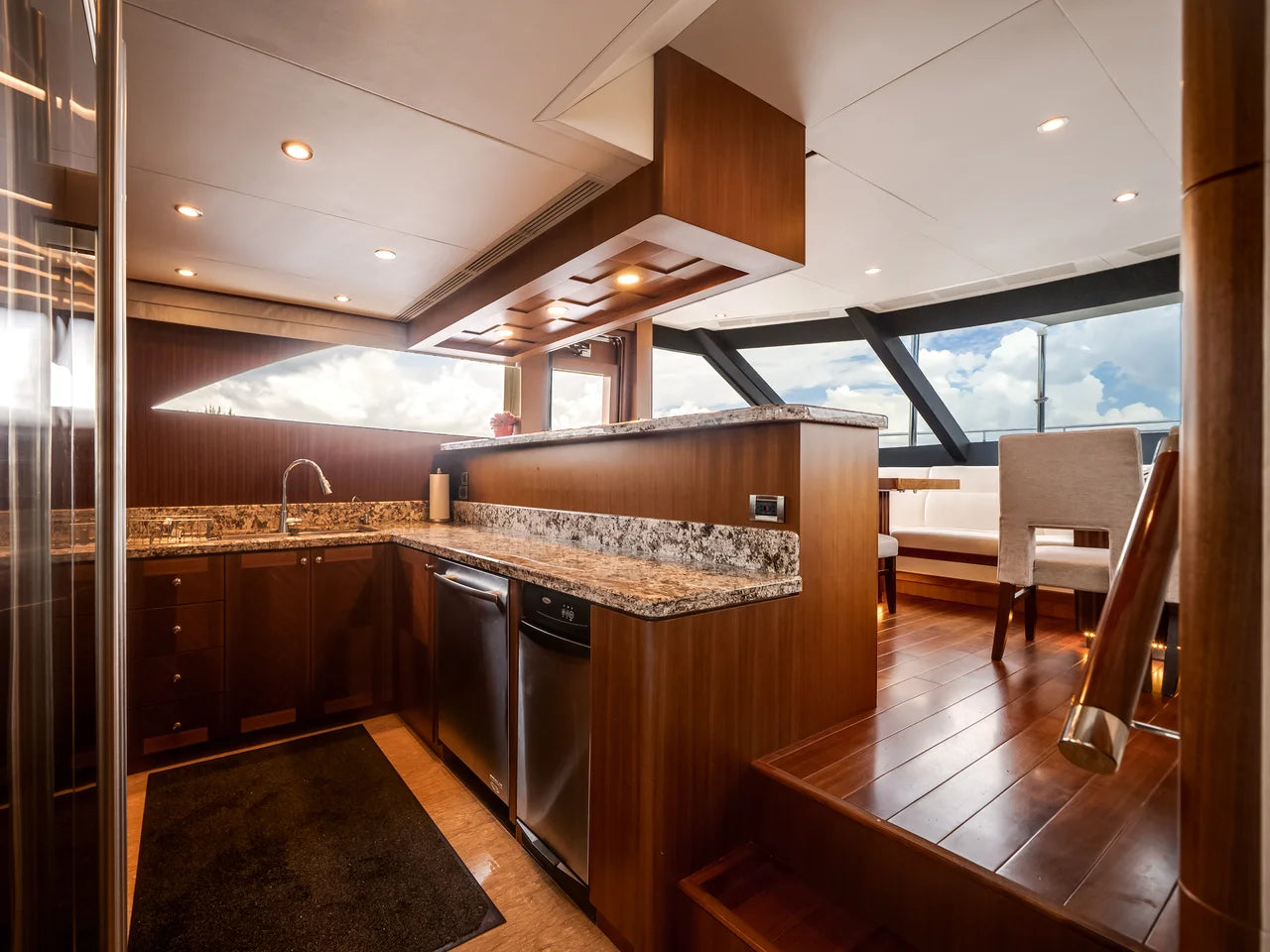

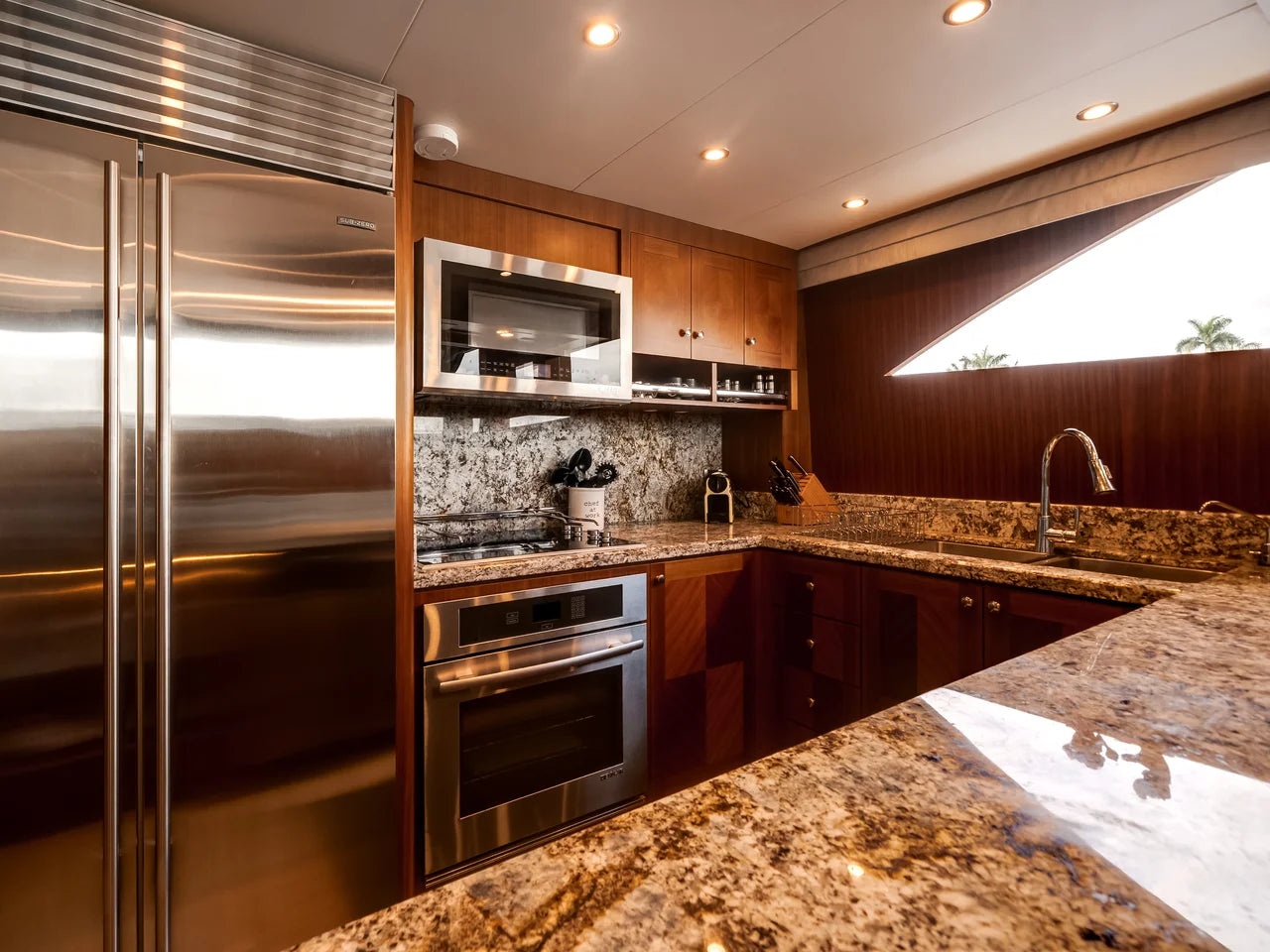

GALLEY:
• Wood panel and cabinetry with proprietary drop-lock drawers and positive-latch doors to increase containment of stored objects while underway (Unique OA feature)
• Galley storage cabinetry w/hidden hinges
• Exhaust blower
• Overhead dish locker fwd & aft
• 30” Subzero™ Refrigerator/ freezer
• Whirlpool™ garbage disposal
• 30" Jenn-Air™ Over-the Range Microwave with exhaust
blower
• 30” Kitchenair™ dishwasher
• 15” Whirlpool™ trash compactor
• Seagull™ water purifier (ADEX design award winner w/ filtration to 0.1 microns & EPA certification for microbiological purification)
LAUNDRY ROOM:
• Custom design laundry room with washer, dryer, and sink/faucet
• Storage compartment for cleaning agents, folded towels and pull out shelves
• Clothes hook and countertop
• Amtico floors and stain resistant laminate walls
Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
Specifications
Dimensions
Dimensions
- Length:92 ft
- Beam:20 ft 6 in
Engine & Performance
Engine & Performance
- Engine Count:2
- Total Horse Power:N/A
- Drive Type:Other
- Fuel Type:Diesel
- Max Speed:24.0
- Make:CATERPILLAR
- Model:C-32
- Engine hours:2300
Capacities
Capacities
- Fuel Capacity:3000.0 gal
- Fresh Water Capacity:650.0 gal
- Holding Tank Capacity:200.0 gal
Miscellaneous
Miscellaneous
- Hull Material:Fiberglass
- Condition:Brokerage
- Class:Motor Yachts
