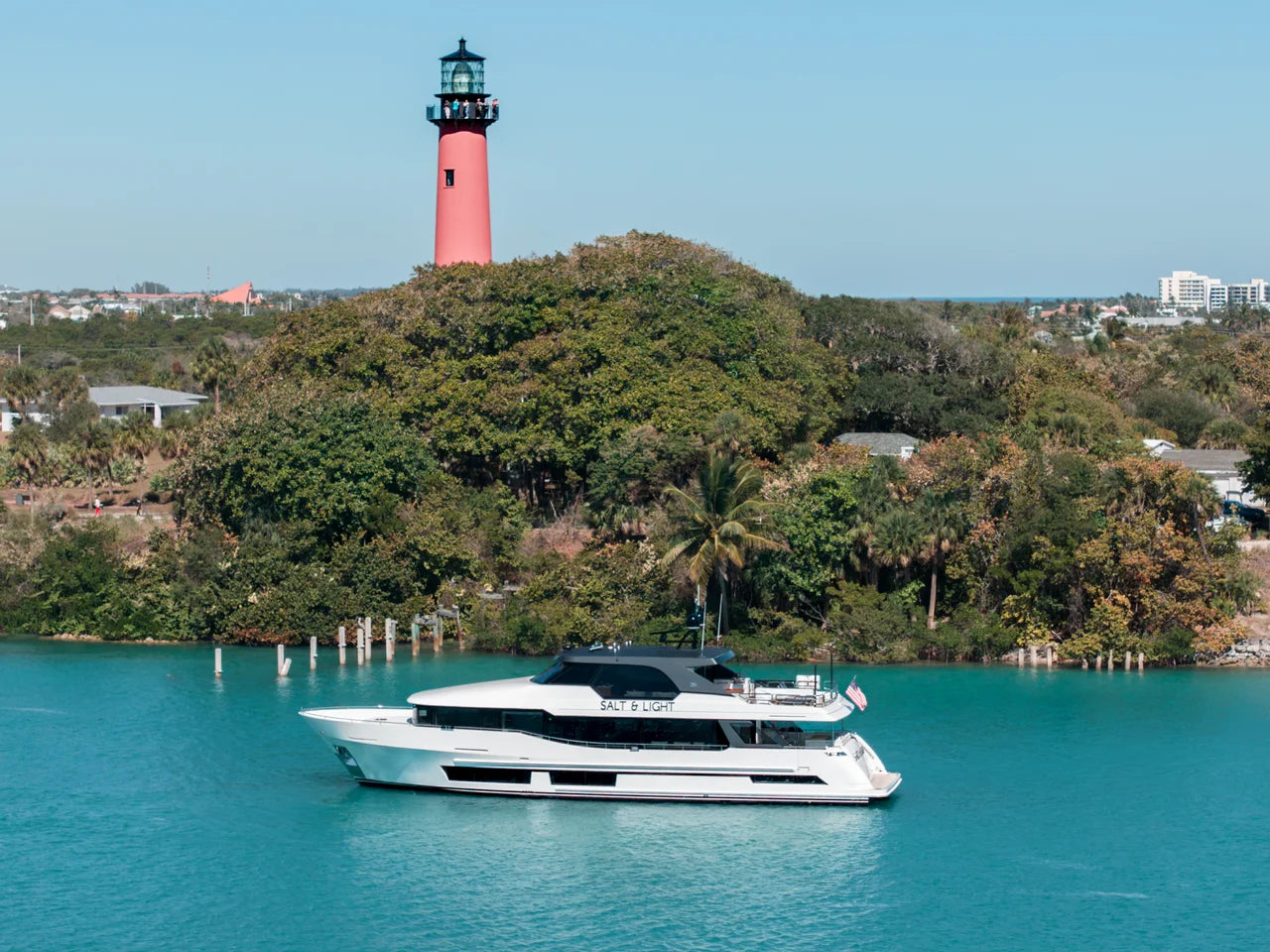

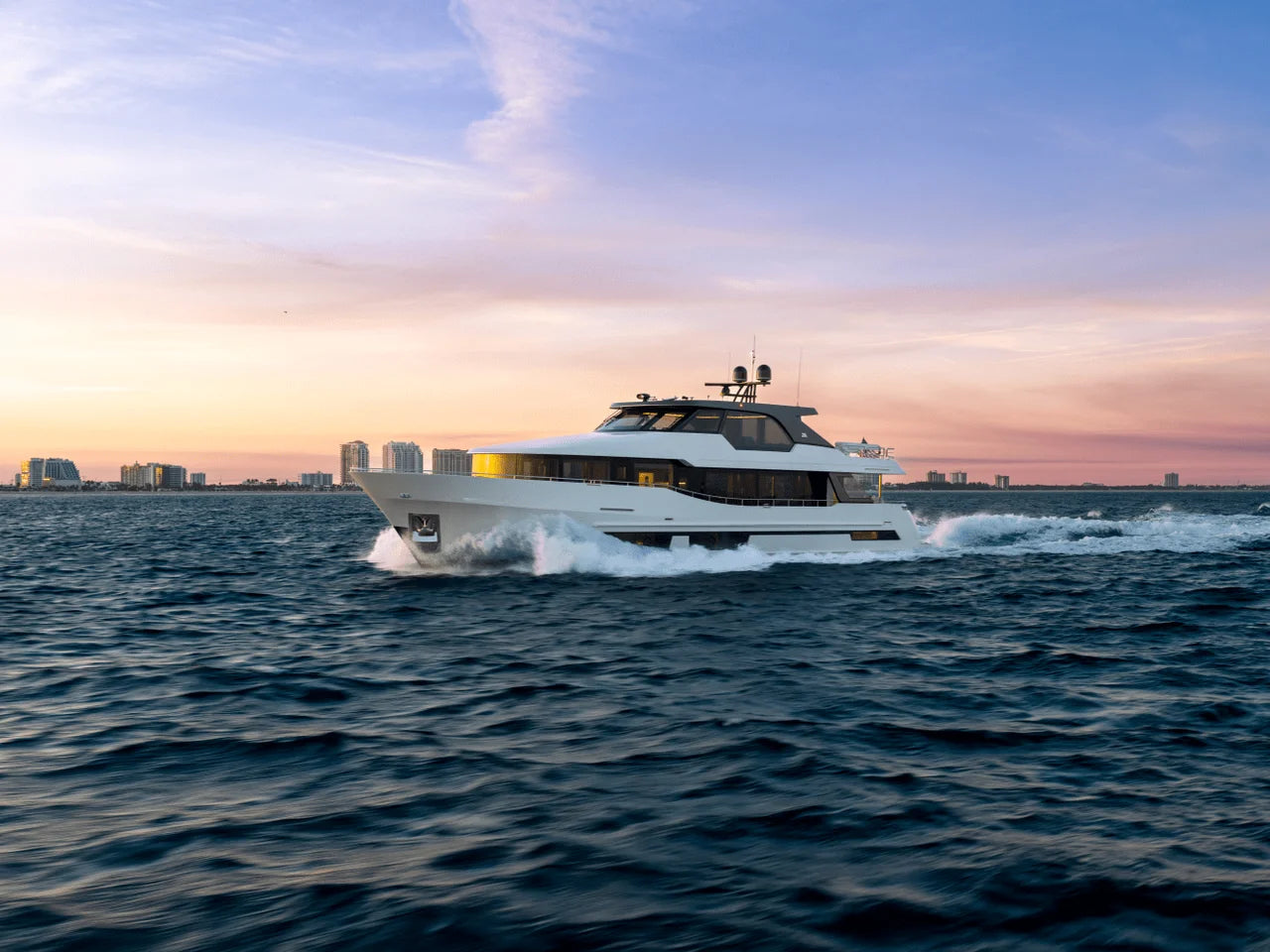

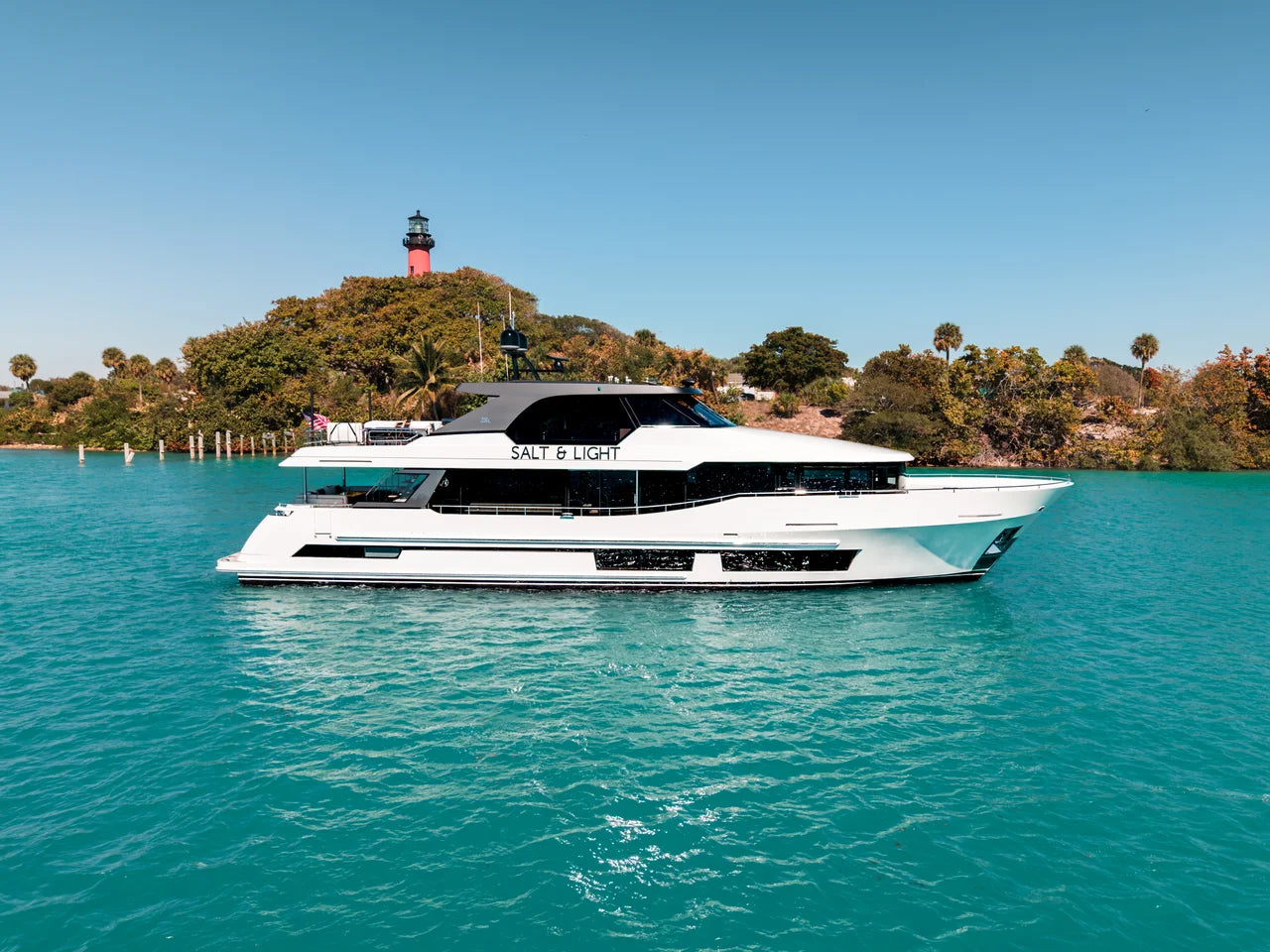

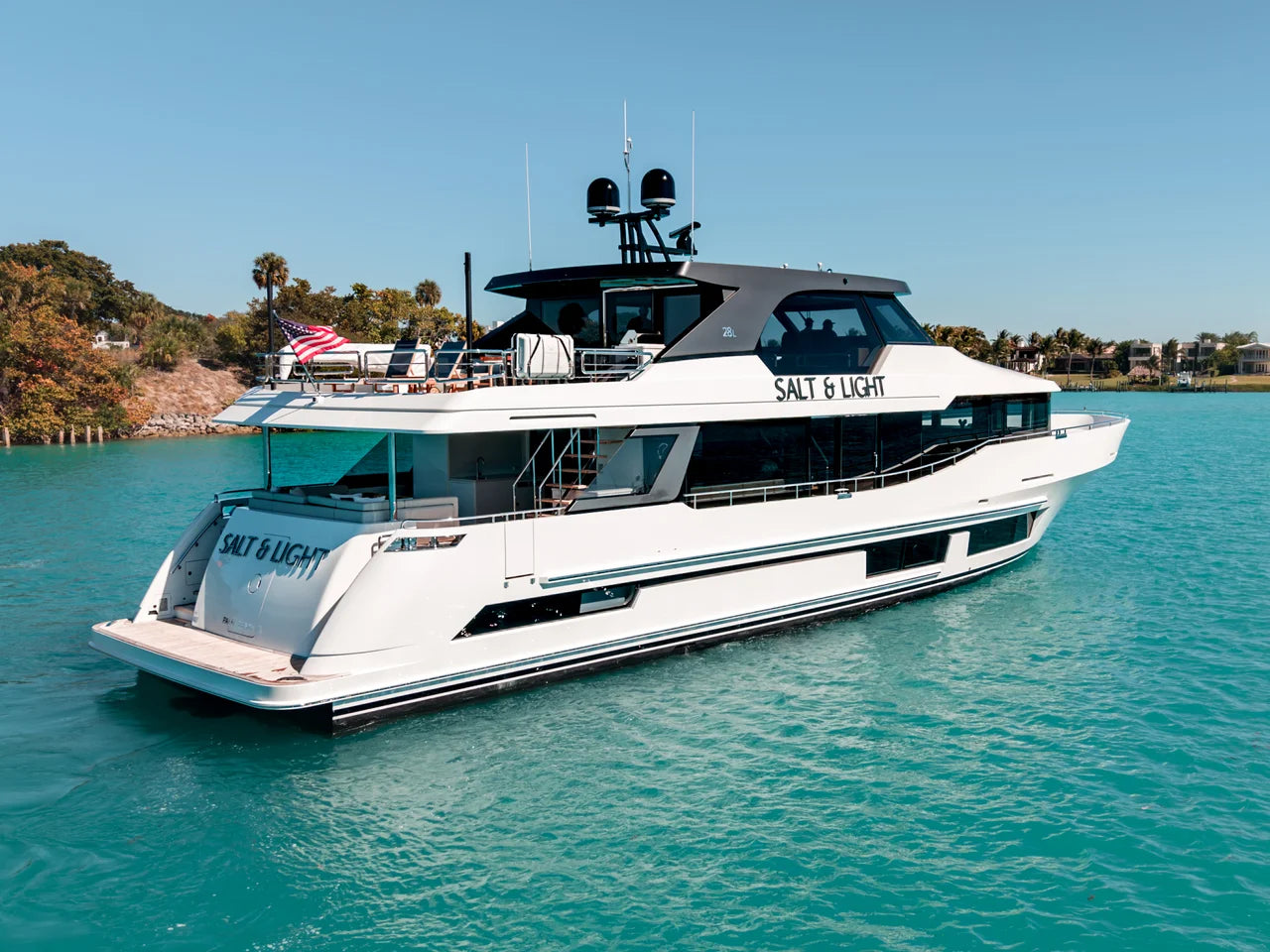

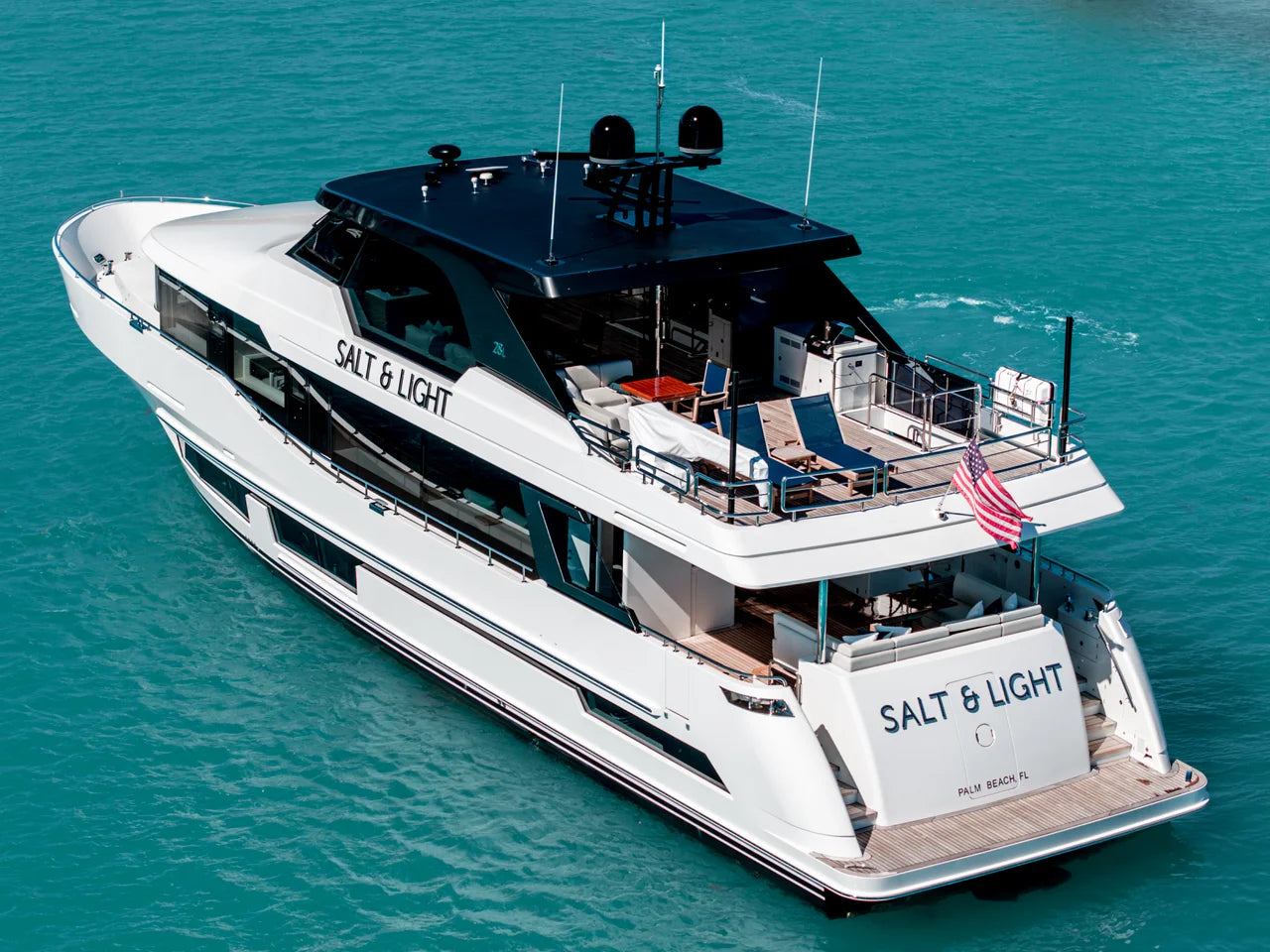

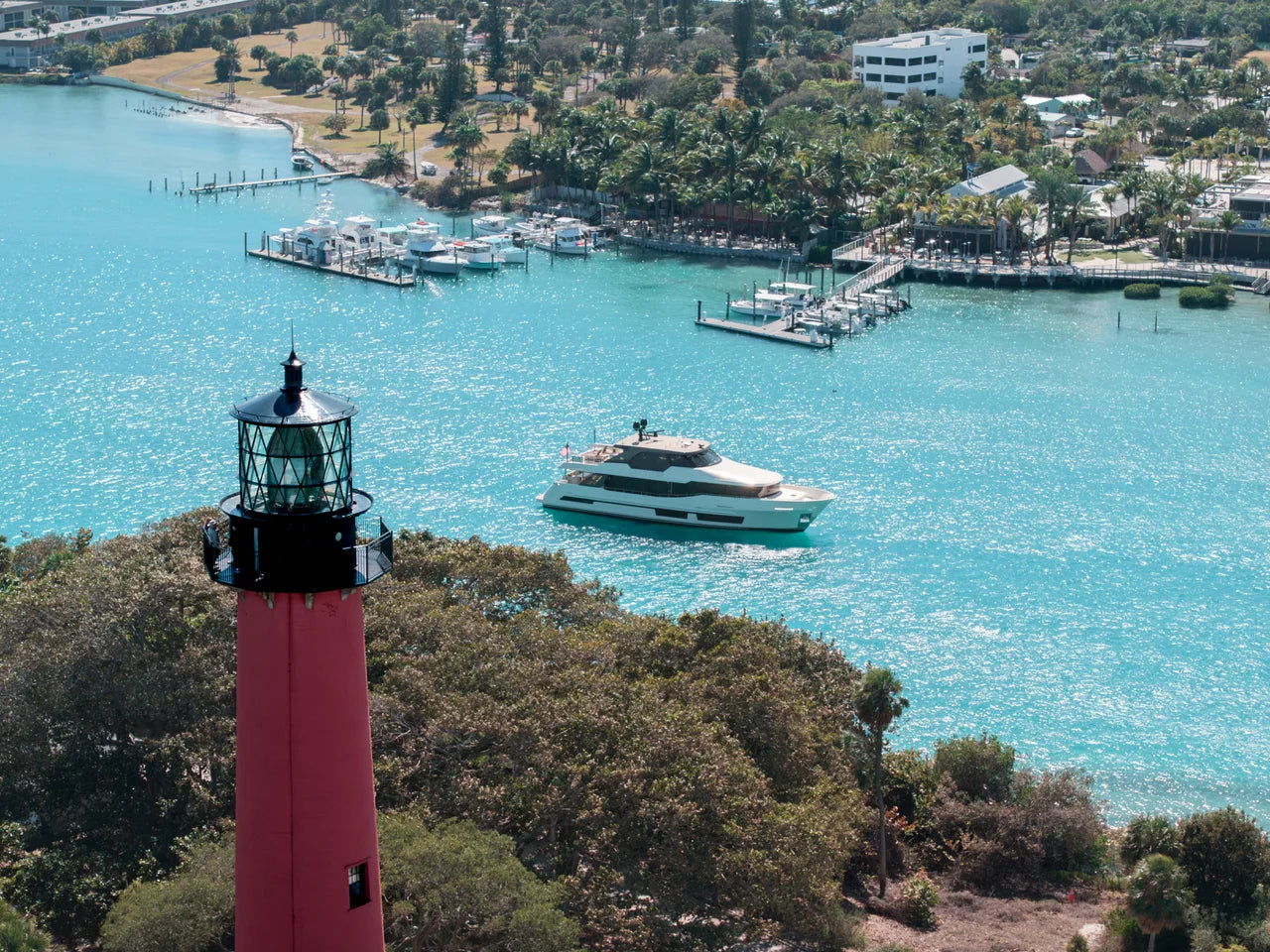

2025 Ocean Alexander 28L
Overview
The Ocean Alexander 28L is a standout yacht in the sub-100-foot category, delivering superyacht-level volume, craftsmanship, and design in a highly refined platform. Designed by Evan K. Marshall, the 28L features an intelligent layout with a forward main-deck dining area with beautiful 180 degree view and open galley that can transition seamlessly between casual and formal use, complemented by a light-filled salon ideal for entertaining. Accommodations include four luxurious en-suite staterooms for eight guests, highlighted by a full-beam master suite amidships, along with dedicated crew quarters aft for efficient operation. Built to Ocean Alexander’s renowned standards, the 28L showcases premium materials, bespoke finishes, and robust engineering, performance, exceptional comfort and performance in a sophisticated, timeless design.
Please call for full details and additional information on this exceptional vessel.
Key Features:
- Stunning Eden Mist interior woods
- Premium Poltrona Frau leather upholstery and accent detailing throughout the interior

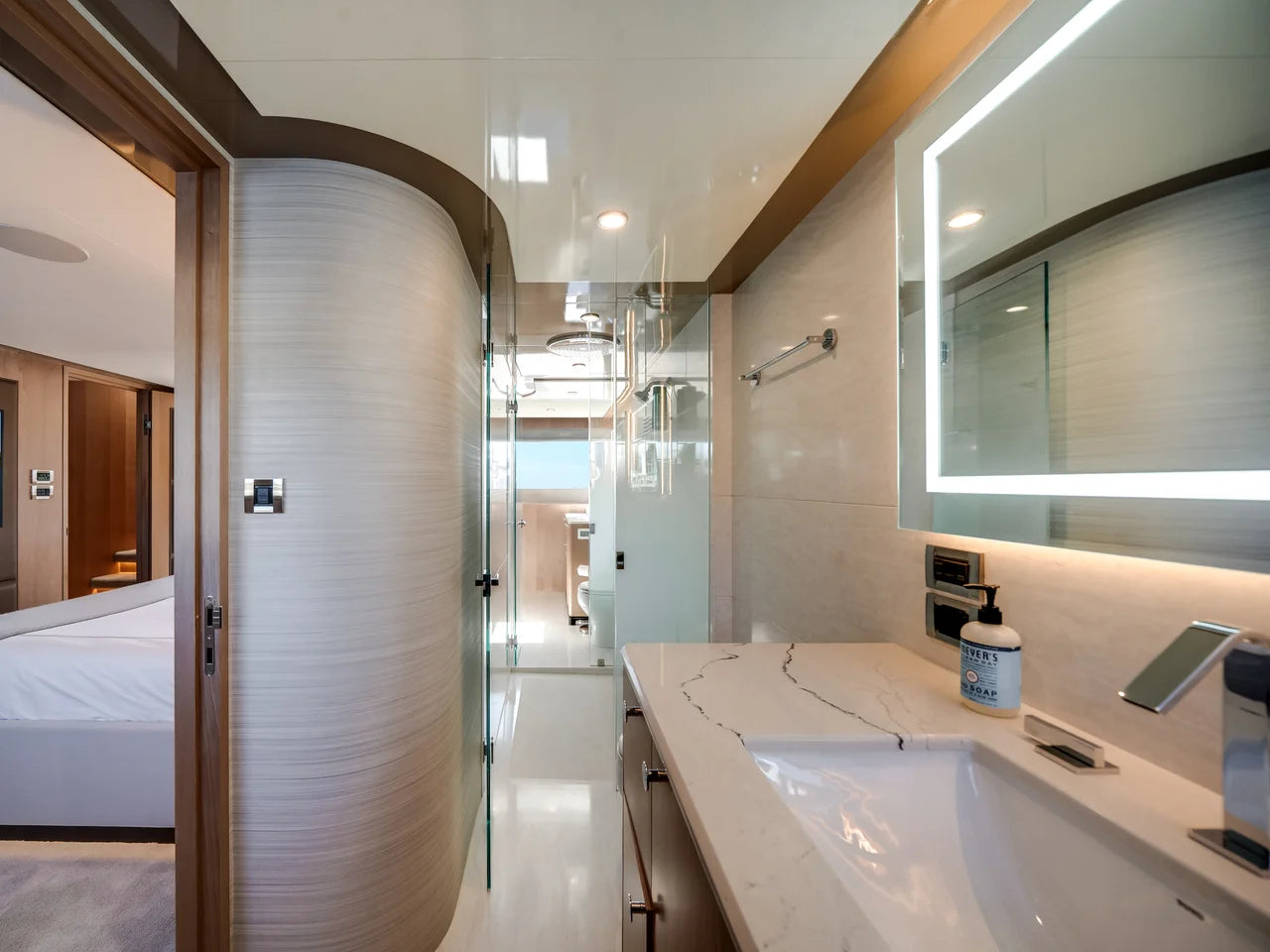

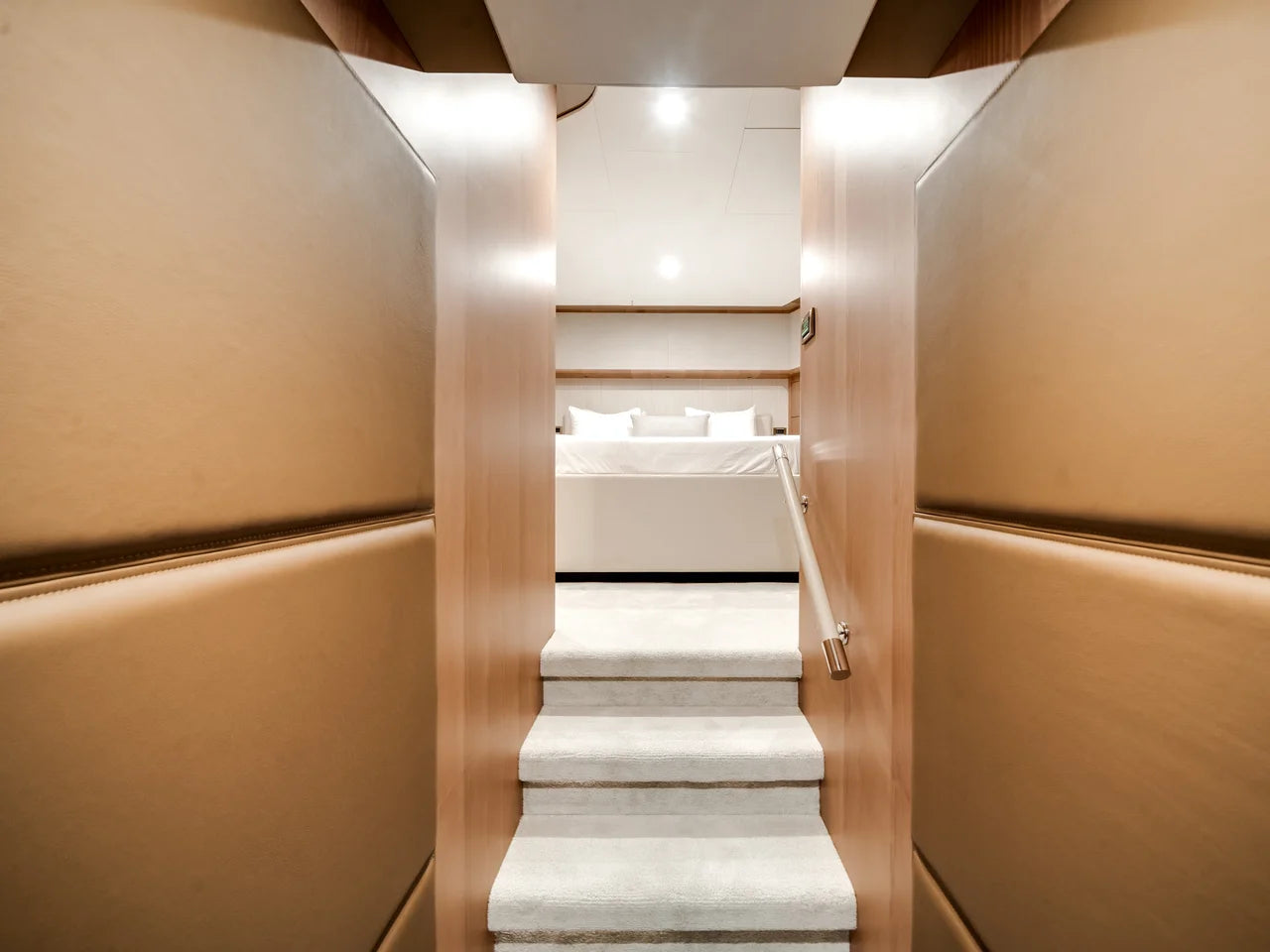

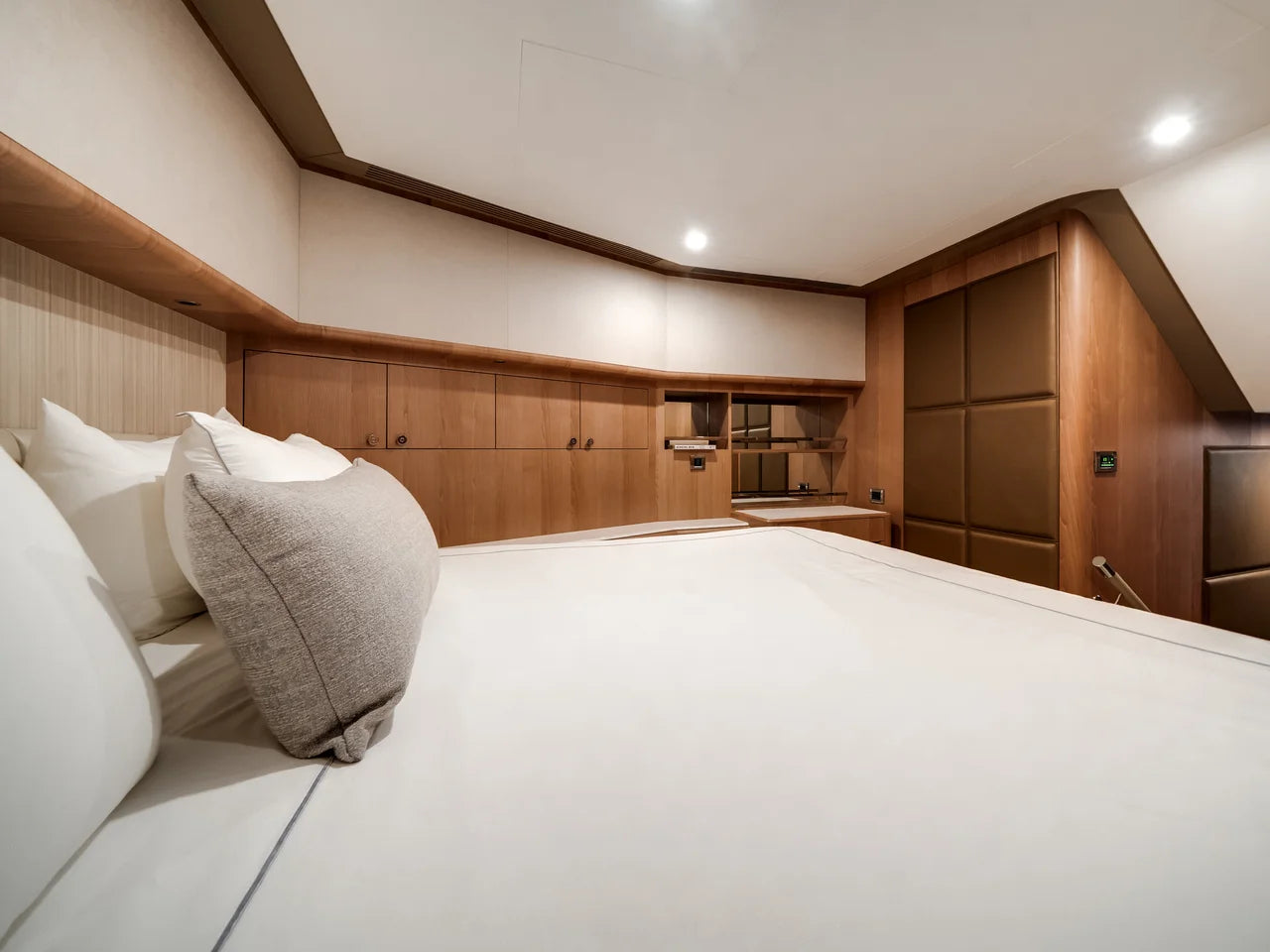

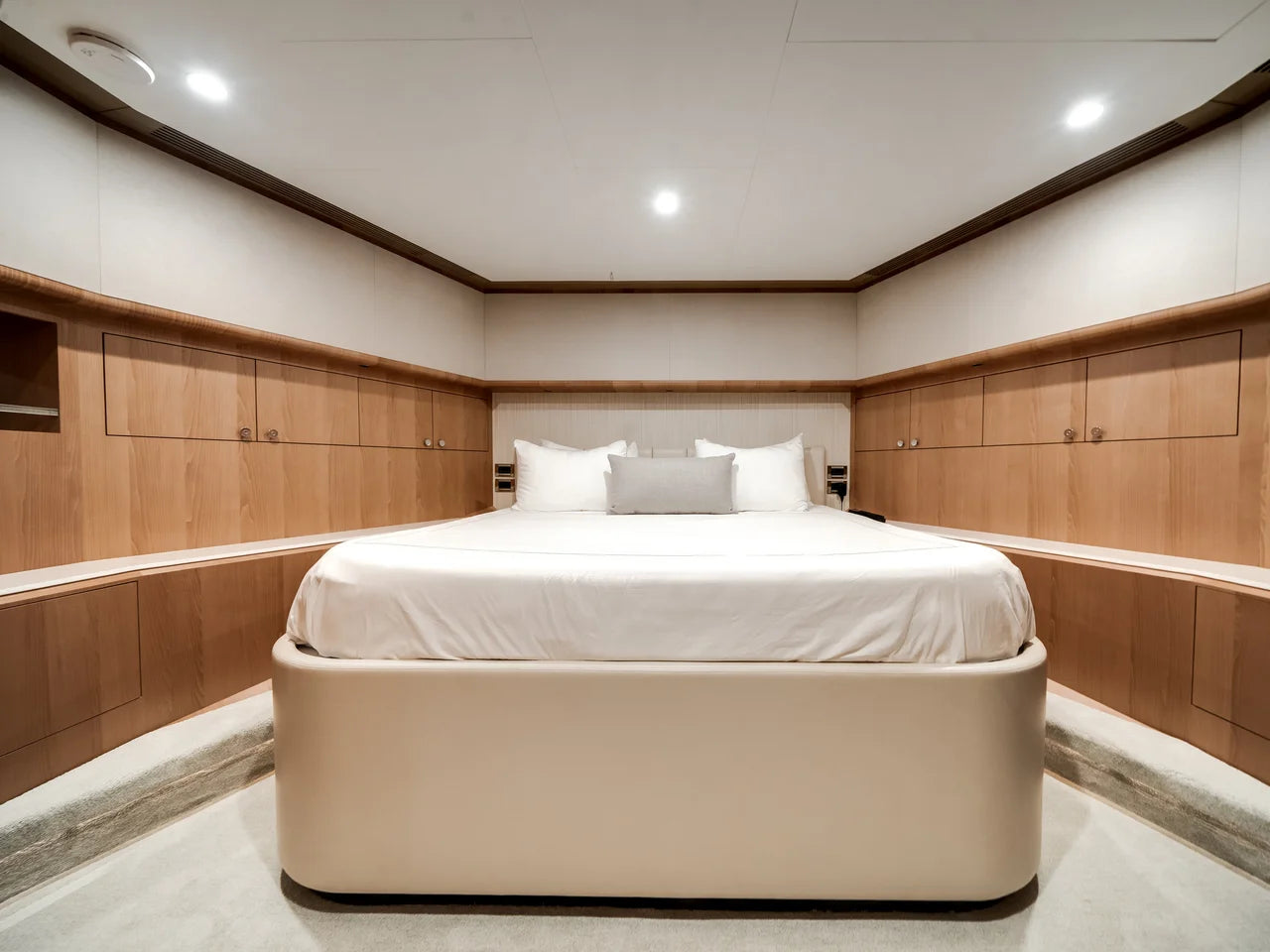

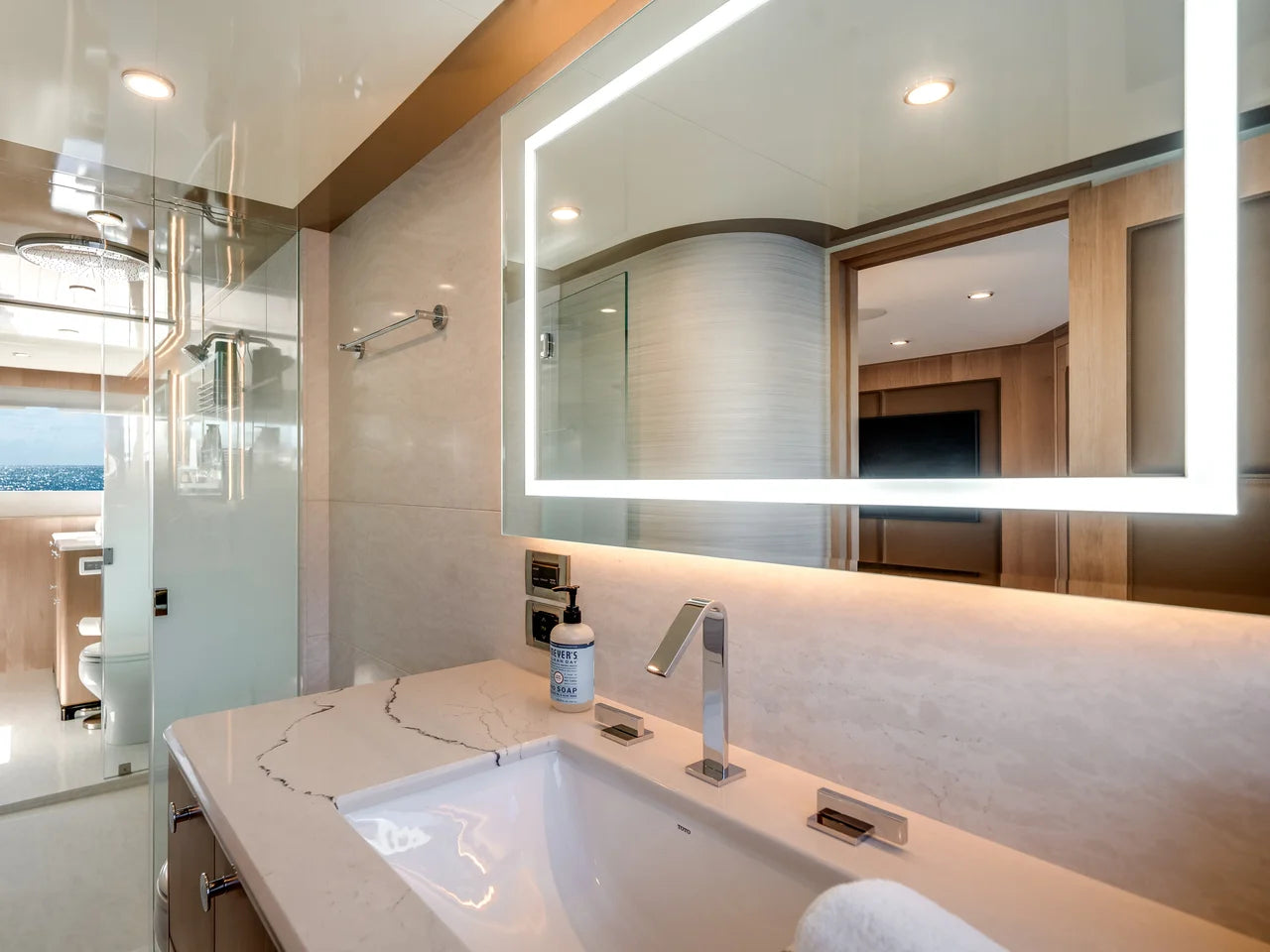

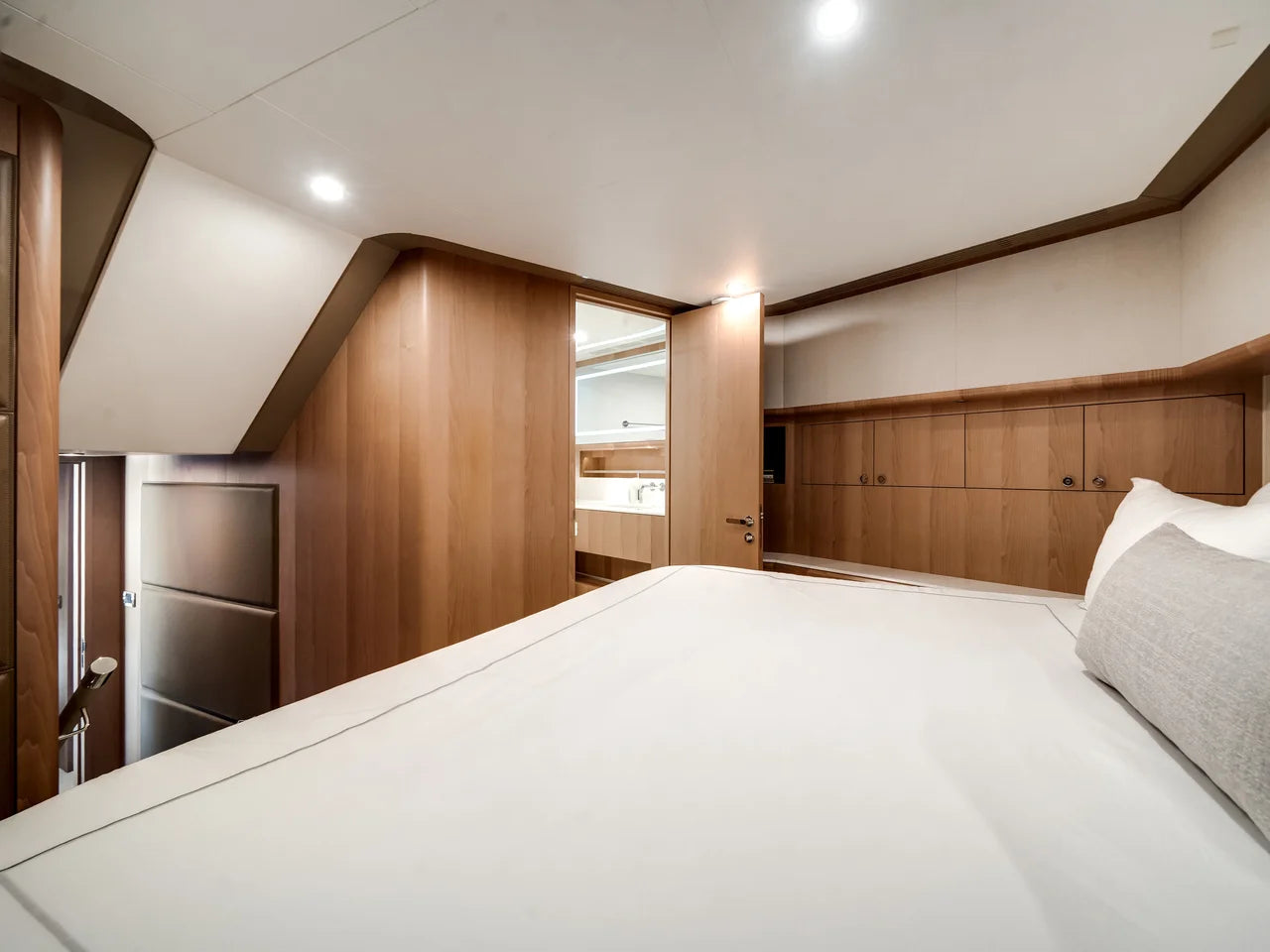

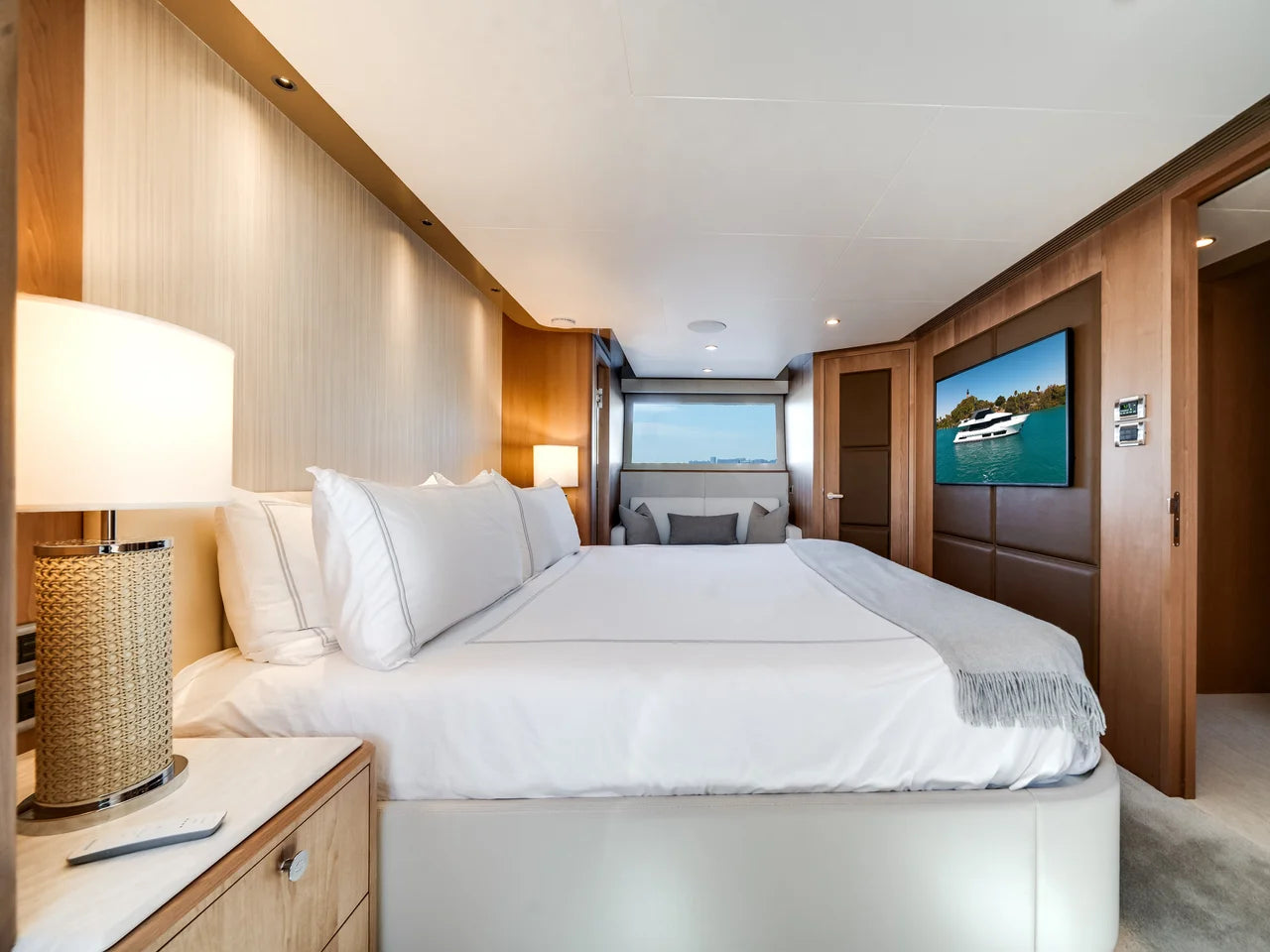

- Full beam master with his/hers sinks and toilets

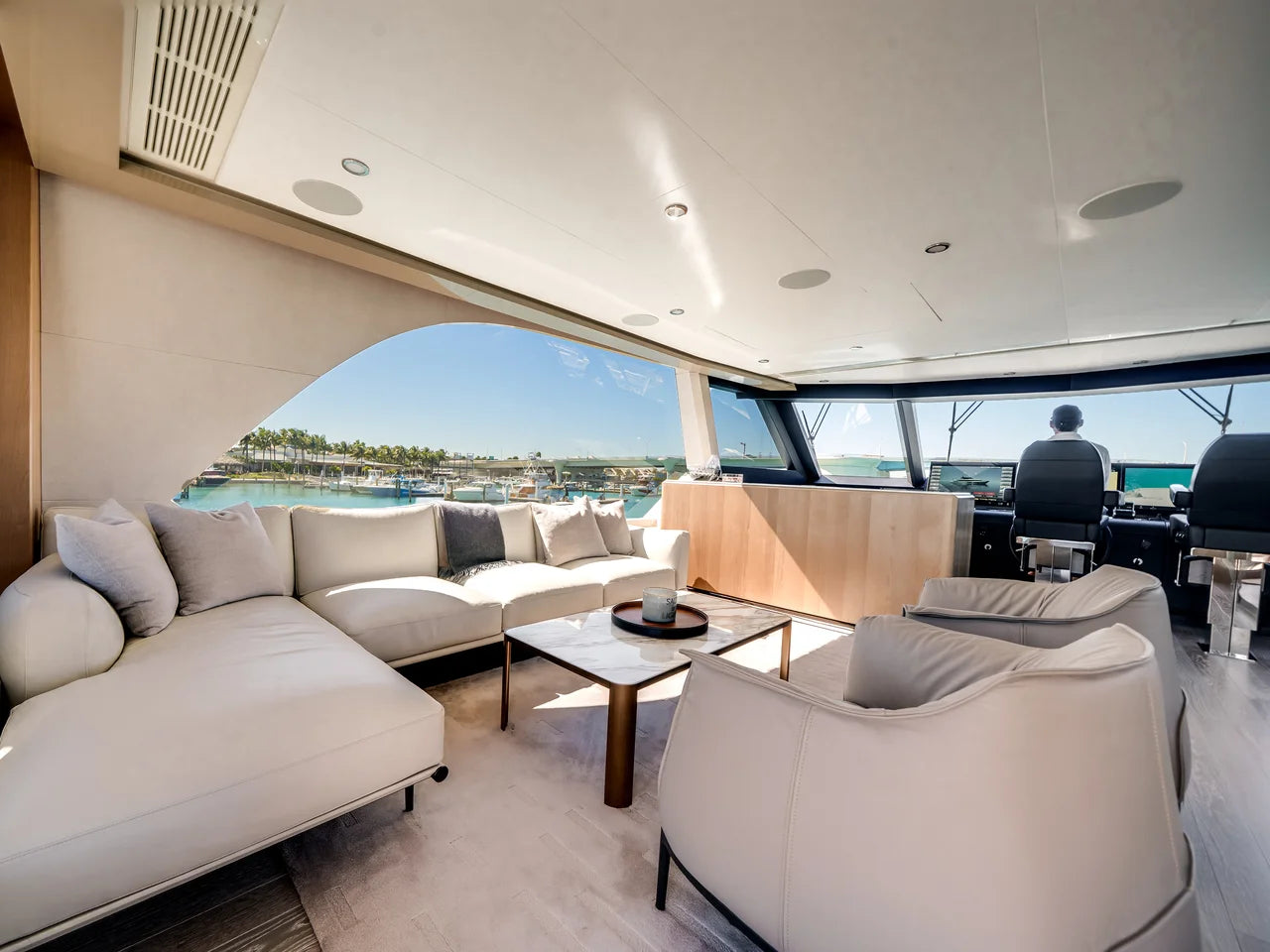

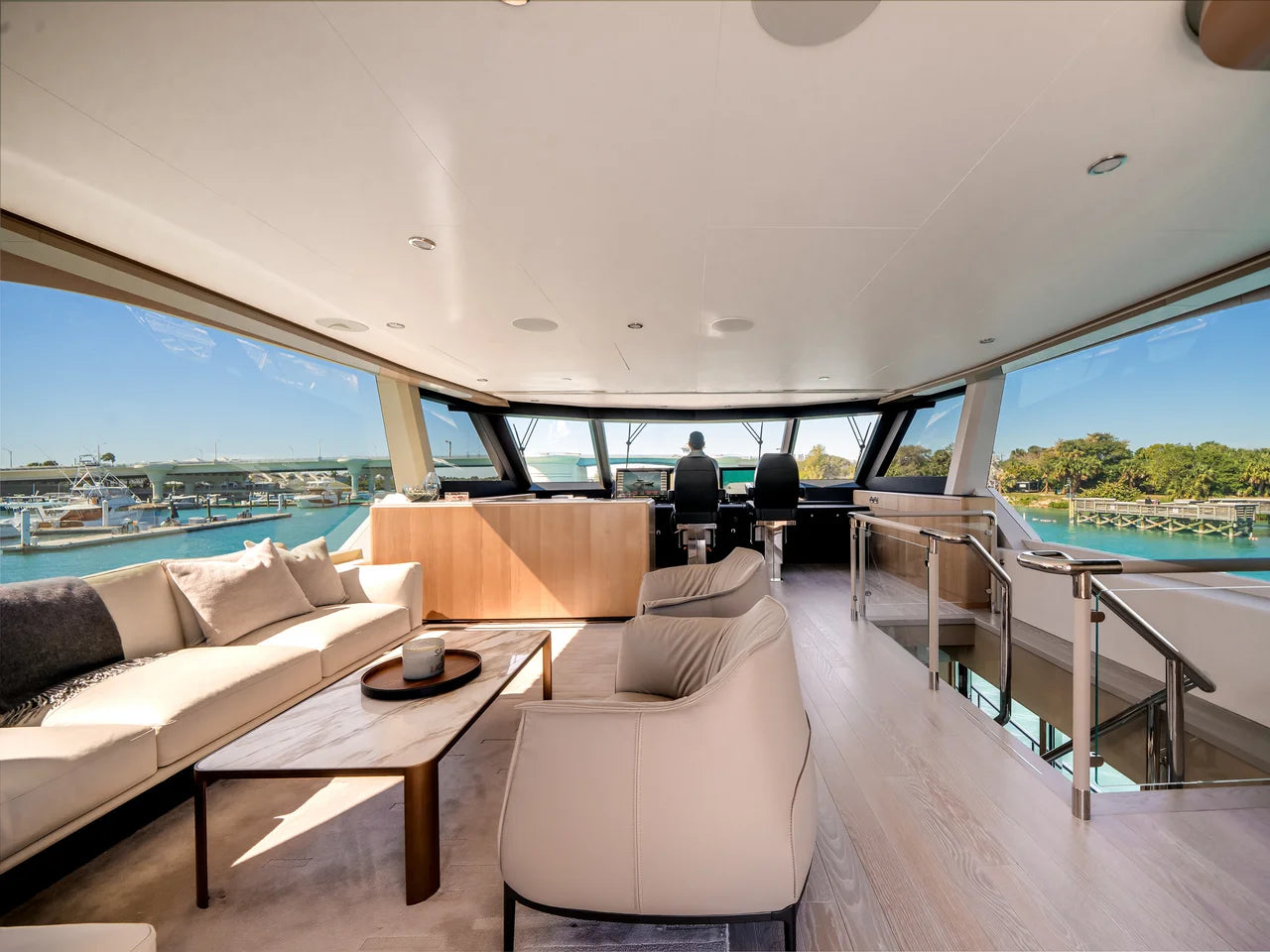

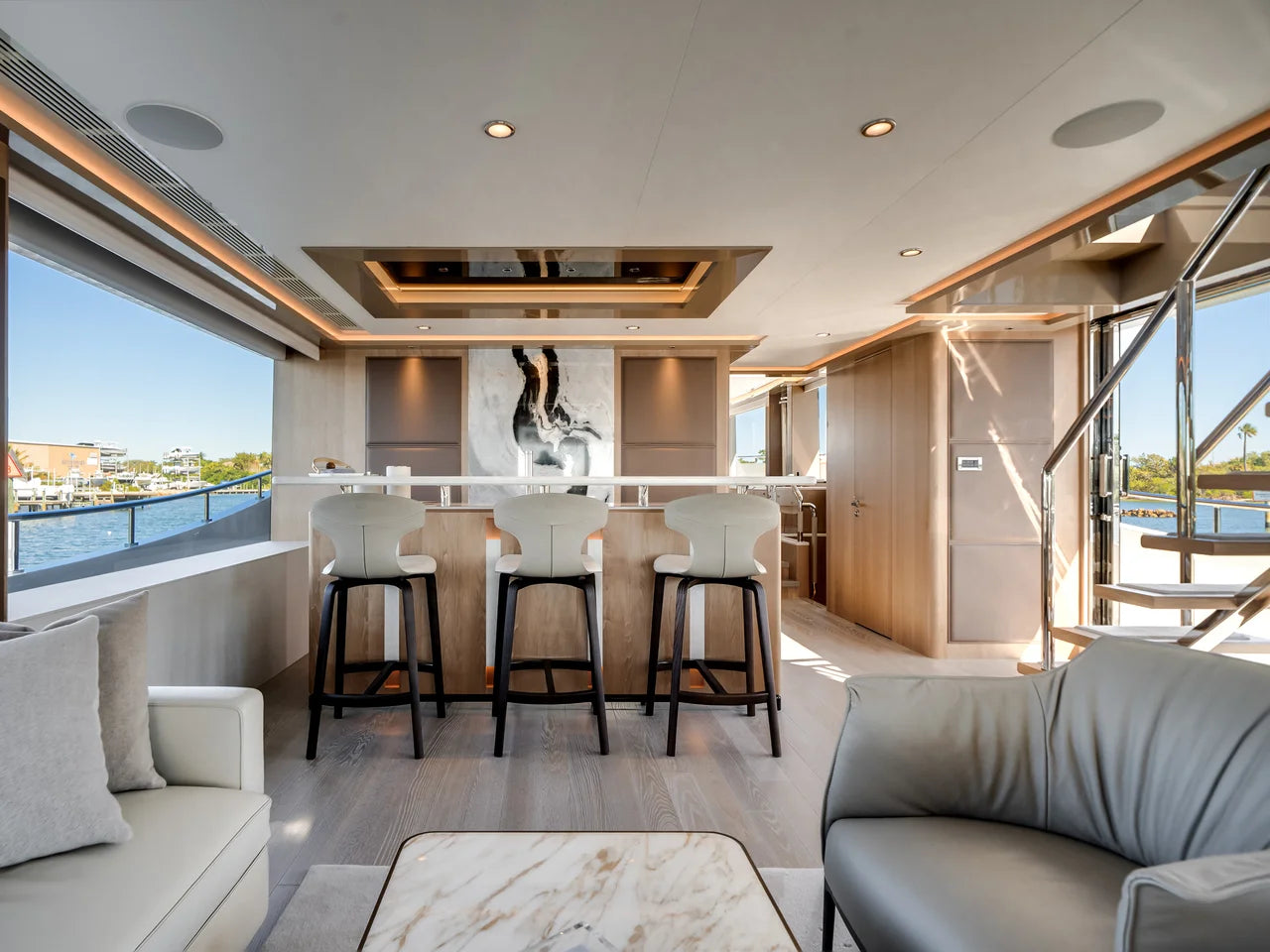

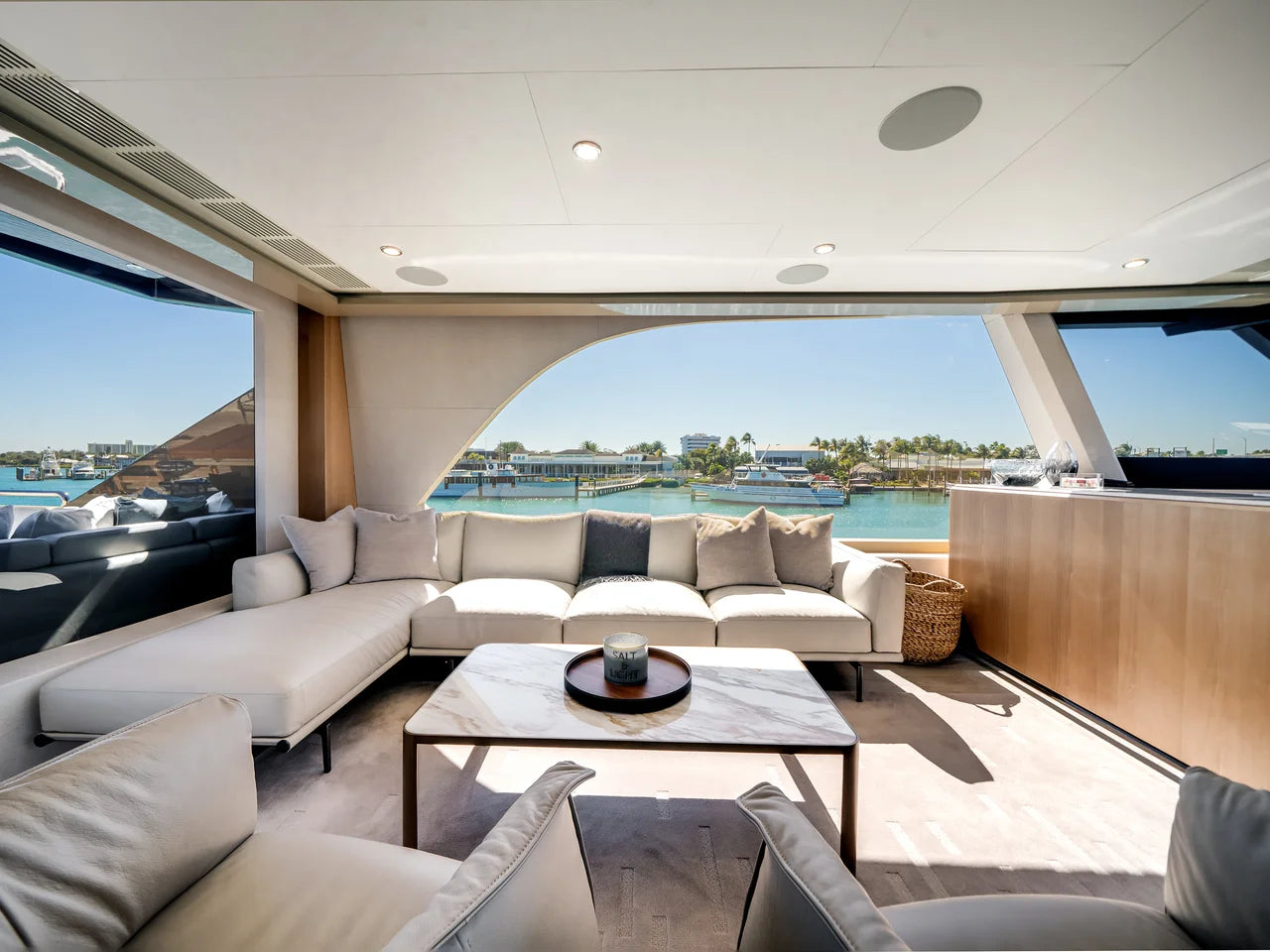

- Sky Lounge with wet bar, TV and day head
- 2500 lbs crane on bridge deck
- Headhunter sweange treatment – 600 Gal/day
- Water Maker w/ intergarded Spot Zero – 1800 Gal/day
- Starlink
- Global cruising package - Atlas power converter
- Side Power stablilization with Vector Fin's - Zero Speed capability
- Extended Cruising package - Install on yacht as back-up, 2nd A/C sea water pump and 2nd A/C circulation pump, 2nd freshwater pump, 2nd hot water pump, 2nd overboard discharge pump.
Features
CONSTRUCTION:
General:
• The Yacht is constructed in high-density closed-cell structural foam. High density foam allows for high temperature and advantages in thermal and acoustic insulation.
• Longitudinal and lateral fiberglass foam-core stringers.
• Fiberglass with Vinyl Ester/Epoxy infusion lamination manufacturing technology, increases strength by 20% and reduces weight by 18% compared to hand-layup.
• Reinforced collision bulkhead.
• Cross-knit carbon fiber in high stress areas to increase structural integrity and torsional strength.
• Water-tight bulkheads with sound and temperature insulation.
• Ocean Alexander employs various techniques to reduce sound and vibration. Some of these techniques include multiple insulation barriers including reflective materials, absorptive materials, dampening materials, air pockets and flexible isolation mounts for controlling sound and noise transmission.
• Painted exterior surfaces with professional grade epoxy-based primers and Alexseal polyurethane paint resulting in the highest gloss retention compared with gelcoat or other paint brands. Guarantee color match by Alexseal®.
• All exterior hardware to be 316 stainless-steel or per manufacturer requirements.
• Aluminum components meet marine grade 5052 or 6061 specification.
• Engine foundation: Main engine stringer will be constructed from stainless-steel plates custom formed to encapsulate over engine structural stringers. Allows for industry leading support and isolation.
• Frameless windows.
• Exterior ceiling panels removable for easy service of navigational electronics and plumbing runs.
• OA uses CPVC instead of PVC in both potable water system and chiller A/C system. CPVC can handle temperature up to 200°F (93°C), while PVC peaks at 140° (60°C). Reducing risk of joints
and pipes failing, and therefore, failure of the plumbing system. CPVC piping is also extremely resistant to corrosive chemicals. CPVC can handle salts, caustics, and acids better than metal and other thermoplastics. There is no pH limitation either, which means that it can hold up to large pH swings with no damage.
• Sound insulation above bilge mechanical areas with rubber for motors.
• Lightning protection system. Lightning arrestor pole installed on mast with dedicated ground cable to grounding plate attached to underwater hull surface. Minimizes potential lightning strike damage to yacht electrical and critical systems.
Hull/ Bottom:
• Interior structural components all bonded to hull.
• Three coats of "self-polishing" antifouling bottom paint shall be applied on three coats of anti-blister epoxy barrier coats.
• Rub rail w/ 316 stainless-steel striking plate.
• Bronze through-hull fittings.
MECHANICAL:

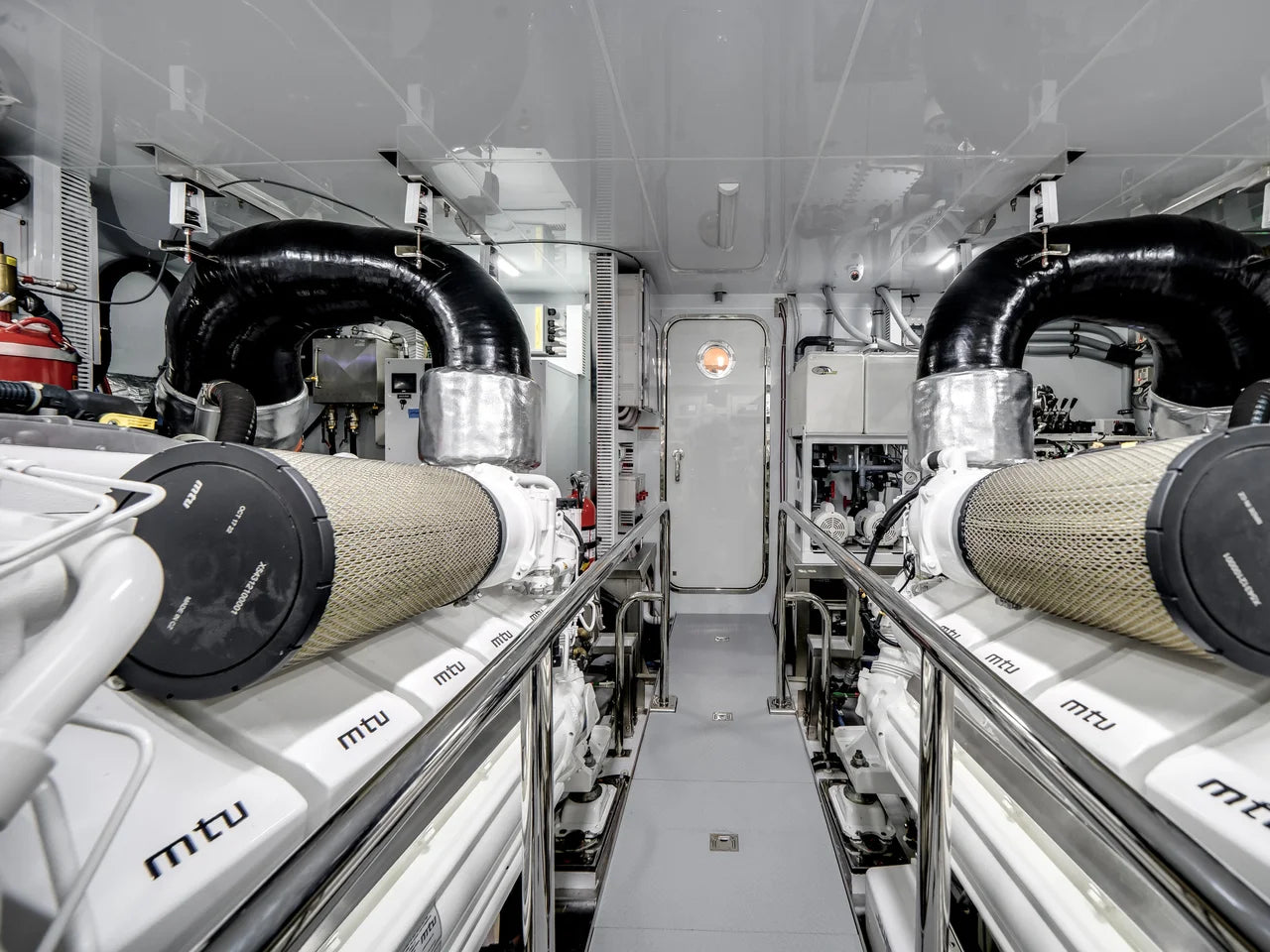

Main Engines:

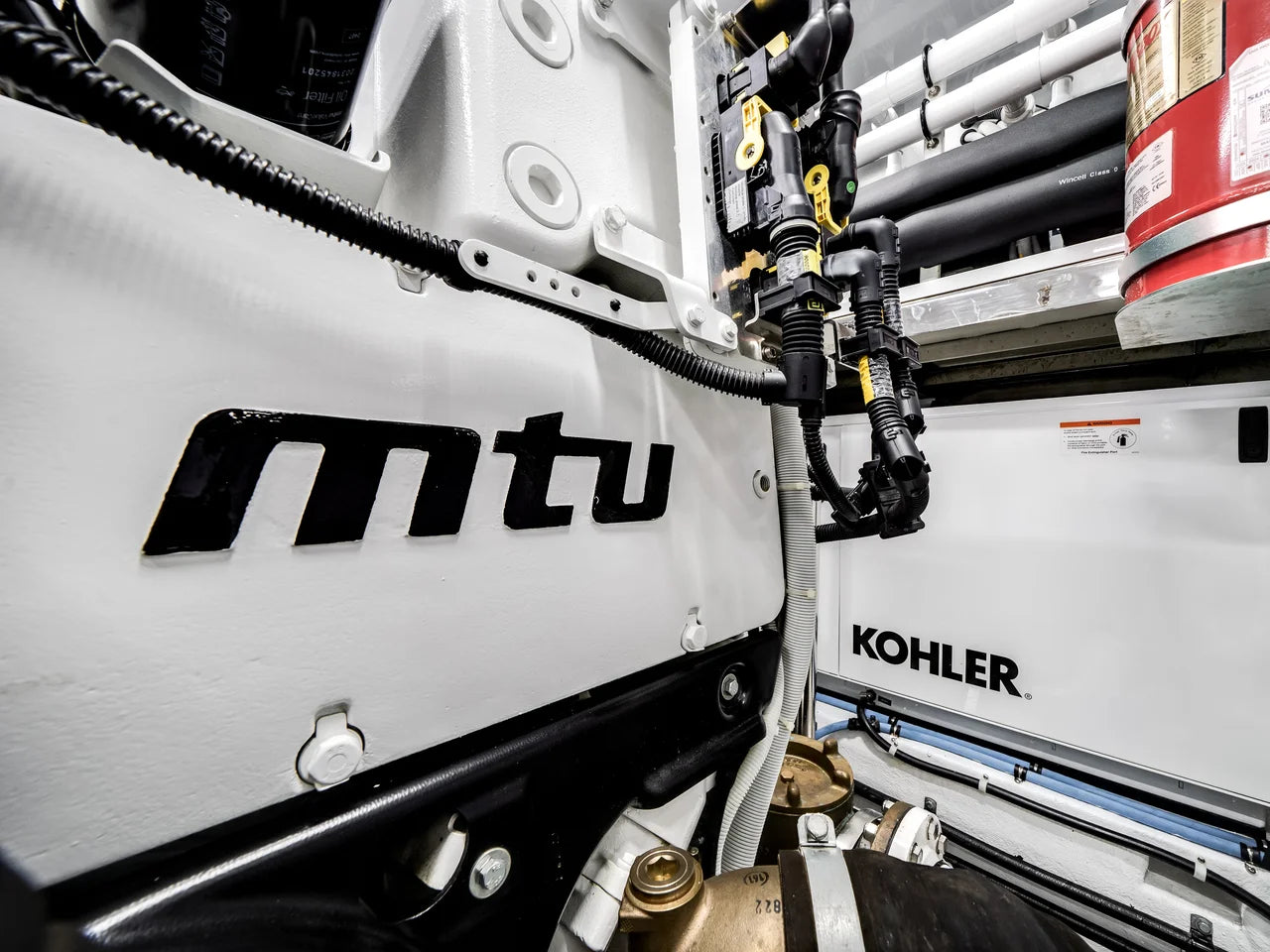

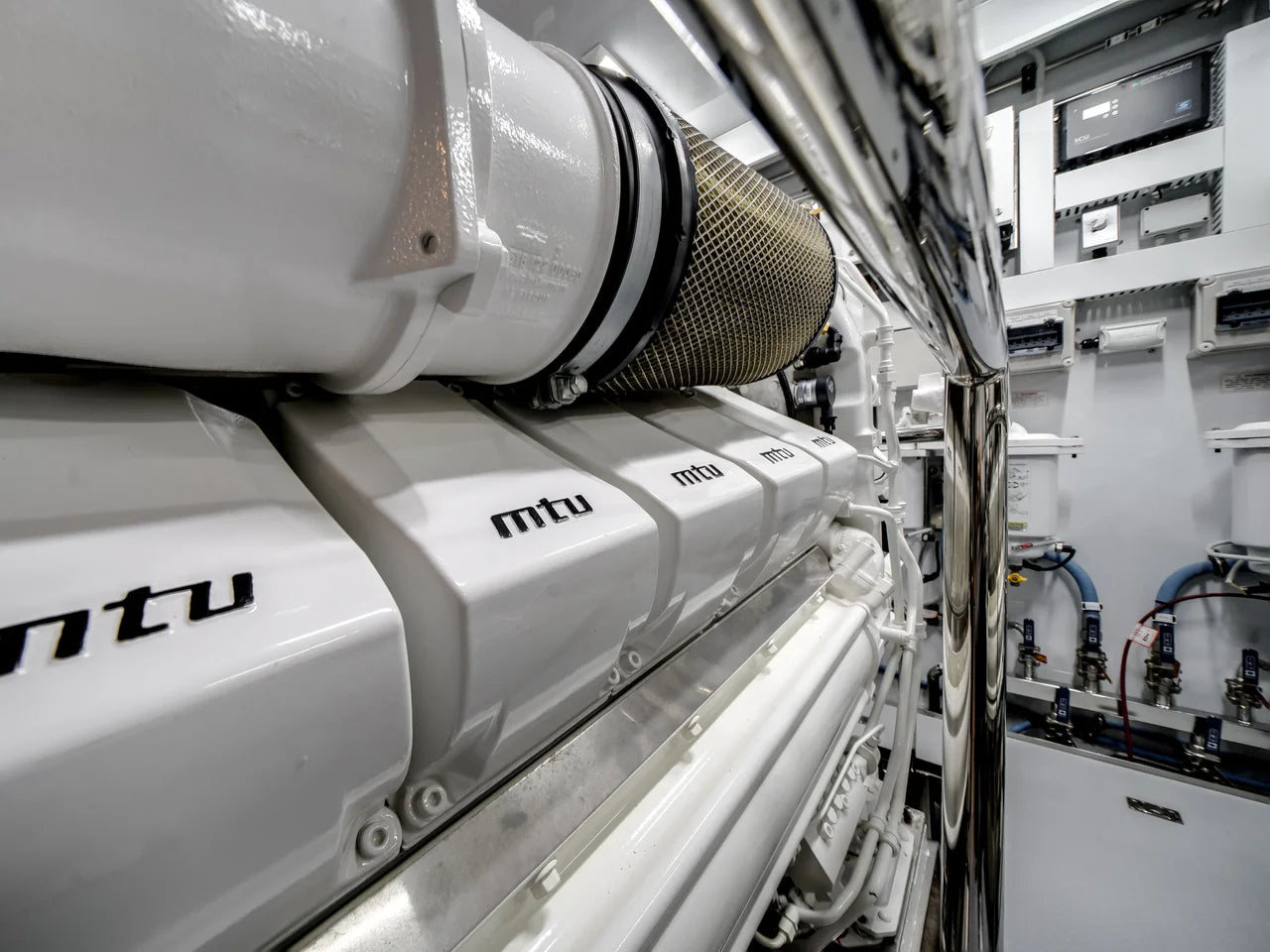

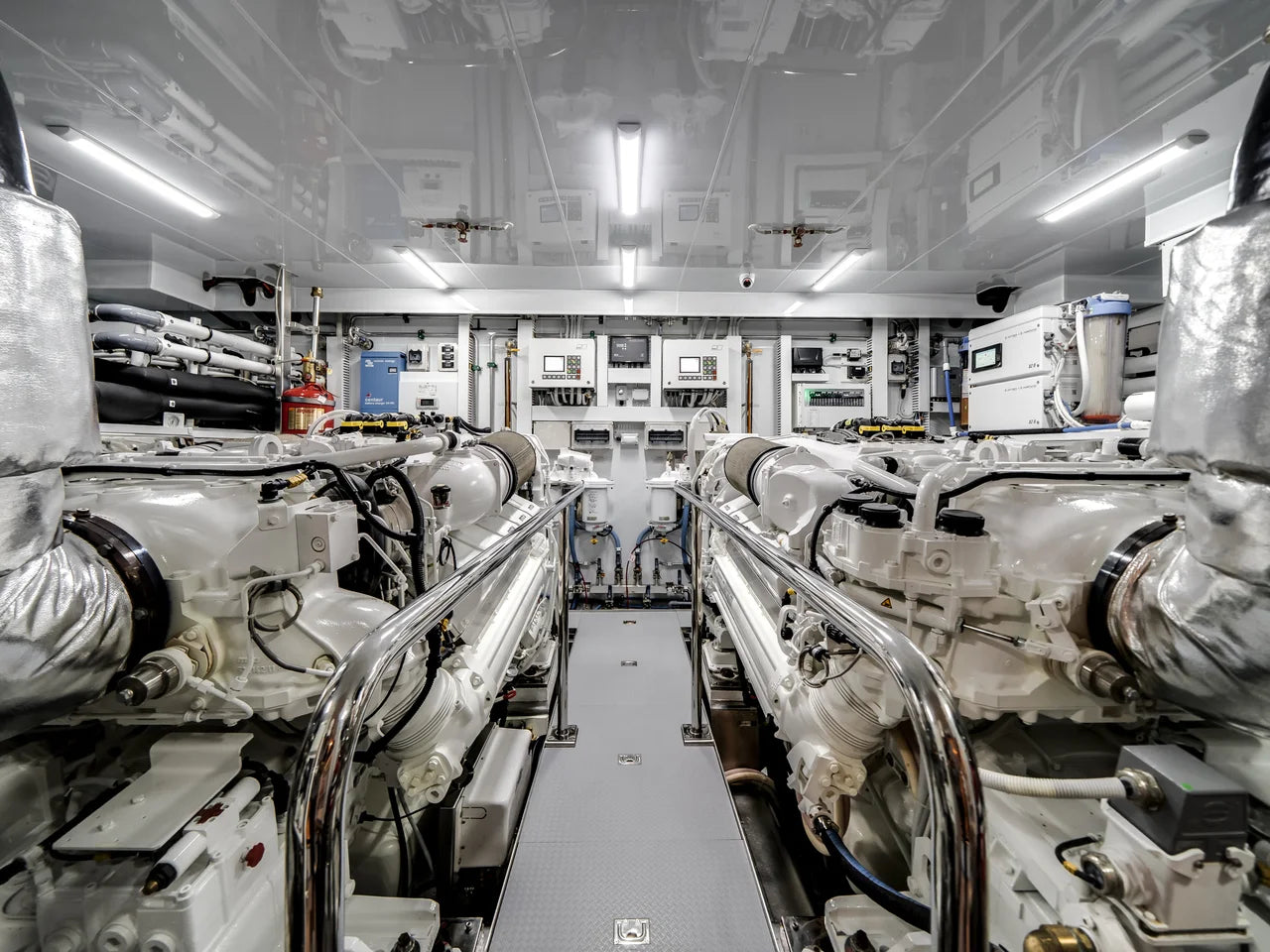

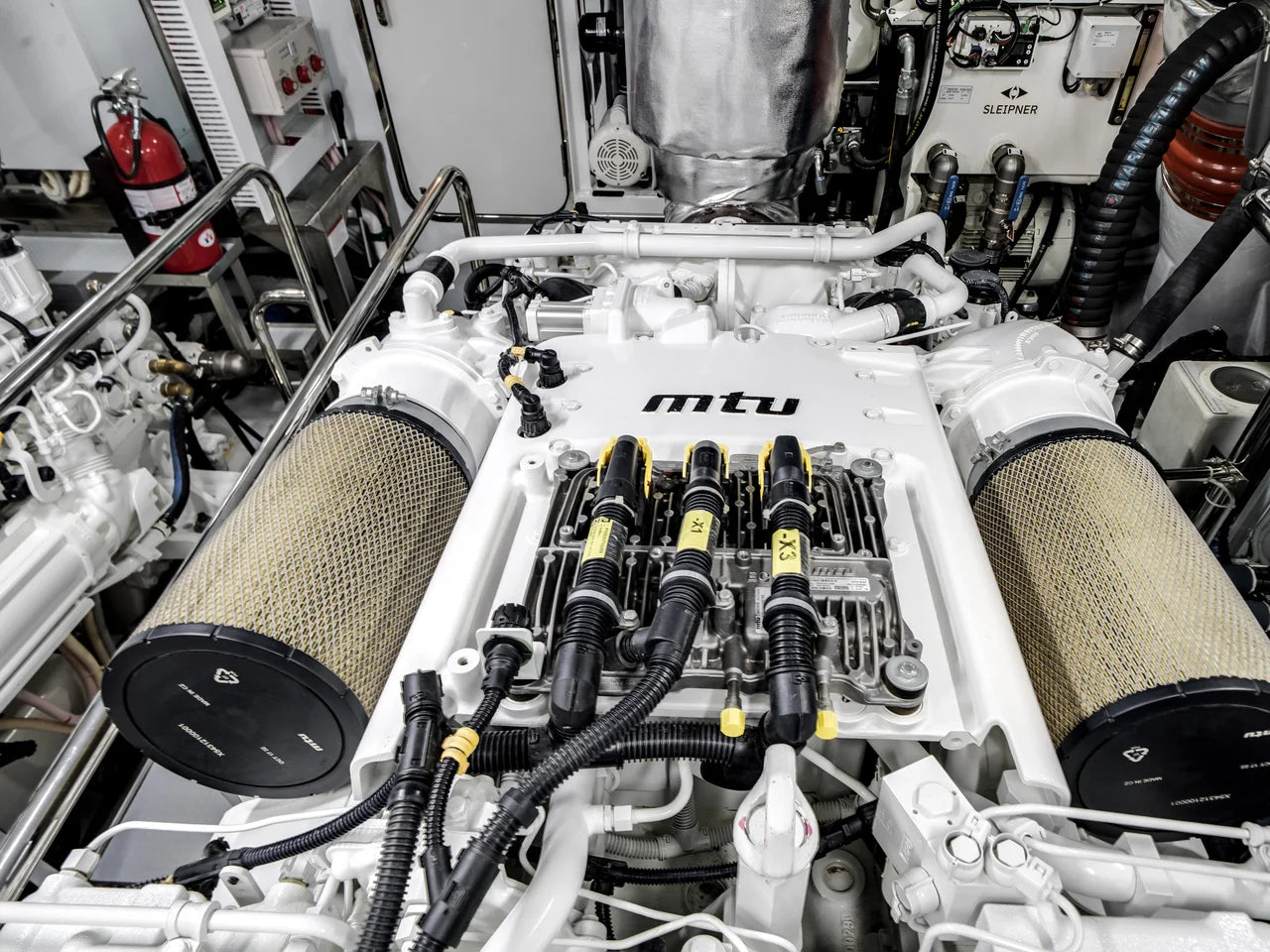

• MTU® V12 1600 HP engine includes: 60-month warranty on main components: crankcase, crankshaft, connection rods, flywheel.
• Add plug-in engine wired remote at aft deck and bridge deck.
• Stainless-steel engine stringer caps and stainless-steel removable rails on side of engines.
• Delta-T® intake/exhaust fans with variable frequency drives shall be mounted to facilitate the intake and/or exhaust of air through the machinery spaces and providing a high air exchange rate.
Air intake & exhaust ducts shall have fire dampers installed with manual and automatic triggering that shall be tied into the machinery shut down circuits.
• Delta-T® moisture eliminators shall be installed at front of intake and exhaust ducts.
• Delta-T® fans for engine exhaust located on superstructure vs hull side. Maximizes water protection and salt spray intrusion into engine space, extending life of engine room components.
• Hard coating with Al6XN alloys on exhaust, provides higher corrosion resistance, especially in the forms of pitting, crevice, and stress cracking.
• Engine raw water-cooling using cupronickel 90/10 which offers superior corrosion resistance and inherent bio-antifouling.
Stabilizers & Thrusters Package:
• Sidepower Vector Fin 15 sq. ft. (1.4 sq. m.) hydraulic stabilizer fins with zero speed stabilization function.
• Sidepower patented "curved" fin design not only provides lift underway it is also unique in the industry with active "predictive" inertia control.
• Up to 50% more efficient than flat fins at anchor.
• Up to 30% more efficient than flat fins underway.
• 48.SHP for bow and 42.6HP for stern thrusters.
Shafting/ Propellers/ Steering
• Ocean Alexander designed oversized shafts, rudder, and other drive train systems typically one-class larger than the competition. This results in superior handling and longevity in the Ocean Alexander drive-train system.
• High performance, computer designed and machined Nibral propellers.
• Twin Disc® Hydraulic steering system.
• Stainless-steel rudders w/integrated zinc plates.
• Ocean Alexander 5-blade propellers to provide better holding power and handling.
• 22HS or similar high-grade austenitic alloy stainless steel propeller shaft that provides superior corrosion resistance along with excellent toughness and high strength.
• Utilization of laser-assisted calibration instrument to ensure alignment of the drive shaft.
Windlass/ Mooring:
• Dual (2) hydraulic vertical anchor windlasses w/ remote foot switches.
• Dual (2) 240 lbs. (108kg) high-holding power anchors. The anchor's chain consists of 250'
(76.2m) on each side, made of 1/2" (12.5 mm), attached to the anchors with stainless-steel
high-tensile swivels.
• Anchor chain wash system for freshwater cleaning of chain during anchor operation.
• Two 1500W, 24VDC motor capstans on aft deck, with control switches.
• Two 316 stainless-steel pop-up cleats for tender mooring.
Air Conditioning:
• Dometic® chilled water system air conditioning system, rated for "Extreme Tropical Climates" (with reverse cycle heat for operation down to 50°F (10°C) water temp).
• Refrigerant type is accepted worldwide under the Montreal Protocols.
• Dedicated engine room air conditioning.
• Ocean Alexander Clean Air System incorporates in-duct Nano-mesh UV sterilization
technology in salon and MSR, remove up to 99.9% of bacteria, fungi, mold, virus, fumes, and reduce odors. System has no moving parts, is completely silent and ozone free. Ensures fresher, cleaner, and healthier air onboard.
Mechanical/ Electrical Convenience Package:
• Oil change system for engines+ generators w/approx. 45 gal. used oil tank.

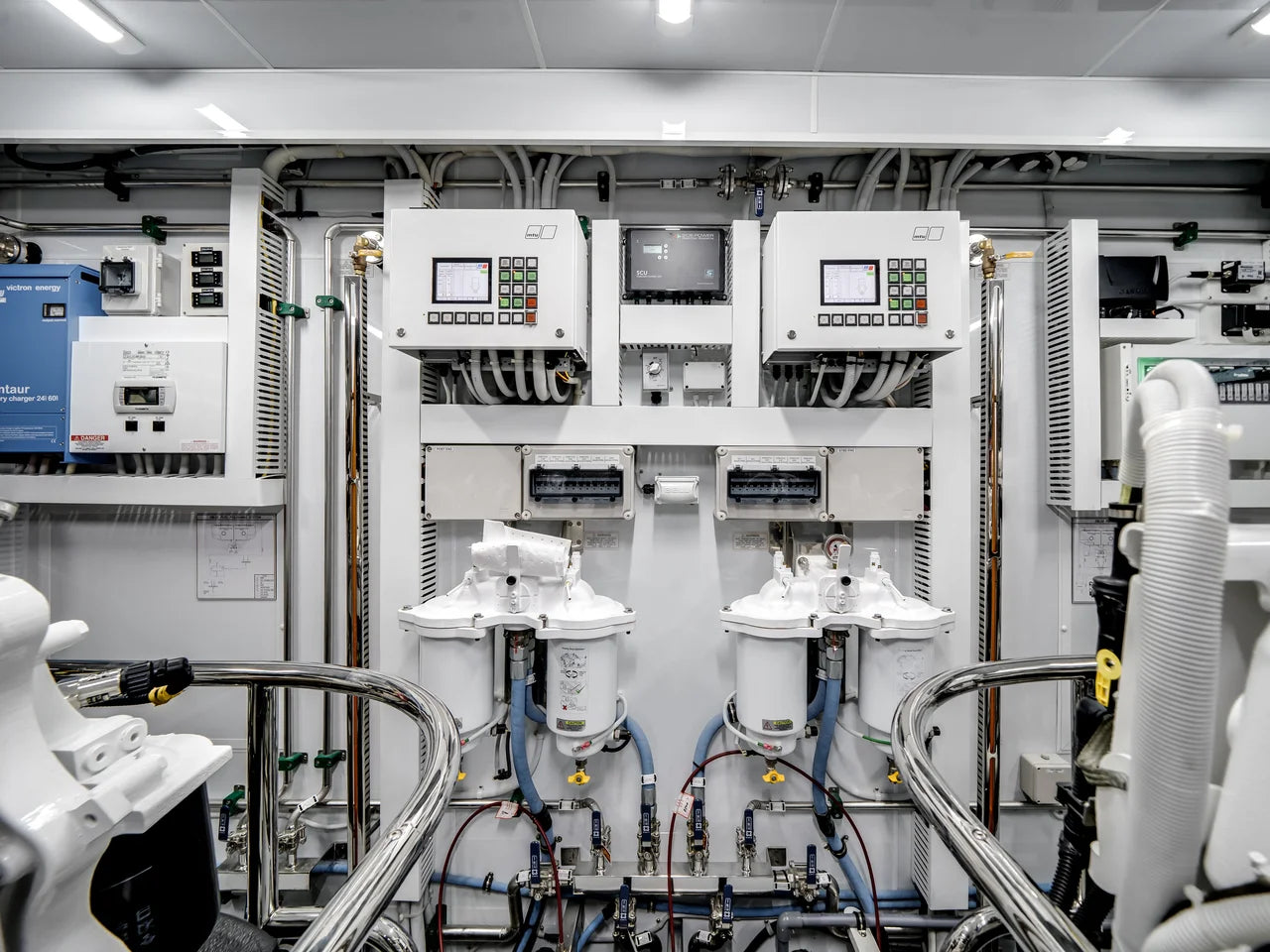

• Gulfcoast™ Fuel polishing system
• Compressed air in engine room, aft deck and boat deck.
• Francis searchlight and spreader lights for swim step and boat deck.
• 3 x 32"touch screens on helm (upgrade from 3 x 24").
• Onboard intranet, driven by SG SIM card capable Wi-Fi router. Allows outside SG Internet card and/or internal intranet net connection via supplied iPad to Systems monitoring, and other onboard video/audio apps.
• Dimmer package for interior and exterior main ceiling lights and salon, master, VIP with KNX programmable lighting.
• Upgrade navigation touch screen from 24" to 32".
• Dual city water inlet system.
• Sea water and compressed air supplying with 110V outlet at boat deck for inflatable slide or other water toys.
• High gain exterior antenna for boosting Wi-Fi signal.
Other Notable Features:
• Heavy-duty commercial grade pantograph windshield wiper & washer with intermittent function.
• Buell™ heavy-duty, 3-trumpet horn.
• Fireboy® (or equivalent) engine room fire extinguisher system with engine-shutdown feature.
• Ocean Alexander proprietary "dry bilge ventilation system" with dedicated bilge exhaust to outside. This provides constant airflow to keep the bilges dry and mildew free.
• Dedicated stainless-steel work bench with vice, Snap-on tool chest, and storage.
• Headhunter sewage treatment system. 600 gal./day (2,271 L./day).
PLUMBING:
Fresh Water System:
• 316 stainless-steel water tank with sight gauge.
• Headhunter™ fresh-water system.
• Freshwater wash down at bow, stern, and upper deck.
• Dockside water connections.
• One 70-gallon (265 liter) hot water heater with high density insulation with dual high efficiency heating element that speeds heating by 50%.
Fuel System:
• Marine grade aluminum fuel tanks with sight gauges and high- & low-level alarms, welded and pressure test to ISO standard.
• Stainless-steel fuel piping system.
• Fuel transfer pump.

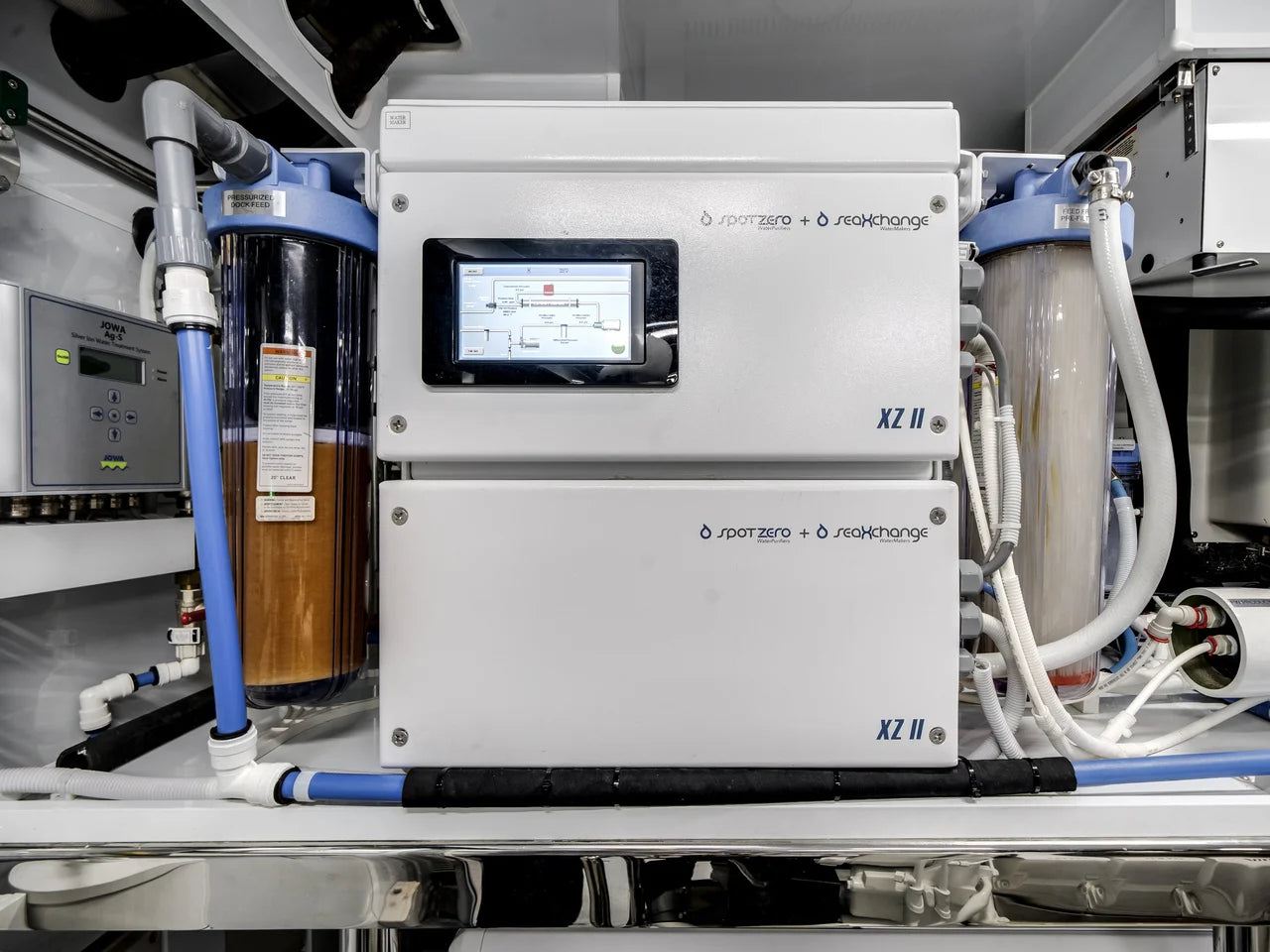

Water Maker and Purification Package:
• Dometic® 1,S00G/Day water maker w/ auto fresh water flush operation and integrated
Spot-Zero XZ premium filtration system for drinking, bathing and cleaning.
• 4-stage "Best in Class" fresh waterfiltration/sterilization.
•Stage 1: City water is initially filtered for heavy metals/large particles and sediment.
•Stage 2: Water maker and City water is filtered for biofilms and with Nano Silver dosing,
biocidal properties are maintained even in water tank.
•Stage 3: From water tank filtered through active carbon (smells and odors) and bacteria filter.
•Stage 4: UV water sterilizer is used as a final line of defense against microbiological bacteria/virus.
ELECTRICAL:
AC/DC System:
• OctoPlex TM NEMA 2000 electrical safety/security control system. Based on aerospace technology for remote activation, control and status reporting of all AC and DC breakers.
Monitors all power sources (AC and DC) for voltage, frequency and amperage abnormalities and provide visual and audio alerts. Includes enhanced circuit breaker functionality with no-load indication. Brown-out capabilities provides sensors for main doors, tank level, bilge, and battery monitoring o current, voltage and temperature.
• This security/safety automatic monitoring and alert capabilities include using Apple iPad or Android for remote access to operate, view, and arm OctoPlex™ data and navigation system with remote notification accessibility.
• Shore power connections: Two CM-8 100Amp cable master with 100' (30.5m) cables with lso-boost which manages voltage drops due to shore power by boosting output voltage, thus keeping electrical system stable.

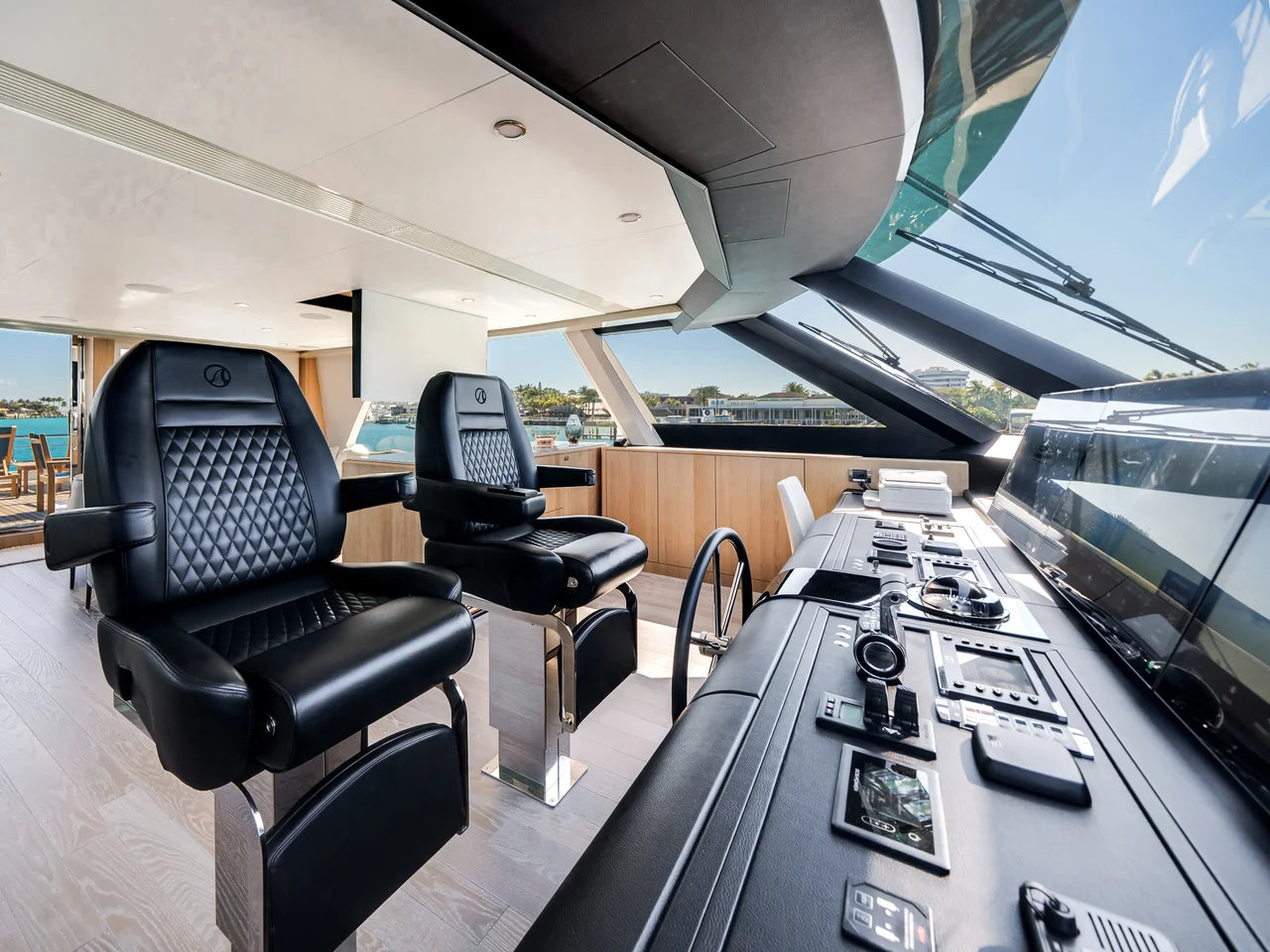

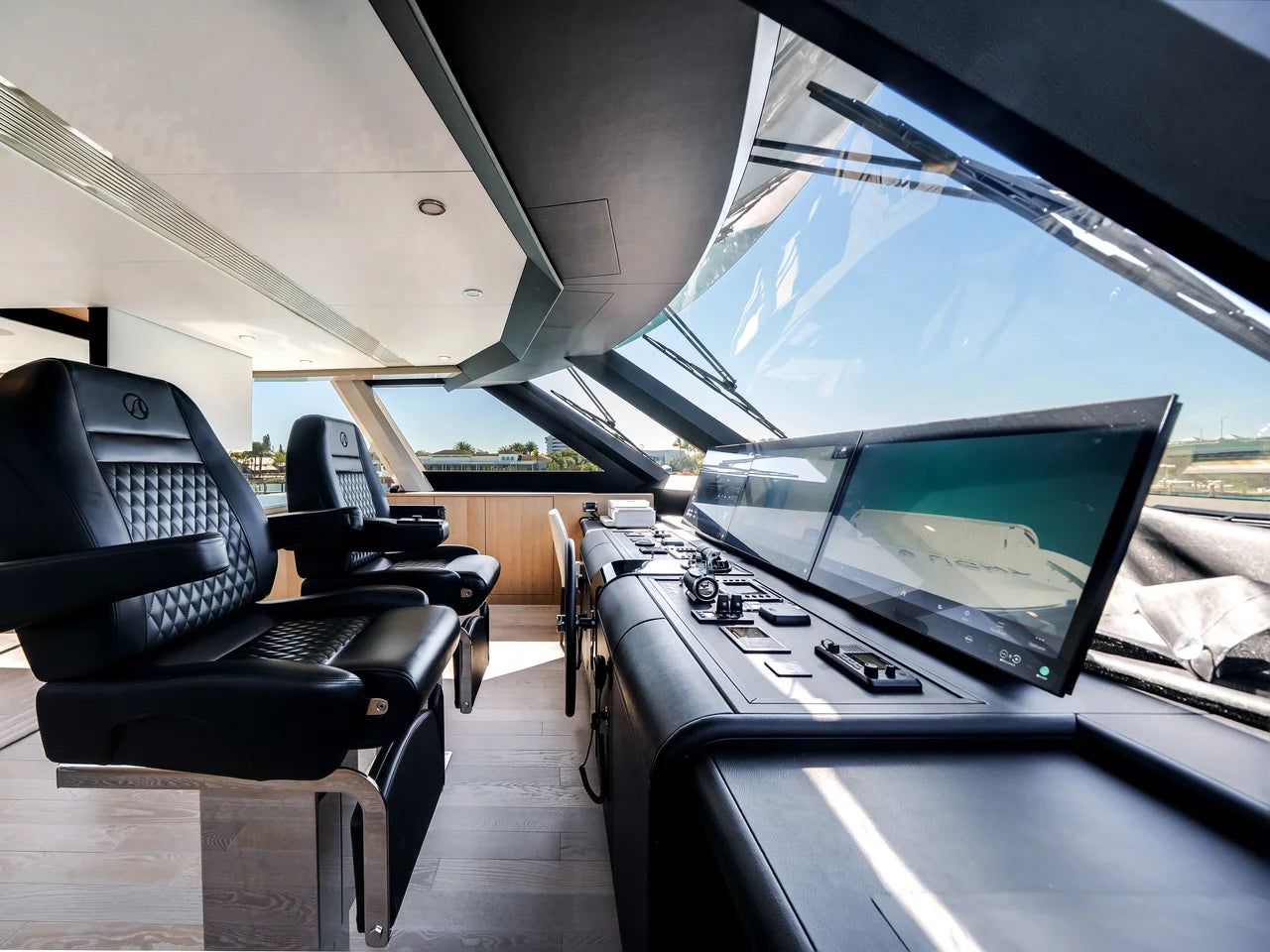

Navigation Package:

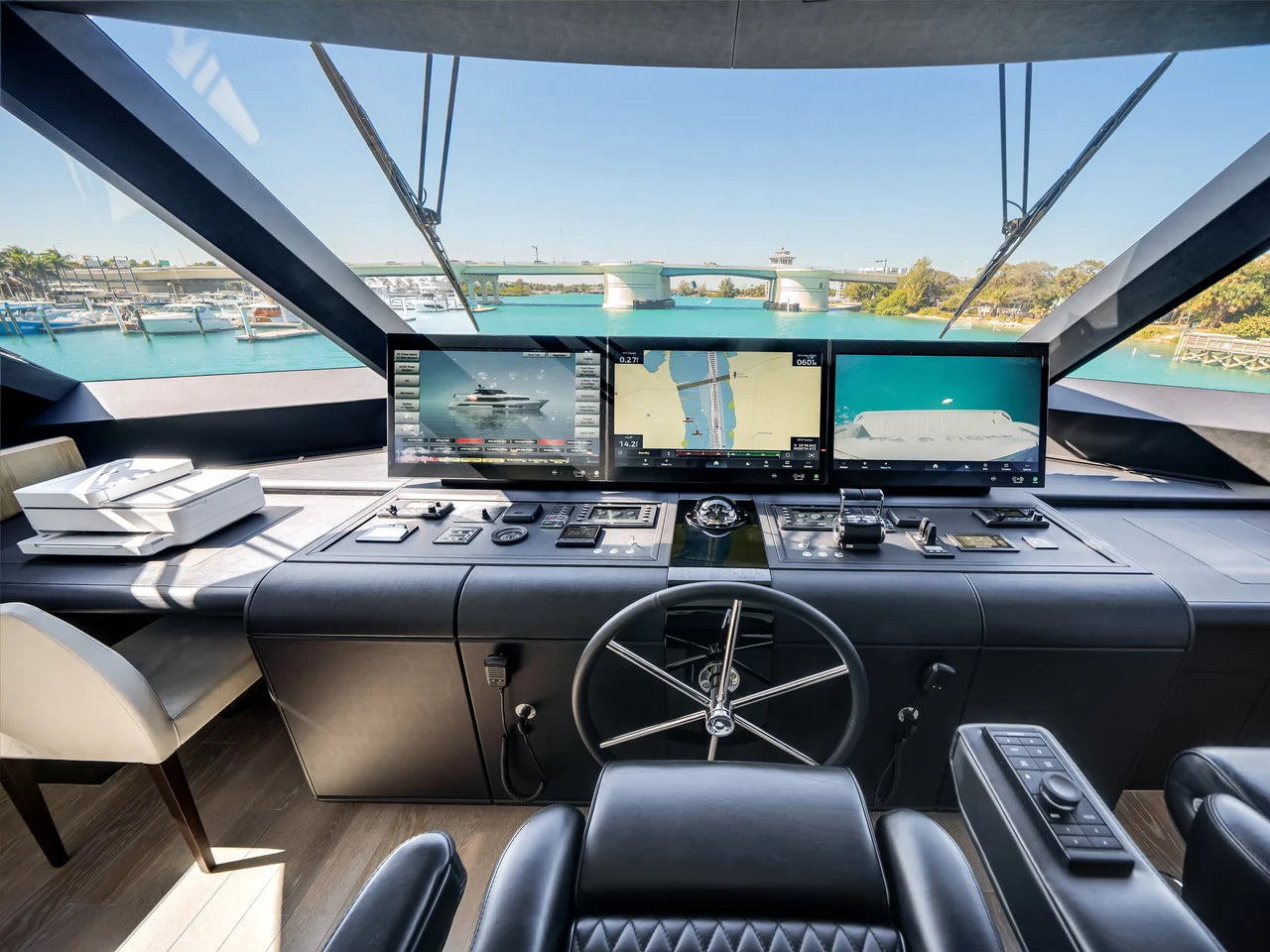

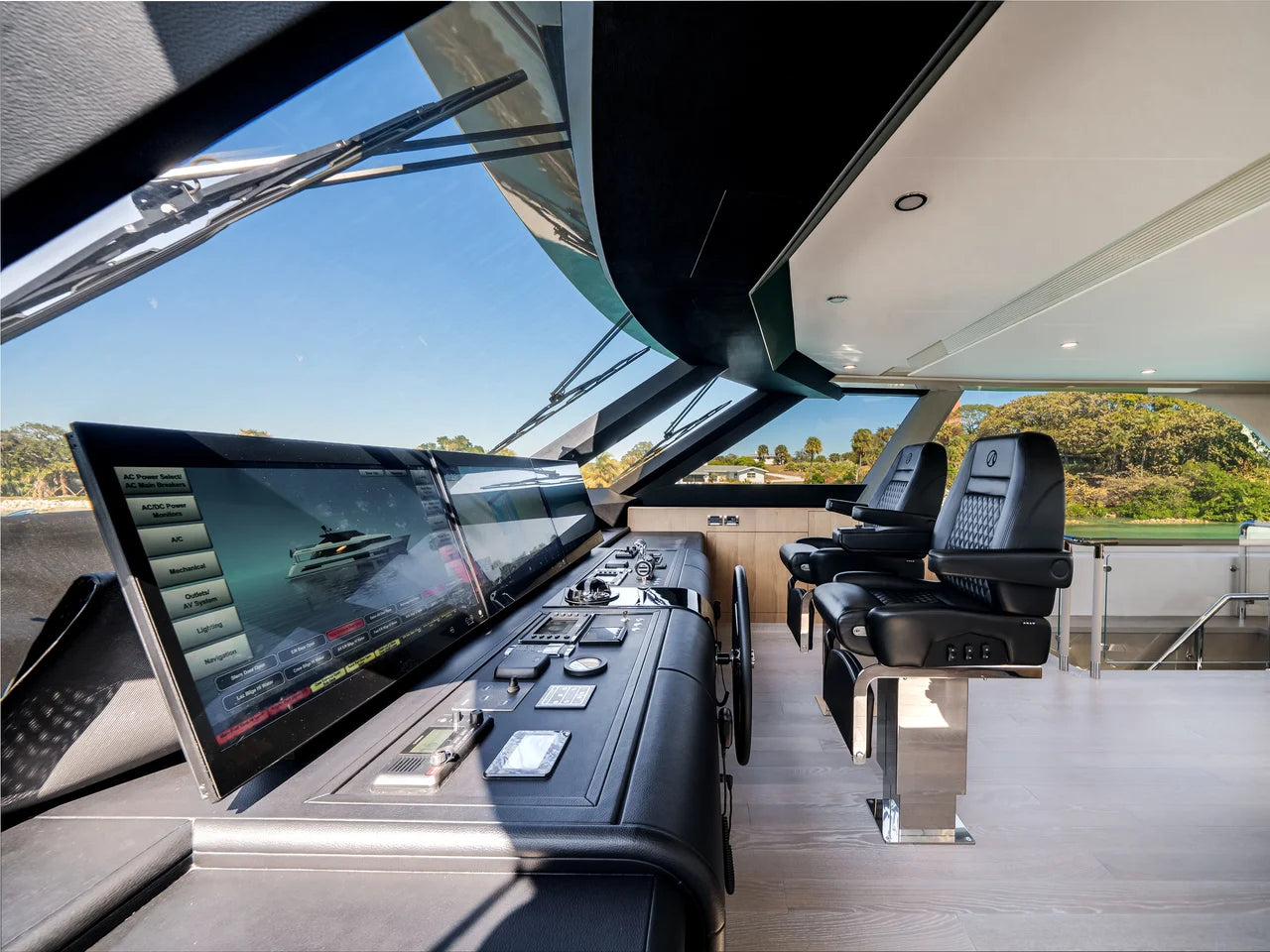

• Garmin 8700 Series Black Box with (3) 32" touch screens.
• Garmin GRID remote input device installed on helm chair.
• Garmin 25KW Open Array Radar.
• Garmin Autopilot GHC.
• Garmin VHF and Card Reader.
• Garmin Blackbox depth sounder.
• Garmin AIS with NMEA GPS.
• Garmin Marine Camera (2 in engine room and 1 aft deck).
• KVH® TracVision® UHD7 satellite TV antenna.
• Ritchie Compass 5".
• iPad with built-in Garmin App for navigational information viewing via iPad.
Entertainment System:
• Apple TV multi-zone distribution experience system for salon, MSR, skylounge, aft deck,
and boat deck.
• Includes the following equipment installed at factory:
• Salon: Electric flip down LED 55" TV with A/V system and subwoofer and satellite receiver.
• MSR: Wall mounted LED 50" TV with A/V system and satellite receiver.
• Sky lounge: Electric flip down LED 50" TV with A/V system and subwoofer and satellite
receiver.
• VIP stateroom: Electric flip down 43" TV with Satellite Receiver.

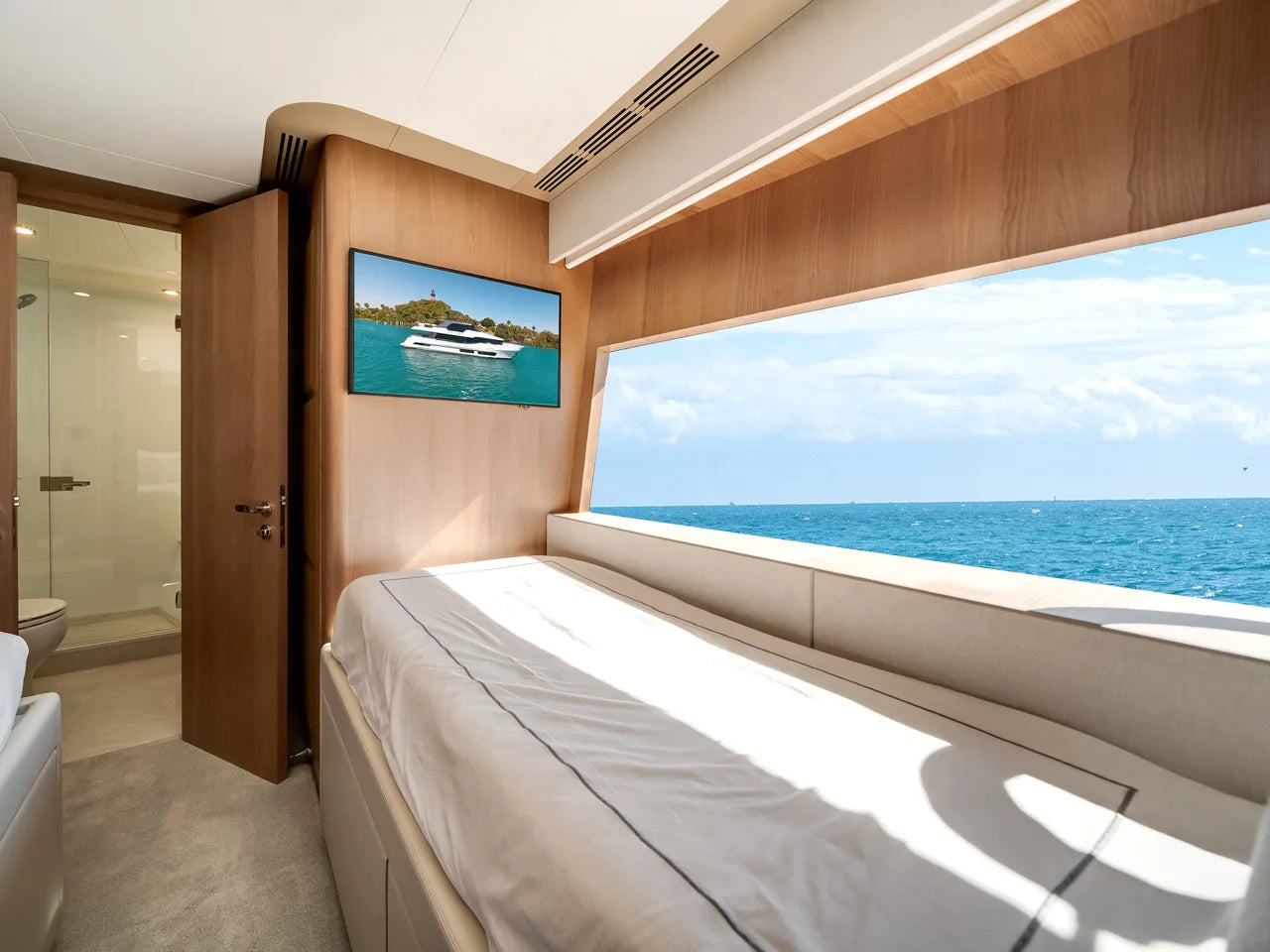

• Guest stateroom: On wall LED 32" TV with satellite receiver.
• Crew: On wall 32" TV with Satellite Receiver
• Bridge deck: Flip down 32" TV with speakers and satellite receiver.
• Aft deck: Electric flip down 43" TV with speakers and satellite receiver.
• Pre-wire forfuture installation of custom A/V system throughout using CAT6 wire runs for
future use.
• Salon main wall: HDMI extender ready for customers install A/V system
Extended Cruise Package:
• Install on yacht as back-up, 2nd A/C sea water pump and 2nd A/C circulation pump, 2nd freshwater pump, 2nd hot water pump, 2nd overboard discharge pump.
• Custom S/S potholder for cook-top for securing pots.

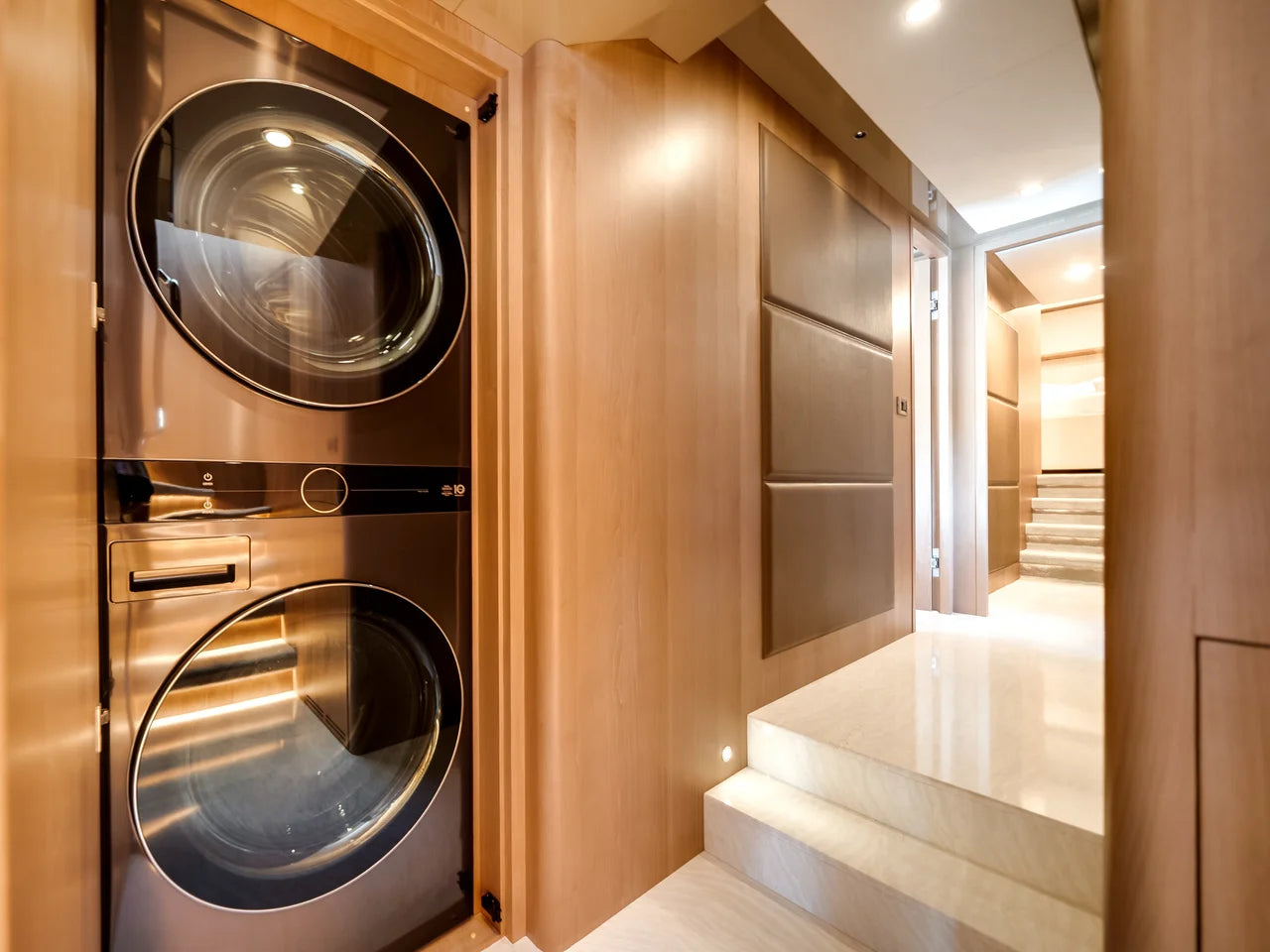

• Additional washer & dryer, chest freezer and fridge in lower foyer.
Global Cruising Package:
• 50/60 Hz Power Converter.
• Electrical transformer allows for automatic marina connection irrespective of 110V/60 Hz
(USA) or 220-240V/50 Hz (European) standards.
• Swappable wall plugs convert between 110V/220-240V and 50/60 Hz.
• True global yachting and global resale capability.
Spare Parts Package:
• Includes spare: Bilge pump, LED light, engine/ generator filter, wiper blades, touch up paint, fuses, engine manufacturer spare parts kit, generator manufacturer spare parts kit, float switch, Vimar outlet, GFI outlet, Vimar switch.
ACCOMODATIONS / INTERIOR & EXTERIOR DETAILS:
Interior/ Exterior:
• Windows with dramatic architectural details allowing for 28% greater visibility and
incoming natural light.
• Hardtop with dedicated custom removable 316 stainless-steel ladder to top side of
hardtop
• Elliptical 316 stainless-steel handrails & stanchions.
• 316 stainless-steel cleats.
• Two stainless-steel flagpoles, one each at bow and stern.
• Weather-tight door on side deck for access to crew area.
• Flush-mounted deck lights.

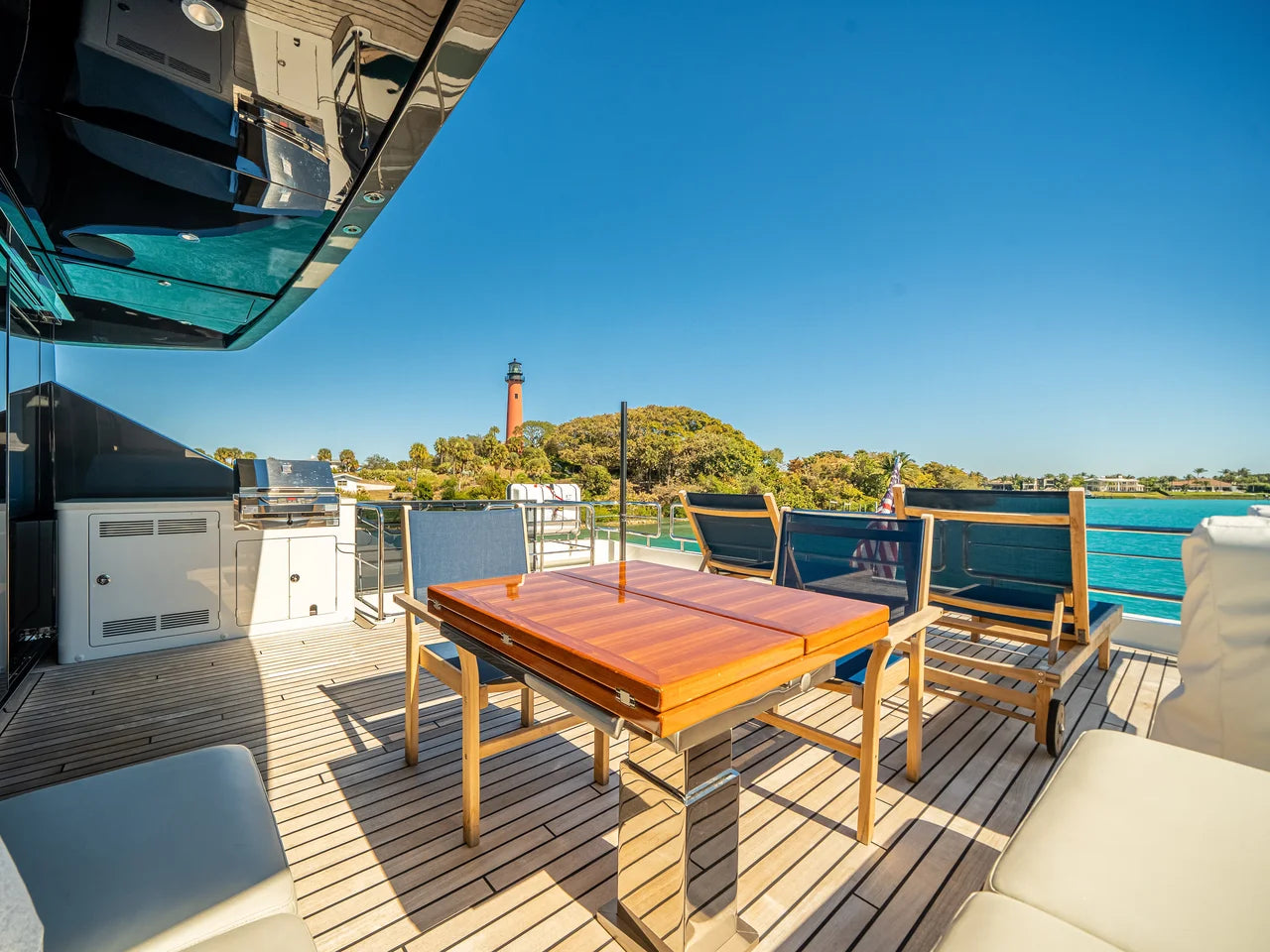

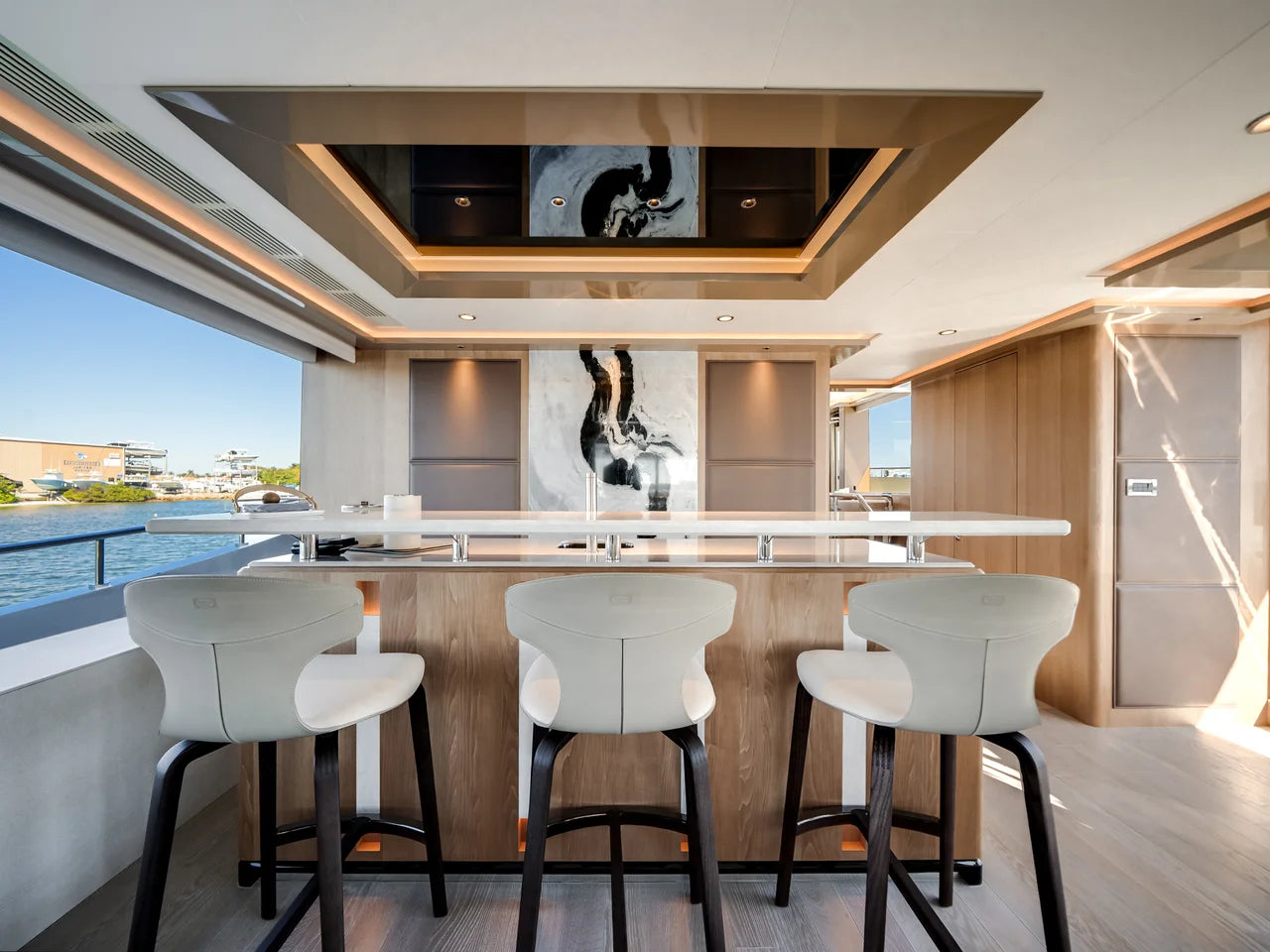

• Stone-topped wet bar with sink, refrigerator, icemaker on bridge deck & aft deck.
• Elka® carbon fiber shower rod with flush connection at swim step.
• Electric shades with remote control for salon, dining, galley, main deck electric doors, and
staterooms.
• Full height electric glass sliding door in lieu of manual sliding door at salon (aft), salon
(starboard) & skylounge (aft).

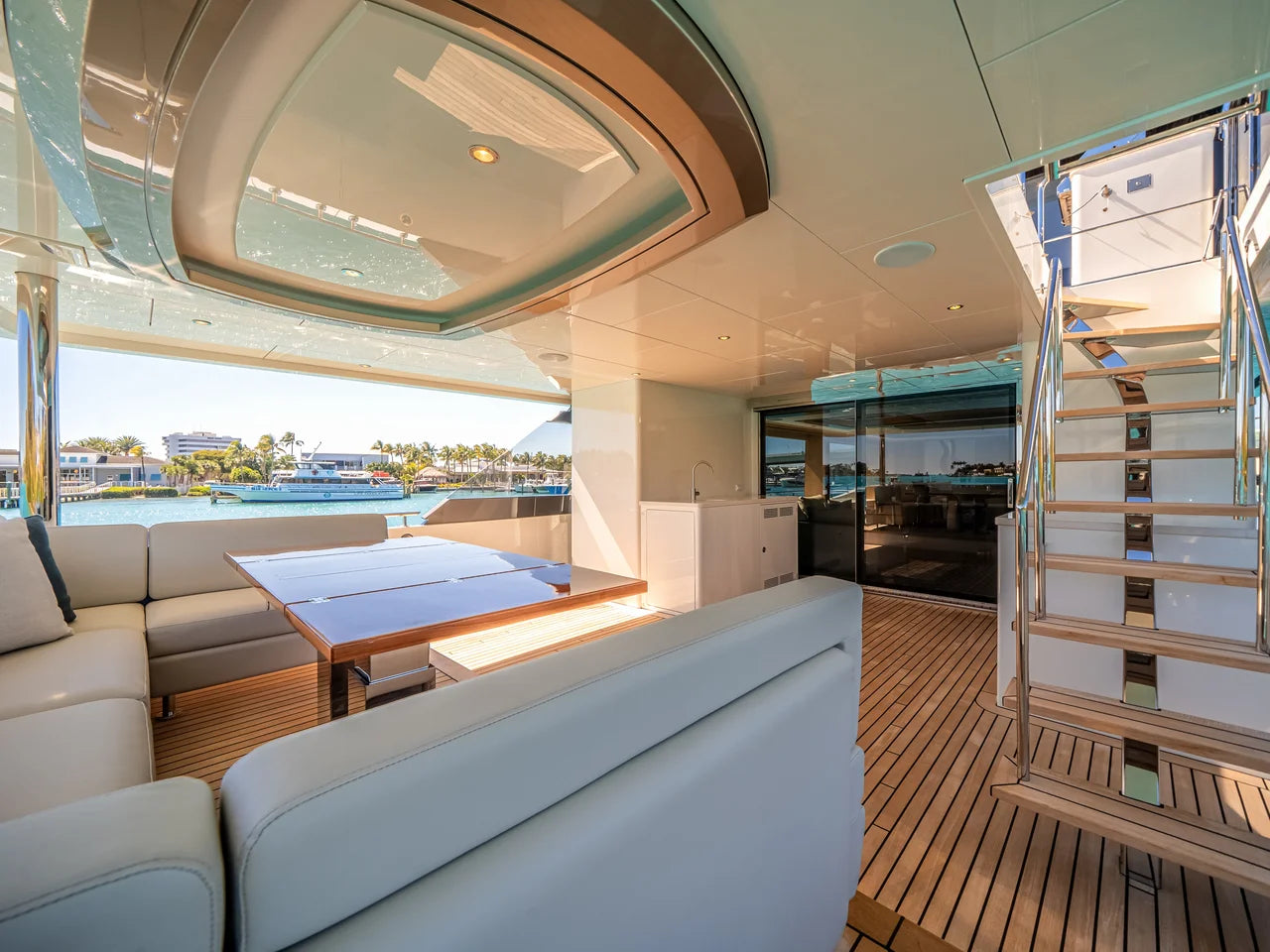

• Aft-deck custom ceiling feature with indirect lighting..

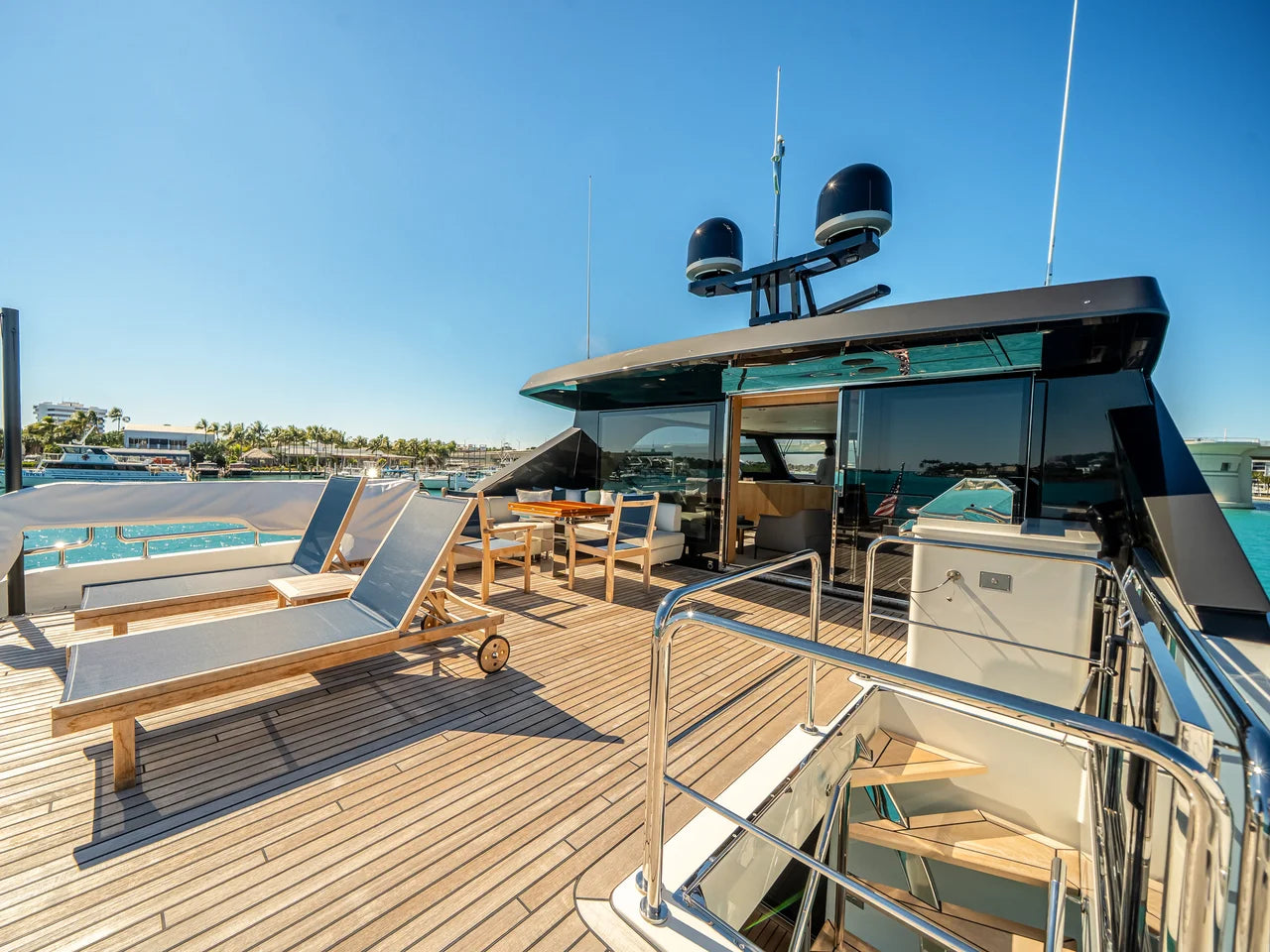

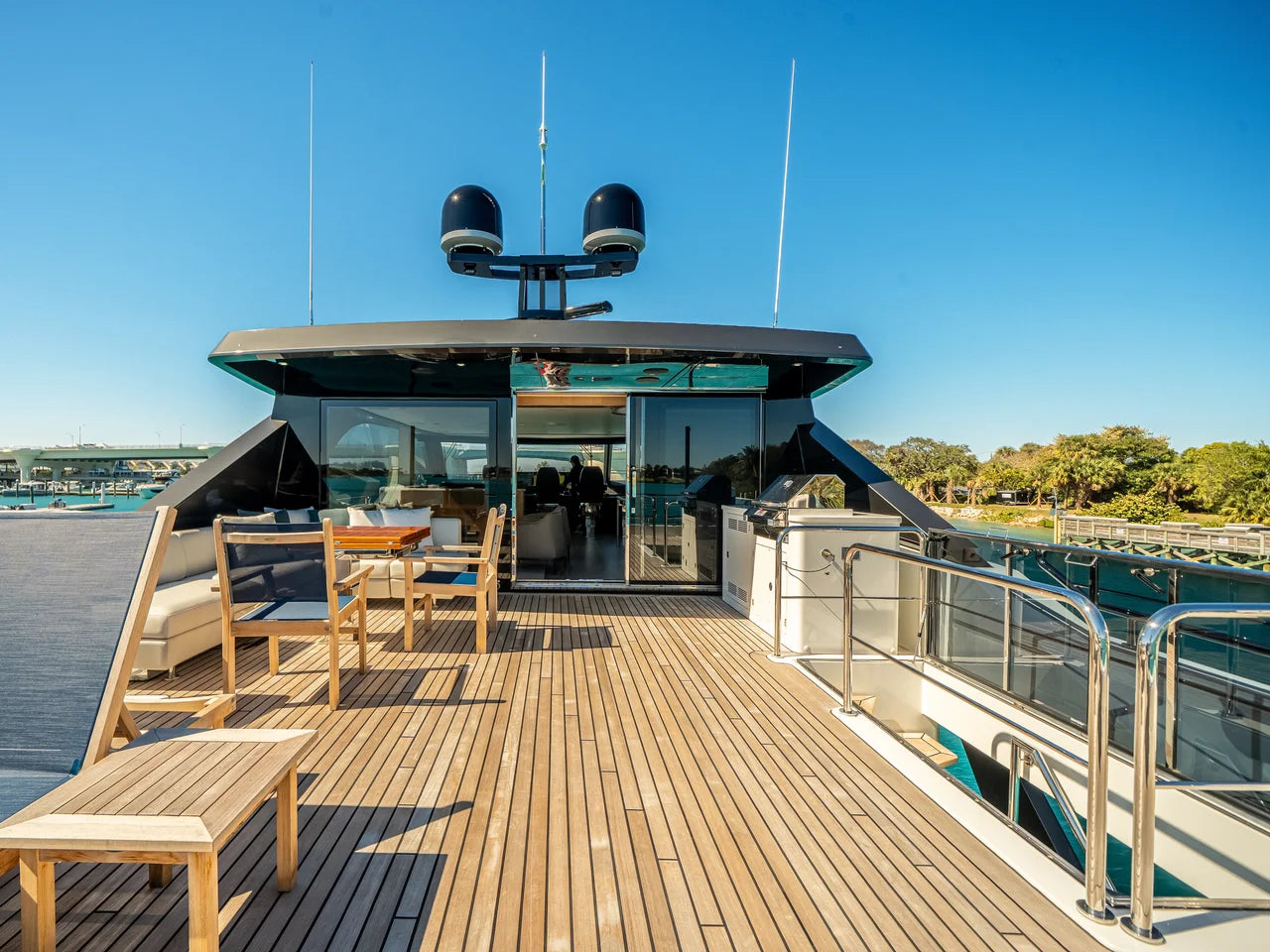

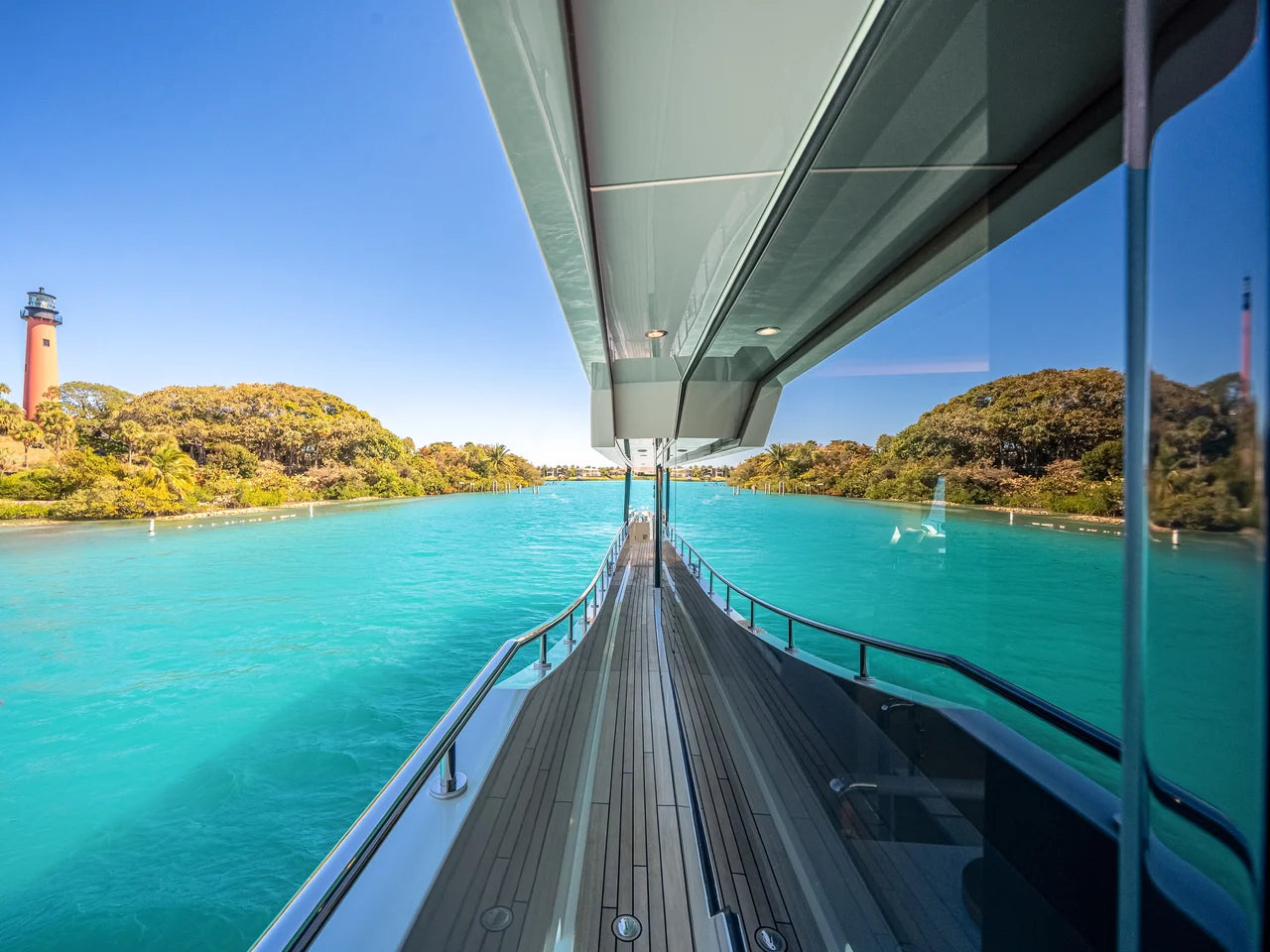

Teak Decking Package:
• Aft deck to bow side deck.
• Steps from aft deck to bridge deck.
• Steps from swimdeck to aft deck.
• Swimdeck.

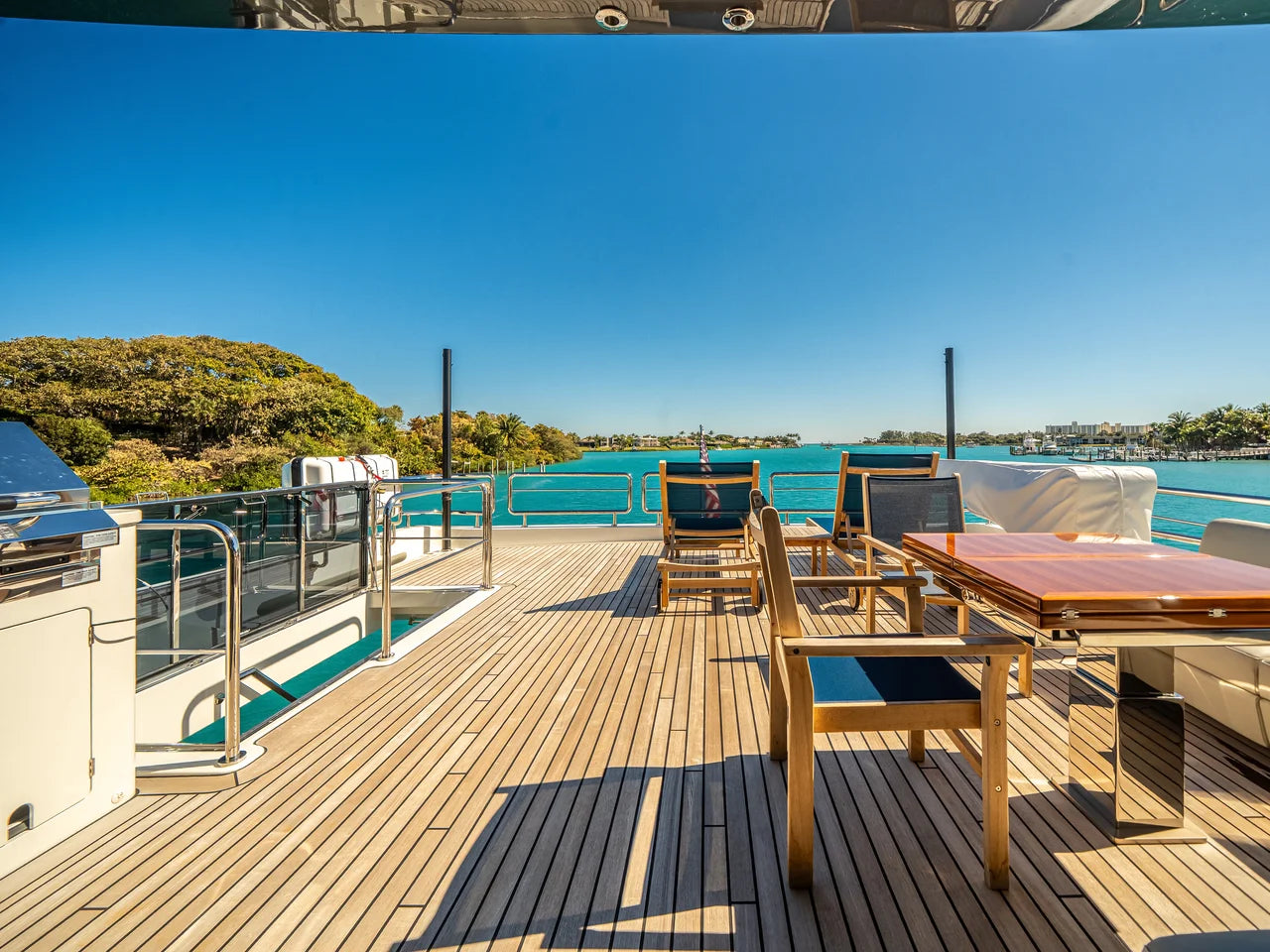

• Bridge deck.
Exterior Awning/Protection Package:
• Sun awning for boat deck, with custom-made carbon poles and marine-grade exterior
Ferrari mesh fabric. Includes custom designed built-in storage for poles.
• Custom exterior protection canvas covers for exterior cabinetry and windshield mesh
cover.
• 316 Stainless-steel transom gates for pet/child protection.
• Boat deck hatch.
Exterior Convenience Package:

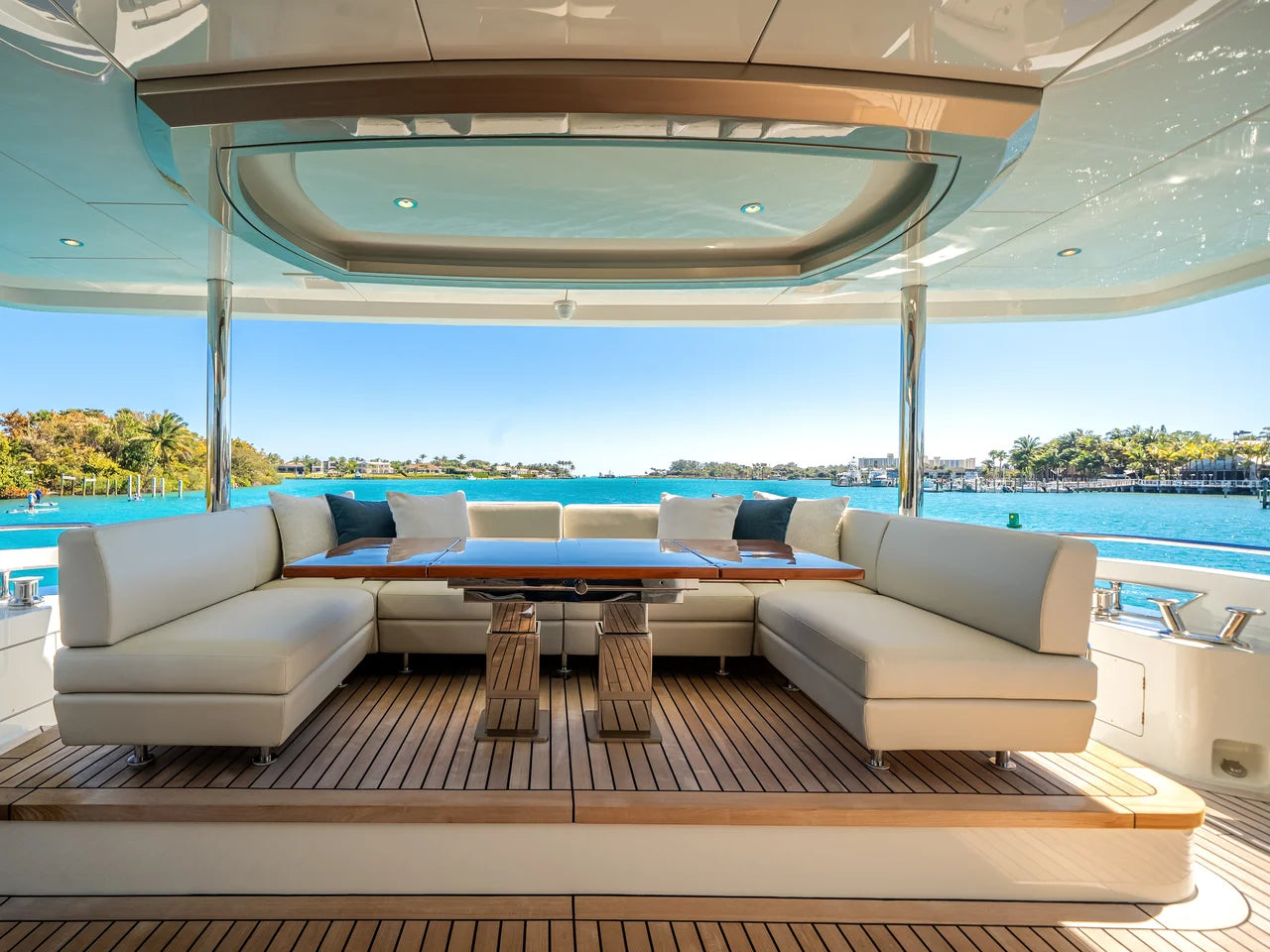

• Custom-designed exterior factory built settee package with hi-low electric table at boat
deck and aft deck.
• Boarding ladder installed at recessed starboard gunnel with teak.
• 316 Stainless-steel transom gates for pet/child/ protection

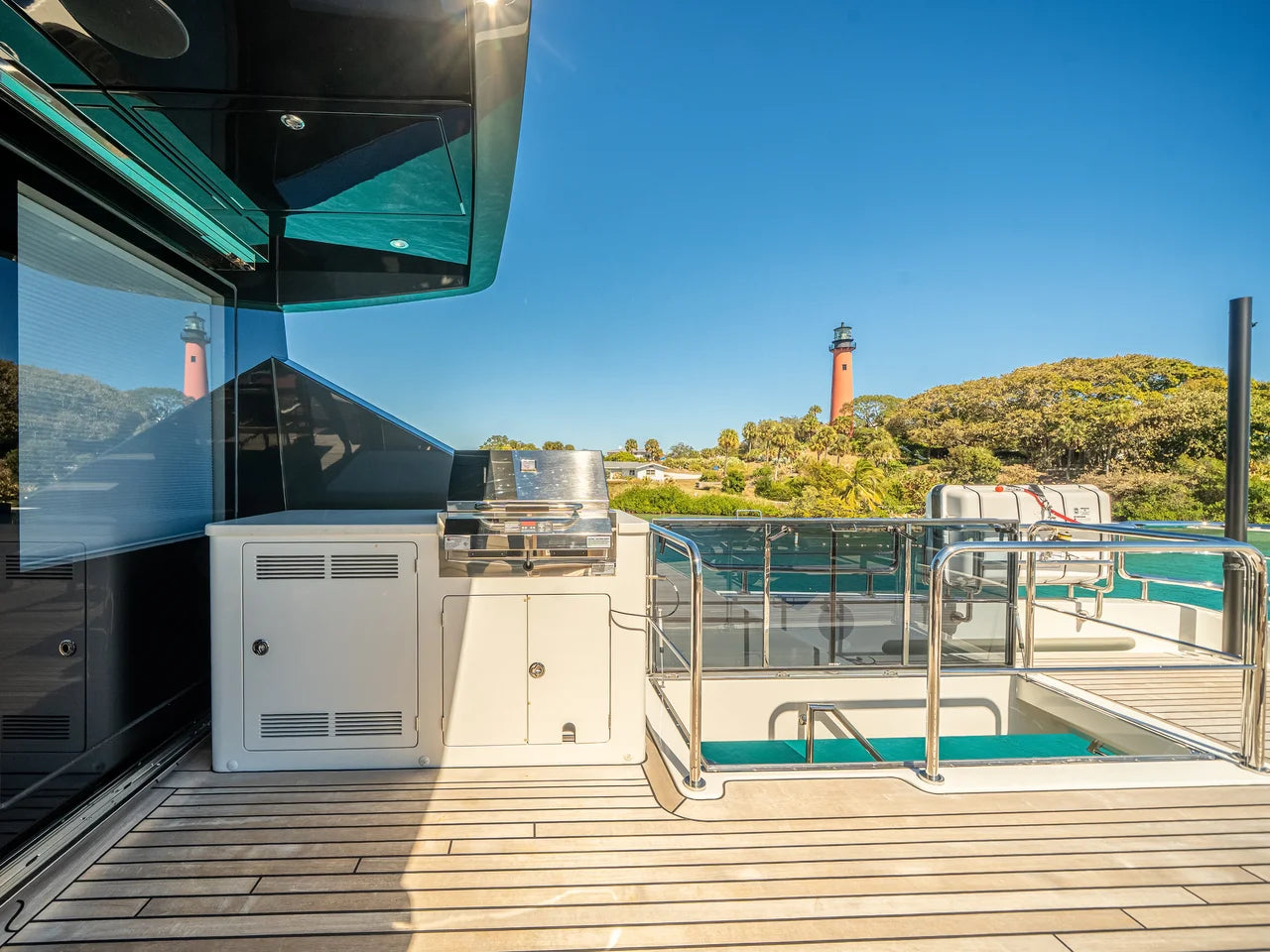

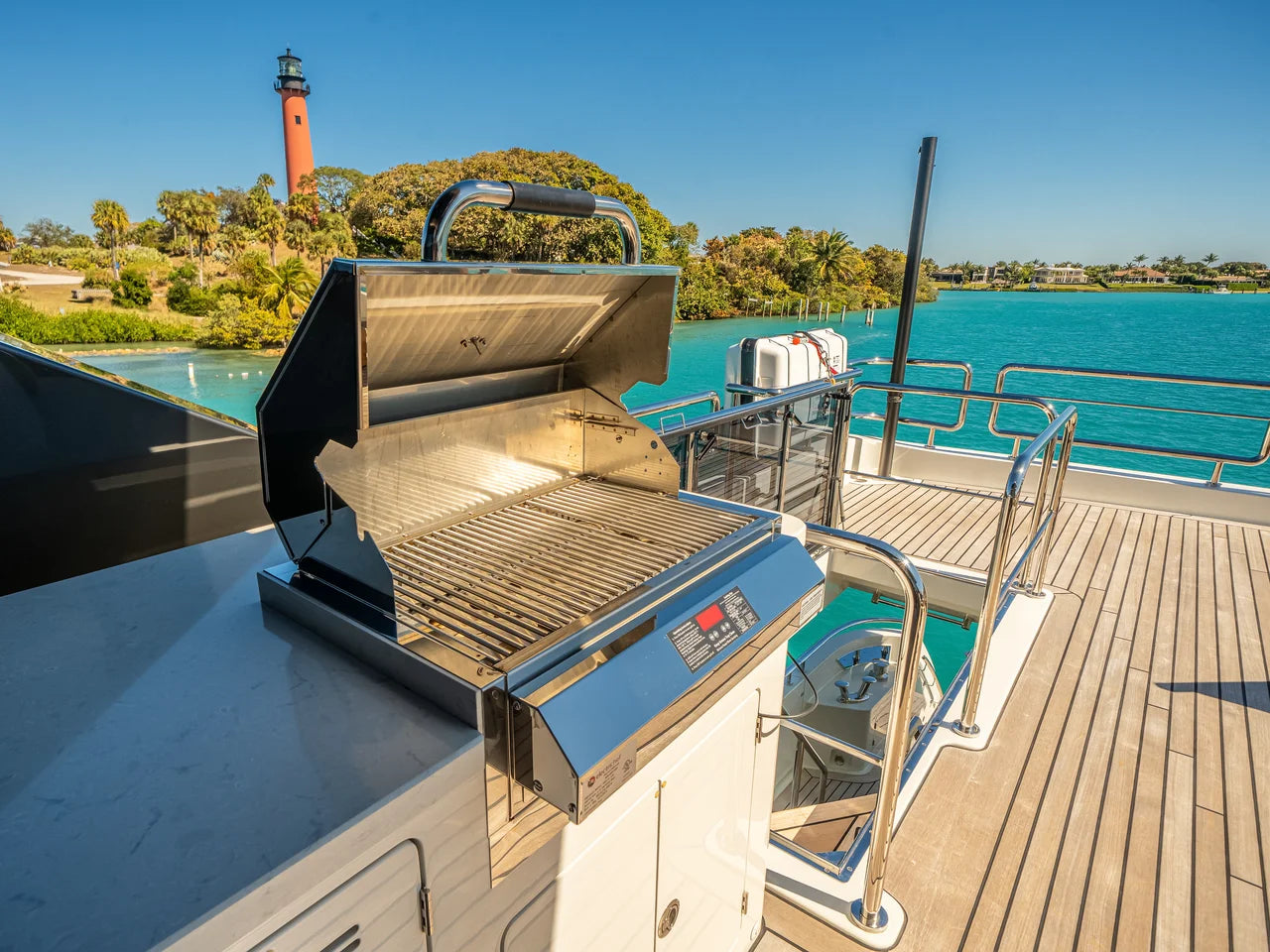

• 24" electric barbecue at bridge deck
• High output LED underwater lights covering stern x4, port side x2 and stbd side x2, each
designed to wrap around transom with light.

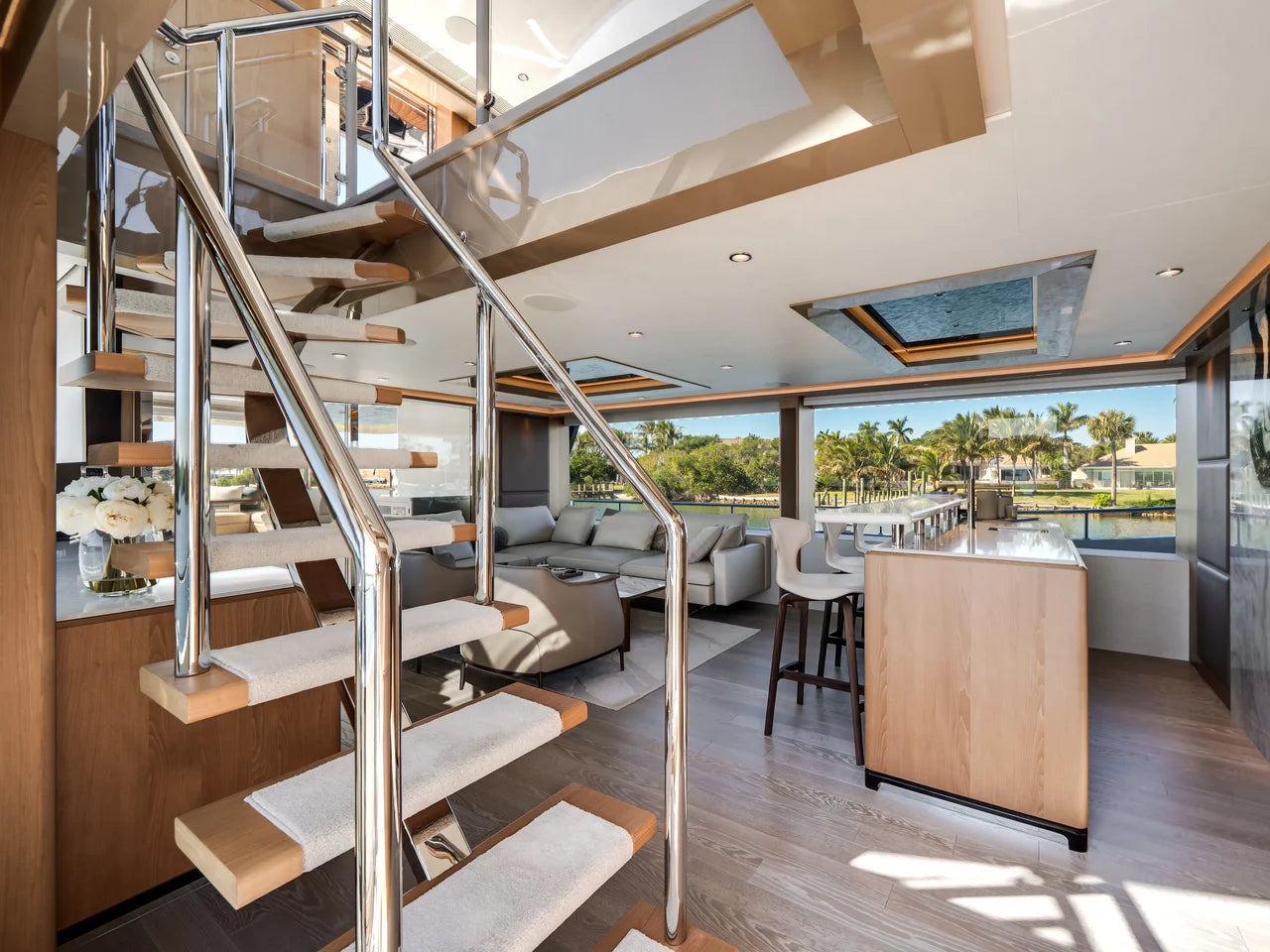

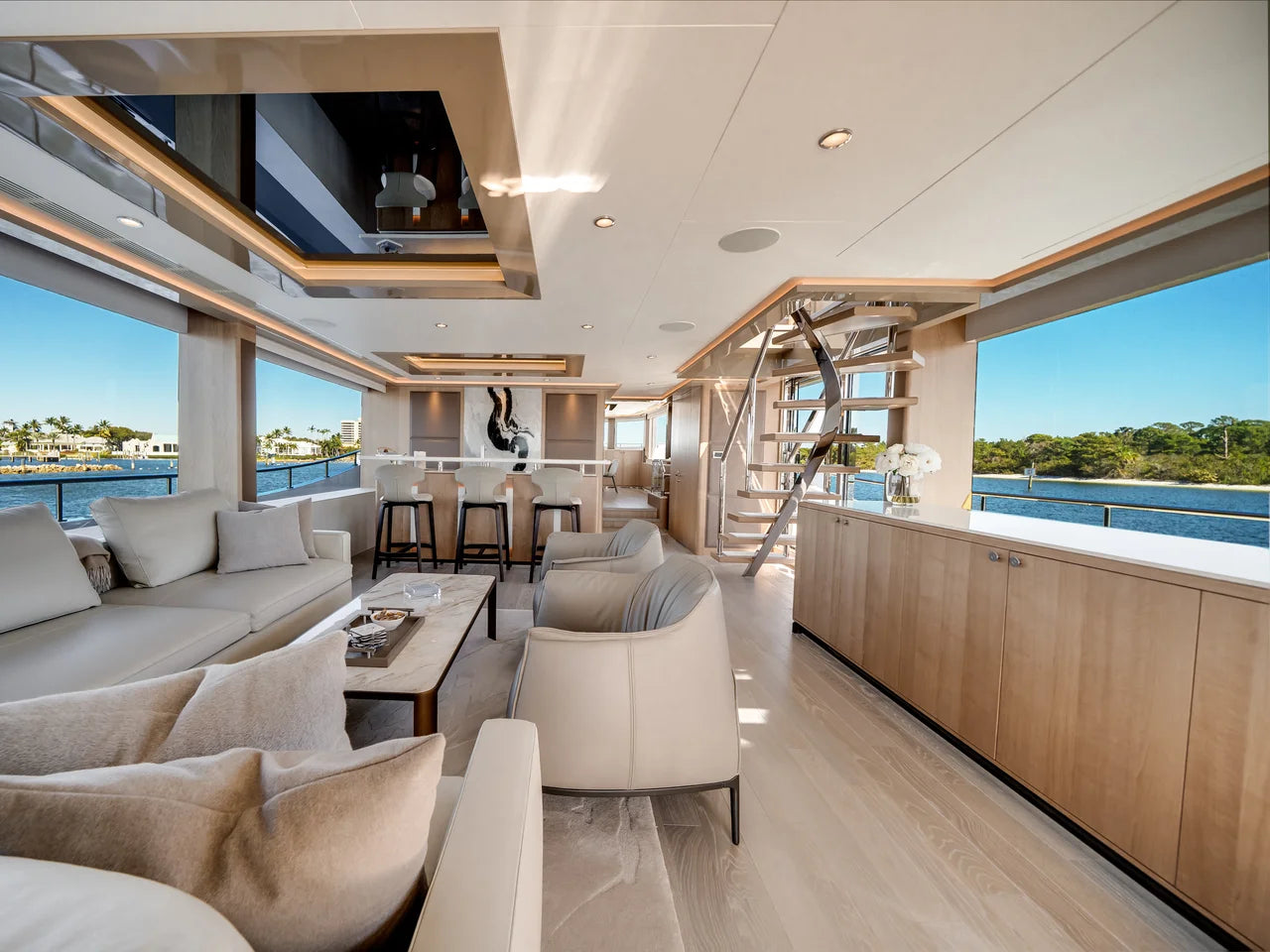

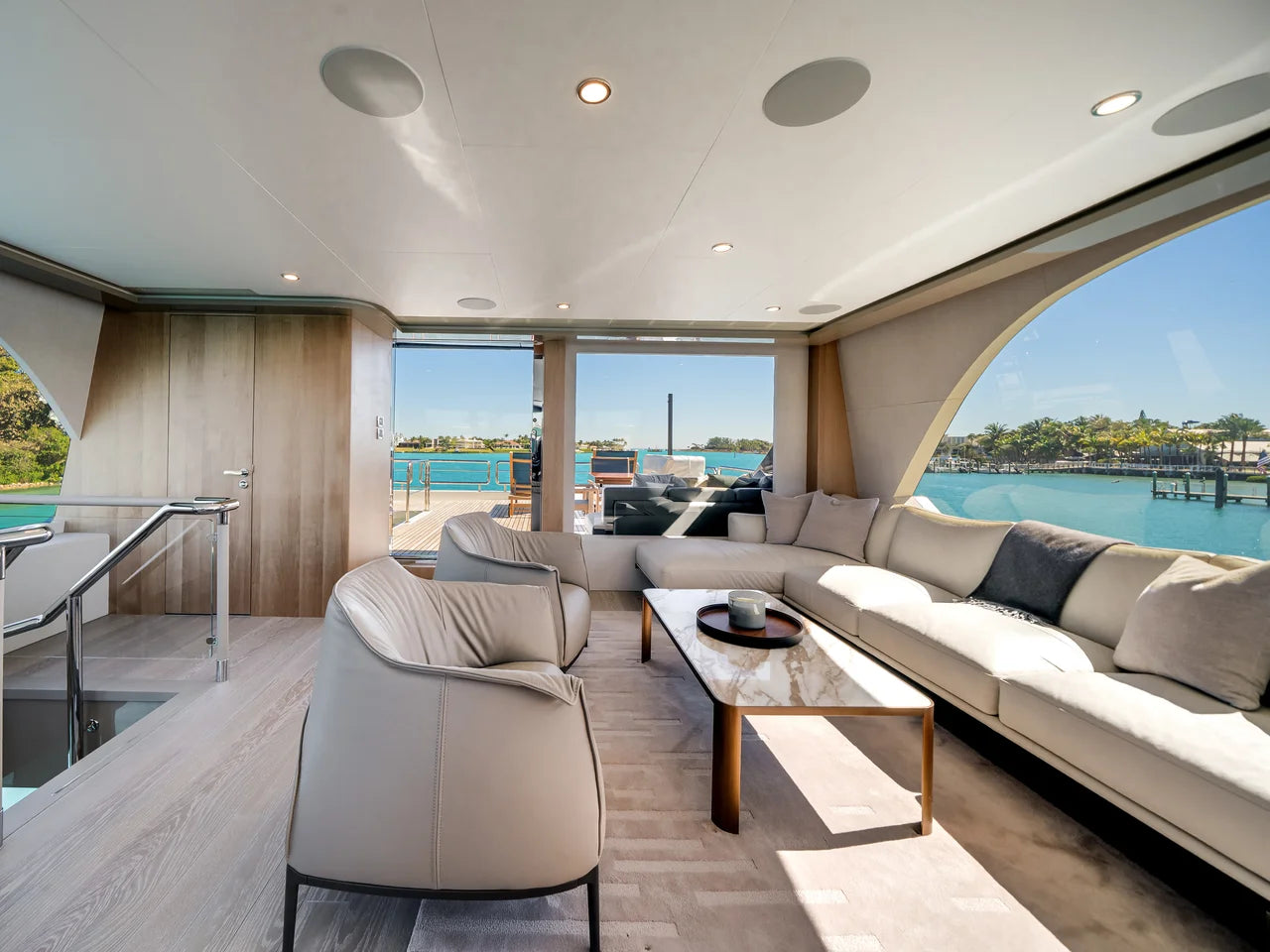

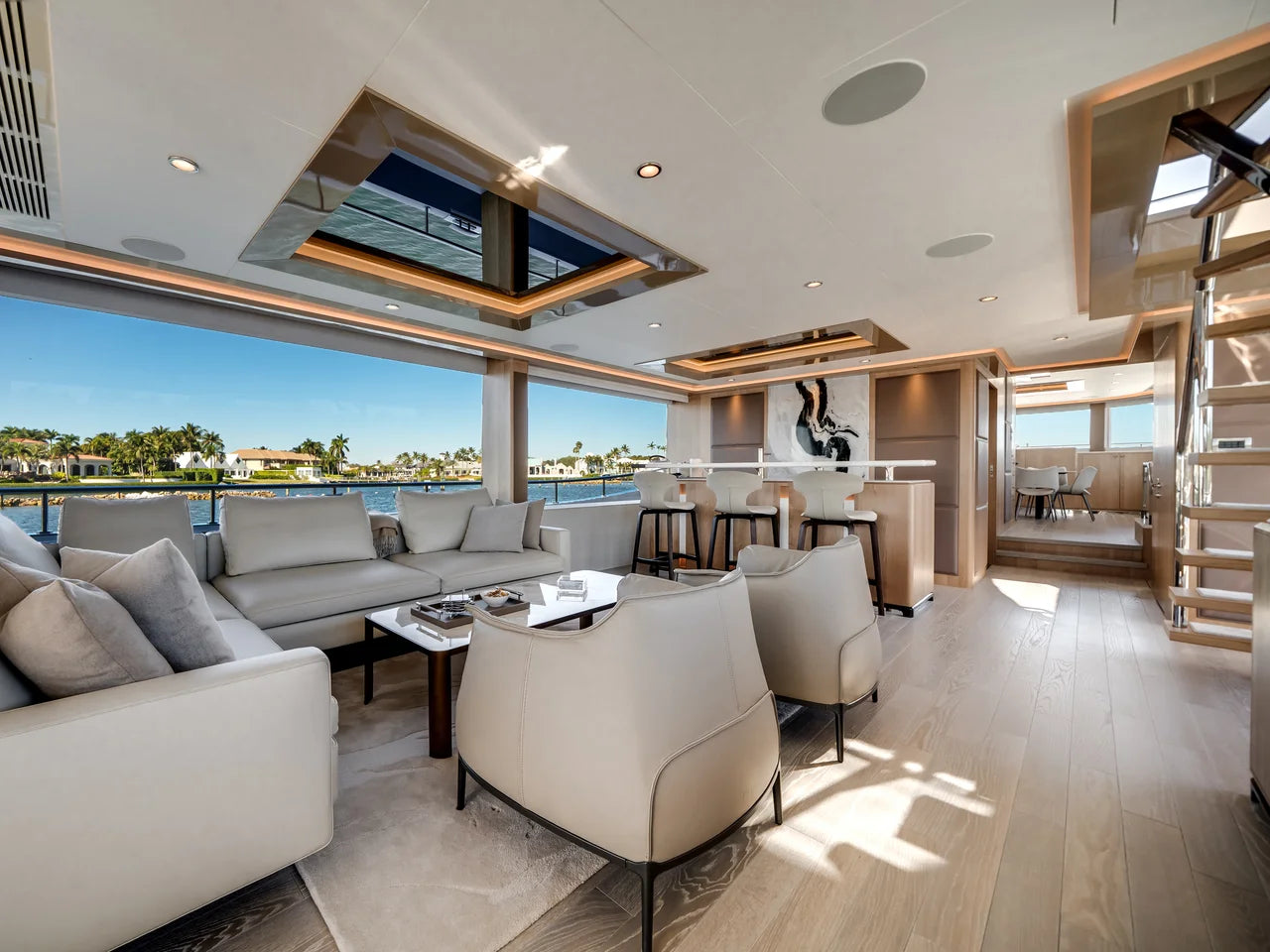

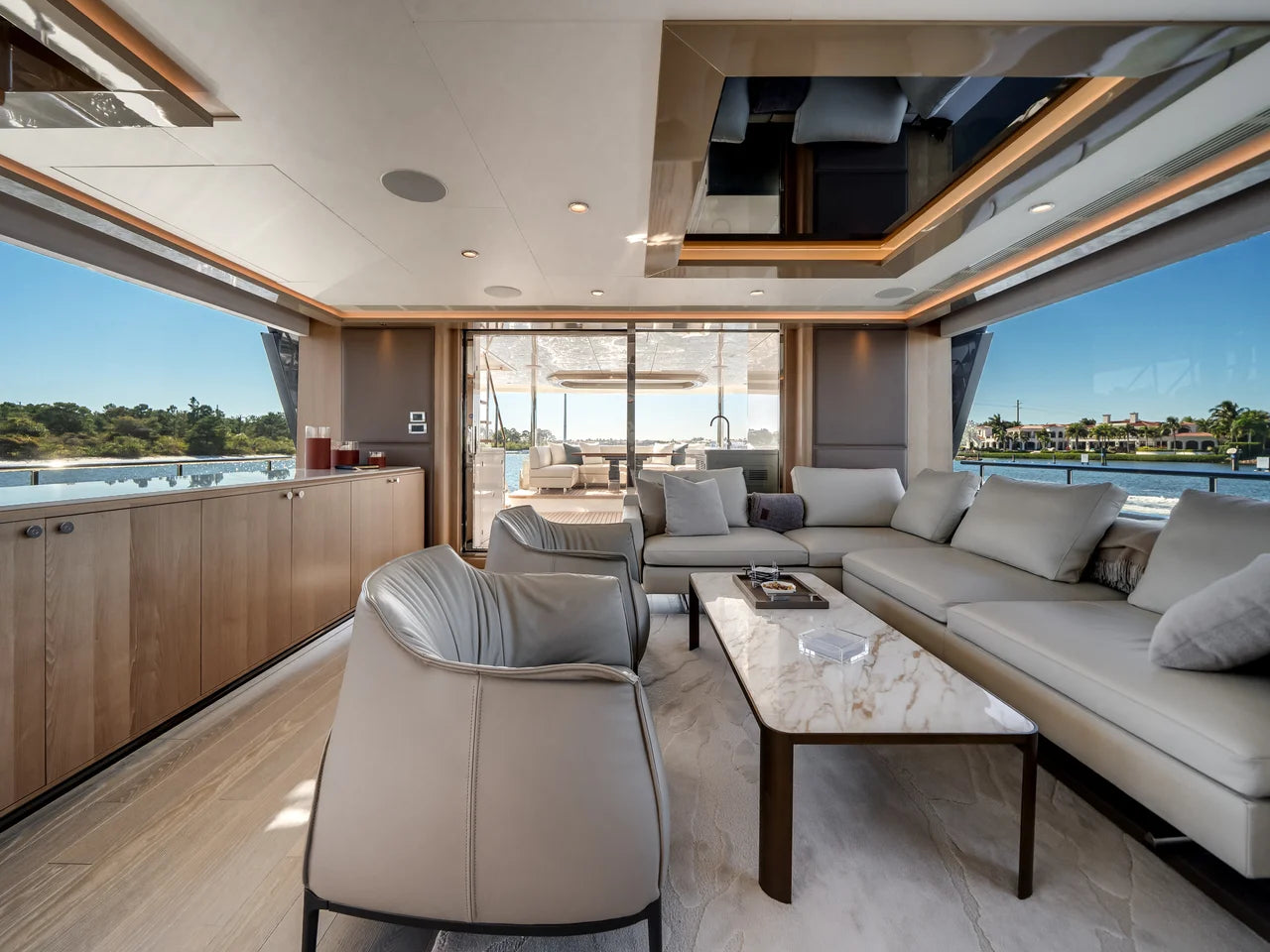

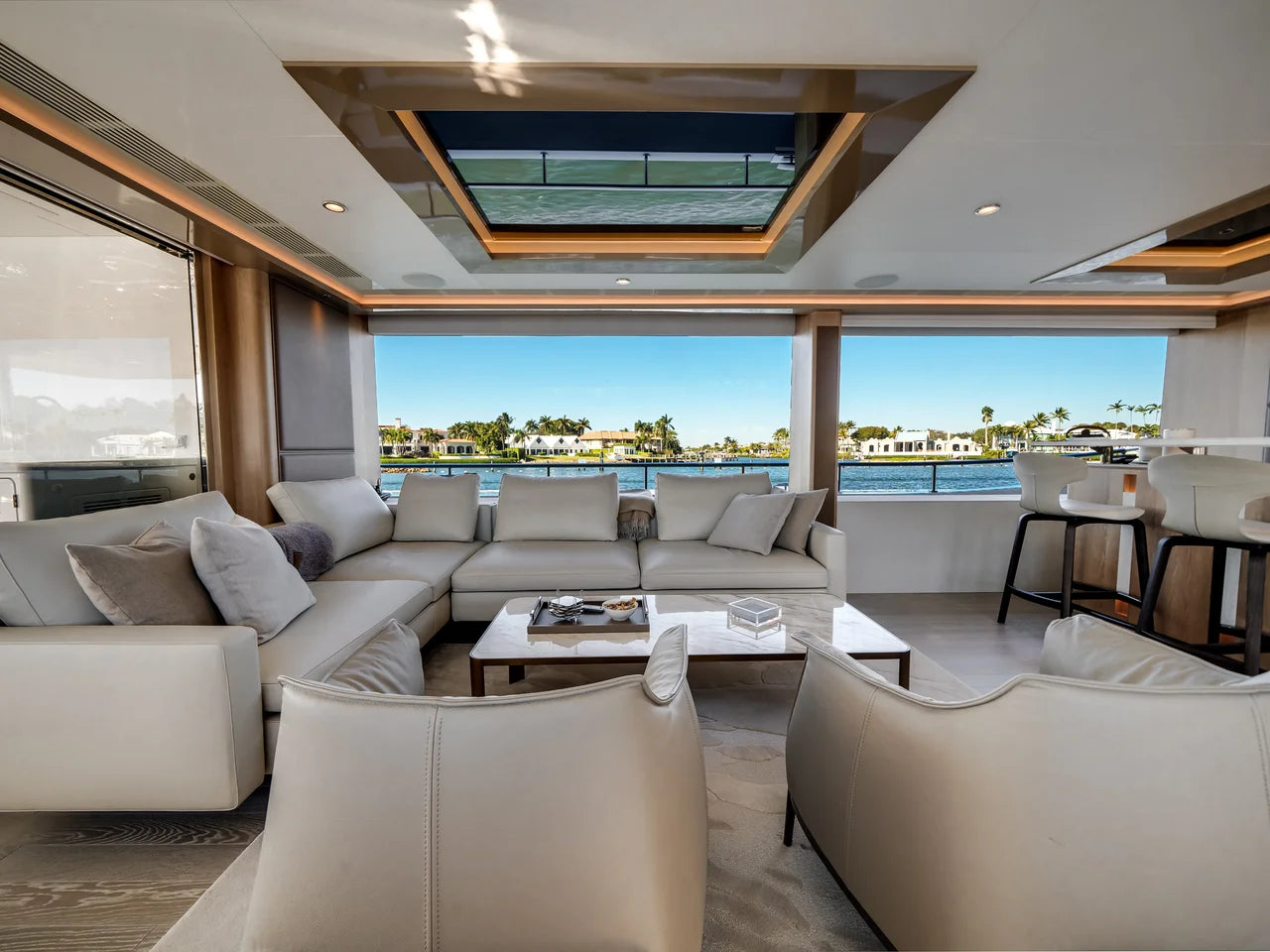

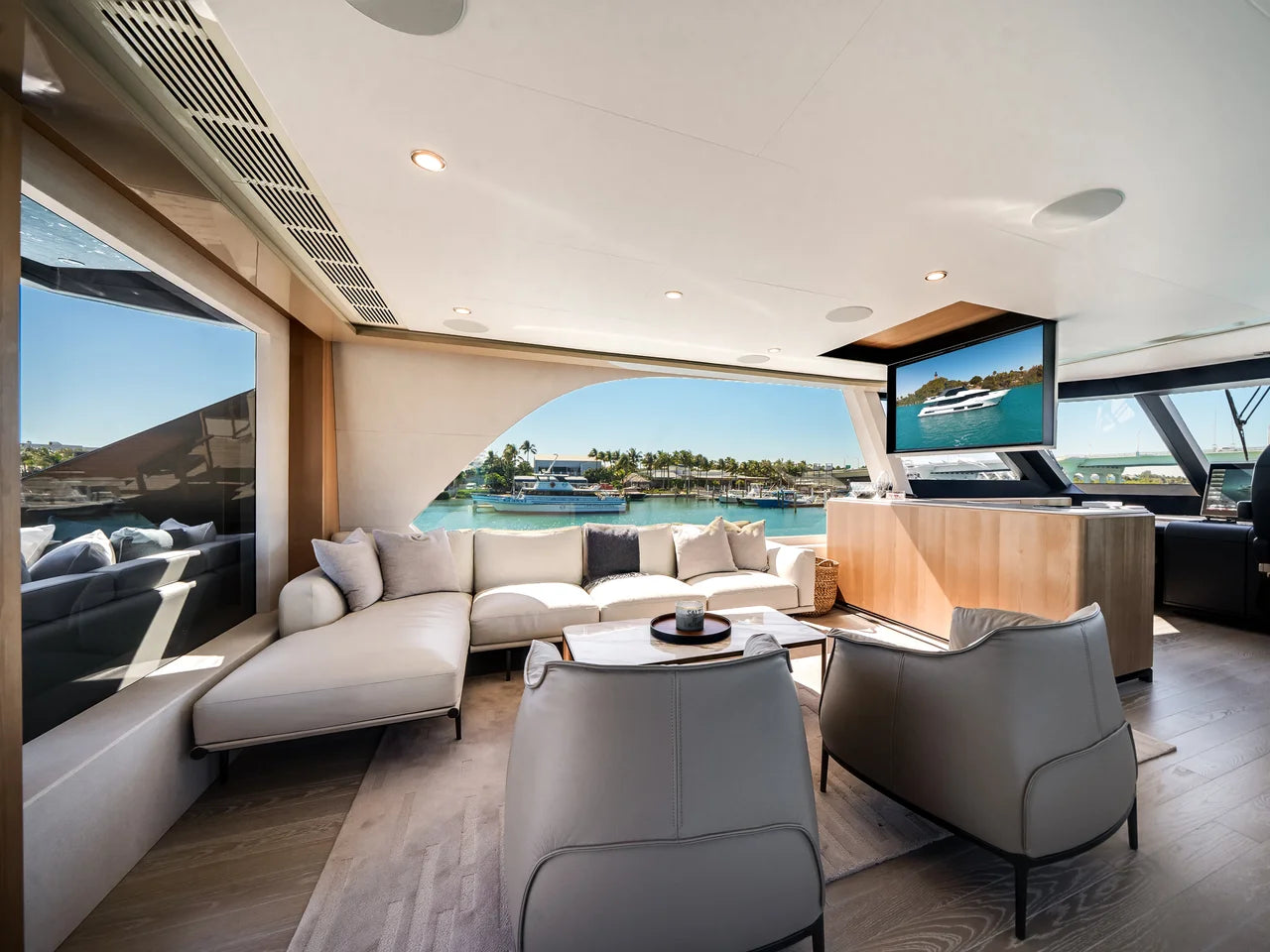

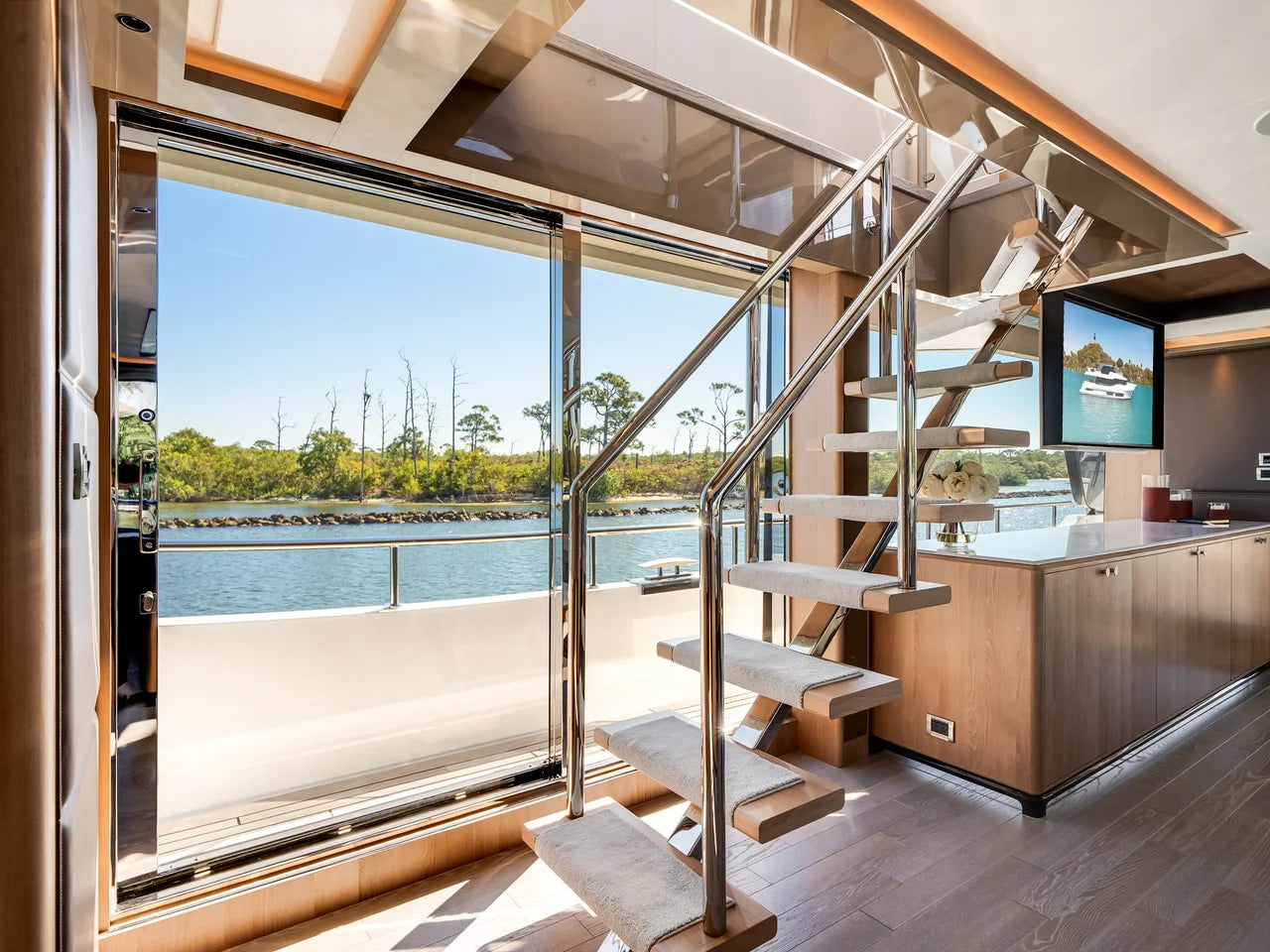

Salon:
• Custom-designed furniture and sofa.
• Custom-designed window mullion with ceiling treatment.
• Custom-designed salon table
• Stone countertop at wet bar and cabinets.
• Cabinet including wet bar, Subzero undercounterfridge and freezer.
• Day head with sink and cabinet.

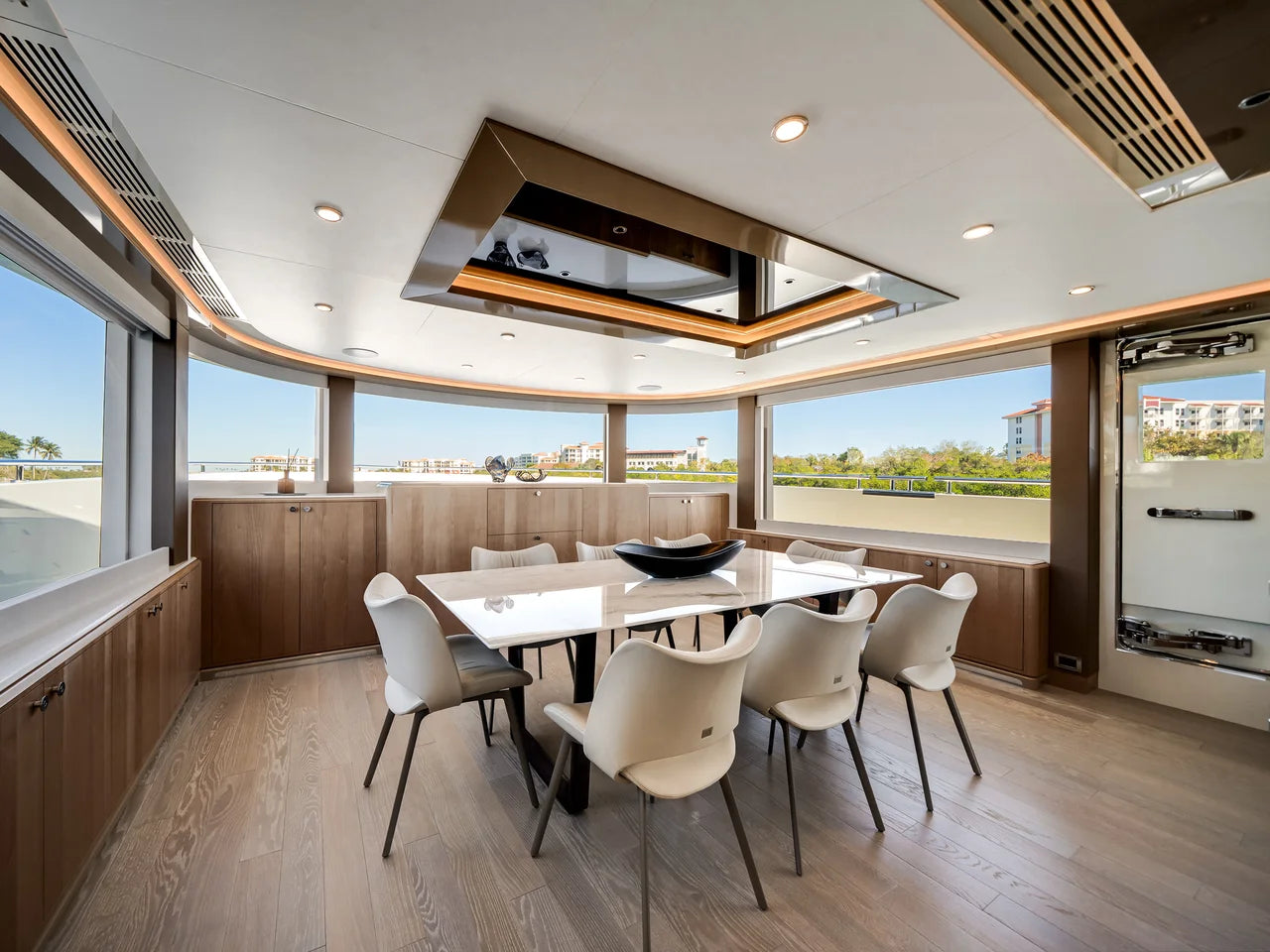

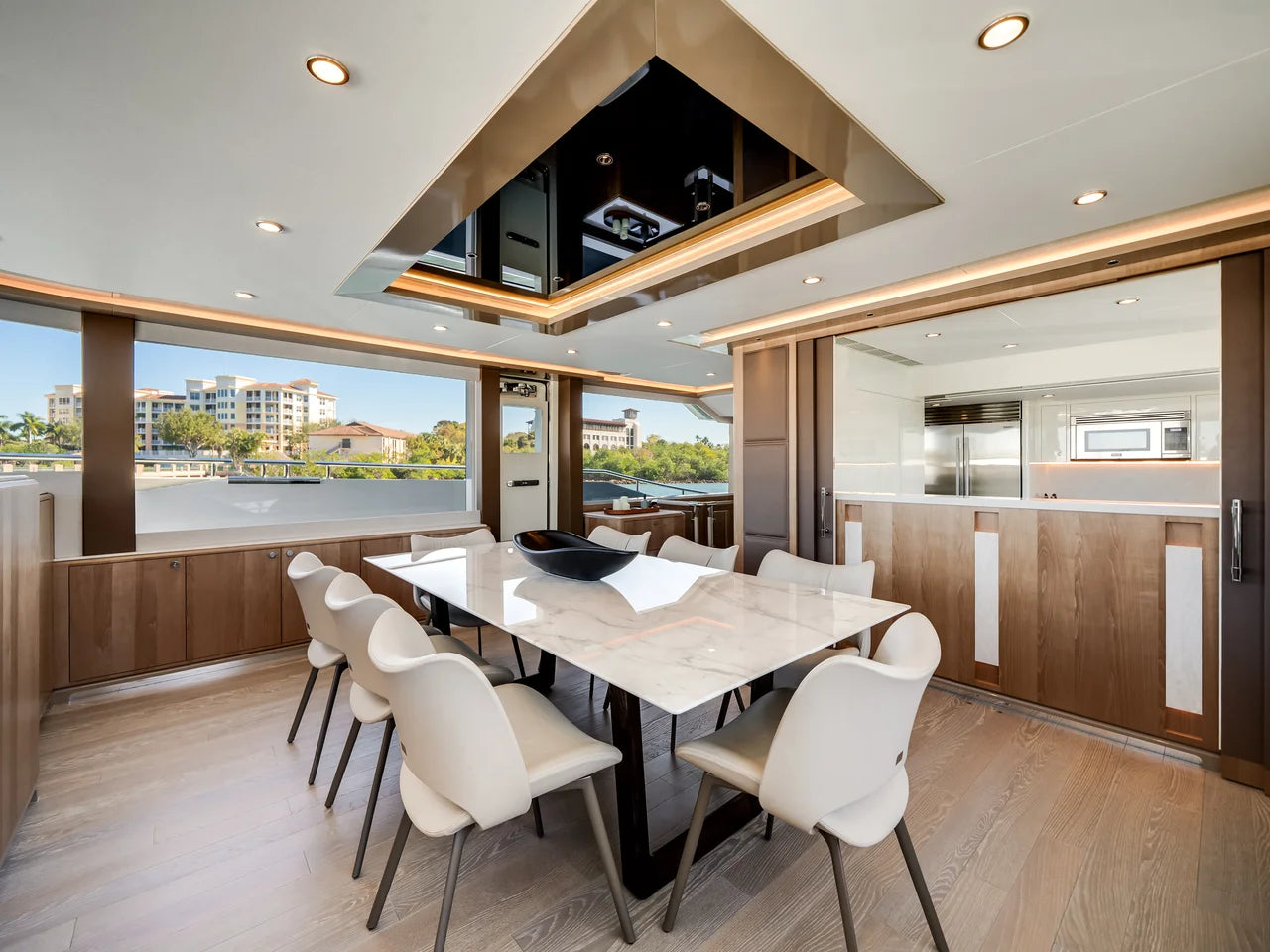

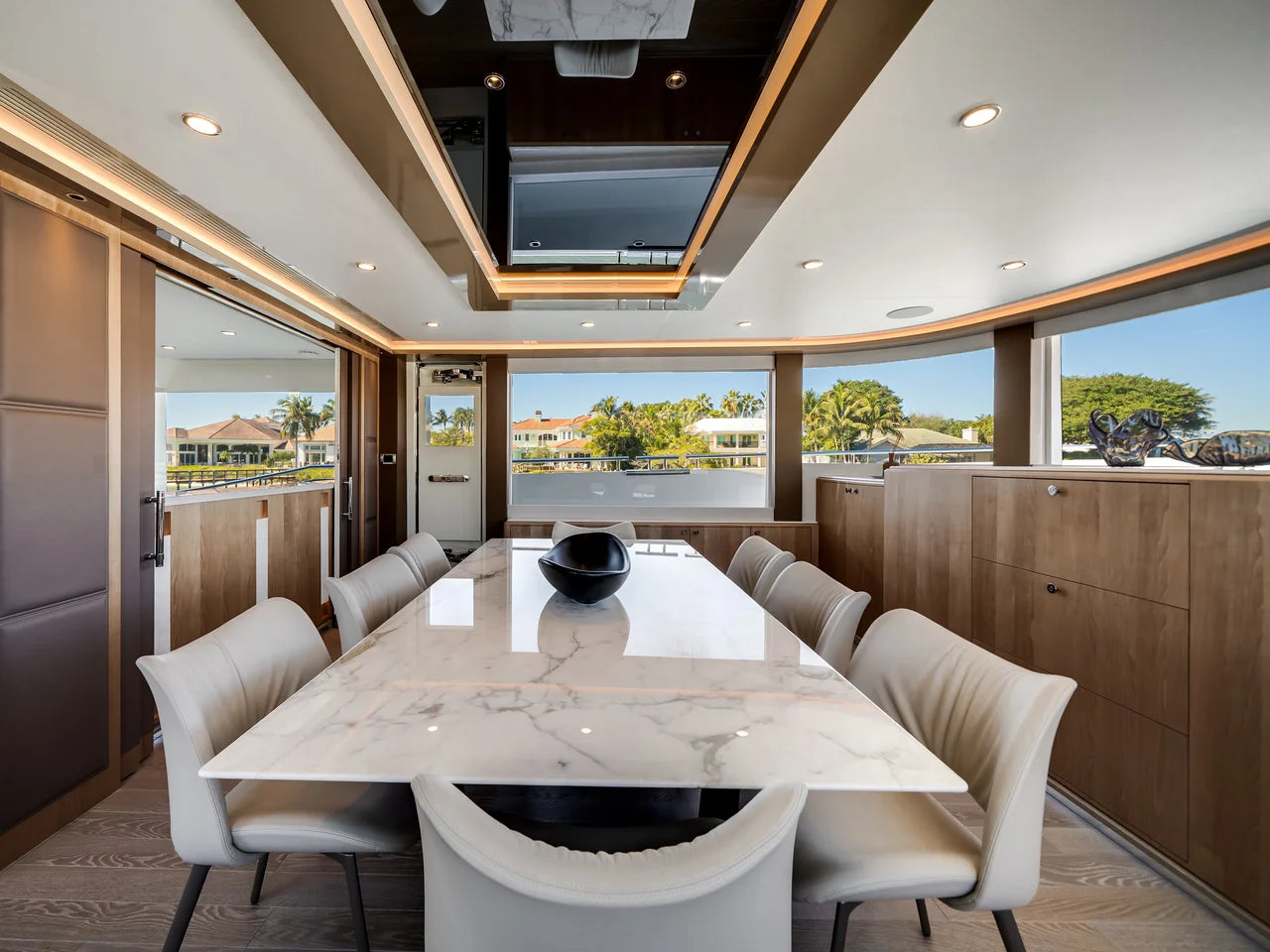

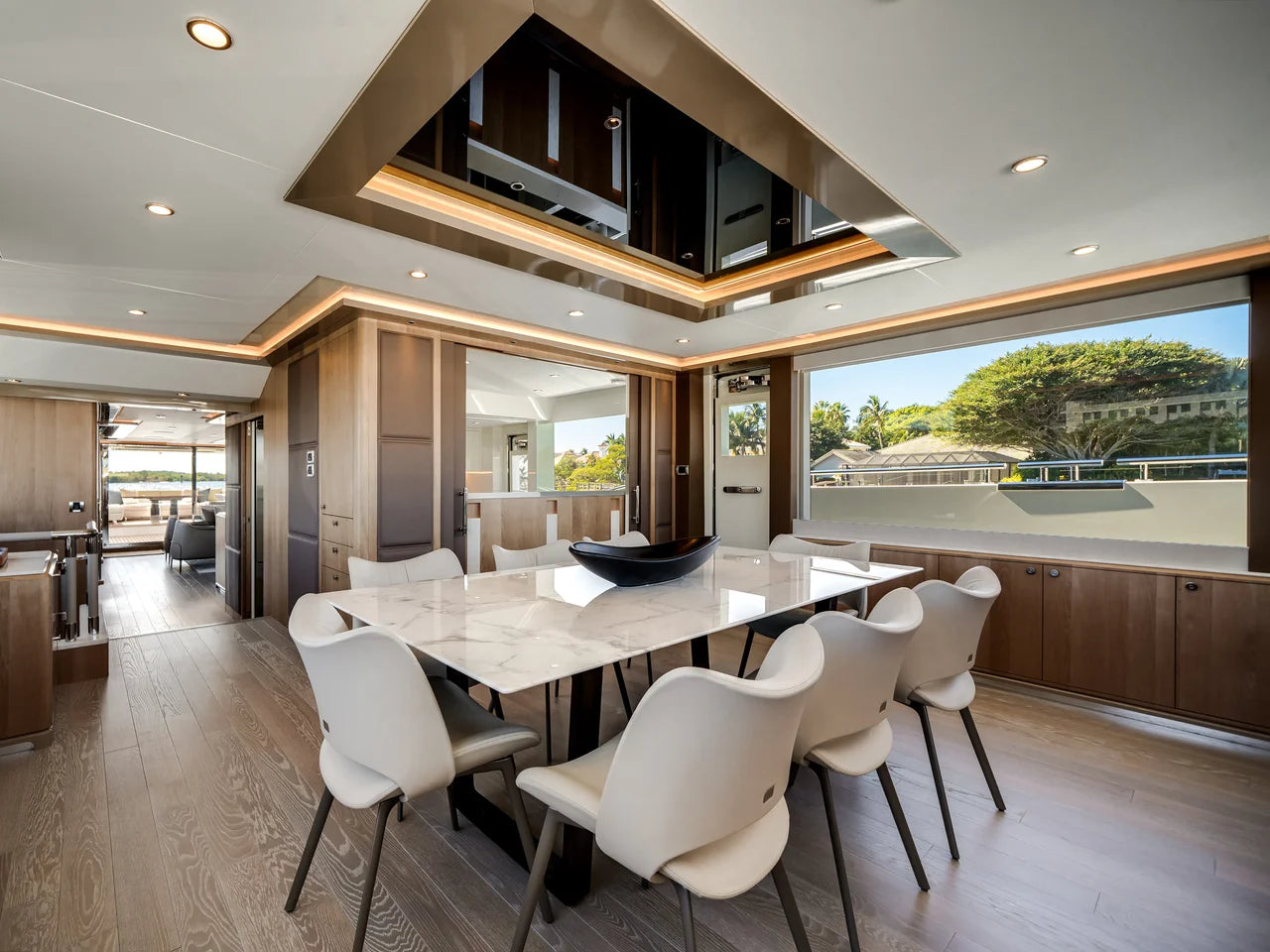

Dining Room:
• Adjustable shelf tracks and dividers installed for china, glass, and silver storage.
• Eight-person dining table secured with chairs.

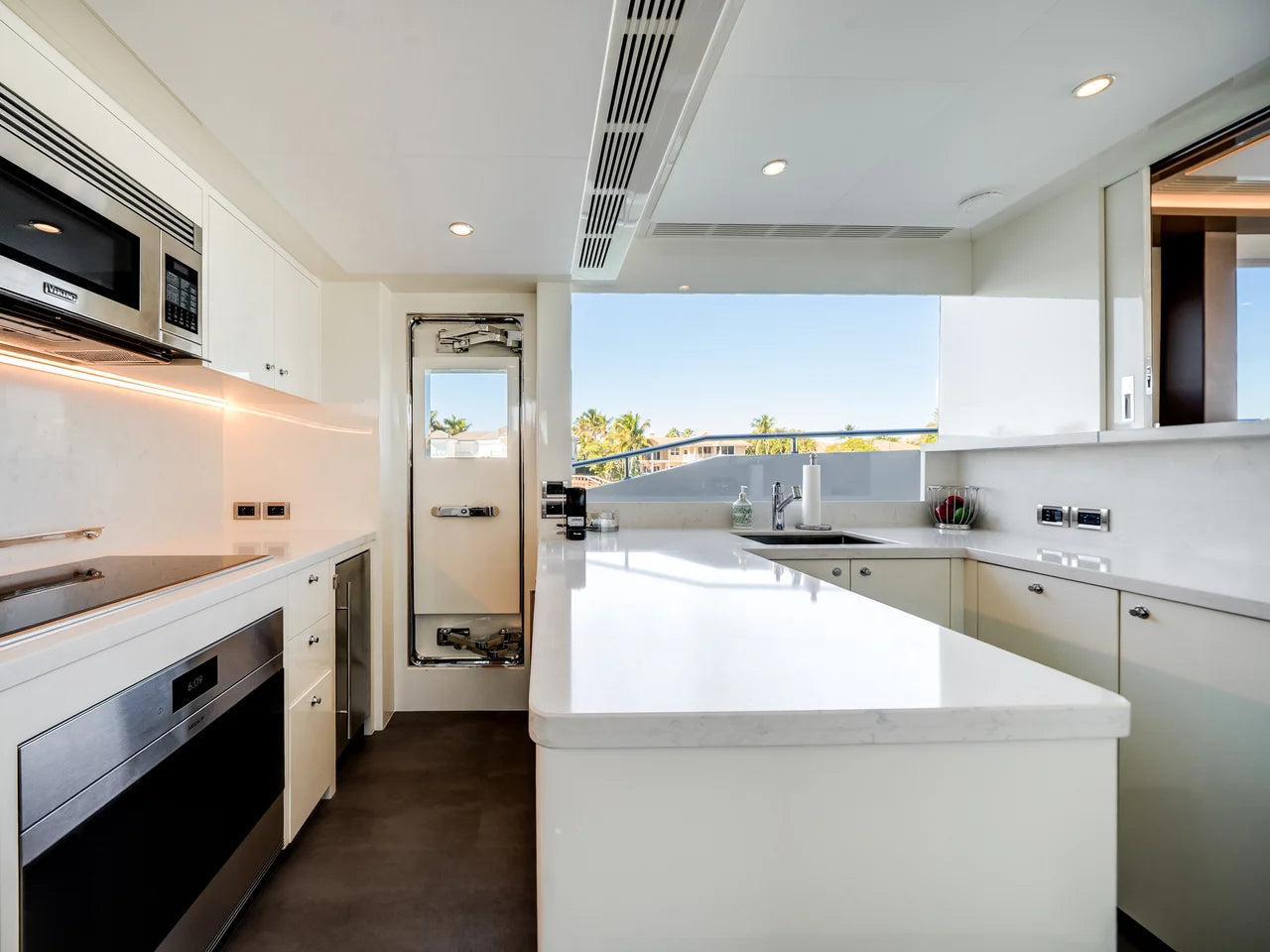

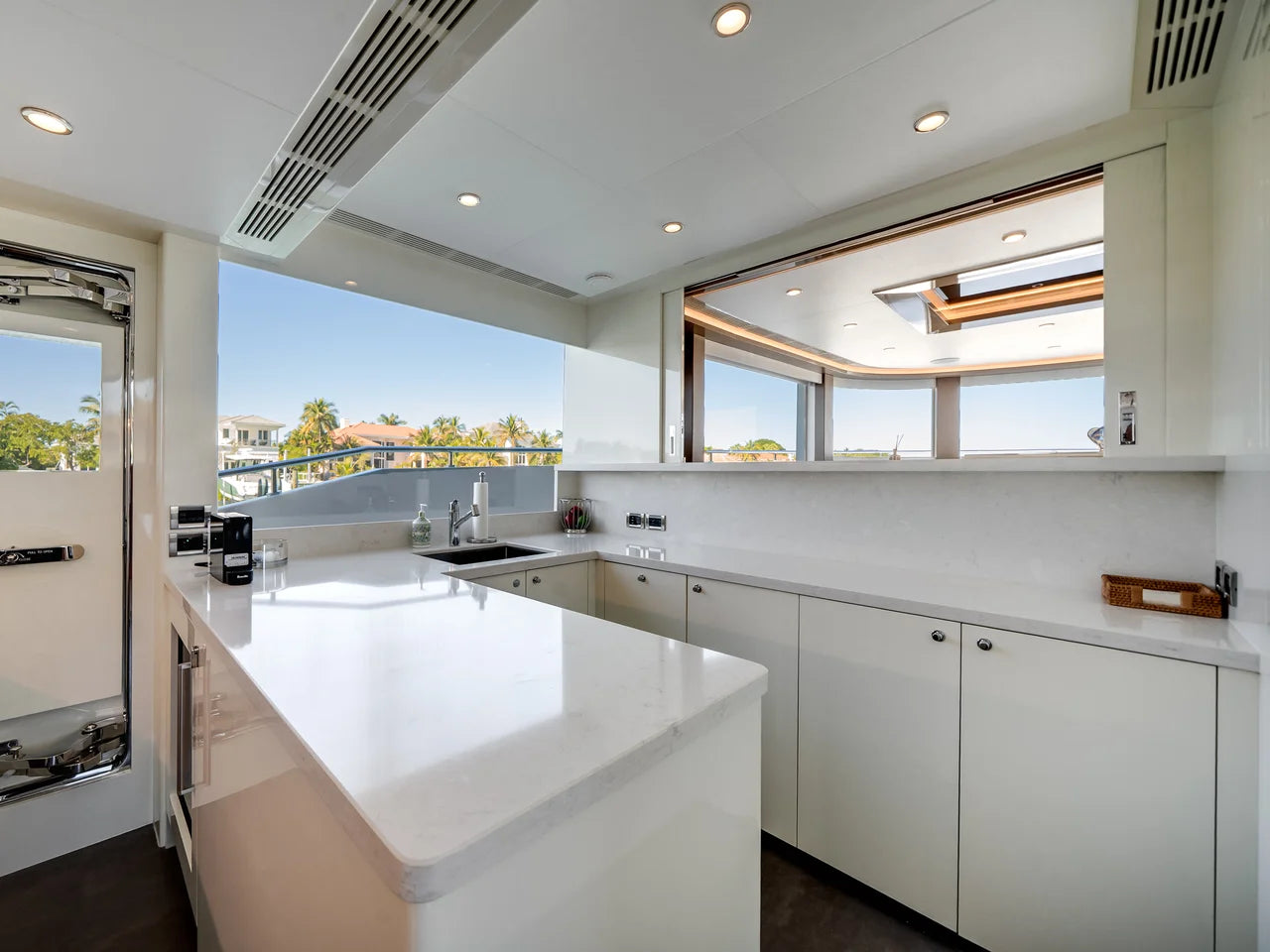

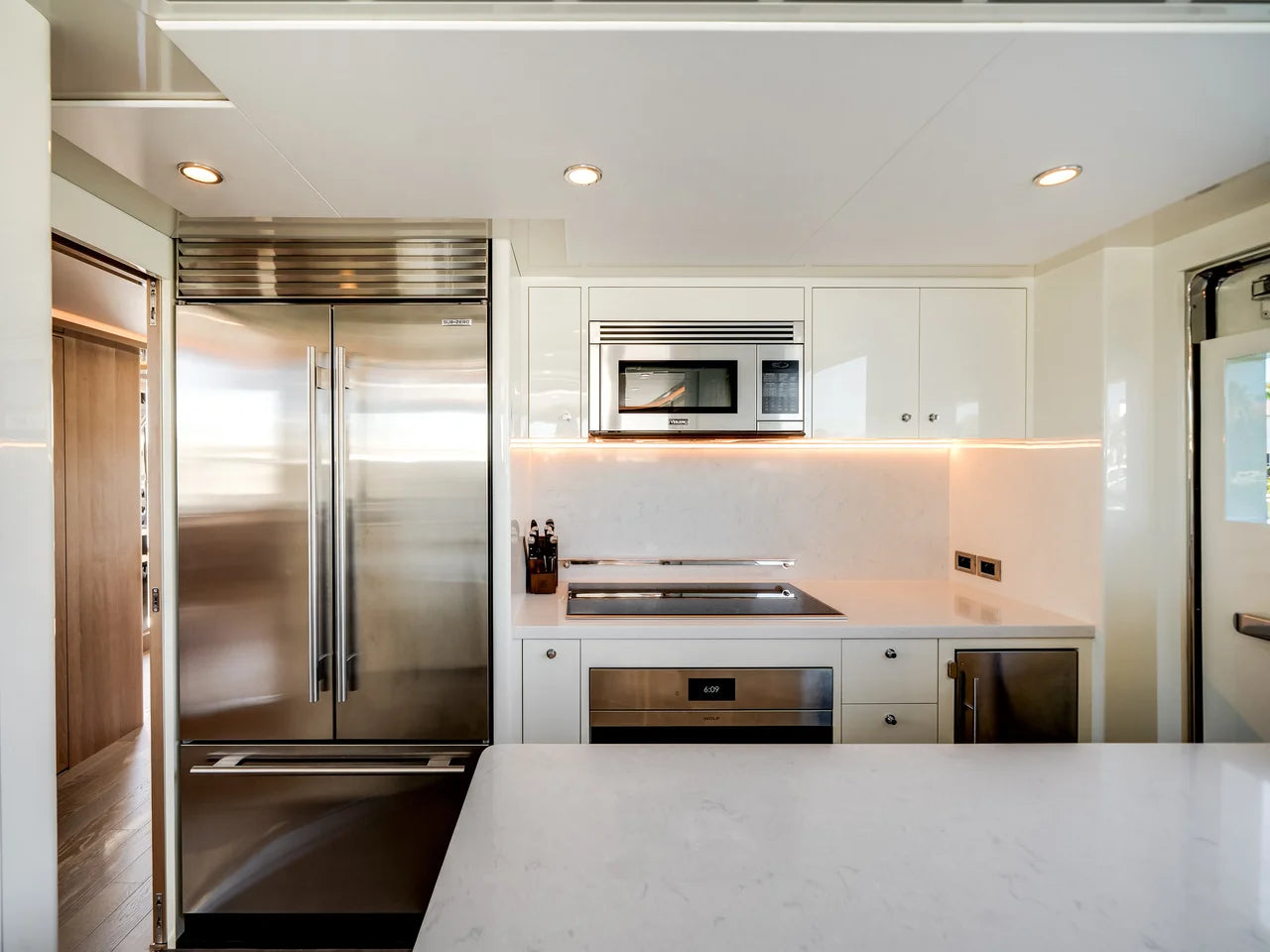

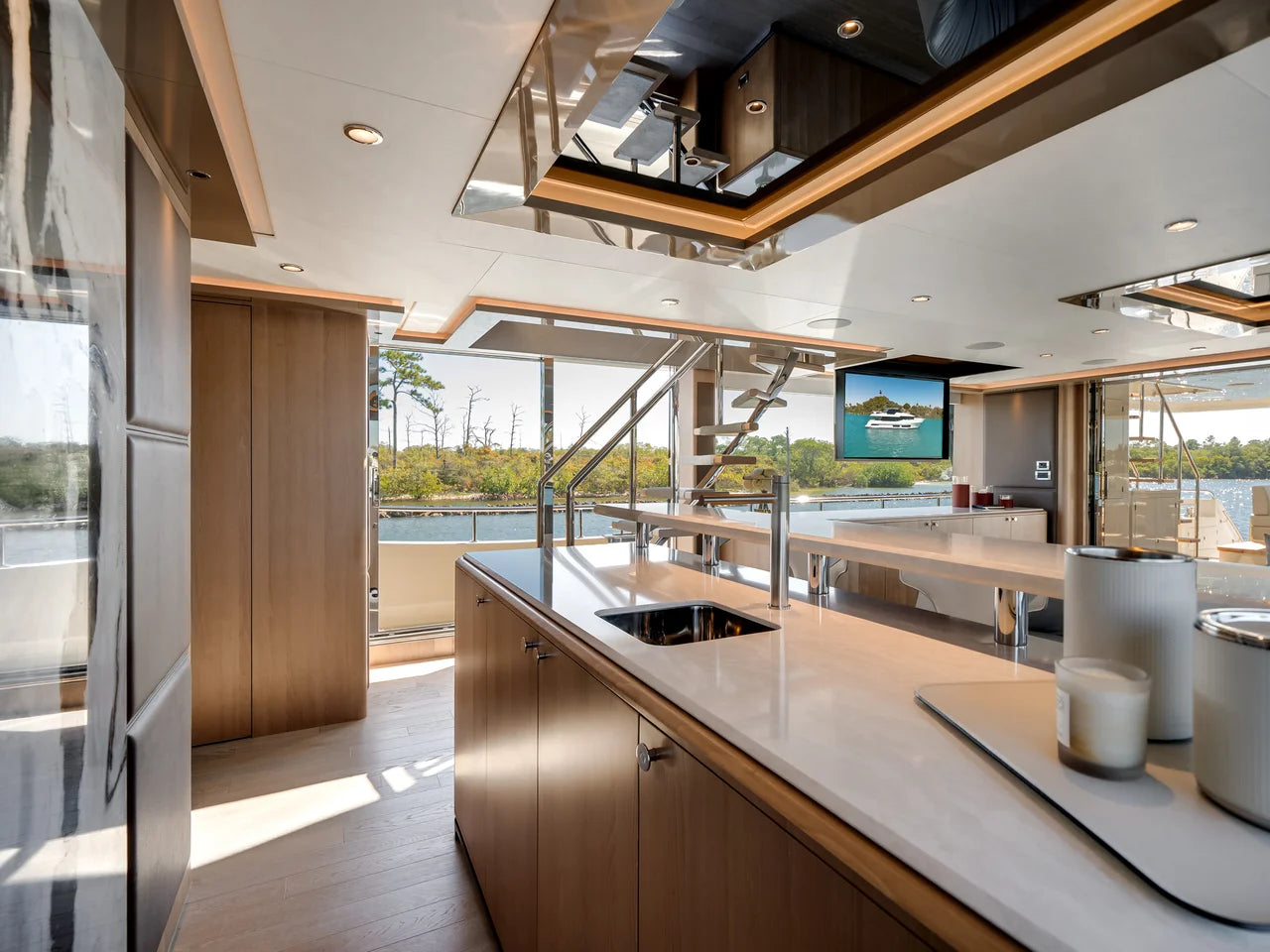

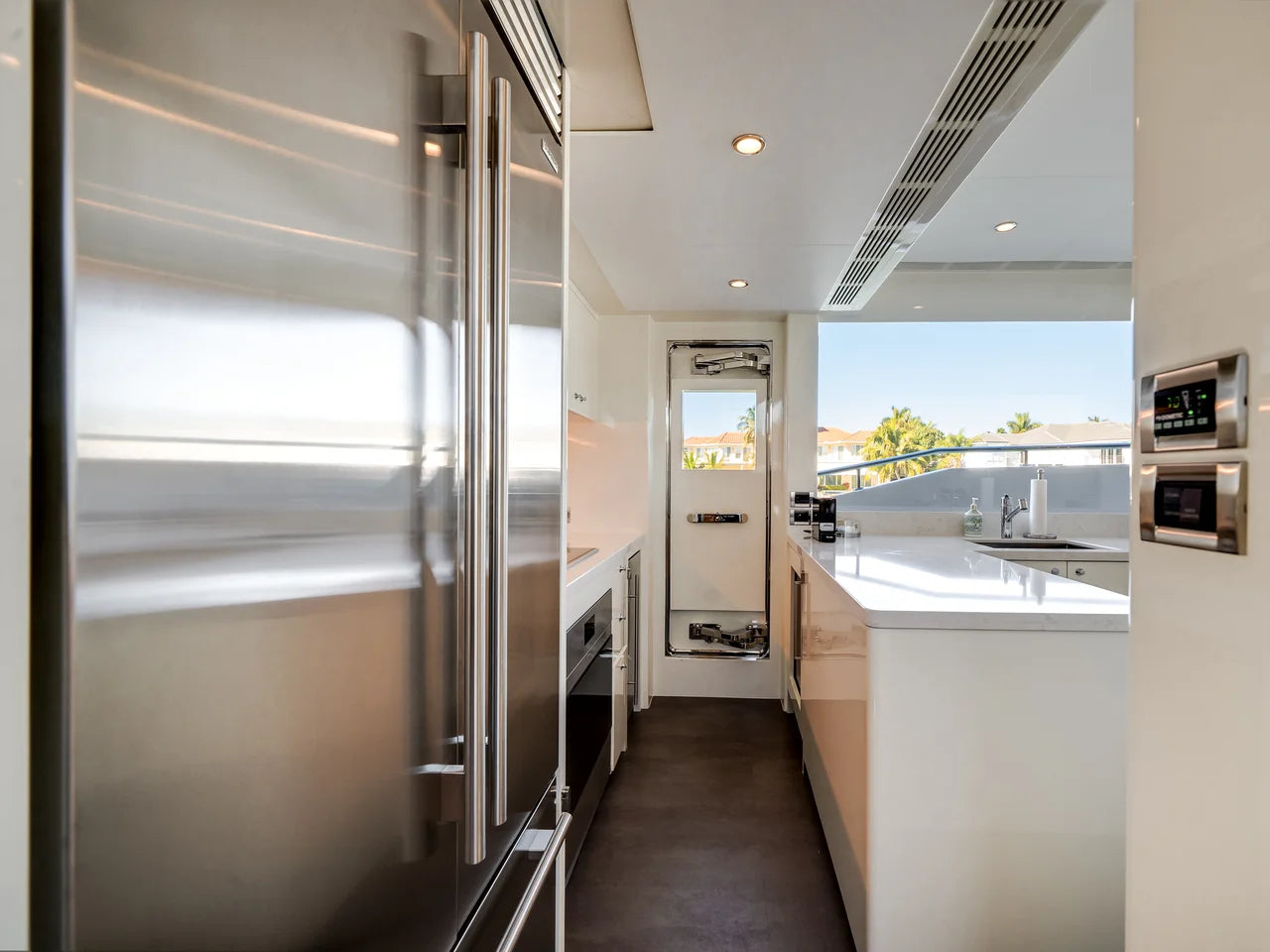

Galley:
• Lacquered cabinetry with positive-latch doors.
• Galley storage cabinetry with hidden hinges.
• Cambria® stone countertop.
• Kitchen sink with pull out faucet.
• Overhead dish locker fwd & aft.
• Wolf® 36" electric cook top.
• Wolf® 30" electric oven.
• VIKING® 30" microwave.
• Sub-Zero® 36" refrigerator.
• Sub-Zero® 24" wine cooler.
• ASKO® dishwasher.
• Whirlpool™ garbage disposal.
• Whirlpool™ trash compactor.
• Scotsman Brilliance® gourmet clear ice maker.

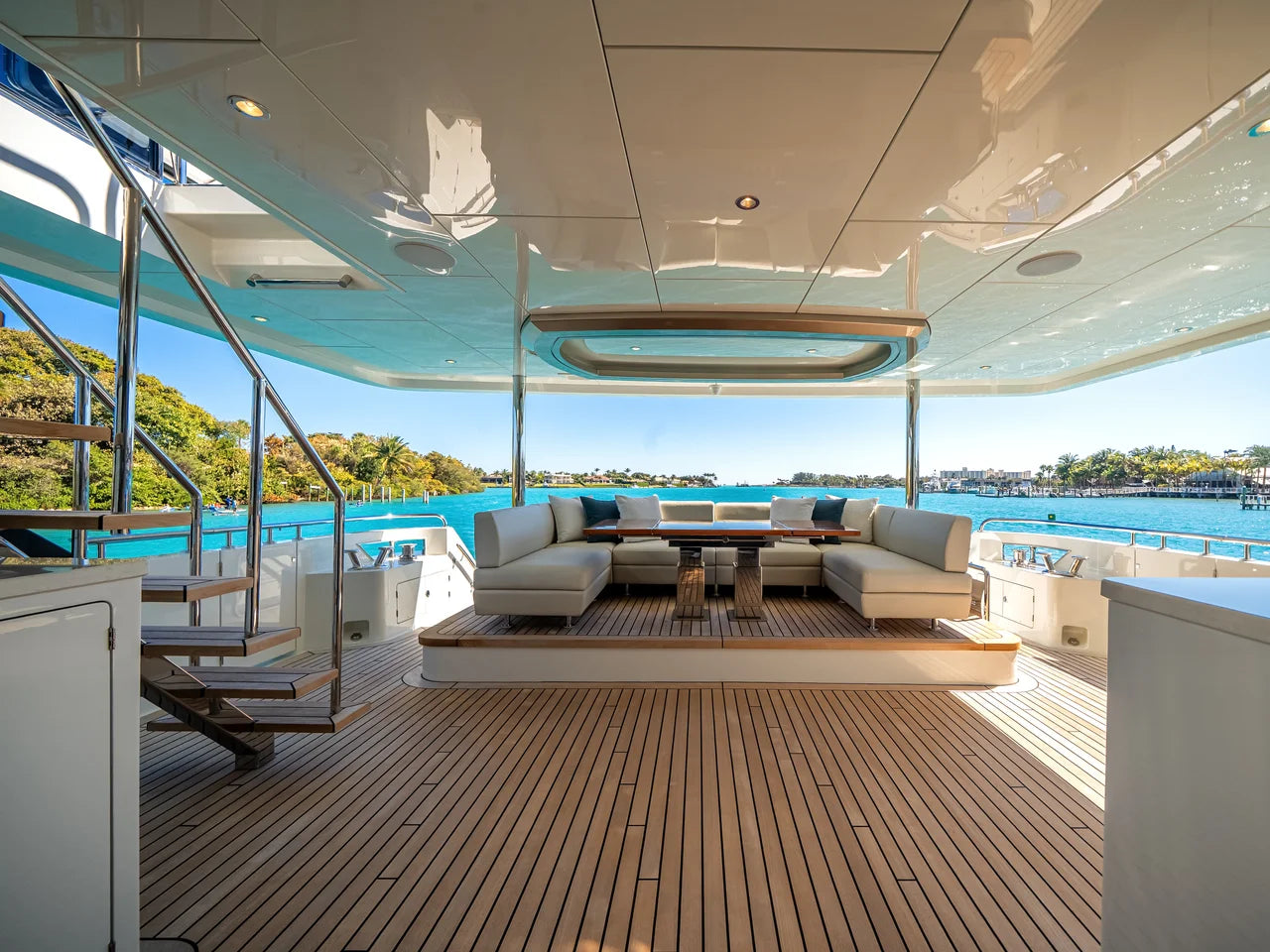

Skylounge:
• Skylounge in-lieu of standard flybridge.
• Custom-designed furniture and sofa.
• Day head
• Custom settee couch.
• Subzero undercounter fridge and freezer.
• Wood and padded leather control console
• Ship's alarm panel for bilge and tank monitoring.
• Red light for nighttime running.
• Navigation area/ship's office with file drawers.
• Forward windows with four windshield wipers with freshwater nozzles.
• Radio desk & chair.
• Storage locker.
• Dual electric helm seats in lieu of single manual.
Master Stateroom:

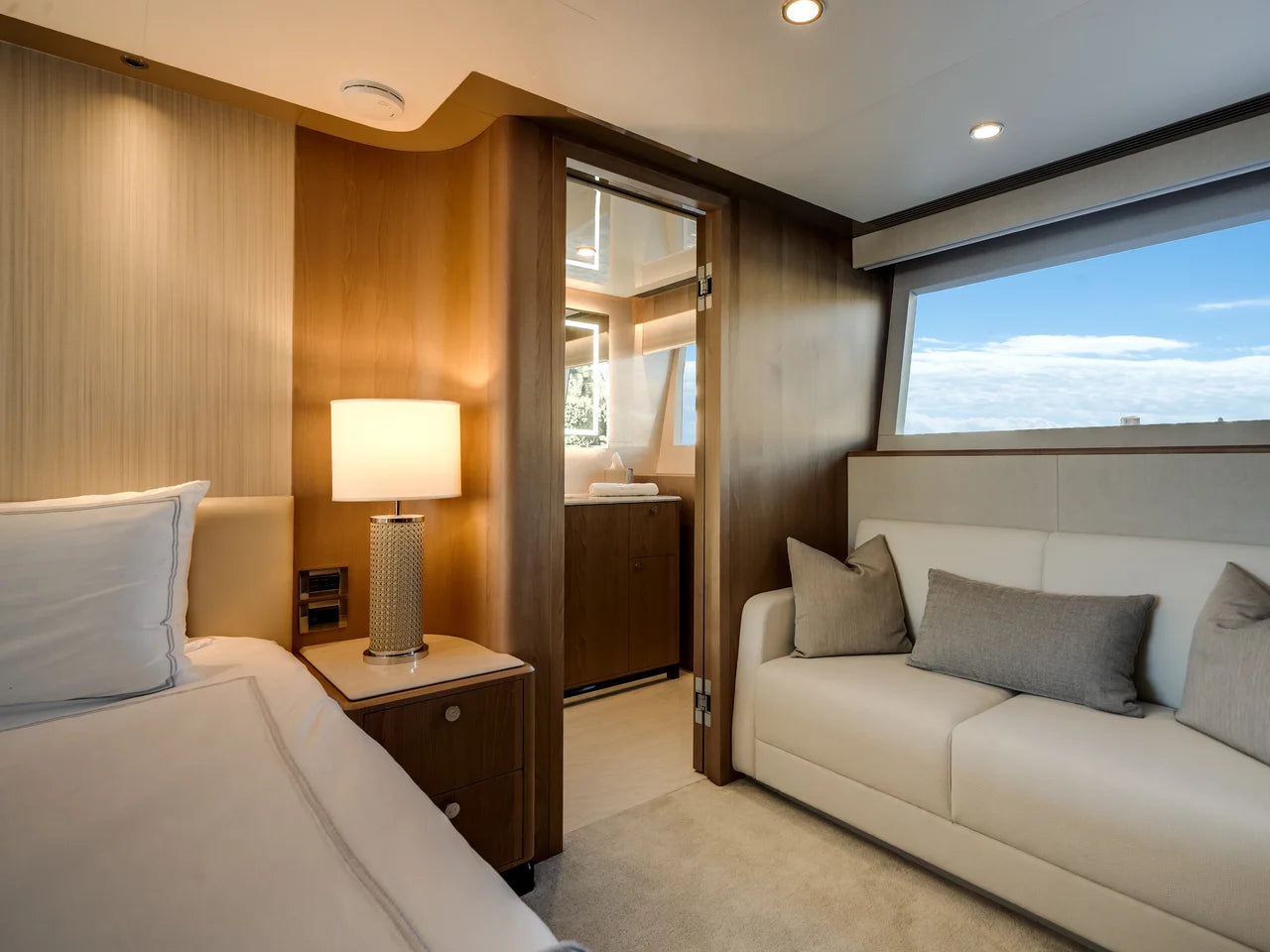

• King-sized berth with innerspring mattress and storage beneath.
• Two nightstands with stone countertops.
• Vanity table on starboard. side.
• Walk-in closet on port side of stateroom. (One featuring hidden safe for valuables)

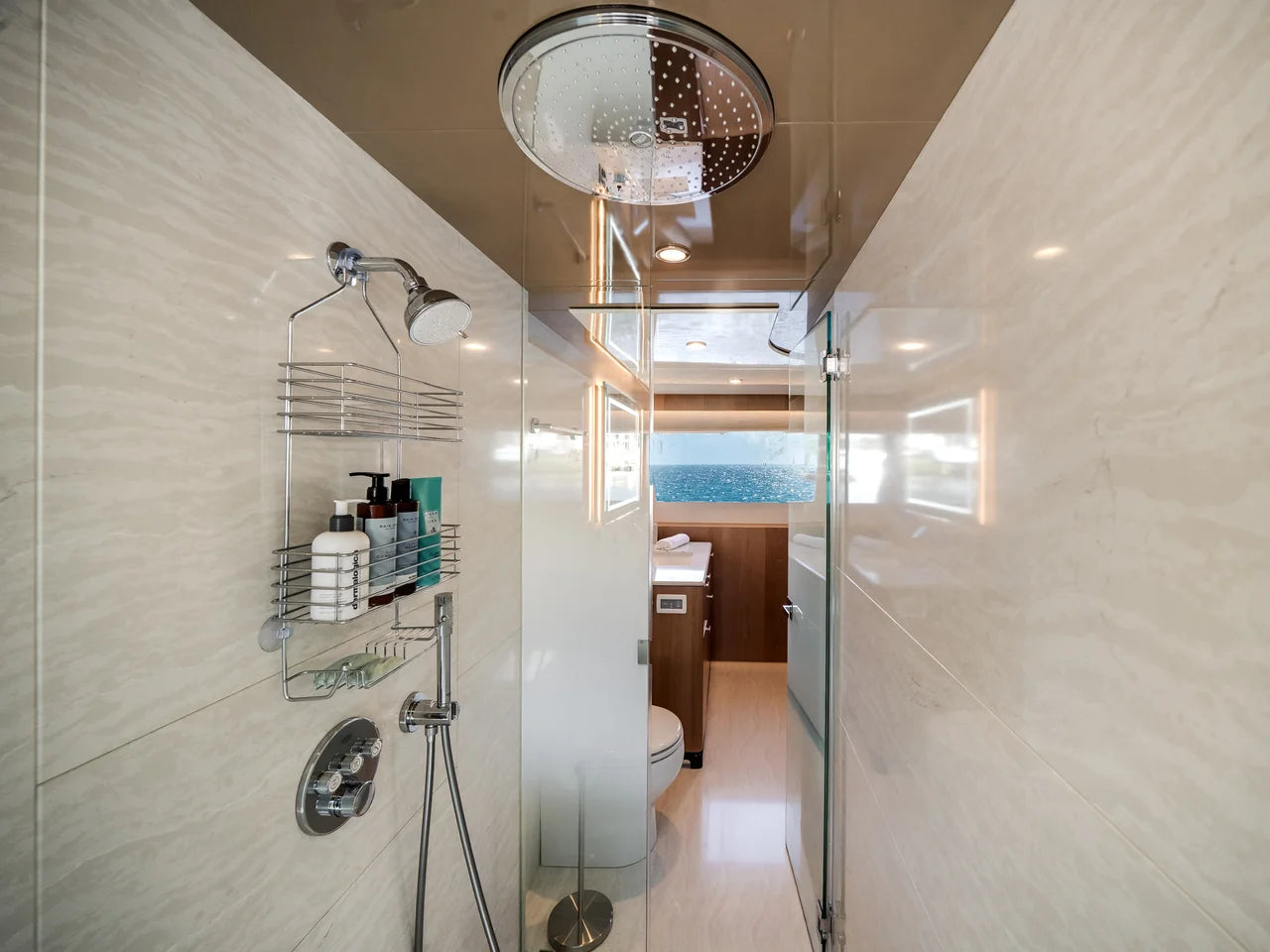

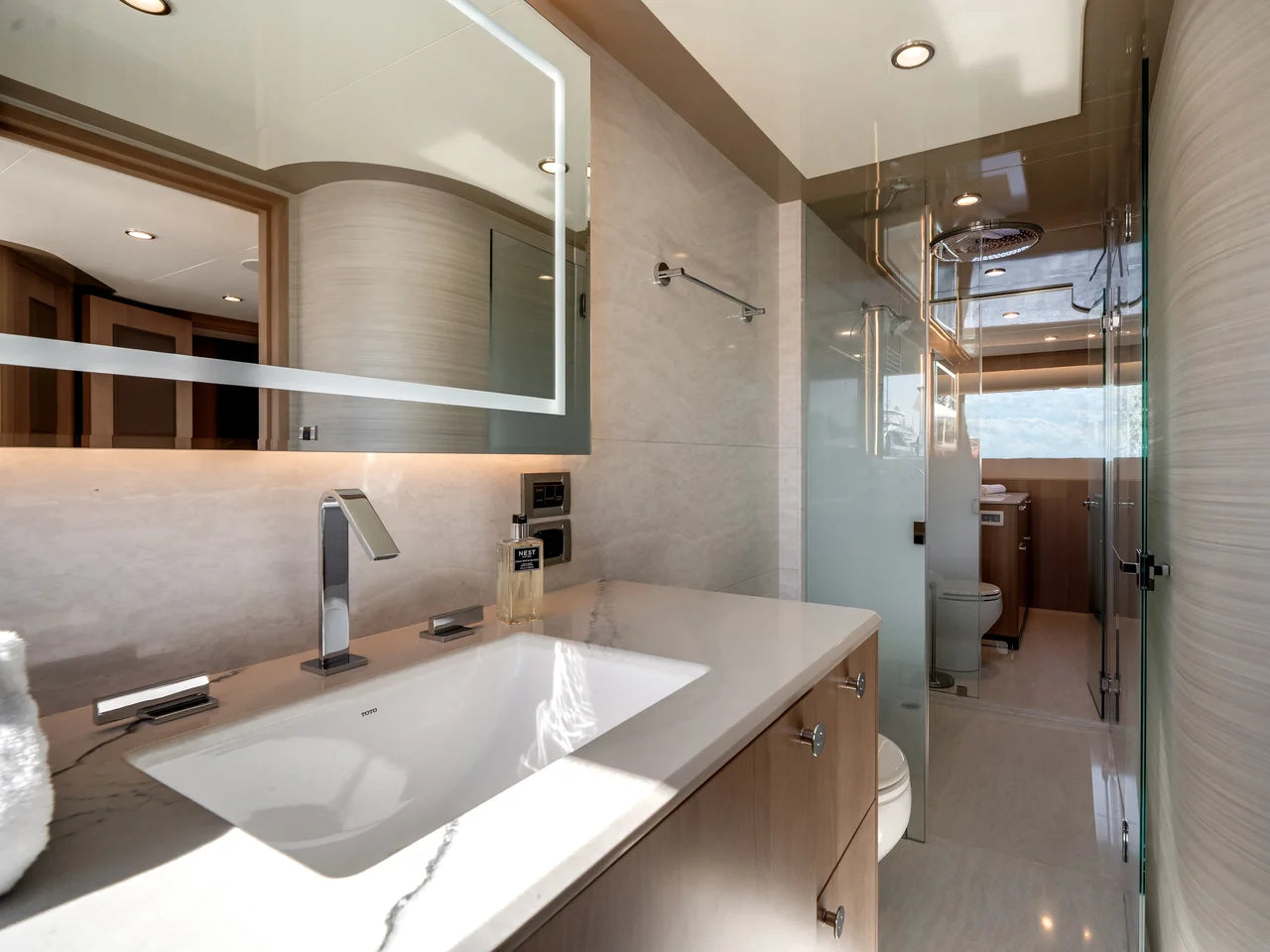

• Custom built glass shower.
• Heated stone floors in master bathroom.
• Electric shades with remote control.
• In-glass portlight for Master stateroom (2x).

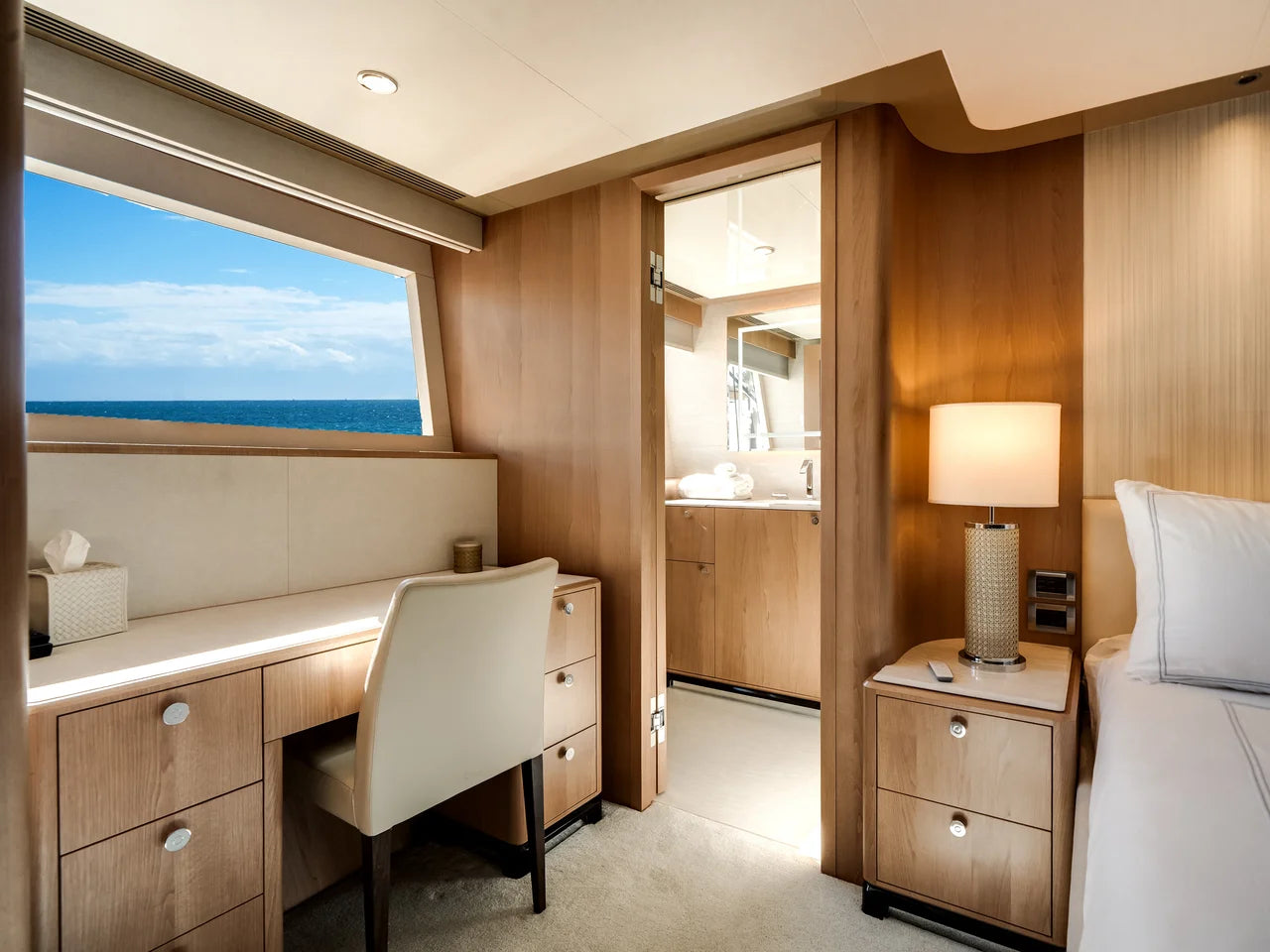

VIP Staterooms:
• Queen-size berth with innerspring mattress and storage beneath.
• Headboard finished in upholstered fabric per interior designer's spec.
• Dressing mirror.
• Vanity/dressing table.

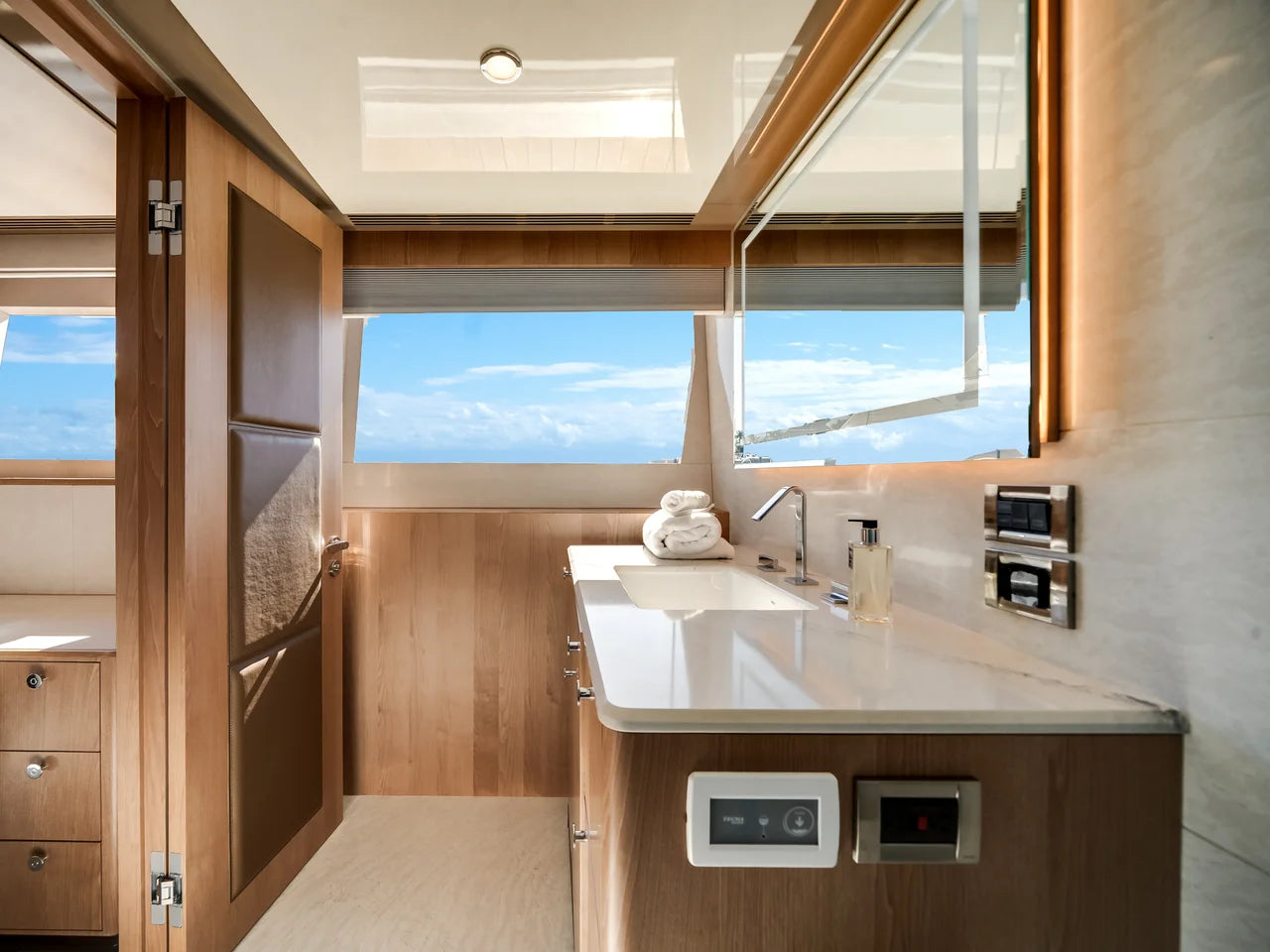

• Vanity with vessel sink having cabinet below and mirror above.
• Hanging locker with lighting.
• Privacy locksets.
• Head flooring selected stone.
• Shower fitted with tempered glass enclosure with securing device.
Guest Staterooms:
• (2x) Twin-size berth with innerspring mattress and storage beneath.
• Headboard finished in upholstered fabric per interior designer's spec.
• Dressing mirror.
• Nightstand with drawers.
• Hanging locker with lighting.
• Privacy locksets.
• Head flooring selected stone.
• Vanity with vessel sink having cabinet below and mirror above.
• Shower fitted with tempered glass enclosure with securing device.
• Port and starboard staterooms side-by-side berths can slide together and convert to single queen berth.
• In-glass portlight for Guest stateroom (2x).

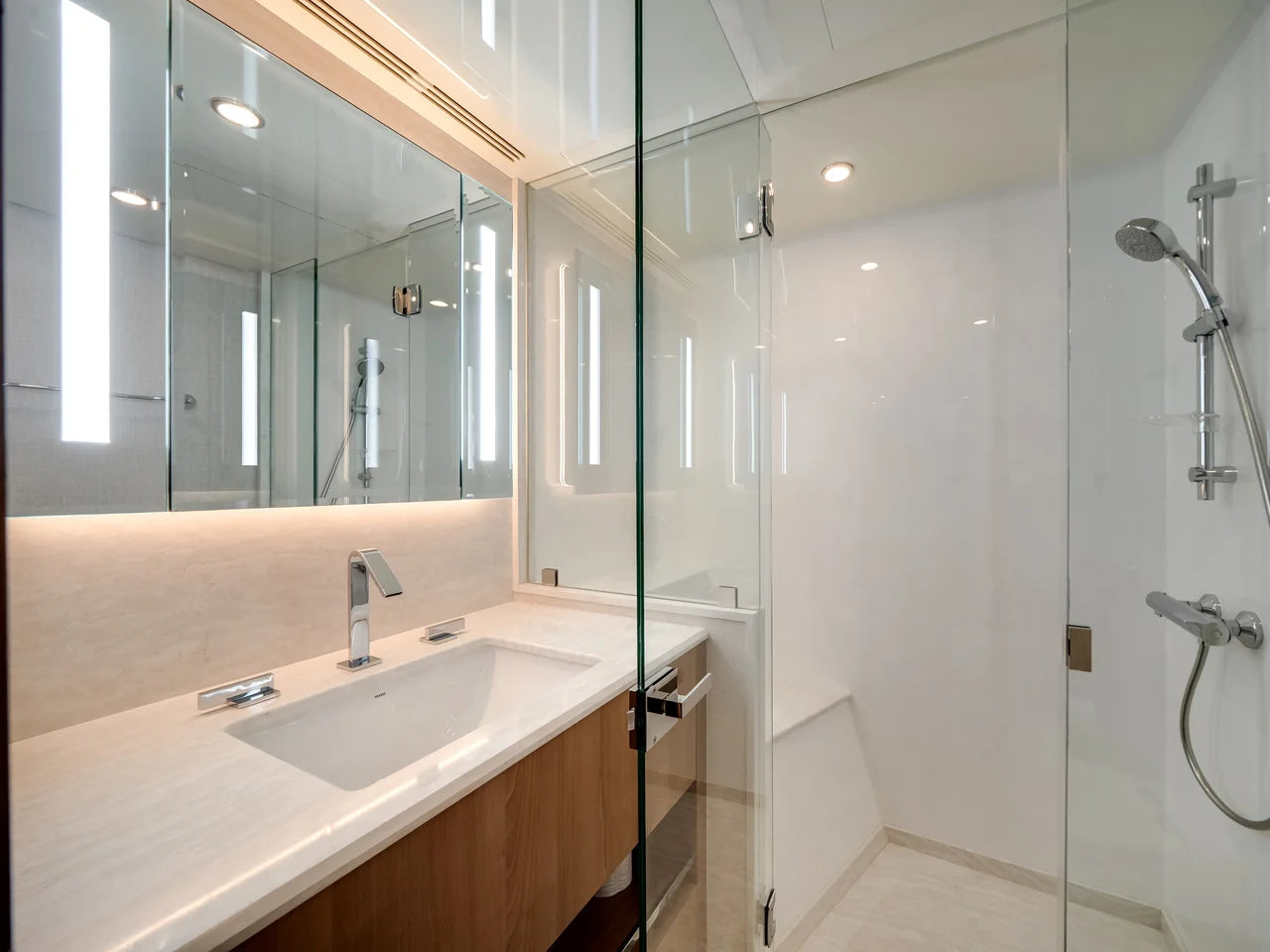

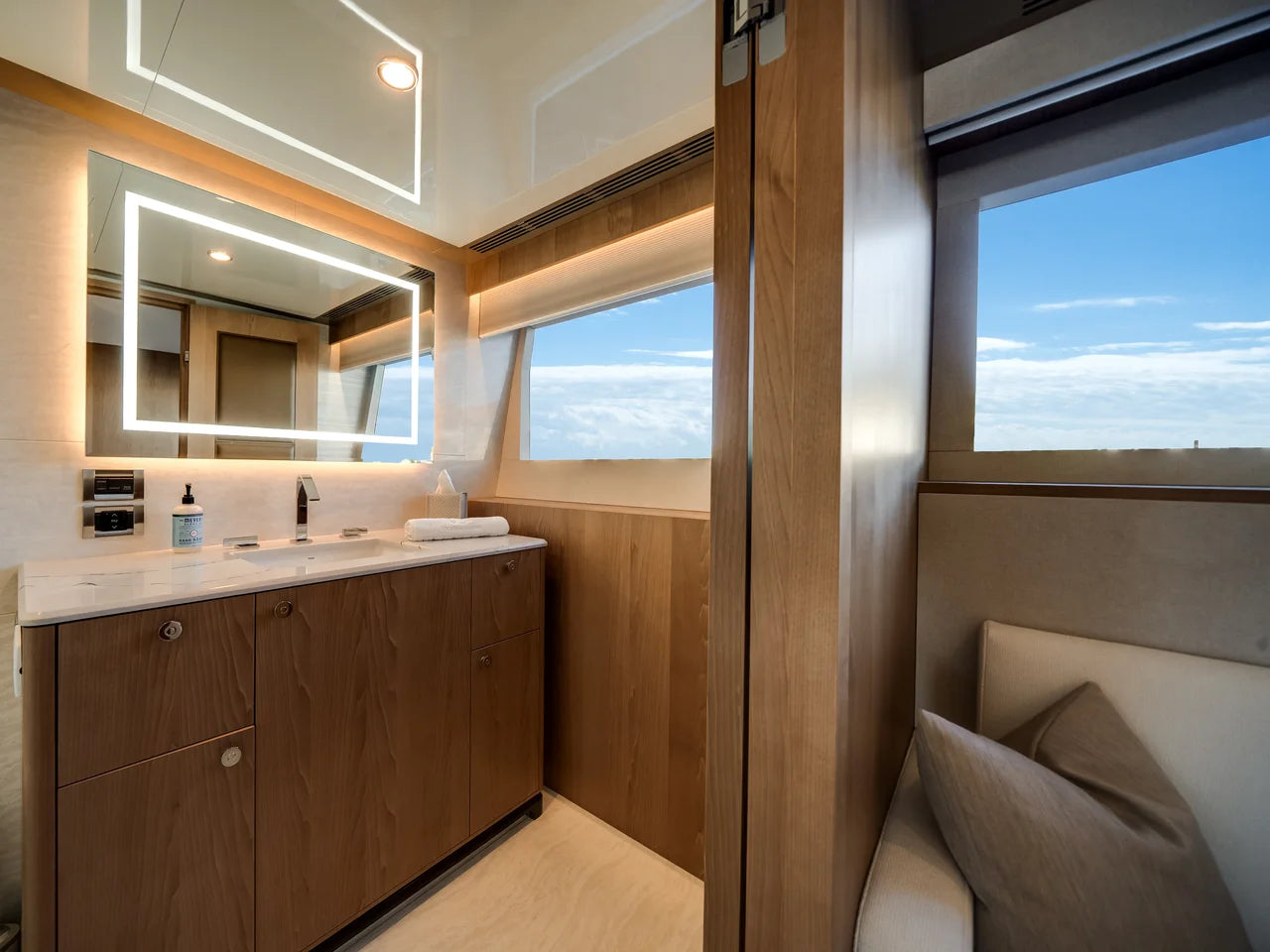

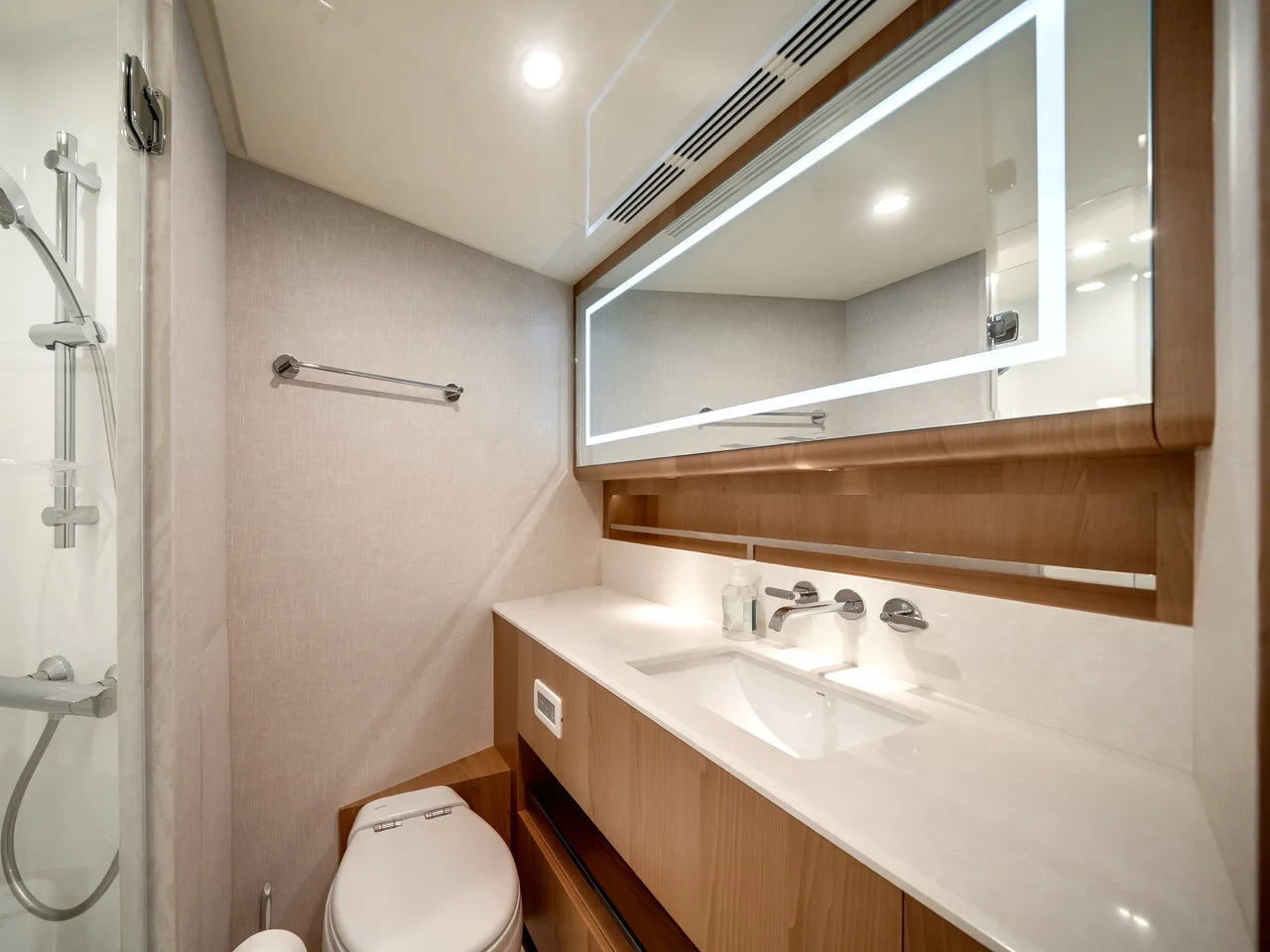

Heads:

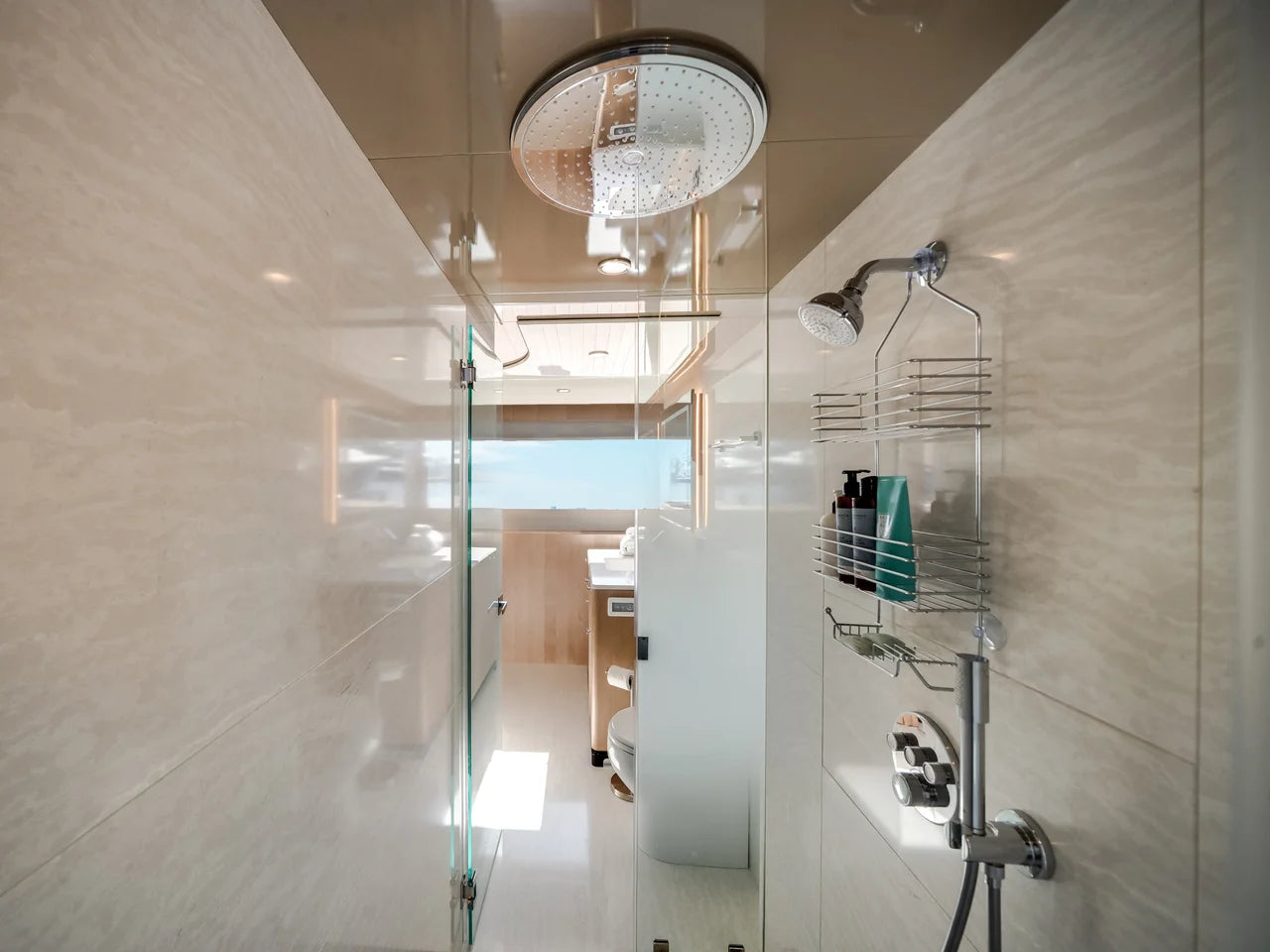

• Custom-made seamless fiberglass stall shower w/ one-piece glass door. Reduce mildew by providing a clean, easily disinfecting wipe-down surface.
• Air extraction in each head by low noise extraction fans.
• Tecma™ Marine toilet system throughout.
• Stone countertops and back splash in heads with china sink.
Crew Quarters:
• Kitchenette (sink, microwave, and refrigerator).
• Storage locker in each crew stateroom.
• Settee with table and storage beneath seating.
• Two crew staterooms: one captain and one high-low bunk staterooms.
• Captain quarters includes desk and N2KView linked Apple iPad for systems diagnostics/alerts/ settings.
• Washer & dryer.
• Crew quarters with private head and shower.
Specifications
Dimensions
Dimensions
- Length:95 ft
- Beam:23 ft 1 in
Engine & Performance
Engine & Performance
- Engine Count:2
- Total Horse Power:3200 hp
- Drive Type:Other
- Fuel Type:Diesel
- Make:MTU
- Model:1600
Capacities
Capacities
- Fuel Capacity:3850.0 gal
- Fresh Water Capacity:650.0 gal
- Holding Tank Capacity:400.0 gal
- Number of Cabins:4
- Head Count:6
Miscellaneous
Miscellaneous
- Hull Material:Fiberglass
- Condition:Brokerage
- Class:Motor Yachts
Location
Broker
Monthly Payment Calculator
This estimated payment is outside the range we can display here. Please contact us for financing options tailored to this vessel.
Get Prequalified
Why Choose MarineMax
Start Your Boating Journey
Easy Boat Financing
Turn your dream boat into reality with MarineMax financing. Use our loan calculator to explore options for your budget.
Professional Boat Service
From routine maintenance to engine upgrades, MarineMax offers certified technicians and personalized support.
Events & Classes
Join the fun with MarineMax events, featuring boat shows, classes, and demo days for all boaters.
