2023 Ocean Alexander 27R
Overview
Ocean Alexander 27R | SOUTH C’s
Key Features
- 4-stateroom layout with dual-master configuration (on-deck + below)
- New-generation pilothouse option with enlarged flybridge and outdoor bar

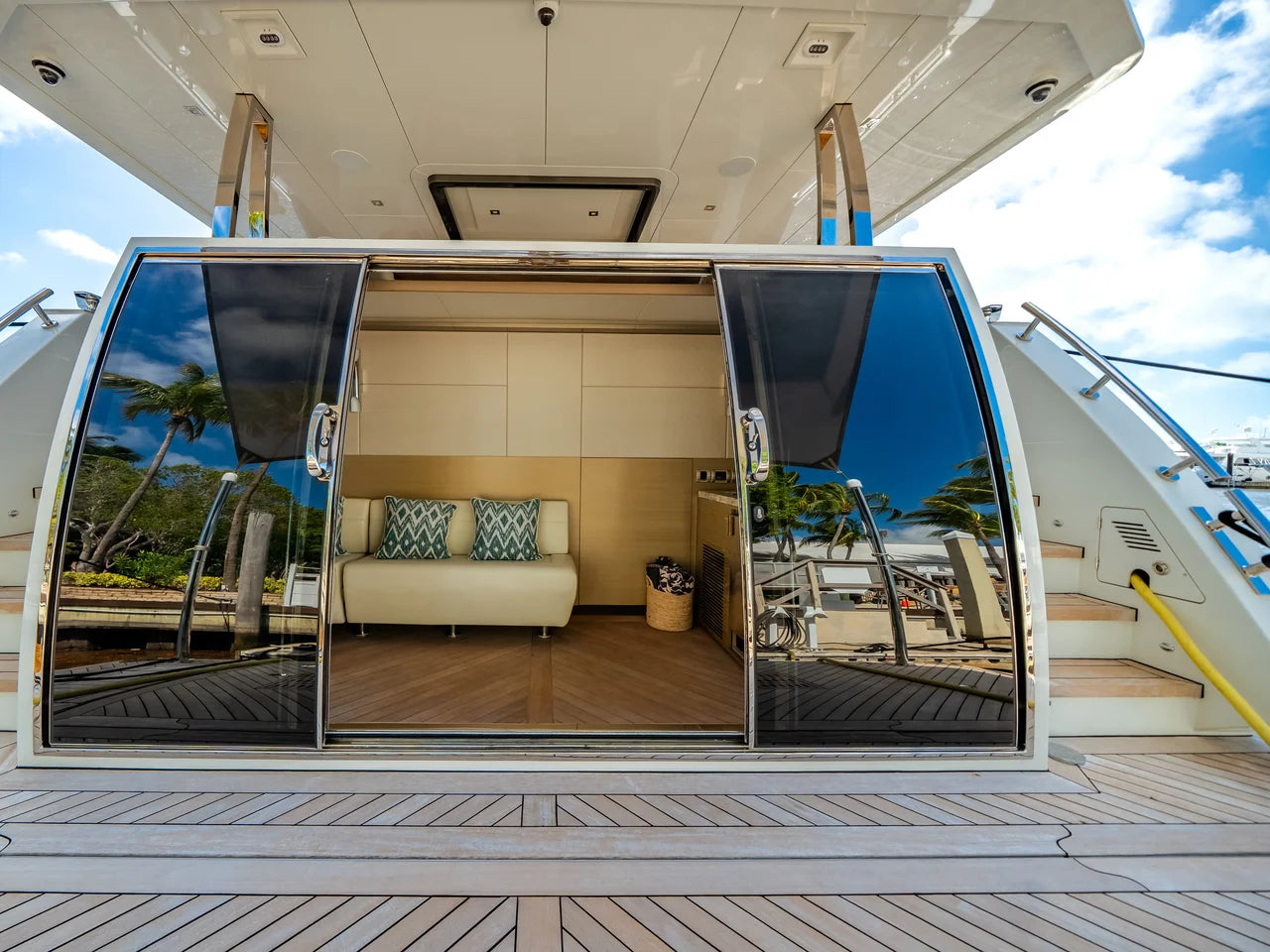

- Glass-enclosed beach club with sliding door access
- Bonus room in guest corridor configured for storage with custom built-in shelving
- Custom shelving in engine room (over starboard engine) for toolbox storage
- Upgraded mattresses in all staterooms
- Crew quarters for up to 4
Recent Service & Highlights
- Located at Ocean Reef Club, Key Largo, FL
- Full bottom service completed May 2026
- Engines serviced; ~700 hours | Generators serviced; 983 / 920 hours
- Hydraulic systems serviced (thrusters, windlass, stabilizers, swim platform)
- Exterior professionally ceramic coated
- Includes two Sea-Doo Spark Waverunners (approx. 10 hours)

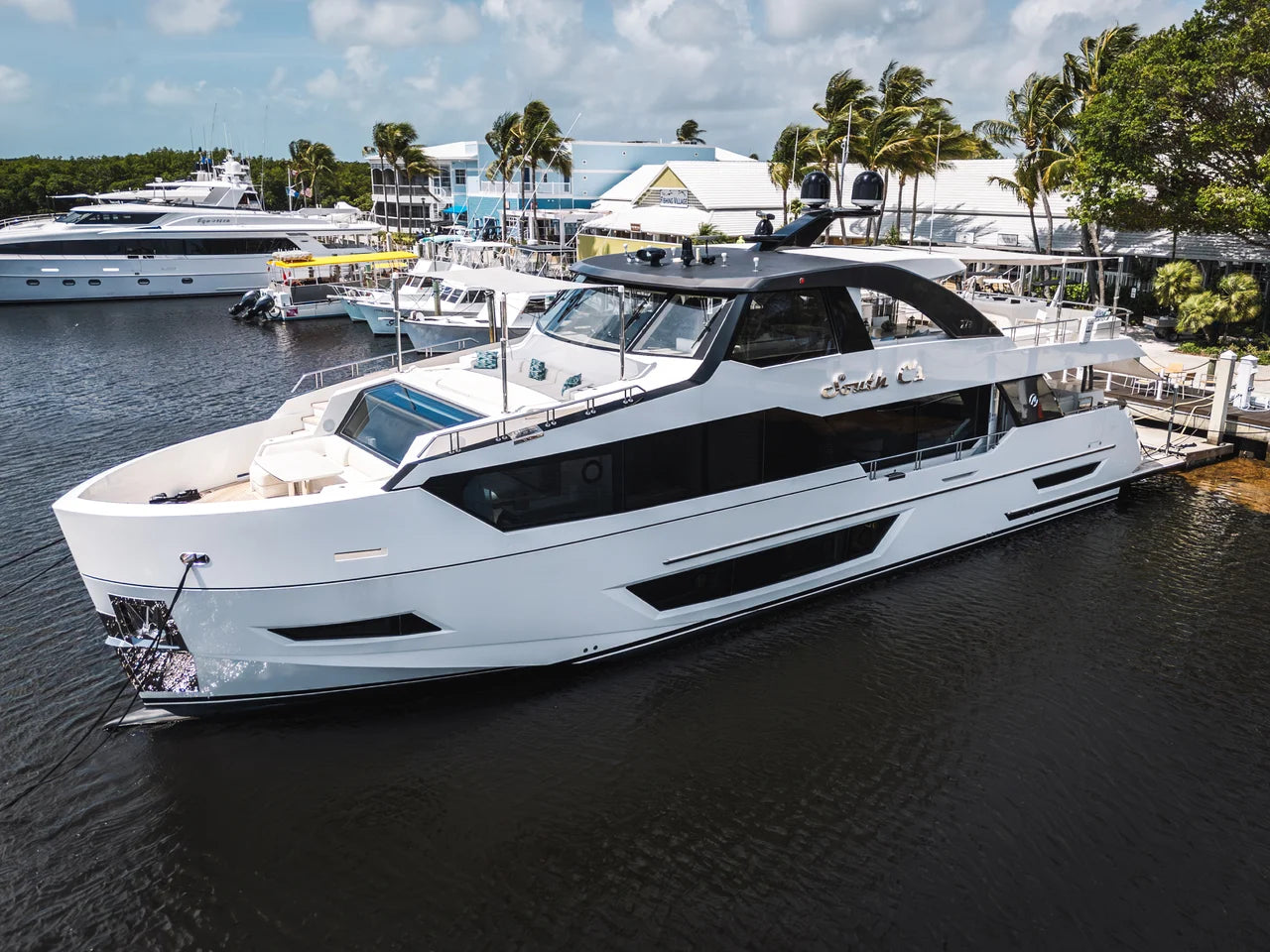

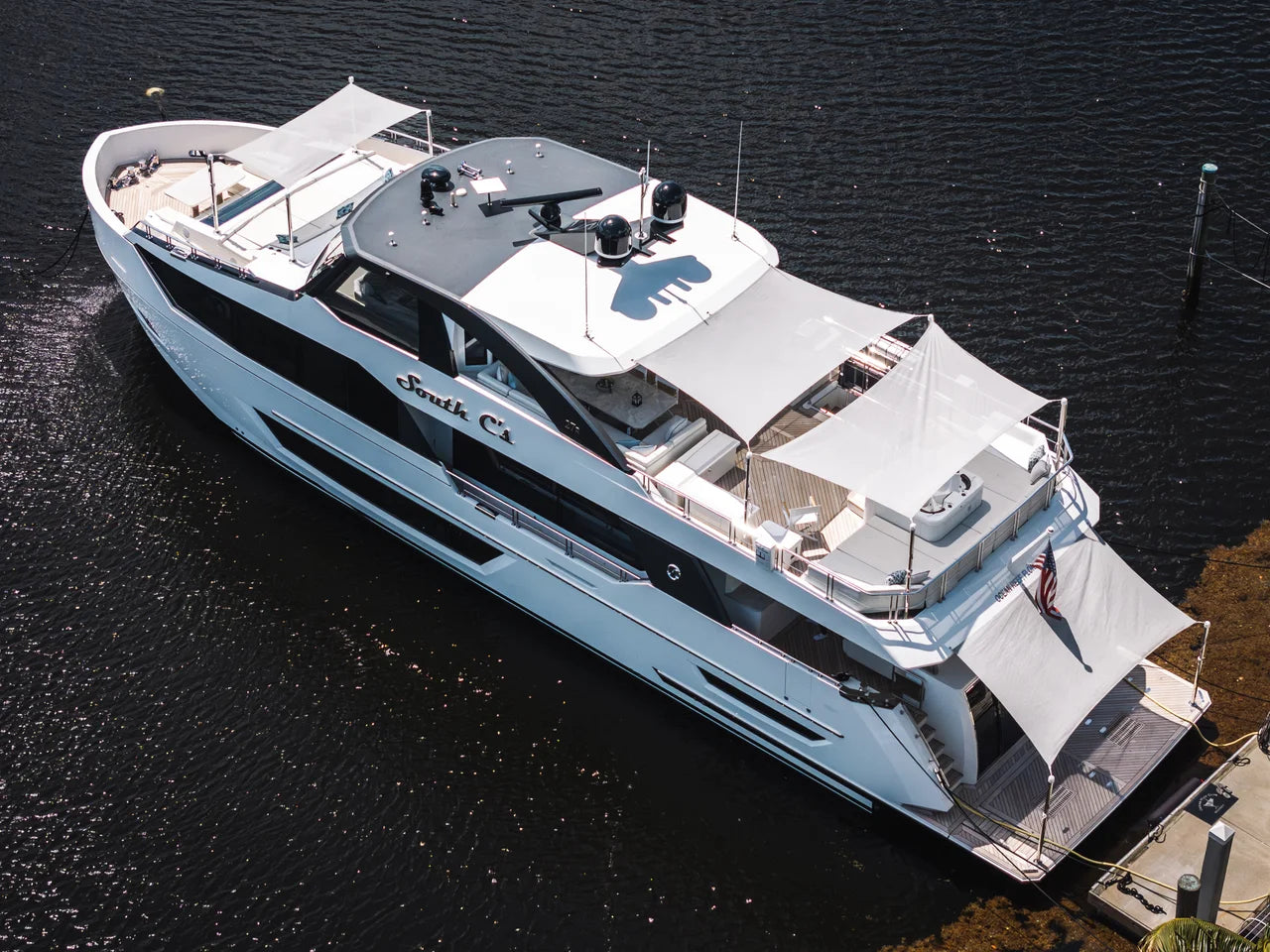

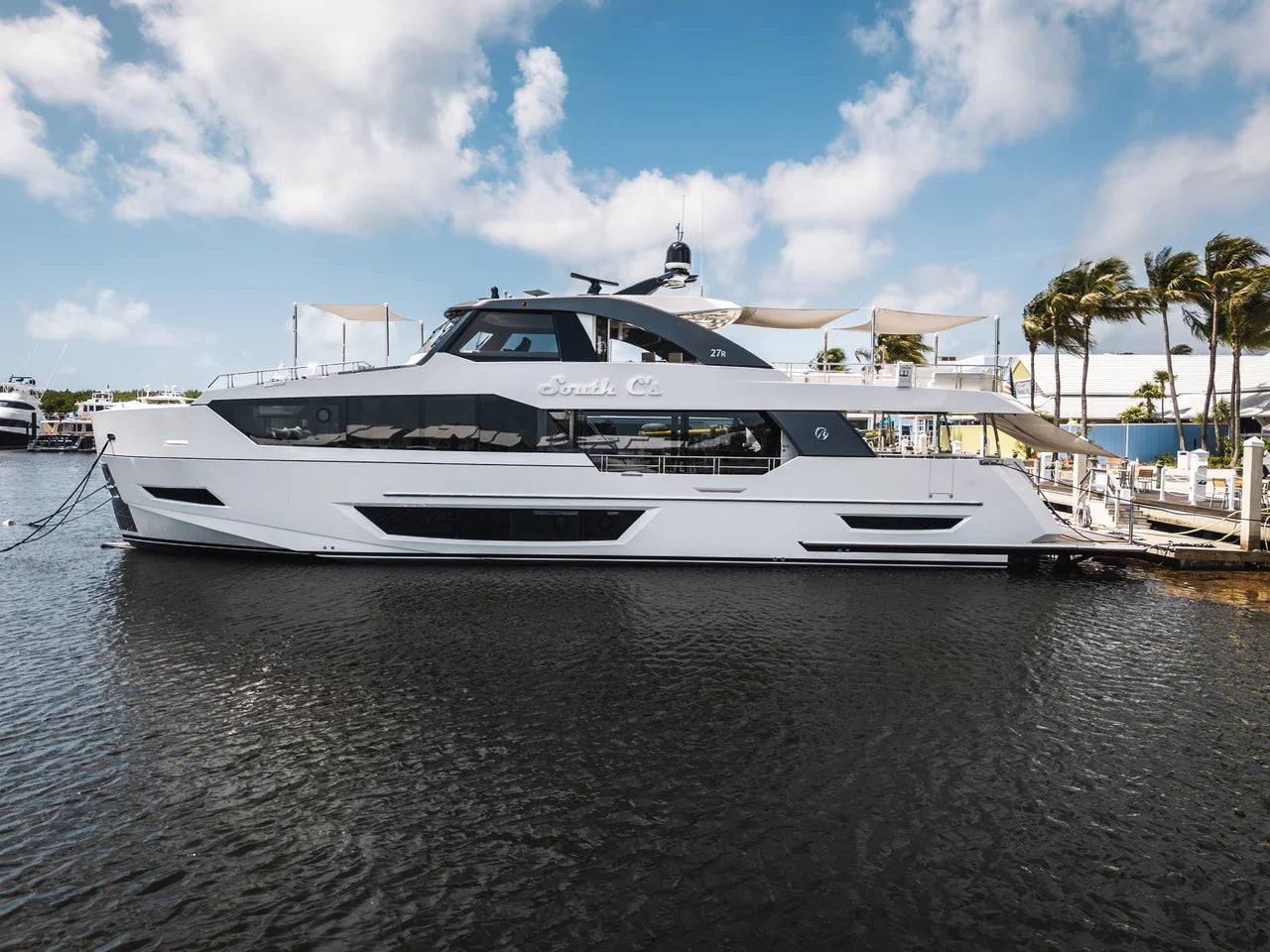

SOUTH C’s, Ocean Alexander 27R, Hull #3, delivers a well-balanced layout with thoughtful upgrades and a strong emphasis on livability, storage, and entertaining.
The interior offers a clean, modern feel with excellent natural light and a highly functional layout. Accommodations include a 4-stateroom configuration that lends itself to a dual-master setup, with an on-deck master and a second full-beam master below, along with two additional guest staterooms—all ensuite.
A standout feature is the bonus room located in the guest corridor, thoughtfully configured for storage with custom built-in shelving—an uncommon and highly practical addition for extended cruising.
The yacht is equipped with the new-generation pilothouse option, expanding the flybridge into a true entertaining space complete with an outdoor bar. A glass-enclosed beach club with sliding door access enhances the connection to the water while offering additional usable space.

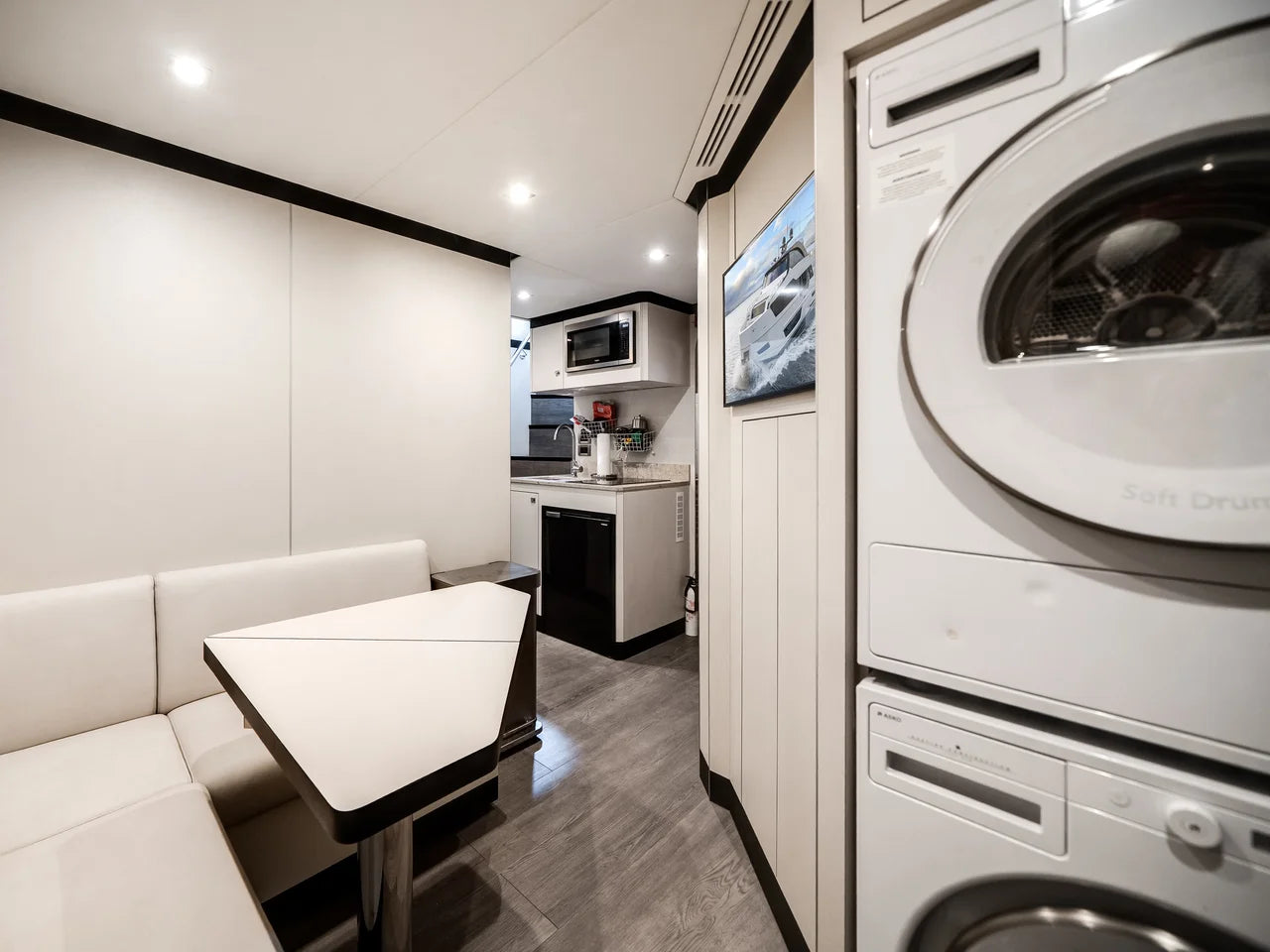

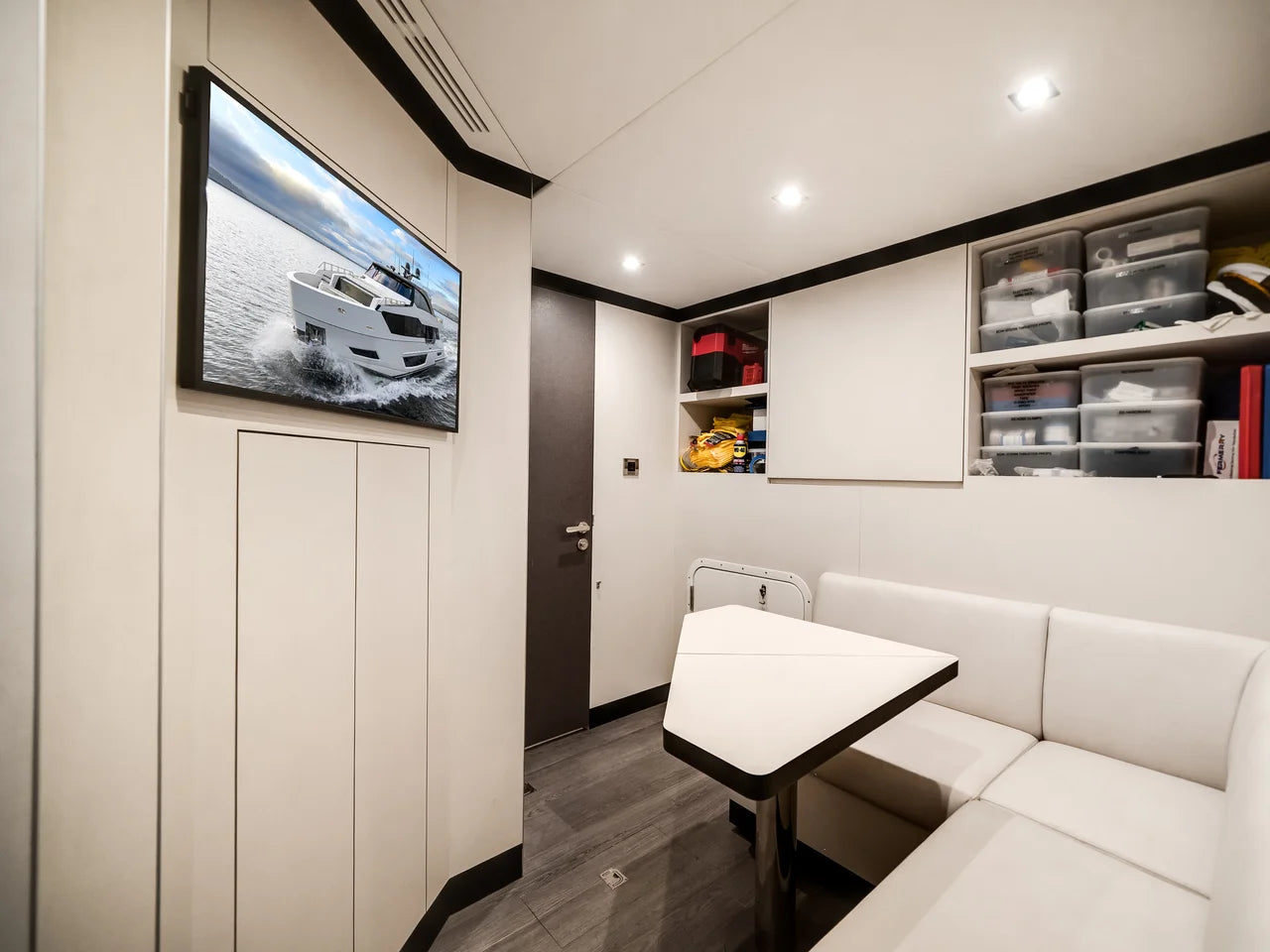

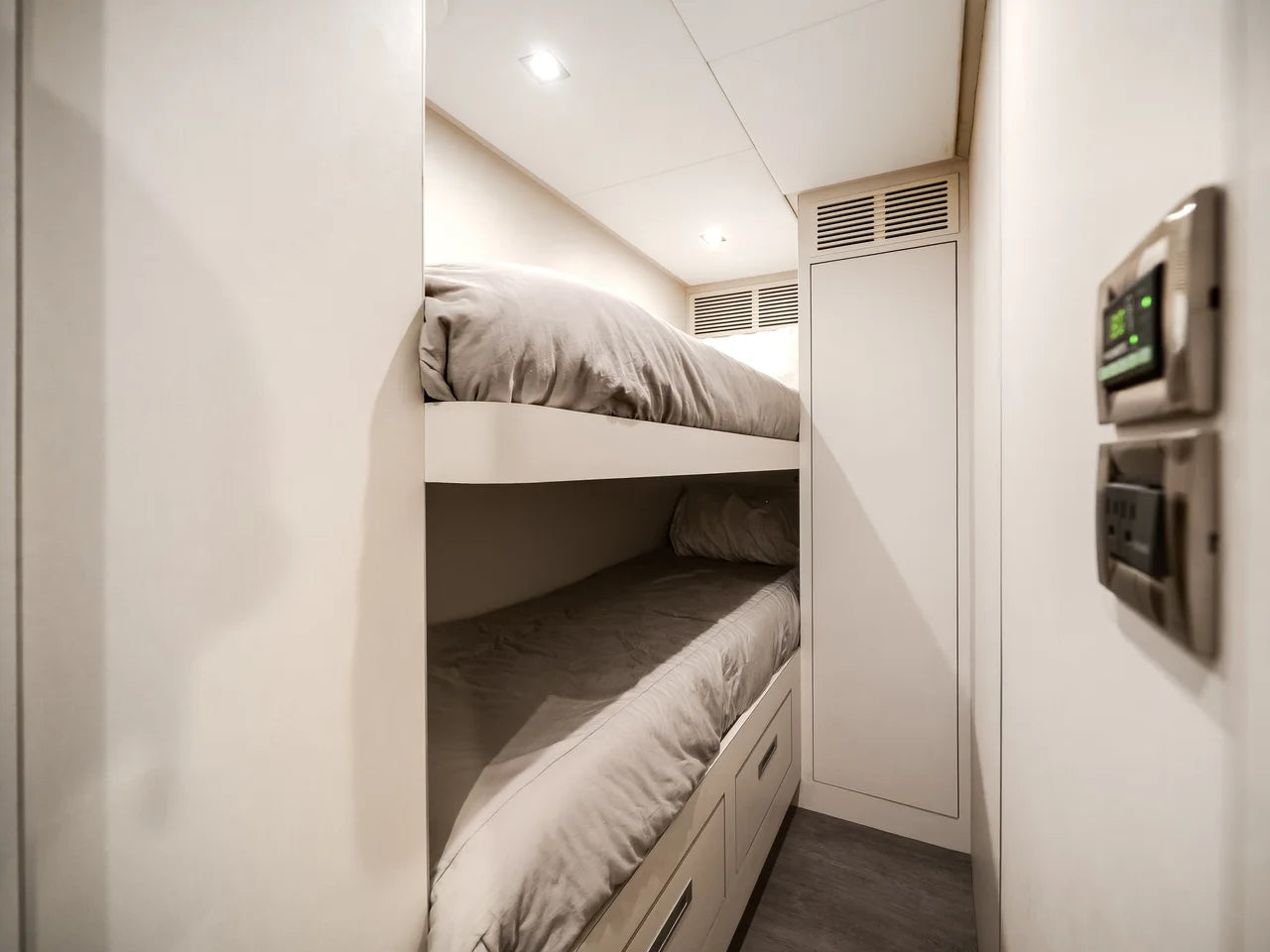

Crew accommodations are located aft, with two cabins for up to four crew members.
Thoughtfully upgraded and turnkey, SOUTH C’s is ideally suited for immediate cruising and entertaining.
Contact:
James Corts
239.253.2984
James.Corts@MarineMax.com
Features
Options
EXTERIOR/INTERIOR DÉCOR OPTIONS
- Full height electric glass sliding door (2x)
- Electric Shades with remote control for salon, master, and guest staterooms windows
- Electric helm seat (2x)
- In-glass portlight for upper/lower Master Stateroom (4x), starboard guest stateroom (1x), and utility room (1x)

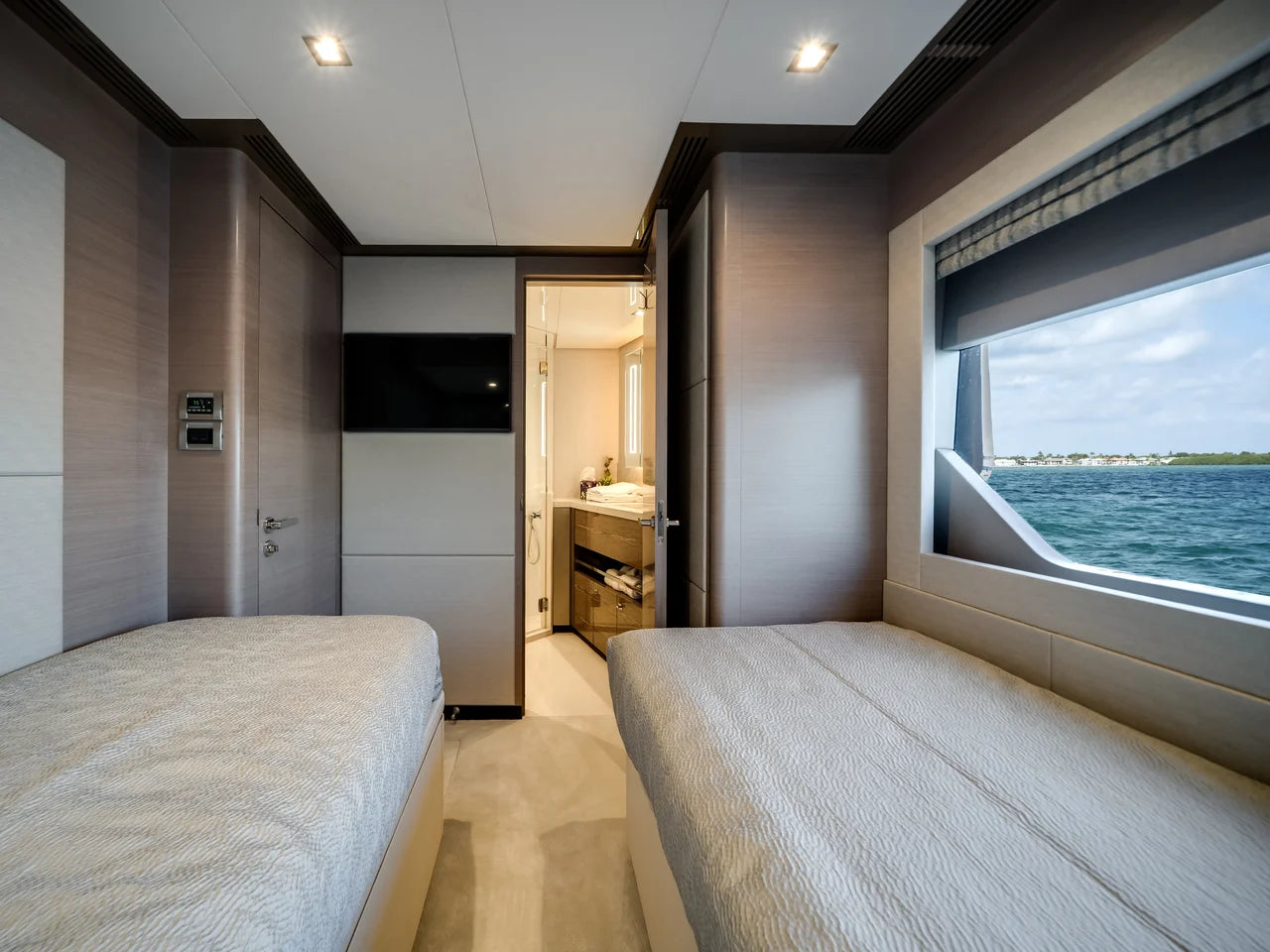

- Starboard guest stateroom side-by-side berths can slide together and convert to single queen berth.
- Heated stone floors in main deck MSR & lower deck MSR
MAJOR MECHANICAL/ELECTRICAL OPTIONS
- Thruster/Stabilizers Package
- Add plug-in engine wired remote at aft deck and boat deck
- Headhunter sewage treatment system. (600Gal/day)
- Dometic® 1200G/Day water maker w/ auto fresh water flush operation and commercial pre-filter
- Water purification package
- Custom extended cruise package
- Custom mechanical/ electrical convenience package
- Entertainment System
- Spare Parts package
EXTERIOR OPTIONS
- 4-person Jacuzzi on bridge deck with sunpads on port and starboard side
- Exterior Convenience Package
- Teak Decking Package
- Hydraulic 1,500 lbs capacity Hi-Low swim platform with integrated ladder
- Aft-deck transom structural reinforcement for towing tender
- Aft-Deck Custom Ceiling Feature with indirect lighting
Standard Equipment
General
- The yacht is constructed in high-density closed-cell structural foam. High density foam allows for high temperature and advantages in thermal and acoustic insulation.
- Longitudinal and lateral fiberglass foam-core stringers.
- Fiberglass with infusion lamination manufacturing technology, increases strength by 20% and reduces weight by 18% compared to hand-layup.
- Reinforced collision bulkhead
- Cross-knit carbon fiber in high stress areas to increase structural integrity and torsional strength.
- Water-tight bulkheads with sound proofing for engine room.
- Ocean Alexander employs various techniques to reduce sound and vibration. Some of these techniques include multiple insulation barriers including reflective materials, absorptive materials, dampening materials, air pockets and flexible isolation mounts for controlling sound and noise transmission.
- Painted exterior surfaces with professional grade epoxy-based primers and Alexseal polyurethane paint resulting in the highest gloss retention compared with gelcoat or other paint brands.
- All exterior hardware to be 316 stainless steel or per manufacturer requirements.
- Aluminum components meet marine grade 5086 or 6061 specification.
- Engine foundation: Main engine stringer will be constructed from stainless-steel plates custom formed to encapsulate over engine structural stringers. Allows for industry leading support and isolation.
- Frameless windows.
Hull / Bottom
- Interior structural components all bonded to hull.
- Three coats of "self-polishing" antifouling bottom paint shall be applied on three anti-blister epoxy barrier coats, "Seahawk" paint or equivalent.
- Rub rail with 316 stainless-steel striking plate.
- Bronze through-hull fittings.

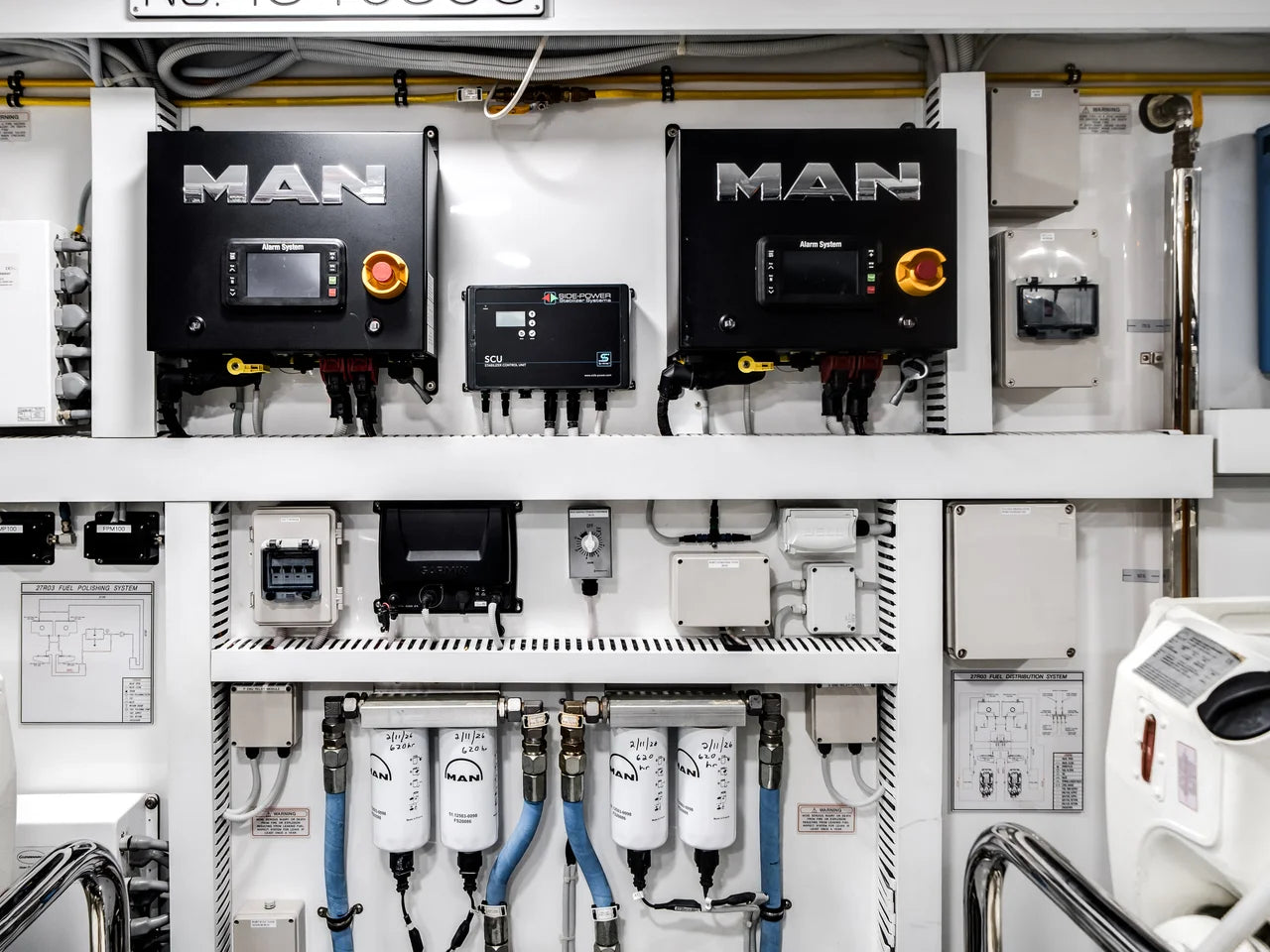

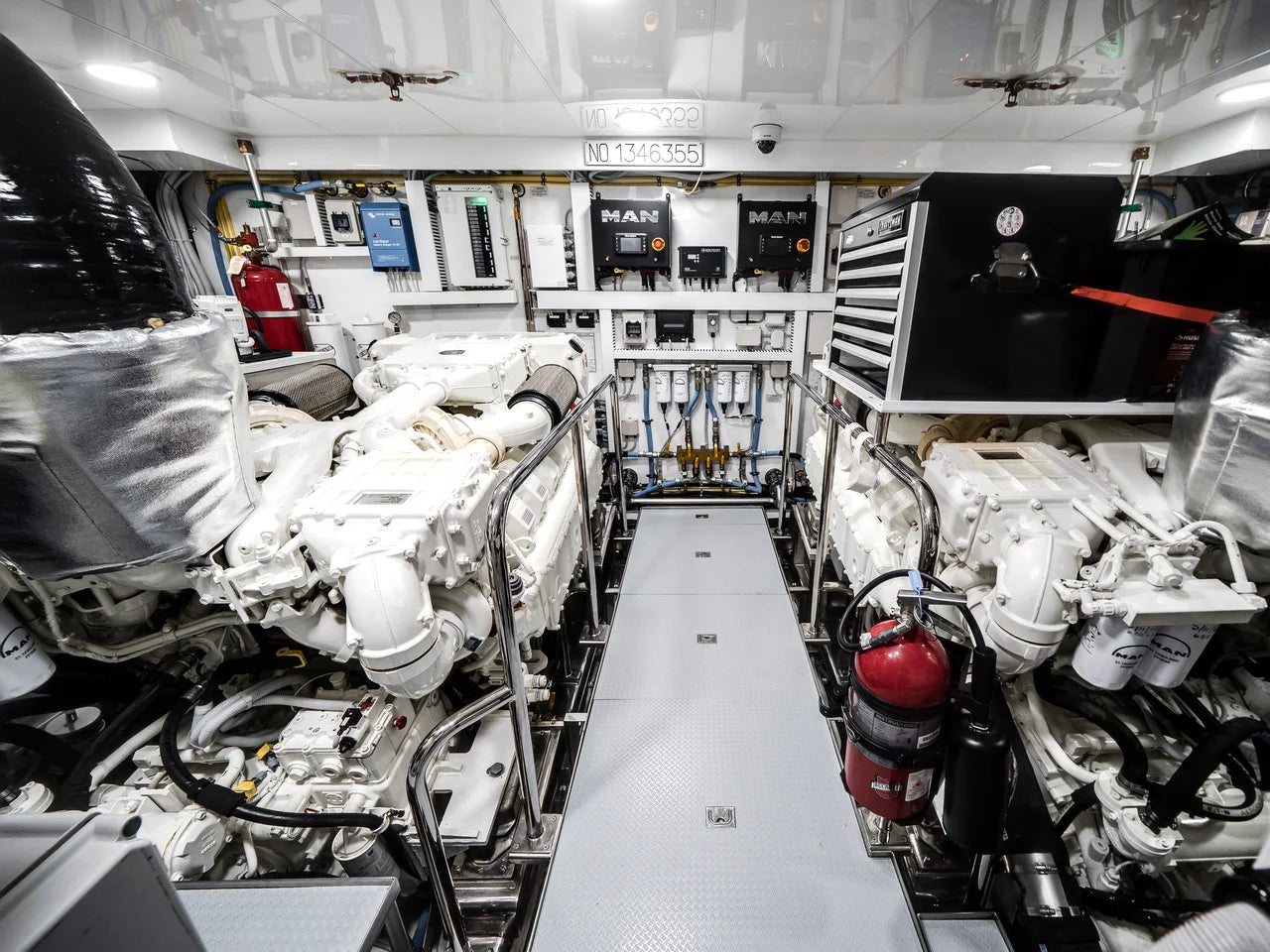

Mechanical

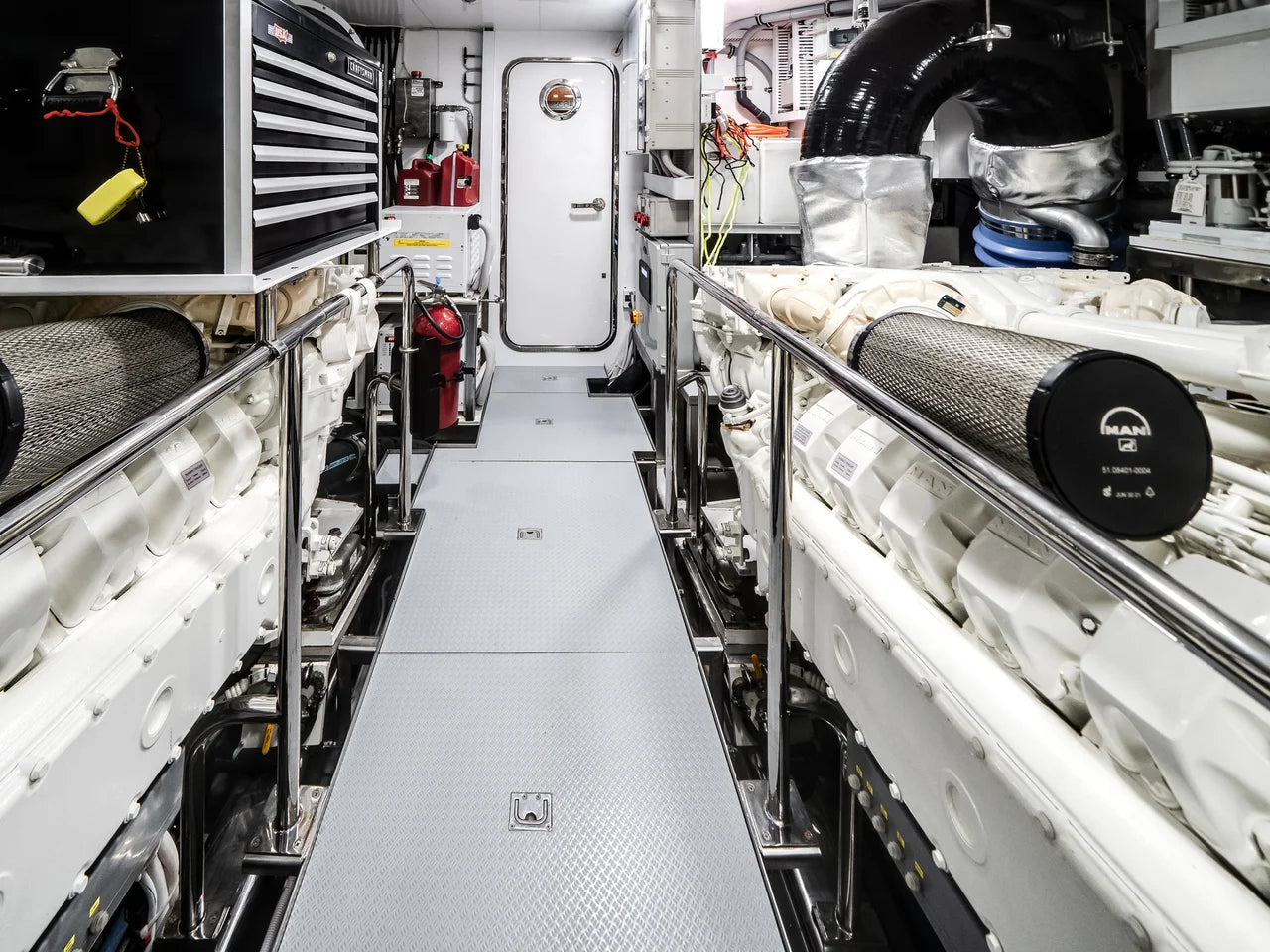

Main Engines

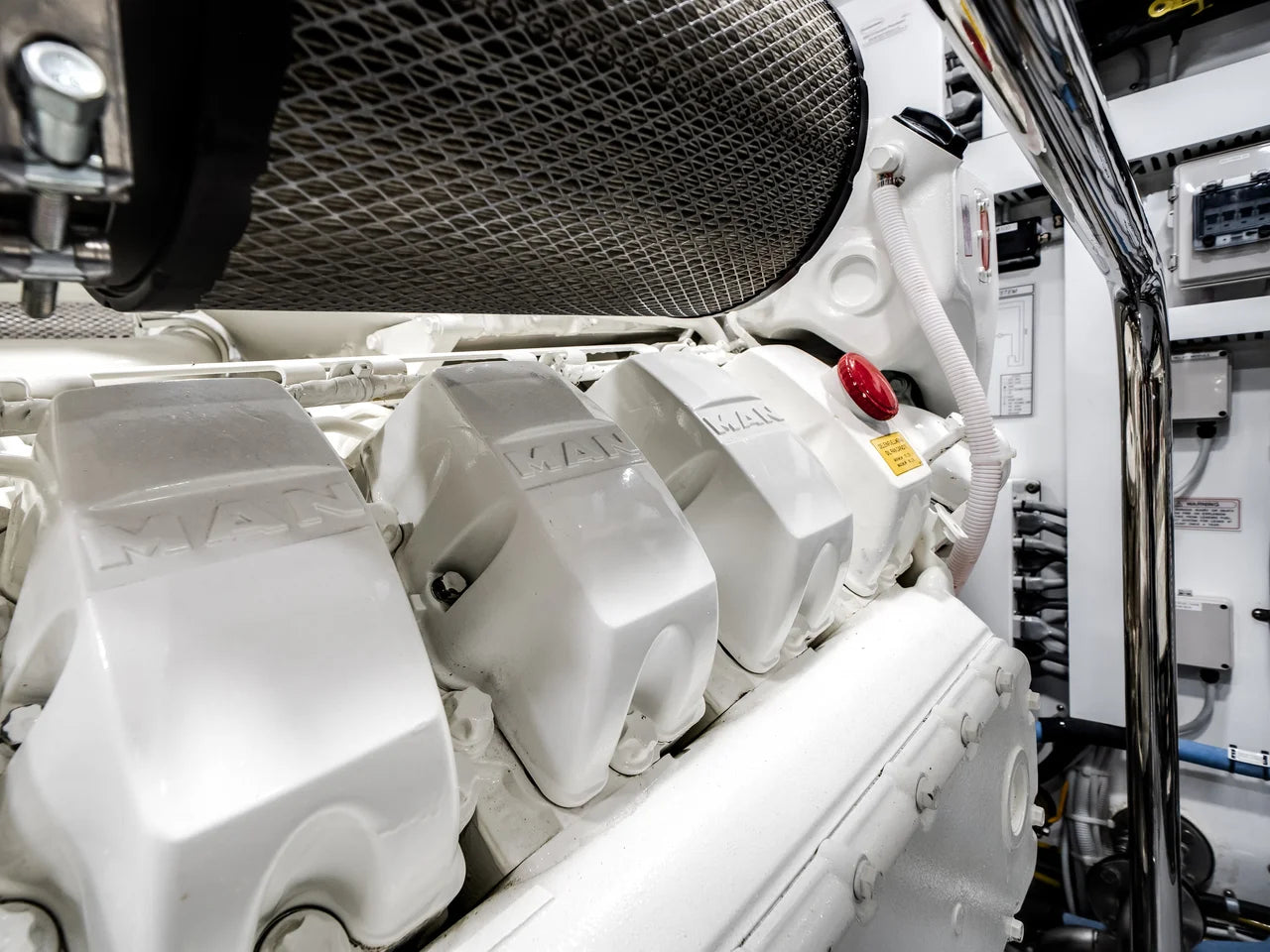

- MAN V12 1650HP engine "MAN Gold Standard Warranty" includes 60-month warranty on main components: crankcase, crankshaft, connection rods and flywheel.
- Stainless-steel engine beds and stainless-steel removable rails on side of engines.
- Delta T intake/exhaust fans with variable frequency drives shall be mounted to facilitate the intake and/or exhaust of air through the machinery spaces and providing a high air exchange rate. Air intake & exhaust ducts shall have fire dampers installed with manual and automatic triggering that shall be tied into the machinery shut down circuits.
- Delta T moisture eliminators shall be installed at front of intake and exhaust ducts.
- Delta-T fans for engine exhaust located on superstructure versus hull side. Maximizes water protection and reduced salt spray intrusion into engine space, extending life of engine room components.
- Ocean Alexander employs aerospace grade "autoclave" to make "hard coat" exhaust. Further, AL-6XN alloys is used (also used in Saturn V rocket nozzle) for spray ring in exhaust system to lower heat transmission. Ocean Alexander is unique in utilizing military standards that ensures optimum and sustained performance in its exhaust system.
- Engine raw water-cooling using copper-nickel allow 90/10 which offers superior corrosion resistance and inherent bio-antifouling.
Stabilizers & Thrusters Package
- Sidepower Vector Fin (DAME 2013 award winner) 15 square ft. hydraulic stabilizer find with zero speed stabilization function.
- Sidepower's patented "curved" find design not only provides lift underway it is also unique in the industry with active "predictive" inertia control. Up to 50% more efficient than flat fins at anchor. Up to 30% more efficient than flat fins underway.
- 28.4HP for both bow and stern thrusters.
Shafting / Propellers / Steering
- Ocean Alexander designs oversized shafts, rudder and other drive train systems typically one-class larger than the competitor. This results in superior handling and longevity in the Ocean Alexander drive-train system.
- High performance computer designed and machined Nibral propellers.
- Twin Disc Hydraulic steering system.
- Stainless-steel rudders with integrated zinc plates.
- Add plug-in engine wired remote at aft deck and boat deck.
Windlass / Mooring
- Dual (2) hydraulic vertical anchor windlass with foot switch.
- Dual (2) 150 lbs. anchors with 200' chain each side, attached to the anchors with stainless steel high-tensile swivels.
- Hands-free anchor chain wash system for freshwater cleaning of chain during anchor operation.
- Two 1500W, 24DC motor capstans on aft deck, with foot switches.

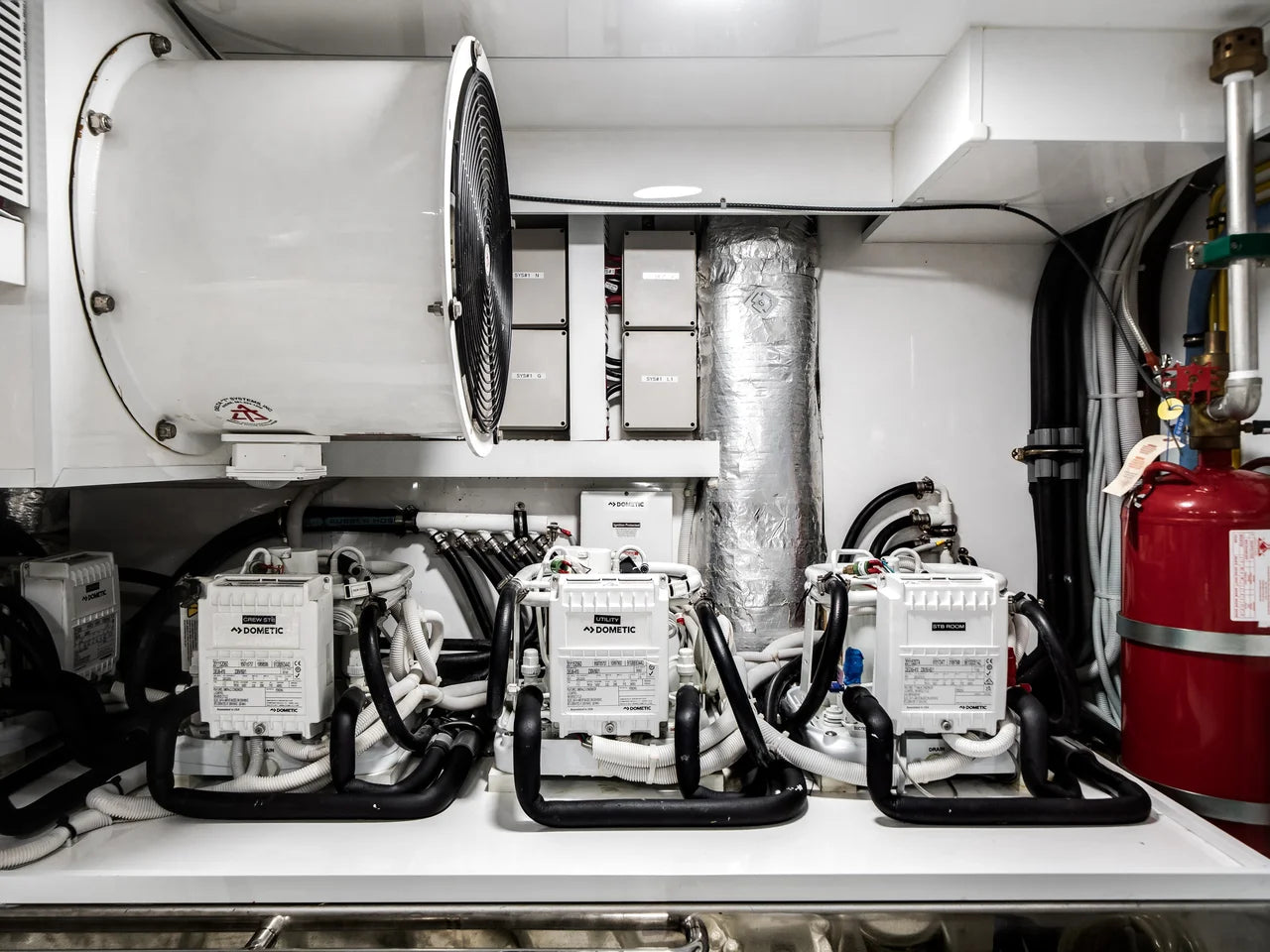

Air Conditioning
- Dometic system throughout, rated for "Extreme Tropical Climates" (with reverse cycle for operation down to 40F water temp).
- Refrigerant type is accepted worldwide under the Montreal Protocols.
- Dedicated engine room air conditioning.
- Ocean Alexander Clean Air System incorporates Nano-mesh UV sterilization technology to remove up to 99.9% of bacteria, fungi, mold, virus, fumes and odors. System has no moving parts, is completely silent and ozone free. Ensures fresher, cleaner, and healthier air onboard.
Custom Extended Cruise Package
- Additional washer and dryer in lower utility room.
- Additional freezer in lower utility room.
Custom Mechanical / Electrical Convenience Package
- Lube oil change system for engines and generators.
- Gulfcoast Fuel polishing system based on US Military Abrahams-M1 Tank design.
- Compressed air in engine room and aft deck.
- Military grade searchlight and spreader lights for swim step and boat deck.
- Dimmer package for interior and exterior main ceiling lights.
- Onboard intranet, driven by commercial-grade 4G SIM card capable Wi-Fi router. Allows outside 5G Internet antenna and/or intranet net connection via supplied iPad to Systems monitoring, and other onboard video/audio apps.
Spare Parts Package
- Bilge Pump, LED Light, Engine/Generator Filter, Wiper Blades, Touch-Up Paint, Fuses, Engine Manufacturer Spare parts kit, Generator Manufacturer Spare Parts Kit, Float Switch, Vimar Outlet, GFI Outlet, Vimar Switch.
Other Notable Features
- Heavy-duty commercial grade pantograph windshield wiper & washer with intermittent function
- Buell heavy-duty, 2-trumpet horn
- Fireboy (or equivalent) engine room fire extinguisher system with engine-shutdown feature.
- Ocean Alexander proprietary "dry bilge ventilation system" with dedicated bilge exhaust to outside. This provides constant airflow to keep the bilges dry and mildew free.
- Headhunter sewage treatment system. (600Gal/day)
- Spare Parts package: Bilge Pump, LED Light, Engine/Generator Filter, Wiper Blades, Touch-Up Paint, Fuses, Engine Manufacturer Spare parts kit, Generator manufacturer Spare Parts Kit, Float Switch, Vimar Outlet, GFI Outlet, Vimar Switch.
PLUMBING
Fresh Water System
- 316 Stainless-steel water tank with sight gauge tested to RINA standards. RINA Pleasure Yachts 2021_Pt. B Ch.1 Sec. 1_5.14.1
- Headhunter fresh-water system.
- Freshwater wash down at stern and boat deck.
- Dockside water connection.
- Two 40-gallon hot water heaters with high density insulation and dual high efficiency heating element that speeds heating by 50%.
- Dometic 1200G/Day water maker w/auto fresh water flush operation and commercial pre-filter.
- Water Purification package:
- Stage 1: City water is initially filtered for rust/large particles and sediment.
- Stage 2: Water maker and City water is filtered for biofilms and with Steriliser, biocidal properties are maintained even in water tank.
- Stage 3: From water tank filtered through active carbon (smells and odors) and bacteria fiter.
- Stage 4: UV water sterilizer is used as a final line of defense against microbiological bacteria/virus.
Fuel System
- Marine grade aluminum fuel tanks with sight gauges and high & low level alarms, welded and pressure-tested to RINA standard. RINA Pleasure Yachts 2021_Pt. B Ch.1 Sec4
- Fuel tank vent breather with breathing capacity fulfils the RINA requirements. Provided with an easily cleaned stainless steel (AISI 316) gauze, which functions as a flame arrester. RINA Pleasure Yachts 2021_Pt.B Ch. 1 Sec.9_7.1.8
ELECTRICAL
AC/DC System

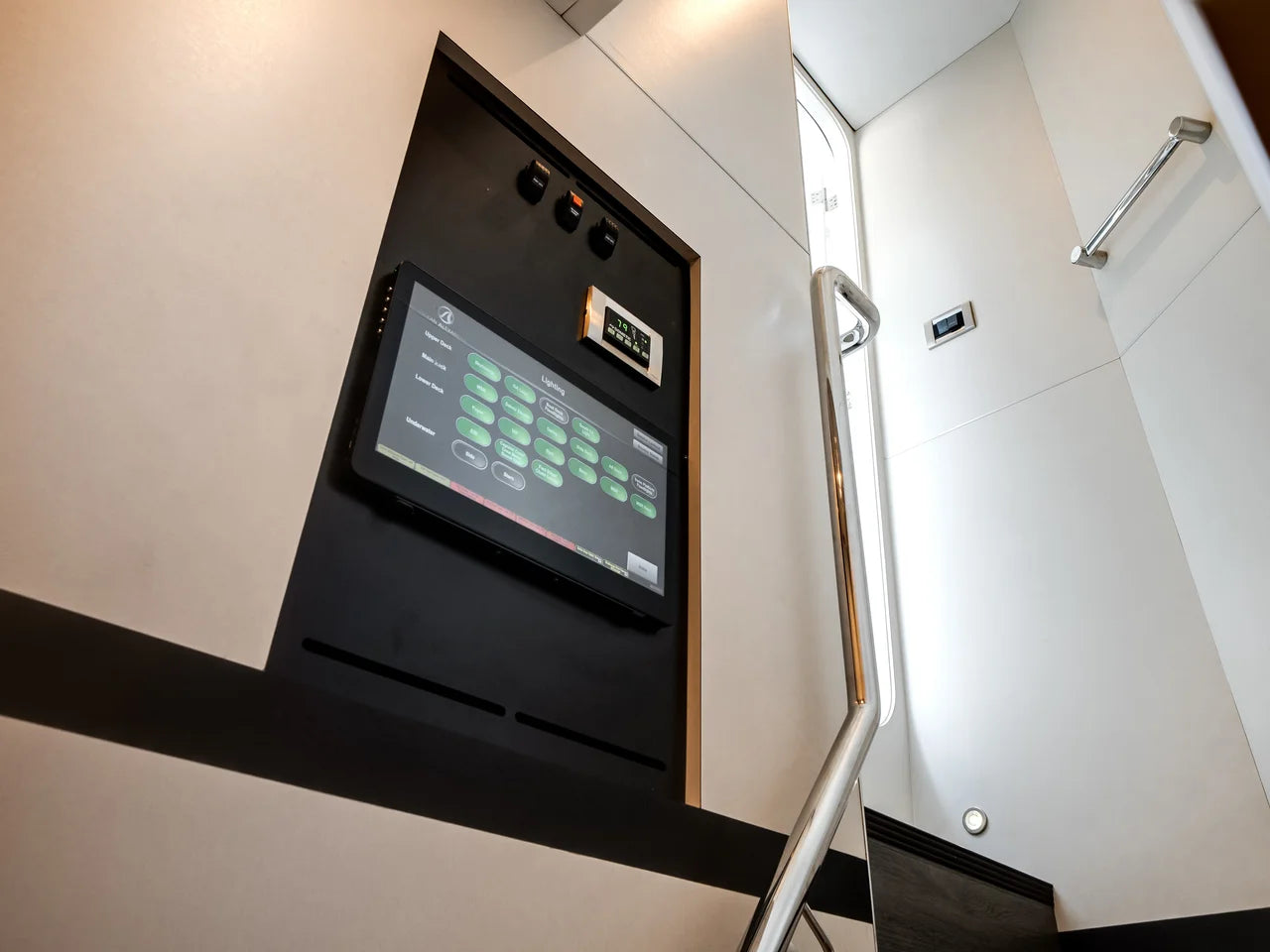

- OctoPlex NEMA 2000 electrical safety/security control system. Based on aerospace technology for remote activation, control and status reporting of all AC and DC breakers. Monitors all power sources (AC and DC) for voltage, frequency and amperage abnormalities and provide visual and audio alerts. Includes enhanced circuit breaker functionality with no-load indication. Brown-out capabilities provides sensors for main doors, tank level, bilge and battery monitoring of current, voltage and temperature.
- This security/safety automatic monitoring and alert capabilities include using Apple iPad or Android for remote access to operate, view, and arm OctoPlex data and navigation system with remote notification accessibility.
- Shore power connections: Two CM-8 100Amps cable master with 85' cables w/ Iso-boost which manages voltage drops due to shore power by boosting output voltage thus keeping electric system stable.
- Lighting protection system.

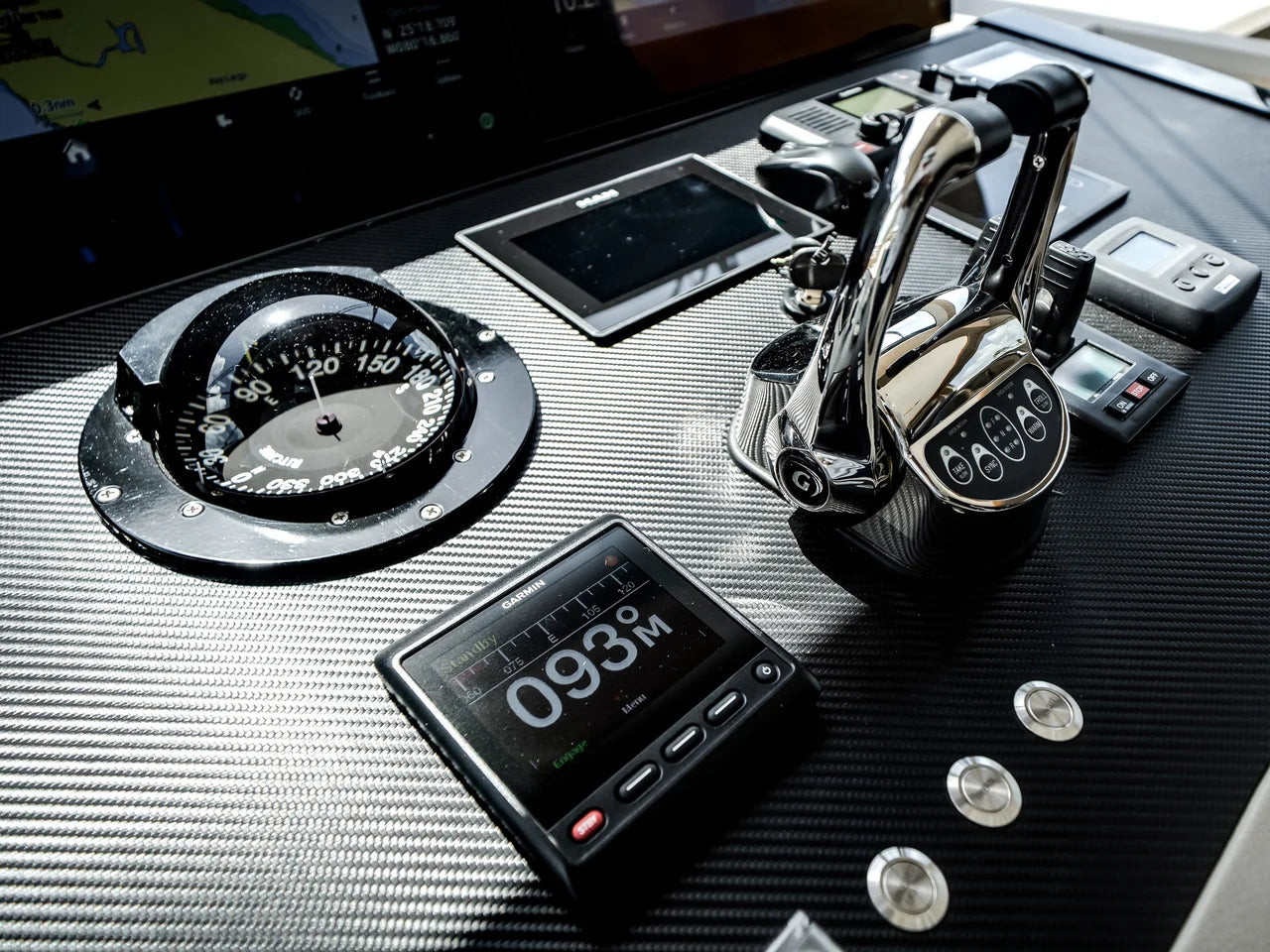

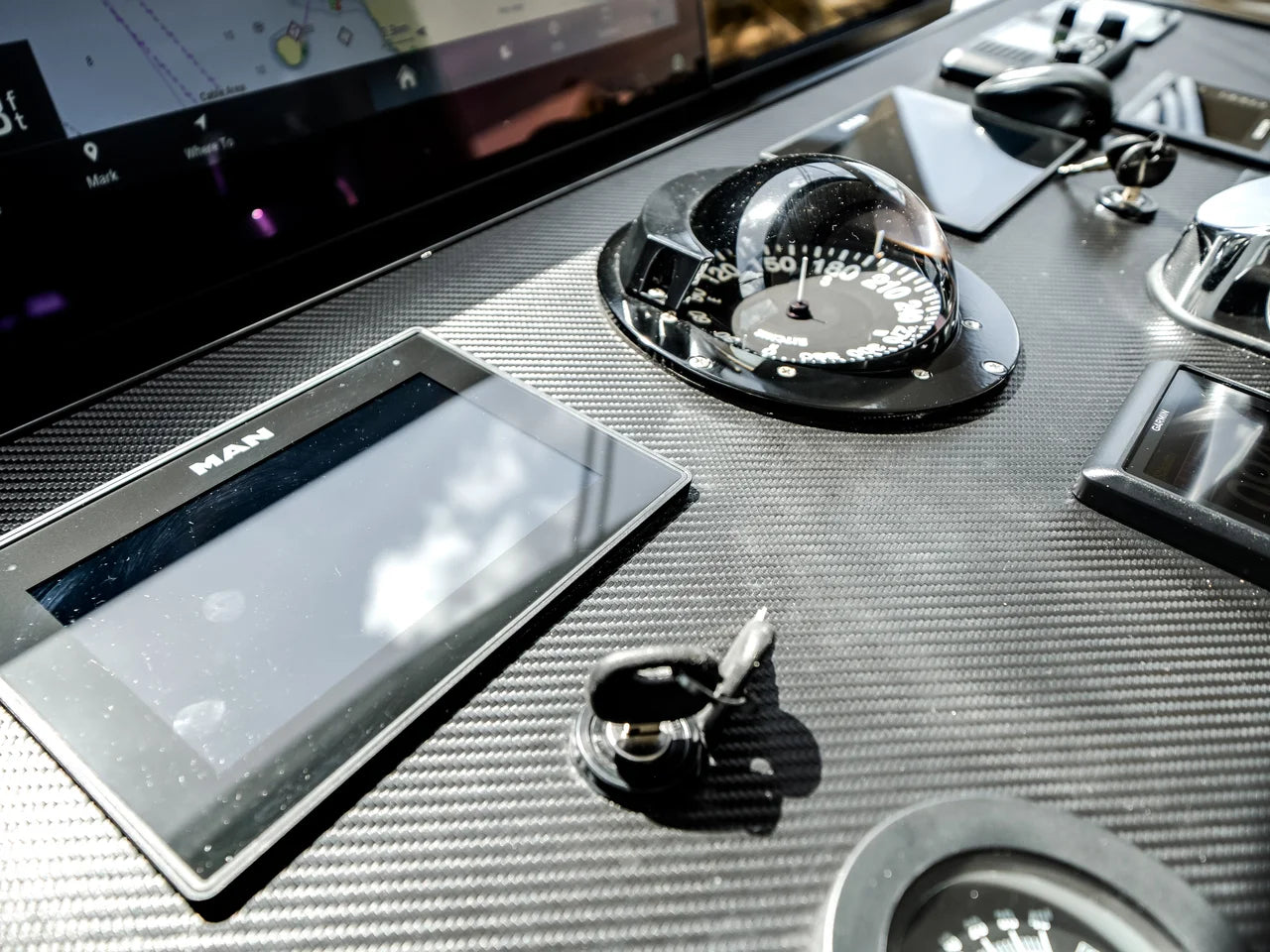

Navigation Package
- Garmin 8700 Series Black Box with (3) 24" touch screens.
- Garmin GRID remote input device installed on helm chair.
- Garmin 25KW Open Array Radar.
- Garmin Autopilot GHC20
- Garmin VHF and Card Reader
- Garmin AID with NMEA GPS
- Garmin Marine Cameras (2 in engine room and 1 aft deck).
- KVH TracVision UHD7 satellite TV antenna
- Ritchie Compass 5"
- iPad with built-in Garmin App for navigational control/viewing via iPad.
Entertainment System
- Apple TV system for salon, MSR, pilothouse, aft deck, fore deck and boat deck.
- Includes the following equipment installed at factory:
- Salon: LED 50" TV with A/V System with subwoofer
- MSR: LED 43" TV with A/V System
- VIP stateroom: LED 43" TV with satellite Receiver
- Guest stateroom: LED 32" TV with Satellite Receiver
- Crew: LED 24" TV with Satellite Receiver
- Captain's: LED 32" TV with Satellite Receiver
- Aft deck flip down 43" TV with speakers
- Boat deck flip down 43" TV with speakers
ACCOMODATIONS / INTERIOR & EXTERIOR DETAILS
Interior / Exterior Decor
- Yacht quality Italian door hardware.
- Windows with dramatic architectural details allowing for greater visibility and incoming natural light.
- Hardtop with dedicated custom removable 316 stainless-steel ladder to navigational electronics.
- Elliptical 316 stainless-steel handrails & stanchions.
- 316 stainless-steel cleats
- One flag pole at stern.

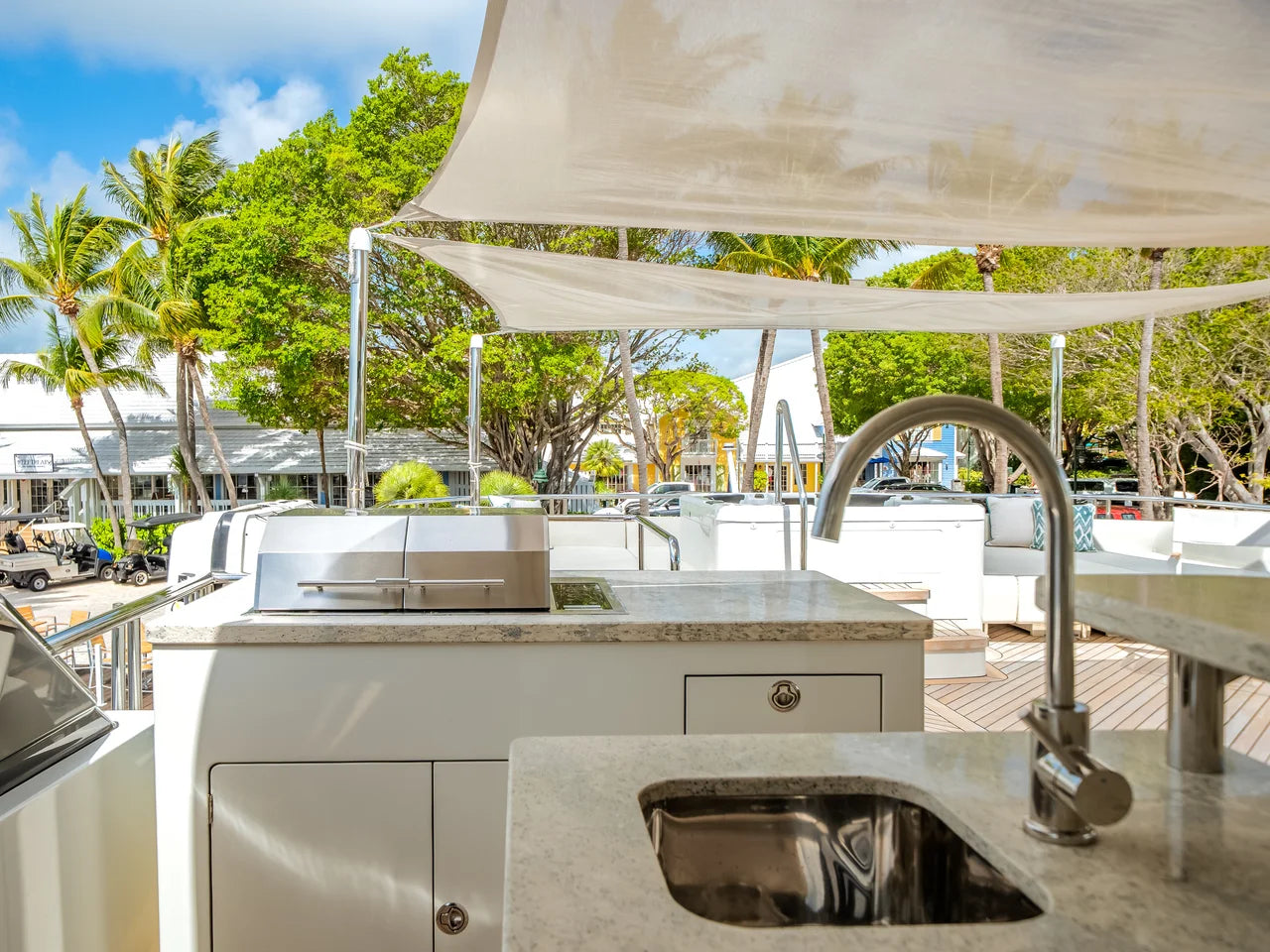

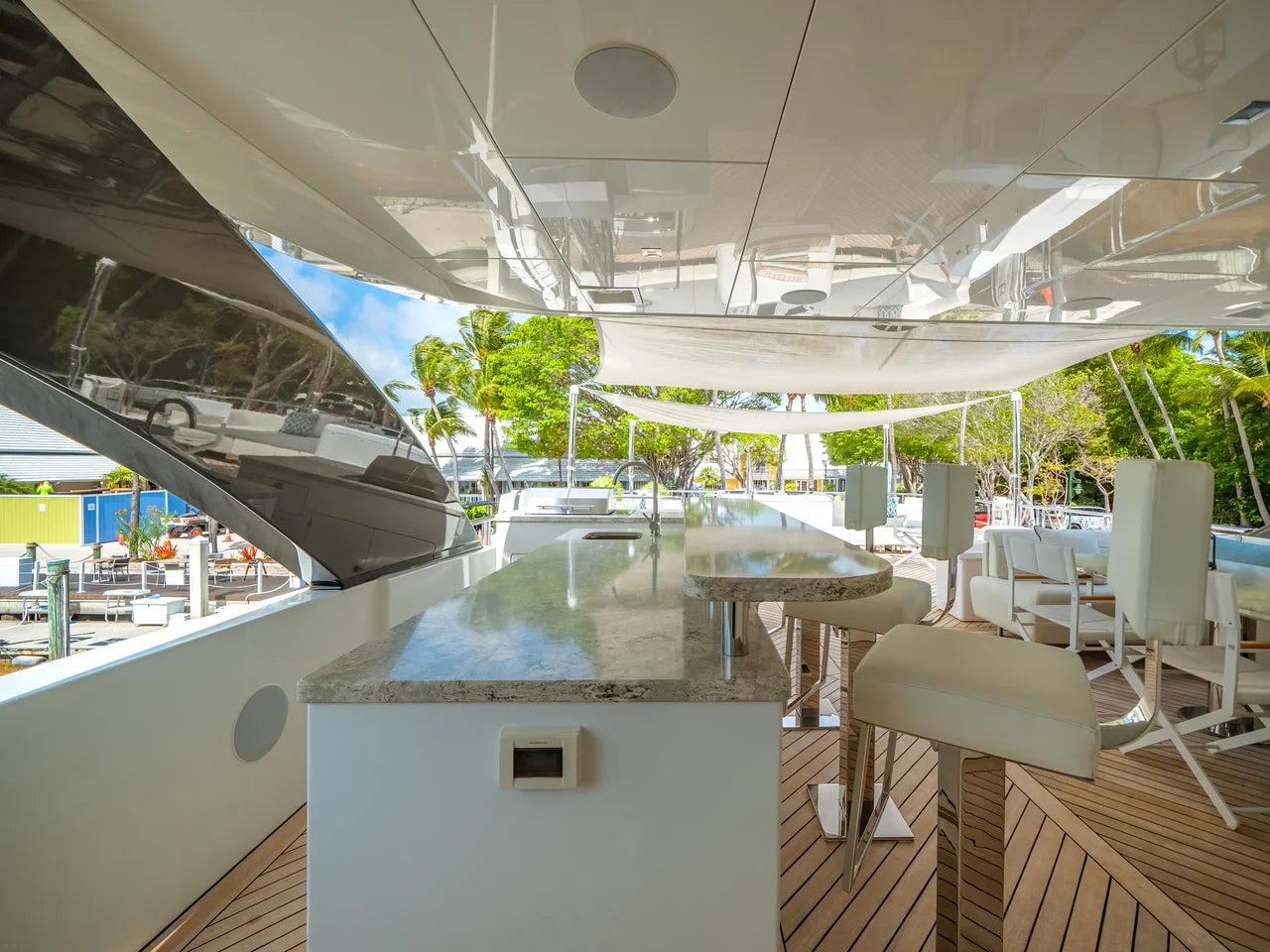

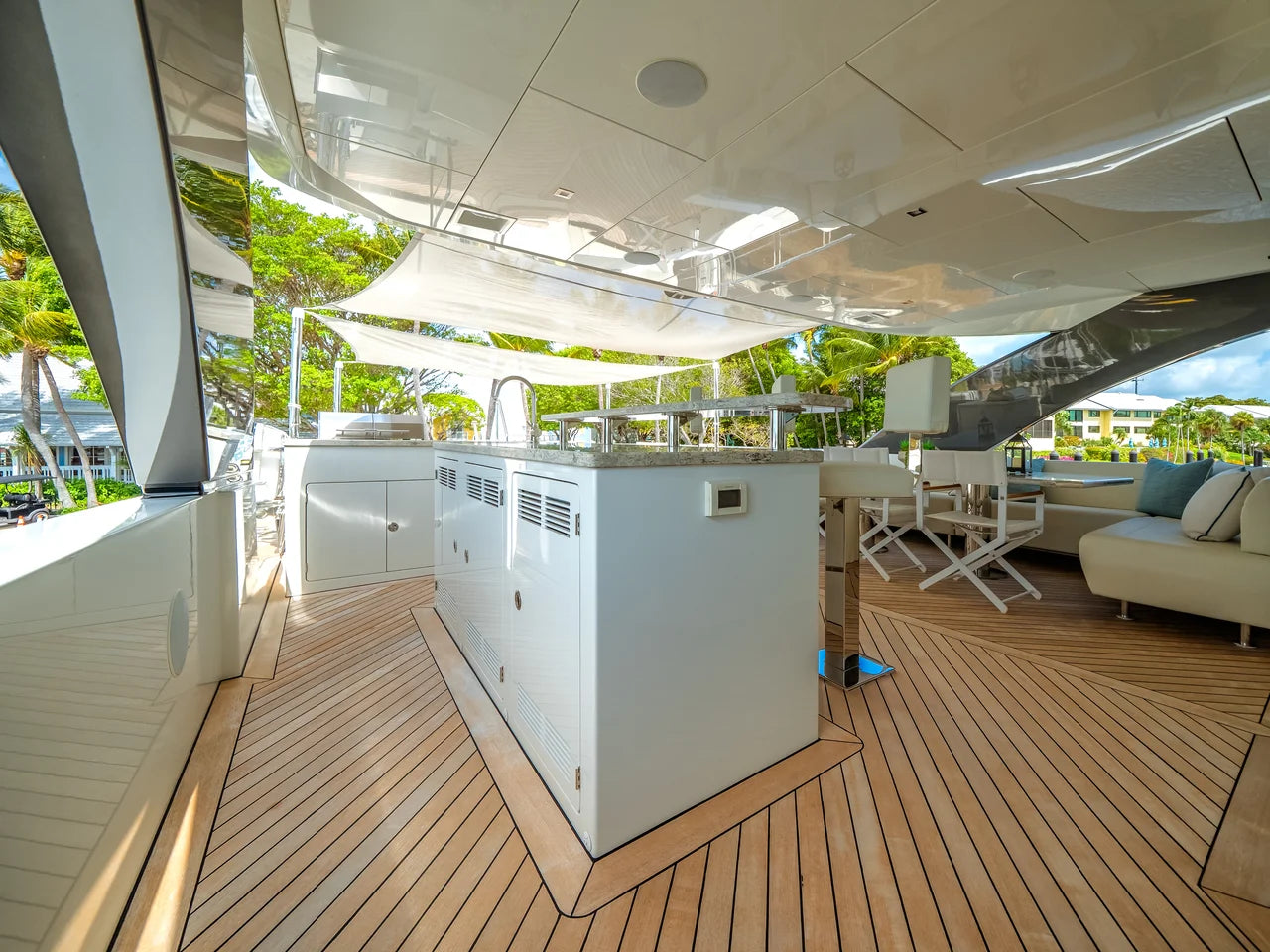

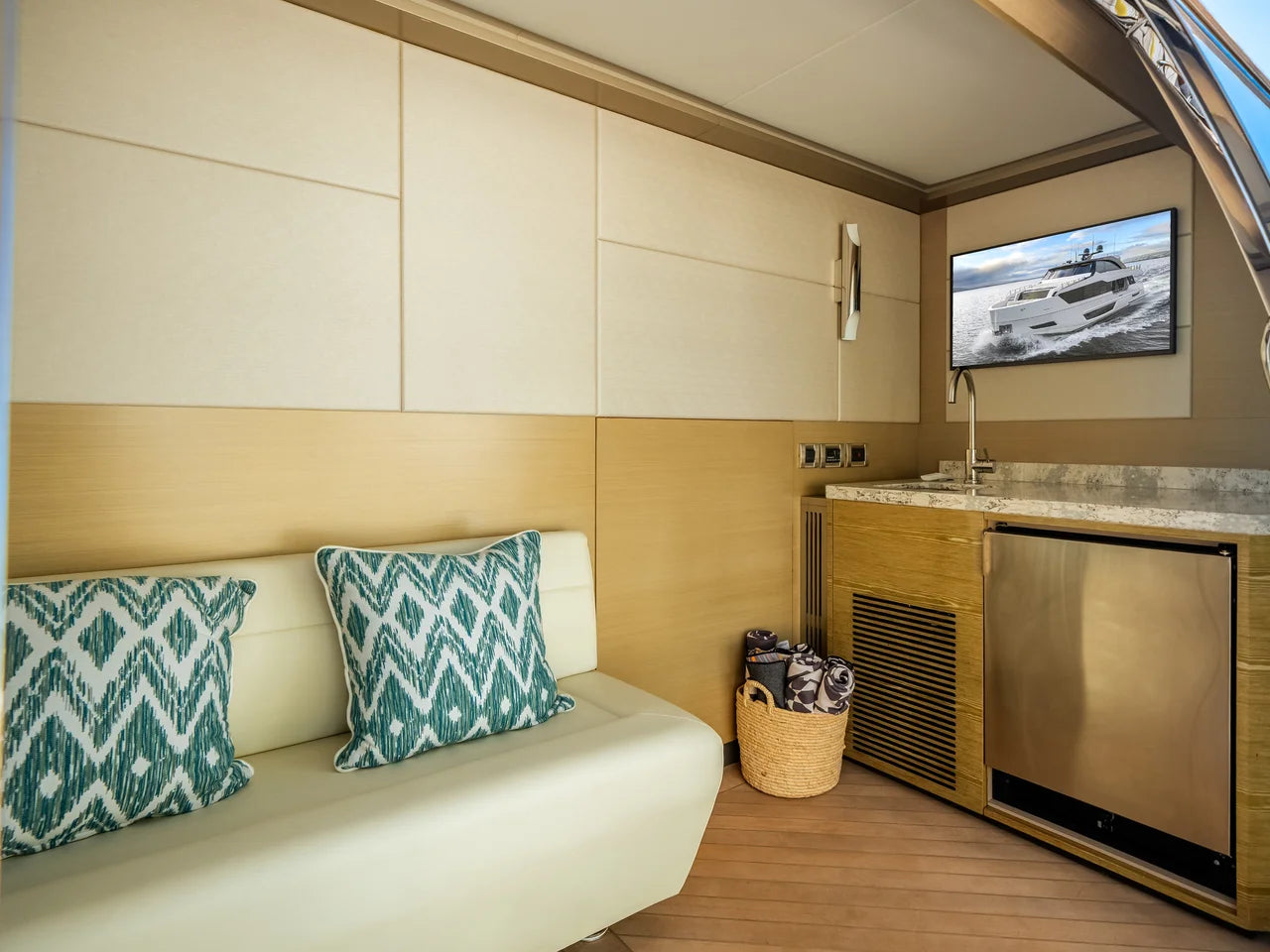

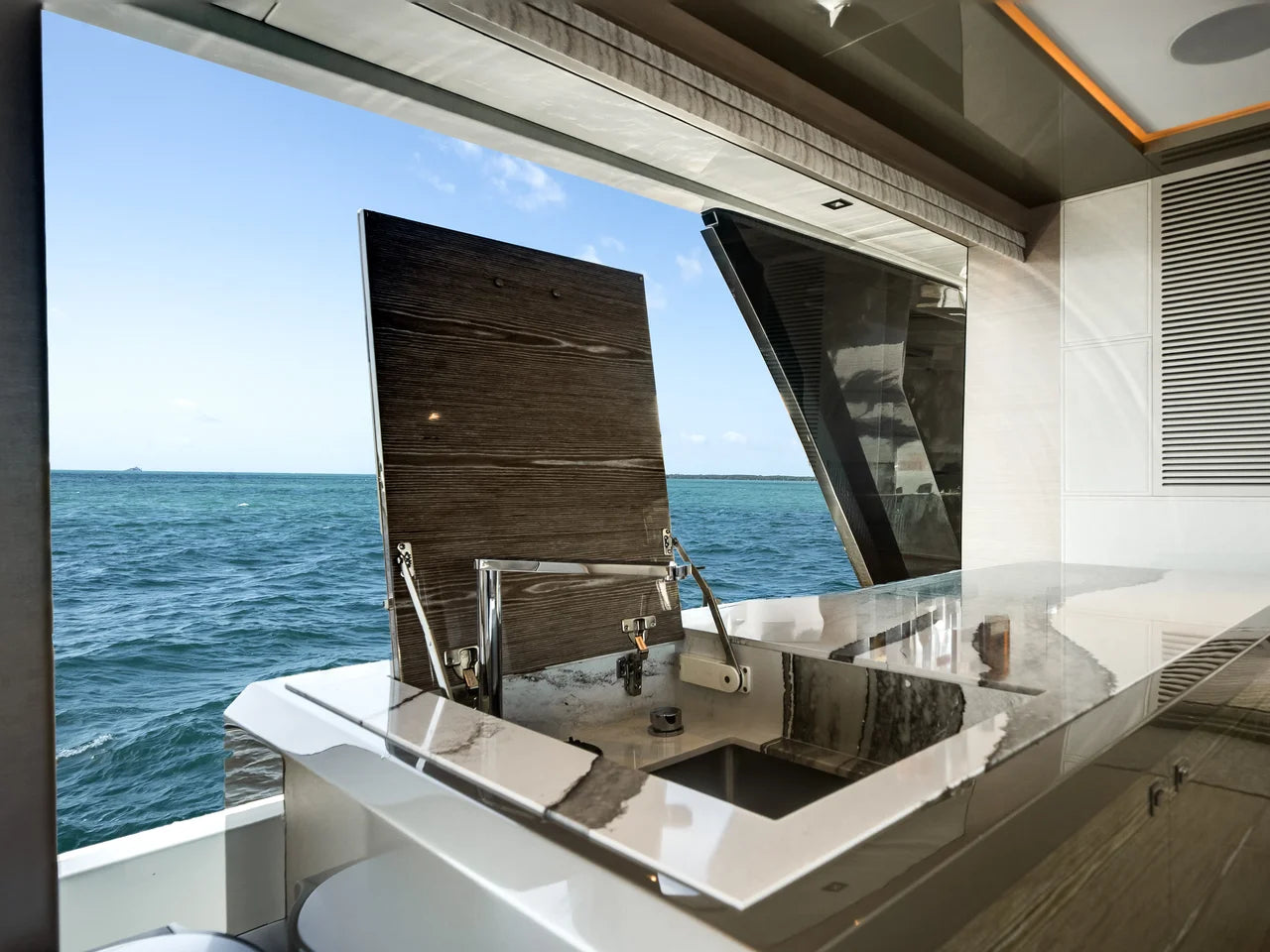

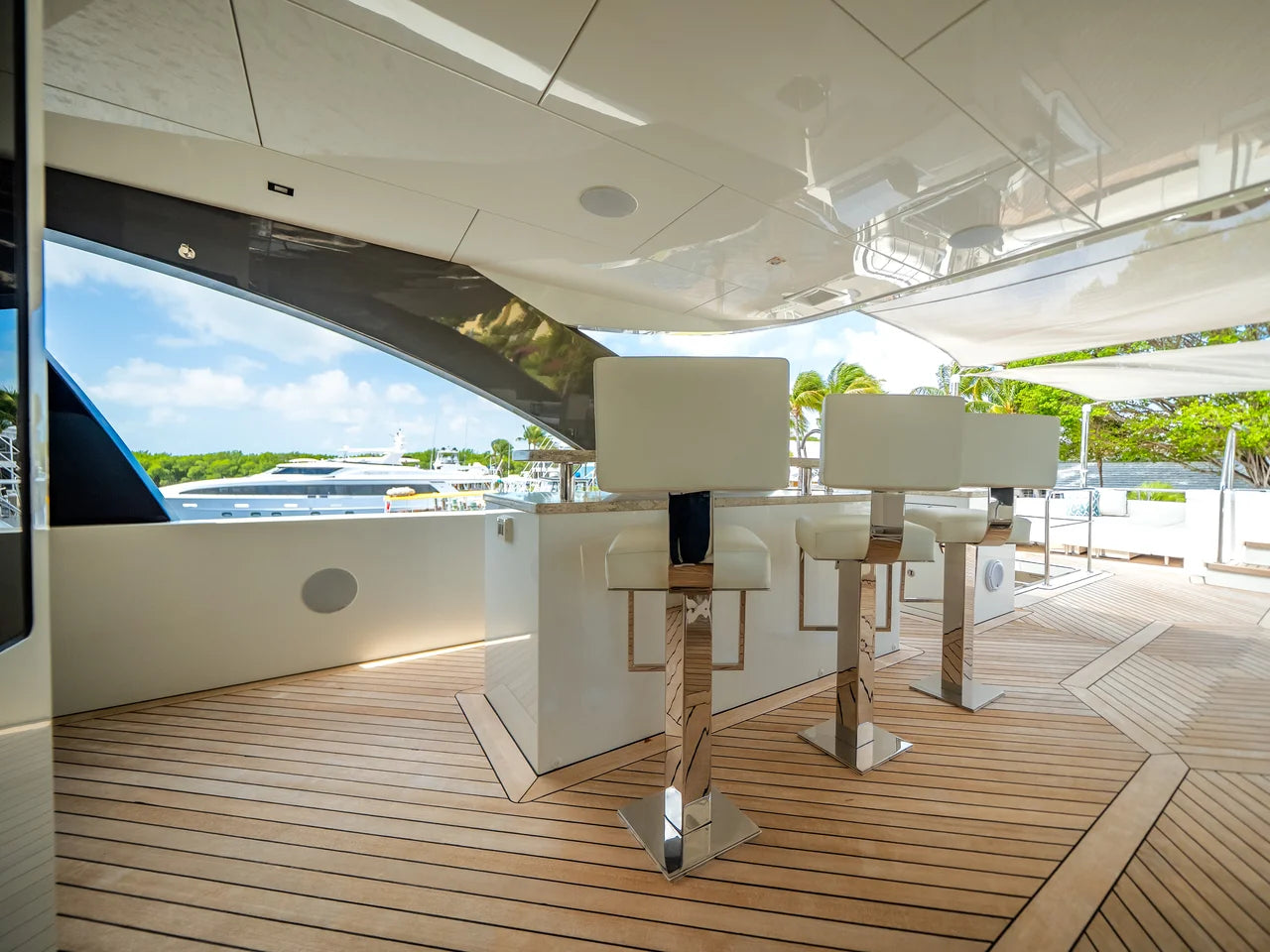

- Wet bar with sink and refrigerator on boat deck.

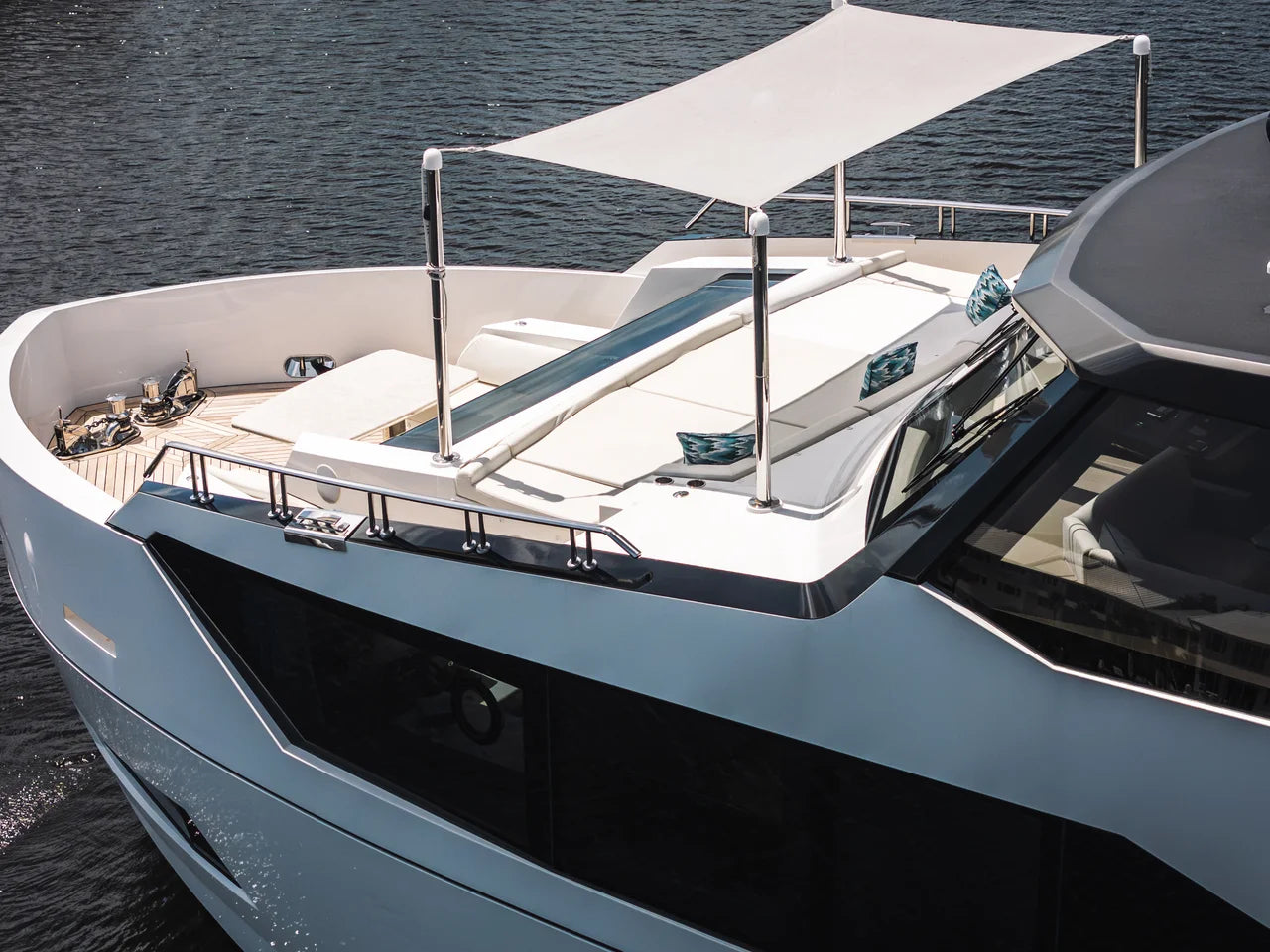

- Sun pads & settee at bow.

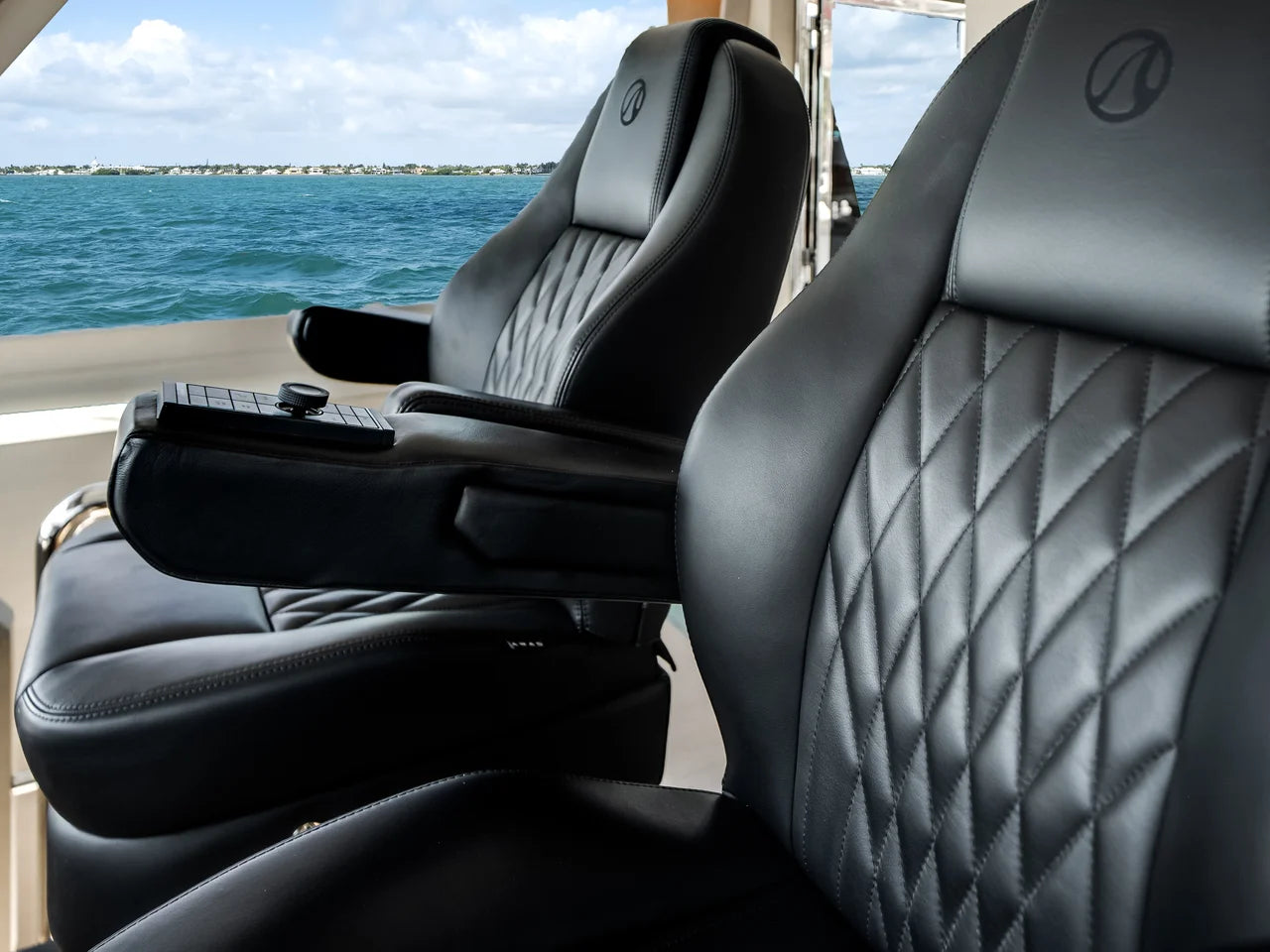

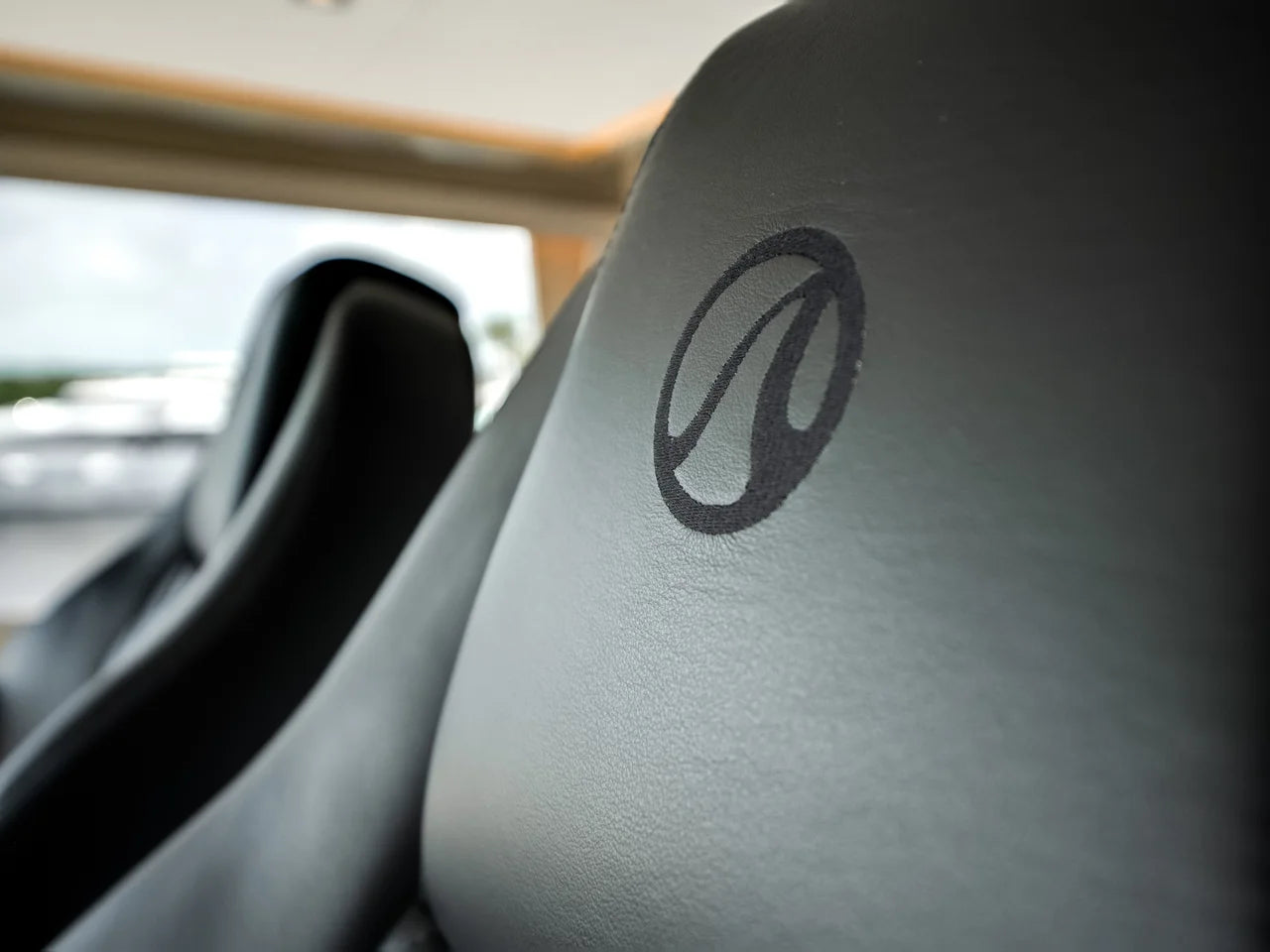

- Electric helm seat (2x) at steering station.
- Flush mounted deck lights.
- Side boarding gate in cockpit.
- In-glass portlight for upper/lower Master Stateroom (4x), starboard guest stateroom (1x), and utility room (1x).

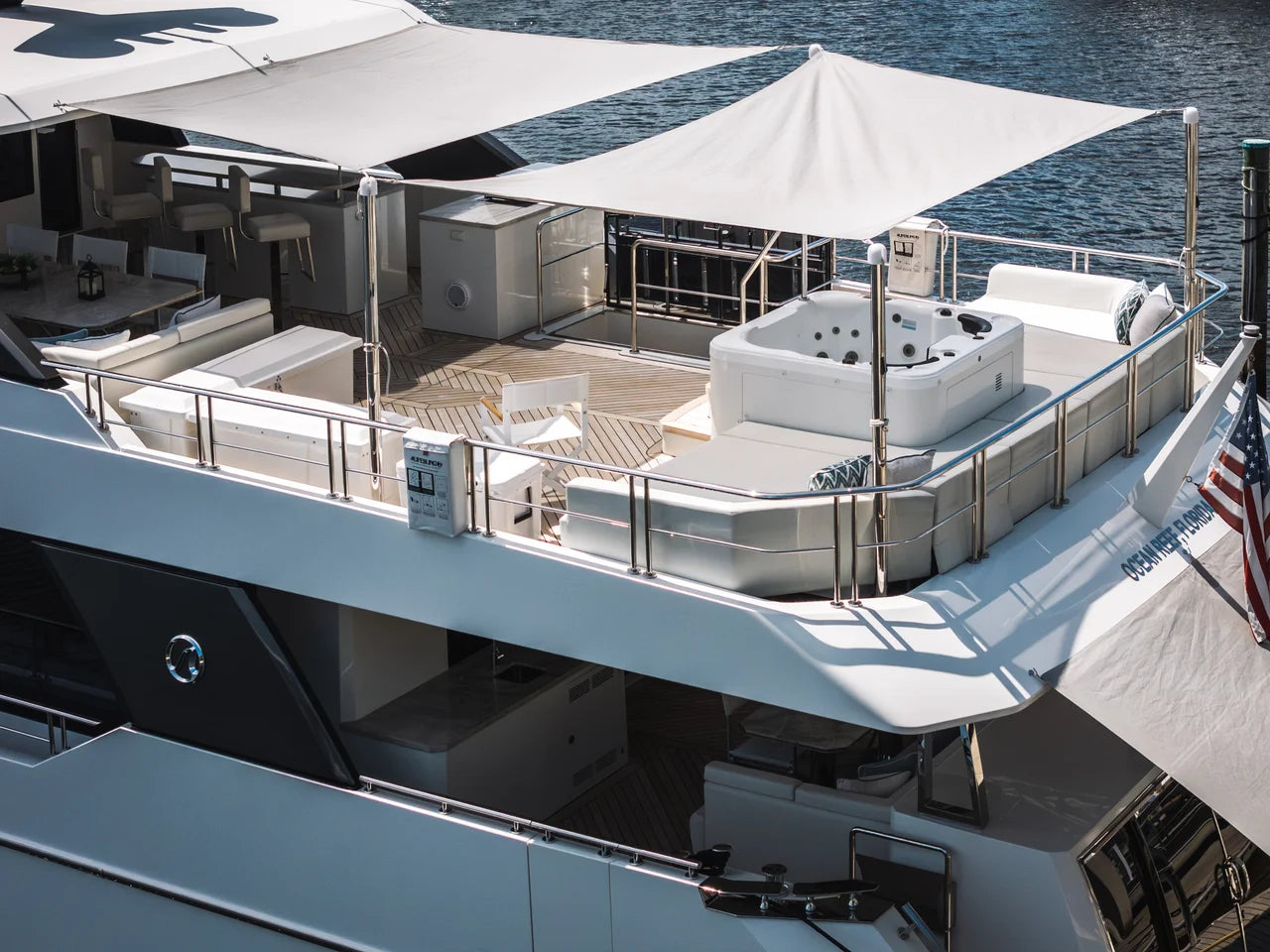

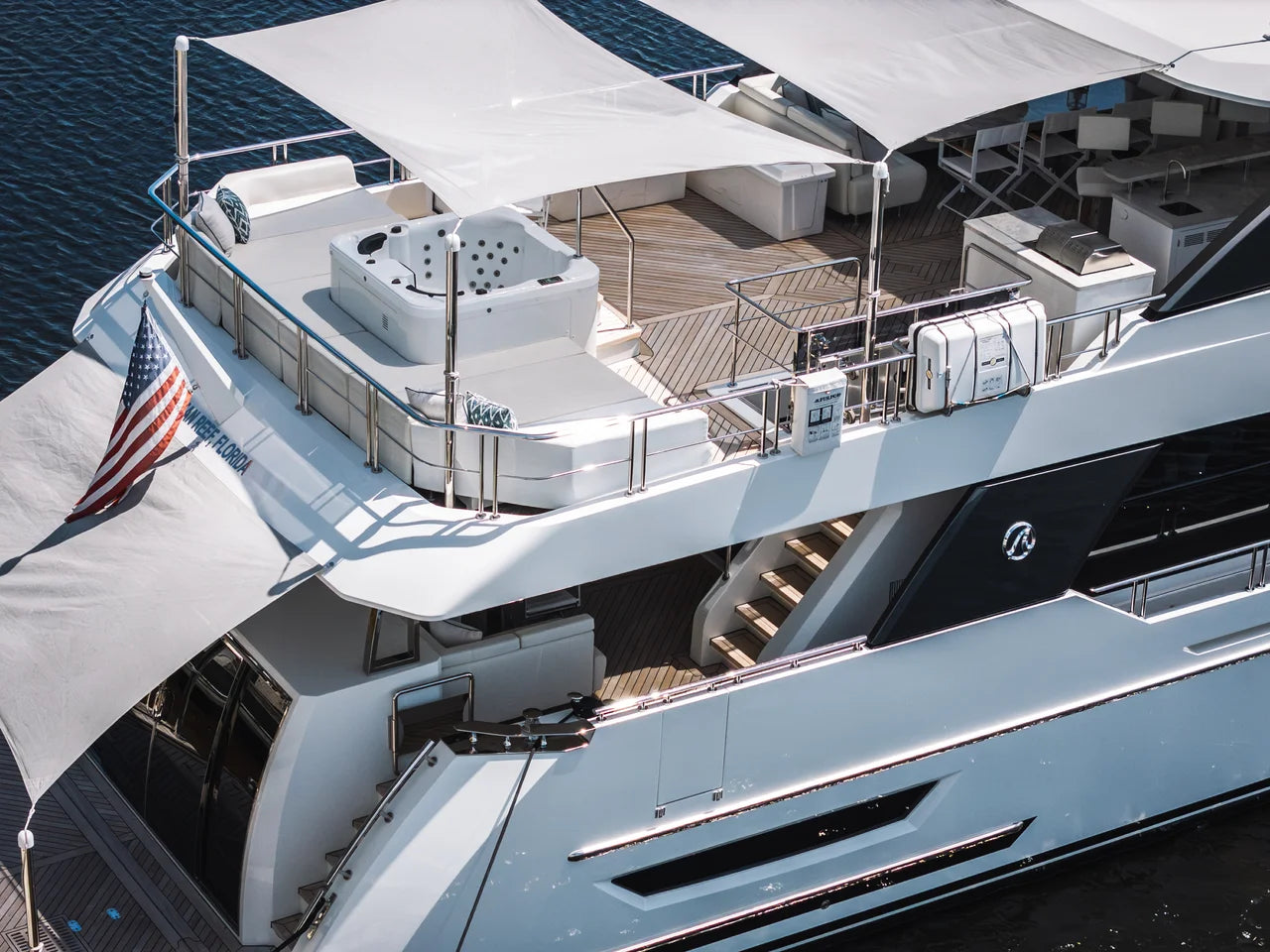

- 4-person jacuzzi w/ dedicated 17KW tankless water heater, on boat deck with sunpad on port and starboard side.
- Hydraulic 1,500 lbs capacity Hi-Low swim platform with integrated ladder.
- Aft-deck transom structural reinforcement per Froude Friction Evaluation for towing tender base on towing force for an approximate 45ft Length (13ft beam), 25,000lbs displacement boat, with capstan. (tender not included)
- Teak Decking Package
- Aft-Deck Custom Ceiling Feature with indirect lighting.

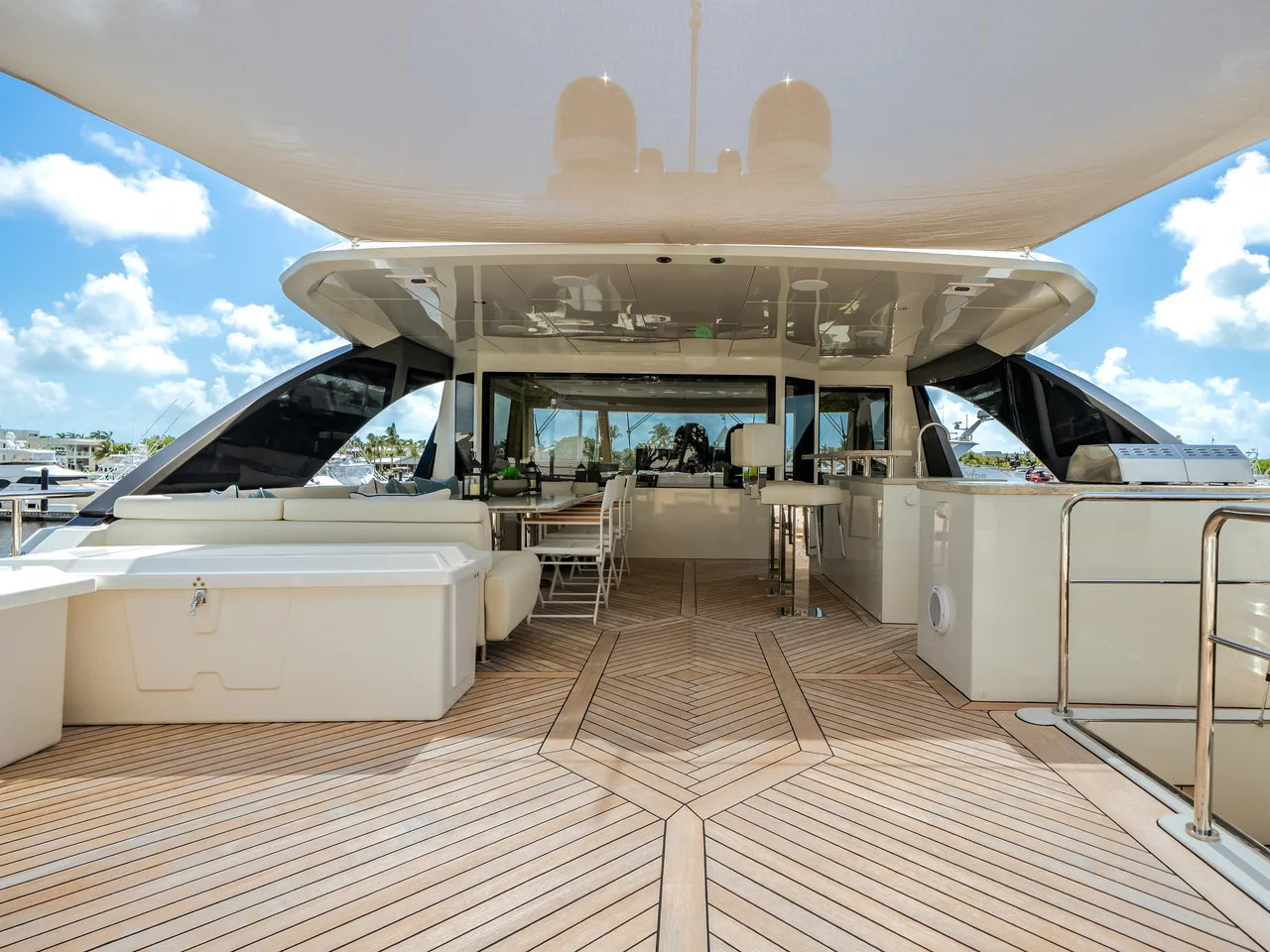

Exterior Convenience Package
- Sun awning for boat deck, bow deck and swim platform with custom-made stainless-steel poles and marine-grade exterior mesh fabric. Includes custom designed built-in storage for poles.
- Custom-designed exterior loose furniture package with table at boat deck and bow.
- Custom exterior protection canvas for exterior cabinetry and windshield mesh cover.
- 316 stainless-steel transom gates for pet/child protection.

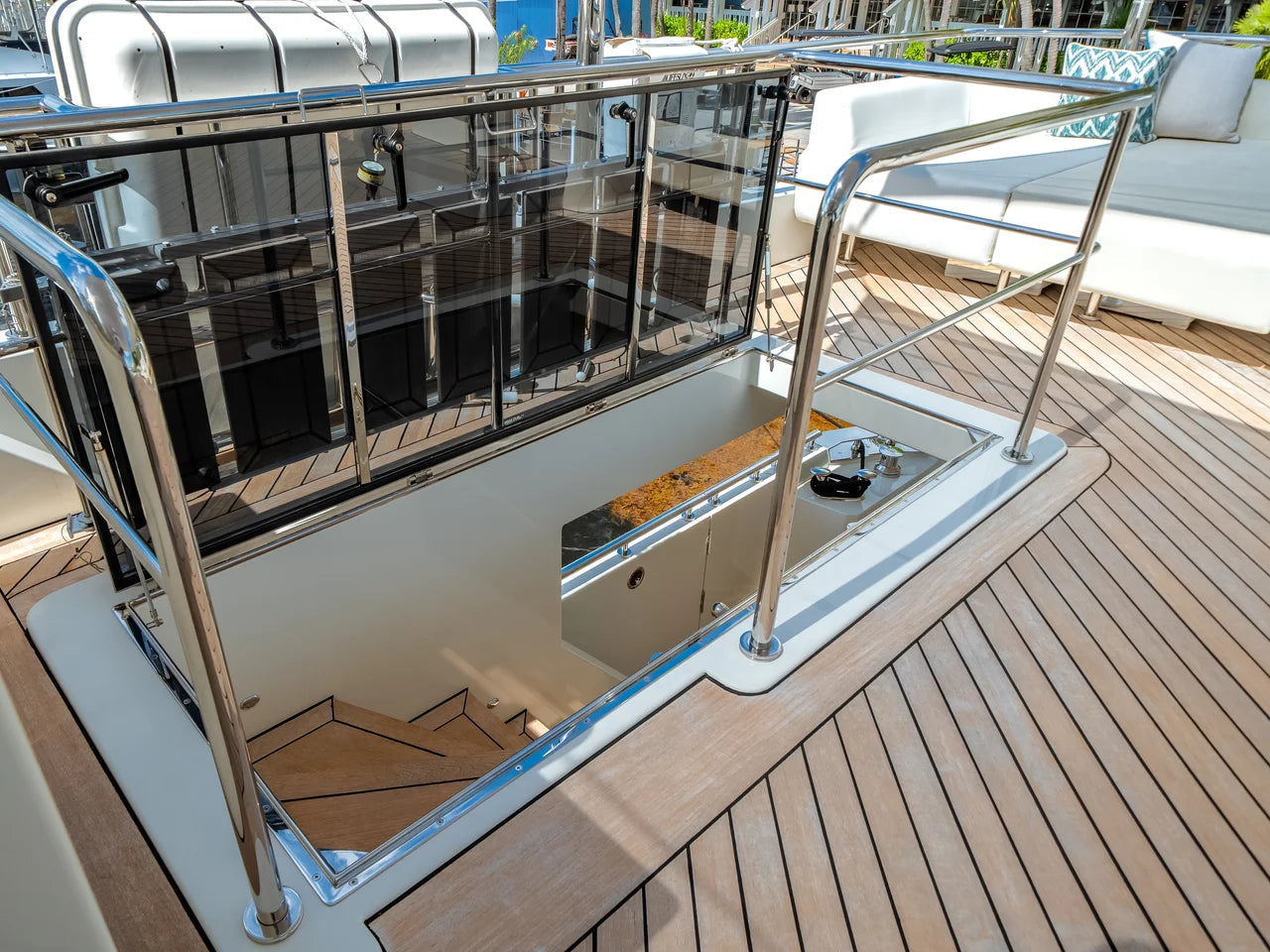

- Boat deck hatch.
- Bow concealed "pop-up" lights (4x).
- 30" electric barbecue at boat deck.
- High output LED underwater lights 7x (three at stern, two on each side of port and starboard side).

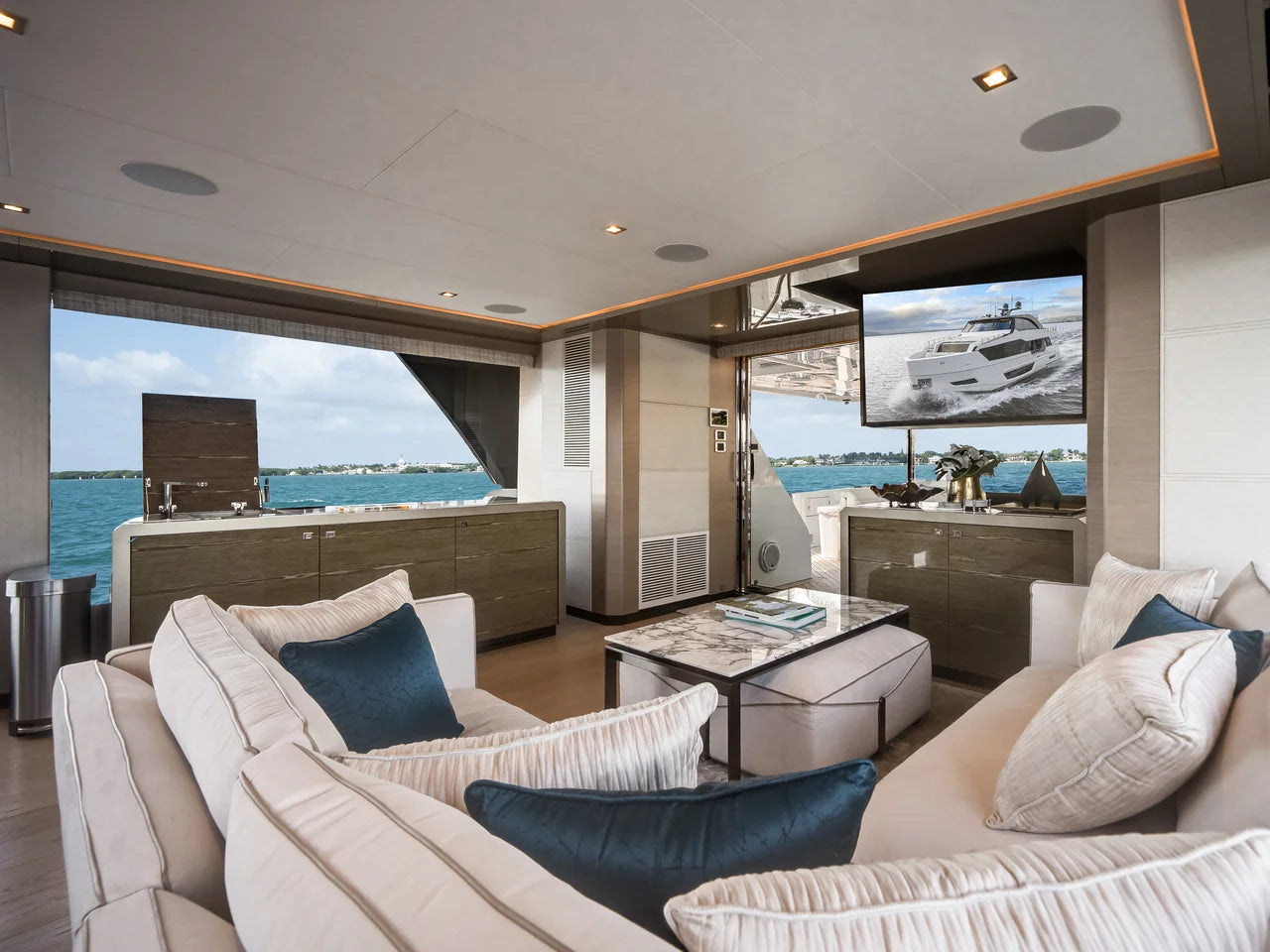

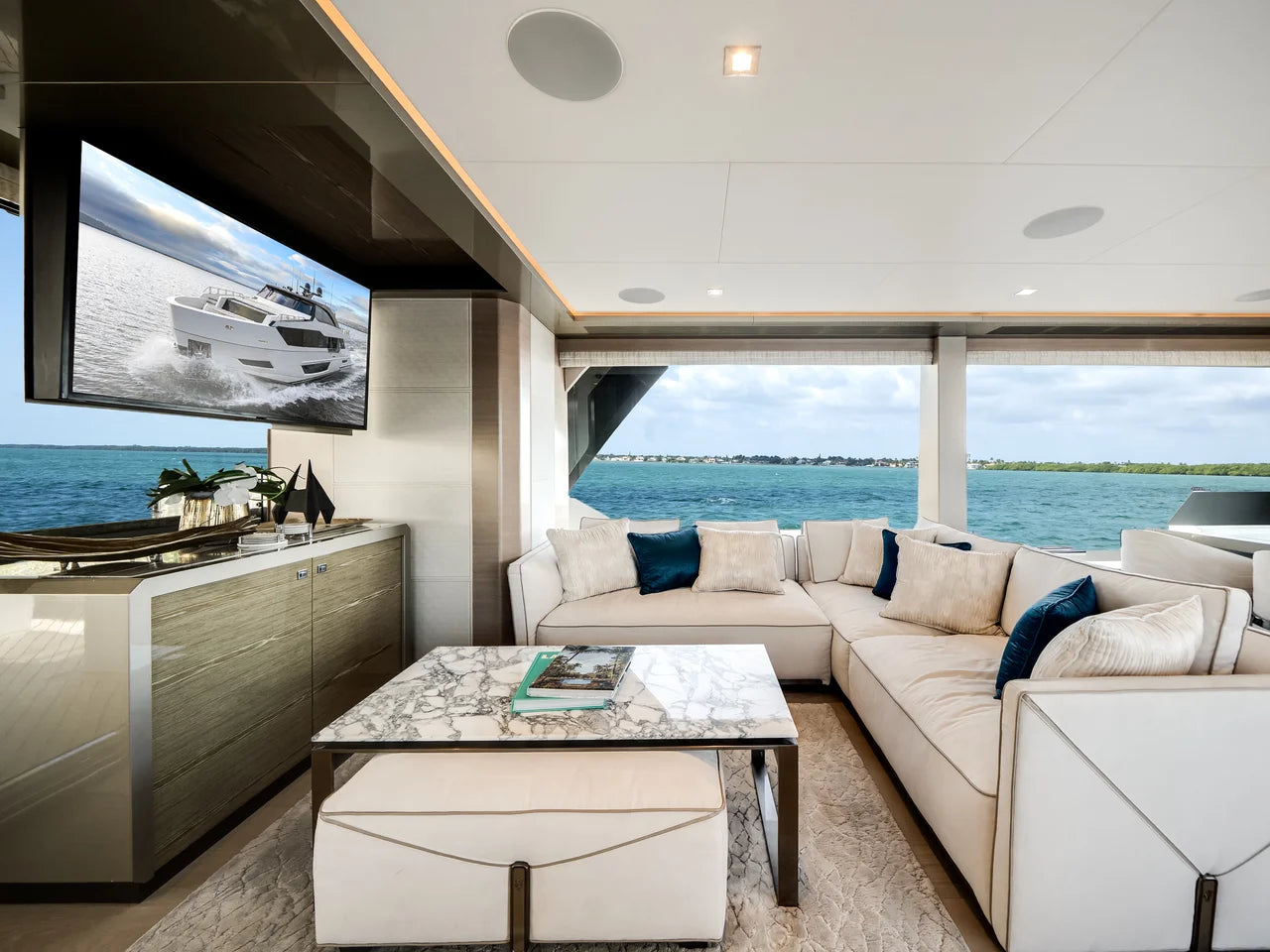

Salon
- Custom-designed furniture.
- Custom-designed window mullion with ceiling treatment.
- Stone countertop at wet-bar and cabinets

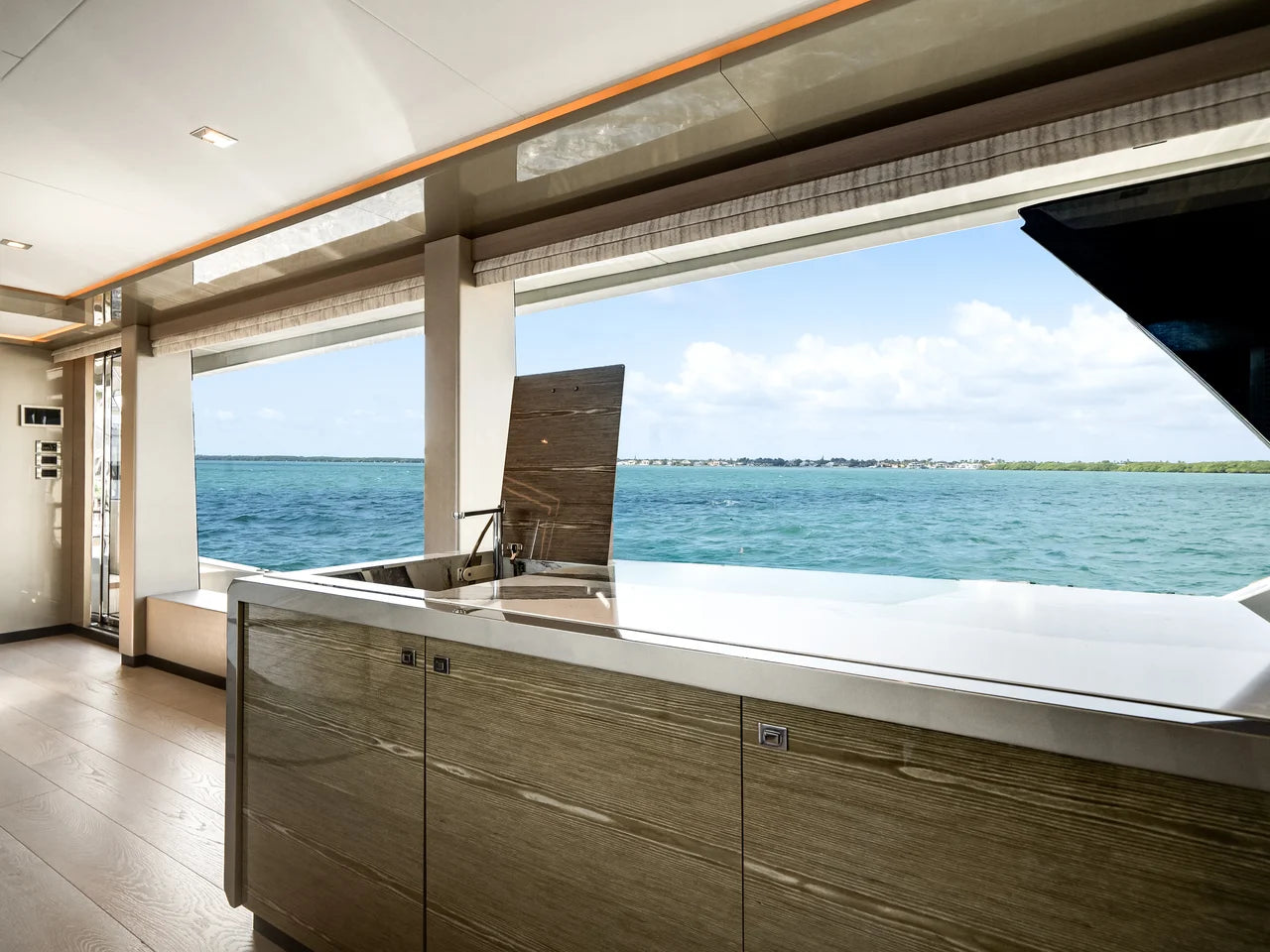

- Cabinet including wet bar, sink, refrigerator with ice maker, and wine cooler.
- Full height electric glass sliding door in lieu of manual sliding door in salon (aft and stbd side).
- Electric Shades with remote control.

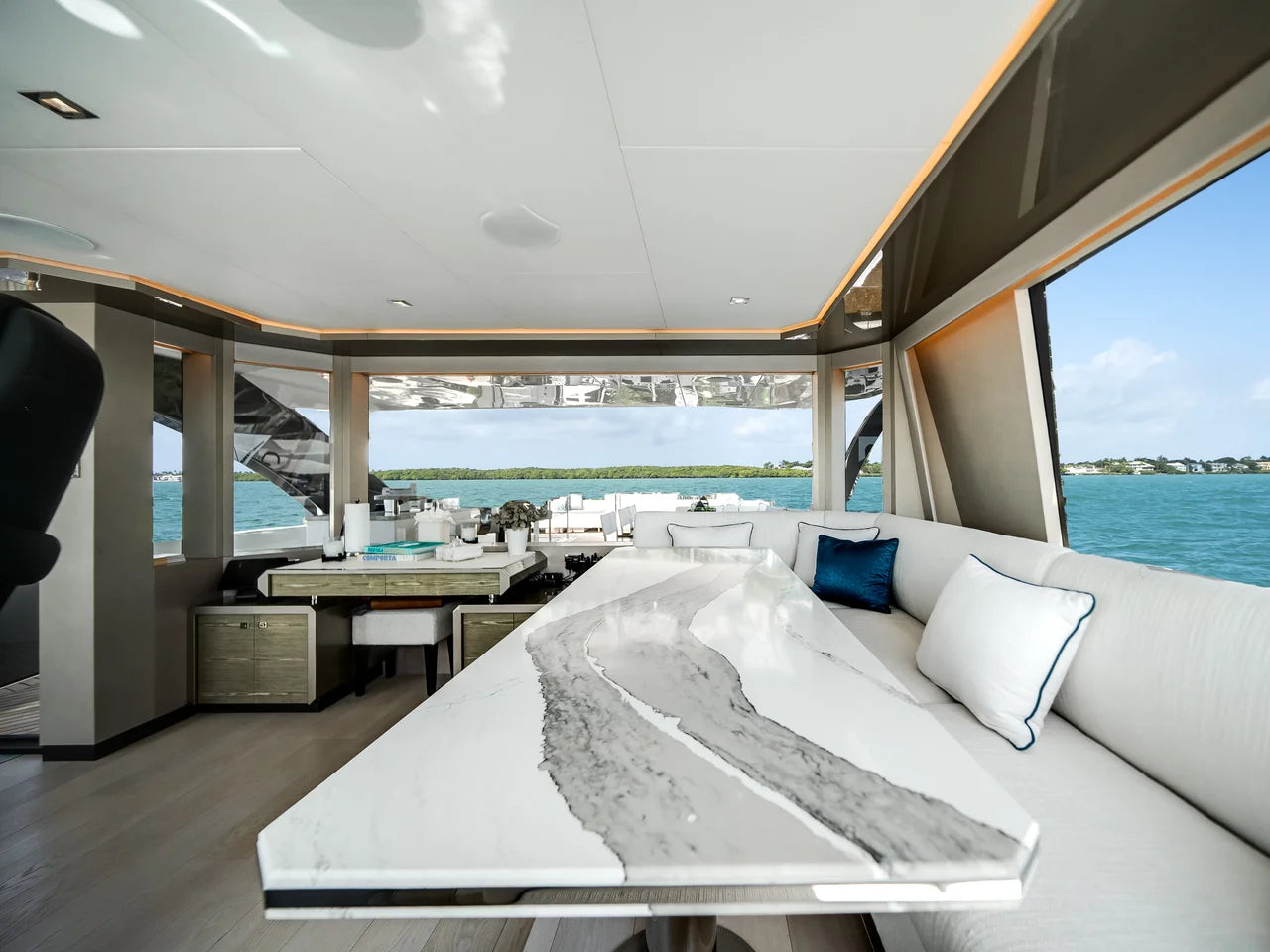

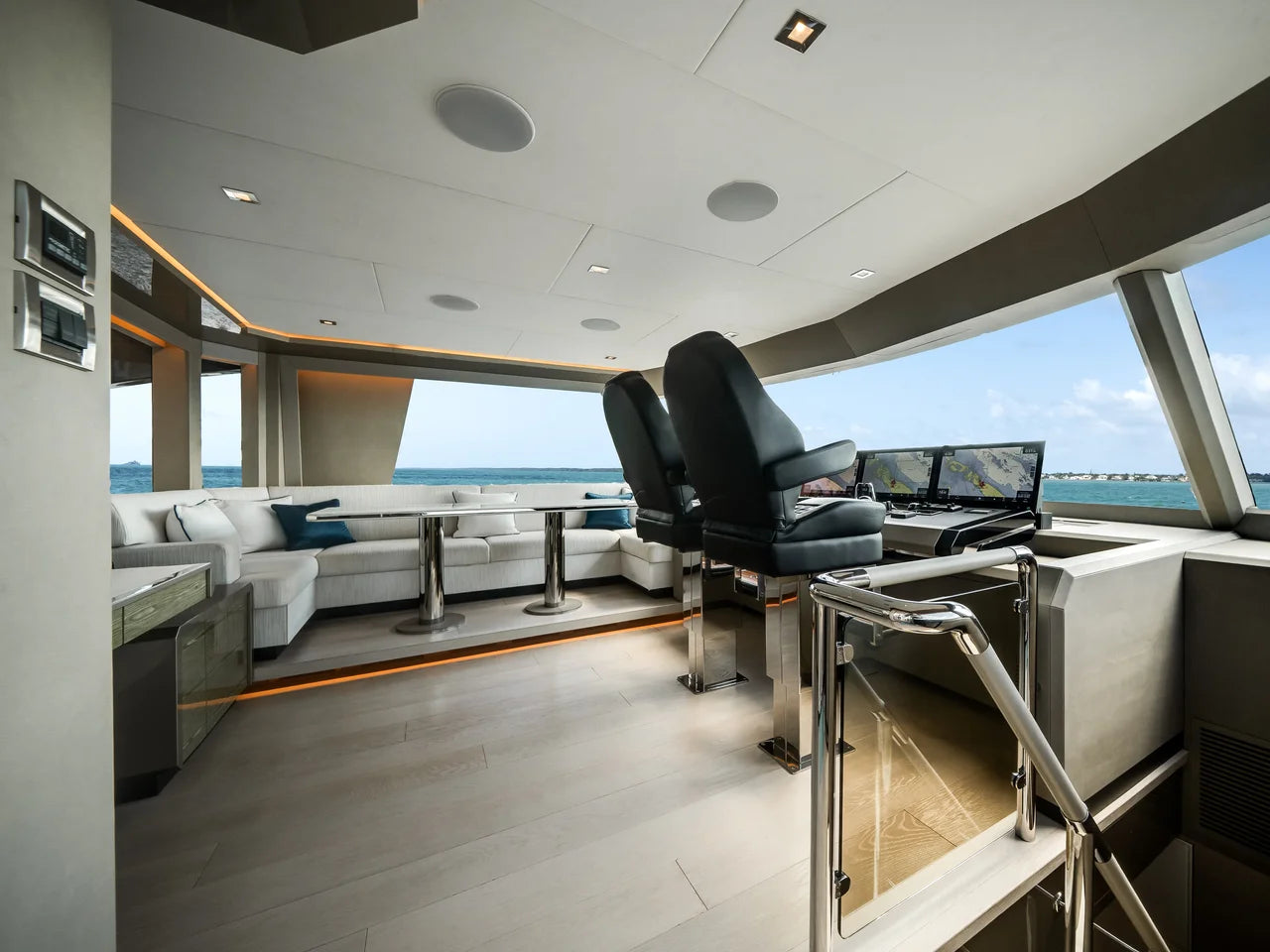

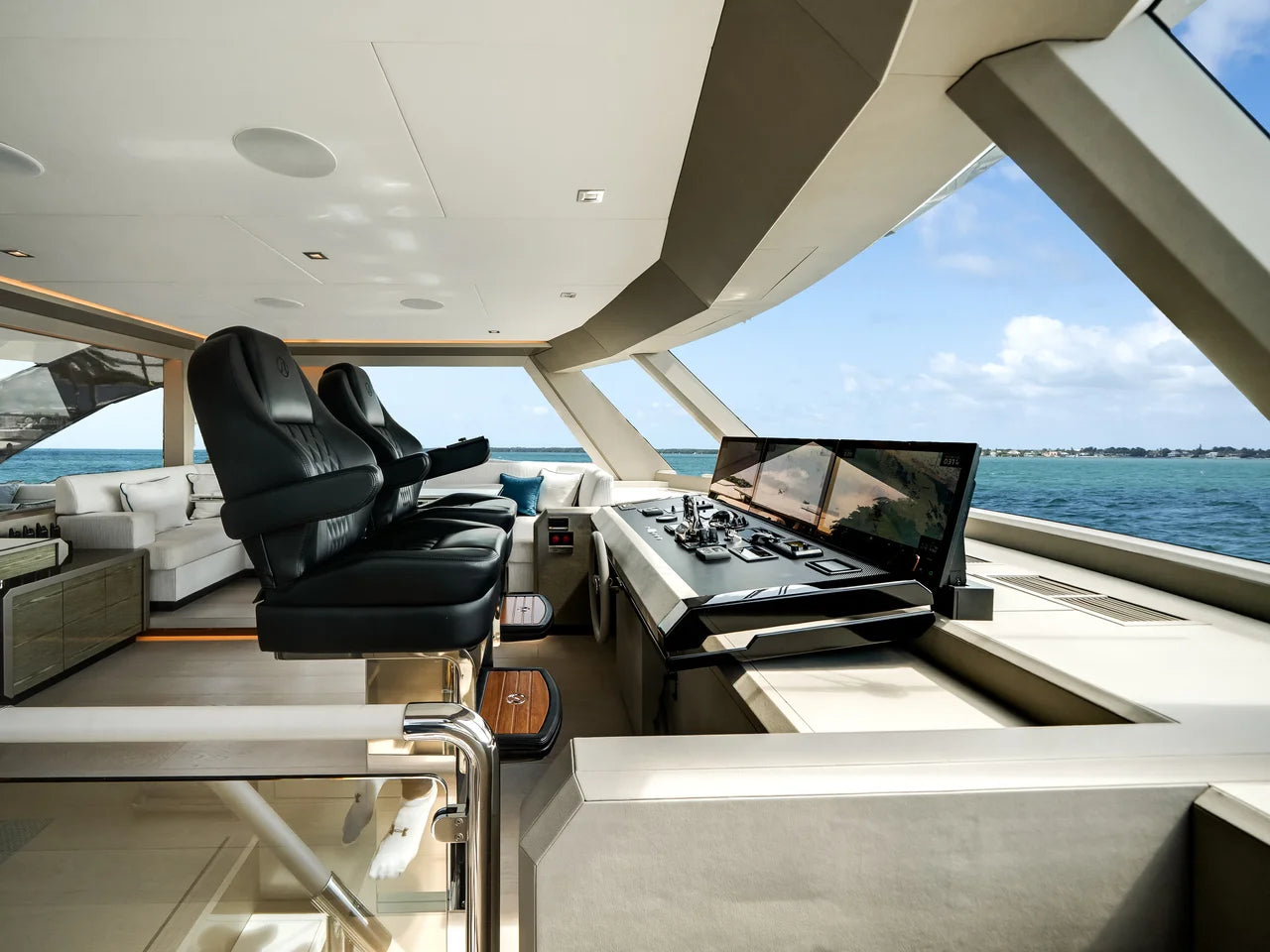

Pilothouse
- Custom-designed furniture and sofa.
- Custom-designed window mullion with ceiling treatment.

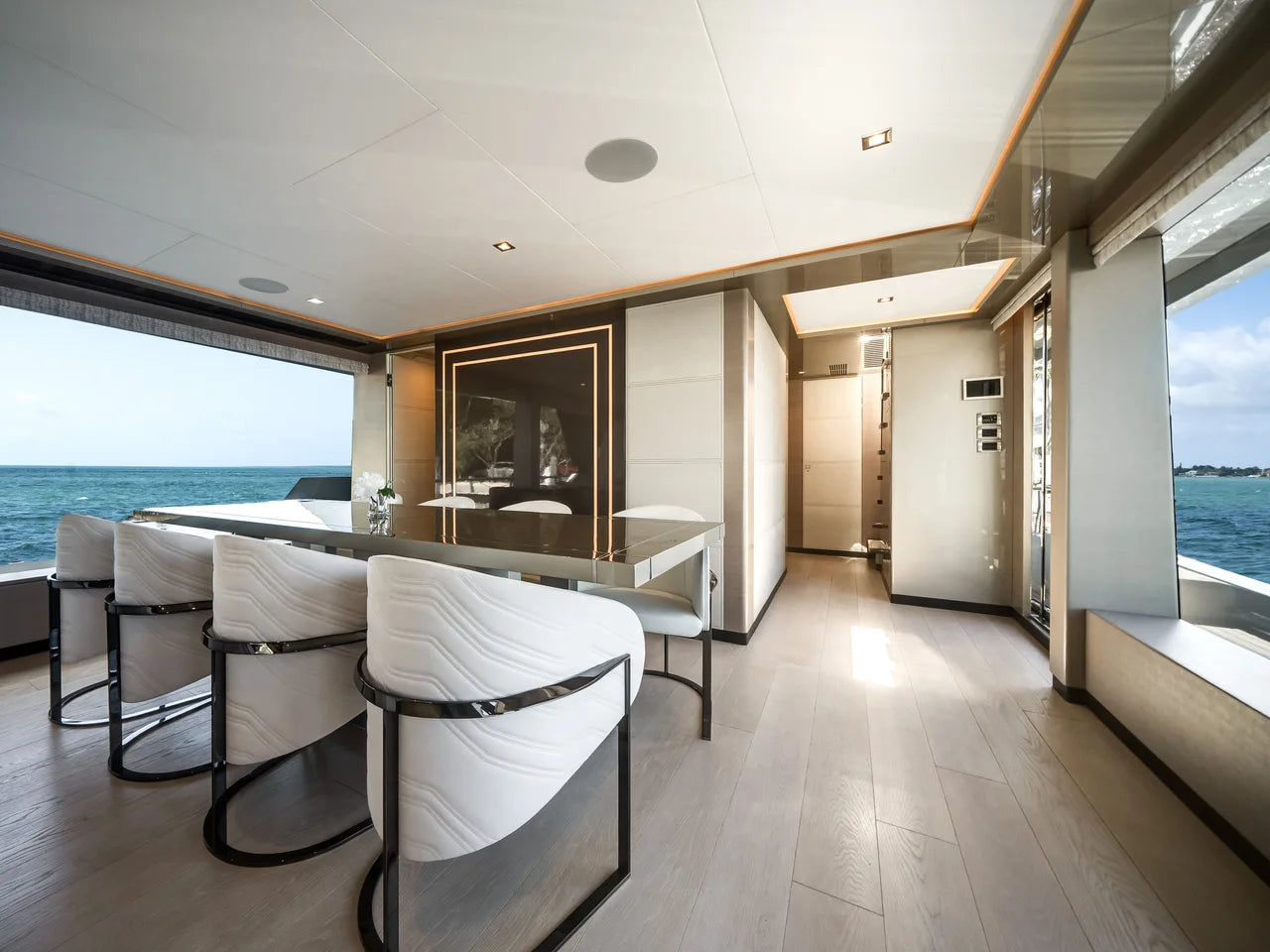

Dining Room
- Shelve tracks be installed for china, glass and silver storage.

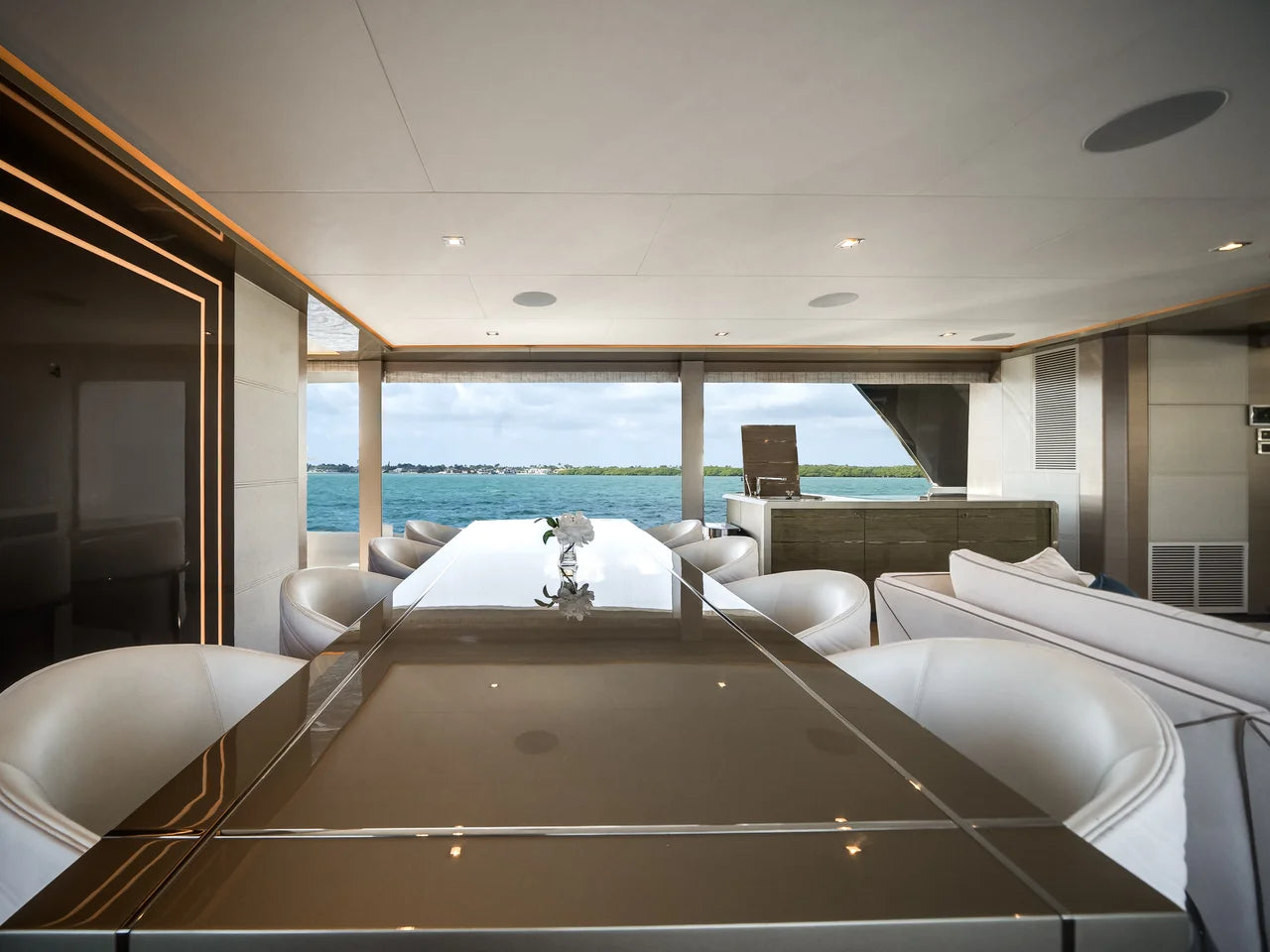

- Eight-person dining table secured.
- Day head with sink and cabinet.

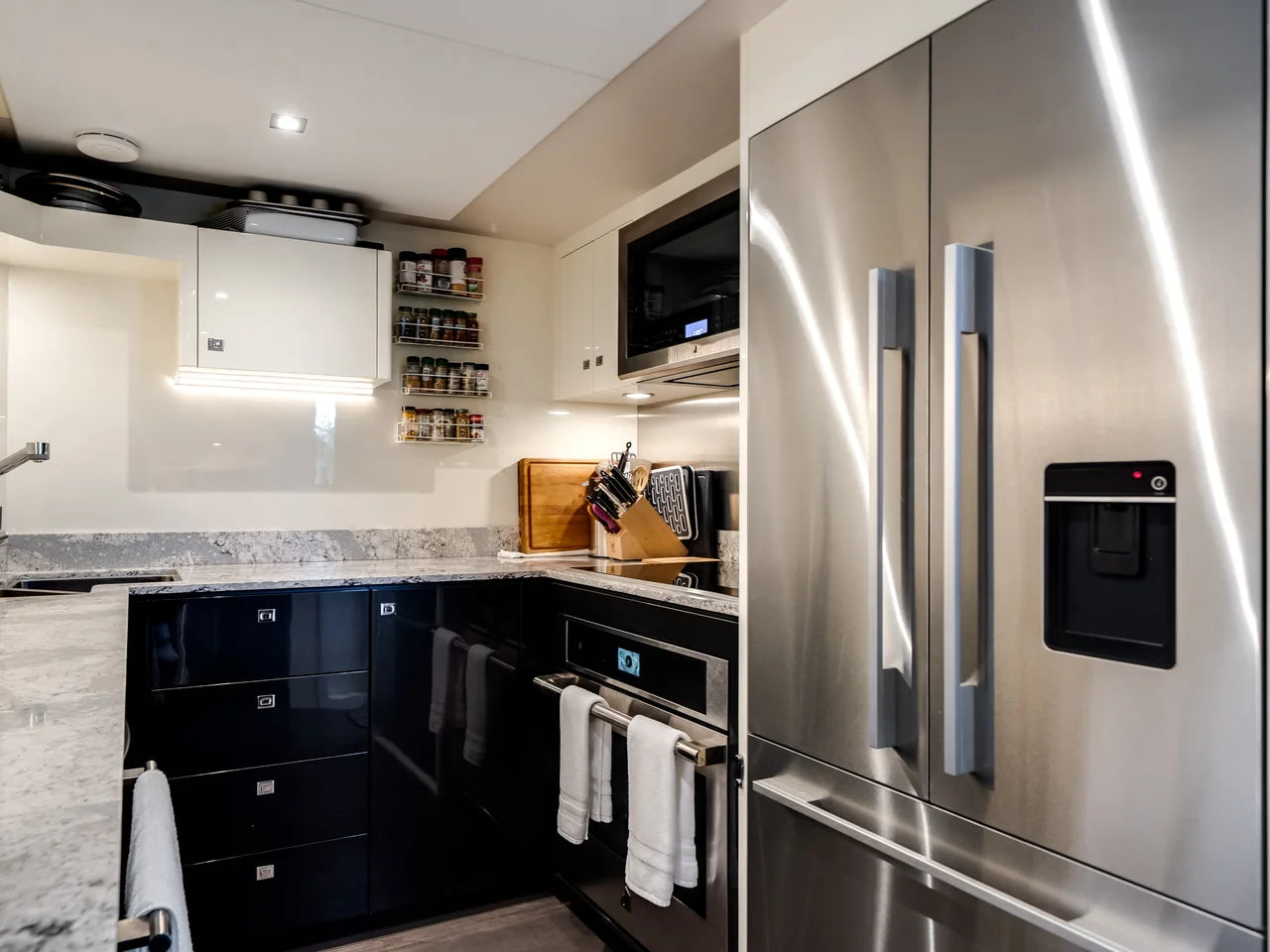

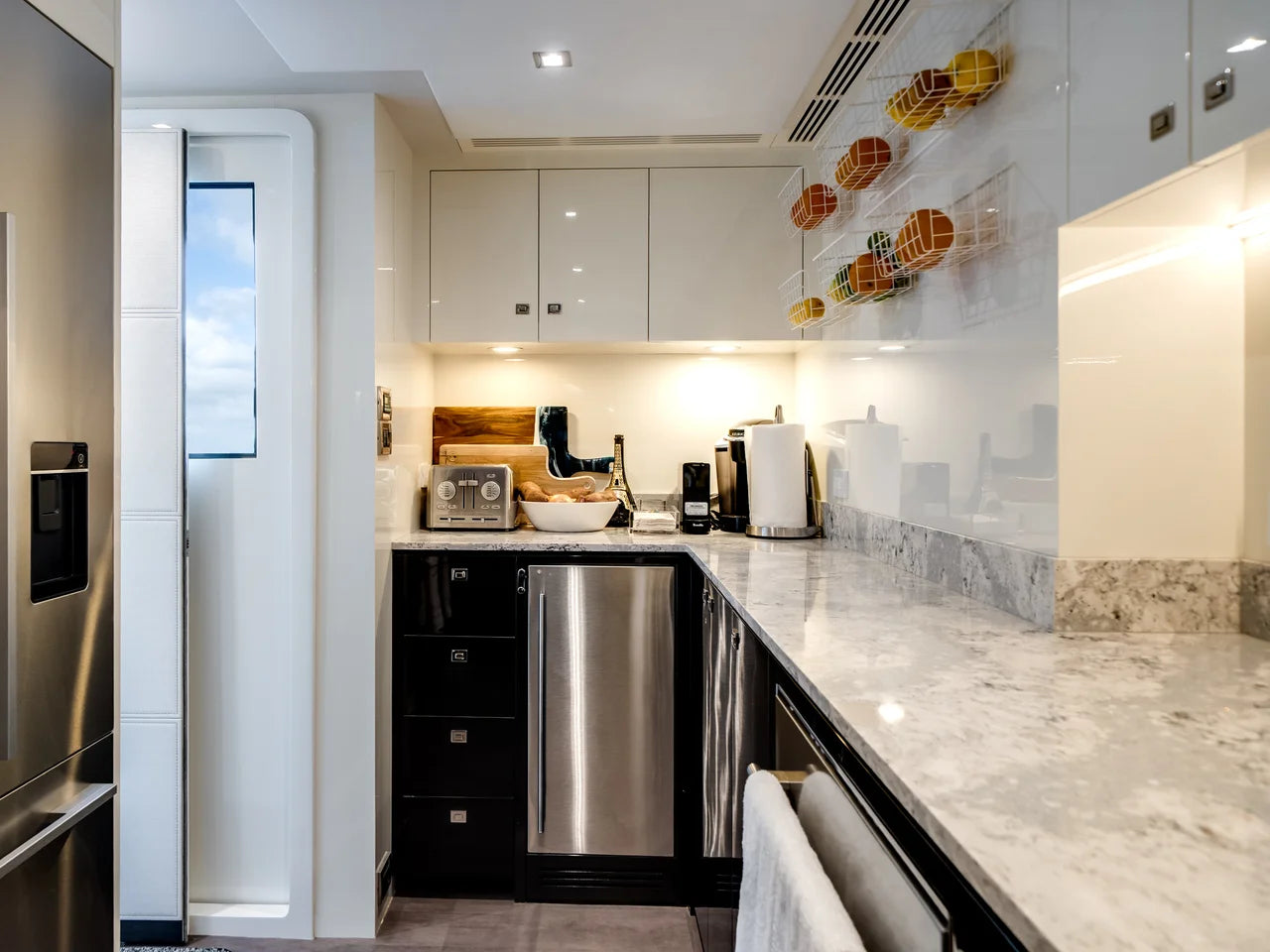

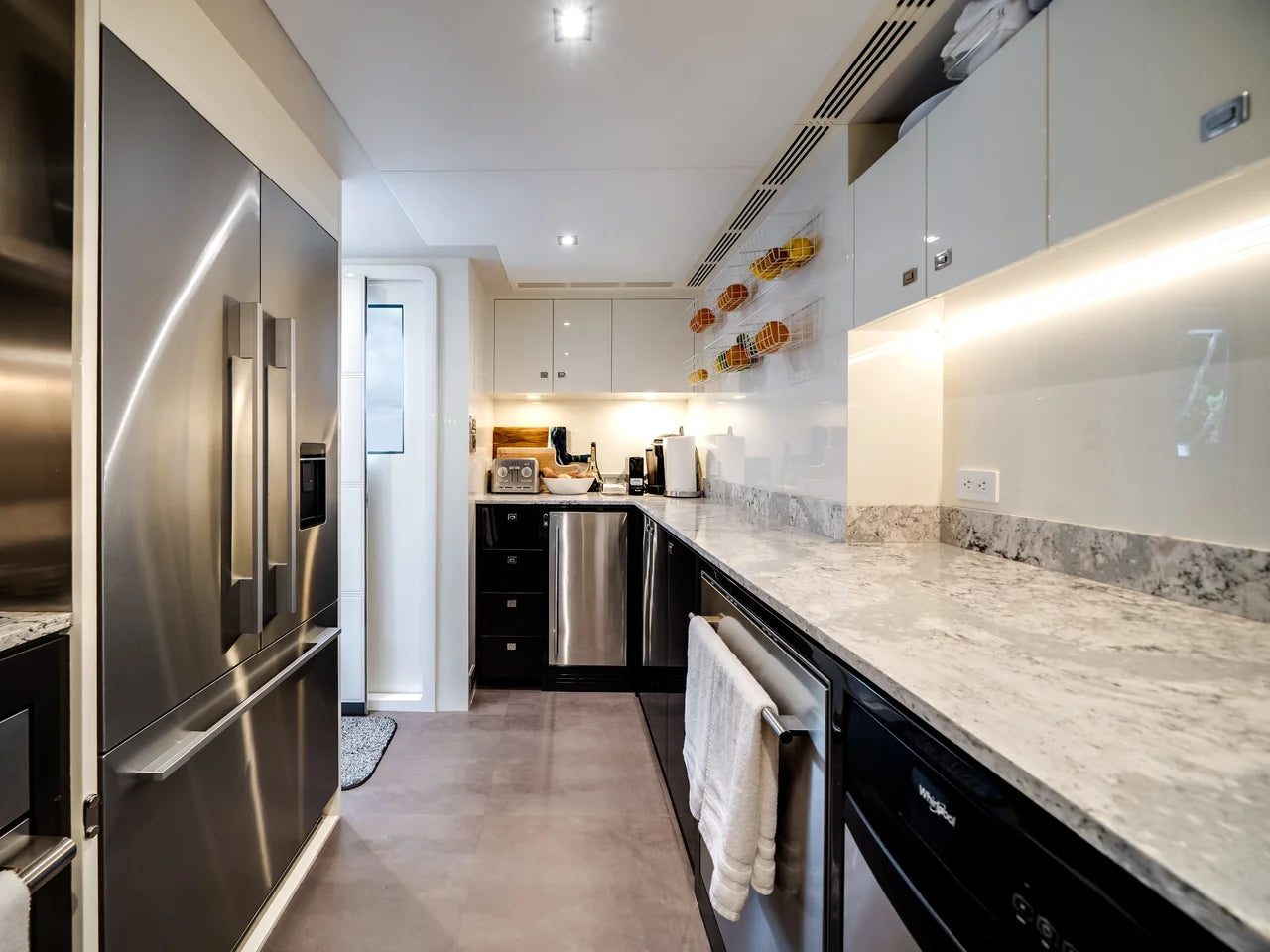

Galley
- Painted paneled cabinetry with positive-latch doors.
- Stone countertops.
- Stainless-steel kitchen sink with pull out faucet.
- Galley storage cabinetry with hidden hinges.
- Whirlpool garbage disposal.
- 32" Fisher & Paykel refrigerator
- 30" Jenn-Air over-the Range microwave
- 30" Jenn-Air electric cook top
- 30" Jenn-Air electric oven
- 15" Whirlpool trash compactor
- 24" ASKO dishwasher
- Scotsman Briliance gourmet clear ice maker. Crystal-clean, odorless ice with unique ice cube shape won't clump or dilute drinks.

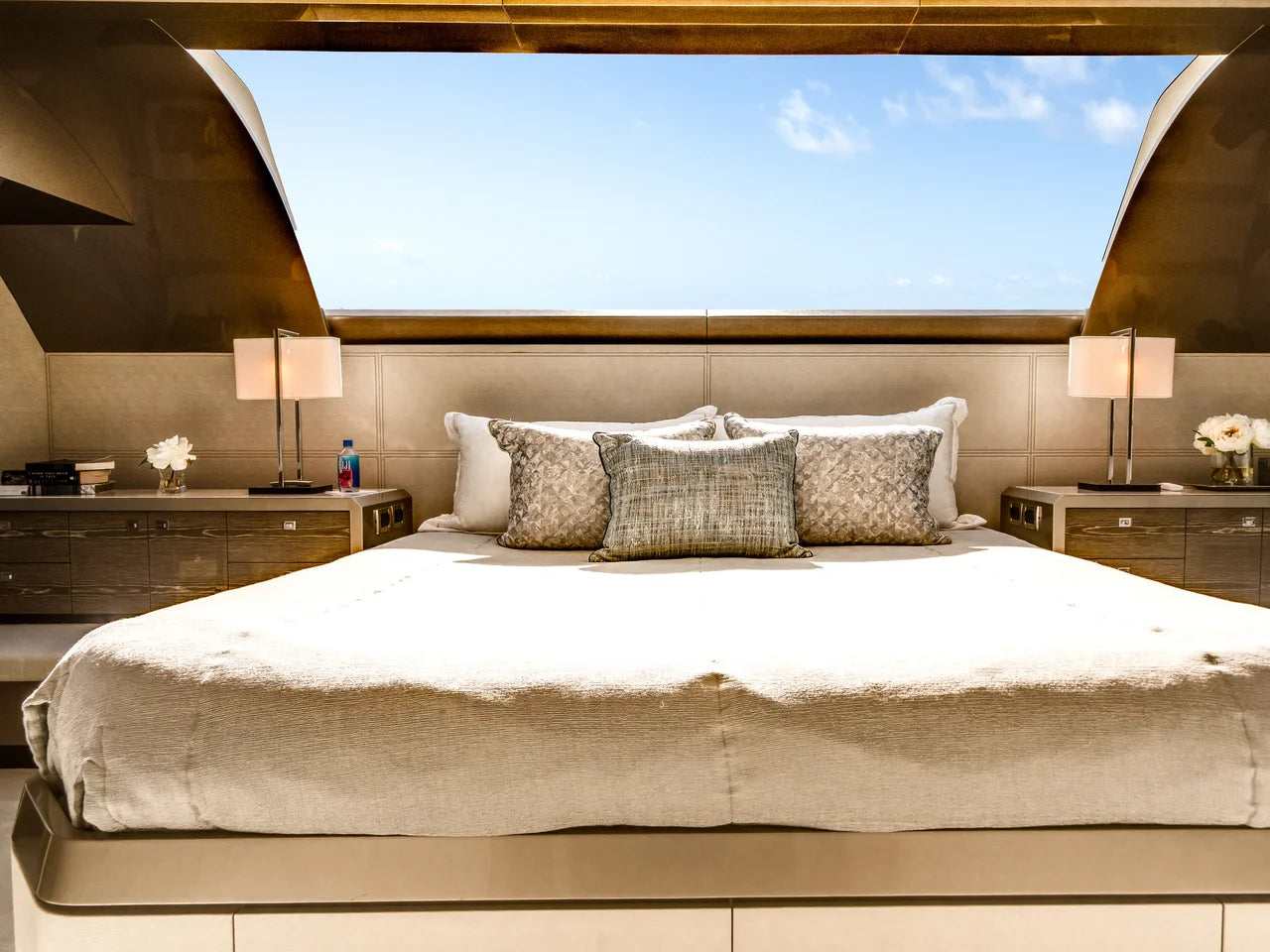

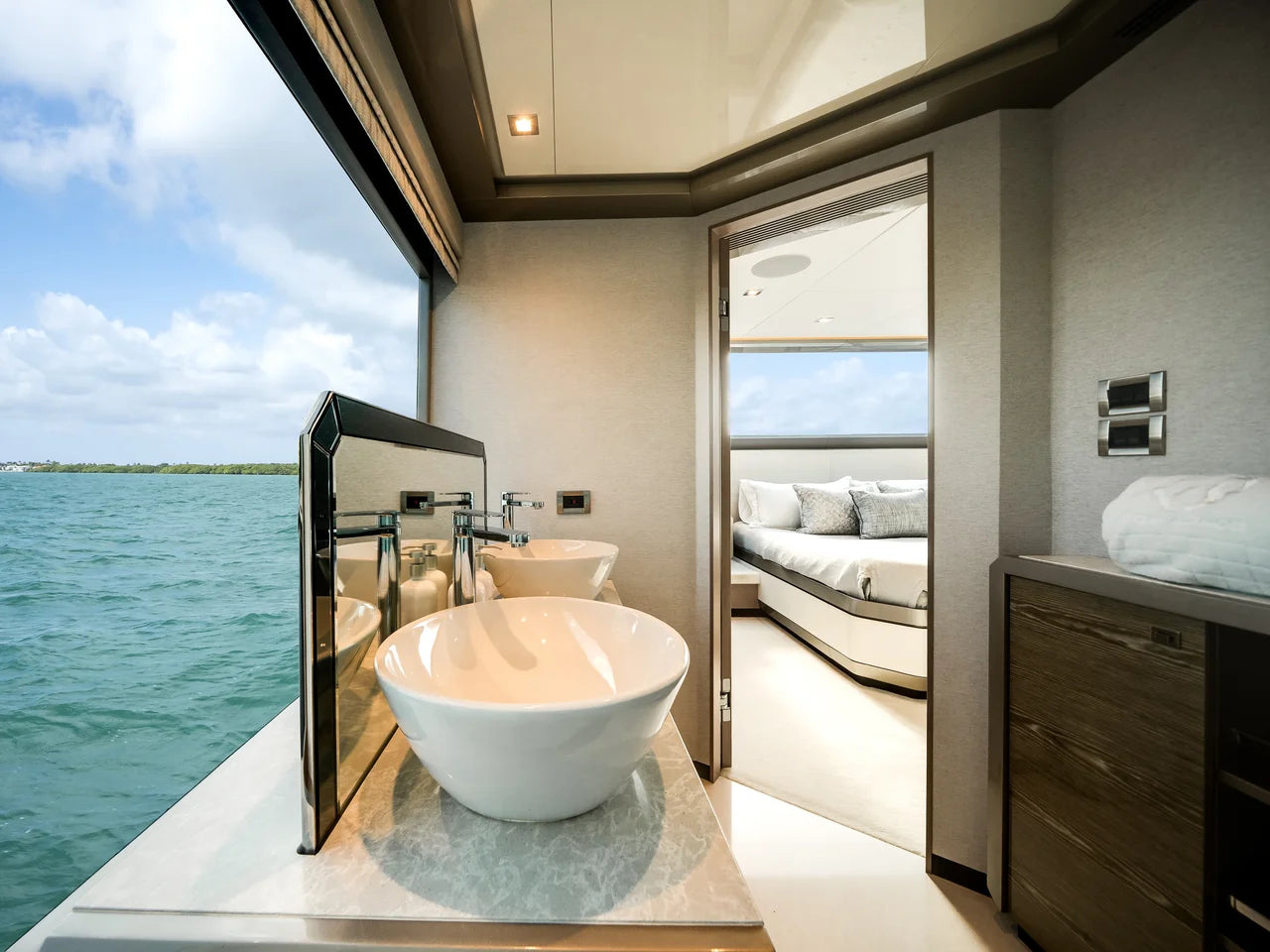

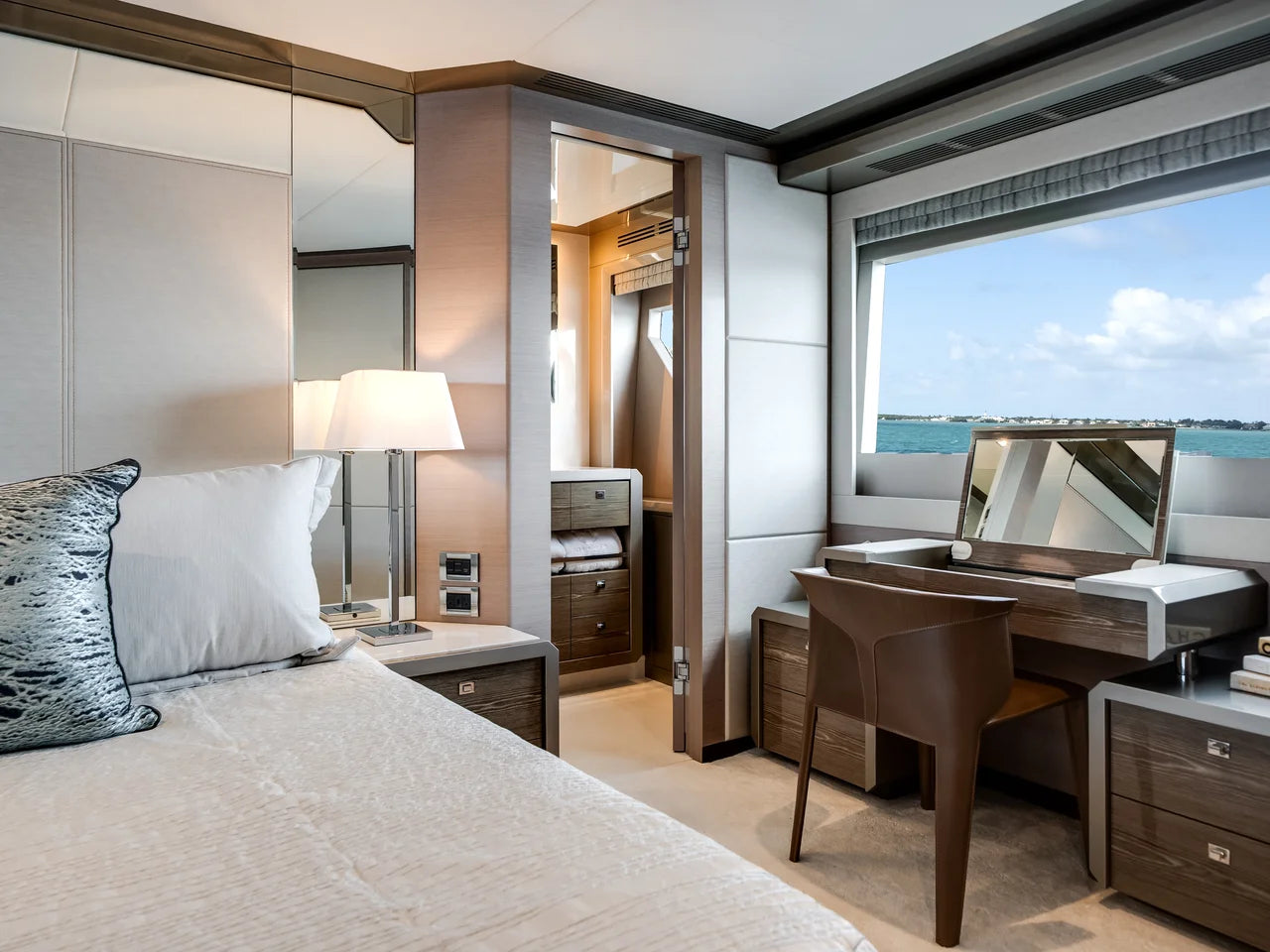

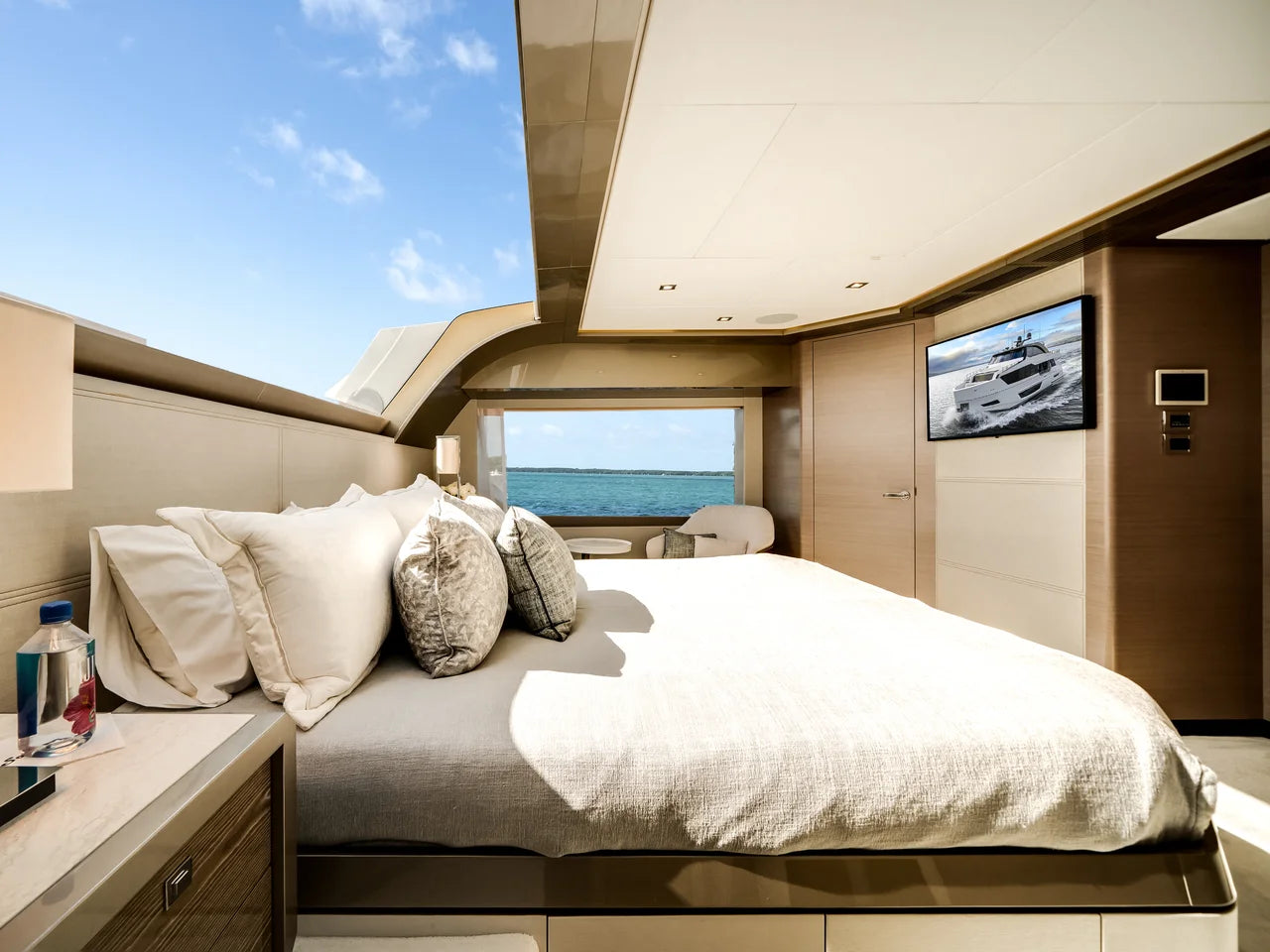

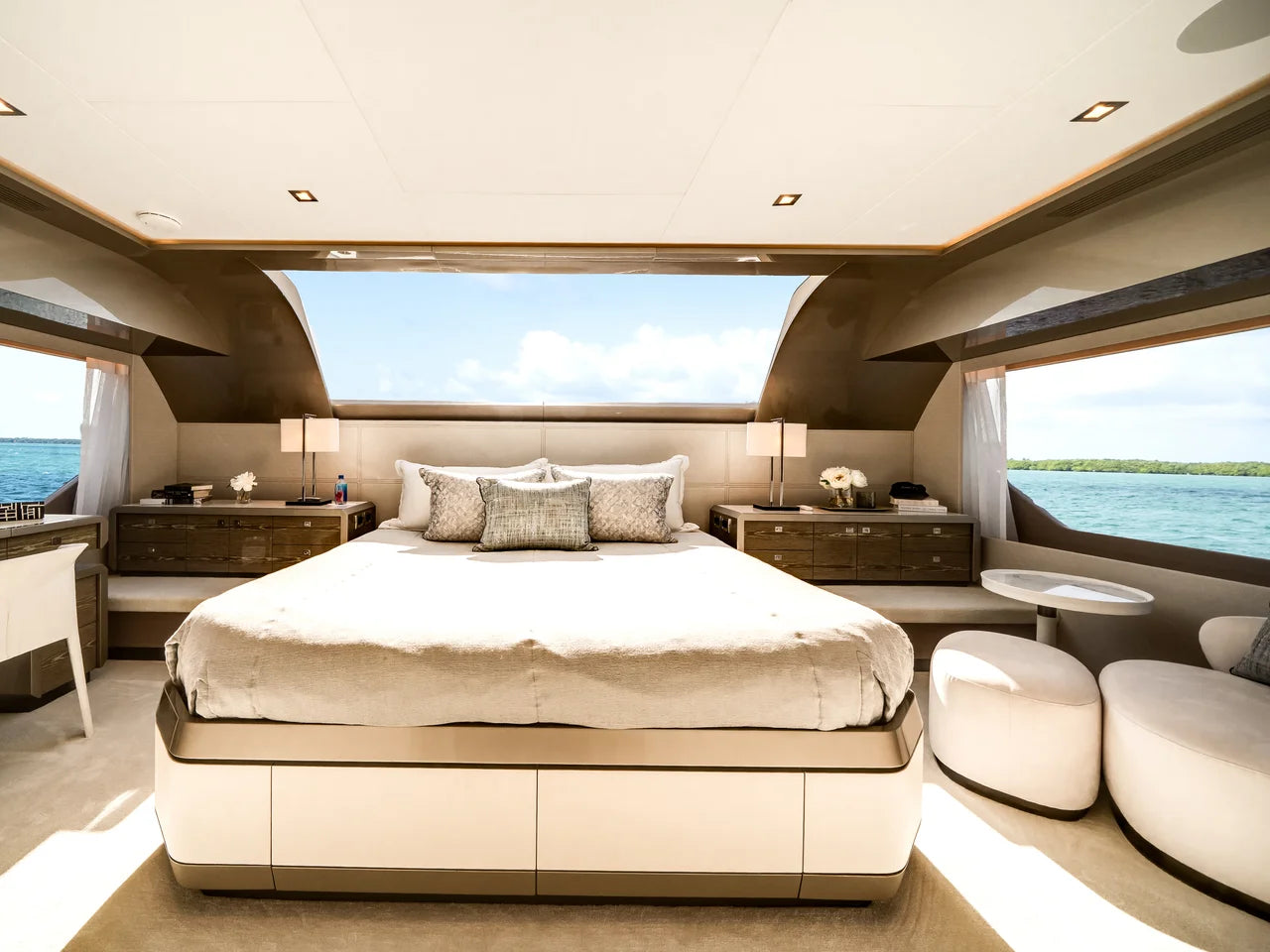

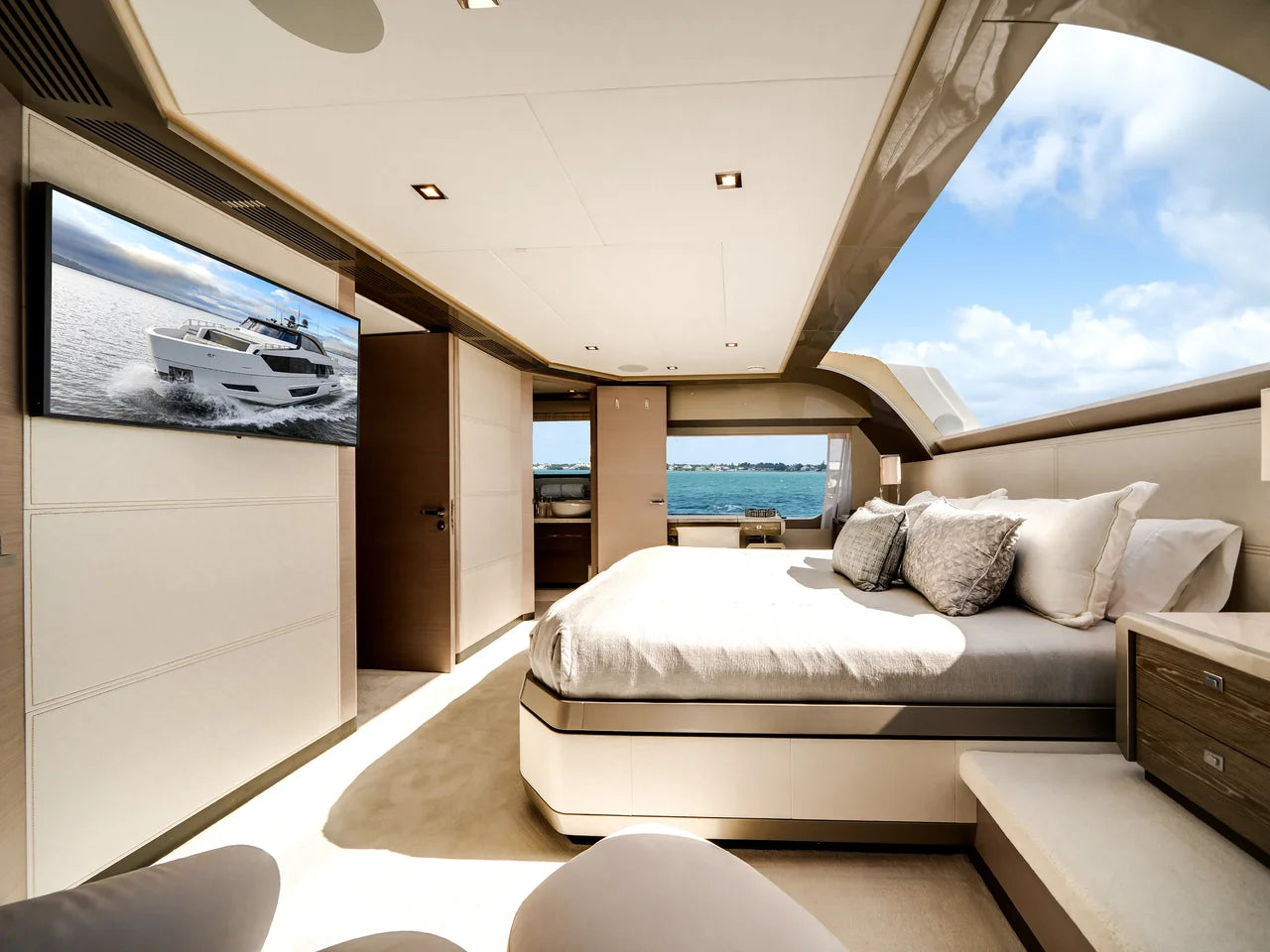

On-Deck Master Stateroom
- King-sized berth with independently coiled his/her sections to ensure minimal transfer of movement.
- Two nightstands with stone countertops
- Vanity table
- Walk-in closets on stbd sides of stateroom (featuring hidden safe for valuables).
- Electric Shades with remote control.
- Heated stone floors in bathroom.

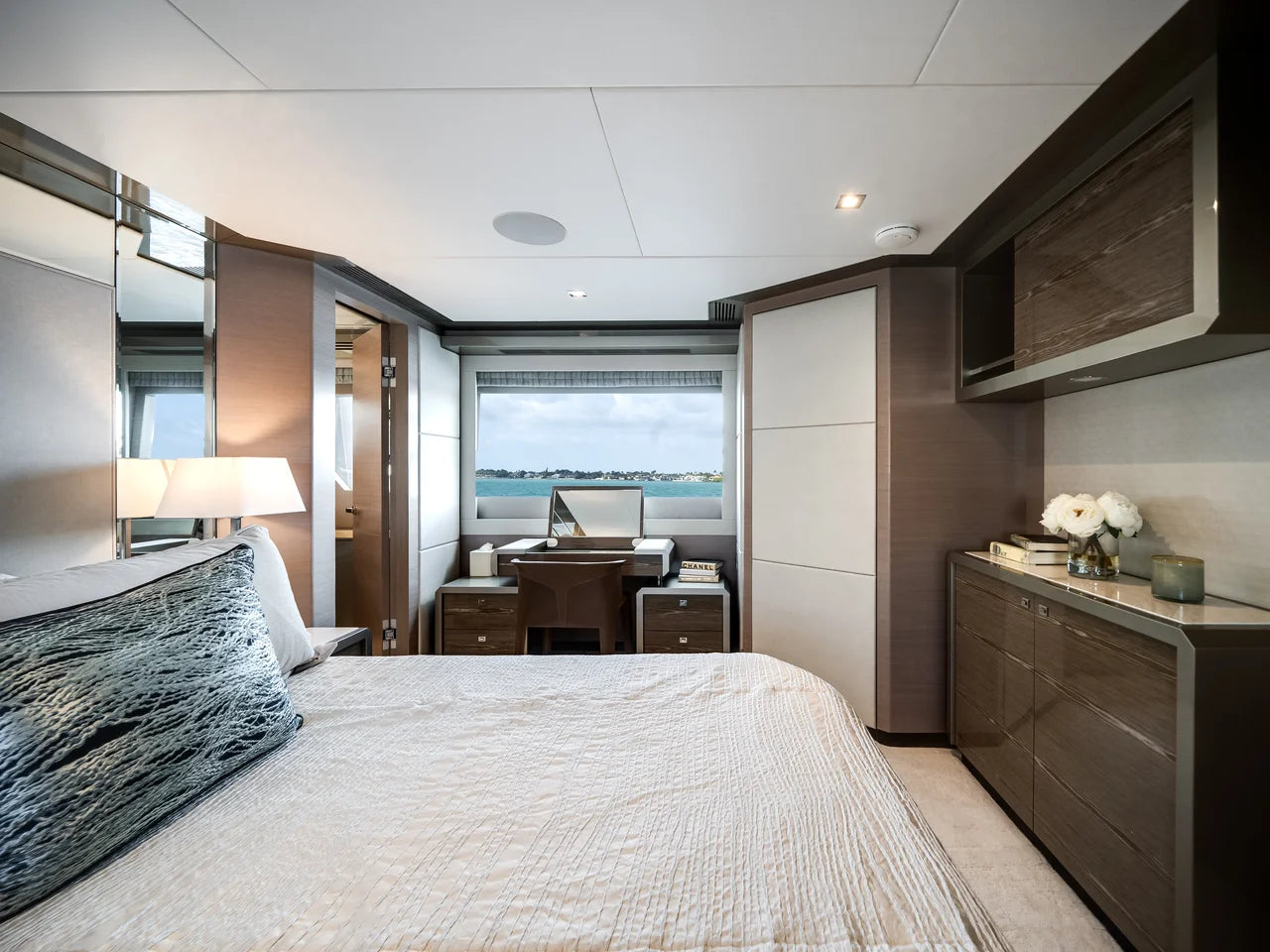

Lower-Deck Master Stateroom
- King-sized berth with independently coiled his/her sections to ensure minimal transfer of movement.
- Two nightstands with stone countertops.
- Vanity table.
- Walk-in closets on both sides of stateroom (featuring hidden safe for valuables).
- Electric shades with remote control.
- Privacy lockset.
VIP Staterooms

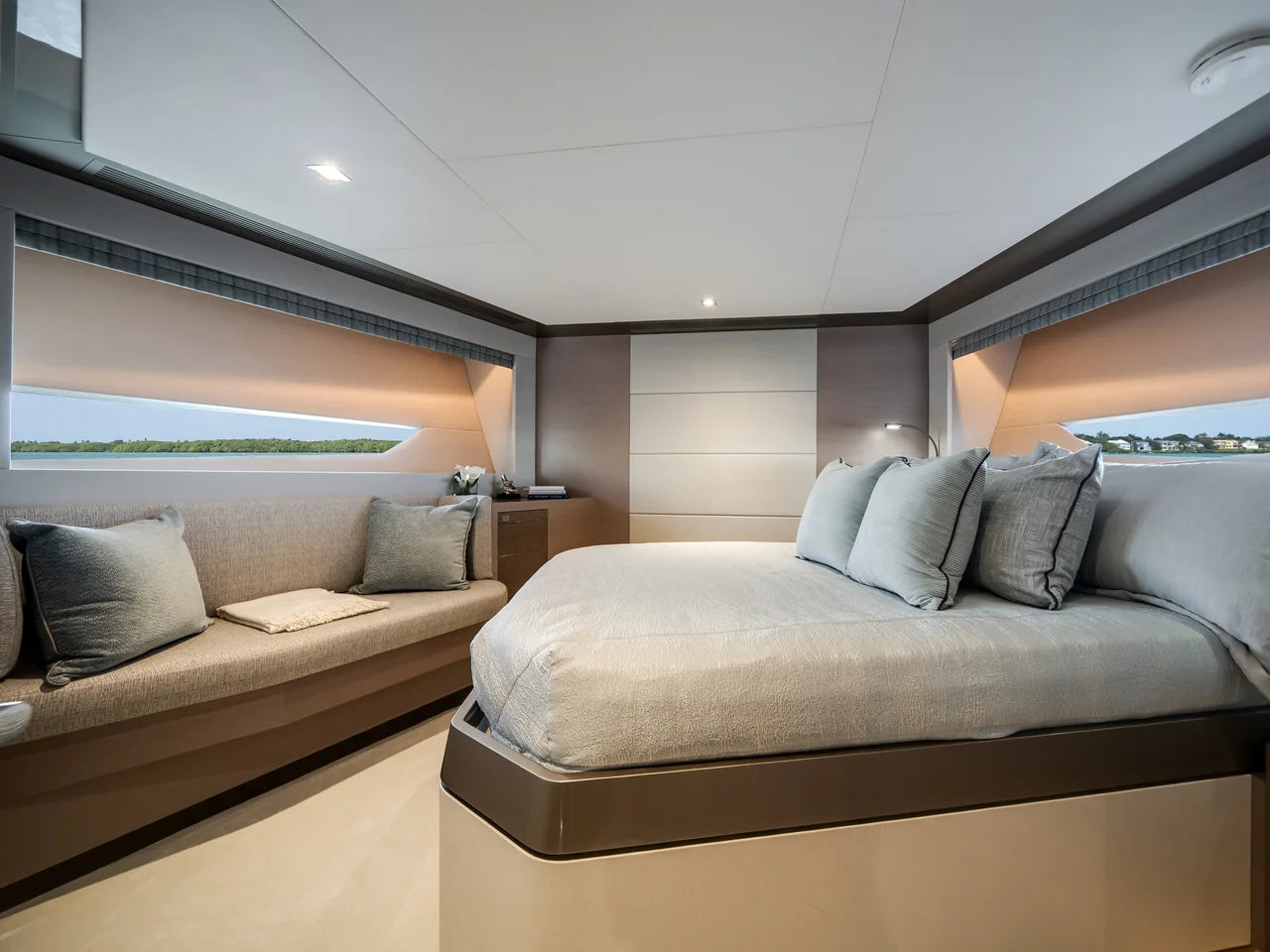

- Queen-size berth with innerspring mattress and storage beneath

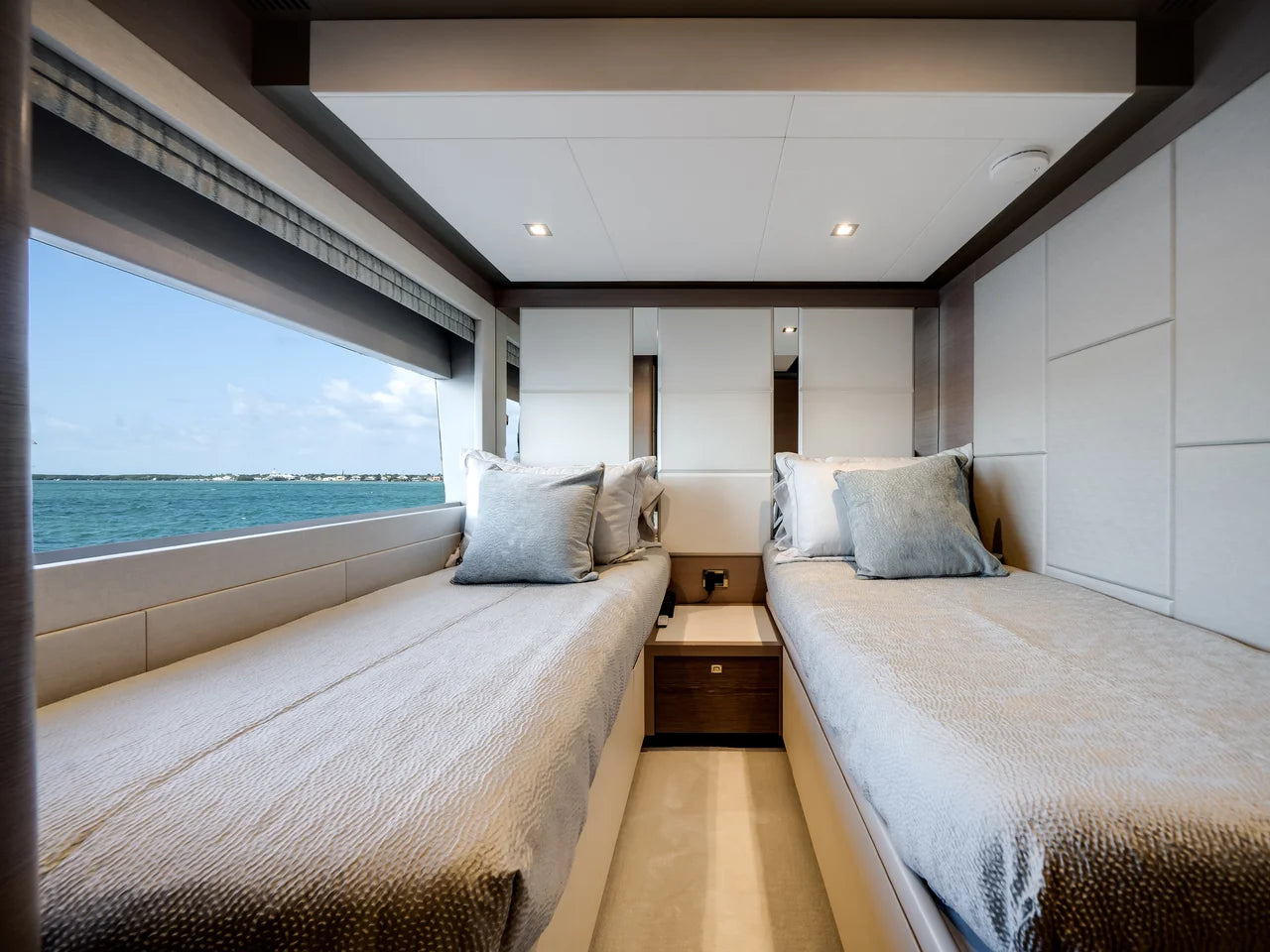

- Starboard guest stateroom side-by-side berths can slide together and convert to single queen berth.
- Nightstands with drawers
- Hanging locker with lighting
- Dressing mirror
- Privacy lockset
Beach Club
- L-shaped settee
- Cabinet including wet bar, sink, refrigerator with ice maker
- Dedicated air conditioning

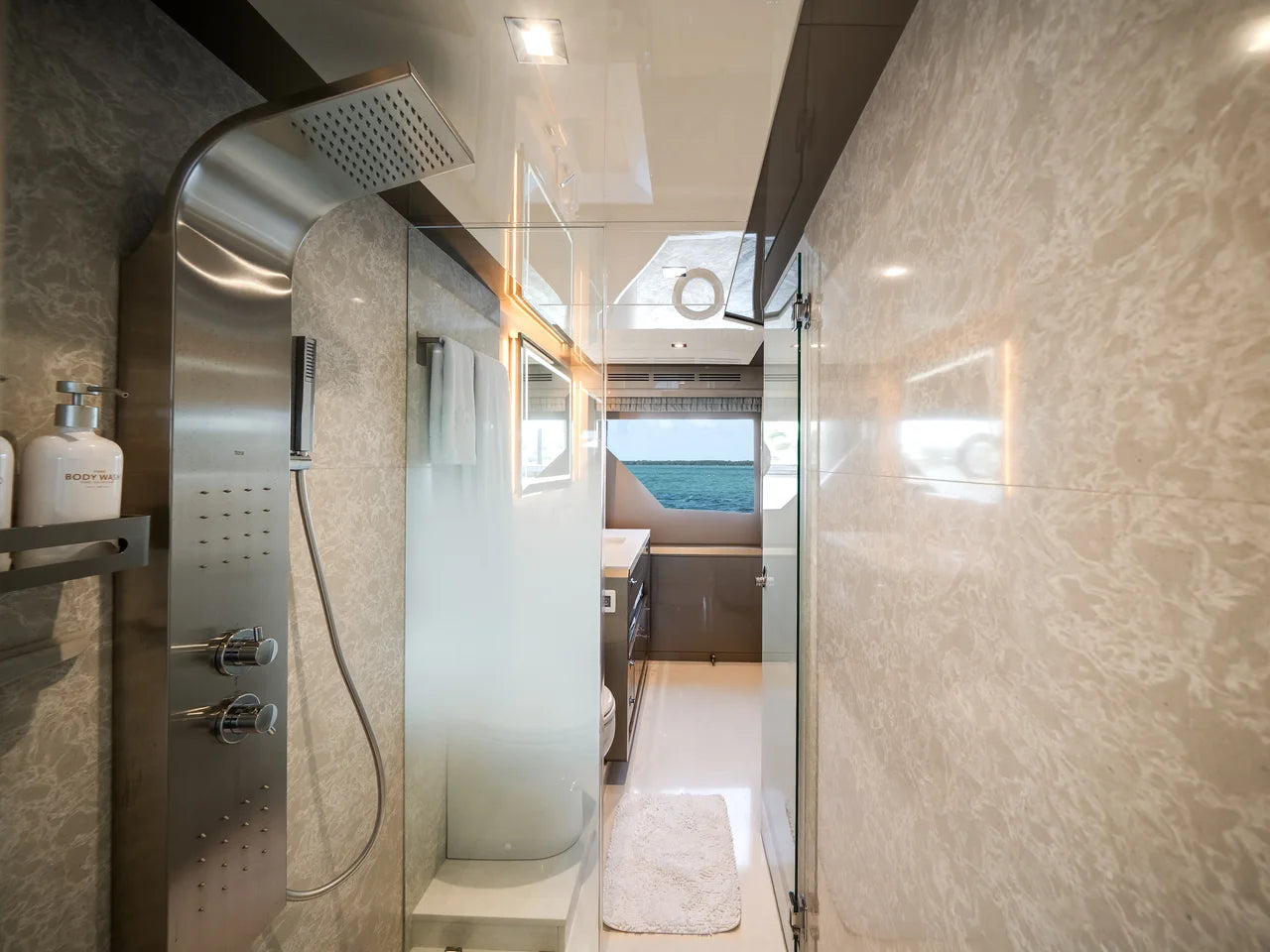

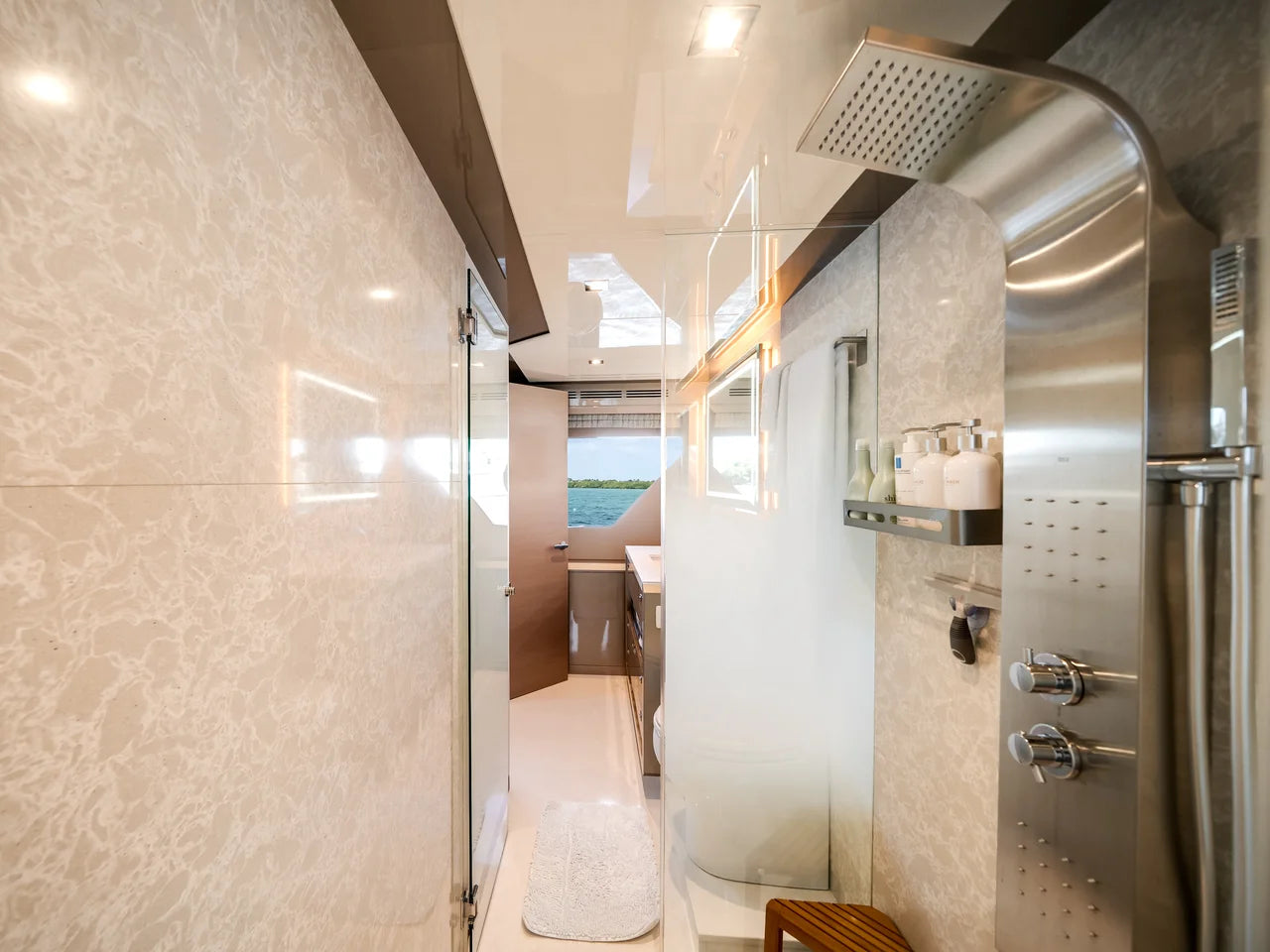

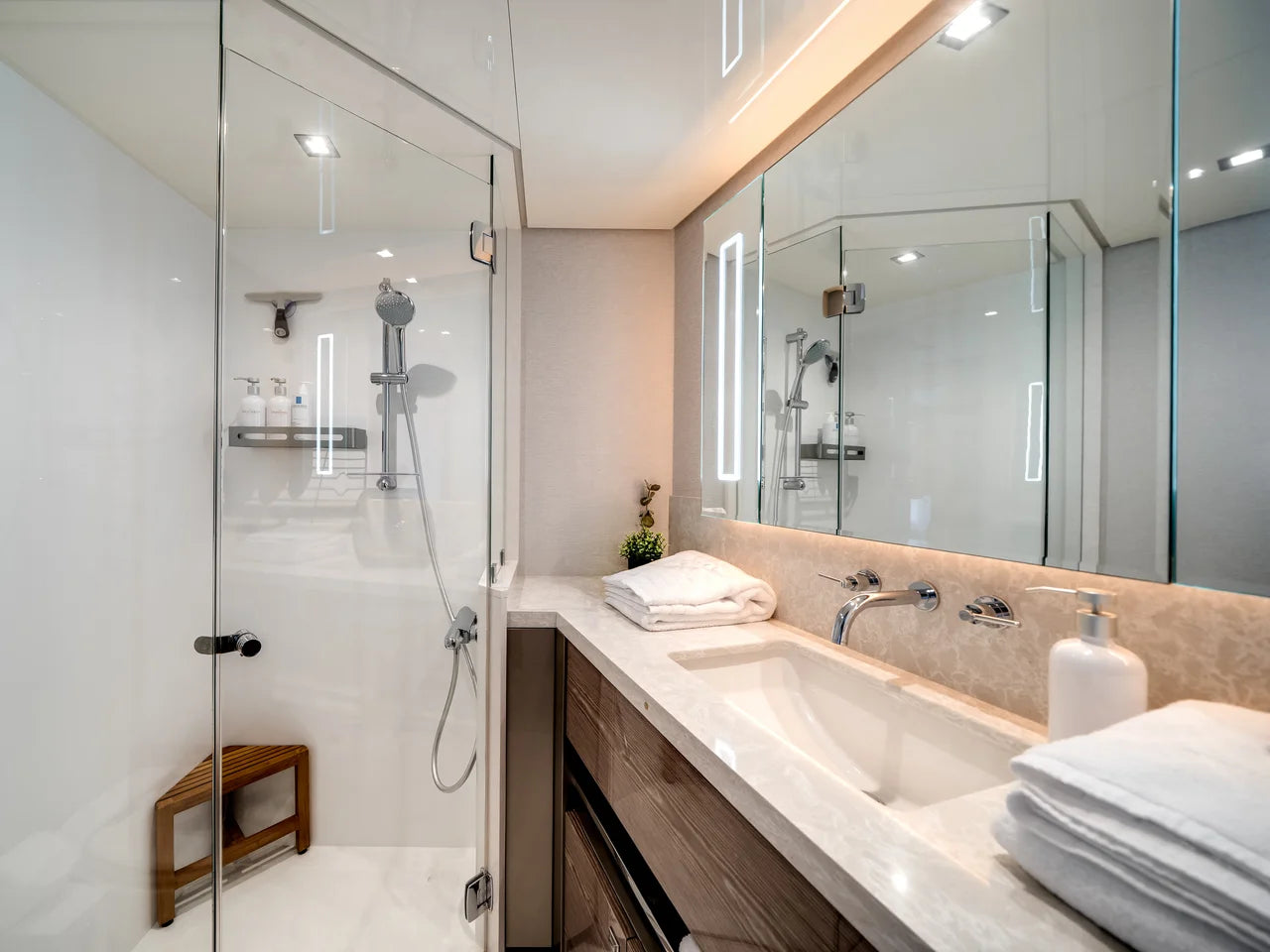

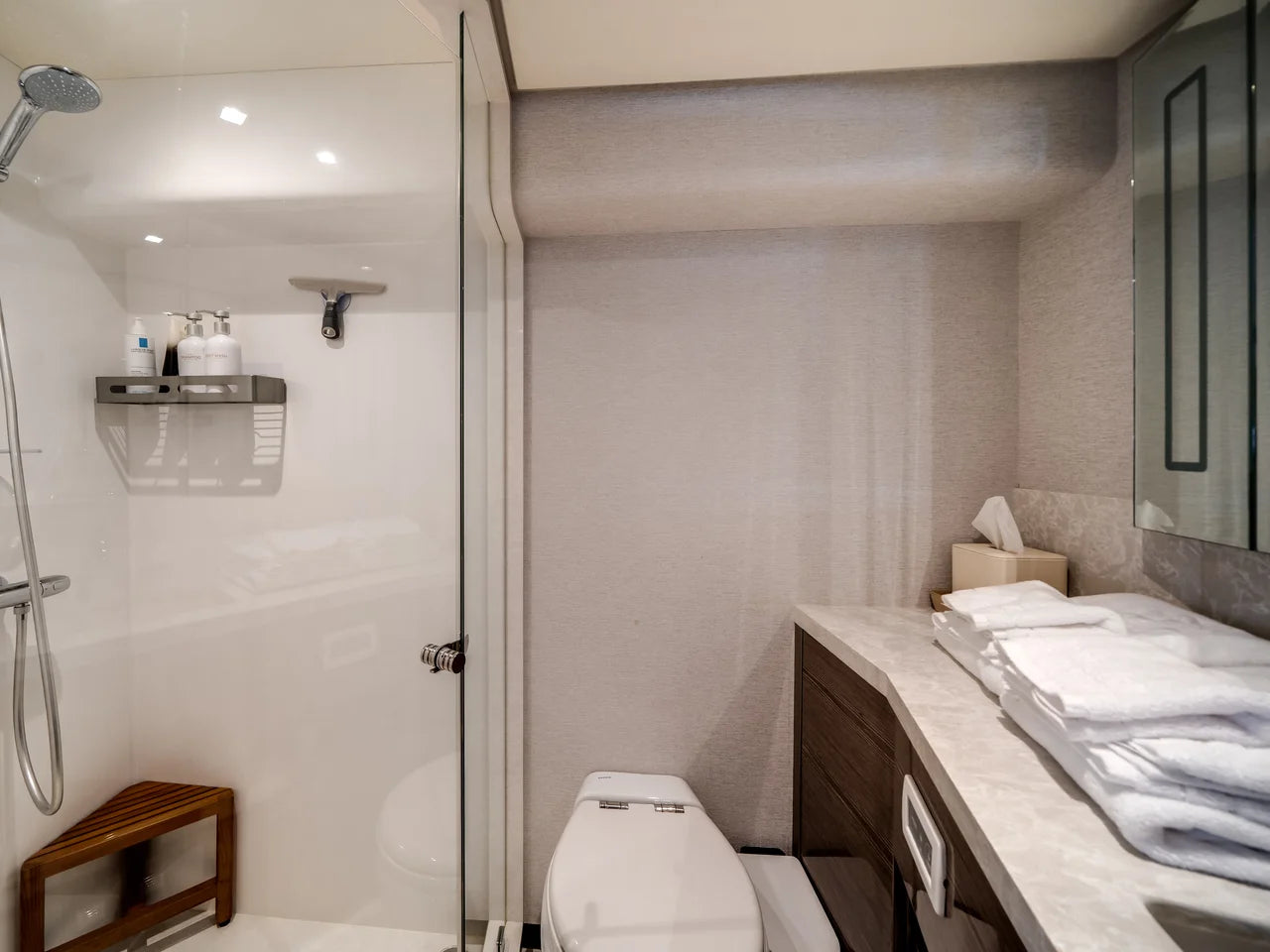

Heads
- Custom-made seamless fiberglass stall shower w/ one-piece glass door. Reduce mildew by providing a clean, easily disinfecting wipe-down surface
- Air extraction in each head by low noise extraction fans
- Tecma Marine toilet system throughout

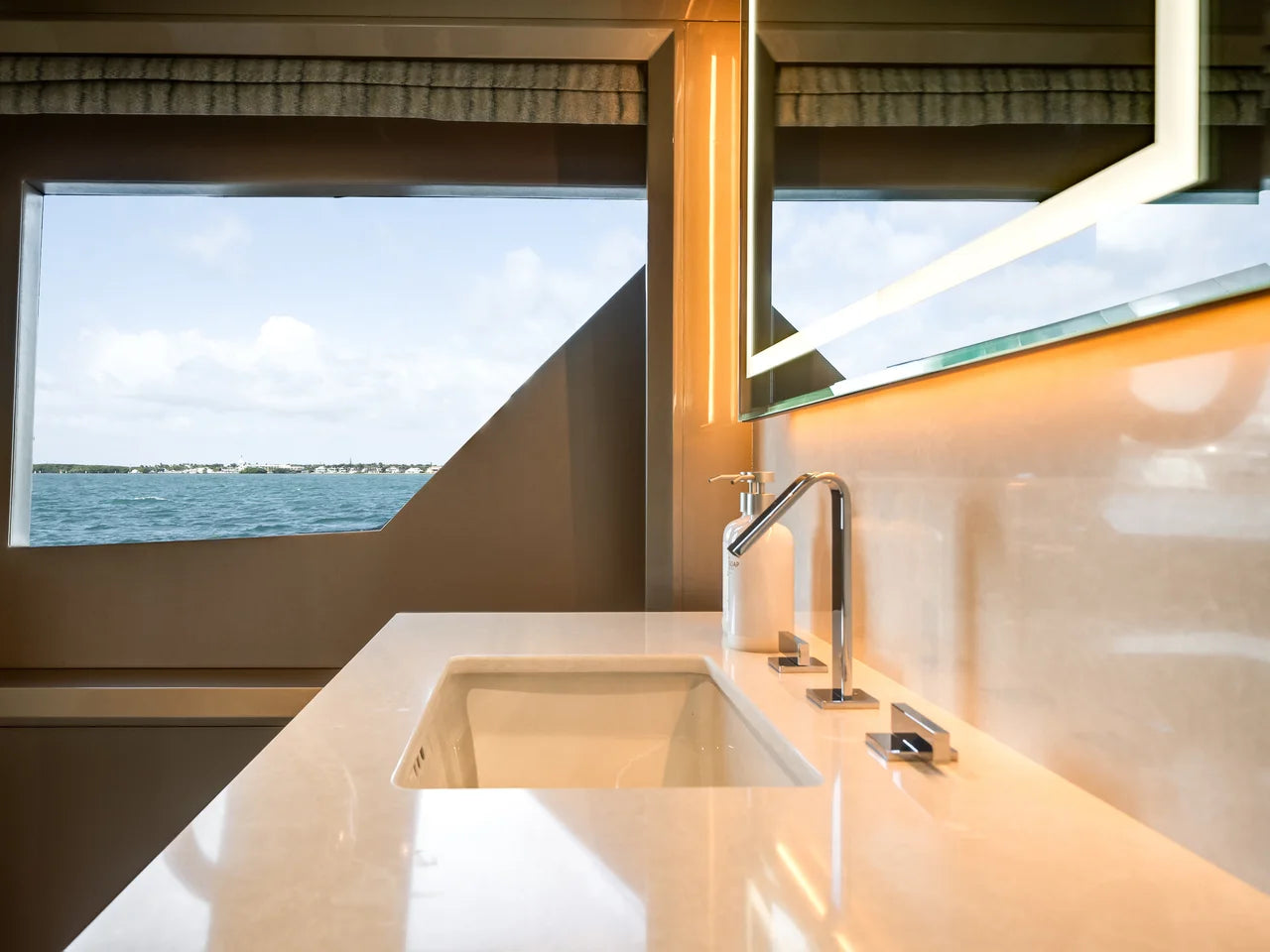

- Stone countertops and back splash in heads with bone china sink.
Crew Quarters
- Kichenette (Sink, microwave, cooktop and refrigerator)
- Storage locker in crew stateroom
- Settee with foldable table
- Two crew staterooms: captain and high-low bunk stateroom
- Captain quarter includes N2KView linked Apple iPad for system diagnosed/alert/settings
- Private head and shower
Turn Key Package
- Safety first aid kit
- Fenders, lines, flare kit, throw ring, fire extinguishers, bell
- Wheel Puller for ship propellers
- 1 x 16-person life raft
- 2 sets of bed linens on all berths with pillows and towels
- Dinner china including dinner/salad/dessert plates, soup bowls, tea cup and saucers, casserole dish, salt & pepper shakers
- Flatware including steak knife, dinner knife, fork, spoon and dessert/teaspoon, salad forks, serving spoons and fork
- Table placements, napkins, water/white/red/champagne wine glasses
- Galley cookware/pans
- toaster, electric mixer, measuring cup, rubber/metal/plastic spatulas, mixing bowls, chef knives, cutting boards, coffee machine, iron.
VESSEL SUPPORT (Unique OA Standard Feature)
- Orientation: Prior to deliver owner and captain is provided with dockside orientation on the operation of vessel systems by Ocean Alexander personnel.
- Customer Support: OA customer support is on-call 24/7 to owner and crew
- Vessel is provided with a complete owner's plan package including:
- Docking Plan
- Electrical schematic
- Equipment information packages
- Plumbing Plan
- Outboard Profile
- Fuel oil system diagram
- Freshwater and drain diagram
- Waste water system diagram
- Air-conditioning arrangement
- Owner's Manual
- Documentation for Application of Tonnage Certificate
- Software & Wi-Fi set up info
- Escape Route
Specifications
Dimensions
Dimensions
- Length:88 ft
- Beam:20 ft 6 in
- Minimum Draft:5 ft 1 in
Engine & Performance
Engine & Performance
- Engine Count:2
- Total Horse Power:3300 hp
- Drive Type:Other
- Fuel Type:Diesel
- Max Speed:20.0
- Make:MAN
- Engine hours:700
Capacities
Capacities
- Fuel Capacity:2906.0 gal
- Fresh Water Capacity:450.0 gal
- Holding Tank Capacity:200.0 gal
- Number of Cabins:5
- Head Count:6
Miscellaneous
Miscellaneous
- Hull Material:Fiberglass
- Condition:Brokerage
- Class:Motor Yachts
Location
Broker
Monthly Payment Calculator
This estimated payment is outside the range we can display here. Please contact us for financing options tailored to this vessel.
Get Prequalified
Why Choose MarineMax
Start Your Boating Journey
Easy Boat Financing
Turn your dream boat into reality with MarineMax financing. Use our loan calculator to explore options for your budget.
Professional Boat Service
From routine maintenance to engine upgrades, MarineMax offers certified technicians and personalized support.
Events & Classes
Join the fun with MarineMax events, featuring boat shows, classes, and demo days for all boaters.
