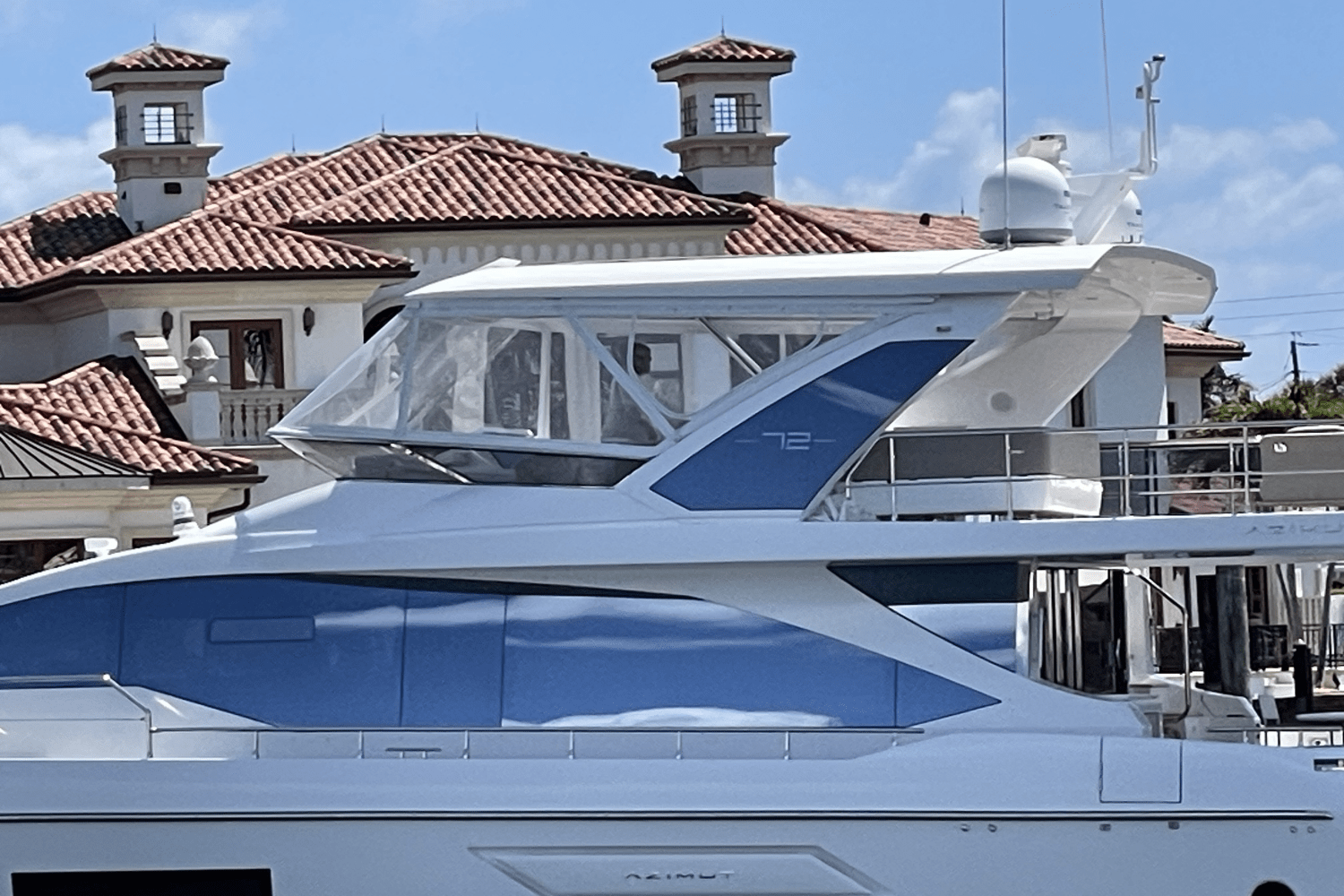

Flybridge
● Accessible from the cockpit,via a teak covered stairs
● Helm seat with adjustable height for one person
● Adjustable steering wheel
● Teaktable
● Two watertight loudspeakers
● Fore port sunbed area with cushions
● C-shaped seating area on portside
● Cup holder for passenger and pilot
● Plexiglas flybridge screen with steel frame
● Roll bar in carbon fiber,steel and glass handrails
● MAN display
● Pilot console consists of electronic navigation instruments -Communication systems(VHF)- engine start-up-Steeringwheel-Bowthruster controls- bow anchor winch control- audible alarmcontrols- Trim tab controls- 12V socket- Chain meter counter controls
● Bar cabinet with sink and fridge
● LED navigation lights
● Searchlight
Bow
● 2700W winch
● Anchor winch controls
● Chain locker with drainage and fender housing
● Chain washing / fire extinguishing system
● chocks
● 65kg(143.3lb) anchor
● Hawse hole for anchor
● Two windscreen wipers
● Two stainless steel cleats
● Hatchway
● Two bow handrails for sunbed cushions
● C-shapedseating
● Sunbed cushions and cupholders
Deck and Cockpit
● Access via gates from both sides (in 316 stainless steel)
● 316 stainless steel pulpit on side washboard
● Stainless steel 316 chocks
● Thick tempered glass windows glued to the surrounding structure without any metalframe
● Watertight side door on superstructure for access to saloon from starboard side
● Rubber rub-rail with stainless steel insert along the hullside
● Refueling plug and freshwater refill plug on sidewalk arounds
● Black water tank suction point on walk arounds
● Two midshipcleatsperside ● Walkarounds:teakcovering ● Electricwindowsonportside(galley) ● Twosideboardinggatesonwashboard, in stern cockpit ● Fouropenableline-holderlockersonbulwarks ● Twolockersandsidecompartments(belowthemooringstations) ● Twostoragelockers,fore ● Fender-holderlockerintransom ● Shoe rack in cockpit starboard seating area ● Mooringwinches ● Stern mooring cleats in 316 stainless steel ● Saloon access door with three stainless steel/glass panels ● Cockpitbench ● Access to engine room via pantograph door in transom (port side) and escape hatchincockpitfloor ● Lighting:LEDspotlightsonceiling ● Bathingplatformlighting ● Teaktableincockpit ● Twoshorewaterintakes ● Showerwithhotandcoldmixertap ● Manual swimming ladder (starboard side) ● INSTALLABLETENDER(OPT):- MAXIMUMDIMENSIONSOFTENDERPLATFORM:3.90x1.76m(12'10''x5'9'')
- MAXIMUMDIMENSIONSOFTENDERFLYBRIDGE:3.30x1.70m(10'10''x5'7'')- MAXIMUM INSTALLABLE LIFT LOAD: 840kg(1851.88lb) (the above value considers 640 kg (1410.96 lb) of water toys + 200 kg (440.92 lb) for operators and various accessories)- RECOMMENDED TENDERPLATFORM:PirelliJ39-RECOMMENDEDTENDER,FLYBRIDGE: Pirelli J29 Wheelhouse ● Access via watertight door from starboardwalkaround ● Rudderangleindicator ● MANcontrolinstruments ● 12Vsocket ● Automaticpilot ● Oneelectricallyadjustablehelmseat ● Adjustablesteelrudder ● Chainmetercounter ● Magneticcompass ● 24V+220Velectricpanel ● Cigarettelighter12Vsocket ● Controlsfor:- Activation of: bow anchor winch, searchlight, bow-thruster, windscreen wiper-washer, trim tabs, fire fighting pump- enginestart-up- electronic engine remote controls (thrust levers) ● Multifunctiondisplay(built-in)- alarm indicator lights for: bow bilge, engine room bilge, rudder hold bilge, high gray water level, high black water level, Racor filters, navigation lights, shore power sockets, low battery voltage, lowdiesellevel- Freshwaterlevelgage- Diesel level gage Saloon ● Carpetedfloor ● Foresofa,portsidefacing the bow(two seats) and aft sofas (eight seats) with storage ● Cabinet at saloon entrance (starboard side), with integrated glass-holder ● TVsystemwithaerial ● Diningtableonstarboardside of saloon for eight people, with five chairs and 3seater bench ● Galleyonportside ● Setofwoodenfurniture ● Cabinetfortablewarebeneaththehelm seat ● Stairsleadingbelowdeck(inbowarea) ● Romanblinds ● Saloondoorblind Galley ● Hoodintegratedinthewallcabinet ● Woodenfloor ● Windowwithelectricopening ● Avoniteworktopandriser ● Onestainlesssteelsink ● Drawersandwallcabinets ● Ceramic glass four-hob range with siliconepotholder ● 28.3l(1cu.ft)microwaveovenwithgrill ● 240l(8.47cu.ft)Fridge/Freezer Corridor to access below-deck area ● Carpetedfloor ● Spotlights ● Twostoragelockers Owner's cabin (midship) ● Accessedfromcorridor ● Doublebed+storage 165TECHNICAL SPECIFICATIONS FLY 72 (FROM HULL 065) ● Mattress,pillowsandbedspread ● Headboard in fabric and wall in wood essence ● Oneforearmchaironstarboardside ● Oneaftarmchaironstarboardside ● Twoheadboardwalllights ● Setofwoodenfurniture ● Portaftdressing ● Storagechestofdrawersonportside ● Vanityonstarboardside ● ProvisionforTVsystem ● LEDspotlights ● Twoopenableportlights(oneperside) ● Twowindows(oneperside) ● Venetianblinds ● Carpetedfloor ● Directaccesstohead Owner's head ● Accessfromowner'scabin ● TECMAtoilet ● Two washbasins with top in statuary quartzite ● Twoblenders ● Flush-mountingmixertapforshower ● Stainless steel shower enclosure with glass panels andoakgrating ● Stainlesssteelsoap-dishinshower ● Twocabinets+twowallcabinets ● Woodenflooring ● LEDspotlights ● Oneopenableportlightwithcurtain ● Oneairextractor ● Chromeheadaccessories VIP cabin ● Doublebedwithstorage ● Mattress,pillowsandbedspread ● Headboard in fabric and wall in wood essence ● Setofwoodenfurniture ● Twowardrobes ● Twostoragewallcabinets ● Twoheadboardwalllights ● LEDspotlights ● Windowswith two openable portlights (oneperside) ● Hatch for emergency exit onto fore sunbedarea ● Directaccesstohead ● ProvisionforTVsystem ● Carpetedfloor ● Venetianblinds ● Fabric-upholsteredbulwarks VIP head ● AccessfromVIPcabin ● TECMAtoilet ● One washbasin with top in statuary quartzite ● Oneblender ● Stainless steel shower enclosure with glass panels ● Stainlesssteelsoap-dishinshower ● Wallcabinet ● Woodenflooring ● LEDspotlights ● Oneopenableroundportlight with curtain ● Oneairextractor ● Chromeheadaccessories Guest cabin (starboard side) ● Twosinglebedswithstorage ● Mattress,pillowsandbedspread ● Headboard in fabric and wall in wood essence ● Setofwoodenfurniture ● Onewardrobe ● Onebedsidetable ● Fabricbulwarkupholstery ● Windowwithoneopenableportlight 166TECHNICAL SPECIFICATIONS FLY 72 (FROM HULL 065) ● ProvisionforTVsystem ● Carpetedfloor ● Twowalllights ● Directaccesstohead ● LEDspotlights ● Venetianblinds Guest head(starboard side) ● Accessfromstarboardsideguestcabin ● TECMAtoilet ● Onewashbasin with statuary quartzite top ● Oneblender ● Stainless steel shower enclosure with glass panels ● Stainlesssteelsoap-dishinshower ● Onewallcabinet ● Woodenflooring ● LEDspotlights ● Oneopenableportlightwithcurtain ● Oneairextractor ● Chromeheadaccessories Guest cabin (port side) ● Onedoublebedwithstorage ● Mattress,pillowsandbedspread ● Headboard in fabric and wall in wood essence ● Setofwoodenfurniture ● Onewardrobe ● Onebedsidetable ● Fabricbulwarkupholstery ● Twowalllights ● LEDspotlights ● Windowwithoneopenableportlight ● Venetianblinds ● Directaccesstohead ● ProvisionforTVsystem ● Carpetedfloor Guest head(port side) ● Access from port guest cabin and from corridor ● TECMAtoilet ● Onewashbasin with statuary quartzite top ● Oneblender ● Stainless steel shower enclosure with glass panels ● Stainlesssteelsoap-dishinshower ● Onewallcabinet ● Woodenflooring ● LEDspotlights ● Oneopenableroundportlight with curtain ● Oneairextractor ● Chromeheadaccessories Crewroom Consisting of two rooms: a cabin with portlight for the commanderandasharedcrewroom. ● Bothcabinsareprovidedwith:- onebed- mattress, pillow, andbedspread- laminateflooring- set oflaminatedfurniture- storage cabinets ● Accesstothecrewareaviathetransom ● Oneescapehatchinthesharedroom Crewhead ● TECMAtoilet ● Cabinetwithsink ● Mixertap ● Showerwithcurtainandgrating ● Chromesoap-dishandglassholder ● Oneopenableportlightwithcurtain 167TECHNICAL SPECIFICATIONS FLY 72 (FROM HULL 065) Electric system Maincharacteristics ● The voltage levels on the boat are as follows: 230 V AC- 50 Hz (110 V for 60 Hzversion), 24VDC,12VDC ● Themainelectricpanelsareinstalledin:- crewroomastern- wheelhouse ● Utilities- main electric panel located in thecrewroom:- 24V- 230V ● Utilities-electricpanellocatedinwheelhouse:- 12V- 24V- 230V ● Junctionboxesareinstalledinallareas. Galvanic current insulation ● Zincanodes Generator ● VersionEUROPA,50Hz:- one 19 kW generator (20.5 kW from serial no. 055) located in the engine room Shore powersockets ● Two220V-50Hzpowersockets (port side) ● The AC power sources are controlled from the main electric panel in the auxiliary room, with a voltmeter and frequency meter for the 220 V network. Thepowersourcesareprotectedbysuitably sized fuses, and introduced into the network by means of remote control switches Batteries ● AGMbatteries 90 Ah- 24 V (total 540 Ah):- six for services- six for engine start-up- four for thethruster ● OneAGMbattery70Ah-12Vforgenerator ● One 12 V- 10 A Mastervolt generator battery charger ● OneMastervoltbatterycharger24V-80 Afortheservicebatteries Lights and sockets ● ACsockets:220Vformainutilitypower supply, EUtype ● DC sockets: cigarette lighter type (wheelhouse)+USBsocket ● 24Vlighting(LED) ● 24Vwatertightexternallights(LED) Electronic navigation instruments ● ForSTDequipment, see the paragraphs on“Flybridge” and“Wheelhouse” ● For a detailed list of alternative/additional equipment available, please refer to theOptionalspricelist N.B. The electronics are constantly being updated, therefore the indicated configuration maybesubjecttochanges. Bilge system Central system with intakes in each compartment, connected to main manifold located in engineroom: ● Threeautomaticelectricpumps:- one electric pump with manual and/or automatic activation below the bed in theowner'scabin- one electric pump with manual and/or automatic activation, in the engine room,astern,underthegeneratorunit 168TECHNICAL SPECIFICATIONS FLY 72 (FROM HULL 065)- one electric pump with manual and/or automatic activation, in the steering areas, withaccessfromthecrewroom ● Twomanualpumps:- one manual pump under the floor of theowner'scabin,infrontofthebed- onemanualpumpinthecockpitlocker under the cockpit emergency panel, where there is also a selector to choose suction either from the steering area or fromtheengineroom. ● Three-wayvalveonenginecooling ● Fourbilgelevelalarms ● emergencysuction in engine room connected to one of the twoengine seawater intakes Fire extinguishing system ● One SEAFIRE type cylinder in engine roomforlocaldischarge ● SEAFIRE Engine Shutdown System to switch off engines, generators, extractors and fans automatically when the gasis discharged Fuel system ● Two steel tanks (not communicating), 2600 l (686.8 US.liq.gal.) each, total capacity 5200 l (1373.6 US.liq.gal.), in theengineroom ● Electroniclevelgageforstarboarddiesel tank, withdisplayinthewheelhouse ● Opticaldiesellevelgageonporttank ● Doublefiltersforengines Fresh water system ● 1100 l (290.6 US.liq.gal.) polyethylene tank ● Waterfillingfromwalkaround ● Level sensor and status indicator in wheelhouse ● Tankvent ● 100liter(26.4US.liq.gal.) waterheater ● Two connections for water supply directly from shore ● Hot/coldwaterline ● Coldwaterlineinengineroom ● Freshwatertoiletflushing Black water system ● One450 l (118.9 US.liq.gal.) polyethylene tank ● Levelsensor ● Pumpoperatingbutton ● Tankvent ● 24 V 70 l/min (18.49 US.liq.gal./min) maceratorpumpineachtoilet ● Waterfillingfromwalkaround ● Seaoutlet Gray watersystem ● One500 l (132.1 US.liq.gal.) polyethylene tank ● Waterdrainagedirectlyintothesea ● Pumpswitch ● 24 V 70 l/min (18.49 US.liq.gal./min) membranepump ● Level sensor and status indicator in wheelhouse Seawater system ● Enginecooling ● Generatorunitcooling ● Conditionercooling ● Chainwashingpump ● Fireextinguishingsystem Hydraulic system ● Oneindependentsteeringsystempump ● Humphree 169TECHNICAL SPECIFICATIONS FLY 72 (FROM HULL 065) ● One 24 V electro-hydraulic pump for gangwayandbathingplatform Ventilation ● Naturalengineroomventilation ● Engine room air extraction with four extractors (3300 m3/h(35.3cu.ft/h)) ● Head air extraction system with dedicatedextractorforeachhead(apartfrom crewhead) Engine room ● Accessfromcrewroom,cockpit ● Bilge drainage pump through engines cooling circuit Exhausts ● Immersedexhaustsystemwithbypass ● Stainlesssteeloutletpipes ● Underwateroutletviastructuralductin GRP ● Minimumbypasspipeforgasoutletwith boat stationary or traveling at reduced speed ● Water/fumes separator for generator withsideexhaust Air conditioning system Air conditioning,oneversiononly-120,000BTU ● 48,000BTUforthesaloon ● 36,000BTUforthewindscreenarea ● 42,000BTUforcabins,including:- Owner'scabin-18,400BTU- VIPcabin-12,500BTU- Starboardguestcabin-9,200BTU- Port guestcabin-9,200BTU ● 6,200BTUforcrewroom ● A/Ccontrolsinallthecabins,thesaloon andthedinette ● Deliveries in all heads except for crew cabin FANCOILS: ● Fourforsaloon+dinette ● Twoforwindscreen ● Twoforowner'scabin ● OneforVIPcabin ● Oneforstarboardsideguestcabin ● Oneforportsideguestcabin ● Oneforcrewroom Equipment ● Onetelescopicboathook ● Fivemooringlines ● Fenderlines:24m(78'9") ● Oneanchorchainstopper ● Eightfenders ● eightblackfendercovers ● OneOwner'smanual ● OneAZIMUTdocumentfolder ● Onewoodenboatmodel ● OneAZIMUTwarrantyservicebooklet ● Onesetofstainlesssteelcutlery ● Onesetofporcelainplates ● Onesetofglasses ● Fourfloatingkeyrings ● Onelargebagwithlogoformanuals ● Oneremotecontrolholderwithlogo ● Oneshowerpipestoragebag ● One stainless steel scheduled maintenancekit ● One pin wrench for locking stainless steel pins 1
