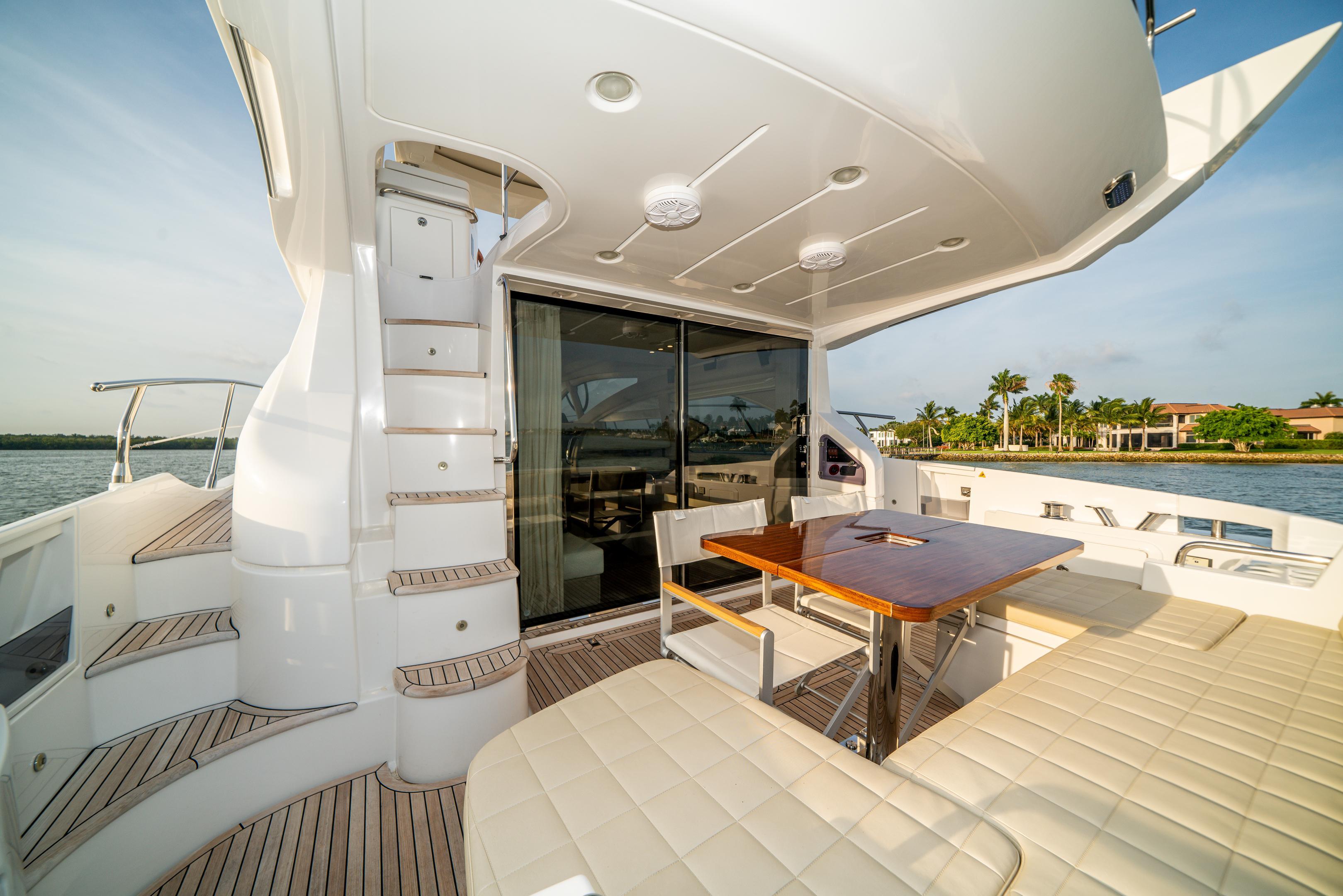

COCKPIT
Cockpit access via stainless steel and plexiglas gate
Aft stainless steel left/right chock
Vertical double door in stainless steel and tempered glass
4-seater C-shaped cockpit bench in GRP, integrated in deck
Cockpit bench cushion
1 locker in the port deckhouse column
Engine room access via door in cockpit floor
Teak floor (excluding side walkway access steps)
Curved handrail on stern platform
Handrail on flybridge access stairs
Handles on the cockpit bench armrests
Lighting: spotlights in cockpit ceiling panel.
Shower head with hot and cold water.
PLATFORM
Stern platform lights
Teak floor
Stainless steel telescopic swimming platform (4 steps)

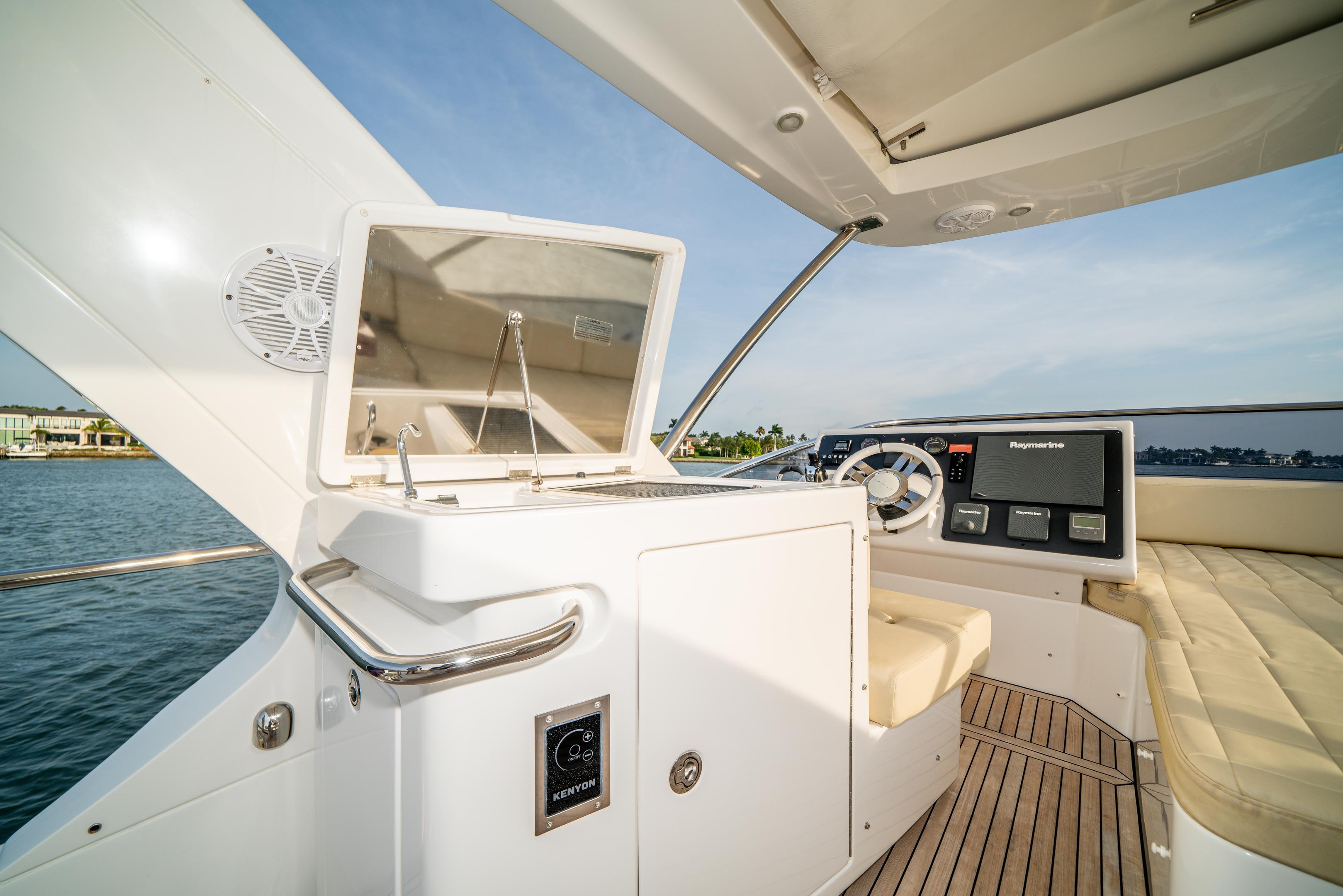

Flybridge
Ladder from cockpit, port side
Teak decking
Access door: water tight in aluminum and plexiglass
Bow Sundeck
"L" shaped sofa joining with the sundeck
Teak table with central stainless steel leg
1 bow locker (in front of instrument board)
Garbage bin in fly cabinet
Washbasin (cold water)
Manual spotlight
Stainless steel light mast
The wheelhouse includes:
Main engine instruments (thermometer, rev counter)
Alarm indicator ligths
Engine start up controls
Bow anchor winch controls
Horn control
Trim tab control
Bow thruster control
Adjustable spot activation
12V socket
Chain meter counter
SALON AND DINETTE
Bargeboards and window frames in matte fiberglass
1 "C" shaped sofa for 4-6 people on the port side of the salon-standard smooth fabric covering
Rectangular table in dinette for 6 people. The central part of the top can be removed and stored in the compartment below the aft sofa cushions.
TV system with aerial, sockets in salon and owner's cabin.
Below deck accommodation ladder with carpeted steps ceiling and wall upholstery: 2 tone fabric
Roman blinds for windows and privacy curtain for salon door
GALLEY
Oak flooring
Silestone blanco city worktop
Glass ceramic range with 3 aligned plates and pan holder
Hood installed in the wall unit above the range, with active carbon filters (recirculation)
Microwave Oven + Grill
Sink
Fridge + upright freezer
Electric window
CORRIDOR
Below deck access corridor with carpeted floor
Courtesy lighting
Corridor grabrails
Helm
Electric helm seat with 2 places (reversible seat for use with dinette too) adjustable seat and sprung backrest
Electric window
Adjustable steering wheel
The wheelhouse includes:
Bow thruster controls
Electronic remote controls
Trim tab switches
Trim tab indicators
Bow anchor winch activation
Horn, navigation lights, wiper switches
Activation of bilge pumps
Side window opening
Emptying of black and gray water tanks
Engine room ventilation
Cigarette lighter socket
Shore power socket indicator light
Chain washing pump switch
Fuel, gray water, fresh water tank level gauge
Engine start-up
Rev counter
1 engine data display
Ammeters
Alarm indicator lights
Owners Cabin and Head
Located Midship
Diagonal double bed with headboard on starboard side with storage space below
Dinette
2 wall units
Drawer unit with 1 drawer
2 wardrobes with hanger bars
1 wardrobe with shelves
Shelf around the bed
Spotlights and lighting strips on ceiling
2 openable portholes (rectangular portholes inserted in the window)
3 + 3 rectangular hull windows
Hatchway: emergency exit from ceiling panel above the bed
Direct access to the head from the corridor leading to the owner's cabin with internal stairs
Mirror in the stern wardrobe
Venetian blinds on the windows
Fabric wall upholstery and oak wood paneling
Fabric ceiling panels
TV system in owner's cabin
Owners Head
Located prior to the owner's cabin on the port side (under galley). Access from owner's cabin (via ladder)
Oak top and oval washbasin cognac - Vetro Freddo
TECMA toilet
Chromed mixer tap
Separate shower enclosure; flat shower door
Shower column and seat in matte ABS
Wall unit with 2 sliding panels above washbasin
Ivory-colored ceiling panels
VIP Cabin and Head
Located in the bow
Fixed double bed
Fixed oak headboard
2 wall units above the windows
1 wardrobe with hanger bar and shelves on the starboard stern wall
1 wardrobe with hanger bar on port stern wall
Shelves on bulwark (bed side)
2 under- bed lockers
2 wall lights on headboard
Spotlights on ceiling
Direct access to guest head
Carpeted floor
Windows
Hatchway
Wooden Venetian blind
Fabric bulwark upholstery
Ceiling panels: oak portal, matte ivory GRP ceiling panel with fabric panels above the bed
VIP Head
Positioned abaft of the VIP cabin on the port side
Direct access from the VIP cabin or from the corridor
TECMA toilet
Oak top and oval washbasin cognac (brown) Vetro Freddo
Chromed mixer tap
3-door round shower, not separated
Shower column in matte ABS
Wall unit with 2 sliding panels above washbasin
Lighting: ceiling light on wall unit, and spotlights in the shower
1 openable round porthole with wooden Venetian blind
Floor in oak, with grating in solid wood
Natural air extraction
Air conditioning delivery from VIP cabin

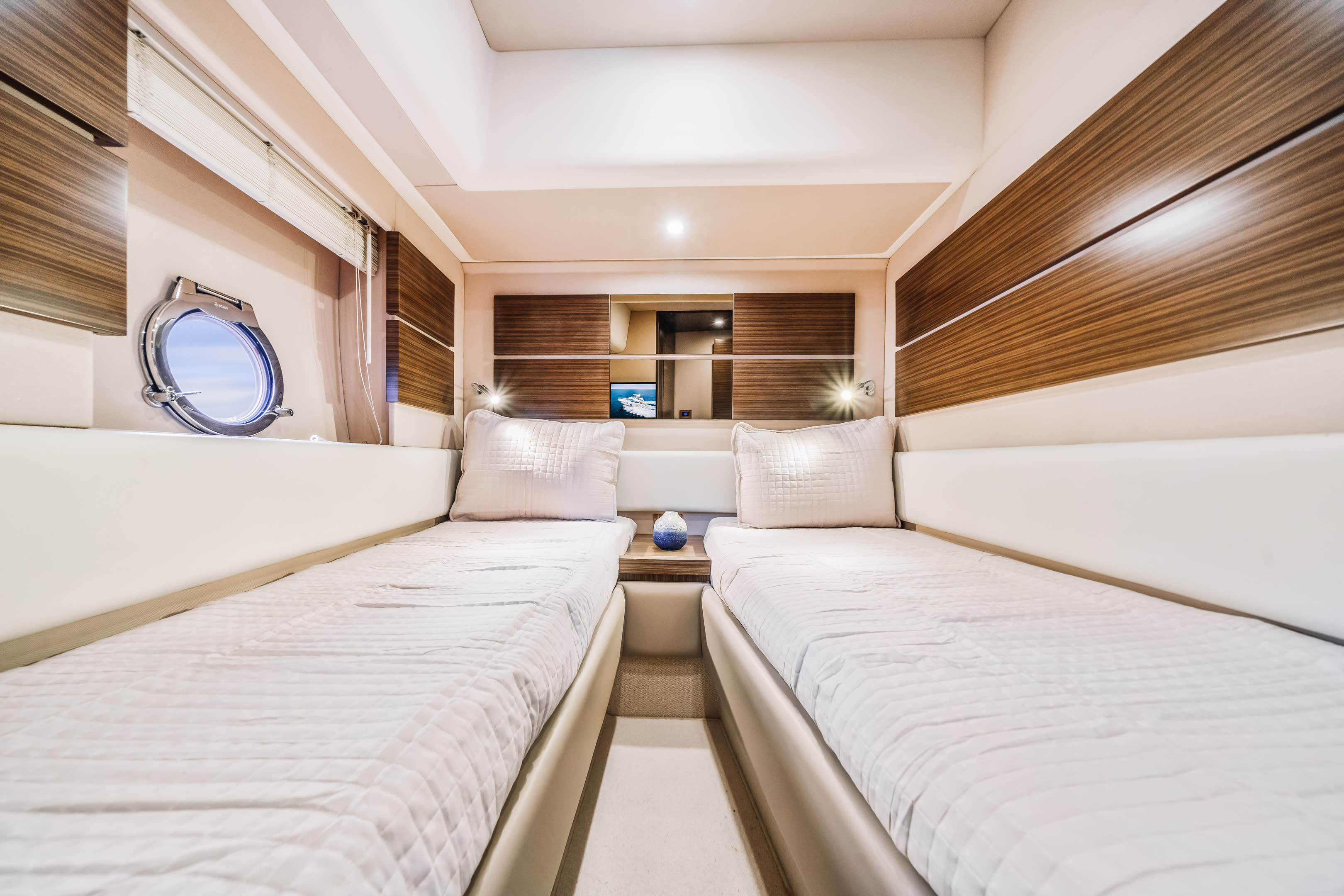

Guest Cabin
Located on starboard side
2 single beds, fixed
Headboard with oak panels
1 central nightstand between the beds (with openable compartment)
1 wardrobe with hanger bar and shelves
3 under bed lockers
Ceiling panels: oak portal and ivory GRP ceiling panel with fabric panels
Fabric wall upholstery (with oak and fabric paneling)
1 openable round porthole
Wooden Venetian blind
Flooring: carpet
Lighting: spotlights
2 wall lights on headboard
Electrical System
Shore-powered power supply
Onboard voltages:
120V-60Hz AC
24V DC
12V DC
The main panels are installed in the wheelhouse, above the galley fridge, in the engine room, and in the crew cabin
The power circuit breakers protecting all the 24V utilities are in the wheelhouse
In the galley (above the fridge) there are other power circuit breakers that protect the various 220V AC utilities, as well as the 220V AC shore or generator source selectors; the 220V power circuit breakers for the air conditioning system are also located here
On the main panels in the engine room and crew cabin you will also find additional power circuit breakers for the various 24V DC utilities
2 connected tanks of 1170 l each (total capacity 2340 l), in aluminium
Electronic gauge in wheelhouse (port tank)
Optical gauge on tank (starboard tank)
2 single filters (decanters) for engines + 1 filter for generator
2 inlets on walkway
2 vents on bulwark
Remote diesel shut-off via 24V solenoid valve
Fuel drawing tap on port tank
Fresh water system
A 590-liter polyethylene tank below the cabin descent ladder (access area) (aft tank). With aluminium frame and GRP cradle
Water filling on starboard side walkway
Level sensor with electronic gage in wheelhouse
1 tank discharge on the bulwark
Water pressure pump in engine room
60-liter water heater in engine room, above the air-conditioning compressor
Suitable for water supply connection direct to pier
Hot/cold water pipe: heads, galley, swimming platform shower head, Cold water only in flybridge washbasin; Cold water only in engine room.
Fresh water toilet flushing
System that can be divided by ACORN manifolds
Black water system
175-liter polyethylene tank below the VIP cabin (fore tank)
Level sensor (2 levels)
1 tank discharge on bulwark with anti- odor filter
1 FEIT PVM 0.2 macerator pump
Intake from deck walkway
Tecma toilet (with macerator pump). All the toilets discharge into a tank.
Sea outlet from tank (manual only)
Gray water system
175 l polyethylene tank located under accommodation corridor (central tank)
Gray water outlets directly into the sea from bulwark raisers
Level sensor (2 levels) with alarm indicator in wheelhouse
Water discharge: from tank (automatic / manual)
Diaphragm pump
Fancoil condensation discharge into collection tank
Seawater system
Engine cooling system: 2 dynamic sea- water intakes 2.5” with filter and valves
Generator cooling system: submerged outlet: 1 dynamic 1" seawater intake with filter and valve
Air conditioning cooling system: sub- merged outlet: 1 dynamic 1" seawater intake with filter and valve
Chain wash pump: seawater
Engine gas exhaust system
Gas exhaust system: immersed by-pass
Insulated stainless steel raisers
Exhaust pipes: structural muffler in GRP
Water/fumes separator for generator, with side exhaust
Engine room (other)
Access from door in cockpit floor
Battery housing: 1 set on stern bulkhead, on frame above water heater; 1 set in crew cabin, behind headboard wall
Sound-proofing
