Summary

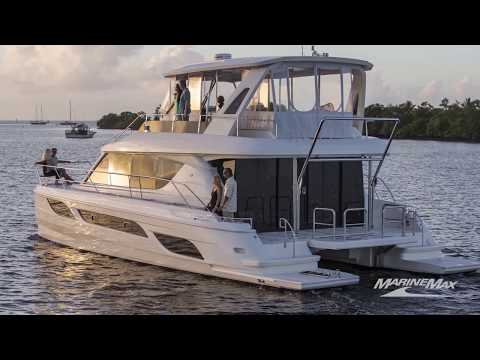

Working off the success of the popular Aquila 48, the newest addition to Aquila range is the Aquila 44. She has been designed with the luxuries found on the 48 yet is a smaller version with 3 en-suite cabins.
On the Aquila 44 you will enjoy the 360˚ view from the spacious salon and galley that features a large seating area, hidden TV stowage and plenty of storage to make a live-aboard vacation easy and pleasant. Galley features include Corian countertops, electric fridge and freezer, stove and stainless steel microwave oven as well as a double stainless steel sink. The large staterooms each feature ample headroom and large windows for excellent views. A fresh water flush, separate shower stall, and teak flooring compliment the boat’s design and exceptional living comforts. Additional features include an oversized flybridge with added enclosure, electric grill, and sunp (More)

ad seating on either side of the central helm station. Complete with our revolutionary bridge to bow direct access, the Aquila 44 is a fresh revolution of classic boating traditions.
She is available with a 3 Cabin / 3 head version or 2 cabin / 2 Head version. (Less)

Store

The MarineMax Advantage

  • Top 100 Hall of Fame
  • The Right Boat
  • The Right Place
  • The Delivery Difference
  • The Ownership Difference

Photos

4557502201402281208134181LARGEjpg
Photo 1 of 11
4557502201402281208121221LARGEjpg
Photo 2 of 11
4557502201402211052582731LARGEjpg
Photo 3 of 11
4557502201402211052227321LARGEjpg
Photo 4 of 11
4557502201402211053118421LARGEjpg
Photo 5 of 11
4557502201402211053196351LARGEjpg
Photo 6 of 11
4557502201402281208142961LARGEjpg
Photo 7 of 11
4557502201402281208242721LARGEjpg
Photo 8 of 11
4557502201402211052430461LARGEjpg
Photo 9 of 11
4557502201402211052166431LARGEjpg
Photo 10 of 11
4557502201402281208153381LARGEjpg
Photo 11 of 11

Specifications

  • Length Overall
    43.67 ft
  • Displacement
    40212 pound Full Load
  • Water Capacity
    2 x 103 Gallon
  • Beam
    21.5 ft
  • Holding Tank
    3 x 21 Gallon
  • Max. Speed
    22 kn
  • Cruising Speed
    15 kn
  • Minimum Draft
    2.67 ft
  • Fuel Capacity
    2 x 145 Gallon
  • Number of Cabins
    2
  • Number of Heads
    2

Description

  • Make
    Aquila
  • Model
    44
  • Model Year
    2014
  • Hull Material
    Fiberglass
  • Type
    Power / Power Catamarans

Engine

  • Make
    VOLVO
  • Model
    Penta
  • Year
    2014
  • Number of engines
    2
  • Horse Power
    450.0 hp
  • Engine Type
    Inboard
  • Fuel Type
    Diesel
  • Has Rope Cutter
    No

Construction

  • Resin infused (VARTM) hull and deck construction creating high strength and stiffness
  • Solid FRP lamination at hull centrelines including all through hulls
  • Vinylester resin with excellent corrosive and water resistant properties
  • NPG gelcoat with superior UV resistance
  • Resin infused bulkheads
  • All main FRP components resin infused (VARTM) construction including bulkheads
  • Bow crash box in each hull
  • Hull stern extension separately molded and attached for safety
  • Windows in hull and deck high quality tempered shatter proof glass meeting ISO standards

Engine Room

  • Engine exhaust gas / Water separator to reduce engine emission noise
  • Automatic fire suppression heat activated system with alarm monitors at helm station
  • Electronic start/stop switches at helm station with E key protection
  • Fly Bridge
  • Engine Room
  • Construction
  • Standard Specifications
  • Exterior Features

Technical Features

  • Alarms, high water - bilge & cabin
  • Instrument panels
  • Steering, power-assisted
  • Steering, tilt wheel
  • Steering wheel, 316 stainless steel

Staterooms

  • Large windows offering excellent view
  • Dedicated hanging locker
  • Ample storage lockers
  • Concealed shade blind and insect screen on opening deck hatch where installed
  • Overhead LED ceiling lighting and floor courtesy lighting
  • Overhead LED reading lights
  • Full size island style bed in all staterooms offering easy access
  • Engine Control
  • Underwater Gear
  • Technical Features
  • Salon
  • Galley
  • Staterooms
  • Interior Features

Water System

  • Fresh water pressure pump with accumulator tank offering equal water pressure throughout
  • 2x 16Gal/60L hot water cylinders powered by engine heat exchangers and AC power
  • 2x 103 Gal/390 L connected water tanks with three way valve
  • Cockpit shower, hot and cold water
  • Water Tank Level Gauge located at Navstation

Fuel System

  • Diesel fuel system with racor water separation filters
  • Dedicated fuel tank 145Gal/550L for each engine
  • Fuel filters for engines and generator
  • Aluminum fuel tanks with safety shut Off valves and level monitors at helm station

Hull & Deck Features

  • Opening deck hatches (8)
  • Opening ports in hull windows for heads (4)
  • Custom built PVC rubrail with 316 stainless steel insert offering all round protection
  • Solid custom deck railing in 316 stainless steel
  • 2 x comfortable and protected bow seats integrated into deck railing
  • 8 x mooring cleats in solid 316 polished stainless steel thru bolted
  • Deck fill plates in 316 stainless steel - 2 x water - 2 x fuel - 3 x waste
  • Bow roller for secondary anchor - 316 stainless steel
  • Anchor locker with 1500 watt windlass; handheld remote control with custom chain lock
  • Custom anchor bridle with chain hook
  • Well placed ergonomic handrails in 316 stainless steel ensuring secure movement onboard
  • Forward access steps in teak from flybridge to bow with 316 polished stainless steel support structure
  • Ergonomic transom steps for easy boarding and comfortable lounging off stern
  • LED navigation lights - port, starboard, stern, anchor & running light
  • Engine ventilation intakes with FRP cowling and 316 stainless steel cover
  • Swim ladder - 316 stainless steel
  • Large port bow locker - Easy lift gas hinge for fender storage
  • Dedicated starboard bow locker - Easy lift gas hinge for water maker and fresh water system
  • Self draining storage locker in aft cockpit floor
  • Aft cockpit, flybridge and side decks all self draining
  • Engine access lockers with easy lift gas hinge allowing easy access to engine room
  • Aft cockpit with expansive hinging door opening to galley
  • Aft cockpit seating with hinged access to generator
  • Integrated aft side boarding step in hull with 316 stainless steel handrail
  • Large spacious foredeck for sunbathing
  • LED down lighting in aft cockpit
  • LED blue accent courtesy lighting in aft cockpit
  • Variable temperature stern shower located at port aft steps

Engine Control

  • Electronic engine double lever throttle and gearshift control
  • Volvo electronic vessel control(EVC) 4" display at helm station
  • Electronic start/stop switches at helm station with E key protection

Salon

  • Excellent all round visibility from salon seating
  • Vertical shatter proof windows with external overhangs offers excellent visibility and reduced direct sunlight
  • Tempered glass hinged door access to cockpit offers excellent ventilation and through flow
  • Overhead LED ceiling lights, LED mood lighting and LED courtesy lighting
  • 1 x reading lamp
  • Panel ceilings with decorative wood trim
  • Comfortable seating to starboard
  • Settee seating U shape around salon table seats 6
  • Salon table
  • Large shelves behind settee's
  • Upholstered cushions
  • Mini bar for storage of bottles
  • Surround sound entertainment system including sub woofer
  • TV bracket on starboard side of saloon
  • Salon converts into 1 x comfortable single bed
  • Vertical 316 stainless steel handrail in salon
  • Synthetic teak flooring offering maintenance free natural teak look

Heads and Separate Stall Showers

  • Quiet electric fresh water flush toilet with large bowl and push button control
  • Private door leading into cabin
  • Opening deck hatch offering ample ventilation
  • Opening port light in large window
  • Stylish round wash basin with single lever variable temperature faucet
  • Corian countertop surrounding wash basin
  • Vanity lockers with mirrors
  • Synthetic teak flooring offering maintenance free natural teak look
  • Separate shower stall with seat and flexible shower faucet
  • Acrylic door separating shower from the rest of the bathroom
  • Automatic shower & sink drain via dedicated sealed sump box
  • Overhead LED lighting
  • Toilet roll holder and toilet brush located in sink locker

Waste Systems

  • Grey water from showers and sinks collected in 2x sealed sump box's and automatically discharged overboard
  • 3 x 21Gal/80L black water holding tanks discharged via deck pump out or overboard with macerator pumps
  • Black water tank level gauges located at secondary nav. station panel

Safety

  • 2 x tempered glass escape hatches located under cabin stairs with emergency escape hammer
  • Automatic fire suppression heat activated system with alarm monitors at helm station
  • 2 x automatic engine room fire extinguishers
  • Fire blanket located in galley
  • Emergency hammer
  • Emergency steering position with custom emergency tiller in 316 stainless steel
  • Dedicated bow crash boxes in each hull
  • Dedicated hull extensions double as crash boxes for each hull
  • All deck hatches fitted with latches and water proof

FlyBridge

  • Radar arch across flybridge with LED down lights
  • Access to flybridge from aft stairway and forward bow steps
  • Main access from aft cockpit via integrated molded steps
  • Ergonomic positioned handrail for safe access from aft cockpit
  • Forward flybridge access via center forward bow steps
  • Ergonomic positioned handrail for safe access via forward stairway
  • Flybridge guardrails with acrylic wind protection inserts
  • Electronic engine double lever throttle and gearshift control
  • Variable position stainless steel steering wheel
  • Power assist hydraulic steering
  • Helm station console in dark grey non glare UV protect finish
  • Compass at helm station
  • Protected storage cuddy under helm station
  • Entertainment system remote control located next to helm
  • Marine waterproof speakers located in arch
  • Dark acrylic windscreen with 316 Stainless Steel handrail support to deflect wind and glare
  • Spacious comfortable helm seat for 3 people with upholstered seat and backrest
  • Comfortable port side seating adjacent to helm station
  • Flybridge table with fold down extensions comfortably seating Six
  • Upholstered flybridge cushions with backrest
  • Wet bar located behind helm station incorporating corian work surface, sink and hot and cold faucet
  • Large storage area under wet bar with 2 x access doors
  • Dedicated life raft storage locker under aft seat with easy launch
  • Lifejacket and safety gear storage under flybridge seats
  • 11 x cup holders located in various areas around flybridge

Underwater Gear

  • Engine V Drive transmission for compact effiency
  • Propeller tunnels for reduced draft and maximum efficiency
  • 20 inch/500mm 4 blade bronze propeller
  • Propeller shaft - 1.38 inch/35mm machined stainless steel
  • Rudders and tiller arm in 316 stainless steel with FRP tube
  • Shut off valves on all salt water intakes in engine rooms
  • Sea water strainers with transparent lid
  • Watertight self aligning dripless shaft seal with 316 stainless housing and self aligning teflon bearing
  • Extended bronze P bracket for maximum propeller protection
  • Sacrificial keel forward of drive train
  • Electrogaurd shaft grounding brush for cathodic protection of shaft and propellers

Galley

  • Two burner propane/ Butane stove in center of galley
  • Stainless steel microwave / Inverter oven 120V or 220V (Inverter option as power source required)
  • Refrigerator / Freezer 2 drawer front access offering easy access and efficient packing
  • Double stainless steel sink with corian worktop cover and single lever variable temperature faucet
  • Storage cupboards & drawers offering ample storage for all galley accessories
  • Deep dish drying rack with corian worktop cover
  • Durable stain resistant corian countertop
  • Ample storage lockers on starboard side under corian worktop surface perfect for serving area
  • Slide out garbage bin
  • Dedicated blender / Coffee maker / Appliance work area behind corian countertop
  • Overhead LED ceiling lights as well as mood lighting
  • LED Courtesy floor lighting
  • Synthetic teak flooring offering maintenance free natural teak look
  • Storage area above galley cupboards with stainless steel 316 fiddle

Navigation Area

  • Navigation work surface for charts and books
  • AC/DC electrical panel with circuit breakers and transfer switches for all electrical systems - Inc ample spare breakers
  • Dedicated secondary display panel for optional generator, desalinator and inverter control panels
  • Dedicated electronics display panel offering easy access and visibility to electronic systems inc optional VHF radio
  • Multi zone entertainment system master unit offering multi zone control with dedicated I Pod/I Phone connection
  • Electronic panel displaying navigation lights and bilge pump warning lights and manual switches
  • Light switch panel controlling all salon, galley and aft cockpit lighting
  • Remote battery switches for all batteries on secondary panel

Electrical

  • House batteries 4 x 200 Amp / Hour AGM technology in dedicated battery locker
  • Dedicated engine batteries 2 x 200 Amp/hour AGM technology
  • Dedicated generator battery 1 x 200 Amp/hour AGM technology
  • AC power supplied by 2x 50 Amp 125/250V shore power cables
  • 50 Amp battery charger in dedicated electrical locker
  • Dedicated circuit breaker switches for all high load components
  • Galvanic isolator protector system
  • Shore side electrical system

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

Get A Quote

2014 Aquila 44
Please Select
  • Alabama
  • Alaska
  • American Samoa
  • Arizona
  • Arkansas
  • Armed Forces Pacific
  • California
  • Colorado
  • Connecticut
  • Delaware
  • District of Columbia
  • Florida
  • Georgia
  • Guam
  • Hawaii
  • Idaho
  • Illinois
  • Indiana
  • Iowa
  • Kansas
  • Kentucky
  • Louisiana
  • Maine
  • Maryland
  • Massachusetts
  • Michigan
  • Minnesota
  • Mississippi
  • Missouri
  • Montana
  • Nebraska
  • Nevada
  • New Hampshire
  • New Jersey
  • New Mexico
  • New York
  • North Carolina
  • North Dakota
  • Northern Mariana Islands
  • Ohio
  • Oklahoma
  • Oregon
  • Pennsylvania
  • Puerto Rico
  • Rhode Island
  • South Carolina
  • South Dakota
  • Tennessee
  • Texas
  • Us Virgin Islands
  • Utah
  • Vermont
  • Virginia
  • Washington
  • West Virginia
  • Wisconsin
  • Wyoming
Please Select
  • Email
  • Phone
Please Select
  • Morning
  • Evening
  • Afternoon
Please Select
  • Alabama
  • Alaska
  • American Samoa
  • Arizona
  • Arkansas
  • Armed Forces Pacific
  • California
  • Colorado
  • Connecticut
  • Delaware
  • District of Columbia
  • Florida
  • Georgia
  • Guam
  • Hawaii
  • Idaho
  • Illinois
  • Indiana
  • Iowa
  • Kansas
  • Kentucky
  • Louisiana
  • Maine
  • Maryland
  • Massachusetts
  • Michigan
  • Minnesota
  • Mississippi
  • Missouri
  • Montana
  • Nebraska
  • Nevada
  • New Hampshire
  • New Jersey
  • New Mexico
  • New York
  • North Carolina
  • North Dakota
  • Northern Mariana Islands
  • Ohio
  • Oklahoma
  • Oregon
  • Pennsylvania
  • Puerto Rico
  • Rhode Island
  • South Carolina
  • South Dakota
  • Tennessee
  • Texas
  • Us Virgin Islands
  • Utah
  • Vermont
  • Virginia
  • Washington
  • West Virginia
  • Wisconsin
  • Wyoming
Please Select
  • Email
  • Phone
  • Mailing Address
Please Select
  • Morning
  • Afternoon
  • Evening

Please Select
  • Immediately
  • Within 6 Months
  • Within a year
Please Select
  • Cash
  • Credit Card
  • I am looking to Finance
  • Other
Please Select
  • $0 - $900
  • $901 to $1000
  • $1001 to $5000
  • $5001 - $10,000
  • $10,001 plus
Please Select
  • $0 - $999
  • $2000 - $2999
  • $901 to $1000
  • $3003 to $3999
  • $4000 plus
Trade-In
Please Select
  • Email
  • Phone
